Brook Wingman FGC User manual

User Guide
CONVERTER
FGC

Content
EN
TW
2
English
11
Traditional Chinese
JP
19
Japanese
KR
27
Korean
1

CONVERTER
LED Button
LED Button
USB port can be used to connect
to PS5 / PS4 / PC
Simply connect to wired Fighting Stick.
•Each Wingman FGC can only connect to a single Fighting Stick
device. Wingman FGC supports most of the accessories that
are compatible with original factory specications. To expand
the number of supported accessories, rmware will be
updated irregularly.
FGC
2

To provide better services for competitive players, the default
setting of this product does Not include Turbo, Remap, and Macro
functions.
If players need these functions, you can download another
rmware version (Standard) from the download on the Brook
ocial website.
https://www.brookaccessory.com/download/PS5/
•Standard: Includes Turbo / Remap / Macro functions / Blue LED
•Tournament: Not include Turbo / Remap / Macro functions / Red LED

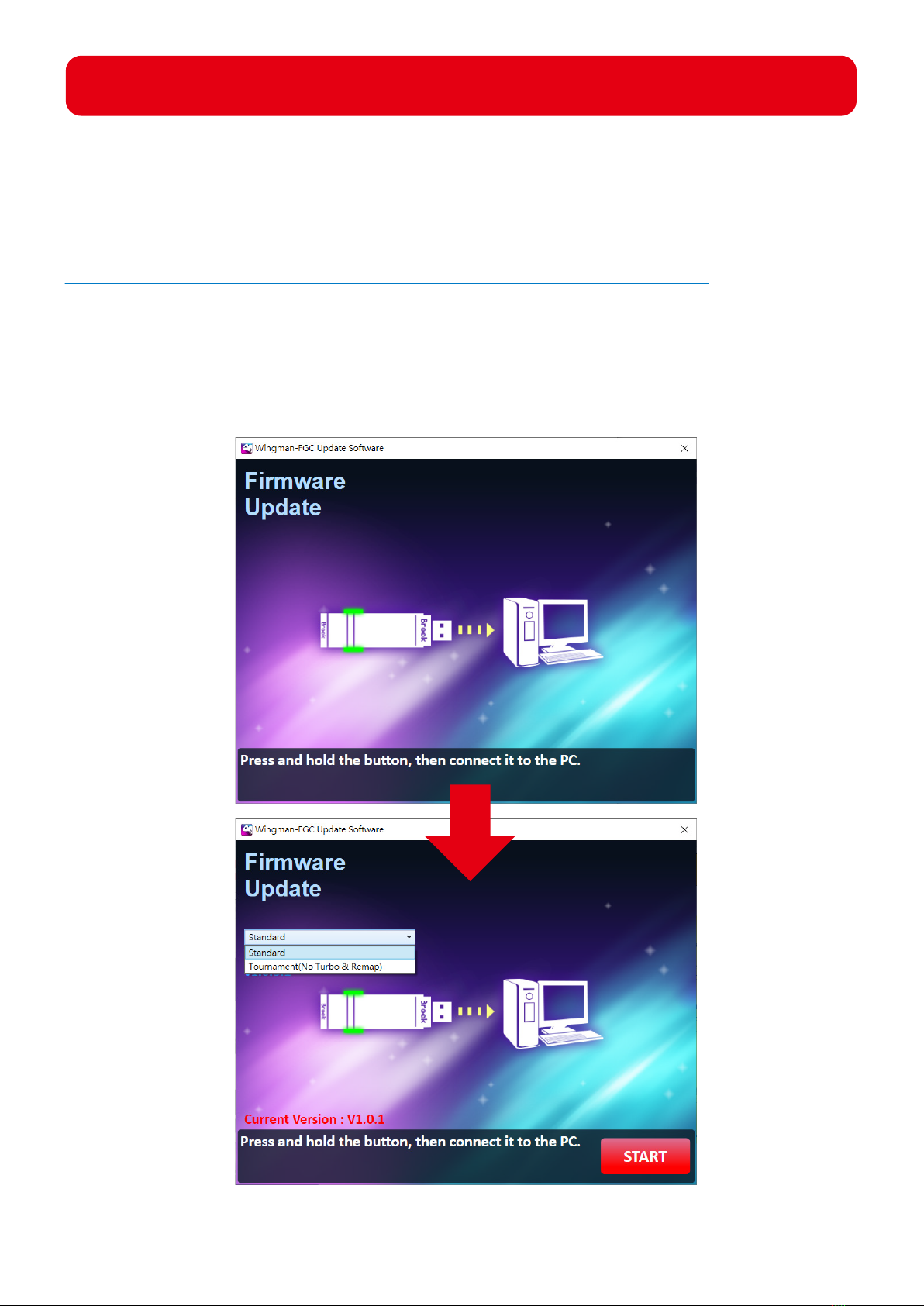

Firmware Update
3

If you want to store multiple conguration data, please download
the software from our ocial website rst. Then, follow the steps
below to save the conguration values on your computer.
https://www.brookaccessory.com/download/PS5/
Open “User Profile Settings Software”.
While inserting the Wingman FGC into the computer, press
the buttons on both sides of the converter. Continue
pressing until the text in the software window turns black.
Configuration Store
Step 1.
Step 2.
Export File From Device: read data from the converter into
the computer.
Import File To Device: loads the config file into the converter.
Select the desired file, and when "Import file succeeded"
appears, it indicates a successful import.
Step 3.
Step 4.
4

Lighting
Standard Version
Blue LED
Permanently on
Blue LED
Slow blinking
(Once every two seconds)
Status
The converter and the Wired
Fighting Stick are connected.
Wired Fighting Stick is not
connected.
LED Display
Red LED
Blinking
Turbo-Remap button is being
pressed.
Red LED
Permanently on
Entering Turbo-Remap
Settings.
Red LED
Blinking
Wired Fighting Stick is not
connected.
Red LED
Permanently on
The converter and the Wired
Fighting Stick are connected.
Lighting
Tournament Version
Status
5

Corresponding Buttons
X1/X1E2 X360 PS4/PS5 PS3 Switch PC
D-Pad (U/D/L/R)
Lx / Ly
Rx / Ry
╳
○
□
△
L1
R1
L2
R2
L3
R3
OPTIONS
SHARE
/Create
╳
○
□
△
L1
R1
L2
R2
L3
R3
START
SELECT
A
B
X
Y
LB
RB
LT
RT
LSB
RSB
START
BACK＋
START
A
B
X
Y
LB
RB
LT
RT
LSB
RSB
MENU
View＋MENU
/MENU
B
A
Y
X
L
R
ZL
ZR
L3
R3
+
-
A
B
X
Y
LB
RB
LT
RT
LSB
RSB
START
BACK
VIEW/
SHARE BACK TP Key －Capture －
Xe Key Xe Key PS Key PS Key Home Xe Key
6

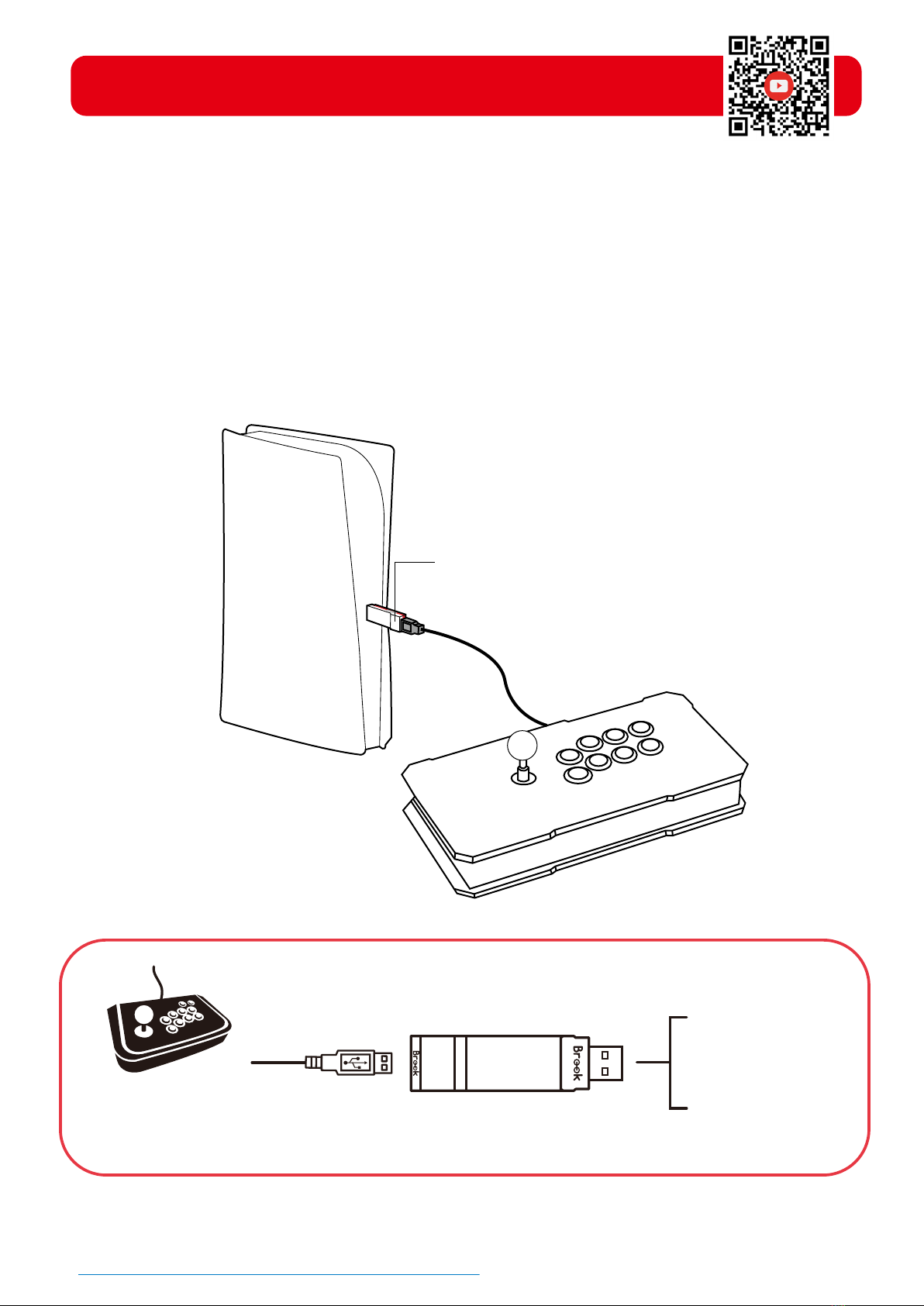

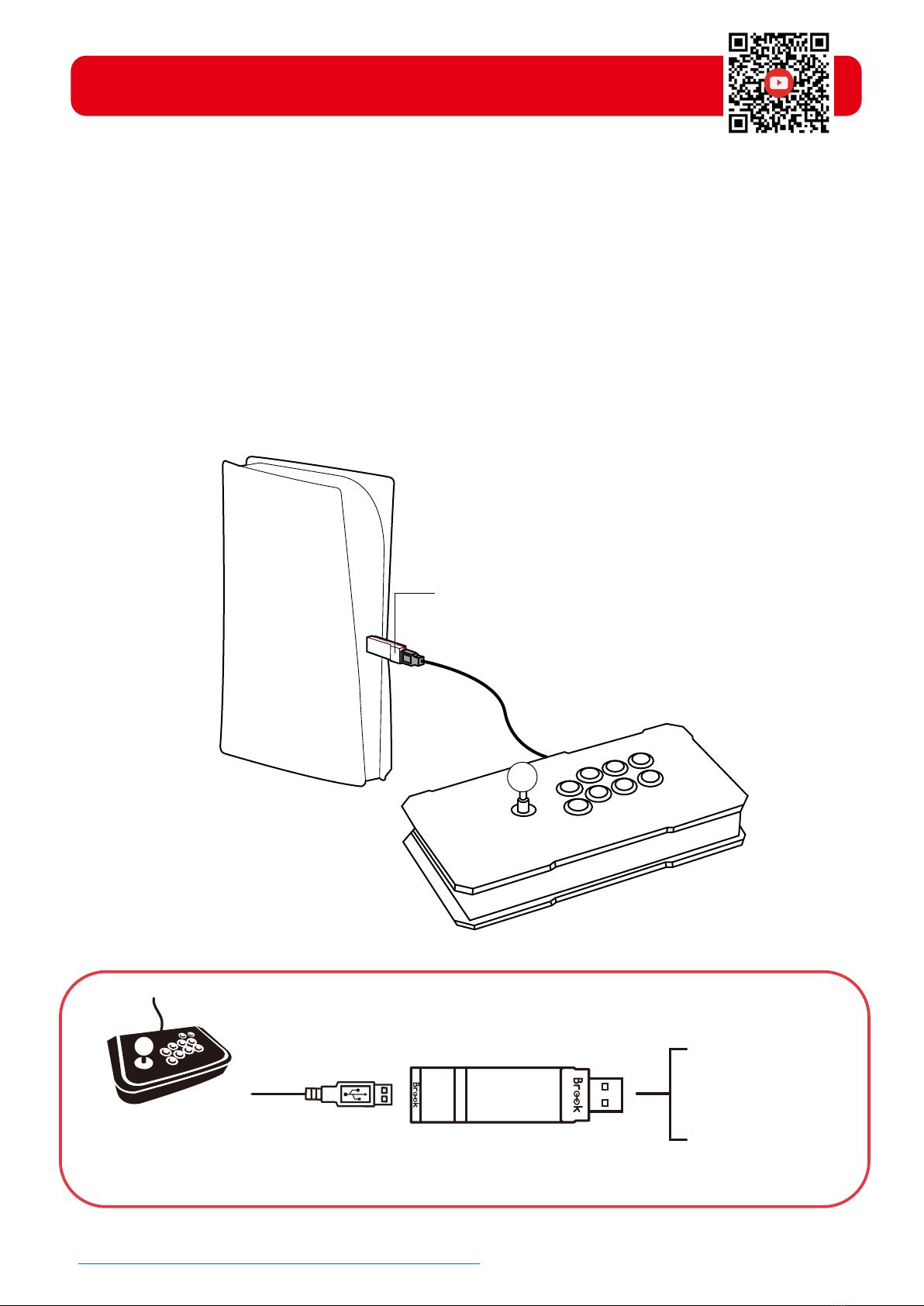

1. Connects to Console
Insert Wingman FGC into the PS5 console USB port. Slow
blinking of the Blue LED indicates that the connection to the
console is successful.
2. Connects to Wired Controller
Connect the Wired Fighting Stick to Wingman FGC through the
USB port.
Connecting to the Device
Wingman FGC
PS5 / PS4 console
PC (X-Input)
Wired
only
Wired
Fighting Stick
https://www.youtube.com/watch?v=BrUdE8JK2q8 7
