Brook WINGMAN XE2 User manual

202302V2
User Guide
CONVERTER
XE
2

Content
EN
TW
2
English
15
Traditional Chinese
JP
27
Japanese
KR
39
Korean

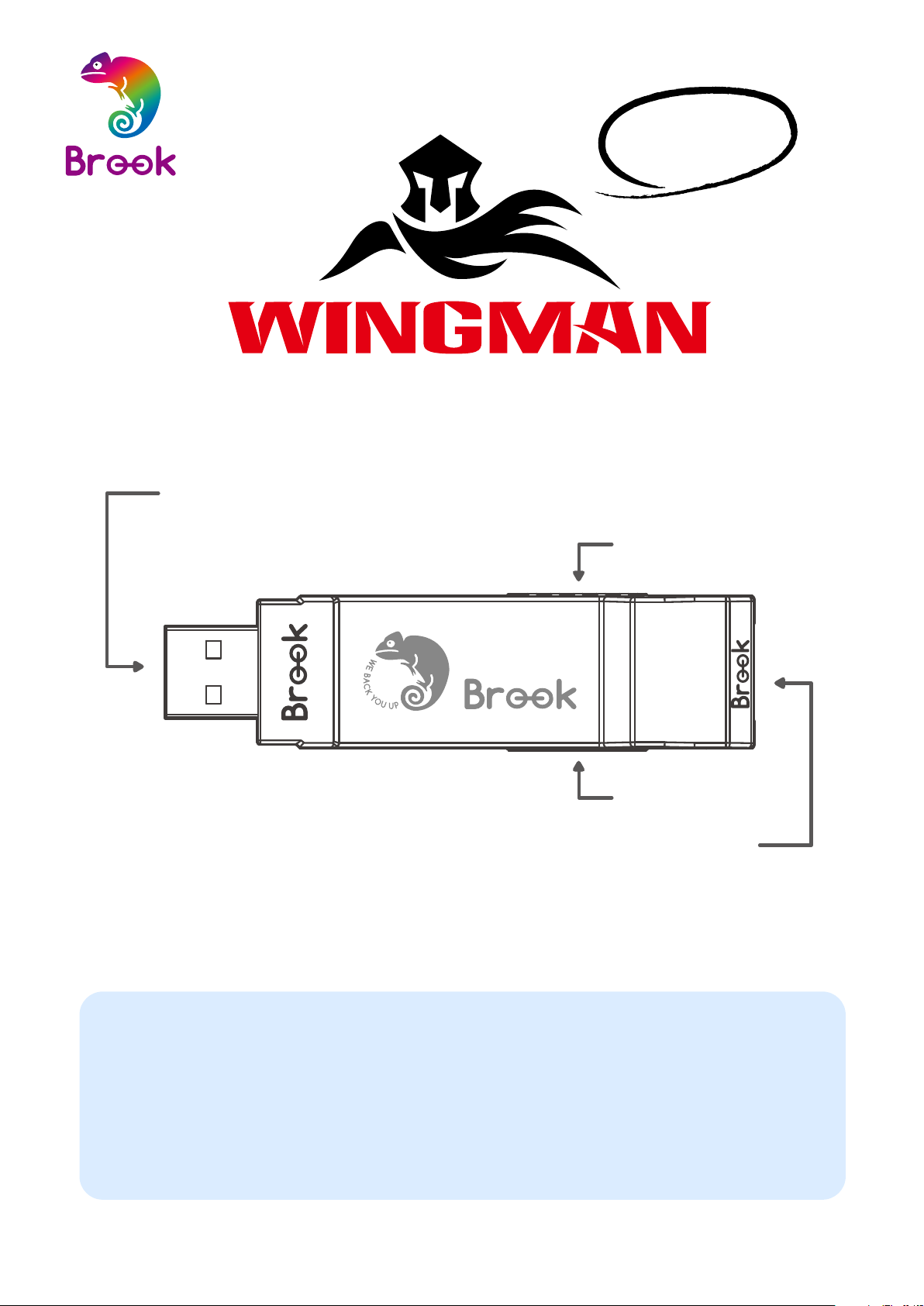

1

CONVERTER
XE
2
LED Button
LED Button
USB port can be used to connect
to PS4 / PS3 / Switch / PC
Simply connect to wired XSX|S / Xbox Elite 1 & 2 /
PS5 / PS4 / PS3 / Xbox One / Xbox360
/ Switch Pro / Fighting Stick.
•Each Wingman XE 2 can only connect to a single controller
device. Wingman XE 2 supports most of the accessories that
are compatible with original factory specications. To expand
the number of supported accessories, rmware will be
updated irregularly.
2

(PS3/ PS4/
Xbox One/ Xbox 360)
Xbox 360
Xbox One
Xbox Elite
Fighting Stick
Xbox Adaptive
Controller
SEGA Astro City mini
& MEGA Drive mini
controller
Xbox 360 wire-
less receiver
PS4/ PS3
Switch
PC
(Direct-Input)
Xbox One
(BT Model)
XSX|S
Xbox Elite
Series2
wired
only
wired or
wireless
PS5/ PS4/ PS3
Switch Pro
Wingman XE 2
PS4
PS5
3

Lighting
Blue LED
Permanently on
Blue LED
Fast blinking
Red LED
Blinking
Red LED
Permanently on
Blue LED
Slow blinking
(Once every two seconds)
Status
The connector and the device
are currently connected.
Wired device is not connected
Wireless device is searching for
connection…
Wireless connection mode is
ON. Searching for pairing
device…
Turbo-Remap button is being
pressed
Entering Turbo-Remap
Settings
LED Display
4

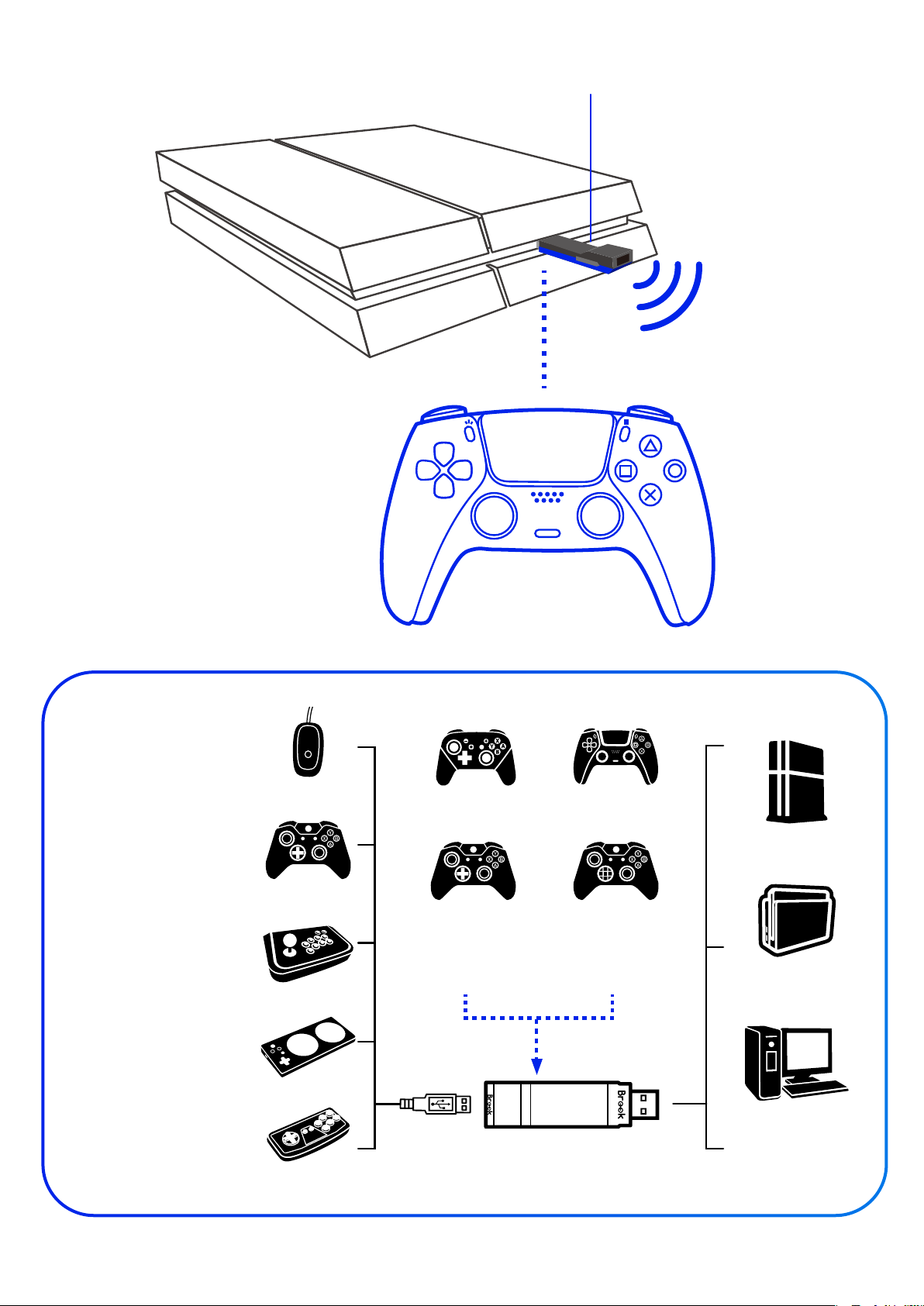

1. Connects to Console
Insert Wingman XE 2 into the PS4 console USB port. Slow blinking of
the Blue LED indicates that the connection to the console is
successful.
2. Connects to Wired Controller
Connect the wired controller or game pad to Wingman XE 2 through
the USB port.
3. Connects to Wireless Controller
(1) PS5 / PS4 / PS3 :
Connecting the controller and the Wingman XE 2, using a USB cable for
the rst time. Remove the USB cable after the Blue indicator is on.
(2) Xbox 360
Simply connect the X360 wireless receiver to the Wingman XE 2
through the USB port. The Blue indicator means they are connected.
(3) Xbox Elite 2∕Xbox One∕XSX|S/ Switch Pro
Connect the Xbox One wireless controller (Bluetooth model) or the
Xbox One Elite Series 2 to the Wingman XE 2 and the controller will be
ready for use. When connecting, hold the LED buttons at the two sides
of the Wingman XE 2 for 1 second to enter wireless connection mode.
Then press the Pair button on the wireless controller to begin pairing.
Fast blinking of Blue LED indicates that pairing is in progress.
LT
LB
RT
RB
Pair button
Connecting to the Device
5

step.1
Holding the LED buttons on the two sides of the Wingman XE 2 for 1
second will activate wireless connection pairing mode. The Wingman
XE 2 will engage in pairing with surrounding Bluetooth devices. The
pairing mode will end if:
A. The connection pairing with the wireless controller is successful.
B. The connection pairing is unsuccessful after 1 minute.
C. The LED buttons are held for 1 second.
step. 2
Wireless connection records between an Xbox One wireless controller
(with Bluetooth function)/Xbox One Series 2 and the Wingman XE 2
will be erased if a wired connection is used. Wireless connection
re-pairing will be required if wireless connection is used.
step. 3
If Xbox One Elite Series 2 controller is used, please turn o controller
prole settings to prevent interference with Wingman XE 2’s Turbo or
Remap settings. As Xbox One Elite Series 1 controller is incapable of
turning o prole settings, using Xbox One Elite Series 1 controller
might result in Remap function overlapping.
Connection Pairing Supplementary Instructions
6

XB1
Elite Series2
X360 PS4/PS5 PS3 Switch PC
D-Pad (U/D/L/R)
Lx / Ly
Rx / Ry
╳
○
□
△
L1
R1
L2
R2
L3
R3
OPTIONS
SHARE
/Create
PS Key
╳
○
□
△
L1
R1
L2
R2
L3
R3
START
SELECT
PS Key
A
B
X
Y
LB
RB
LT
RT
LSB
RSB
START
BACK
Xbox
Guide
Key
A
B
X
Y
LB
RB
LT
RT
LSB
RSB
MENU
VIEW
Xbox
Guide
Key
B
A
Y
X
L
R
ZL
ZR
L3
R3
+
-
Home
A
B
X
Y
LB
RB
LT
RT
LSB
RSB
START
BACK
Xbox
Guide
Key
Corresponding Buttons
7

B
A
C
K ST
A
R
T
=
PS4
SHARE OPTIONS
=
Xbox 360
SHARE OPTIONS
PS4
Xbox 360
B
A
C
K ST
A
R
T
2
2
Hold the RStick to the left, then press BACK.
Hold the R Stick to the right, then press BACK.
PS4
SHARE OPTIONS
=
Xbox 360
B
A
C
K ST
A
R
T
Press BACK.
1
1
B
A
C
K ST
A
R
T
=
Xbox 360
SHARE OPTIONS
PS4
Hold the BACK, then press START.
1 2

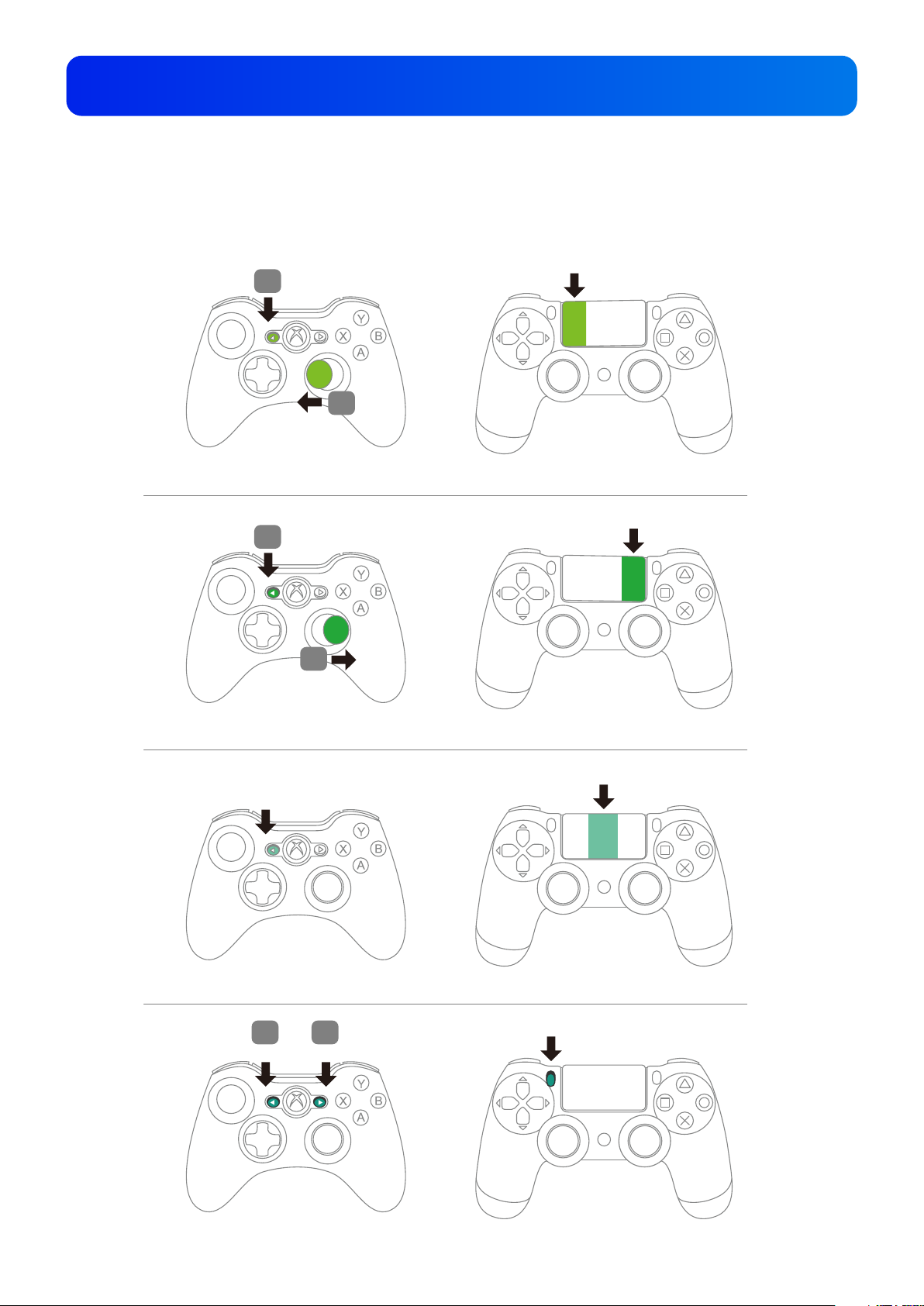

Touch Pad Simulation Function
Using the Xbox 360 controller:
BACK + R Stick can simulate the PS4’s Touchpad button.
BACK + START can simulate the PS4’s SHARE button.
8

Hold the RStick to the left, then press VIEW.
=
Xbox One
Xbox One
Xbox One
Xbox One
Y
A
X B
2
1
PS4
SHARE OPTIONS
=
SHARE OPTIONS
Hold the R Stick to the right, then press VIEW.
PS4
SHARE OPTIONS
=
Press VIEW.
=
SHARE OPTIONS
PS4
=
Y
A
X B
2
1
Y
A
X B
Y
A
X B
PS4
1 2
Hold the VIEW, then press MENU

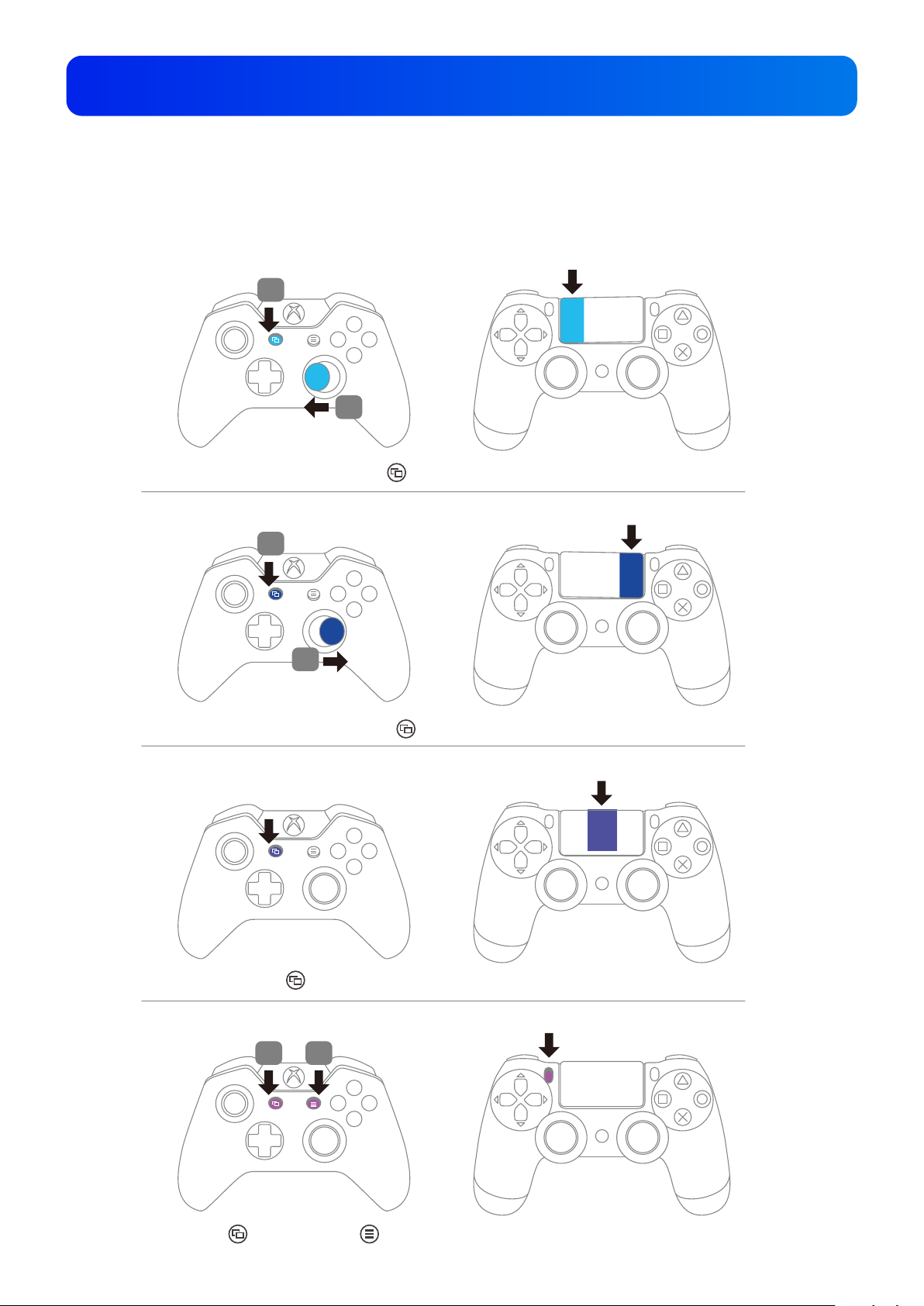

Using the Xbox One controller:
VIEW + R Stick can simulate the PS4’s Touchpad button.
VIEW + MENU can simulate the PS4’s SHARE button.
Touch Pad Simulation Function
9

The following instructions are based on the Xbox One controller. For
those using other controllers, please refer to the Corresponding
Buttons List.
Buttons that can be set as Turbo function buttons include: A, B, X, Y,
LB, RB, LT, RT, LSB, RSB 10 (hereinafter referred to as FK)
Step 1. Enter setting mode:
Press VIEW + Xbox Guide, the RED LED of the Wingman XE 2
will be permanently on.
Step 2. Choosing a FK button: (e.g. Setting A as turbo function)
Hold VIEW, then press A
Step 3. Completing Setting Mode:
Release all buttons, then press MENU to save settings.
Step 4. Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE 2 will be
permanently on.
Turbo Function Settings
Step 1. Enter setting mode:
Press VIEW + Xbox Guide, the RED LED of the Wingman XE 2
will be permanently on.
Step 2. Erasing all Turbo function buttons
Press VIEW + MENU
Step 3. Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE 2 will be
permanently on.
Cancelling Turbo Function
Turbo Function Settings
10

The following instructions are based on the Xbox One controller.
For those using other controllers, please refer to the Corresponding
Buttons List.
Step 1. Enter the setup mode
Press VIEW + Xbox Guide, the RED LED of the Wingman XE 2
will be permanently on.
Step 2. Turbo Frequency Setting
The Up button increases frequency while the Down button
decreases it.
To increase frequency: press both VIEW and the Up buttons,
and the indicator will ash faster.
To decrease frequency: press both VIEW and Down buttons,
then the indicator will ash slower.
Step 3. Save
Press MENU to save your settings.
Step 4. Exit
Press the Xbox Guide button to leave Turbo setup mode. The
RED LED indicator will then turned o.
Turbo Frequency Setting
11

The following instructions are based on the Xbox One controller.
For those using other controllers, please refer to the Corresponding
Buttons List.
Buttons that can be Remap include: A, B, X, Y, LB, RB, LT, RT, LSB, RSB
10 (hereinafter referred to as FK)
Step 1. Enter setting mode:
Press MENU + Xbox Guide, the RED LED of the Wingman XE 2
will be permanently on.
Step 2. Choosing a FK button: (e.g. Setting X as A+B)
Press X
Step 3. Choosing button to be set:
Hold VIEW, then press A + B.
Step 4. Completing setting mode:
Release all buttons, then press MENU to save settings.
Step 5. Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE 2 will be
permanently on.
Step 1. Enter setting mode:
Press MENU + Xbox Guide, the RED LED of the Wingman XE 2
will be permanently on.
Step 2. Erasing all settings for Button Remap Settings.
Press VIEW + MENU.
Step 3. Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE 2 will be
permanently on.
Button Remap Settings
Cancelling Button Remap Settings
Button Remap Settings
12

FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
•Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
•Ambient Operating Temperature ......................0℃to +50℃
13

ISED Statement:
This device contains licence-exempt transmitter(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference,
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Brook Gaming
For the latest user guide and more information, visit our website:
www.brookaccessory.com
FCC ID: 2ADKM005A
IC: 29174-ZPP005A
P/N: Wingman XE 2
M/N: ZPP0064
14

CONVERTER
XE
2
•每個 Wingman XE 2 一次僅能對應一支控制器裝置。
Wingman XE 2 支援大多數符合原廠規格之相容配件，
並不定時藉由韌體更新擴充支援清單。
燈號顯示
燈號顯示
連接至遊戲主機 PS4 / PS3 /
Switch / PC
連接至有線控制器 XSX|S / Xbox Elite 1＆2
/ PS5 / PS4 / PS3 / Xbox One / Xbox360
/ Switch Pro / Fighting Stick
15

(PS3/ PS4/
Xbox One/ Xbox 360)
Xbox 360
Xbox One
Xbox Elite
Fighting Stick
Xbox Adaptive
Controller
SEGA Astro City mini
& MEGA Drive mini
controller
Xbox 360 wire-
less receiver
PS4/ PS3
Switch
PC
(Direct-Input)
Xbox One
(BT Model)
XSX|S
Xbox Elite
Series2
wired
only
wired or
wireless
PS5/ PS4/ PS3
Switch Pro
Wingman XE 2
PS4
PS5
16

LED
燈 號
藍色 LED
恆亮
藍色 LED
快速閃爍
紅色 LED
閃爍
紅色 LED
恆亮
藍色 LED
慢速閃爍
（兩秒閃一次）
狀 態
轉接器與裝置
連線工作中
有線裝置未接續、
無線裝置連線搜尋中
無線註冊模式啟動、
搜尋配對裝置中
Turbo-Remap
功能鍵被按下
進入Turbo-Remap
設定模式
17

連線使用
1. 連接到遊戲主機
將 Wingman XE 2 連接到 PS4 主機的 USB 連接埠，當 藍色 LED
慢速閃爍即代表與主機連線成功。
2. 連接到有線控制器
將有線手把或大搖台以 USB 線連接至 Wingman XE 2 即可使用。
3. 連接到無線控制器
(1) PS5 / PS4 / PS3 :
依照有線連接之說明完成連線，當藍色燈號恆亮後將 USB 線移除，
再將 PS5∕PS4 ∕PS3 無線手把喚醒即可。
(2) Xbox 360 :
將X360無線遊戲接收器與 Wingman XE 2 透過 USB 介面連接即可
使用。藍色恆亮表示與手把連線成功
(3) Xbox Elite 2∕Xbox One∕XSX|S/ Switch Pro :
將 Xbox One 無線控制器（藍芽規格）或 Xbox One 菁英手把二代
與 Wingman XE 2 進行無線配對連線後即可使用。配對時需按壓
Wingman XE 2 兩側的 LED 按鍵1秒鐘以進入無線配對狀態，並按
下無線控制器上的無線註冊鍵以進行配對。此時呈現 藍色LED 快
速閃爍狀態。
LT
LB
RT
RB
無線註冊鍵
18

配對補充說明
step.1
按壓 Wingman XE 2 兩側的 LED 按鍵1秒鐘後會進入無線配對模式，
並會對周遭的藍芽裝置進行配對，當發生以下任一狀況時會退出配
對模式：
A. 與無線手把配對成功
B. 配對超過一分鐘仍未成功
C. 再次按壓 LED 按鍵 1 秒鐘
step. 2
使用 Xbox One 無線控制器（藍芽規格）或 Xbox One 菁英手把二代
與 Wingman XE 2 進行無線配對後，若改為有線連接，將導致控制
器本身的無線配對紀錄被清除。再次以無線連線方式使用時，需重
新進行無線配對。
step. 3
若使用 Xbox One 菁英手把二代，請關閉手把的 Profile 設置，以避
免與 Wingman XE 2 本身的 Turbo 或 Remap 設置互相干涉。Xbox
One 菁英手把一代因沒有關閉 Profile 功能，可能造成 Remap 功能
的重疊。
19
