BrookVent aircycle ONE 100 Mounting instructions

brookvent.co.uk
Installation, maintenance & user manual
Applicable to the following aircycle ONE models:
PRODUCT CODE DESCRIPTION
AF 90-CYC-ONE-100 aircycle ONE 100
AF 90-CYC-ONE-150 aircycle ONE 150
single room heat recovery

1/19
CONTENTS
PLEASE KEEP THESE INSTRUCTIONS WITH THE PRODUCT.
Please read this manual fully prior to installing the MVHR unit.
1.0 Introduction ........................................................................................................................2
1.1 Model Variations.................................................................................................................2
1.2 Product Guarantee..............................................................................................................3
2.0 Safety ..................................................................................................................................4
2.1 General Safety.....................................................................................................................4
2.2 Responsibility of the Installer..............................................................................................5
2.3 Responsibility of the Occupant ...........................................................................................5
3.0 Specifications/ Dimensions.................................................................................................6
3.1 Product versions .................................................................................................................6
3.2 Detailed Specification .........................................................................................................6
3.3 ErP Directive - Regulations 1253/2014 - 1254/2014 ..........................................................7
4.0 Operation............................................................................................................................8
4.1 Synchronisation...................................................................................................................8
4.2 Jumper positions.................................................................................................................9
4.3 Disposal and recycling.........................................................................................................9

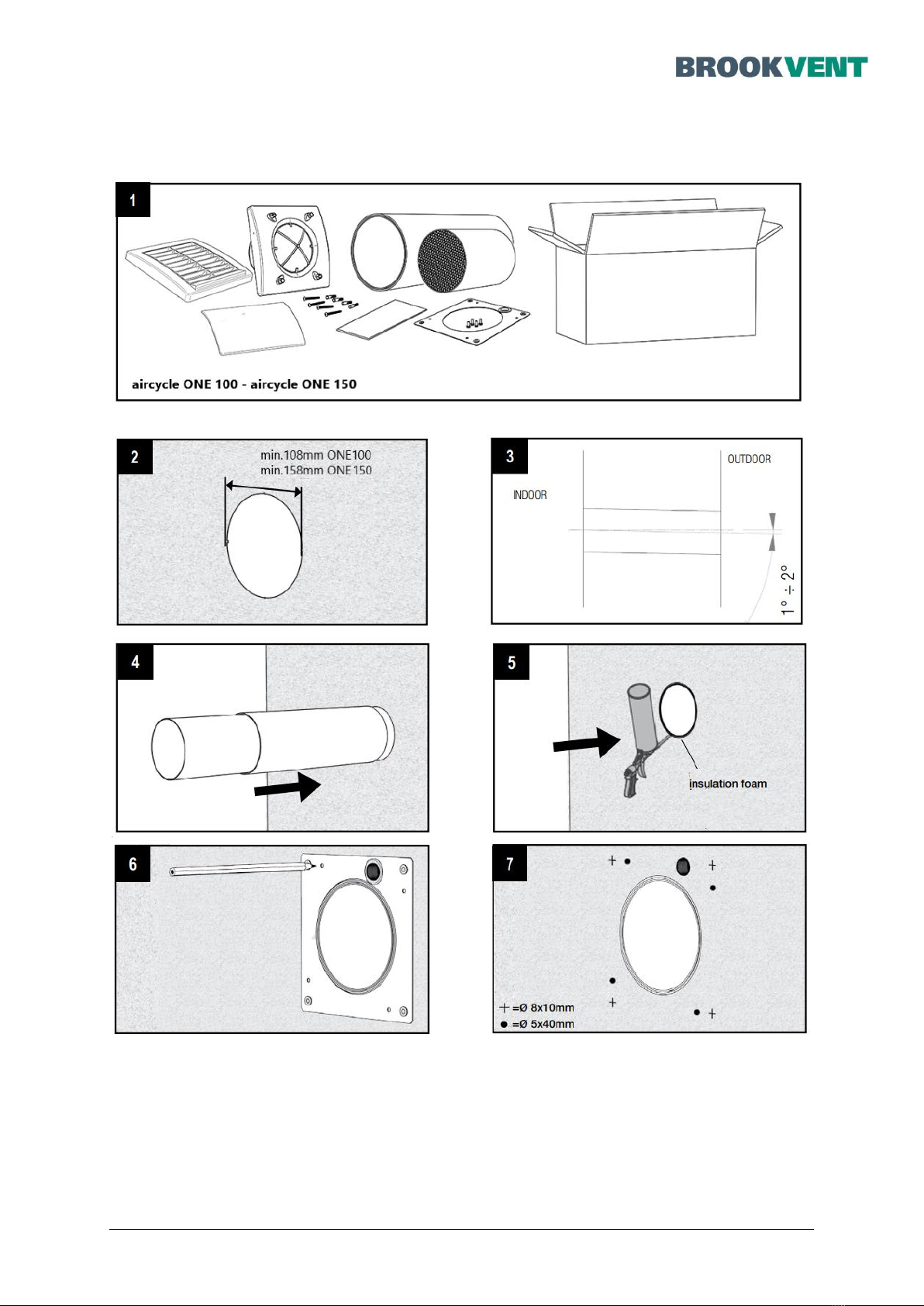

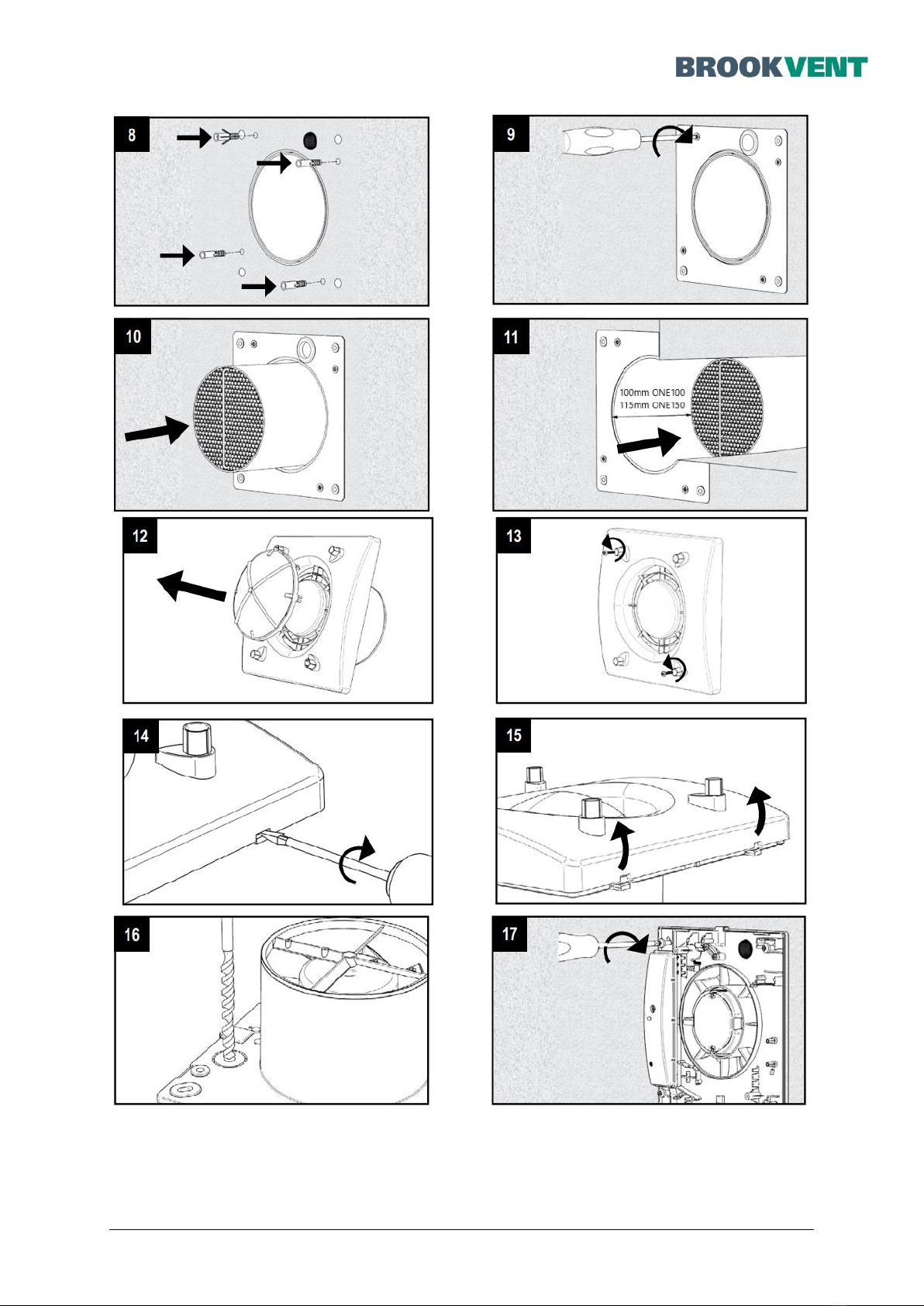

5.0 Installation and figures......................................................................................................10
Notes.............................................................................................................................................18
Customer Support.........................................................................................................................19

2/19
IMPORTANT
This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
1.0 Introduction
A continuous running, low energy, ultra-quiet, alternate flow supply and extract fan with
heat retention for use in habitable areas such as living rooms, bedrooms, dining rooms,
basements and hallways.
The unit provides ventilation and reduces indoor air pollutants and humidity levels. The
unit is ideal for tackling problems associated with condensation dampness such as mould
growth.
It is recommended that two units are installed in pair: when one unit is pulling, the other
is pushing.
Pair of units can be installed in the same room or in different rooms (i.e. living room and
bedroom). The unit is suitable for installation on an outside wall.
The unit should operate continuously, and only be stopped for maintenance or service.
When heat exchange is not useful (for example in mid-seasons when indoor and outdoor
temperatures are similar), or when heat exchange is not recommended (for example with
the option “summer free cooling”), it is recommended to set the unit in “extract-only” or
“intake-only” mode and NOT to switch it off.
1.1 Model Variations
PRODUCT CODE DESCRIPTION
AF 90-CYC-ONE-100 aircycle ONE 100
AF 90-CYC-ONE-150 aircycle ONE 150

3/19
1.2 Product Guarantee
This product is guaranteed against defects for a period of 2 years from date of purchase
with the first year covering parts and labour and the remaining year covering parts only.
In the instance of a defect, Brookvent may repair the product, replace the product free of
charge or refund the cost of the product at Brookvent’s own discretion. In terms of
installation, operation and maintenance please follow all instructions provided. If this
product has been misused, not properly maintained or handled carelessly it may lead to
this guarantee being declared void.
Brookvent does not accept liability for damage caused by non-observance of the
installation instructions. Service activities must be carried out by Brookvent or by
competent installers using original Brookvent parts. This guarantee does not affect your
statutory right as a consumer.
Brookvent operate a policy of continuous innovation and improvement and thus reserve
the rigt to alter product specifications and appearances without notice.

4/19
2.0 Safety
The following information must be read carefully to ensure safe installation and
operation of the unit.
2.1 General Safety
✓The device should not be used for applications other than those specified in this
manual.
✓After removing the product from its packaging, verify its condition. In case of
doubt, contact a qualified technician. Do not leave packaging within the reach of
small children or people with disabilities.
✓Do not touch the appliance with wet or damp hands/feet.
✓This appliance can be used by children aged 8 years old and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children should
not play with the appliance. Cleaning and user maintenance should not be
performed by children without supervision.
✓Do not use the product in the presence of flammable vapours, such as alcohol,
insecticides, gasoline, etc.
✓If any abnormalities in operation are detected, disconnect the device from the
mains supply and contact a qualified technician immediately. Use only original
spare parts for repairs.
✓The electrical system to which the device is connected must comply with
regulations.
✓Before connecting the product to the power supply or the power outlet, ensure
that:
❖the data plate (voltage and frequency) corresponds to those of the
electrical mains
❖the electrical power supply/socket is adequate for maximum device power.
If not, contact a qualified technician.
✓The device should not be used as an activator for water heaters, stoves, etc., nor
should it discharge into hot air/fume vent ducts deriving from any type of
combustion unit. It must expel air outside via its own duct.
✓Operating temperature: -20°C up to +50°C.
✓The device is designed to extract clean air only, i.e. without grease, soot, chemical
or corrosive agents, or flammable or explosive mixtures.
✓Do not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).
✓Do not immerse the device or its parts in water or other liquids.
✓Turn off the main switch whenever a malfunction is detected or when cleaning.
✓For installation an omni polar switch should be incorporated in the fixed
wiring, in accordance with the wiring regulations, to provide a full

5/19
disconnection under overvoltage category III conditions (contact opening
distance equal to or greater than 3mm).
✓If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons to avoid a hazard.
✓Do not obstruct the fan or exhaust grille to ensure optimum air passage.
✓Ensure adequate air return/discharge into/from the room in compliance with
existing regulations in order to ensure proper device operation.
✓If the environment in which the product is installed also houses a fuel-
operating device (water heater, methane stove etc., that is not a “sealed
chamber” type), it is essential to ensure adequate air intake, to ensure good
combustion and proper equipment operation.
✓Install the product so that the impeller is not accessible from the air outlet side
as verified by contact with the Test Finger (test probe “B” of the norm EN61032)
in compliance with the current safety regulations.
2.2 Responsibility of the Installer
✓Correct Installation, balancing and commissioning of the unit.
✓Compliance to requirements and local additional rules.
✓Explanation of the ventilation system to the user.
✓Warning for the user, to check or replace the air filters on time.
2.3 Responsibility of the Occupant
✓To ensure maintenance of the ventilation unit on a regular basis. Filters should be
checked, cleaned or replace every 6 months. Details can be found on page 15
(maintenance).
✓To ensure that the fan is operating. The aircycle ONE ventilation units are designed
to operate 24/7.

6/19

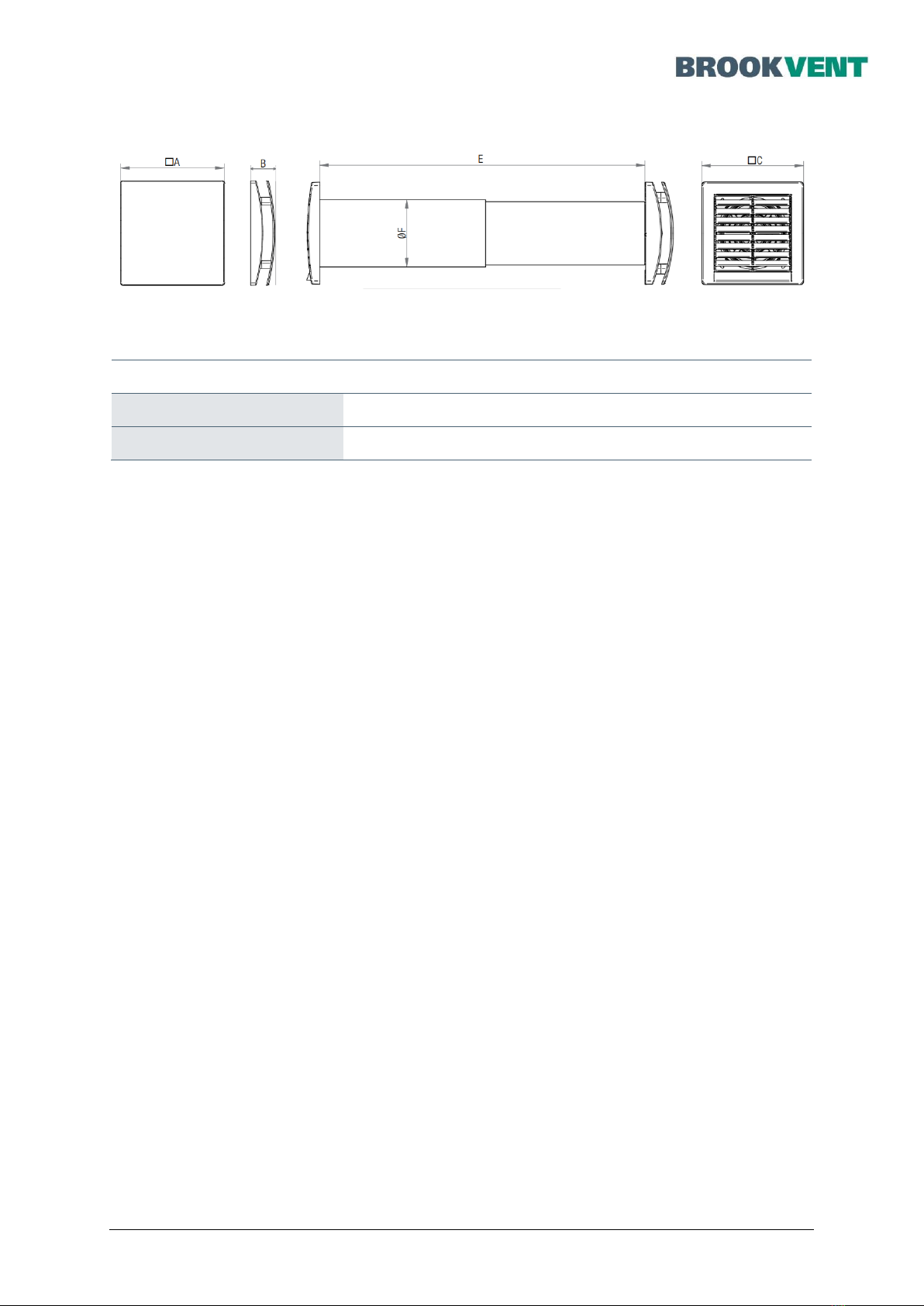

3.0 Specifications/ Dimensions
3.1 Product versions
3.2 Detailed Specification
✓Inner ventilation unit material: high quality, impact and UV-resistant ABS colour
RAL 9010.
✓Asthetic front cover easily removable for cleaning without the need for tools.
✓Easy maintenance installation plate, for easy access to the heat exchanger from
inside the room.
✓Anti-dust filter removable from inside by the tenant for maintenance.
✓Regenerative heat exchanger with ceramic core; high thermal efficiency.
✓External grille in high quality, impact and UV-resistant ABS colour RAL 9010.
✓Unique design winglet-type impeller, providing enhanced aerodynamic properties,
low noise and increased efficiency.
✓Single phase EC reversible Brushless motor with integral thermal protection.
✓Motor mounted on high quality ball bearings.
✓The unit is double insulated: no earth connection is required.
✓Trickle speed selectable.
✓Boost mode.
✓Free-cooling (Bypass) mode.
✓IPX4 degree of protection.
✓Power supply 220V to 240V~ 50Hz.
Product Version
Weight
A
B
C
E
F
aircycle ONE 100
2.3 kg
164
46
164
270:510
108
aircycle ONE 150
3.9 kg
218
51
218
300:560
158

7/19
3.3 ErP Directive - Regulations 1253/2014 - 1254/2014
a)
Mark
-
BROOKVENT
b)
Model
-
aircycle ONE 100
aircycle ONE 150
c)
SEC class
-
A
A
c1)
SEC warm climates
kWh/m
2
.a
-15.6
-16.2
c2)
SEC average climates
kWh/m
2
.a
-37.5
-38.2
c3)
SEC cold climates
kWh/m
2
.a
-75.6
-76.4
Energy label
-
Yes
d)
Unit typology
-
Residential - bidirectional
e)
Type of drive
-
Multi-speed drive
f)
Type of Heat Recovery System
-
Heat recovery
g)
Thermal efficiency of heat recovery
%
74
74
h)
Maximum llow rate
m
3
/h
25
60
i)
Electric power input at maximum flow rate
W
2.6
3.8
j)
Sound power level (L
WA
)
dBA
35
38
k)
Reference flow rate
m
3
/h
17
41
l)
Reference pressure difference
Pa
10
10
m)
Specific power input (SPI)
W/m
3
/h
0.071
0.054
n1)
Control factor
-
1
1
n2 )
Control typology
-
Manual control (no DCV)
o1)
Maximum internal leakage rate
%
N/A
o2)
Maximum external leakage rate
%
1
1
p1)
Internal mixing rate
%
N/A
p2)
External mixing rate
%
N/A
q)
Visual filter warning
-
N/A
r)
Instructions to install regulated grilles
-
N/A
s)
Internet address for pre/disassembly instructions
-
www.brookvent.co.uk
t)
Airflow sensitivity to pressure variations
%
N/A
u)
Indoor/outdoor air tightness
m
3
/h
21
60
v1)
AEC-Annualelectricityconsumption-warmclimates
kWh
1
0.7
v2)
AEC - Annual electricity consumption –average climates jährlicher
kWh
1
0.7
v3)
AEC - Annual electricity consumption - cold climates jährliche
kWh
1
0.7
w1)
AHS -Annual heating saved - warm climates
kWh
18
18.1
w2)
AHS - Annual heating saved - average climates
kWh
39.9
40
w3)
AHS - Annual heating saved - cold climates
kWh
78
78.2

8/19
4.0 Operation
In both versions, the unit extracts air out for 70 seconds, then it supplies air in for the
same time. When heated air is pulled (extracted) from inside the room, it warms up the
heat exchanger; when the cold air is pushed (supplied) in the room, it gets preheated,
recovering most of thermal energy which would be otherwise lost in the ventilation
process.

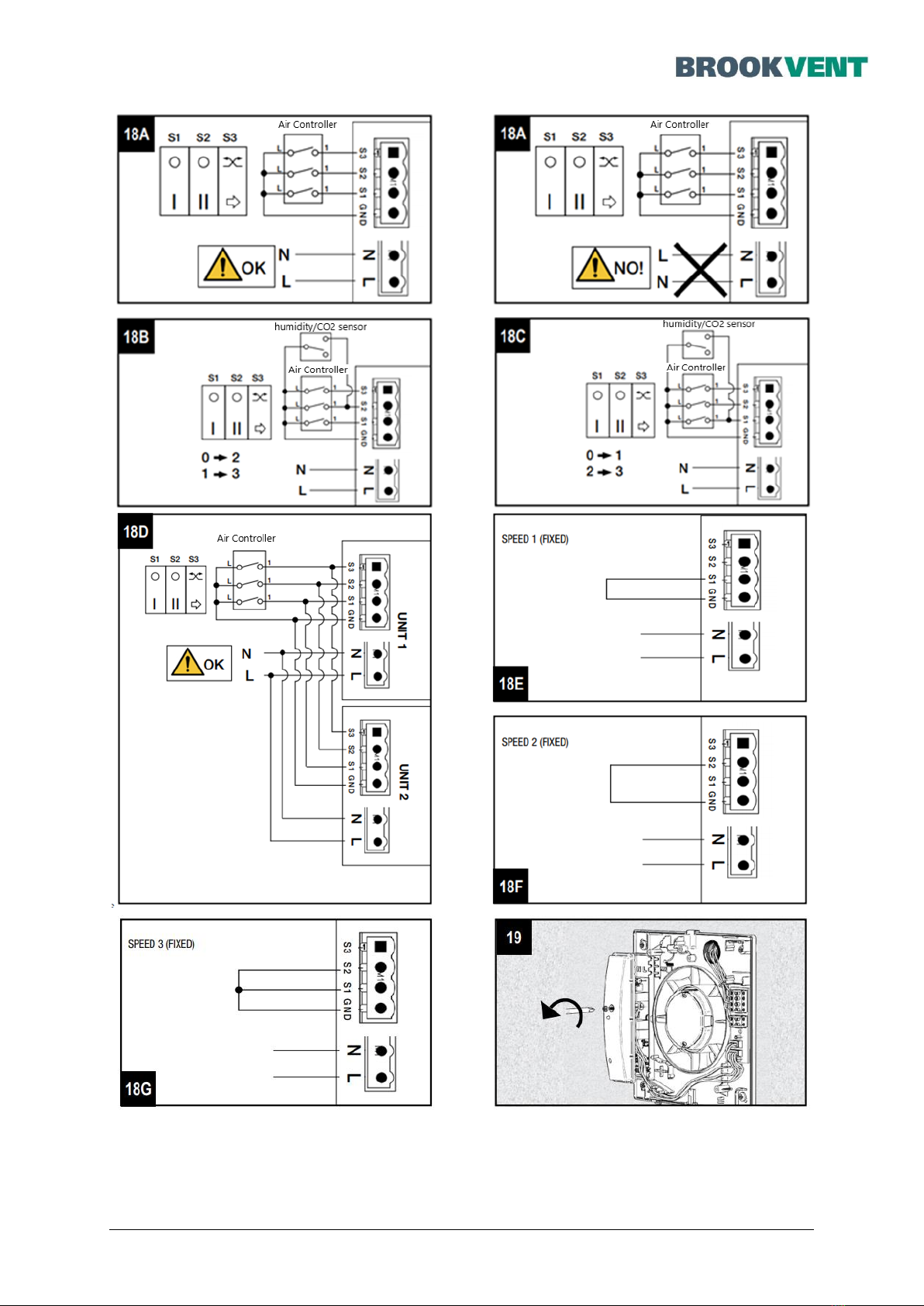

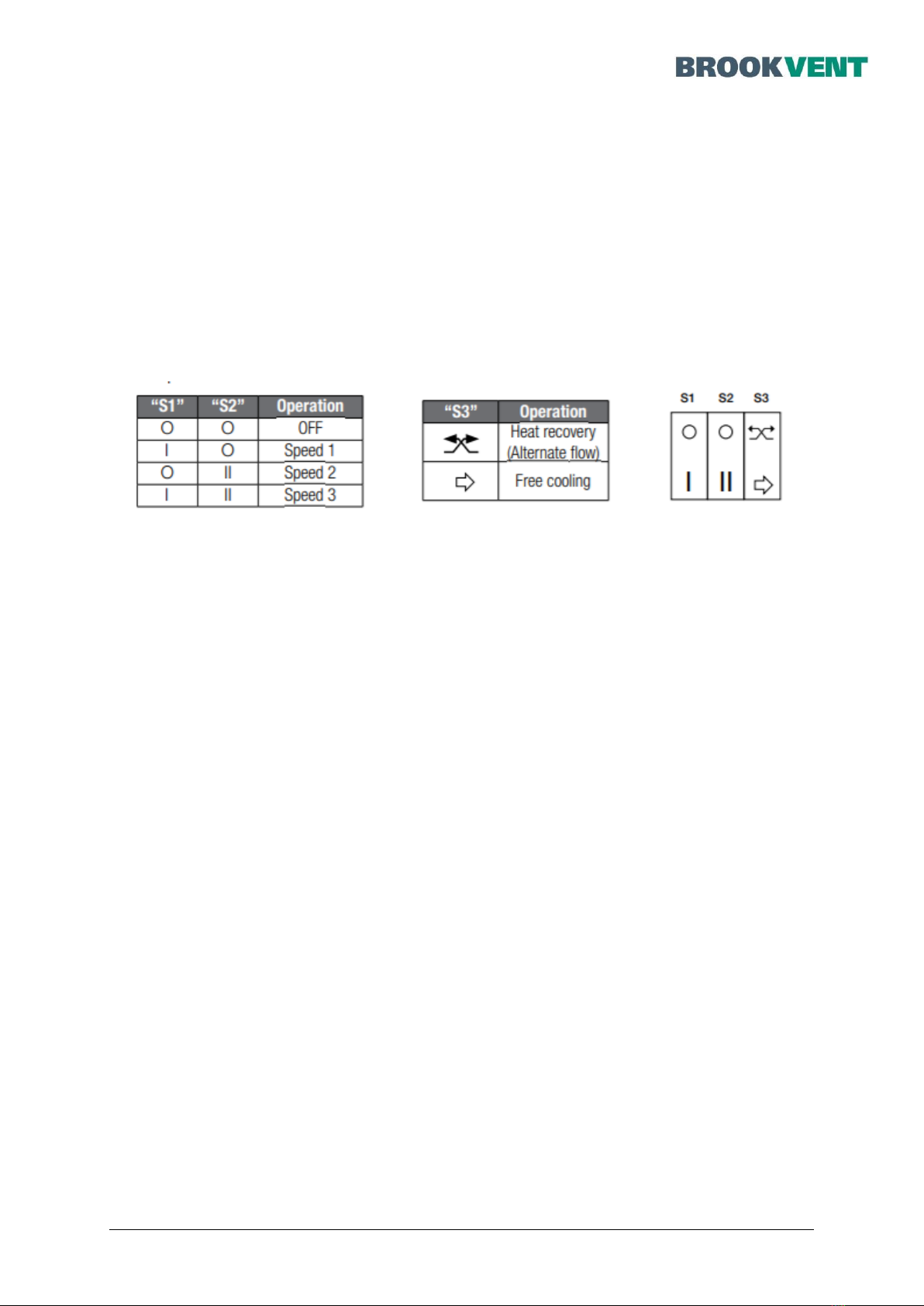

The unit runs at the speed selected by activating the switches “S1”, “S2” and “S3” of the Air

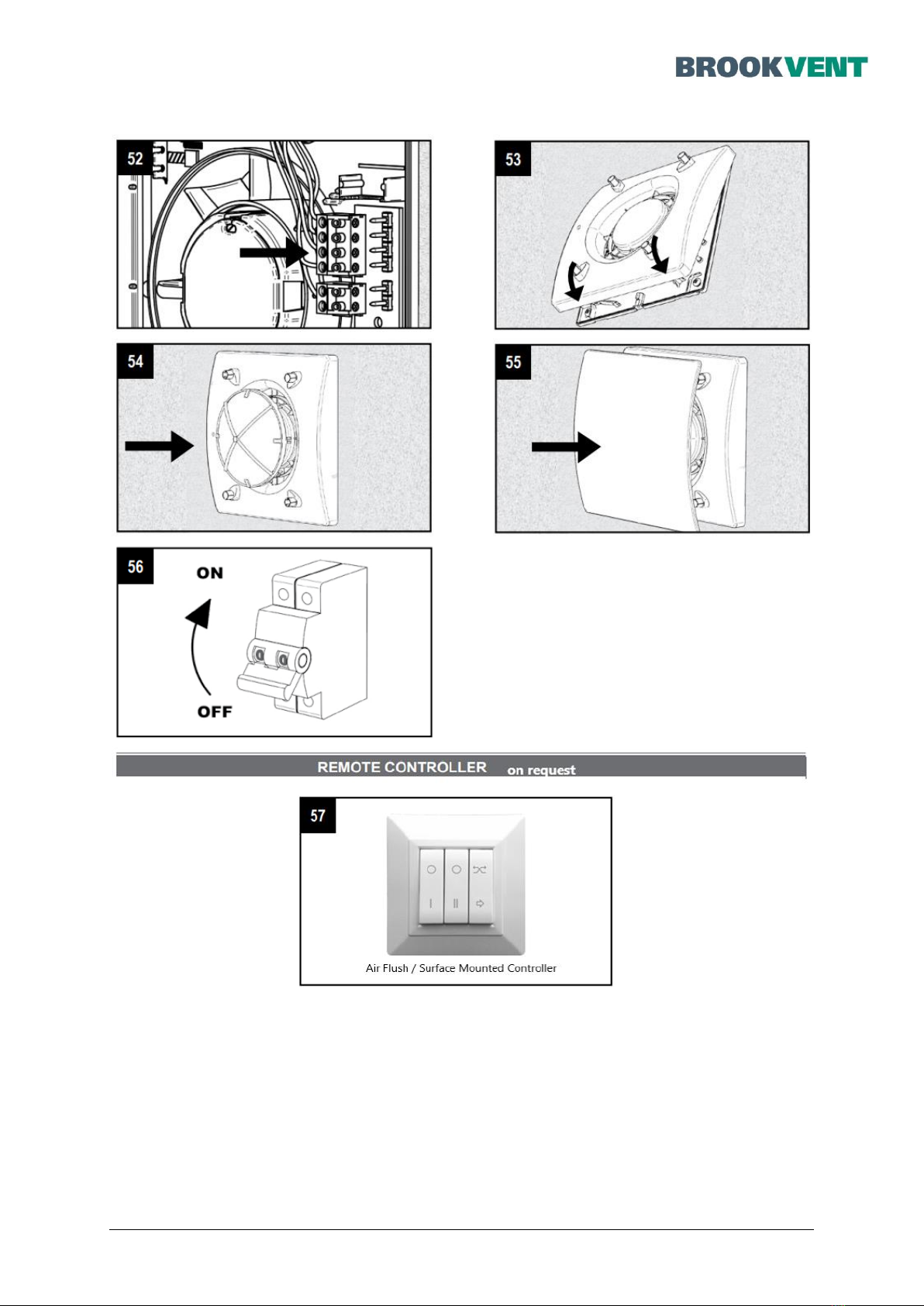

Controller (accessory fig. 57). The same functionality can be achieved with Air Controller
or with 3 switches.
S3 switch activates the “Free cooling“ (Bypass) mode, which stops alternate flow and
keeps the fan in “extract-only” or “intake-only” mode, to avoid the heat exchange when
necessary. To set the “extract-only” mode or “intake-only”, place the integral jumpers as
per fig. 20A-20B. The front cover LED indicates when the Free cooling mode is on.
An automatic “Boost”mode can be achieved through a dedicated switch or room sensors
like humidity sensor, CO2 sensor, PIR sensor, connecting such switch in parallel to the S2
switch.
Wiring diagram of one unit: fig. 18A.
Wiring diagram with ambient sensors: fig.18B-18C.
Wiring diagram of two or more units: fig. 18D.
WARNING:
Ensure that the electric wiring to L and N is done correctly; an incorrect connection will
lead to malfunction or permanent damage of the fan.
4.1 Synchronisation
When the units are installed in pair, they must be synchronised so that when one unit is
extracting, the other is supplying, and viceversa (fig. 18E-18F-18G). This is achieved by
setting the dedicated jumper (fig. 20A-20B).
RESET OF THE SYNCHRONISATION
OPTION 1: If two or more units are connected under the same main switch, to reset the
synchronisation, the main switch must be switched first OFF and then ON to reactivate
(fig. 31).

9/19
OPTION 2: If two or more units are not connected under the same main switch, to reset
the synchronisation, press at the same time the black pin of each unit (fig. 33) for at least
3 seconds.
If two or more units are controlled by means of the same controller (Air Controller or
similar), they always operate in a synchronised way.Wiring diagram as per fig. 18D
4.2 Jumper positions
Intergal jumper set in position A (fig. 20A) means “extract-only” mode. Intergal jumper set
in position B (fig. 20B) means “intake-only” mode.
The jumper position defines both the air-flow direction when the unit is activated for the
first time (for the synchronisation) and the air-flow direction of the free- cooling mode.
4.3 Disposal and recycling
Information on disposal of units at the end of life.
This product complies with EU Directive 2002/96/EC.
The symbol of the crossed-out dustbin indicates that this product must be collected
separately from other waste at the end of its life. The user must, therefore, dispose of the
product in question at suitable electronic and electro-technical waste disposal collection
centres, or else send the product back to the retailer when purchasing a new, equivalent
type device.
Separate collection of decommissioned equipment for recycling, treatment and
environmentally compatible disposal helps to prevent negative effects on the
environment and on health and promotes the recycling of the materials that make up the
equipment.
Improper disposal of the product by the user may result in administrative
sanctions as provided by law.

10/19
5.0 Installation and figures

11/19

12/19

13/19

14/19

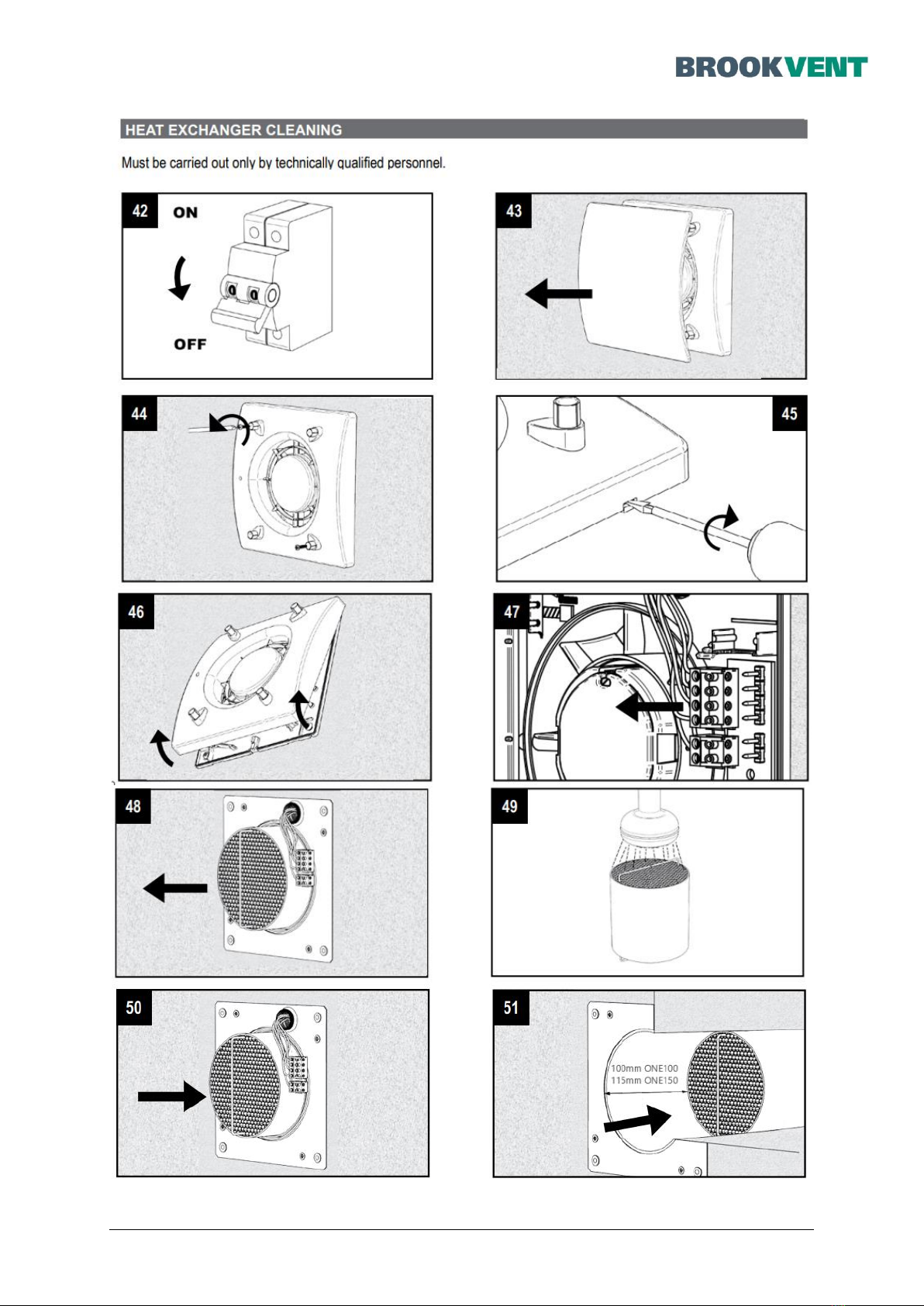

15/19

16/19

17/19

18/19
Notes

19/19
Customer Support
At Brookvent we pride ourselves on providing Gold Standard after sales and support to
all customers. Please feel free to contact one of our specialist team about any query you
may have and we will be more than happy to assist you.
Brookvent
Brook House,
Dunmurry Industrial Estate,
Dunmurry,
Belfast
Northern Ireland, BT17 9HU
T: [phone]
It is important to retain this manual and make a copy available to any person using or
working with (maintaining) the system.
Brookvent operate a policy of continuous innovation and improvement and thus
reserve the right to alter product specifications and appearances without notice.
V1 03.09.2021 UK
