Brother CB200 User manual

COPYBOARD
PARTS REFERENCE LIST
MODEL: CP1800/CP2000
(For U.S.A.)
CB200
( Canada /
Germany / United Kingdom / Switzerland)

©Copyright Brother 1999
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example] (1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
USA ----- US
Canada ------ CAN
Germany ----- GER
United Kingdom ----- UK
Switzerland ----- CHE

List1_PRINTER_1
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LE2592001 1DRIVE UNIT
2LE2789001 1PRINTER MOTOR
3U09759001 1SCREW, PAN (S/P WASHER) M3X6
4LE2601001 1MOTOR COVER
5U24014001 1TAPTITE, CUP S M3.0X6
6LE2613001 1GROUNDING SPRING R
7 085411215 2 SCREW, BIND B TITE 4X12
8LG2253001 1PRINTER MOTOR HARNESS
9LE2873001 1RECORDER FRAME ASSY
10 LE2605001 1SENSOR ACTUATOR
11 LG2254001 1PE/COVER SENSOR PCB
12 LG2256001 1SENSOR HARNESS
13 U24014001 2TAPTITE, CUP S M3.0X6
14 085411215 2 SCREW, BIND B TITE 4X12
15 UF9852002 1RECORDING HEAD ASSY
(FAX[phone])
16 LG2258001 1RECORDING HEAD SIGNAL HARNESS
17 LG2259001 1RECORDING HEAD POWER HARNESS
18 UF8072001 3HEAD SPRING
19 UF9856001 1HEAD PROTECTOR
20 LE2609001 1PRINTER BASE COVER
21 LE2858001 1GROUNDING SPRING L
22 LG2260001 1CONTROL PANEL PCB
23 LG2262001 1PANEL HARNESS
24 087310815 2 TAPTITE, CUP B M3X8
25 LE2614001 1PANEL COVER
26 LE2617001 1SUB COVER
27 U24014001 2TAPTITE, CUP S M3.0X6
28 085411215 7 SCREW, BIND B TITE 4X12
29 LE2636001 2BLIND FILM
30 LG2524001 1MAIN PCB ASSY
31 U24014001 2TAPTITE, CUP S M3.0X6
32 085411215 2 SCREW, BIND B TITE 4X12
33 UF4759002 1PC INTERFACE COVER
34 LE2584001 4DECORATIVE SCREW, CP2000/CB200
34 LE2976001 4SCREW, CUP M4X14, CP1800
(FAX[phone])
35 LE2615001 1PANEL SHEET, CP2000 FOR US
35 LE3016001 1PANEL SHEET, CB200 FOR CAN
35 LE3098001 1PANEL SHEET, CP1800 FOR US
(FAX[phone])
35 LE2499003 1PANEL SHEET, CB200 FOR GER/UK/CHE
(FAX[phone])
(36) LE3451001 1HEAD PROTECTION SHEET FOR US
(FAX[phone])
(36) LE2641001 1HEAD PROTECTION SHEET EXCEPT FOR US
CP1800, CP2000, CB200

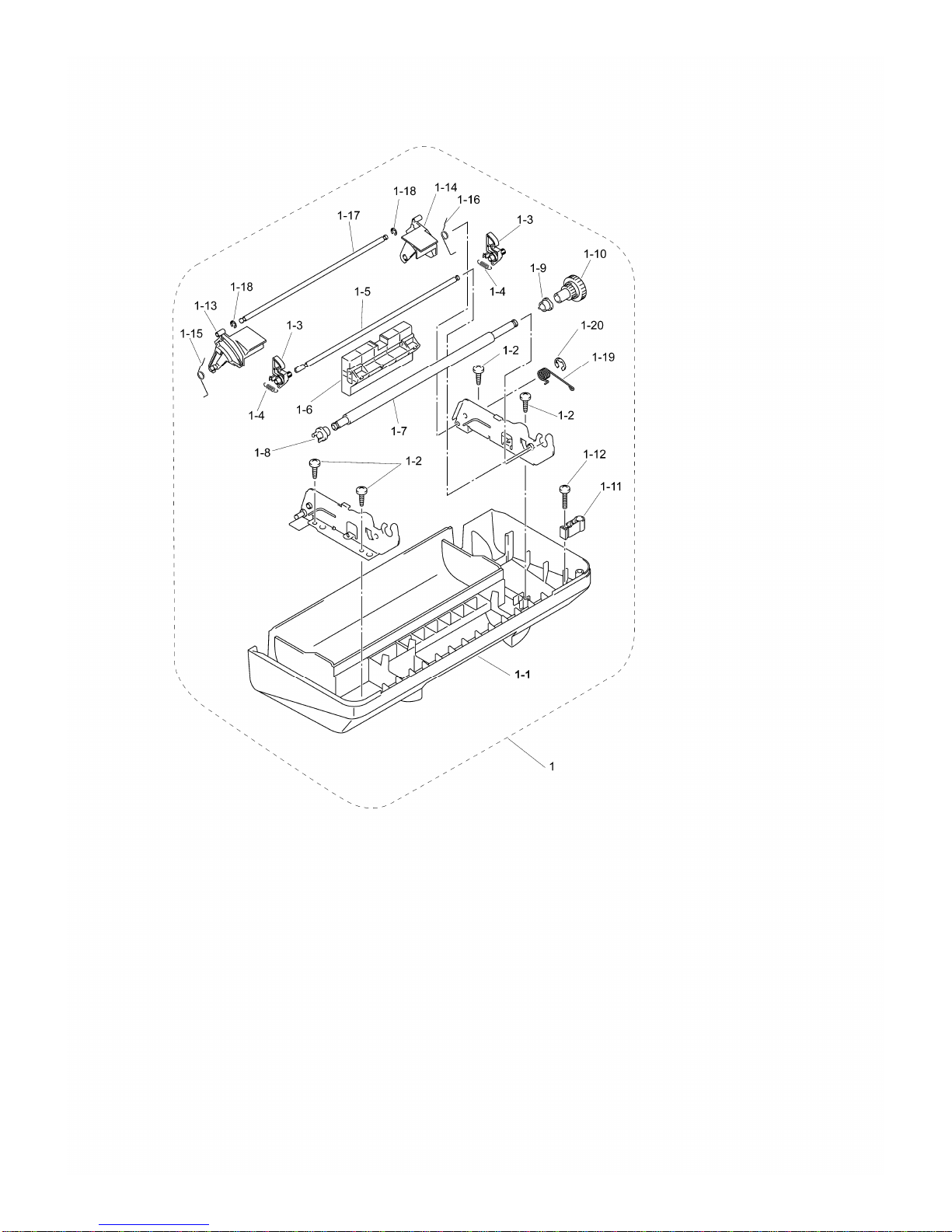

List2_PRINTER_2
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LE2618001 1PAPER COMPARTMENT COVER ASSY
1-1 LE2619001 1PAPER COMPARTMENT COVER
1-2 085411215 4 SCREW, BIND B TITE 4X12
1-3 LE2626001 2LOCK LEVER
1-4 LE2627001 2LOCK LEVER SPRING
1-5 LE2628001 1LOCK SHAFT
1-6 LE2629001 1PAPER COMPARTMENT LATCH
1-7 UF9720001 1PLATEN
1-8 UF9722001 1PAWLED BUSING L
1-9 UF9723001 1BUSHING R
1-10 UF9724001 1PLATEN GEAR
1-11 LE2630001 1PLATEN STOPPER
1-12 083412015 1 TAPTITE, PAN B 4X20
1-13 LE2631001 1PAPER STOPPER L
1-14 LE2632001 1PAPER STOPPER R
1-15 LE2633001 1STOPPER SPRING L
1-16 LE2634001 1STOPPER SPRING R
1-17 LE2635001 1PAPER GUIDE BAR
1-18 048020346 2 RETAINING RING, E2
1-19 LE2898001 1HINGE SPRING
1-20 048050345 1 RETAINING RING, E5
CP1800, CP2000, CB200

List3_BOARD_1
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LE2928001 2CABLE CLIP
2LE2651001 1LOWER PIPE HOLDER L ASSY
3LE2789001 1WB MOTOR
4U09759001 2SCREW, PAN (S/P WASHER) M3X6
5LE2662001 2PIPE HOLDER SPRING
6LE2668001 2PIPE GEAR
7LE2669001 2PIPE SPACER
8LE2673001 1UPPER CORNER PLATE R (PLATE A)
9LE2674001 1UPPER CORNER PLATE L (PLATE B)
10 LE3040001 1LOWER CORNER PLATE R (PLATE C)
11 LE3041001 1LOWER CORNER PLATE L (PLATE D)
12 LE3035001 4DUMMY WALL-MOUNTING BRACKET, CP2000/CB200
12 LE3035001 2DUMMY WALL-MOUNTING BRACKET, CP1800
(FAX[phone])
13 LE2738001 4BOARD FOOT
14 085310815 2 TAPTITE, BIND B M3X8
15 087320815 2 TAPTITE, CUP S M3X8
16 087321016 26 TAPTITE, CUP S M3X10
17 LE2938001 1TAPTITE, WASHER S M3X10
18 LE2975001 4SCREW, CUP M4X8
19 LE2976001 4SCREW, CUP M4X14
20 LE2678001 1CIS FRAME
21 LE3093001 1CIS SUPPLY ASSY (INCLUDING 3 CIS UNITS AND RETAINER)
(FAX[phone])
22 085310815 6 TAPTITE, BIND B M3X8
23 LE2679001 3TRANSPARENT SHEET (FOR DUST SEAL)
24 UU0275001 3HARNESS SPONGE
25 LG2276001 1CIS HARNESS (INCLUDING 3 HARNESSES)
26 LG2280001 1MOTOR WB HARNESS
27 LE2910001 4SPACER
28 LE2682001 2PIPE HOLDER STOPPER
29 LG2281001 1RELAY PCB ASSY
30 LE2690001 1PCB SUPPORT
31 LG2285001 1PRINTER INTERFACE CABLE
32 LE2691001 1CABLE CLAMP
33 LE2799001 1CABLE CLAMP PLATE
34 U24014001 6TAPTITE, CUP S M3.0X6
35 LE3059001 2STAND SPACER, CP2000/CB200
36 LE3037001 1WALL-MOUNTING BRACKET, CP1800 (INCLUDING 2PCS)
(FAX[phone])
CP1800, CP2000, CB200

List4_BOARD_2
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LE3020001 1WHITE SHEET SUPPLY ASSY (INCLUDING BLACK MARK)
2LE2670001 1SHEET BACKUP BOARD
3LE2959001 2BACKUP BOARD SUPPORT
4LE2683001 1UPPER COVER
5LE2684001 1LOWER COVER
6LE2685001 1SIDE COVER R
7LE2686001 1SIDE COVER L
8LE2687001 2CORNER COVER A
9LE2688001 2CORNER COVER B
10 LE2689001 6SHOULDER SCREW
11 084321016 8 SCREW, FLAT S M3X10
12 087321016 6 TAPTITE, CUP S M3X10
13 LE3048001 1WHITE TAPE
(14) LE2991001 1TEST CHART TC-WB002
CP1800, CP2000, CB200

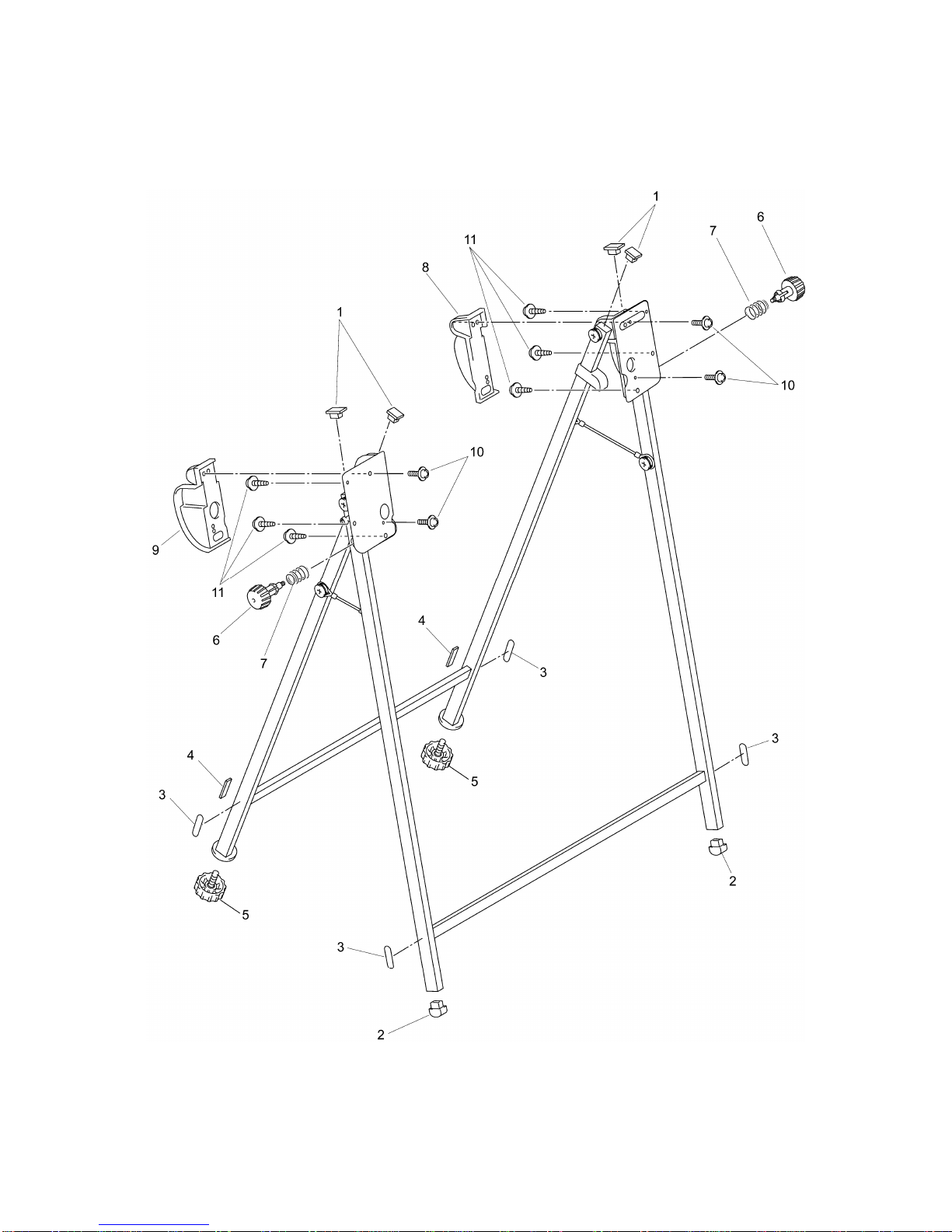

List5_STAND
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LE2591001 2UPPER CAP
2LE2702001 2LOWER CAP
3LE2589001 4BLIND SEAL
4LE2868001 2PROTECT RUBBER
5LE2708001 2ADJUST FOOT ASSY
6LE2712001 2STAND STOPPER SCREW
7LE2894001 2STAND STOPPER SPRING
8LE3044001 1STAND BASE COVER L (REAR VIEW)
9LE3045001 1STAND BASE COVER R (REAR VIEW)
10 085411215 4 SCREW, BIND B TITE 4X12
11 LE3055001 6SCREW, CUP M4X18
(12) LE3019001 1EASEL STAND SUPPLY ASSY
CP2000, CB200

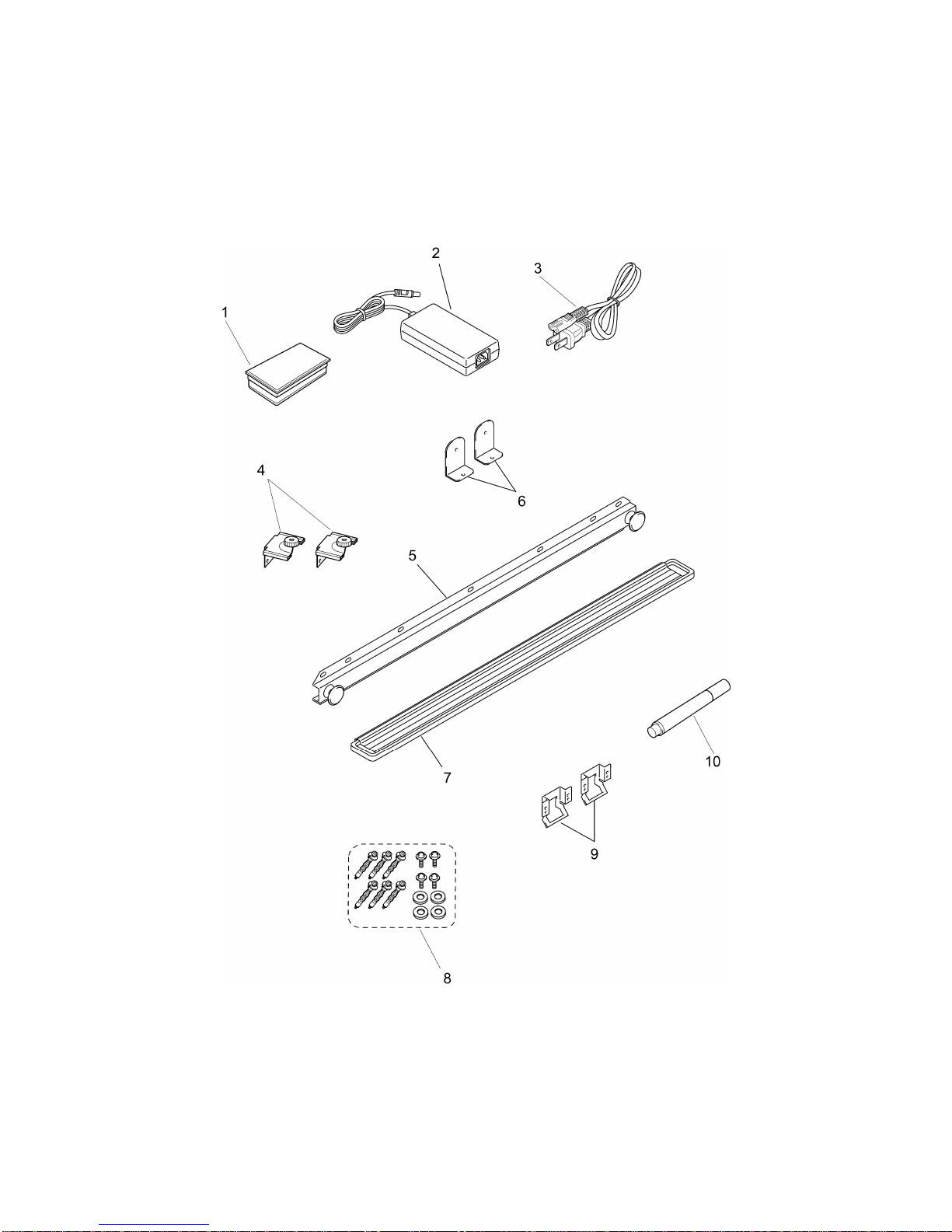

List6_ACCESSORIES
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LE2717001 1ERASER
2LG2286001 1AC ADAPTOR
3LG2421001 1AC CORD FOR US/CAN
3LG2453001 1AC CORD FOR GER
(FAX[phone])
3LG2454001 1AC CORD FOR UK
(FAX[phone])
3LG2455001 1AC CORD FOR CHE
(FAX[phone])
4LE2943001 1PARTITION-MOUNTING BRACKET (INCLUDING 2PCS)
5LE2731001 1WALL-MOUNTING BAR
6LE2920001 1L-SHAPED BRACKET (INCLUDING 2PCS)
7LE2800001 1TRAY
8LE2931001 1SCREW PACKET
(INCLUDING 6 ANCHORS, 4 SCREWS AND 4 WASHERS)
9LE3037001 1WALL-MOUNTING BRACKET (INCLUDING 2PCS), CP2000/CB200
10 LE2721001 2MARKER (BLACK)
(11) LE3603001 1MFL I/F ASSY, CP2000, CB200 FOR CAN
(FAX[phone])
CP1800, CP2000, CB200

List7_MANUALS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
(1) LE2739001 1OWNER'S MANUAL ASSY, CP2000 FOR US
(INCLUDING OWNER'S MANUAL, REORDER FORM, WARRANTY CARD
LICENSE GUIDE, MFL MANUAL, MFL CD-ROM AND BLIND SEAL)
(1) LE3071002 1OWNER'S MANUAL ASSY, CB200 FOR CAN
(INCLUDING OWNER'S MANUAL, REORDER FORM, WARRANTY CARD
LICENSE GUIDE, MFL MANUALS, MFL CD-ROM AND BLIND SEAL)
(1) LE3101001 1OWNER'S MANUAL ASSY, CP1800 FOR US
(FAX[phone])
(INCLUDING OWNER'S MANUAL, REORDER FORM AND WARRANTY CARD)
(1) LE2946003 1OWNER'S MANUAL ASSY, CB200 FOR GER
(FAX[phone])
(INCLUDING OWNER'S MANUAL, WARRANTY CARDS,
RECORDING PAPER GUIDE AND BLIND SEAL)
(1) LE2951004 1OWNER'S MANUAL ASSY, CB200 FOR UK
(FAX[phone])
(INCLUDING OWNER'S MANUAL, WARRANTY CARDS,
RECORDING PAPER GUIDE AND BLIND SEAL)
(1) LE2953010 1OWNER'S MANUAL ASSY, CB200 FOR CHE
(FAX[phone])
(INCLUDING OWNER'S MANUAL, WARRANTY CARD,
RECORDING PAPER GUIDE AND BLIND SEAL)
(1-1) LE2740001 1OWNER'S MANUAL, CP2000 FOR US
(1-1) LE3110001 1OWNER'S MANUAL, CP1800 FOR US
(FAX[phone])
(1-1) LE3088001 1OWNER'S MANUAL, CB200 FOR CAN
(FAX[phone])
(1-1) LE2947003 1OWNER'S MANUAL, CB200 FOR GER/UK/CHE
(FAX[phone])
(1-2) LE2742001 1BLIND SEAL
(1-3) LE2993001 1MFL CD-ROM ASSY, CP2000, CB200 FOR CAN
(FAX[phone])
(1-4) LE2995001 1MFL MANUAL, CP2000, CB200 FOR CAN<ENGLISH>
(FAX[phone])
(1-4) LE3089001 1MFL MANUAL, CB200 FOR CAN<FRENCH>
(FAX[phone])
(1-5) UF6925001 1RECORDING PAPER GUIDE FOR GER/UK/CHE
(FAX[phone])
CP1800, CP2000, CB200

List8_CARTONS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
(1) LE2744001 1INNER CARTON, BROTHER CP2000 FOR US
(1) LE3094001 1INNER CARTON, BROTHER CP1800 FOR US
(FAX[phone])
(1) LE2949001 1CARTON, BROTHER CB200 FOR CAN/GER/UK/CHE
(2) LE2745001 1STYROFOAM ASSY, CP2000/CB200
(2) LE3102001 1STYROFOAM ASSY, CP1800
(FAX[phone])
(3) LE2753001 1POLY-ETHYLENE BAG, 1450X1050 FOR COPYBOARD
(4) LE3448001 1OUTER CARTON, BROTHER CP2000 FOR US
(FAX[phone])
(4) LE3449001 1OUTER CARTON, BROTHER CP1800 FOR US
(FAX[phone])
CP1800, CP2000, CB200

5B1101 Ver. D
