Brother HL-L2310D User manual

Reference Guide
Brief explanations for routine operations
HL-L2310D
HL-L2335D
HL-L2350DW
HL-L2351DW
HL-L2370DN
HL-L2375DW
HL-L2376DW
HL-L2385DW
HL-L2386DW
Brother recommends keeping this guide next to your Brother machine for quick reference.
Online User's Guide
For more advanced instructions, information, and
product specifications, see the Online User's
Guide at support.brother.com/manuals

User's Guides and Where to Find Them
Which Guide? What's in It? Where Is It?
Product Safety Guide Read this guide first. Please read the Safety
Instructions before you set up your machine.
See this guide for trademarks and legal
limitations.
Printed / In the box
Quick Setup Guide Follow the instructions for setting up your
machine, and installing the Full Driver &
Software Package for the operating system
and connection type you are using.
Printed / In the box
Reference Guide Learn the basic operations and basic
machine maintenance. See troubleshooting
tips.
Printed or on Brother
Installation Disc / In
the box
Online User's Guide In addition to information about the Print
operations, mobile device functions,
troubleshooting, and other useful information
is included about using the machine on a
network.
Brother Solutions
Center 1
1Visit support.brother.com/manuals.
1

The Online User's Guide Helps You Get the Most
Out of Your Machine
We hope that you find this guide helpful. To learn more about your machine's features, please
take a look at our Online User's Guide. It offers:
Quicker Navigation!
Search box
Navigation index in a separate panel
Comprehensive Format!
Every topic in one guide
Simplified Layout!
Step-by-step instructions
Feature summary at the top of the page
1
2
3
4
1. Search Box
2. Navigation
3. Summary
4. Step-by-Step Instructions
To View Online User's Guides
To view the Online User's Guide and other available guides, visit support.brother.com/manuals.
(Windows®)
You can also access your machine's guides using Brother Utilities. The Brother Utilities tool is
included in the standard installation and, when installed, you can find it either as a shortcut on
your desktop, or from the Windows® Start menu.
2

Questions or Problems? Take a Look at our FAQs,
Solutions, and Videos Online.
Go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at
support.brother.com
•Provides several ways to search
•Displays related questions for more information
•Receives regular updates based on customer feedback
©2018 Brother Industries, Ltd. All rights reserved.
3

Control Panel Overview
HL-L2310D/HL-L2335D
1
6
2
3
4
5

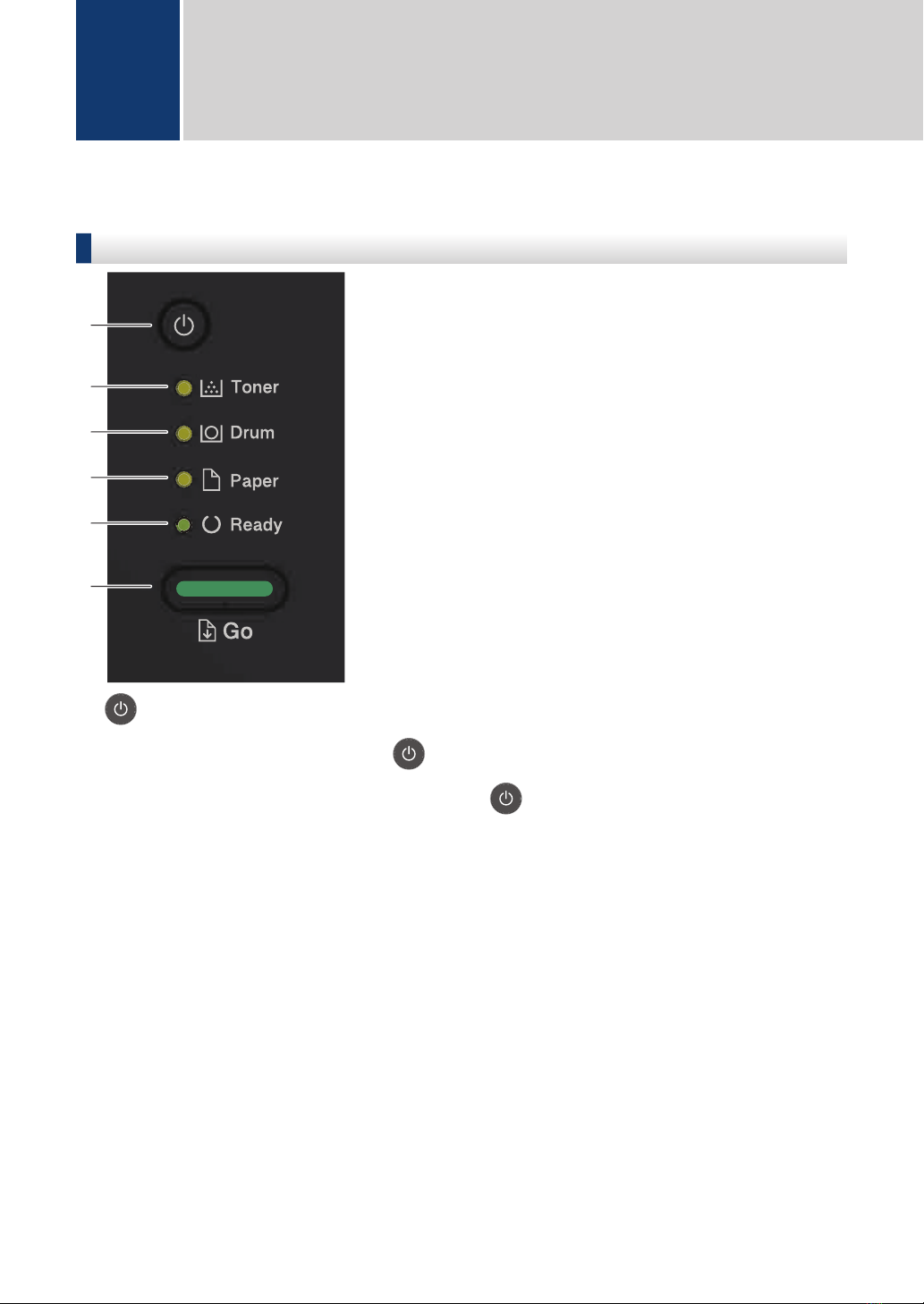

1. Power On/Off Button
• Turn on the machine by pressing .
• Turn off the machine by pressing and holding .
2. Toner LED
The Toner LED indicates that the Toner is low.
3. Drum LED
The Drum LED indicates that the Drum Unit must be replaced soon.
4. Paper LED
The Paper LED indicates that there is an error relating to paper feeding.
5. Ready LED
The Ready LED blinks to indicate the machine's status.
6. Go Button
• Press Go to clear certain errors.
• Press Go to print any data remaining in the machine's memory.
• Press and hold Go for about two seconds to cancel a print job.
1General Information
4

HL-L2350DW/HL-L2351DW/HL-L2370DN/HL-L2375DW/
HL-L2376DW/HL-L2385DW/HL-L2386DW
The control panel will vary depending on your model.

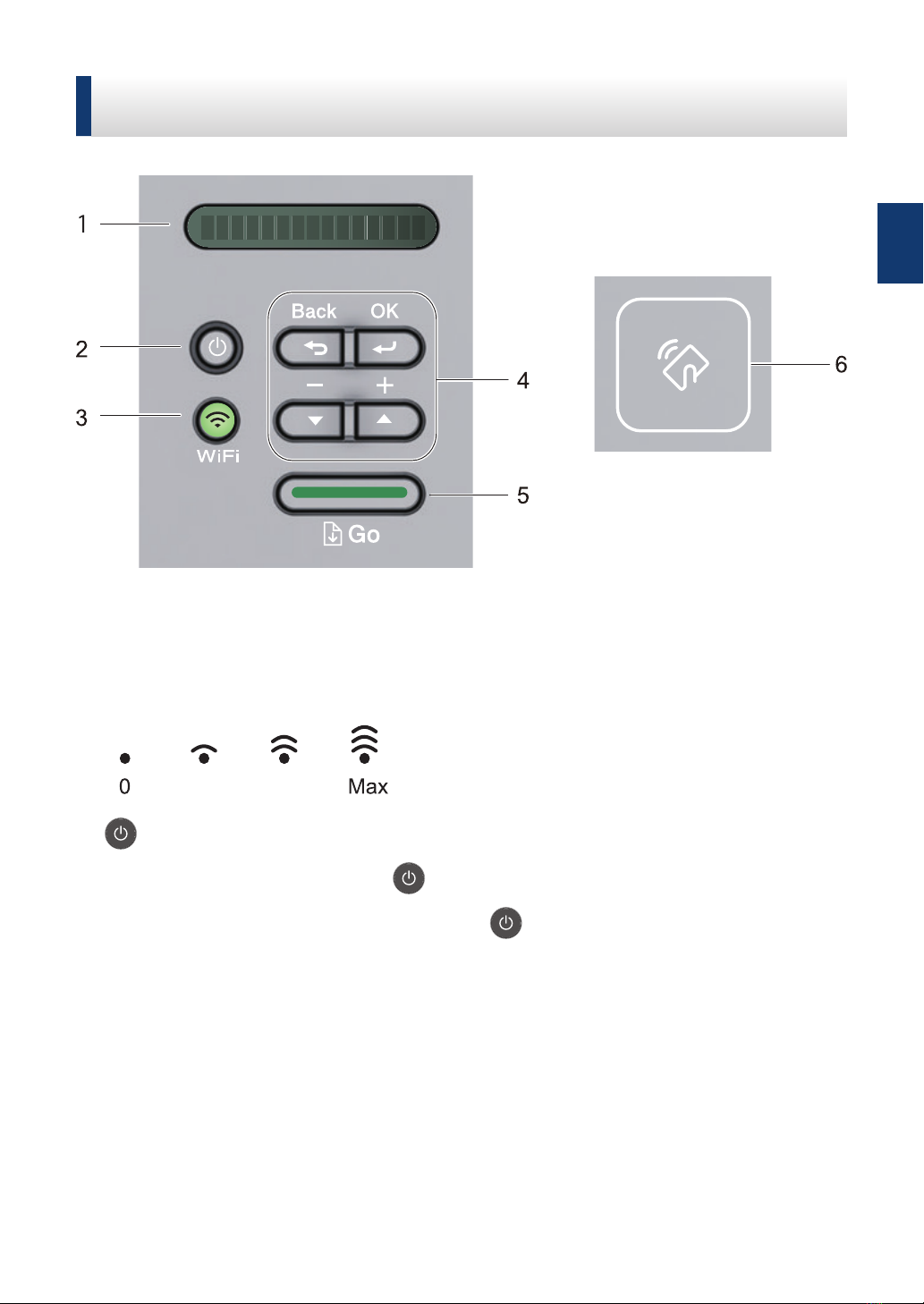

1. LCD (Liquid Crystal Display)
Displays messages to help you set up and use your machine.
Wireless Models:
A four-level indicator shows the wireless signal strength if you are using a wireless
connection.
0 Max
2. Power On/Off Button
• Turn on the machine by pressing .
• Turn off the machine by pressing and holding . The LCD displays [Shutting Down]
for a few seconds before going off.
3. Network Buttons
• Wired Models:
Network
Press Network to set up wired network settings.
• Models with Wireless Function:
WiFi
Press the WiFi button and launch the wireless installer on your computer. Follow the on-
screen instructions to set up a wireless connection between your machine and your
network.
1General Information
5

When the WiFi light is on, your Brother machine is connected to a wireless access point.
When the WiFi light blinks, the wireless connection is down, or your machine is in the
process of connecting to a wireless access point.
4. Menu Buttons
OK
Press to store your machine settings. After you change a setting, the machine returns to
the previous menu level.
Back
• Press to go back one level in the menu.
• Press to select the previous digit when setting numbers.
a or b ( + or -)
• Press to scroll through menus and options.
• Press to enter a number or to increase or decrease the number. Press and hold down a
or b to scroll faster. When you see the number you want, press OK.
5. Go Button
• Press to clear certain error messages. To clear all other errors, follow the control panel
instructions.
• Press to print any data remaining in the machine's memory.
• Press to select the displayed option. After you change a setting, the machine returns to
Ready Mode.
• Press and hold Go for about two seconds to cancel a print job.
6. Near Field Communication (NFC) (available only for certain models)
If your Android™ device supports the NFC feature, you can print from your device by touching
it to the NFC symbol on the control panel.
6

Load Paper in the
Paper Tray
Use the paper tray when printing on the
following media:
Plain paper
Thin paper
Recycled paper
Thick paper
• Adjust the guides
• Fan the paper
• Do not exceed this
mark
For more detailed information, see the Online
User's Guide: Load Paper in the Paper Tray.
Load Paper in the Multi-
purpose Tray (MP Tray)
Related Models:
HL-L2385DW/HL-L2386DW
Use the MP tray when printing on the
following media:
Plain paper
Thin paper
Recycled paper
Bond paper
Thick paper
Labels 1
Envelopes 1
• Adjust the guides
• Fan the paper
• Do not exceed this
mark
1Open the back cover (face up output tray) before
printing to let the printed paper exit onto the face up
output tray.
For more detailed information, see the Online
User's Guide: Load and Print Using the
Multi
‑ purpose Tray (MP Tray).
2Load Paper
2Load Paper
7

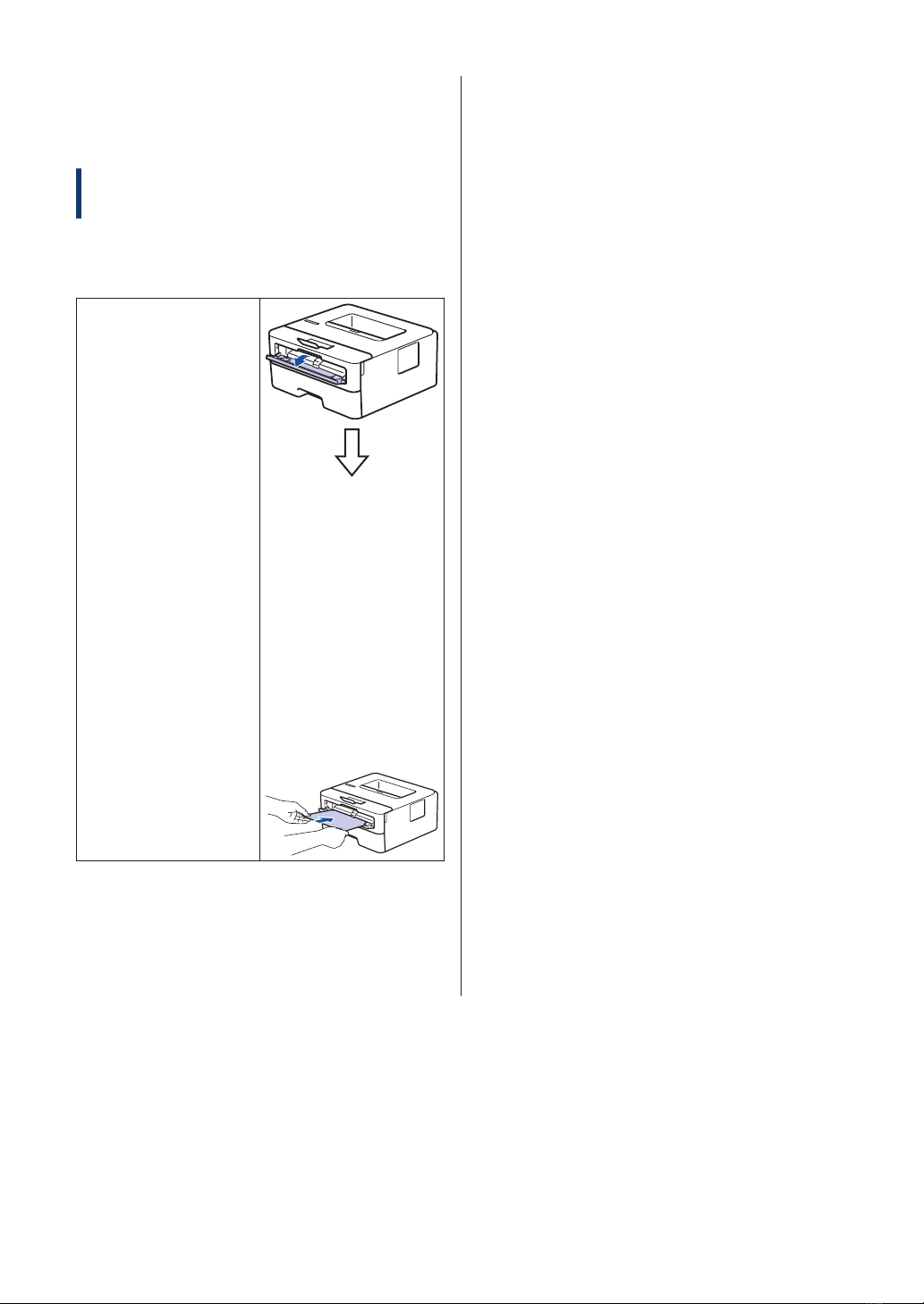

Load Paper in the
Manual Feed Slot
Related Models:
HL-L2310D/HL-L2335D/HL-L2350DW/HL-L2351DW/
HL-L2370DN/HL-L2375DW/HL-L2376DW
Use the Manual Feed Slot when printing on
the following media:
Plain paper
Thin paper
Recycled paper
Bond paper
Thick paper
Labels 1
Envelopes 1 • Adjust the guides
• Use both hands to
insert one sheet of
paper
• Continue pressing
the paper against
the rollers for
about two
seconds, or until
the machine grabs
the paper and
pulls it in further
1Open the back cover (face up output tray) before
printing to let the printed paper exit onto the face up
output tray.
For more detailed information, see the Online
User's Guide: Load and Print Paper in the
Manual Feed Slot.
8

Use this section to resolve problems you may encounter when using your Brother machine.
Identify the Problem
Even if there seems to be a problem with your machine, you can correct most problems yourself.
First, check the following:
• The machine's power cord is connected correctly and the machine's power is on.
• All of the machine's orange protective parts have been removed.
• (For network models) The access point (for wireless network), router, or hub is turned on and
its link indicator is blinking.
• Paper is inserted correctly in the paper tray.
• The interface cables are securely connected to the machine and the computer.
• Check the machine's status on your machine or in Brother Status Monitor on your computer.
Find the Error Find the Solution
Using the Status Monitor
• Double-click the icon in the task tray.
• (Windows®) If you select the Load Status
Monitor on Startup check box, the Status
Monitor will launch automatically each time
you start your computer.
• A green icon indicates the normal stand-by
condition.
• A yellow icon indicates a warning.
• A red icon indicates an error has occurred.
• A grey icon indicates the machine is
offline.
• Click the Troubleshooting button to
access Brother's troubleshooting website.
ATroubleshooting
ATroubleshooting
9

Find the Error Find the Solution

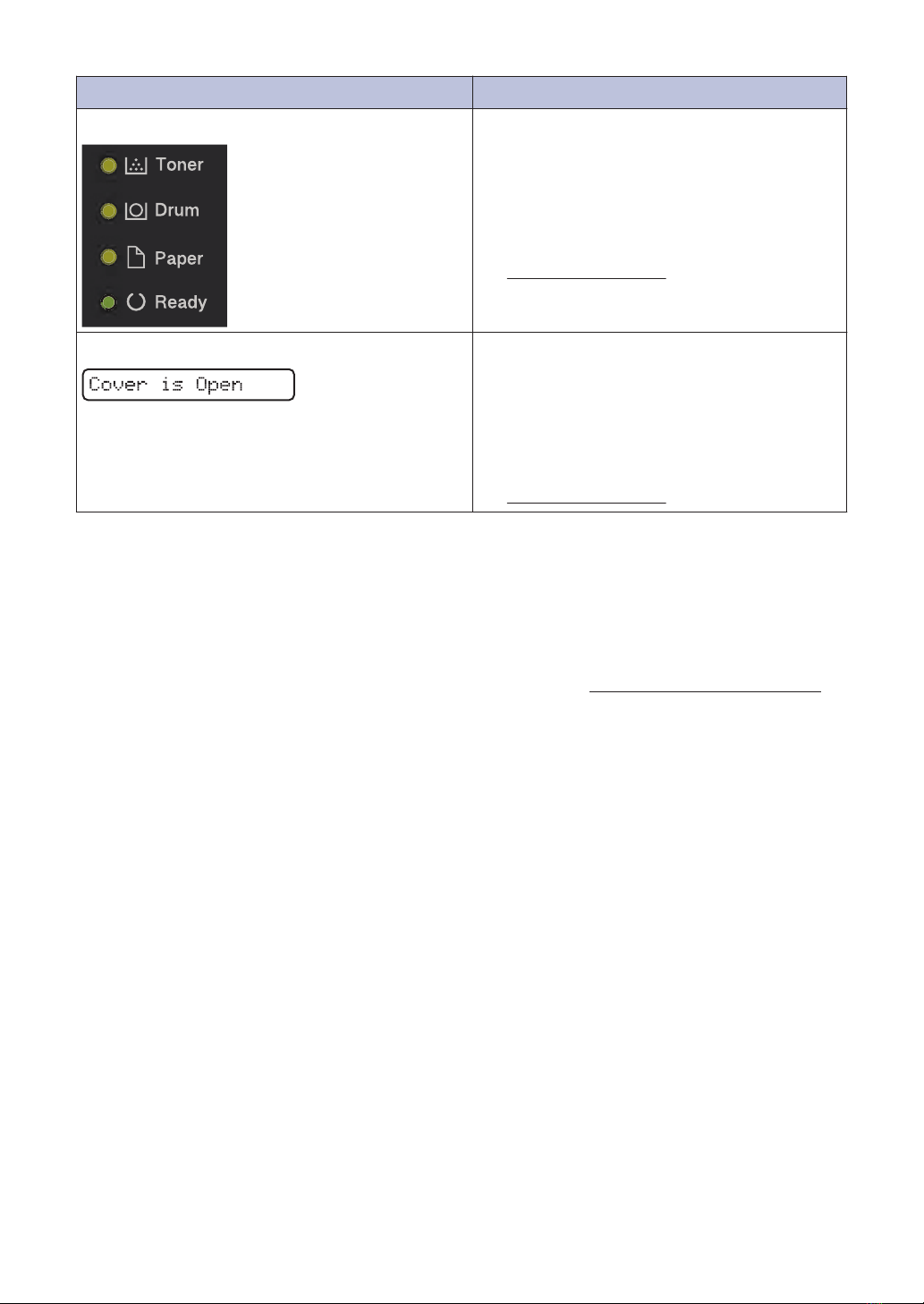

Using the LED 1. Check the indications on the LEDs.
2. If you cannot resolve the error, refer to the
following:
Online User's Guide: Error and
Maintenance Indications
FAQs & Troubleshooting page at
support.brother.com
Using the LCD 1. Follow the messages on the LCD.
2. If you cannot resolve the error, refer to the
following:
Online User's Guide: Error and
Maintenance Messages
FAQs & Troubleshooting page at
support.brother.com
Error and Maintenance Messages
See the printed Quick Setup Guide for a table of common Printer LED Indications.
For information on the most common error and maintenance messages, see the Online User's
Guide.
To view the Online User's Guide and other available guides, visit support.brother.com/manuals.
10

Paper Jams
An error message indicates where the paper is stuck in your machine.
1
2
3
4
Error messages:
1. Jam Rear
2. Jam 2-sided
3. Jam Tray
4. Jam Inside
See the messages in Brother Status Monitor on your computer.
Solutions for Wireless Connection
If you cannot connect your Brother machine to the wireless network, see the following:
•Online User's Guide: Print the WLAN Report
•Quick Setup Guide: Alternative wireless setup
To view the Online User's Guide and other available guides, visit support.brother.com/manuals.
ATroubleshooting
11

Supplies
When the time comes to replace supplies, such as the toner or drum, an error message will
appear on your machine's control panel or in the Status Monitor. For more information about the
supplies for your machine, visit www.brother.com/original/index.html or contact your local Brother
dealer.
• The supply model name will vary depending on your country and region.

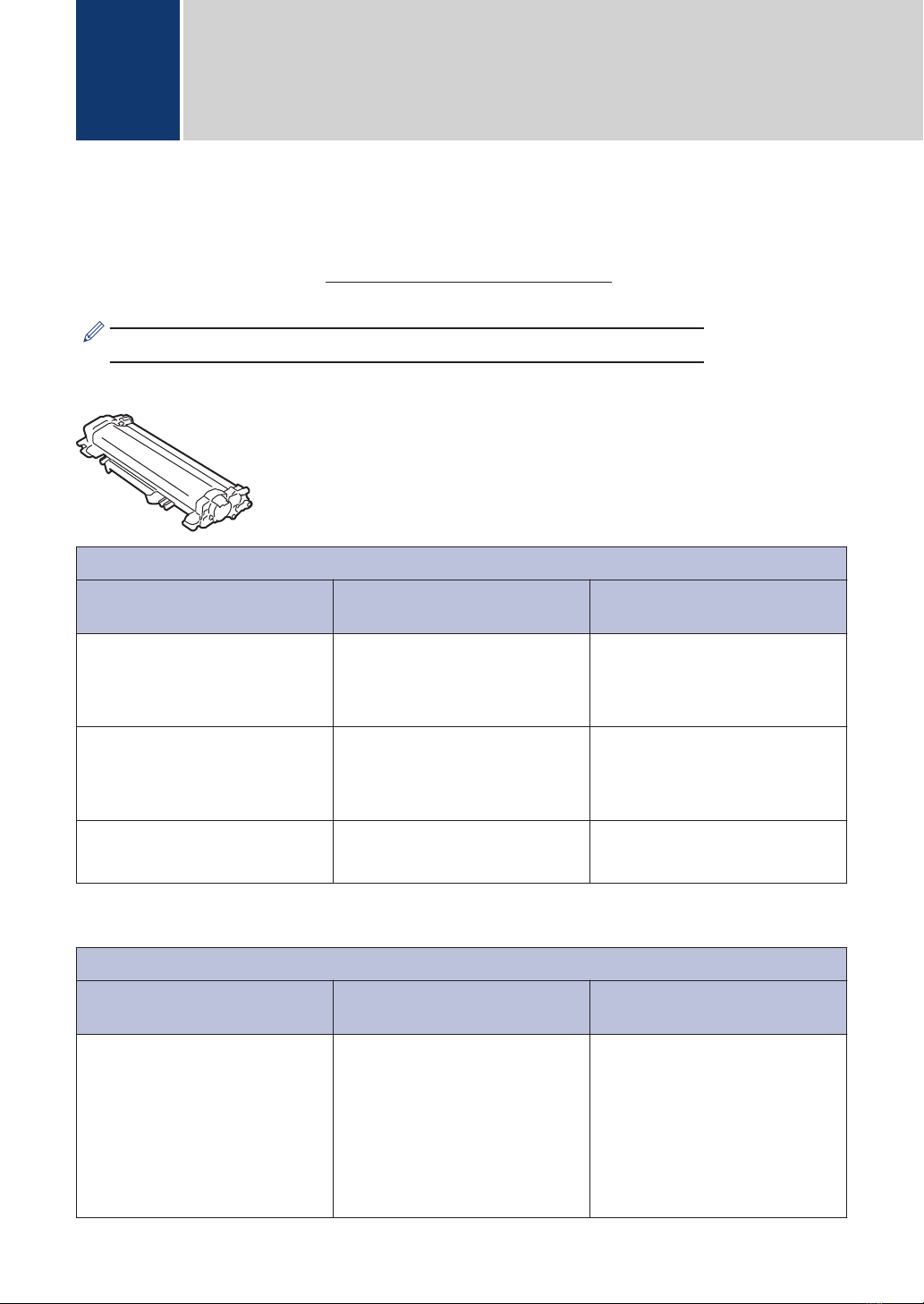

Toner Cartridge
For Australia and New Zealand
Supply Model Name Approximate Life (Page
Yield)
Applicable Models
Standard Toner:
TN-2430 (For Australia)
TN-2415 (For New Zealand)
Approximately 1,200 pages 1 2 HL-L2310D/HL-L2350DW/
HL-L2375DW/HL-L2385DW
High Yield Toner:
TN-2450 (For Australia)
TN-2445 (For New Zealand)
Approximately 3,000 pages 1 2 HL-L2310D/HL-L2350DW/
HL-L2375DW/HL-L2385DW
Super High Yield Toner:
TN-2454
Approximately 4,500 pages 1 2 HL-L2385DW
1Approximate cartridge yield is declared in accordance with ISO/IEC 19752.
2A4/Letter simplex pages
For Other countries
Supply Model Name Approximate Life (Page
Yield)
Applicable Models
Standard Toner:
(Not available in India and
Turkey)
TN-2481 (For Indonesia and
Vietnam)
TN-2405 (For Middle Eastern
and African countries)
Approximately 1,200 pages 1 2 HL-L2310D/HL-L2335D/
HL-L2350DW/HL-L2370DN/
HL-L2375DW/HL-L2376DW/
HL-L2385DW/HL-L2386DW
BAppendix
12

For Other countries
Supply Model Name Approximate Life (Page
Yield)
Applicable Models
TN-2460 (For Other countries)
High Yield Toner:
TN-2465 (For India)
TN-2485 (For Indonesia and
Vietnam)
TN-2456 (For Turkey)
TN-2455 (For Middle Eastern
and African countries)
TN-2480 (For Other countries)
Approximately 3,000 pages 1 2 HL-L2310D/HL-L2335D/
HL-L2350DW/HL-L2351DW/
HL-L2370DN/HL-L2375DW/
HL-L2376DW/HL-L2385DW/
HL-L2386DW
1Approximate cartridge yield is declared in accordance with ISO/IEC 19752.
2A4/Letter simplex pages
Drum Unit
Supply Model Name Approximate Life
(Page Yield)
Applicable Models
DR-2425 (For Australia)
DR-2415 (For New Zealand)
DR-2465 (For India)
DR-2485 (For Indonesia and Vietnam)
DR-2406 (For Turkey)
DR-2405 (For Middle Eastern and African
countries)
DR-2455 (For Other countries)
Approximately 12,000
pages 1
HL-L2310D/
HL-L2335D/
HL-L2350DW/
HL-L2351DW/
HL-L2370DN/
HL-L2375DW/
HL-L2376DW/
HL-L2385DW/
HL-L2386DW
1Approximately 12,000 pages based on 1 page per job [A4/Letter simplex pages]. The number of pages may be
affected due to a variety of factors including but not limited to media type and media size.
BAppendix
13

If you are using Windows®, double-click the Brother Creative Center icon on your
desktop to access our FREE website designed as a resource to help you easily create and print
customised materials for business and home use with photos, text and creativity.
Mac users can access Brother Creative Center at this web address:
www.brother.com/creativecenter
14

For Australia Only:
Support – For technical support of your Brother Product other than what you
can resolve through the User’s Guide, please visit our website or Solutions
website (see below) to find an answer to FAQs/Troubleshooting, locating
Drivers & Software.
Alternatively, please contact the Product Support Centre for any customer
care/technical support enquiry.
To contact Brother International (Aust) Pty Ltd for support on a Brother
product please see the details listed below:
Product Support Centre:
Australia
Brother International
(Aust) Pty Ltd
Phone:
Solutions Site:
Website:
Email:
02 8875 6000
support.brother.com
http://www.brother.com.au
To submit an e-mail enquiry, visit
http://www.brother.com.au go to Service and
Support area and follow the prompts.
Our Technical Support Consultants are available 5 days a week by phone
during the hours of 8.30am to 5.00pm (EST/EDST) Monday to Friday.
For New Zealand Only:
For technical support for your Brother Product please refer to this user guide
and the FAQ’s available on our Brother Solutions website,
support.brother.com.
Drivers, software, user guides and technical references are all available on
our Brother Solutions website.
If you require further assistance please contact Brother International (NZ)
Limited on the following numbers
Technical Brother Support
Technical Support for those not using Genuine Consumables
Fax Assistance
0800 329 111
0900 552 152
0800 837 822
Our Technical Support Consultants are available 7 days a week by phone
during the hours of 8.30am to 5pm Monday to Friday and 9am to 5pm
Saturday and Sunday.
Email Assistance
Please visit http://www.brother.co.nz and submit a helpdesk enquiry from our
Service and Support page.
Web Assistance
Please visit http://www.brother.co.nz under Service and Support for
Frequently Asked Questions, Driver downloads, Warranty information and
Service Centres.

Visit us on the World Wide Web
www.brother.com
These machines are approved for use in the country of purchase only. Local Brother
companies or their dealers will support only machines purchased in their own countries.
OCE/ASA/SAF/GLF/TWN
Version B
