OXYGEN Ski-Doo® Helmet
CONGRATULATIONS!
You have made an excellent choice with the BRP Ski-DooÆOXYGEN helmet.
The OXYGEN helmet is the result of the very latest design and manufacturing
methods. This helmet combines the top characteristics of a sport helmet with
the comfort of a touring helmet.
You can feel secure in the knowledge that you now own a quality helmet that
is designed to provide you safety and high standards of performance ²in
particular on long journeys ²and that will give you a great deal of pleasure at
the same time.
Please take the time to read through this manual carefully so that your helmet
protects you properly when riding your snowmobile or motorcycle. To ensure
that you do not overlook any aspect of the manual that is relevant to your
safety, we recommend that you read it in the order in which it appears.
WARNING
This helmet is not intended for use in Europe where ECE Standard is the only approved
standard. This helmet was not designed to be used by a child under 13.
The helmet has been inspected and approved according to the DOT Standard and
therefore, does not conform to specific European countries regulations and
requirements. It is only legal to use the helmet in countries in which the DOT Standard
is valid. If you use the helmet in other countries, you will not, in the event of injury, be
entitled to make a claim for compensation before the courts of these countries, not
bound by the DOT Standard.
We wish you a safe ride.

3
CONTENTS
A
A. GENERAL............................................................................ 4
1. SAFETY INFORMATION 4
B. THE HELMET ...................................................................... 5
1. ANATOMY OF THE HELMET 5
2. HELMET SIZING 5
3. AEROACOUSTICS 5
4. PROTECTIVE COLLAR 6
5. MICROMETRIC CHIN STRAP 7
6. FACE SHIELD 8
7. SUN VISOR 9
8. MAGNETIC CONNECTOR 10
9. REAR LIGHT 11
10. FACE SHIELD MECHANISM 12
11. NOISE CONTROL SYSTEM 13
12. INNER LINER 13
13. VENTILATION SYSTEM 15
14. BREATH GUARD 15
15. REMOTE CONTROL 16
C. FIT & USAGE..................................................................... 17
1. HOW TO PUT THE HELMET ON 17
2. PROPER FIT 17
3. PUT THE HELMET OFF 18
4. OPERATING INSTRUCTIONS 18
5. COMMUNICATION SYSTEM INSTALLATION 20
D. BEFORE EVERY RIDE ....................................................... 21
1. CHECKING THE HELMET 21
2. CHECKING THE CHINSTRAP 21
3. CHECKING THE FACE SHIELD AND SUN VISOR 21
4. CHECKING THE MAGNETIC CONNECTOR 21
E. FOR YOUR SAFETY............................................................22
1. MODIFICATIONS / ACCESSORIES WARNING 22
2. FROSTBITE WARNING 22
F. CARE AND MAINTENANCE................................................23
1. SHELL CLEANING 23
2. INTERIOR CLEANING 23
3. OUTER SURFACE OF THE FACE SHIELD 23
4. HEATING LENS 23
5. ELECTRICAL CONNECTIONS 23
6. SUN VISOR 24
7. HELMET INSPECTION 24
8. HELMET STORAGE 24
G. TROUBLESHOOTING GUIDE .............................................25
H. ACCESSORIES AND SPARE PARTS..................................26
1. ACCESSORIES 27
2. REPLACEMENT PARTS 27
H. ACCESSORIES AND SPARE PARTS 28
3. LED UTILITY LIGHT INSTALLATION 28
H. ACCESSORIES AND SPARE PARTS 29
4. LED UTILITY LIGHT BATTERIES REMPLACEMENT 29
I. BRP SERVICE.....................................................................30
1. REPAIR SERVICE 30
2. WARRANTY 30
J. HOW TO CONTACT US .......................................................30

4
A. GENERAL
1. SAFETY INFORMATION
This helmet is backed by the BRP warranty and a network of authorized
dealers ready to provide the parts, service or accessories that you may require.
Genuine BRP parts should be used for replacement to maintain the warranty,
consult an authorized BRP dealer.
Use this User Guide to acquaint yourself with your new helmet and its various
functions. Make sure you read and understand the contents of this guide and
keep it for future reference. The information and components descriptions
contained in this guide are accurate at time of publication. The illustrations in
this document may not show the typical construction of the different
assemblies or may not reproduce the full detail or exact shape of the parts
shown, however, they represent parts which have the same or a similar
function.
This guide uses the following safety alert symbol in conjunction with signal
words to indicate a potential personal injury hazard.
W
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
NOTICE
Address practices not related to personal injury.
Simply reading this guide will not eliminate hazards. The user must
understand and follow the instructions. Because of its ongoing commitment to
product quality and innovation, BRP reserves the right at any time to
discontinue or change specifications, designs, features or equipment without
incurring obligation. If anyone seeks to translate any portion of this guide into
any language, he must ensure that the translation is accurate.
WARNING
Riding a motorized vehicle can be dangerous. This helmet provides limited
protection to the head. It complies with U.S. Federal Motor Vehicle Safety
Standard 218.
However, it will not protect the wearer against all possible impacts. Some
LPSDFWVPD\H[FHHGWKLVKHOPHW·VFDSDELOLW\WRSURYLGHSURWHFWLRQDQGresult in
serious head, brain, spinal, or other injury including paralysis or death.
For maximum protection, the helmet must fit firmly on the head with the chin
strap securely fastened.
If your helmet is equipped with a main visor, it must be fully closed. If your
helmet is equipped with other component, such as wind deflector, breath
deflector, breathing mask, mandible, etc., make sure to install them in proper
position to direct exhaled breath away from the main visor.
Always wear appropriate protection against frostbite, which may include a
balaclava, neck tube, facemask or combination of these items.
Inspect the helmet before each use following the inspection procedure in the
instructions. Replace any part showing wear or damage. Do not alter the
helmet or attach any items not recommended by the manufacturer. The
helmet is designed to absorb shock by partial destruction of the shell and it
should not be visible. Destroy and replace helmet if subjected liner, which may
not be visible. Destroy and replace helmet if subjected to a severe blow even if
it appears undamaged.
The helmet shell, liner and other components may be damaged and rendered
ineffective by petroleum products, cleaning agents, paint, adhesives, etc.,
without the damage being visible. Use only warm mild soapy water to clean
the helmet.
Follow all warnings and instructions provided with this helmet. For
replacement instructions, contact BRP. Failure to follow all warnings and
instructions can result in serious personal injury or death.

5
B. THE HELMET

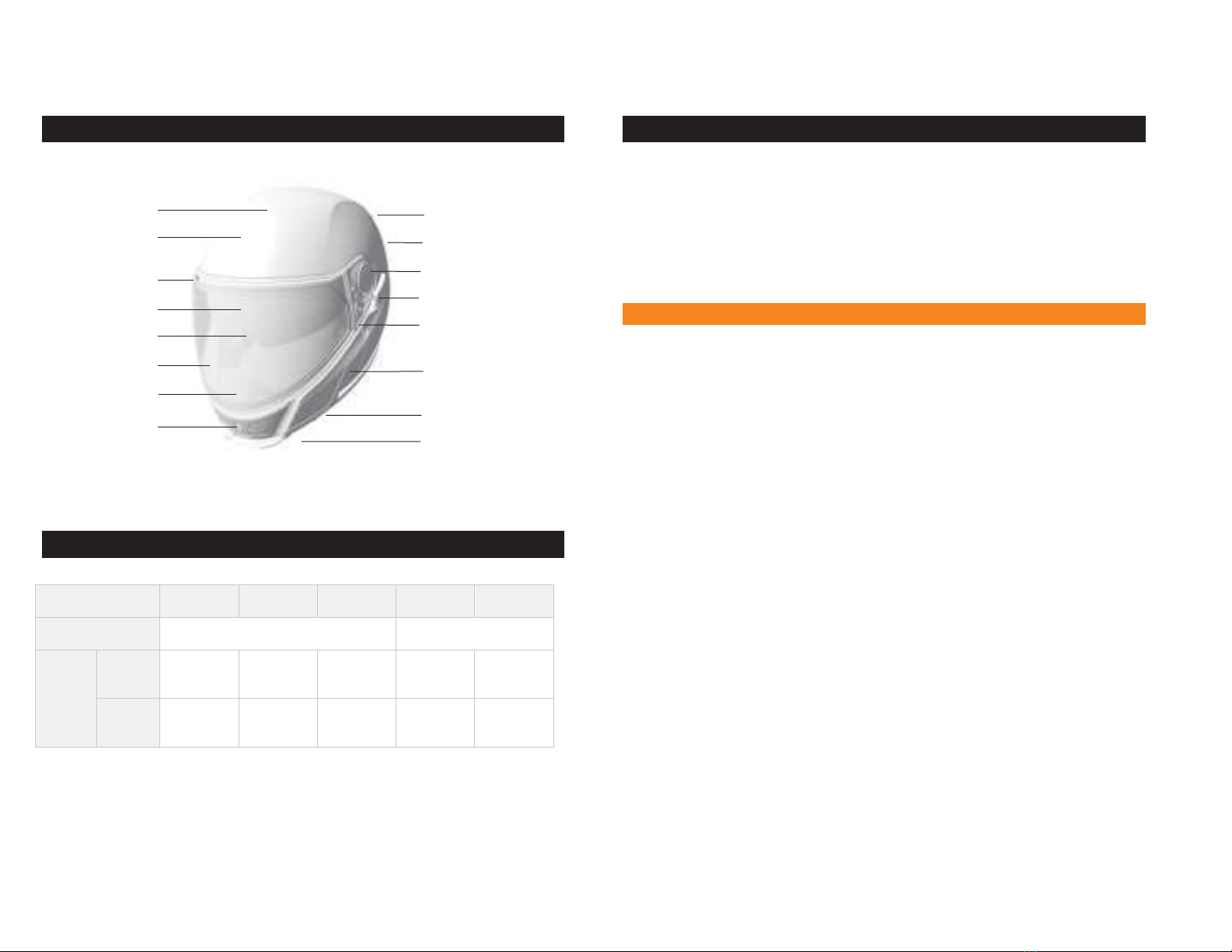

1. ANATOMY OF THE HELMET
2. HELMET SIZING
H
Helmet size S M L XL 2XL
Shell size
L2XL
Head
size
mm
55 - 56
57 - 58
59 - 60
61 - 62
63 - 64
Inches
21 3/4 -
22 1/4
22 1/2 -
23
23 1/4 -
23 1/2
23 3/4 -
24 1/4
24 1/2 -
25
3. AEROACOUSTICS
Various features developed by BRP make the helmet agreeably quiet as far as
aeroacoustics are concerned, while providing optimized acoustic feedback
when riding.
Aeroacoustics values may vary according to the type of snowmobile, fairing
design, windshield size, seat position and physical size of the rider.
WARNING
Because of the aeroacoustics optimization of the helmet (and the lower wind
noise inside the helmet that comes with it), your actual speed can be
underestimated. Please do not rely on your sense of hearing to estimate your
speed or to estimate the distance with other vehicles ²always check it using
your speedometer and the surroundings.
Rear signature light
Magnetic connector
Electrical contact
Sun visor actuator
Face shield mechanism
Vent aperture
Vent actuators
Micrometric buckle
M-ForgeÆouter shell
Inner shell
Face shield
Sun visor
Electric inner shield
Inner lining
Breath guard
Front light (optional)

6
B. THE HELMET
4. PROTECTIVE COLLAR
The protective collar reduces air intrusion and unpleasant effect of the wind
created when you ride by flowing into the helmet. This feature allows to also
reduce the riding noises (such as wind, motor, track...).
The fit at the bottom of the helmet is extremely important to make the helmet
as quiet as possible. Even with the protective collar, we recommend you wear
a balaclava.

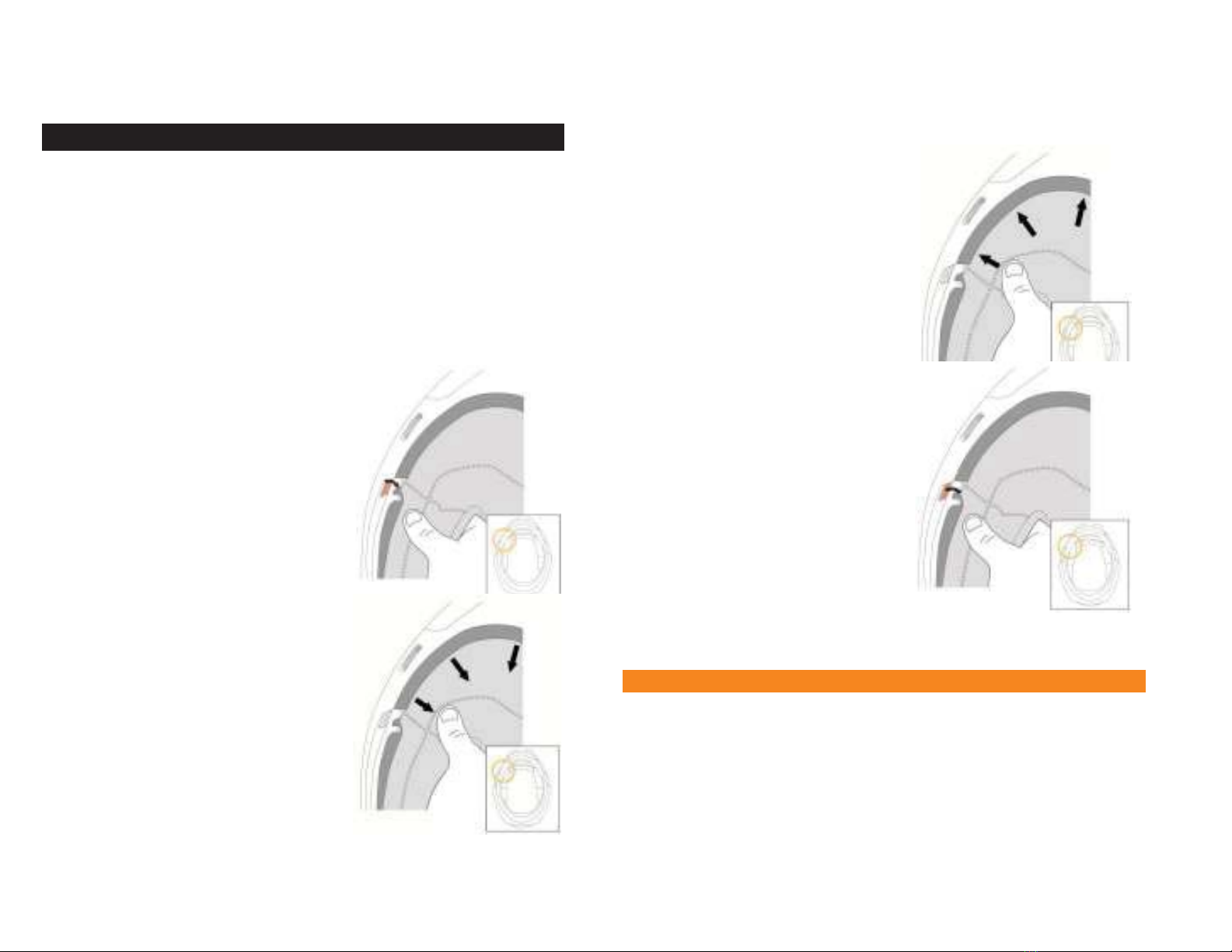

REMOVING THE PROTECTIVE COLLAR
1
1.
Take one side of the protective collar
and pull it out of its fitting (in red).
2.
To release the neck pad, pull gently
upward to disengage the plastic strip.
3.
Then, pull the 2nd notch out of its fitting
on the other side.
4.
The protective collar is also attached on
WKH FKLQ SRUWLRQ E\ ´DUURZ VQDSVµ 7R
fully remove the protective collar, pull
gently on the chin portion, toward the
center of the helmet.
INSTALLING THE PROTECTIVE COLLAR
1.
,QVHUWWKH´DUURZVQDSVµRQWKHFKLQ
plastic strip inside their specific housing.
2.
Once the chin plastic strip is in position.
Insert one of the notches located on each
side of the neck pad plastic strip into the
red housing as shown on the picture.
3.
Then, insert the plastic strip between
the impact absorbing liner and the shell,
from the one side to the other, by pushing
it inside and backward at the same time
to be able to match the other notch with
the other red housing.
4.
Once it is done and the neck pad
plastic strip is in position, insert the
second notch into its red housing.
WARNING
Do not carry or hold the helmet by the protective collar. The protective collar
may come off, causing the helmet to drop.

7
B. THE HELMET
5. MICROMETRIC CHIN STRAP
The retention system of the OXYGEN helmet comes with a ratchet fastener.
This locking system is easy to use and enables you to adjust the chinstrap
perfectly to your head every time you put the helmet on.
ADJUSTING THE CHIN STRAP
The length of the chinstrap is adjusted by increasing or reducing the length of
strap pulled through the metal buckles. Adjust the length of the chinstrap so
that it fits firmly but comfortably under your chin and fix the end of the strap
using the retaining loop with comfort pad.
W
WARNING
When adjusting the strap, make sure that the helmet cannot be pulled off in a
forward direction with the chinstrap closed.
WARNING
Check the adjustment of the chinstrap length at regular intervals.
OPENING AND CLOSING
To close the chinstrap fastener, slide the ratchet tongue step by step into the
locking buckle. If you find that the chinstrap fits too loosely around your chin,
slide the ratchet tongue one step further into the locking buckle.
When adjusting the chinstrap, make sure that it rests firmly but not
uncomfortably around your chin. To open the chinstrap, pull the red ribbon on
the ratchet fastener upwards to release the locking buckle. Then pull the
ratchet tongue out of the locking buckle.
WARNING
Never ride without making sure that the chinstrap is correctly fastened and
adjusted and properly positioned. If the chinstrap is not correctly adjusted or
fastened, the helmet could be displaced in the event of an accident.
WARNING
Closing the comfort pad of the chinstrap alone will not provide adequate
protection. The chinstrap must always be fully fastened.
WARNING
Never open the chinstrap while riding.

8
B. THE HELMET
6. FACE SHIELD
Changing the visor shield is easy to do without tools. To replace the visor, it is
helpful to place the helmet on a flat surface or on your lap while seated.

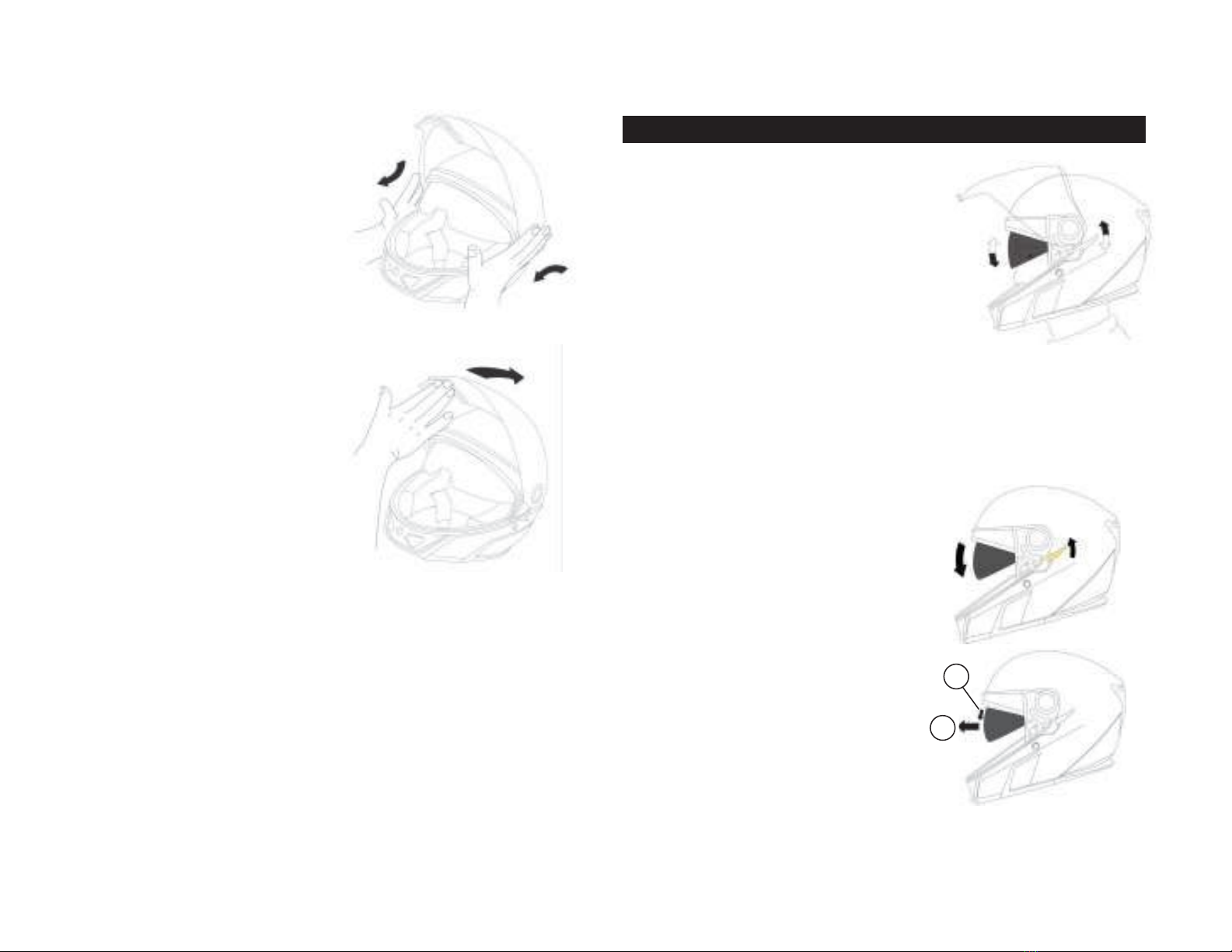

REMOVING THE FACE SHIELD
1.
Move the face shield into the
uppermost locked position.
2.
On one side, pull the lever of the face
shield mechanism downward to release
the lower tab of the face shield.
3.
Move the lower portion of the face
shield pivots upwards until the lower tab
is released from the face shield
mechanism.
4.
Then, pull the face shield downward to
release the upper tab from the face shield
mechanism.
5.
Repeat steps 1 ²4 for the other side.
INSTALLING THE FACE SHIELD
1.
Insert the upper tab of the face shield
into the specific location on the face
shield mechanism.
2.
Once the tab is in position, pull the
lever of the face shield mechanism
downward and slightly push the lower
portion of the face shield to put back in
position the lower tab of the face shield.
3.
Then, release the lever. Make sure the
spring put it back to the up position and
check if the visor is correctly in place.
4.
Repeat steps 1 - 3 for the other side.
For the other side, note that the face shield will be slightly tilted. Make sure the
lower tab of the face shield and the recess are perfectly aligned.
1
2
3
2
1

9
B. THE HELMET
5
5.
Once both sides are in position,
press the face shield pivots gently
towards the helmet with a
simultaneous closing movement.
6.
Make sure that the face shield
mechanism is functioning properly by
closing and opening the face shield to
its maximum extent.
7. SUN VISOR
OPERATION
The sun visor is operated by the lever
positioned on the left side of the helmet,
which makes it easy to use even when
wearing thick gloves.
Moving the lever upward lowers the sun
visor, moving it downward retracts the
sun visor inside the inner helmet shell
and locks it in position.
If during your ride you experience fogging or frosting on your sun visor, simply
raise it back to the up position, wait a minute, and then drop it back down. The
sun visor·s upper storage position is heated, that will disperse any fogging that
may have occurred.
REMOVING THE SUN VISOR
1.
Pivot the sun visor in the lower position.
2.
Pull the sun visor downward until you
see the upper edge.
3.
Hold your helmet in position and pull
the sun visor on the right side, toward the
outside of the helmet.
4.
Repeat steps 2-3 for the other side.
The sun visor lever should remain in the
same position while you install the visor.
2
1
Other manuals for Ski-Doo OXYGEN
1
Other BRP Motorcycle Accessories manuals
Popular Motorcycle Accessories manuals by other brands

hepco & becker
hepco & becker 654997 01 02 manual

probrake
probrake KA9-2 Mounting instruction

Dynojet
Dynojet Power Commander III 718-411 installation instructions

hepco & becker
hepco & becker 6304551 00 01 Mounting instructions

Code 3
Code 3 3951 Installation & operation manual

gilles.tooling
gilles.tooling m2-MV01 owner's manual
