Brush Wolf 4200 Instructions for use

— 1 — www.brushwolf.com
Skid Steer
Brush Cutters
Owner / Operator
Instruction & Maintenance
Manual
Model Series:
4200, 4800, 6000, 6600, 7200,
7201, 7800, 9000

— 2 —
Before operation of your Brush Wolf attachment read the
entire contents of this manual
Thank you for your purchase of the Brush Wolf rotary brush cutter. At Cross-Tech
Manufacturing we take great pride in the design and manufacturing of our prod-
ucts and we appreciate your business. We are confident your Brush Wolf will pro-
vide many years of reliable service. Welcome to the Brush Wolf family of attach-
ments.
For your safety and the safety of others, please read the entire contents of this man-
ual prior to the operation of the Brush Wolf Brush Cutter.
If you have questions regarding your Brush Wolf, contact your dealer.
Please take the time to fill out the Warranty Registration Form contained in this
manual or go on-line at Brushwolf.com. A Warranty Registration Form (page 43)
must be on file within thirty days of the purchase date in order for warranty claims
to be valid. A full description of the warranty and process for submittal can be
found on page 44.
To ensure prompt and accurate information when working with your dealer re-
garding your Brush Wolf Brush Cutter please complete the Owner Reference Infor-
mation below. The information will be vital for service, repair and warranty inqui-
ries.
OWNER REFERENCE INFORMATION
Date Purchased:
Dealer Name:
Dealer Phone:
Model Number:
Serial Number:
Thank you for your business!

— 3 — www.brushwolf.com
THIS PAGE
IS INTENTIONALLY
BLANK

— 4 —
Table of Contents
Foreword...............................................................................................2
Safety Section.......................................................................................6
Operation Instructions......................................................................8
Maintenance........................................................................................9
Maintenance Checklist...................................................................10
Troubleshooting...............................................................................12

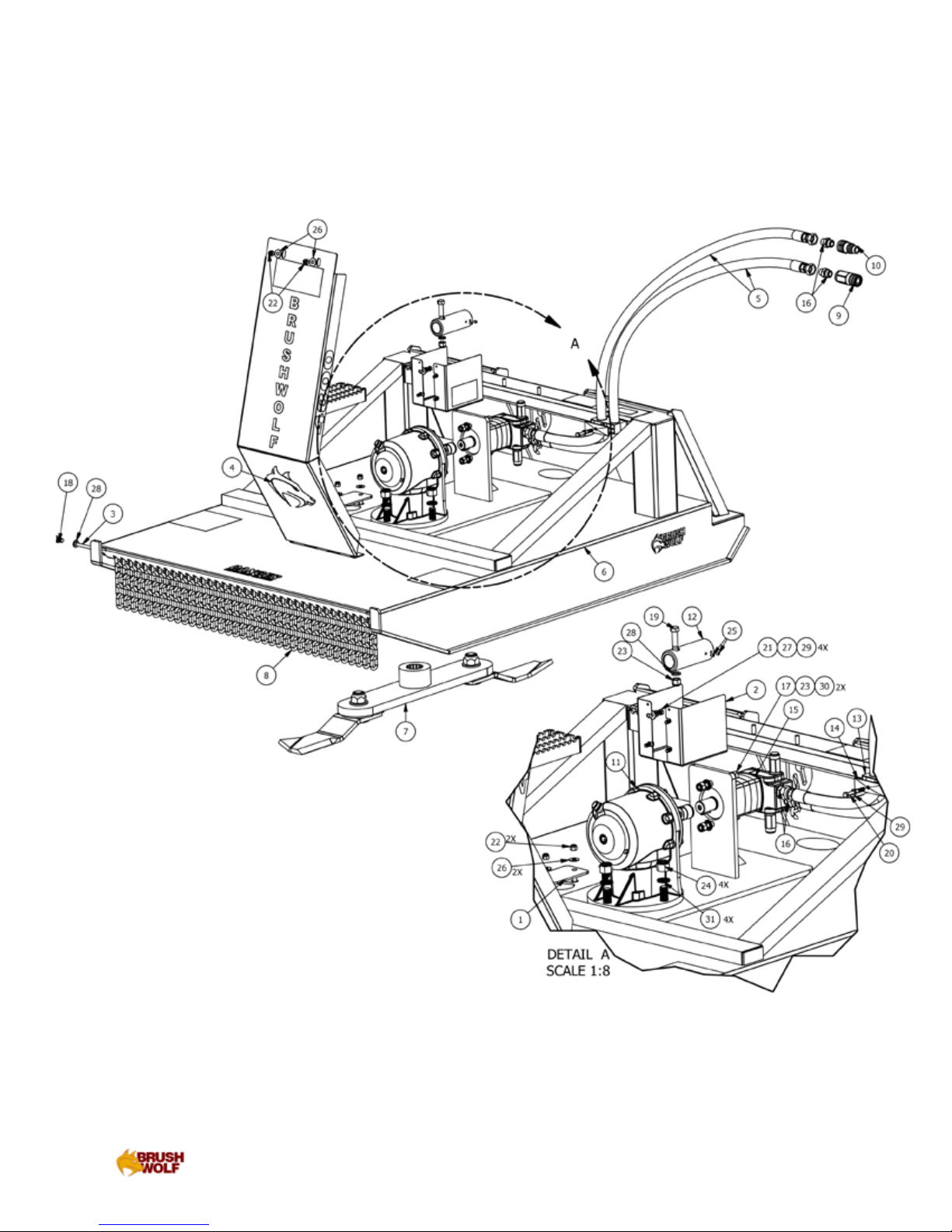

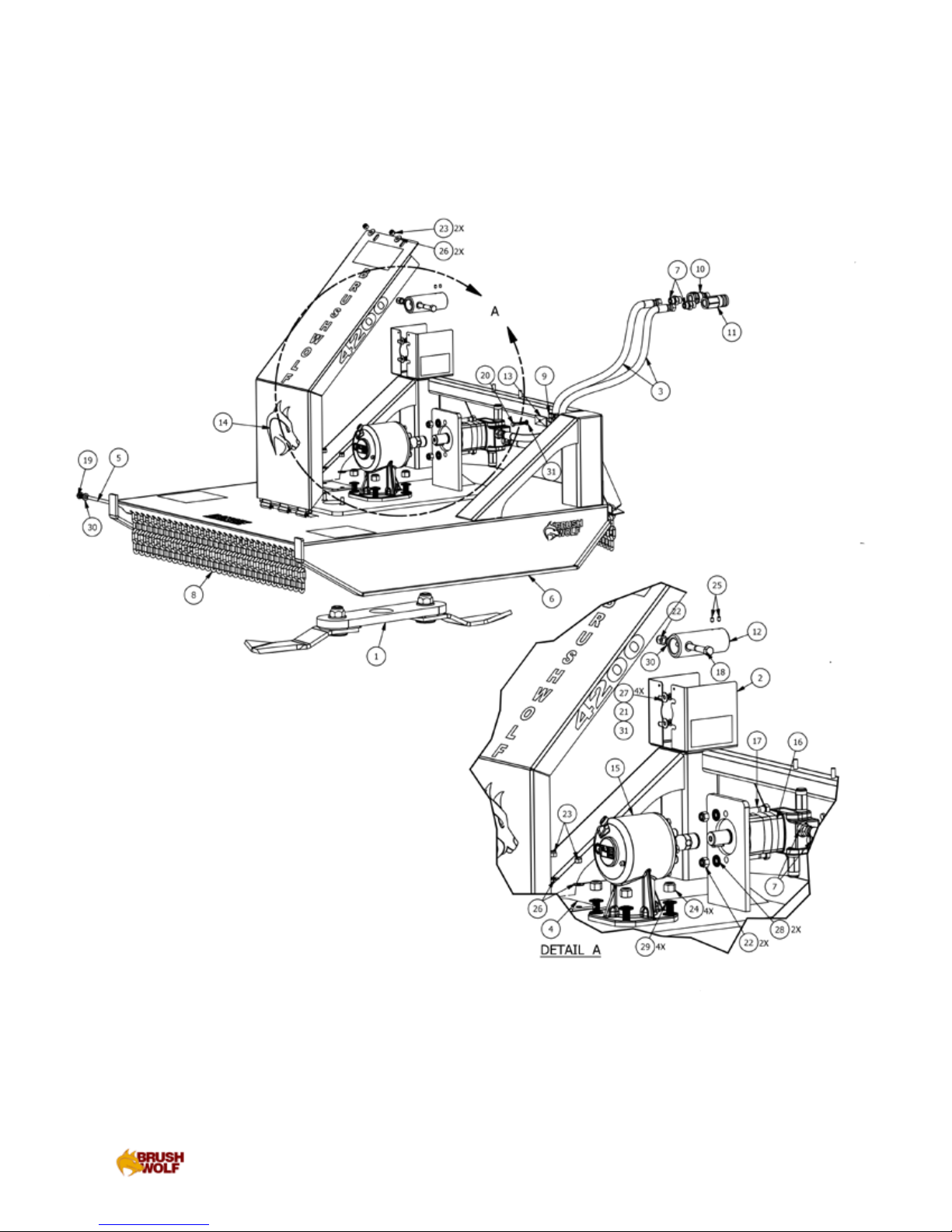

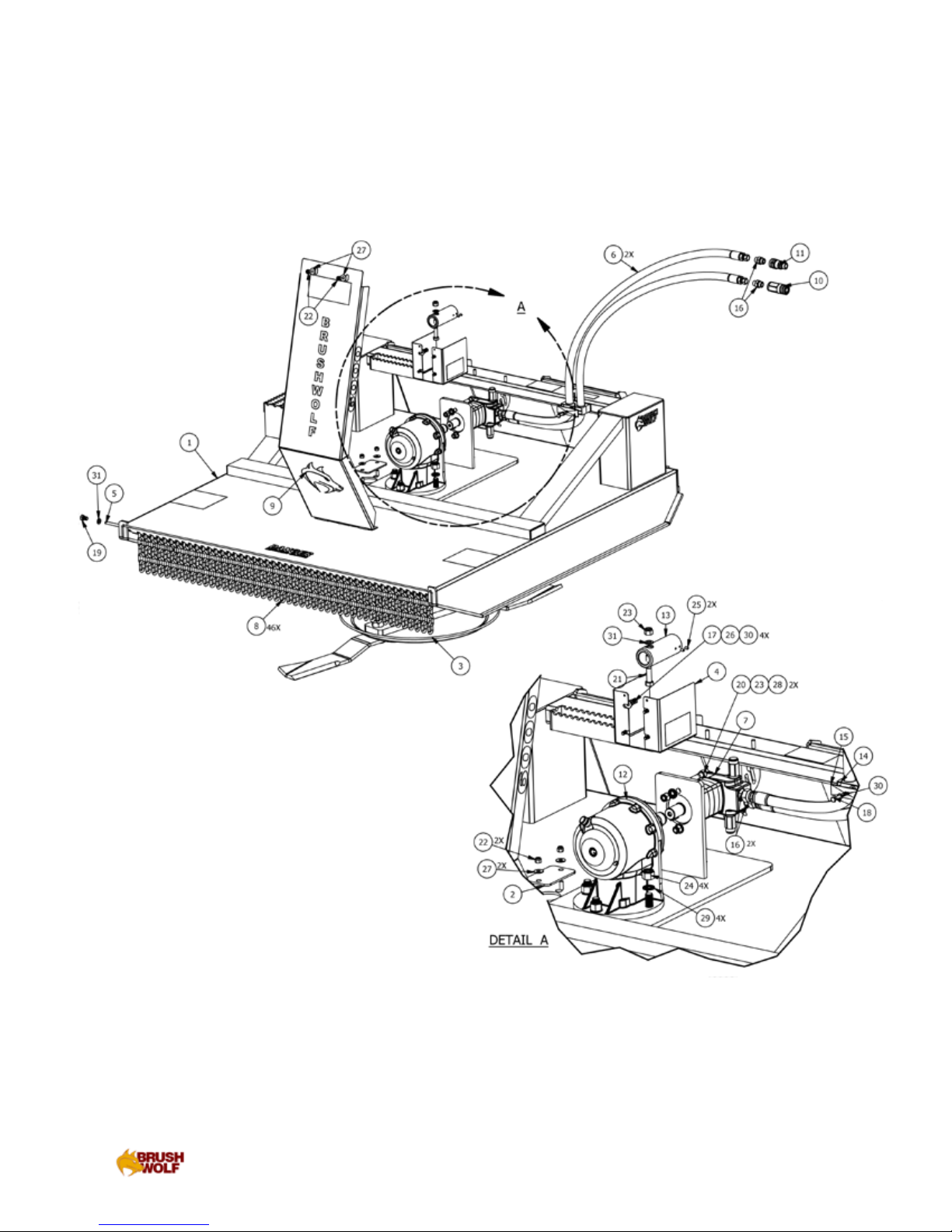

4200 Parts Diagram........................................................................14
4200 Parts List...................................................................................15

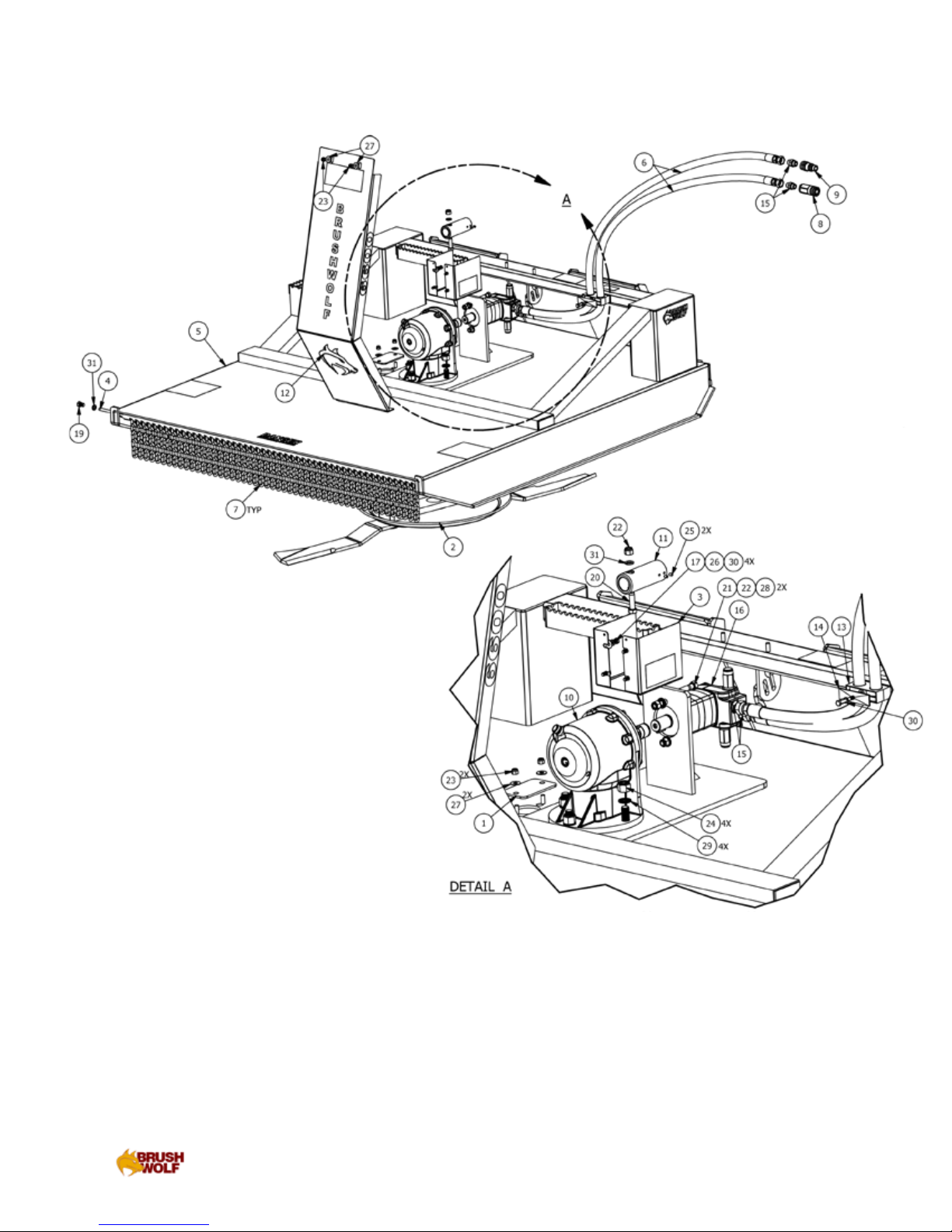

4800 Low Flow & Standard Parts Diagram.............................16
4800 Low Flow & Standard Parts List.. ....................................17
6000 Low Flow & Standard Parts Diagram............................18
6000 Low Flow & Standard Parts List.......................................19
6600 Low Flow & Standard Parts Diagram............................20
6600 Low Flow & Standard Parts List.......................................21
6600 HF Parts Diagram.................................................................22
6600 HF Parts List............................................................................23
7200 Low Flow & Standard Parts Diagram.............................24
7200 Low Flow & Standard Parts List.......................................25
7200 HF Parts Diagram.................................................................26
7200 HF Parts List............................................................................27
7201 Low Flow & Standard Parts Diagram.............................28
7201 Low Flow & Standard Parts List.......................................29
7800 Standard Parts Diagram.....................................................30
7800 Parts List..................................................................................31

— 5 — www.brushwolf.com
7800 HF High Flow Parts Diagram...........................................32
7800 HF High Flow Parts List......................................................33
9000 Standard Parts Diagram....................................................34
9000 Standard Parts List...............................................................35
9000 HF High Flow Parts Diagram...........................................36
9000 HF High Flow Standard Parts List.........................37 & 38
Blades, Blade Carriers Parts List..................................................40
Dealer Checklist...............................................................................42
Warranty Registration...................................................................43
Warranty Information...................................................................44
Table of Contents - continued

— 6 —
The following safety instructions are provided to alert you to precautions which, if not
followed, may cause serious injury to yourself or others. Please read these instructions com-
pletely. Cross-Tech Manufacturing can not cover every incident that might be a hazard.
Extreme caution should be used at all times. Only use Brush Wolf Brush Cutters for the pur-
pose for which it has been designed. Always operate a skid steer with a forestry rated door
and cab. Safety goggles and hearing protection must be worn at all times.
Site Inspection: Before operation of your Brush Wolf, carefully inspect the area to be
cleared. Remove any items which may be picked up and thrown by the cutting blades; wire,
pipes, or rocks. Mark any object too large to move. This is an important step to help avoid
damage to property, the Brush Wolf brush cutter, your skid steer or personal injury. If an
object is struck when operating the Brush Wolf, immediately shut down power to both the
attachment and the skid steer. Any damage should be corrected and tested before continu-
ation of cutting.
Equipment Inspection: Prior to inspection, disconnect the unit from the skid steer. To
inspect or to make repairs under the Brush Wolf cutter deck always block the unit securely
in order to prevent accidental release of the lift mechanism. Inspect all hydraulic hoses and
shields to ensure they are in good condition and without holes before pressurizing. Hydrau-
lic fluid can escape under pressure and may cause serious injury or death. Wear safety gog-
gles, ear protection, hard hat, and only operate the skid steer behind shatter proof forestry
rated door and cab.
Skid Steer Auxiliary Hydraulic Flow: Check the specifications of the Brush Wolf models
rated GPM to correctly match the hydraulic flow of your skid steer to ensure proper opera-
tion.
Do Not operate near bystanders, vehicles, pets, livestock or buildings. Objects may dis-
charge while cutting with the Brush Wolf and has the potential to cause serious injury.
Do Not place hands, feet or other objects under the deck while the Brush Wolf is in oper-
ation. To inspect or perform maintenance under the deck, always shut down the power to
the Brush Wolf, shut-off the skid steer engine, disconnect hydraulic hoses, and block the
unit securely.
Do Not raise the mower deck when blades are rotating. Operation with the mower raised
will expose the cutting blades and the potential for injury or death.
Do Not allow children to operate a rotary brush cutter. Only individuals with skid steer
experience who are well acquainted with the rules of safe operation should be allowed to
operate the Brush Wolf.
Safety Instructions

— 7 — www.brushwolf.com
Safety Instructions
Do Not operate the Brush Wolf in conditions with poor visibility.
Do Not expose the underside of the blades towards the cab.
Do Not operate while intoxicated or if taking medications that may impair your senses or reac-
tions.
Do Not attempt to straighten blades. Order replacement blades if blades are bent,
cracked or damaged.
Do Not leave the Brush Wolf unattended while in a raised position. Always make sure both the
runners are placed firmly on the ground and shut down the skid steer.
Do Not continue operation if an unexpected object is struck. IMMEDIATELY shut down pow-
er to both the attachment and the skid steer. Disconnect the hydraulic couplers from the power
source. Evaluate the damage, repair and the test unit before operation.
Do Not allow anyone or any item on top of the mower deck when in operation.
Do Not operate until all of the members of your work crew are alerted to the dangers of walking
up to the brush cutter while in operation.
Make sure all hydraulic connections are tight and hoses and shields are in good
condition before applying pressure.
Hydraulic fluid escaping under pressure can penetrate skin and cause serious injury.
If this type of injury occurs, seek medical attention immediately.

— 8 —
Operation Instructions
1. Prior to operation check the blades and replace if cracked or damaged. All blades must be
replaced at the same time. Tighten the blade carrier to the gearbox, blade bolts/nuts, and
hydraulic motor mount nuts to torque specification on Page 10. Check the hydraulic fluid.
A low level could indicate a leak and require a closer inspection of your unit.
2. Connect the Brush Wolf to your skid steer with the universal quick-tach mount.
3. Once connected, visually check the lock pins to make sure the Brush Wolf is securely locked
in place. Raise the Brush Wolf to 12” above ground level. Loop the lift limit chain through
the chain ring on your skid steer and back to the chain bracket on your Brush Wolf. Verify
the hydraulic flow of your skid steer is within the range of the Brush Wolf rating of GPM -
Gallons per Minute.
4. Inspect the hydraulic couplers and wipe off water, dust or any debris. Dirt and debris can
damage hydraulic components. Once cleaned, connect the couplers from the cutter to the
auxiliary hydraulic system on the skid steer.
5. Connect the auxiliary hydraulic lines for the brush cutter to the skid steer. If you have a High
Flow skid steer and brush cutter - attach the case drain to the skid steer. Twist the collars of
the quick connect couplers to secure the hydraulic connections. Do not operate the brush
cutter on High Flow hydraulics (over 30 GPM) unless the brush cutter is equipped with a
High Flow motor this may cause damage to the motor and void the warranty.
6. Confirm all safety measures have been completed per the Safety Instructions. Most impor-
tantly make sure the area is clear of personnel and pets.
7. Enter shatter-proof cab door, engage seat belt, release brake and start engine. The runners
of the Brush Wolf should be as close to the ground as possible. Never raise the Brush Wolf
more than seven (7) inches off the ground while in operation.
8. Slowly apply hydraulics to the Brush Wolf and increase the engine speed to high idle. Make
sure the unit is operating smoothly before moving the skid steer forward. When tempatures
are below zero allow additional time for hydraulic fluids to warm-up.
9. Maintain a speed to handle the volume of brush and to prevent stalling.
10. Stay alert for drop-offs, rocks, holes, abandoned wells and septic tanks. Do not operate or
drive across a steep embankment as this may cause a rollover and possible injuries or death.
11. To cut large diameter brush and trees, move forward slowly to make the cut.
12. When finished cutting, lower lift arms, make sure the cutter is placed flat on the ground,
throttle down the skid steer and shut off the hydraulic flow to the unit, stop engine, and
engage parking brake prior to leaving the cab. Noise at shut down is normal.
13. To disconnect hoses use proper hand protection as the couplers may be hot.

— 9 — www.brushwolf.com
Maintenance
Your new Brush Wolf is a precisely engineered attachment and requires little maintenance.
The Brush Wolf is built to strict standards and will deliver years of dependable service by
following these maintenance guidelines:
Perform maintenance on level surface with the unit firmly on the ground and
blocked. Shut off the hydraulic power supply and disconnect hydraulic couplers.
Before operation, check the gearbox for proper lubricant and hydraulic hoses for
any leaks. To check lubricant level, remove pipe plug from the side of the gearbox.
Lubricant should be the same level as the plug. See diagram on page 10.
IMPORTANT: Do not overfill, as too much lubricant may rupture the gearbox
seals.
1. Check all nuts and bolts for proper tightness. See Maintenance Schedule on page
10.
2. Every Brush Wolf is tested at the factory and all nuts and bolts have been tight-
ened to specifications. We recommend you check them after the first 4 to 6 hours
of operation and at regular intervals as defined in the Maintenance Schedule.
3. Tighten all the nuts which secure the blades to the blade carrier every eight (8)
hours. Torque the nuts to 775 ft - lbs with a 1-11/16” socket wrench. The nuts are
located under the access plate on the top of the cutter deck. Also, tighten the cas-
tle nut holding the blade or bar carrier to the output shaft of the gearbox, torque
to 450 ft - lbs with a 1-1/2” socket wrench.
4. Inspect blades regularly to ensure they are sharp, tightened correctly and intact.
Blades must be replaced as a set and never try to weld or straighten damaged
blades, as loss of blade integrity will result.
5. Inspect hydraulic hoses daily or each use for damage, wear or leaks.
6. Shear bolt protection (also known as butter bolt) at the motor coupler. It is
recommended to carry additional shear bolts GRD 2 obtained at most hardware
stores. Only use grade 2 when replacing.
CAUTION: Always replace the entire set of blades. Never weld or
straighten damaged blades, as loss of blade integrity may result.
CAUTION: Replace missing or illegible safety decals immediately.
Decals are available at your Brush Wolf dealer.

— 10 —
Maintenance Schedule / Checklist
ITEM TYPE OF MAINTENANCE FREQUENCY
Gearbox mounting bolts Model: 4200 - Torque to 160 ft - lbs
All other models: Torque to 275 ft - lbs
Daily or every 8 hours
Hydraulic motor mount bolts Torque to 75 ft - lbs. Daily or every 8 hours
Block - High Flow units only Torque to 420 in - lbs. Daily or every 8 hours
Shear Bolt Grade 2 Torque to 75 ft - lbs. Daily or every 8 hours
Blade Bolt/Nuts Torque to 775 ft - lbs. Daily or every 8 hours
Blade Inspection Check for damage, dullness or cracks. Blades
should rotate freely and be clear of obstructions.
Replace entire set of blades if damaged.
Daily or every use
Gearbox castle nut Torque to 450 ft - lbs. Daily or every 8 hours
Hoses and hose safety shield Check for wear, damage or leaks. Replace if dam-
aged.
Daily or every 8 hours
Gearbox lubricant Check oil - add 85 W 140 gear lube
DO NOT overfill - see diagram below
Once per week
Gearbox shaft Inspect shaft and remove foreign material. Inspect each use
Brush Wolf machine Clean the unit to view potential damage or ob-
structions that could result in poor performance.
As needed
CAUTION: Perform maintenance on a level surface with the unit
firmly on the ground and blocked. Shut off the hydraulic
power supply and disconnect hydraulic couplers.
Do Not loan your brush cutter to another skid steer owner.
The potential exists for hydraulic contamination and could
shorten the life of your skid steer or the hydraulic motor on
your Brush Wolf brush cutter.

— 11 — www.brushwolf.com
THIS PAGE
IS INTENTIONALLY
BLANK

— 12 —
Troubleshooting
Problem Check
Loss of Power Low hydraulic fluid level
Overheated hydraulic fluid*
Contaminated hydraulic fluid*
Low gearbox lubricant level
Broken gearbox /motor shear pin
Missing input shaft key
Excessive Dull, broken or damaged blades
Unit Vibration Bent gearbox shaft
Blade carrier out of balance
Loose nuts and bolts
New blade or bolts matched with worn blade or bolts
Wire or rope wrapped around blades
Leaking Oil Loose hydraulic connections
Ruptured hydraulic motor seals
Bent gearbox shaft
Loose or missing motor drain plug
Ruptured hydraulic motor seals
*May damage hydraulic motor and void warranty
Note: When performing maintenance, shut down the skid steer and remove
hydraulic hoses from the power source.

— 13 — www.brushwolf.com
THIS PAGE
IS INTENTIONALLY
BLANK

— 14 —
4200 Parts Diagram - Standard Pick-up plate

— 15 — www.brushwolf.com
4200 Model Parts List
ITEM ITEM QTY PART NUMBER DESCRIPTION
1 1 15603 ASSEMBLY, BLADE CARRIER, BW 4200
2 1 15102 GUARD, COUPLING, BW, STD 4200
3 2 15631 HOSE WHIP ASSEMBLY, -8 ORFS, FEMALE SWIVEL COUPLINGS, 0.500 X 66.00 HOSE
4 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
5 1 15108 ROD, ROUND, 0.375 X 41.000
6 1 15624 WELDMENT, FRAME, BW4200
7 4 15584 ADAPTER, STRAIGHT, #8 MORFS, #10 MORB
8 34 15285 CHAIN, 0.313, 4 LINK, PROOF COIL
9 1 15263 CLAMP, BODY, TWO PIECE, 22MM, TWO HOSE
10 1 15079 COUPLER , FLAT FACED, MALE, 3/4
11 1 15078 COUPLER, FLAT FACED, FEMALE, 3/4
12 1 15123 COUPLING, STD, 1.250 MOTOR, 1.375 GB, 5.500
13 1 15264 COVER PLATE, CLAMP, 22MM, TWO HOSE
14 1 15131 DECAL KIT, BW 4200
15 1 15091 GEARBOX, 40HP, 1.375 INPUT, 12 TOOTH SPLINE OUTPUT, 1:1.93 RATIO
16 1 15352 MOTOR, 4.9 CU IN, SAE “A” 2 BOLT, 7/8-14 SAE O-RING BO PORTS, 1.250 DIA X 1.250
KEYED SHAFT, 3500/750 RELIEF, EATON
17 2 Hardware BOLT, HH, 1/2-13 X 2 UNC, GRD 5, ZINC
18 1 15274* BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
19 1 Hardware BOLT, HH, 1/2-13 X 3/4 UNC, GRD 5, ZINC
20 1 Hardware BOLT, HH, 5/16-18 X 1 3/4, GRD 5, ZINC
21 4 Hardware BOLT, HH, 5/16-18 X 3/4 GRD 5, ZINC
22 3 Hardware NUT, NYLOCK, 1/2-13, ZINC
23 4 Hardware NUT, NYLOCK, 3/8-16, ZINC
24 4 Hardware NUT, NYLOCK, 5/8-18, ZINC
25 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
26 4 Hardware WASHER, FLAT, 3/8, ZINC
27 4 Hardware WASHER, FLAT, 5/16, ZINC
28 2 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
29 4 15379 WASHER, NORD-LOCK, 0.625 X 1.210 OD, ZINC
30 2 Hardware WASHER, SPRING LOCK, .500, ZINC
31 5 Hardware WASHER, SPRING LOCK, 5/16, ZINC
*SHEAR BOLT

— 16 —
4800 Parts Diagram - Low Flow & Standard

— 17 — www.brushwolf.com
4800 Model Parts List
ITEM ITEM QTY PART NUMBER DESCRIPTION
1 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
2 1 15067 GUARD, COUPLING, BW, STD
3 1 15109 ROD, ROUND, 0.375 X 47.000
4 1 15133 DECAL KIT, BW 4800
5 1 15597 HOSE WHIP ASSEMBLY, -8 ORFS, FEMALE SWIVEL COUPLINGS, 0.750 X 78.000 HOSE
6 1 15632 WELDMENT FRAME BW 4800
7 1 15652 ASSEMBLY BLADE CARRIER, BW 4800
8 36 15068 CHAIN, 0.313, 5 LINK, PROOF COIL
9 1 15078 COUPLER, FLAT FACED, FEMALE, 3/4
10 1 15079 COUPLER , FLAT FACED, MALE, 3/4
11 1 15093 GEARBOX, 62HP, 1:1.93 RATIO
12 1 15123 COUPLING, STD, 1.250 MOTOR, 1.375 GB, 5.500
13 1 15248 CLAMP, BODY, TWO PIECE, 30MM, TWO HOSE
14 1 15249 COVER PLATE, CLAMP, 30MM, TWO HOSE
15 1 15353*STANDARD FLOW BRUSH CUTTER - MOTOR, 6.2 CU IN, SAE “A” 2 BOLT, 7/8-14-12 SAE O-RING
PORTS, 1.250 DIA X 1.250 KEYED SHAFT, 3500/750 RELIEF, EATON
15 1 15352*LOW FLOW (LF) BRUSH CUTTER - MOTOR, 4.9 CU IN, SAE “A” 2 BOLT, 7/8-14 SAE O-RING
PORTS, 1.250 DIA X 1.250 KEYED SHAFT, 3500/750 RELIEF, EATON
16 4 15584 ADAPTER, STRAIGHT, #8 MORFS, #10 MORB
17 2 Hardware BOLT, HH, 1/2-13 X 2 UNC, GRD 5, ZINC
18 1 Hardware BOLT, HH, 1/2-13 X 3/4 UNC, GRD 5, ZINC
19 1 15274** BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
20 1 Hardware BOLT, HH, 5/16-18 X 2 1/2, GRD 5, ZINC
21 4 Hardware BOLT, HH, 5/16-18 X 3/4, GRD 5, ZINC
22 4 Hardware NUT, NYLOCK, 3/8-16, ZINC
23 3 Hardware NUT, NYLOCK, 1/2-13, ZINC
24 4 Hardware NUT, NYLOCK, 3/4-10, ZINC
25 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
26 4 Hardware WASHER, FLAT, 3/8, ZINC
27 4 Hardware WASHER, FLAT, 5/16, ZINC
28 2 Hardware WASHER, SPRING LOCK, .500, ZINC
29 5 Hardware WASHER, SPRING LOCK, 5/16, ZINC
30 2 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
31 4 15379 WASHER, NORD-LOCK, 0.750 X 1.210 OD, ZINC
* DEPENDS ON MODEL OF BRUSH CUTTER
** SHEAR BOLT

— 18 —
6000 Model Parts List - Low Flow & Standard

— 19 — www.brushwolf.com
6000 Parts Diagram Low Flow & Standard
ITEM ITEM QTY PART NUMBER DESCRIPTION
1 1 15000 WELDMENT FRAME BW 6000
2 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
3 1 15056 ASSEMBLY, BLADE CARRIER, BW 6000
4 1 15067 GUARD, COUPLING, BW, STD
5 1 15080 ROD, ROUND, 0.375 X 59.000
6 2 15597 HOSE WHIP ASSEMBLY, -8 ORFS, FEMALE SWIVEL COUPLINGS, 0.750 X 78.000 HOSE
7 1 15353*STANDARD FLOW BRUSH CUTTER - MOTOR, 6.2 CU IN, SAE “A” 2 BOLT, 7/8-14-12 SAE O-RING
BO PORTS, 1.250 DIA X 1.250 KEYED SHAFT, 3500/750 RELIEF, EATON
7 1 15748*LOW FLOW BRUSH CUTTER - MOTOR, 8.0 CU IN, SAE “A” 2 BOLT, 7/8-14 SAE O-RING PORTS,
1.250 DIA X 1.250 KEYED SHAFT, 3500/750 RELIEF, EATON
8 46 15068 CHAIN, 0.313, 5 LINK, PROOF COIL
9 1 15069 DECAL KIT, BW 6000
10 1 15078 COUPLER, FLAT FACED, FEMALE, 3/4
11 1 15079 COUPLER , FLAT FACED, MALE, 3/4
12 1 15092* STANDARD FLOW BRUSH CUTTER - GEARBOX, 62HP, 1:1.46 RATIO
12 1 15093* LOW FLOW BRUSH CUTTER - GEARBOX, 62HP, 1:1.93 RATIO
13 1 15123 COUPLING, STD, 1.250 MOTOR, 1.375 GB, 5.500
14 1 15248 CLAMP, BODY, TWO PIECE, 30MM, TWO HOSE
15 1 15249 COVER PLATE, CLAMP, 30MM, TWO HOSE
16 4 15584 ADAPTER, STRAIGHT, #8 MORFS, #10 MORB
17 4 Hardware BOLT, HH, 5/16-18 X 3/4, GRD 5, ZINC
18 1 Hardware BOLT, HH, 5/16-18 X 2 1/2, GRD 5, ZINC
19 1 Hardware BOLT, HH, 1/2-13 X 3/4 UNC, GRD 5, ZINC
20 2 Hardware BOLT, HH, 1/2-13 X 2 UNC, GRD 5, ZINC
21 1 15274** BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
22 4 Hardware NUT, NYLOCK, 3/8-16, ZINC
23 3 Hardware NUT, NYLOCK, 1/2-13, ZINC
24 4 Hardware NUT, NYLOCK, 3/4-10, ZINC
25 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
26 4 Hardware WASHER, FLAT, 5/16, ZINC
27 4 Hardware WASHER, FLAT, 3/8, ZINC
28 2 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
29 4 15379 WASHER, NORD-LOCK, 0.750 X 1.210 OD, ZINC
30 5 Hardware WASHER, SPRING LOCK, 5/16, ZINC
31 2 Hardware WASHER, SPRING LOCK, .500, ZINC
*DEPENDS ON THE MODEL OF BRUSH CUTTER
** SHEAR BOLT

— 20 —
6600 Model Parts List - Low Flow & Standard
