Brush Wolf 4800X series User manual

— 1 — www.brushwolf.com
Excavator / Backhoe
Brush Cutters
Owner / Operator
Instruction & Maintenance
Manual
Model Series:
4200X, 4800X, 6000X, 6600X

— 2 —
Before operation of your Brush Wolf attachment read the
entire contents of this manual
Thank you for your purchase of the Brush Wolf rotary brush cutter. At Cross-Tech
Manufacturing we take great pride in the design and manufacturing of our products
and we appreciate your business. We are confident your Brush Wolf will provide many
years of reliable service. Welcome to the Brush Wolf family.
For your safety and the safety of others, please read the entire contents of this manual
prior to the operation of the Brush Wolf brush cutter.
If you have questions regarding your Brush Wolf, contact your dealer.
Please take the time to fill out the Warranty Registration Form contained in this manual
or go on-line at Brushwolf.com. A Warranty Registration Form (page 27) must be on
file within thirty days of the purchase date in order for warranty claims to be valid. A full
description of the warranty and process for submittal can be found on page 28.
To ensure prompt and accurate information when working with your dealer regarding
your Brush Wolf Brush Cutter please complete the Owner Reference Information below.
The information will be vital for service, repair and warranty inquiries.
OWNER REFERENCE INFORMATION
Date Purchased:
Dealer Name:
Dealer Phone:
Model Number:
Serial Number:
Thank you for your business!

— 3 — www.brushwolf.com
Table of Contents
Foreword.............................................................................................2
Safety Section.....................................................................................4
Operation Instructions....................................................................6
Maintenance......................................................................................7
Maintenance Checklist....................................................................8
Troubleshooting...............................................................................9
4200X Parts Diagram....................................................................10
4200X Parts List...............................................................................11
4800X (Standard & Low Flow) Parts Diagram......................12
4800X (Standard & Low Flow) Parts List.................................13
4800X HF (High Flow) Diagram................................................14
4800X HF (High Flow) Parts List................................................15
6000X (Standard Flow) Diagram...............................................16
6000X (Standard FLow) Parts List..............................................17
6000X HF (High Flow) Diagram................................................18
6000X HF (High Flow) Parts List................................................19
6600X (Standard Flow) Diagram...............................................20
6600X (Standard Flow) Parts List...............................................21
6600X HF (High Flow) Diagram................................................22
6600X HF (High Flow) Parts List................................................23
Blade Carrier Diagram & Parts List 4200X & 4800X............24
Blade Carrier Diagram & Parts List for 6000X & 6600X.....25
Dealer Checklist..............................................................................26
Warranty Registration..................................................................27
Warranty Information..................................................................28

— 4 —
The following safety instructions are provided to alert you to precautions which, if not followed,
may cause serious injury to yourself or others. Please read these instructions completely. Cross-
Tech Manufacturing can not cover every incident that might be a hazard. Extreme caution should
be used at all times. Only use Brush Wolf brush cutters for the purpose for which it has been de-
signed. Always operate an excavator/backhoe with a forestry rated door and cab. Safety goggles
and hearing protection must be worn at all times.
Site Inspection: Before operation of your Brush Wolf, carefully inspect the area to be cleared. Re-
move any items which may be picked up and thrown by the cutting blades; wire, pipes, or rocks.
Mark any object too large to move. This is an important step to help avoid damage to property, the
Brush Wolf brush cutter, your excavator/backhoe or personal injury. If an object is struck when op-
erating the Brush Wolf, immediately shut down power to both the attachment and the excavator/
backhoe. Any damage should be corrected and tested before continuation of cutting.
Equipment Inspection: Prior to inspection, disconnect the unit from the excavator/backhoe. To
inspect or to make repairs under the Brush Wolf cutter deck always block the unit securely in order
to prevent accidental release of the lift mechanism. Inspect all hydraulic hoses and shields to en-
sure they are in good condition and without holes before pressurizing. Hydraulic fluid can escape
under pressure and may cause serious injury or death. Wear safety goggles, ear protection, hard
hat, and only operate the excavator behind a shatter proof forestry rated door and cab.
Excavator / Backhoe Auxiliary Hydraulic Flow: Check the specifications of the Brush Wolf
models rated GPM to correctly match the hydraulic flow of your excavator/backhoe to ensure
proper operation.
Do Not operate near bystanders, vehicles, pets, livestock or buildings. Objects may discharge
while cutting with the Brush Wolf and has the potential to cause serious injury.
Do Not place hands, feet or other objects under the deck while the Brush Wolf is in operation. To
inspect or perform maintenance under the deck, always shut down the power to the Brush Wolf,
shut-off the excavator/backhoe engine, disconnect hydraulic hoses, and block the unit securely.
Do Not allow children to operate a rotary brush cutter. Only individuals with excavator/backhoe
experience who are well acquainted with the rules of safe operation should be allowed to operate
the Brush Wolf.
Do Not operate the Brush Wolf in conditions with poor visibility.
Safety Instructions

— 5 — www.brushwolf.com
Safety Instructions
Do Not expose the underside of the blades towards the cab.
Do Not operate while intoxicated or if taking medications that may impair your senses or reac-
tions.
Do Not attempt to straighten blades. Order replacement blades if blades are bent,
cracked or damaged.
Do Not leave the Brush Wolf unattended while in a raised position. Always make sure both the
runners are placed firmly on the ground and shut down the excavator/backhoe.
Do Not continue operation if an unexpected object is struck. IMMEDIATELY shut down power
to both the attachment and the excavator/backhoe. Disconnect the hydraulic couplers from the
power source. Evaluate the damage, repair and the test unit before operation.
Do Not allow anyone or any item on top of the mower deck when in operation.
Make sure all hydraulic connections are tight and hoses and shields are in good
condition before applying pressure.
Hydraulic fluid escaping under pressure can penetrate skin and cause serious injury.
If this type of injury occurs, seek medical attention immediately.

— 6 —
Operation Instructions
1. Prior to operation check the blades and replace if cracked or damaged. All blades must be
replaced at the same time. Tighten the blade carrier to the gearbox, blade bolts/nuts, and
hydraulic motor mount nuts. Check the hydraulic fluid. A low level could indicate a leak
and require a closer inspection of your unit.
2. Ensure pins or quick couplers are properly connected from the Brush Wolf to your excava-
tor/backhoe.
3. Verify the auxiliary hydraulic flow available at the stick of your excavator/backhoe is within
the range of the Brush Wolf rating of GPM - Gallons Per Minute.
4. Inspect the hydraulic couplers and wipe off water, dust or any debris. Dirt and debris can
damage hydraulic components. Once cleaned, connect the couplers from the cutter to the
auxiliary hydraulic system on the excavator/backhoe.
5. Connect the auxiliary hydraulic lines for the brush cutter to the excavator/backhoe. If you
have a High Flow excavator/backhoe and brush cutter - attach the case drain to the excava-
tor/backhoe. Twist the collars of the quick connect couplers to secure the hydraulic connec-
tions. Do not operate the brush cutter on High Flow hydraulics unless the brush cutter is
equipped with a High Flow motor and case drain this may cause damage to the motor and
void the warranty.
6. Confirm all safety measures have been completed per the Safety Instructions. Most impor-
tantly make sure the area is clear of personnel and pets.
7. Enter shatter-proof cab door, engage seat belt, release brake and start engine. The runners
of the Brush Wolf should be as close to the ground as possible.
8. Slowly apply hydraulics to the Brush Wolf and increase the engine speed to high idle. Make
sure the unit is operating smoothly before moving the excavator/backhoe forward. When
temperatures are below zero allow additional time for hydraulic fluids to warm-up.
9. Maintain a speed to handle the volume of brush and to prevent stalling.
10. Stay alert for drop-offs, rocks, holes, abandoned wells and septic tanks. Do not operate or
drive across a steep embankment as this may cause a rollover and possible injuries or death.
11. To cut large diameter brush and trees, move forward slowly to make the cut.
12. When finished cutting, make sure the cutter is placed flat on the ground, throttle down the
excavator/backhoe and shut off the hydraulic flow to the unit, stop engine, and engage
parking brake prior to leaving the cab. Noise at shut down is normal.
13. To disconnect hoses use proper hand protection as the couplers may be hot.

— 7 — www.brushwolf.com
Maintenance
Your new Brush Wolf is a precisely engineered attachment and requires little maintenance.
The Brush Wolf is built to strict standards and will deliver years of dependable service by
following these maintenance guidelines:
1. Perform maintenance on level surface with the unit firmly on the ground and
blocked. Shut off the hydraulic power supply and disconnect hydraulic couplers.
Before operation, check the gearbox for proper lubricant and hydraulic hoses for
any leaks. To check lubricant level, remove pipe plug from the side of the gearbox.
Lubricant should be the same level as the plug. See diagram on page 8.
IMPORTANT: Do not overfill, as too much lubricant may rupture the gearbox
seals.
2. Check all nuts and bolts for proper tightness. See Maintenance Schedule on page
8.
3. Every Brush Wolf is tested at the factory and all nuts and bolts have been tight-
ened to specifications. We recommend you check them after the first 4 to 6 hours
of operation and at regular intervals as defined in the Maintenance Schedule.
4. Tighten all the nuts which secure the blades to the blade carrier every eight (8)
hours. Torque the nuts to 775 ft - lbs with a 1-11/16” socket wrench. The nuts are
located under the access plate on the top of the cutter deck. Also, tighten the cas-
tle nut holding the blade or bar carrier to the output shaft of the gearbox, torque
to 450 ft - lbs with a 1-1/2” socket wrench.
5. Inspect blades regularly to ensure they are sharp, tightened correctly and intact.
Blades must be replaced as a set and never try to weld or straighten damaged
blades, as loss of blade integrity will result.
6. Inspect hydraulic hoses daily or each use for damage, wear or leaks.
7. Shear bolt protection at the motor coupler. It is recommended to carry addi-
tional shear bolts GRD 2 obtained at most hardware stores. Only use grade 2
when replacing.
CAUTION: Always replace the entire set of blades. Never weld or
straighten damaged blades, as loss of blade integrity may result.
CAUTION: Replace missing or illegible safety decals immediately.
Decals are available at your Brush Wolf dealer.

— 8 —
Maintenance Schedule / Checklist
ITEM TYPE OF MAINTENANCE FREQUENCY
Gearbox mounting bolts Torque to 275 ft - lbs Daily or every 8 hours
Hydraulic motor mount bolts Torque to 75 ft - lbs. Daily or every 8 hours
Block - High Flow units only Torque to 420 in - lbs. Daily or every 8 hours
Shear bolt Grade 2 Torque to 75 ft - lbs. Daily or every 8 hours
Blade Bolt/nuts Torque to 775 ft - lbs. Daily or every 8 hours
Blade Inspection Check for damage, dullness or cracks. Blades
should rotate freely and be clear of obstruc-
tions. Replace entire set of blades if damaged.
Daily or every use
Gearbox castle nut Torque to 450 ft - lbs. Daily or every 8 hours
Hoses and hose safety shield Check for wear, damage or leaks. Replace if
damaged.
Daily or every 8 hours
Gearbox lubricant Check oil - add 85 W 140 gear lube. See dia-
gram below. DO NOT overfill
Once per week
Gearbox shaft Inspect shaft and remove foreign material. Inspect each use
Brush Wolf machine Clean the unit to view potential damage or
obstructions that could result in poor perfor-
mance.
As needed
CAUTION: Perform maintenance on a level surface with the unit
firmly on the ground and blocked. Shut off the hydraulic
power supply and disconnect hydraulic couplers.
Do Not loan your brush cutter to another excavator/back
hoe owner. The potential exists for hydraulic contamination
and could shorten the life of your operating equipment or the
hydraulic motor on your Brush Wolf brush cutter.

— 9 — www.brushwolf.com
Troubleshooting
Problem Check
Loss of Power Low hydraulic fluid level
Overheated hydraulic fluid*
Contaminated hydraulic fluid*
*May damage hydraulic motor
Low gearbox lubricant level
Broken gearbox /motor shear pin
Missing input shaft key
Excessive Dull, broken or damaged blades
Unit Vibration Bent gearbox shaft
Blade carrier out of balance
Loose nuts and bolts
New blade or bolts matched with worn blade or bolts
Wire or rope wrapped around blades
Leaking Oil Loose hydraulic connections
Ruptured hydraulic motor seals
Bent gearbox shaft
Loose or missing motor drain plug
Ruptured hydraulic motor seals
Note: When performing maintenance, shut down the excavator/backhoe and
remove hydraulic hoses from the power source.

— 10 —
4200X Parts Diagram

— 11 — www.brushwolf.com
4200X Model Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
2 1 15103 GAURD, COUPLING, BW, X MODEL, STD
3 2 15108 ROD, ROUND, 0.375 X 41.000
4 1 15151 WELDMENT, FRAME, BW 4200X
5 1 15132 DECAL KIT, BW 4200X
6 1 15184 ASSEMBLY, BLADE CARRIER, BW 4200X
7 2 15595 HOSE WHIP ASSEMBLY, -8 ORFS, FEMALE SWIVEL COUPLINGS, 0.500 X 90.000 HOSE
8 62 15068 CHAIN, 0.313, 5 LINK, PROOF COIL
9 1 15078 COUPLER, FLAT FACED, FEMALE, 3/4
10 1 15079 COUPLER , FLAT FACED, MALE, 3/4
11 1 15093 GEARBOX, 62HP, 1:1.93 RATIO
12 1 15123 COUPLING, STD, 1.250 MOTOR, 1.375 GB, 5.500
13 1 15263 CLAMP, BODY, TWO PIECE, 22MM, TWO HOSE
14 1 15264 COVER PLATE, CLAMP, 22MM, TWO HOSE
15 1 15352 MOTOR, 4.9 CU IN, SAE “A” 2 BOLT, 7/8-14 SAE O-RING PORTS, 1.250 DIA X 1.250
KEYED SHAFT, 3500/750 RELIEF, EATON
16 4 15584 ADAPTER, STRAIGHT, #8 MORFS, #10 MORB
17 1 Hardware BOLT, HH, 5/16-18 X 1 3/4, GRD 5, ZINC
18 2 Hardware BOLT, HH, 1/2-13 X 1 1/4 UNC, GRD 5, ZINC
19 2 Hardware BOLT, HH, 1/2-13 X 2 UNC, GRD 5, ZINC
20 1 15274* BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
21 6 Hardware NUT, NYLOCK, 3/8-16, ZINC
22 3 Hardware NUT, NYLOCK, 1/2-13, ZINC
23 4 Hardware NUT, NYLOCK, 3/4-10, ZINC
24 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
25 6 Hardware WASHER, FLAT, 3/8, ZINC
26 2 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
27 4 15379 WASHER, NORD-LOCK, 0.750 X 1.210 OD, ZINC
28 1 Hardware WASHER, SPRING LOCK, 5/16, ZINC
29 3 Hardware WASHER, SPRING LOCK, .500, ZINC
* SHEAR BOLT

— 12 —
4800X Parts Diagram - Standard & Low Flow (LF)

— 13 — www.brushwolf.com
4800X Model Parts List - Standard & Low Flow (LF)
ITEM QTY PART NUMBER DESCRIPTION
1 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
2 1 15103 GAURD, COUPLING, BW, X MODEL, STD
3 2 15109 ROD, ROUND, 0.375 X 47.000
4 1 15134 DECAL KIT, BW 4800X
5 1 15171 WELDMENT, FRAME, BW 4800X
6 1 15287 ASSEMBLY, BLADE CARRIER, BW 4800X
7 2 15593 HOSE WHIP ASSEMBLY, -8 ORFS, FEMALE SWIVEL COUPLINGS, 0.750 X 90.000 HOSE
8 70 15068 CHAIN, 0.313, 5 LINK, PROOF COIL
9 1 15078 COUPLER, FLAT FACED, FEMALE, 3/4
10 1 15079 COUPLER , FLAT FACED, MALE, 3/4
11 1 15093 GEARBOX, 62HP, 1:1.93 RATIO
12 1 15123 COUPLING, STD, 1.250 MOTOR, 1.375 GB, 5.500
13 1 15248 CLAMP, BODY, TWO PIECE, 30MM, TWO HOSE
14 1 15249 COVER PLATE, CLAMP, 30MM, TWO HOSE
15 1 15352* LOW FLOW BRUSH CUTTER - MOTOR, 4.9 CU IN, SAE “A” 2 BOLT, 7/8-14 SAE O-RING
PORTS, 1.250 DIA X 1.250 KEYED SHAFT, 3500/750 RELIEF, EATON
15 1 15353* STANDARD FLOW BRUSH CUTTER - MOTOR, 6.2 CU IN, SAE “A” 2 BOLT, 7/8-14-12 SAE
O-RING PORTS, 1.250 DIA X 1.250 KEYED SHAFT, 3500/750 RELIEF, EATON
16 4 15584 ADAPTER, STRAIGHT, #8 MORFS, #10 MORB
17 1 Hardware BOLT, HH, 5/16-18 X 2 1/2, GRD 5, ZINC
18 2 Hardware BOLT, HH, 1/2-13 X 2 UNC, GRD 5, ZINC
19 2 Hardware BOLT, HH, 1/2-13 X 1 1/4 UNC, GRD 5, ZINC
20 1 15274** BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
21 6 Hardware NUT, NYLOCK, 3/8-16, ZINC
22 3 Hardware NUT, NYLOCK, 1/2-13, ZINC
23 4 Hardware NUT, NYLOCK, 3/4-10, ZINC
24 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
25 6 Hardware WASHER, FLAT, 3/8, ZINC
26 2 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
27 4 15379 WASHER, NORD-LOCK, 0.750 X 1.210 OD, ZINC
28 1 Hardware WASHER, SPRING LOCK, 5/16, ZINC
29 3 Hardware WASHER, SPRING LOCK, .500, ZINC
*DEPENDS ON THE MODEL OF BRUSH CUTTER
**SHEAR BOLT

— 14 —
4800X HF Parts Diagram - High Flow

— 15 — www.brushwolf.com
ITEM QTY PART NUMBER DESCRIPTION
1 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
2 1 15104 GUARD, COUPLING, BW, X MODEL, HF
3 2 15109 ROD, ROUND, 0.375 X 47.000
4 1 15350 DECAL KIT, BW 4800X HF
5 1 15311 WELDMENT, FRAME, BW 4800X HF
6 1 15287 ASSEMBLY, BLADE CARRIER, BW 4800X
7 1 15418 PLATE, STAUFF, 3 HOLE COVER, 1.25 X 5.875
8 2 15590 HOSE WHIP ASSEMBLY, -12 ORFS, FEMALE SWIVEL COUPLINGS, 0.750 X 90.000 HOSE
9 1 15591 HOSE WHIP ASSEMBLY, -6 ORFS, FEMALE SWIVEL COUPLINGS, 0.375 X 96.000 HOSE
10 1 15149 MOTOR, 11.9 CU IN, SAE “CC” 4 BOLT, 0.750 DIA SPLIT FLANGE STAGGERED PORTS,
1.500 DIA X 1.625 KEYED SHAFT BW
11 1 15125 BLOCK, CROSSOVER RELIEF MANIFOLD, 6K MOTOR, ALUMINUM
12 70 15068 CHAIN, 0.313, 5 LINK, PROOF COIL
13 1 15114 COUPLER, FEMALE, SIZE 16, 1 1/6-12, O-RING BOSS
14 1 15115 COUPLER, MALE, SIZE 16, 1 1/6-12, O-RING BOSS
15 1 15093 GEARBOX, 62HP, 1:1.93 RATIO
16 1 15053 COUPLING, HF, 1.500 MOTOR, 1.375 GB, 5.500
17 1 15407 ADAPTER, STRAIGHT, #6 MORFS, #4 MORB
18 1 15401 CLAMP, BODY, TWO PIECE, 30-30-18, THREE HOSE, BLACK
19 4 15405 ADAPTER, STRAIGHT, #12 MORF, #12 MORB
20 1 15408 ADAPTER, STRAIGHT, #6 MORFS, #8 MORB
21 1 15414 COUPLER, FLAT FACED, FEMALE, 3/4-16, O-RING BOSS
22 2 Hardware BOLT, HH, 3/8-16 X 3, GRD 5, ZINC
23 4 Hardware BOLT, HH, 1/2-13 X 2 1/2 UNC, GRD 5, ZINC
24 1 15274* BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
25 2 Hardware BOLT, HH, 1/2-13 X 1 1/4 UNC, GRD 5, ZINC
26 6 Hardware NUT, NYLOCK, 3/8-16, ZINC
27 5 Hardware NUT, NYLOCK, 1/2-13, ZINC
28 4 Hardware NUT, NYLOCK, 3/4-10, ZINC
29 8 Hardware SCREW_ CAP_SH_ 3_8-16X3 1_2 GRD8
30 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
31 6 Hardware WASHER, FLAT, 3/8, ZINC
32 4 Hardware WASHER, FLAT, 1/2, ZINC
33 4 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
34 4 15379 WASHER, NORD-LOCK, 0.750 X 1.210 OD, ZINC
35 3 Hardware WASHER, SPRING LOCK, .500, ZINC
*SHEAR BOLT
4800X HF Model Parts List

— 16 —

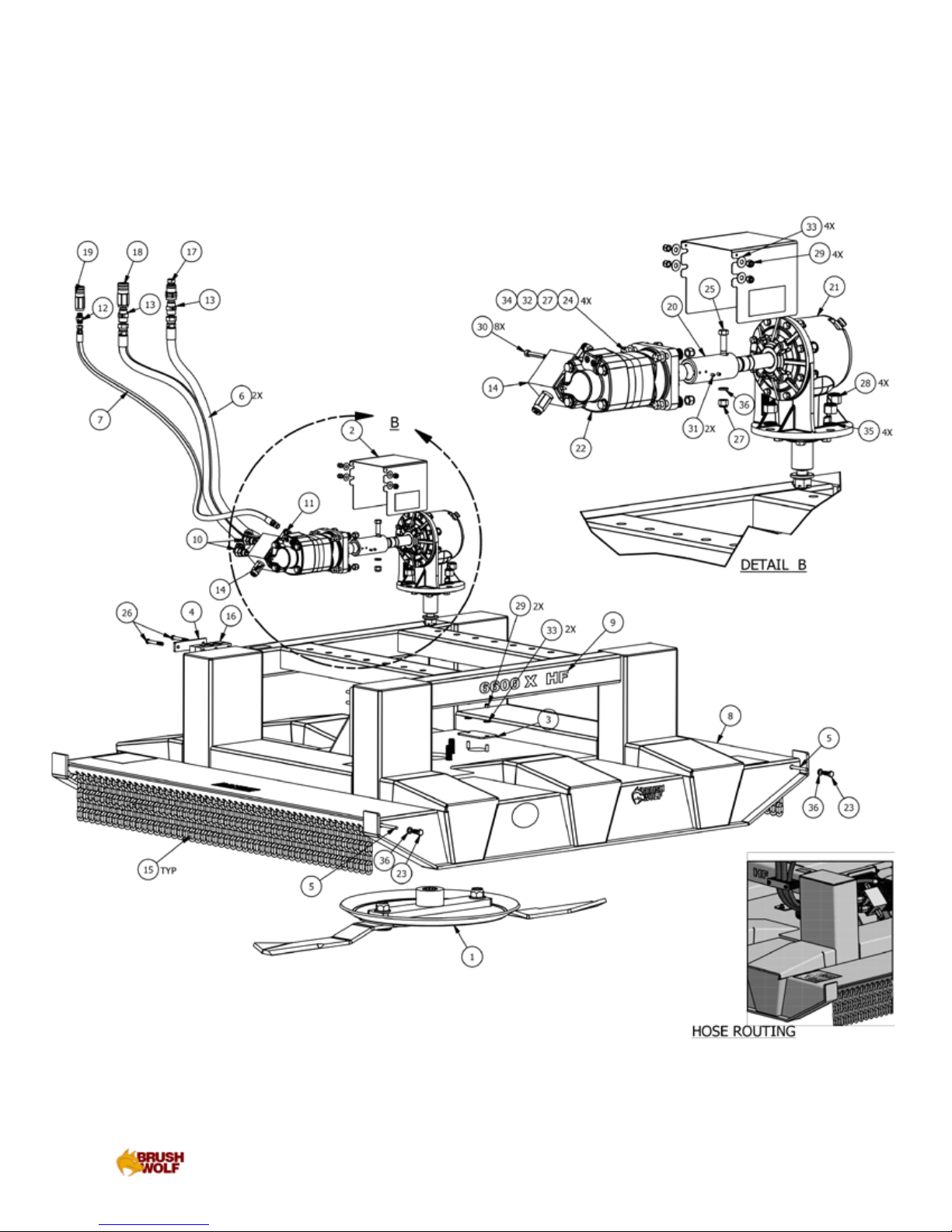

6000X Parts Diagram - Standard Flow

— 17 — www.brushwolf.com
6000X Model Parts List
ITEM QTY
PART
NUMBER DESCRIPTION
1 1 15056 ASSEMBLY, BLADE CARRIER, BW 6000/6000X
2 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
3 2 15080 ROD, ROUND, 0.375 X 59.000
4 1 15103 GAURD, COUPLING, BW, X MODEL, STD
5 2 15593 HOSE WHIP ASSEMBLY, -8 ORFS, FEMALE SWIVEL COUPLINGS, 0.750 X 90.000 HOSE
6 1 15600 DECAL KIT, BW 6600X
7 1 15598 WELDMENT, FRAME, BW 6000X
8 4 15584 ADAPTER, STRAIGHT, #8 MORFS, #10 MORB
9 1 15123 COUPLING, STD, 1.250 MOTOR, 1.375 GB, 5.500
10 92 15068 CHAIN, 0.313, 5 LINK, PROOF COIL
11 1 15078 COUPLER, FLAT FACED, FEMALE, 3/4
12 1 15079 COUPLER , FLAT FACED, MALE, 3/4
13 1 15093 GEARBOX, 62HP, 1:1.93 RATIO
14 1 15248 CLAMP, BODY, TWO PIECE, 30MM, TWO HOSE
15 1 15249 COVER PLATE, CLAMP, 30MM, TWO HOSE
16 1 15748 MOTOR, 8.0 CU IN, SAE “A” 2 BOLT, 7/8-14 SAE O-RING PORTS, 1.250 DIA X 1.250
KEYED SHAFT, 3500/750 RELIEF, EATON
17 1 Hardware BOLT, HH, 5/16-18 X 2 1/2, GRD 5, ZINC
18 2 Hardware BOLT, HH, 1/2-13 X 1 1/4 UNC, GRD 5, ZINC
19 2 Hardware BOLT, HH, 1/2-13 X 2 UNC, GRD 5, ZINC
20 1 15274* BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
21 6 Hardware NUT, NYLOCK, 3/8-16, ZINC
22 3 Hardware NUT, NYLOCK, 1/2-13, ZINC
23 4 Hardware NUT, NYLOCK, 3/4-10, ZINC
24 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
25 6 Hardware WASHER, FLAT, 3/8, ZINC
26 2 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
27 4 15379 WASHER, NORD-LOCK, 0.750 X 1.210 OD, ZINC
28 1 Hardware WASHER, SPRING LOCK, 5/16, ZINC
29 3 Hardware WASHER, SPRING LOCK, .500, ZINC
* SHEAR BOLT

— 18 —

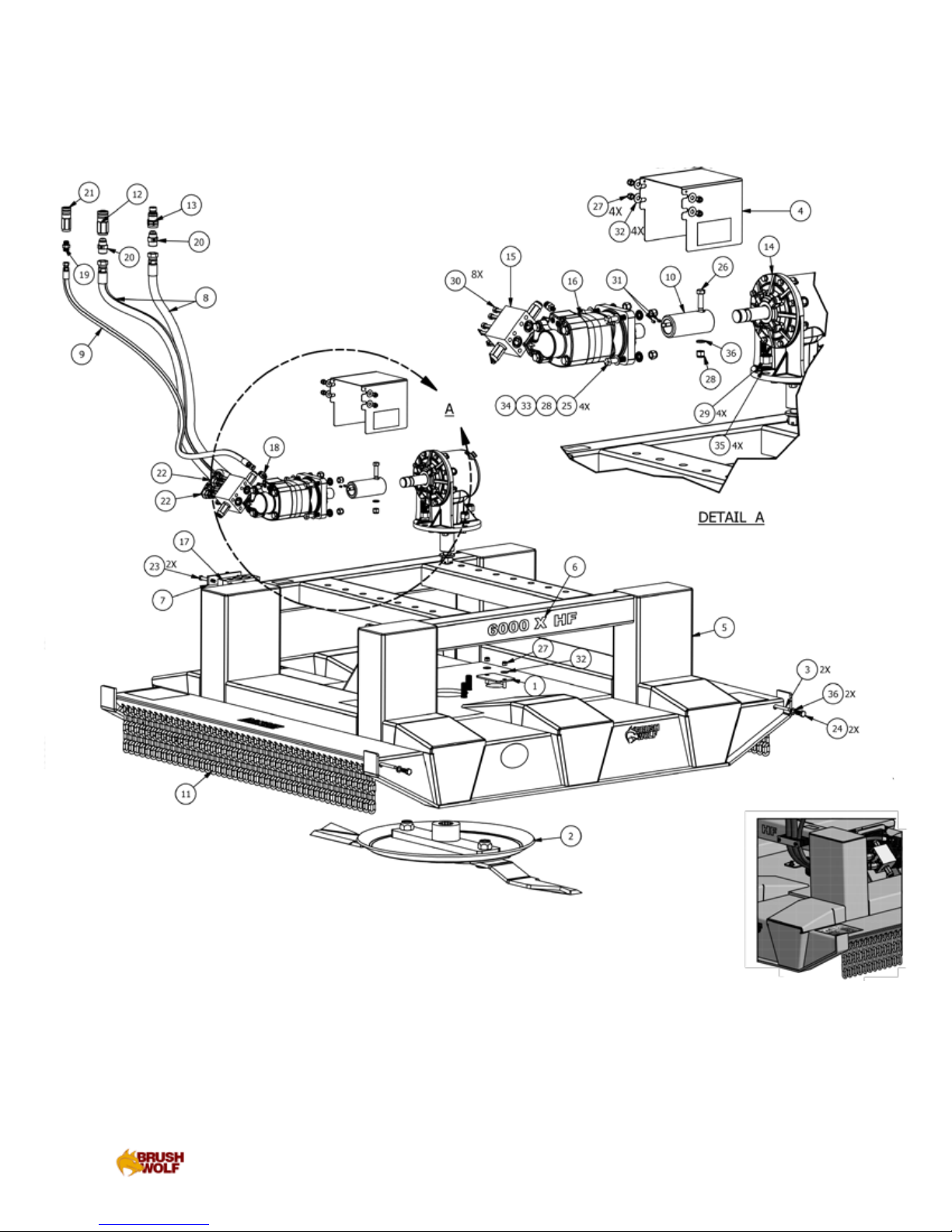

6000X HF Parts Diagram - High Flow

— 19 — www.brushwolf.com
6000X HF Model Parts List
ITEM QTY
PART
NUMBER DESCRIPTION
1 1 15054 PLATE, ACCESS, 2 HOLE, 5.250 X 3.250 X 0.250
2 1 15056 ASSEMBLY, BLADE CARRIER, BW 6000
3 2 15080 ROD, ROUND, 0.375 X 59.000
4 1 15104 GUARD, COUPLING, BW, X MODEL, HF
5 1 15357 WELDMENT, FRAME, BW 6000X HF
6 1 15368 DECAL KIT, BW 6000X HF
7 1 15418 PLATE, STAUFF, 3 HOLE COVER, 1.25 X 5.875
8 2 15590 HOSE WHIP ASSEMBLY, -12 ORFS, FEMALE SWIVEL COUPLINGS, 0.750 X 90.000 HOSE
9 1 15591 HOSE WHIP ASSEMBLY, -6 ORFS, FEMALE SWIVEL COUPLINGS, 0.375 X 96.000 HOSE
10 1 15053 COUPLING, HF, 1.500 MOTOR, 1.375 GB, 5.500
11 92 15068 CHAIN, 0.313, 5 LINK, PROOF COIL
12 1 15114 COUPLER, FEMALE, SIZE 16, 1 1/6-12, O-RING BOSS
13 1 15115 COUPLER, MALE, SIZE 16, 1 1/6-12, O-RING BOSS
14 1 15092 GEARBOX, 62HP, 1:1.46 RATIO
15 1 15125 BLOCK, CROSSOVER RELIEF MANIFOLD, 6K MOTOR, ALUMINUM
16 1 15149 MOTOR, 11.9 CU IN, SAE “CC” 4 BOLT, 0.750 DIA SPLIT FLANGE STAGGERED PORTS,
1.500 DIA X 1.625 KEYED SHAFT BW
17 1 15401 CLAMP, BODY, TWO PIECE, 30-30-18, THREE HOSE, BLACK
18 1 15407 ADAPTER, STRAIGHT, #6 MORFS, #4 MORB
19 1 15408 ADAPTER, STRAIGHT, #6 MORFS, #8 MORB
20 2 15405 ADAPTER, STRAIGHT, #12 MORF, #12 MORB
21 1 15414 COUPLER, FLAT FACED, FEMALE, 3/4-16, O-RING BOSS
22 2 15596 ADAPTER, 45 DEG, #12 MORFS, #10 MORB
23 2 Hardware BOLT, HH, 3/8-16 X 3, GRD 5, ZINC
24 2 Hardware BOLT, HH, 1/2-13 X 1 1/4 UNC, GRD 5, ZINC
25 4 Hardware BOLT, HH, 1/2-13 X 2 1/2 UNC, GRD 5, ZINC
26 1 15274* BOLT, HH, 1/2-13 X 3, GRD 2, ZINC
27 6 Hardware NUT, NYLOCK, 3/8-16, ZINC
28 5 Hardware NUT, NYLOCK, 1/2-13, ZINC
29 4 Hardware NUT, NYLOCK, 3/4-10, ZINC
30 8 Hardware SCREW_ CAP_SH_ 3_8-16X3 1_2 GRD8
31 2 Hardware SET SCREW_CP_1_4-20X3_8 UNC
32 6 Hardware WASHER, FLAT, 3/8, ZINC
33 4 Hardware WASHER, FLAT, 1/2, ZINC
34 4 15381 WASHER, NORD-LOCK, 0.500 X 1.000 OD, ZINC
35 4 15379 WASHER, NORD-LOCK, 0.750 X 1.210 OD, ZINC
36 3 Hardware WASHER, SPRING LOCK, .500, ZINC
*SHEAR BOLT

— 20 —
6600X Parts Diagram - Standard Flow
