Bryant DuraPac 580F Series Dimensions and installation guide

Cancels: II 580F-36-3 II 580F-36-4
1/15/04
IMPORTANT — READ BEFORE INSTALLING
1. Read and become familiar with these installation
instructions before installing this unit (Fig. 1A and
1B).
2. Be sure the installation conforms to all applicable lo-
cal and national codes.
3. These instructions contain important information for
the proper maintenance and repair of this equipment.
Retain these instructions for future use.
CONTENTS
Page
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-36
I. Step 1 — Provide Unit Support. . . . . . . . . . . . . . . . . 1
II. Step 2 — Field Fabricate Ductwork . . . . . . . . . . . . . 4
III. Step 3 — Install External Trap for
Condensate Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
IV. Step 4 — Rig and Place Unit. . . . . . . . . . . . . . . . . . . 4
V. Step 5 — Install Flue Hood . . . . . . . . . . . . . . . . . . . . 6
VI. Step 6 — Install Gas Piping . . . . . . . . . . . . . . . . . . . 6
VII. Step 7 — Make Electrical Connections . . . . . . . . . 10
VIII. Step 8 — Adjust Factory-Installed Options. . . . . . 14
IX. Step 9 — Adjust Evaporator-Fan Speed . . . . . . . . 24
PRE-START-UP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37-47
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47-52
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . .53-57
APPENDIX A — ECONOMI$ER+ LABEL . . . . . . . . . . . 58, 59
APPENDIX B — JOB SPECIFIC ECONOMI$ER+
CONFIGURATION SETTINGS . . . . . . . . . . . . . . . . . . . . . 60
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
START-UP CHECKLIST . . . . . . . . . . . . . . . . . . . . . . . . . . CL-1
SAFETY CONSIDERATIONS
Installation and servicing of air-conditioning equipment can
be hazardous due to system pressure and electrical compo-
nents. Only trained and qualified service personnel should
install, repair, or service air-conditioning equipment.
Untrained personnel can perform basic maintenance func-
tions of cleaning coils and filters and replacing filters. All
other operations should be performed by trained service per-
sonnel. When working on air-conditioning equipment,
observe precautions in the literature, tags and labels
attached to the unit, and other safety precautions that apply.
Follow all safety codes. Wear safety glasses and work gloves.
Use quenching cloth for unbrazing operations. Have fire
extinguishers available for all brazing operations.
INSTALLATION
Unit is shipped in the vertical duct configuration. To convert to
horizontal configuration, remove screws from side duct open-
ing covers and remove covers. Using the same screws, install
covers on vertical duct openings with the insulation-side down.
Seals around duct openings must be tight. See Fig. 2.
Confirm before installation of unit that voltage, amperage
and circuit protection requirements listed on unit data plate
agree with power supply provided.
I. STEP 1 — PROVIDE UNIT SUPPORT
A. Roof Curb
Assemble and install accessory roof curb in accordance with
instructions shipped with curb. See Fig. 3. Install insulation,
cant strips, roofing felt, and counter flashing as shown. Duct-
work must be attached to curb, not to the unit. The accessory
thru-the-bottom power and gas connection package must be
installed before the unit is set on the roof curb. If field-
installed (thru-the-roof curb) gas connections are desired, use
factory-supplied 3/4-in. pipe coupling and gas plate assembly
to mount the thru-the-roof curb connection to the roof curb.
Gas connections and power connections to the unit must be
field installed after the unit is installed on the roof curb.
If electric and control wiring is to be routed through the
basepan, attach the accessory thru-the-bottom service con-
nections to the basepan in accordance with the accessory
installation instructions.
IMPORTANT: The gasketing of the unit to the roof curb is
critical for a watertight seal. Install gasket supplied with the
roof curb as shown in Fig. 3. Improperly applied gasket can
result in air leaks and poor unit performance.
Curb should be level. Unit leveling tolerances are shown in
Fig. 4. This is necessary for unit drain to function properly.
Refer to Accessory Roof Curb Installation Instructions for
additional information as required.
WARNING: Disconnect gas piping from unit when
leak testing at pressure greater than 1/2psig. Pres-
sures greater than 1/2psig will cause gas valve damage
resulting in hazardous condition. If gas valve is sub-
jected to pressure greater than 1/2psig, it must be
replaced before use. When pressure testing field-
supplied gas piping at pressures of 1/2psig or less, a
unit connected to such piping must be isolated by man-
ually closing the gas valve.
WARNING: Before performing service or mainte-
nance operations on unit, turn off main power switch
to unit and install a lockout tag. Electrical shock could
cause personal injury.
CAUTION: Ensure voltage listed on unit data plate
agrees with electrical supply provided for the unit.
installation, start-up and
service instructions
SINGLE PACKAGE ROOFTOP
GAS HEATING/ELECTRIC COOLING UNITS
580F
Dura Pac Series
Sizes 036-073
3 to 6 Tons

—2—

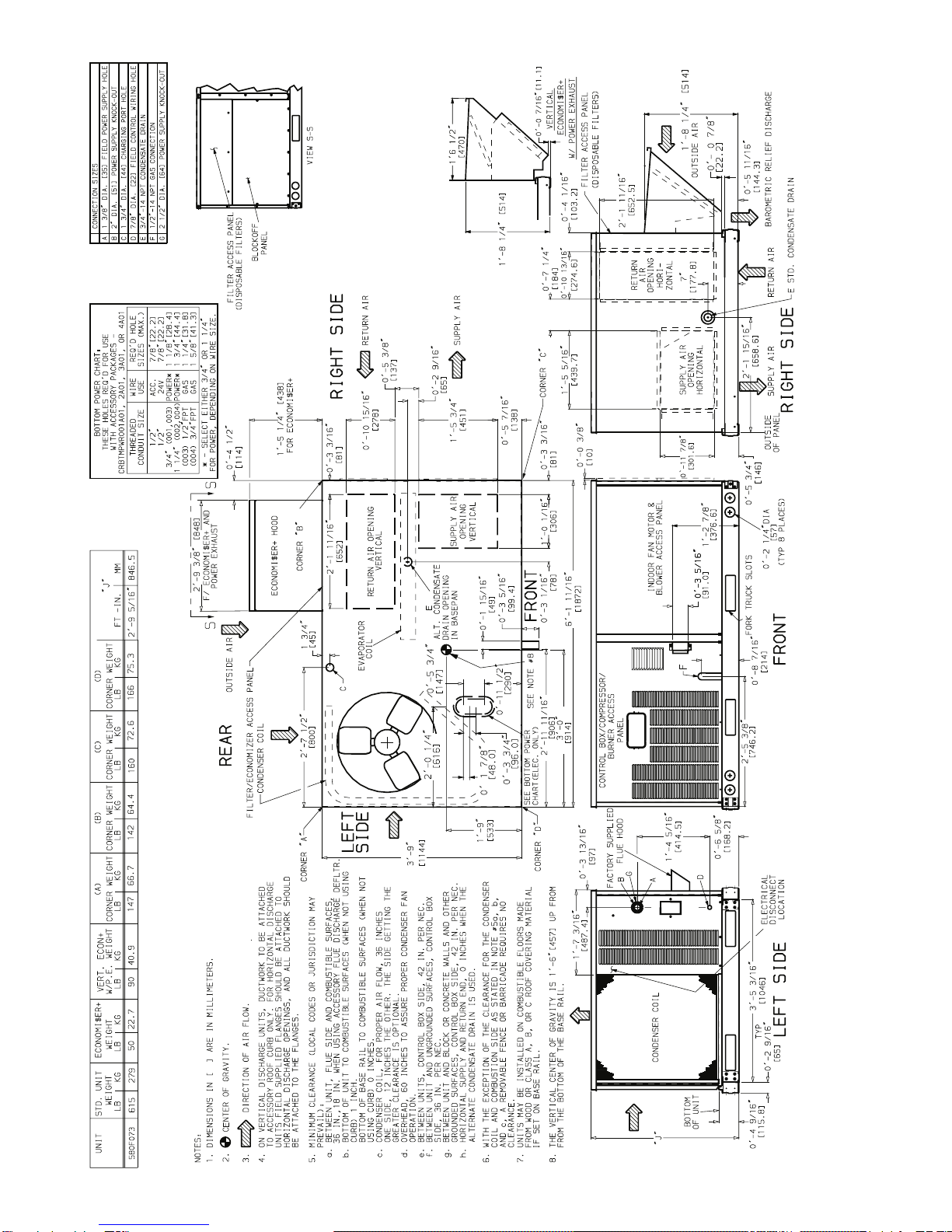

Fig. 1A — Base Unit Dimensions — 580F036-072

—3—
Fig. 1B — Base Unit Dimensions — 580F073

—4—
B. Slab Mount (Horizontal Units Only)
Provide a level concrete slab that extends a minimum of 6 in.
beyond unit cabinet. Install a gravel apron in front of condenser
coil air inlet to prevent grass and foliage from obstructing airflow.
NOTE: Horizontal units may be installed on a roof curb if
required.
C. Alternate Unit Support
A non-combustible sleeper rail can be used in the unit curb
support area. If sleeper rails cannot be used, support the
long sides of the unit with a minimum of 3 equally spaced
4-in. x 4-in. pads on each side.
II. STEP 2 — FIELD FABRICATE DUCTWORK
Secure all ducts to roof curb and building structure on verti-
cal ducted units. Do not connect ductwork to unit. For hori-
zontal applications, field-supplied flanges should be attached
to horizontal duct openings and all ductwork should be
secured to the flanges. Insulate and weatherproof all exter-
nal ductwork, joints, and roof openings with counter flashing
and mastic in accordance with applicable codes.
Ducts passing through an unconditioned space must be insu-
lated and covered with a vapor barrier.
If a plenum return is used on a vertical unit, the return
should be ducted through the roof deck to comply with appli-
cable fire codes.
A minimum clearance is not required around ductwork. Cab-
inet return air static shall not exceed –.20 in. wg with
economizer or –.45 in. wg without economizer.
These units are designed for a minimum continuous heating
return-air temperature of 50 F (dry bulb), or an intermittent
operation down to 45 F (dry bulb), such as when used with a
night set-back thermostat.
To operate at lower return-air temperatures, a field-supplied
outdoor air temperature control must be used to initiate both
stages of heat when the temperature is below 45 F. Indoor
comfort may be compromised when these lower air tempera-
tures are used with insufficient heating temperature rise.
III. STEP 3 — INSTALL EXTERNAL TRAP FOR CONDEN-
SATE DRAIN
The unit’s 3/4-in. condensate drain connections are located on
the bottom and side of the unit. Unit discharge connections do
not determine the use of drain connections; either drain con-
nection can be used with vertical or horizontal applications.
When using the standard side drain connection, make sure
the plug (Red) in the alternate bottom connection is tight
before installing the unit.
To use the bottom drain connection for a roof curb installation,
relocate the factory-installed plug (Red) from the bottom con-
nection to the side connection. The center drain plug looks like
a star connection, however it can be removed with a 1/2-in.
socket drive. See Fig. 5A. The piping for the condensate drain
and external trap can be completed after the unit is in place.
All units must have an external trap for condensate drainage.
Install a trap at least 4-in. deep and protect against freeze-up.
If drain line is installed downstream from the external trap,
pitch the line away from the unit at 1 in. per 10 ft of run. Do
not use a pipe size smaller than the unit connection (3/4in.).
See Fig. 5B.
IV. STEP 4 — RIG AND PLACE UNIT
Inspect unit for transportation damage. File any claim with
transportation agency. Keep unit upright and do not drop.
Spreader bars are not required if top crating is left on unit.
Rollers may be used to move unit across a roof. Level by
using unit frame as a reference. See Table 1 and Fig. 6 for
additional information.
Lifting holes are provided in base rails as shown in Fig. 1A
and 1B. Refer to rigging instructions on unit.
A. Positioning
Maintain clearance around and above unit to provide mini-
mum distance from combustible materials, proper airflow,
and service access. See Fig. 1A and 1B. A properly positioned
unit will have the following clearances between unit and roof
curb: 1/4-in. clearance between roof curb and base rails on
each side and duct end of unit; 1/4-in. clearance between roof
curb and condenser coil end of unit. (See Fig. 3, section C-C.)
CAUTION: All panels must be in place when rigging.
Fig. 2 — Horizontal Conversion Panels

—5—
Fig. 3 — Roof Curb
ROOF CURB
ACCESSORY A UNIT SIZE
CRRFCURB001A01 1′-2″
[356] 580F
036-073
CRRFCURB002A01 2′-0″
[610]
NOTES:
1. Roof curb accessory is shipped disassembled.
2. Insulated panels.
3. Dimensions in [ ] are in millimeters.
4. Roof curb, galvanized steel.
5. Attach ductwork to curb (flanges of duct rest on curb).
6. Service clearance: 4 ft on each side.
7. Direction of airflow.
8. Connector packages CRBTMPWR001A01 and 2A01 are for
thru-the-curb type gas. Packages CRBTMPWR003A01 and
4A01 are for thru-the-bottom type gas connections.
CONNECTOR
PKG. ACCY. BC
DALT
DRAIN
HOLE
GAS POWER CONTROL ACCESSORY
POWER
CRBTMPWR001A01
1′-911/16
″
[551]
1′-4″
[406]
13/4 ″
[44.5]
3/4
″ [19] NPT
3/4
″[19] NPT
1/2
″
[12.7]
NPT
1/2
″
[12.7]
NPT
CRBTMPWR002A01 11/4
″[31.7]
CRBTMPWR003A01 1/2
″ [12.7] NPT 3/4 ″[19] NPT
CRBTMPWR004A01 3/4
″ [19] NPT 11/4 ″[31.7]

—6—
Do not install unit in an indoor location. Do not locate unit
air inlets near exhaust vents or other sources of contami-
nated air.
Be sure that unit is installed such that snow will not block
the combustion intake or flue outlet.
Unit may be installed directly on wood flooring or on Class
A, B, or C roof-covering material when roof curb is used.
Although unit is weatherproof, guard against water from
higher level runoff and overhangs.
Flue vent discharge must have a minimum horizontal clear-
ance of 4 ft from electric and gas meters, gas regulators, and
gas relief equipment.
Minimum distance between unit and other electrically live
parts is 48 inches.
Flue gas can deteriorate building materials. Orient unit such
that flue gas will not affect building materials.
Adequate combustion-air space must be provided for
proper operation of this equipment. Be sure that installation
complies with all local codes and Section 5.3, Air for Combus-
tion and Ventilation, NFGC (National Fuel Gas Code), and
ANSI (American National Standards Institute) Z223.1, and
NFPA (National Fire Protection Association) 54 TIA-54-84-1.
In Canada, installation must be in accordance with the
CAN1-B149 installation codes for gas burning appliances.
After unit is in position, remove rigging skids and shipping
materials.
V. STEP 5 — INSTALL FLUE HOOD
Flue hood is shipped screwed to the basepan beside the
burner compartment access panel. Remove from shipping
location and using screws provided, install flue hood and
screen in location shown in Fig. 7.
VI. STEP 6 — INSTALL GAS PIPING
Unit is equipped for use with type of gas shown on name-
plate. Refer to local building codes, or in the absence of local
codes, to ANSI Z223.1 entitled National Fuel Gas Code. In
Canada, installation must be in accordance with the
CAN1.B149.1 and CAN1.B149.2 installation codes for gas
burning appliances.
For natural gas applications, gas pressure at unit gas con-
nection must not be less than 4 in. wg or greater than
13.0 in. wg while unit is operating. On 580F048,060,072 high
heat units, the gas pressure at unit gas connection must not
be less than 5 in. wg or greater than 13 in. wg while the unit
is operating. For propane applications, the gas pressure
must not be less than 5 in. wg or greater than 13 in. wg at
the unit connection.
Size gas supply piping for 0.5 in. wg maximum pressure
drop. Do not use supply pipe smaller than unit gas connec-
tion. Support gas piping as shown in the table in Fig. 8. For
example, a 3/4-in. gas pipe must have one field-fabricated
support beam every 8 ft. Therefore, an 18-ft long gas pipe
would have a minimum of 2 support beams, a 48-ft long pipe
would have a minimum of 6 support beams.

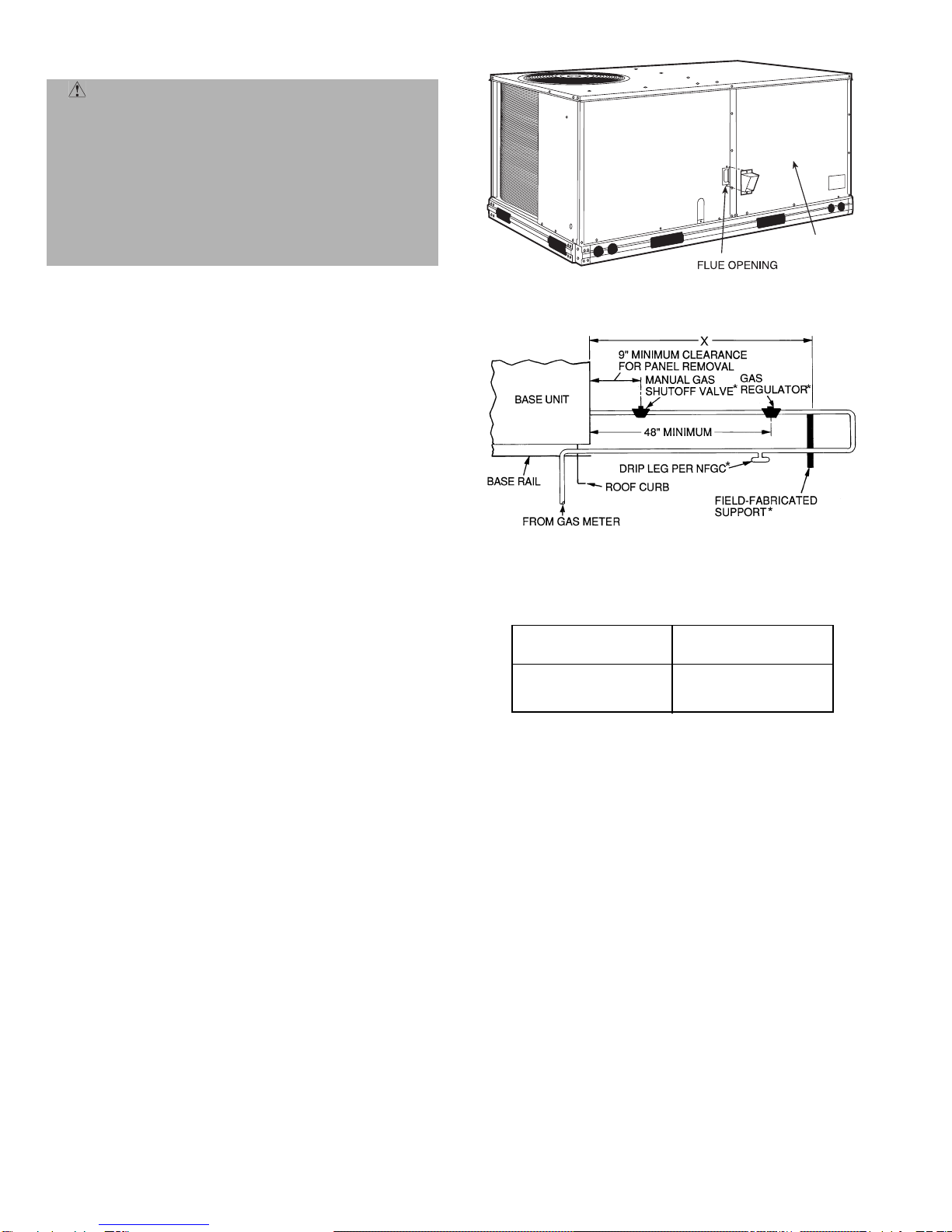

See Fig. 8 for typical pipe guide and locations of external
manual main shutoff valve.
CAUTION: When connecting the gas line to the
unit gas valve, the installer MUST use a backup
wrench to prevent valve damage.
MAXIMUM ALLOWABLE
DIFFERENCE (in.)
A-B B-C A-C
0.5 1.0 1.0
Fig. 4 — Unit Leveling Tolerances
DRAIN PLUGHORIZONTAL
DRAIN PLUG
NOTE: Drain plug is shown in factory-installed position.
Fig. 5A — Condensate Drain Pan
NOTE: Trap should be deep enough to offset maximum unit static dif-
ference. A 4-in. trap is recommended.
Fig. 5B — External Trap Condensate Drain

—7—
NOTES:
1. Dimensions in ( ) are in millimeters.
2. Hook rigging shackles through holes in base rail, as shown in detail “A.”
Holes in base rails are centered around the unit center of gravity. Use
wooden top skid when rigging to prevent rigging straps from damaging unit.
3. Unit weights do not include economizer. See Table 1 for economizer weights.
CAUTION: All panels must be in place when rigging.
Fig. 6 — Rigging Details
UNIT 580F MAX WEIGHT “A” “B” “C”
Lb Kg in. mm in. mm in. mm
036 510 231
73.69 1872 37.50 953 33.35 845
048 520 236
060 540 245
072 615 279
073 665 302

—8—
Table 1 — Physical Data
LEGEND
*Evaporator coil fin material/condenser coil fin material. Contact your local rep-
resentative for details about coated fins.
†Weight of 14-in. roof curb.
**Single phase/three-phase.
††Rollout switch lockout is manually reset by interrupting power to unit or reset-
ting thermostat.
||California rated three-phase high heat models.
***Three phase standard high-heat models have heating input values as shown.
Single phase standard high heat models have one-stage heating with heating
input values as follows:
580FJV036115 — 115,000 Btuh
580FJV048150 — 150,000 Btuh
580FJV060150 — 150,000 Btuh
†††California SCAQMD compliant Low NOxmodels have combustion products
that are controlled to 40 nanograms per joule or less.
UNIT SIZE 580F 036 048 060 072 073
NOMINAL CAPACITY (tons)34566
OPERATING WEIGHT (lb)
Unit
Al/Al*460 470 490 565 615
Al/Cu*465 476 497 576 —
Cu/Cu*468 482 505 587 —
Economizer
EconoMi$er+ 50 50 50 50 50
Roof Curb† 115 115 115 115 115
COMPRESSOR Reciprocating Scroll
Quantity 11111
No. Cylinders (per Circuit)22222
Oil (oz) 50 50 50 54 60
REFRIGERANT TYPE R-22
Expansion Device Fixed Orifice Metering Device
Operating Charge (lb-oz)
Circuit 1 4-4 6-6 6-14 9-0 11-0
Circuit 2 —————
CONDENSER COIL Enhanced Copper Tubes, Aluminum Lanced Fins
Rows...Fins/in. 1...17 2...17 2...17 2...17 2...17
Total Face Area (sqft)8.36 8.36 10.42 10.42 16.5
CONDENSER FAN Propeller Type
Nominal Cfm3500 4000 4000 4000 4100
Quantity...Diameter (in.)1...22.0 1...22.0 1...22.0 1...22.0 1...22.0
Motor Hp...Rpm1/4...1100 1/4...1100 1/4...1100 1/4...1100 1/4...1100
Watts Input (Total)325 325 325 325 320
EVAPORATOR COIL Enhanced Copper Tubes, Aluminum Double-Wavy Fins
Rows...Fins/in. 2...15 2...15 3...15 4...15 4...15
Total Face Area (sqft)4.17 5.5 5.5 5.5 5.5
EVAPORATOR FAN Centrifugal Type
Quantity...Size(in.)Std 1...10 x 10 1...10 x 10 1...11 x 10 1...10 x 10 1...10 x 10
Alt 1...10 x 10 1...10 x 10 1...10 x 10 — —
High-Static 1...10 x 10 1...10 x 10 1...11 x 10 1...10 x 10 1...10 x 10
Type Drive Std Direct Direct Direct Belt Belt
Alt Belt Belt Belt — —
High-Static Belt Belt Belt Belt Belt
Nominal Cfm1200 1600 2000 2100 2100
MaximumContinuous BhpStd.34 .75 1.20 2.40 2.40
Alt 1.20 1.20 1.30/2.40** — —
High-Static 2.40 2.40 2.90 2.90 2.90
Motor FrameSizeStd48 48 48 56 56
Alt 48 48 56 — —
High-Static 56 56 56 56 56
Nominal RpmHigh/Low (Direct Drive)Std 860/800 1075/970 1075/970 — —
Alt —————
High-Static —————
Fan RpmRange Std — — — 1070-1460 1070-1460
Alt 685-1045 770-1175 8778-1192 — —
High-Static 1075-1455 1075-1455 1300-1685 1300-1685 1300-1685
Motor Bearing Type Ball Ball Ball Ball Ball
MaximumAllowable Rpm2100 2100 2100 2100 2100
Motor Pulley PitchDiameter Min/Max (in.)Std — — — 2.8/3.8 2.8/3.8
Alt 1.9/2.9 1.9/2.9 2.4/3.4 — —
High-Static 2.8/3.8 2.8/3.8 3.4/4.4 3.4/4.4 3.4/4.4
Nominal Motor Shaft Diameter (in.)Std 1/21/21/25/85/8
Alt 1/21/25/8——
High-Static 5/85/85/85/87/8
Fan Pulley PitchDiameter (in.)Std ———4.54.5
Alt 4.5 4.0 4.5 — —
High-Static 4.5 4.5 4.5 4.5 4.5
Belt, Quantity...Type...Length(in.)Std — — — 1...A...40 1...A...40
Alt 1...A...34 1...A...34 1...A...39 — —
High-Static 1...A...39 1...A...39 1...A...40 1...A...40 1...A...40
Pulley Center Line Distance (in.)Std — — — 14.7-15.5 14.7-15.5
Alt 10.0-12.4 10.0-12.4 14.7-15.5 — —
High-Static 10.0-12.4 10.0-12.4 14.7-15.5 14.7-15.5 14.7-15.5
Speed Change per Full Turn of Std ———8080
Movable Pulley Flange (rpm) Alt 48 70 80 — —
High-Static 65 65 60 60 60
MovablePulleyMaximumFull Turns Std ——— 55
FromClosed Position Alt 556——
High-Static 66555
Factory Setting Std ——— 33
Alt 333——
High-Static 31/231/231/231/231/2
Factory Speed Setting (rpm) Std — — — 1226 1226
Alt 829 932 1035 — —
High-Static 1233 1233 1416 1416 1416
Fan Shaft Diameter at Pulley (in.)5/85/85/85/85/8
Al — Aluminum
Bhp— Brake Horsepower
Cu — Copper

—9—
Table 1 — Physical Data (cont)
LEGEND
*Evaporator coil fin material/condenser coil fin material. Contact your local rep-
resentative for details about coated fins.
†Weight of 14-in. roof curb.
**Single phase/three-phase.
††Rollout switch lockout is manually reset by interrupting power to unit or reset-
ting thermostat.
||California rated three-phase high heat models.
***Three phase standard high-heat models have heating input values as shown.
Single phase standard high heat models have one-stage heating with heating
input values as follows:
580FJV036115 — 115,000 Btuh
580FJV048150 — 150,000 Btuh
580FJV060150 — 150,000 Btuh
†††California SCAQMD compliant Low NOxmodels have combustion products
that are controlled to 40 nanograms per joule or less.
UNIT SIZE 580F 036 048 060 072 AND 073
FURNACE SECTION
Rollout SwitchCutout
Temp(F)†† 195 195 195 195
Burner Orifice Diameter
(in. ...drill size)
Natural Gas Std 074 .113...33 .113...33 .113...33 .113...33
114/115 .113...33 .113...33 .113...33 .113...33
149/150 — .129...30 .129...30 .129...30
060N .102...38 .102...38 .102...38 —
090N .102...38 .102...38 .102...38 —
120N — .116...32 .116...32 —
Liquid Propane Alt 074 .089...43 .089...43 .089...43 .089...43
114/115 .089...43 .089...43 .089...43 .089...43
149/150 — .104...37 .104...37 .104...37
060N .082...45 .082...45 .082...45 —
090N .082...45 .082...45 .082...45 —
120N — .094...42 .094...42 —
Thermostat Heat Anticipator
Setting (amps)
208/230 v and 575 Stage 1 .14 .14 .14 .14
Stage 2 .14 .14 .14 .14
460 v Stage 1 .14 .14 .14 .14
Stage 2 .14 .14 .14 .14
Gas Input (Btuh) CA HighOutput 3-Phase Units 114|| 115,000 — — —
149|| — 150,000 150,000 —
Standard Units 074 74,000/— 74,000/— 74,000/— 74,000/—
(Stage 2/Stage 1)115*** 115,000/82,000 115,000/— 115,000/— 115,000/—
150*** — 150,000/120,000 150,000/120,000 150,000/120,000
Low NOx Units 060N††† 60,000 60,000 60,000 —
090N††† 90,000 90,000 90,000 —
120N††† — 120,000 120,000 —
Efficiency (Steady
State)(%) 80 80 80 80
Temperature Rise Range 074 25-55 25-55 25-55 25-55
114/115 55-85 35-65 35-65 35-65
149/150 — 50-80 50-80 50-80
060N 20-50 20-50 20-50 —
090N 30-60 30-60 30-60 —
120N — 40-70 40-70 —
Manifold Pressure (in. wg)
Natural Gas Std 3.5 3.5 3.5 3.5
Liquid Propane Alt 3.5 3.5 3.5 3.5
Gas Valve Quantity 1111
Gas Valve Pressure Range
Psig 0.180-0.487 0.180-0.487 0.180-0.487 0.180-0.487
in. wg 5.0-13.5 5.0-13.5 5.0-13.5 5.0-13.5
Field Gas Connection
Size(in.)1/21/21/21/2
HIGH-PRESSURE SWITCH (psig)
Standard Compressor 450 ± 50 500 ± 50
Internal Relief (Differential)
Cutout 428 428
Reset (Auto.)320 320
LOSS-OF-CHARGE (LOW-PRESSURE SWITCH)(psig)
Cutout 7±3
Reset (Auto.)22 ± 7
FREEZEPROTECTION
THERMOSTAT (F)
Opens 30 ± 5
Closes 45 ± 5
OUTDOOR-AIR INLET SCREENS Cleanable. Screen size and quantity varies with option selected.
RETURN-AIR FILTERS Throwaway
Quantity...Size(in.)2...16 x 25 x 2
Al — Aluminum
Bhp— Brake Horsepower
Cu — Copper

—10—
VII. STEP 7 — MAKE ELECTRICAL CONNECTIONS
A. Field Power Supply
All units except 208/230-v units are factory wired for the
voltage shown on the nameplate. If the 208/230-v unit is to
be connected to a 208-v power supply, the transformer must
be rewired by moving the black wire with the 1/4-in. female
space connector from the 230-volt connection and moving to
the 208-volt 1/4-in. male terminal on the primary side of the
transformer.
Refer to unit label diagram for additional information.
Pigtails are provided for field wire connections. Use factory-
supplied splices or UL (Underwriters’ Laboratories)
approved copper/aluminum connector.
When installing units, provide a disconnect per the NEC.
All field wiring must comply with NEC and local require-
ments.
Install field wiring as follows:
1. Install conduit through side panel openings. Install
conduit between disconnect and control box.
2. Install power lines to terminal connections as shown
in Fig. 9.
Voltage to compressor terminals during operation must be
within voltage range indicated on unit nameplate (see
Tables 2A and 2B). On 3-phase units, voltages between
phases must be balanced within 2% and the current within
10%. Use the formula shown in the legend for Tables 2A and
2B, Note 2 to determine the percent of voltage imbalance.
Operation on improper line voltage or excessive phase imbal-
ance constitutes abuse and may cause damage to electrical
components. Such operation would invalidate any applicable
Bryant warranty.
B. Field Control Wiring
Install a Bryant-approved accessory thermostat assembly
according to installation instructions included with the
accessory. Locate thermostat assembly on a solid wall in the
conditioned space to sense average temperature in accor-
dance with thermostat installation instructions. Connect
thermostat wires to terminal board.
Route thermostat cable or equivalent single leads of colored
wire from subbase terminals through connector on unit to
low-voltage connections (shown in Fig. 10).
NOTE: For wire runs up 50 ft, use no. 18 AWG (American
Wire Gage) insulated wire (35 C minimum). For 50 to 75 ft,
use no. 16 AWG insulated wire (35 C minimum). For over
75 ft, use no. 14 AWG insulated wire (35 C minimum). All
wire larger than no. 18 AWG cannot be directly connected to
the thermostat and will require a junction box and splice at
the thermostat.
Pass the control wires through the hole provided in the cor-
ner post; then feed wires through the raceway built into the
corner post to the 24-v barrier located on the left side of the
control box. See Fig. 11. The raceway provides the UL
required clearance between high-voltage and low-voltage
wiring.
C. Heat Anticipator Settings
Set heat anticipator settings at .14 amp for the first stage
and .14 amp for second-stage heating, when available.
WARNING: Unit cabinet must have an uninter-
rupted, unbroken electrical ground to minimize the possi-
bility of personal injury if an electrical fault should occur.
This ground may consist of electrical wire connected to
unit ground lug in control compartment, or conduit
approved for electrical ground when installed in accor-
dance with NEC (National Electrical Code), ANSI/NFPA,
latest edition, and local electrical codes. Do not use gas
piping as an electrical ground. Failure to follow this
warning could result in the installer being liable for per-
sonal injury of others.BLOWER
ACCESS
PANEL
LEGEND
NFGC — National Fuel Gas Code
*Field supplied.
NOTE: Follow all local codes.
SPACING OF SUPPORTS
Fig. 8 — Gas Piping Guide (WithAccessory
Thru-the-Curb Service Connections)
STEEL PIPE
NOMINAL DIAMETER
(in.)
X
DIMENSION
(feet)
1/26
3/4or 1 8
11/4or larger 10
Fig. 7 — Flue Hood Details

—11—
RACEWAY LOW VOLTAGE
CONNECTIONS
INTEGRATED GAS UNIT
CONTROLLER (IGC)
HOLE IN END PANEL (HIDDEN)
LEGEND
Fig. 9 — Power Wiring Connections
C—Contactor
COMP — Compressor
IFC — Indoor-Fan Contactor
NEC — National Electrical Code
TB — Terminal Block
Fig. 11 — Field Control Wiring Raceway
208/230-1-60 208/230-3-60
460-3-60
(SIZES 072 AND 073)
575-3-60
(SIZES 072 AND 073) 208/230-3-60
575-3-60, 460-3-60
(SIZES 036-060)
WIRE
CONNECTIONS
TO
LOW-VOLTAGE
SECTION
(CONNECTION
BOARD)
COOL STAGE 1
FAN
HEAT STAGE 1
COOL STAGE 2
HEAT STAGE 2
24 VAC HOT
24 VAC COM
N/A
OUTDOOR AIR
SENSOR
Y1/W2
G
W/W1
Y/Y2
O/W2
R
C
S1
S2
THERMOSTAT DIPSWITCH SETTINGS
R
G
Y1
Y2
W1
W2
C
IPD/X
ON
OFF
ABCD
LEGEND
NOTE: Underlined letter indicates active thermostat output when con-
figured for A/C operation.
Fig. 10 — Low-Voltage Connections
Field Wiring

—12—
Table 2A — Electrical Data (Without Convenience Outlet)
LEGEND
*Used to determine minimum disconnect per NEC.
†Fuse or HACR circuit breaker.
NOTES:
1. In compliance with NEC requirements for multimotor and combination load equipment (refer
to NEC Articles 430 and 440), the overcurrent protective device for the unit shall be fuse or
HACR breaker. Canadian units may be fuse or circuit breaker.
2. Unbalanced 3-Phase Supply Voltage
Never operate a motor where a phase imbalance in supply voltage is greater than 2%. Use
the following formula to determine the percent of voltage imbalance.
%Voltage Imbalance
Example: Supply voltage is 460-3-60.
AB =452 v
BC =464 v
AC =455 v
=457
Determine maximum deviation from average voltage.
(AB)457–452=5v
(BC) 464 – 457 =7v
(AC)457–455=2v
Maximum deviation is 7 v.
Determine percent of voltage imbalance.
=1.53%
This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.
IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric
utility company immediately.
3. For units with power exhaust: If a single power source is to be used, size wire to include
power exhaust MCA and MOCP. Check MCA and MOCP when power exhaust is powered
through the unit (must be in accordance with NEC and/or local codes). Determine the new
MCA including the power exhaust using the following formula:
MCA New =MCA unit only +MCA of Power Exhaust
For example, using a 580F060 unit with MCA =28.9 and MOCP =35, with
CRPWREXH030A00 power exhaust.
MCA New =28.9 amps +1.6 amps =30.5 amps
If the new MCA does not exceed the published MOCP, then MOCP would not change. The
MOCP in this example is 35 amps, the MCA New is below 35, therefore the MOCP is
acceptable. If “MCA New” is larger than the published MOCP, raise the MOCP to the next
larger size. For separate power, the MOCP for the power exhaust will be 15 amps per NEC.
UNIT
580F
NOMINAL
VOLTAGE
IFM
TYPE
VOLTAGE
RANGE
COMPR
(ea)
OFM
(ea)IFM COMBUSTION
FAN MOTOR
FLA
POWER SUPPLY DISCONNECT
SIZE*
Min Max RLA LRA Hp FLA FLA MCA MOCP† FLA LRA
036
(3Tons)
208/230-1-60 Std 187 254 16.2 96.0 1/41.4 3.5 .6 25.2/25.2 30/30 24/24 106/106
Alt 4.9 26.6/26.6 35/35 26/26 111/111
208/230-3-60
Std
187 254 10.2 75.0 1/41.4
3.5
.6
17.7/17.7 25/25 17/17 85/ 85
Alt 4.9 19.1/19.1 25/25 19/19 90/ 90
High 5.2 19.4/19.4 25/25 19/19 109/109
460-3-60
Std
414 508 4.4 40.0 1/40.8
1.3
.3
7.6 15 7 44
Alt 2.1 8.4 15 8 48
High 2.6 8.9 15 9 57
575-3-60
Std
518 632 3.7 31.0 1/40.8
1.3
.3
5.5 15 6 35
Alt 2.1 6.0 15 7 37
High 2.6 6.3 15 7 56
048
(4Tons)
208/230-1-60 Std 187 254 23.3 118.0 1/41.4 3.5 .6 34.0/34.0 40/40 32/32 129/129
Alt 4.9 35.4/35.4 45/45 34/34 133/133
208/230-3-60
Std
187 254 15.4 90.0 1/41.4
3.5
.6
24.2/24.2 30/30 23/23 101/101
Alt 4.9 25.6/25.6 30/30 25/25 105/105
High 5.2 25.9/25.9 30/30 25/25 124/124
460-3-60
Std
414 508 8.3 45.0 1/40.8
1.8
.3
13.0 20 13 51
Alt 2.1 13.3 20 13 53
High 2.6 13.8 20 13 62
575-3-60
Std
518 632 6.4 36.0 1/40.8
1.8
.3
9.2 15 10 41
Alt 2.1 9.3 15 10 42
High 2.6 9.7 15 10 49
060
(5Tons)
208/230-1-60 Std 187 254 28.8 147.0 1/41.4 5.9 .6 43.3/43.3 60/60 42/42 161/161
Alt 6.6 44.0/44.0 60/60 42/42 184/184
208/230-3-60
Std
187 254 16.0 114.0 1/41.4
5.9
.6
27.3/27.3 35/35 27/27 128/128
Alt 5.2 26.6/26.6 35/35 26/26 148/148
High 7.5 28.9/28.9 35/35 29/29 174/174
460-3-60
Std
414 508 7.4 64.0 1/40.8
3.1
.3
13.2 20 13 71
Alt 2.6 13.5 20 13 81
High 3.4 13.5 20 13 93
575-3-60
Std
518 632 6.2 52.0 1/40.8
3.1
.3
9.7 15 11 58
Alt 2.6 9.9 15 11 65
High 3.4 9.9 15 11 76
072
(6Tons)
208/230-3-60 Std 187 254 20.6 146.0 1/41.4 5.2 .6 32.4/32.4 40/40 31/31 180/180
High 7.5 34.7/34.7 40/40 34/34 205/205
460-3-60 Std 414 508 9.5 73.0 1/40.9 2.6 .3 15.4 20 15 90
High 3.4 16.2 20 16 103
575-3-60 Std 518 632 7.6 58.4 1/40.6 2.6 .3 11.4 15 12 75
High 3.4 11.9 15 13 86
073
(6Tons)
208/230-3-60 Std 187 254 20.6 146.0 1/41.4 5.2 .6 32.4/32.4 40/40 31/31 180/180
High 7.5 34.7/34.7 40/40 34/34 205/205
460-3-60 Std 414 508 9.5 73.0 1/40.9 2.6 .3 15.4 20 15 90
High 3.4 16.2 20 16 103
575-3-60 Std 518 632 7.6 58.4 1/40.6 2.6 .3 11.4 15 12 79
High 3.4 11.9 15 13 86
FLA — Full Load Amps
HACR — Heating, Air Conditioning and Refrigeration
IFM — Indoor (Evaporator) Fan Motor
LRA — Locked Rotor Amps
MCA — Minimum Circuit Amps
MOCP — Maximum Overcurrent Protection
NEC — National Electrical Code
OFM — Outdoor (Condenser) Fan Motor
RLA — Rated Load Amps
=100 x max voltage deviation from average voltage
average voltage
Average Voltage =452 +464 +455
3
=1371
3
%Voltage Imbalance =100 x 7
457
POWER EXHAUST
PART NO.
MCA
(230 v)
MCA
(460 v)
MCA
(575 v)
MOCP
(for separate
power source)
CRPWREXH030A00 1.6 N/A 0.64 15
CRPWREXH021A00 N/A 0.9 N/A 15
CRPWREXH022A00 3.3 N/A 1.32 15
CRPWREXH023A00 N/A 1.8 N/A 15
CRPWREXH028A00 1.7 N/A 0.68 15
CRPWREXH029A00 N/A 1.0 N/A 15

—13—
Table 2B — Electrical Data (WithConvenience Outlet)
LEGEND
*Used to determine minimum disconnect per NEC.
†Fuse or HACR circuit breaker.
NOTES:
1. In compliance with NEC requirements for multimotor and combination load equipment (refer
to NEC Articles 430 and 440), the overcurrent protective device for the unit shall be fuse or
HACR breaker. Canadian units may be fuse or circuit breaker.
2. Unbalanced 3-Phase Supply Voltage
Never operate a motor where a phase imbalance in supply voltage is greater than 2%. Use
the following formula to determine the percent of voltage imbalance.
%Voltage Imbalance
Example: Supply voltage is 460-3-60.
AB =452 v
BC =464 v
AC =455 v
=457
Determine maximum deviation from average voltage.
(AB)457–452=5v
(BC) 464 – 457 =7v
(AC)457–455=2v
Maximum deviation is 7 v.
Determine percent of voltage imbalance.
=1.53%
This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.
IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric
utility company immediately.
3. For units with power exhaust: If a single power source is to be used, size wire to include
power exhaust MCA and MOCP. Check MCA and MOCP when power exhaust is powered
through the unit (must be in accordance with NEC and/or local codes). Determine the new
MCA including the power exhaust using the following formula:
MCA New =MCA unit only +MCA of Power Exhaust
For example, using a 580F060 unit with MCA =28.9 and MOCP =35, with
CRPWREXH030A00 power exhaust.
MCA New =28.9 amps +1.6 amps =30.5 amps
If the new MCA does not exceed the published MOCP, then MOCP would not change. The
MOCP in this example is 35 amps, the MCA New is below 35, therefore the MOCP is
acceptable. If “MCA New” is larger than the published MOCP, raise the MOCP to the next
larger size. For separate power, the MOCP for the power exhaust will be 15 amps per NEC.
UNIT
580F
NOMINAL
VOLTAG E
IFM
TYPE
VOLTAGE
RANGE
COMPR
(ea)
OFM
(ea)IFM COMBUSTION
FAN MOTOR
FLA
POWER SUPPLY DISCONNECT
SIZE*
Min Max RLA LRA Hp FLA FLA MCA MOCP† FLA LRA
036
(3Tons)
208/230-1-60 Std 187 254 16.2 96.0 1/41.4 3.5 .6 31.2/31.2 35/35 30/30 111/111
Alt 4.9 32.6/32.6 40/40 31/31 116/116
208/230-3-60
Std
187 254 10.2 75.0 1/41.4
3.5
.6
22.5/22.5 25/25 23/23 90/ 90
Alt 4.9 23.9/23.9 30/30 25/25 95/ 95
High 5.2 24.2/24.2 30/30 25/25 114/114
460-3-60
Std
414 508 4.4 40.0 1/40.8
1.3
.3
9.8 15 10 47
Alt 2.1 10.6 15 11 50
High 2.6 11.1 15 11 59
575-3-60
Std
518 632 3.7 31.0 1/40.8
1.3
.3
7.2 15 8 36
Alt 2.1 7.7 15 9 39
High 2.6 8.0 15 9 58
048
(4Tons)
208/230-1-60 Std 187 254 23.3 118.0 1/41.4 3.5 .6 40.0/40.0 45/45 38/38 134/134
Alt 4.9 41.4/41.4 50/50 40/40 138/138
208/230-3-60
Std
187 254 15.4 90.0 1/41.4
3.5
.6
29.0/29.0 35/35 29/29 106/106
Alt 4.9 30.4/30.4 35/35 30/30 110/110
High 5.2 30.7/30.7 35/35 31/31 129/129
460-3-60
Std
414 508 8.3 45.0 1/40.8
1.8
.3
15.2 20 15 53
Alt 2.1 15.5 20 15 55
High 2.6 16.0 20 16 64
575-3-60
Std
518 632 6.4 36.0 1/40.8
1.8
.3
10.9 15 12 42
Alt 2.1 11.1 15 12 44
High 2.6 11.4 15 12 51
060
(5Tons)
208/230-1-60 Std 187 254 28.8 147.0 1/41.4 5.9 .6 49.3/49.3 60/60 47/47 166/166
Alt 6.6 50.0/50.0 60/60 48/48 188/188
208/230-3-60
Std
187 254 16.0 114.0 1/41.4
5.9
.6
32.1/32.1 40/40 32/32 133/133
Alt 5.2 31.4/31.4 40/40 32/32 153/153
High 7.5 33.7/33.7 40/40 34/34 179/179
460-3-60
Std
414 508 7.4 64.0 1/40.8
3.1
.3
15.3 20 15 74
Alt 2.6 15.6 20 15 83
High 3.4 15.6 20 16 96
575-3-60
Std
518 632 6.2 52.0 1/40.8
3.1
.3
11.5 15 13 60
Alt 2.6 11.7 15 12 67
High 3.4 11.7 15 13 77
072
(6Tons)
208/230-3-60 Std 187 254 20.6 146.0 1/41.4 5.2 .6 37.2/37.2 45/45 37/37 184/184
High 7.5 39.5/39.5 45/45 39/39 210/210
460-3-60 Std 414 508 9.5 73.0 1/40.6 2.6 .3 17.6 20 17 92
High 3.4 18.4 25 18 105
575-3-60 Std 518 632 7.6 58.4 1/40.6 2.6 .3 13.1 20 14 77
High 3.4 13.7 20 15 90
073
(6Tons)
208/230-3-60 Std 187 254 20.6 146.0 1/41.4 5.2 .6 37.2/37.2 45/45 37/37 184/184
High 7.5 39.5/39.5 45/45 39/39 210/210
460-3-60 Std 414 508 9.5 73.0 1/40.6 2.6 .3 17.6 20 17 92
High 3.4 18.4 25 18 105
575-3-60 Std 518 632 7.6 58.4 1/40.6 2.6 .3 13.1 20 14 77
High 3.4 13.7 20 15 90
FLA — Full Load Amps
HACR — Heating, Air Conditioning and Refrigeration
IFM — Indoor (Evaporator) Fan Motor
LRA — Locked Rotor Amps
MCA — Minimum Circuit Amps
MOCP — Maximum Overcurrent Protection
NEC — National Electrical Code
OFM — Outdoor (Condenser) Fan Motor
RLA — Rated Load Amps
=100 x max voltage deviation from average voltage
average voltage
Average Voltage =452 +464 +455
3
=1371
3
%Voltage Imbalance =100 x 7
457
POWER EXHAUST
PART NO.
MCA
(230 v)
MCA
(460 v)
MCA
(575 v)
MOCP
(for separate
power source)
CRPWREXH030A00 1.6 N/A 0.64 15
CRPWREXH021A00 N/A 0.9 N/A 15
CRPWREXH022A00 3.3 N/A 1.32 15
CRPWREXH023A00 N/A 1.8 N/A 15
CRPWREXH028A00 1.7 N/A 0.68 15
CRPWREXH029A00 N/A 1.0 N/A 15

—14—
VIII. STEP 8 — ADJUST FACTORY-INSTALLED OPTIONS
A. Manual Outdoor-Air Damper
The outdoor-air hood and screen are attached to the basepan
at the bottom of the unit for shipping.
Assembly:
1. Determine quantity of ventilation required for build-
ing. Record amount for use in Step 8.
2. Remove and save outdoor air opening panel and
screws. See Fig. 12.
3. Separate hood and screen from basepan by removing
the 4 screws securing them. Save all screws.
4. Replace evaporator coil access panel.
5. Place hood on front of outdoor air opening panel. See
Fig. 13 for hood details. Secure top of hood with the
4 screws removed in Step 3. See Fig. 14.
6. Remove and save 6 screws (3 on each side) from sides
of the manual outdoor-air damper.
7. Align screw holes on hood with screw holes on side of
manual outdoor-air damper. See Fig. 13 and 14. Se-
cure hood with 6 screws from Step 6.
8. Adjust minimum position setting of the damper blade
by adjusting the manual outdoor-air adjustment
screws on the front of the damper blade. See Fig. 12.
Slide blade vertically until it is in the appropriate po-
sition determined by Fig. 15. Tighten screws.
9. Remove and save screws currently on sides of hood.
Insert screen. Secure screen to hood using the screws.
See Fig. 14.
OUTDOOR
AIR OPENING
PANEL
3 SCREWS
(SIDE)
Fig. 12 — Damper Panel withManual Outdoor-Air
Damper Installed
Fig. 13 — Outdoor-Air Hood Details
Fig. 14 — Outdoor-Air Damper with
Hood Attached
Fig. 15 — Outdoor-Air Damper Position Setting

—15—
B. Optional EconoMi$er+
See Fig. 16 for EconoMi$er+ component locations.
NOTE: These instructions are for the factory-installed
optional EconoMi$er+ only. Refer to the accessory
EconoMi$er+ installation instructions when field installing
an EconoMi$er+ accessory.
1. To remove the existing unit filter access panel, raise
the panel and swing the bottom outward. The panel is
now disengaged from the track and can be removed.
See Fig. 17.
2. The box with the EconoMi$er+ hood components is
shipped in the compartment behind the
EconoMi$er+. The EconoMi$er+ does not have to be
removed to retrieve the hood box. Remove the screw
holding the hood box bracket to the top of the
EconoMi$er+. Slide the hood box out of the unit. See
Fig. 18.
IMPORTANT: If a power exhaust accessory will be installed
on the unit, the hood shipped with the unit will not be used
and must be discarded. Save the aluminum filter for use in
the power exhaust.
3. The indoor coil access panel will be used as the top of
the hood. Remove the screws along the bottom of the
indoor coil access panel. See Fig. 19.
4. Swing out the indoor coil access panel and insert the
hood sides under the panel (hood top). Use the screws
provided to attach the hood sides to the hood top. Use
the screws provided to attach the hood sides to the
unit. See Fig. 20.
5. Remove the shipping tape holding the EconoMi$er+
barometric relief damper in place.
6. Insert the hood divider between the hood sides. See
Fig. 20. Secure hood divider with 2 screws on each
hood side. The hood divider is also used as the bottom
filter rack for the aluminum filter.
7. Open the filter clips which are located underneath
the hood top. Insert the aluminum filter into the bot-
tom filter rack (hood divider). Push the filter into po-
sition past the open filter clips. Close the filter clips
to lock the filter into place. See Fig. 21.
8. Caulk the ends of the joint between the unit top panel
and the hood top. See Fig. 19.
9. Replace the filter access panel.
10. Install all EconoMi$er+ accessories. EconoMi$er+
wiring is shown in Fig. 22.
Barometric flow capacity is shown in Fig. 23. Outdoor air
leakage is shown in Fig. 24. Return air pressure drop is
shown in Fig. 25.
FILTER ACCESS PANEL
OUTDOOR-AIR OPENING AND
INDOOR COIL ACCESS PANEL
COMPRESSOR
ACCESS PANEL
HoodBox
HOOD BOX
BRACKET
Fig. 17 — Typical Access Panel Locations
Fig. 18 — Hood Box Removal
Fig. 19 — Indoor Coil Access Panel Relocation
SIDE
PANEL
INDOOR
COIL
ACCESS
PANEL
INDOOR
COIL
ACCESS
PANEL
CAULK
HERE
TOP
SIDE
PANEL
Fig. 16 — EconoMi$er+ Component Locations
ECONOMI$ER+
PLUG
ECONOMI$ER+
CONTROLLER
(UNDER COVER)
OUTDOOR
AIR HOOD
HOOD
SHIPPING
BRACKET
ECONOMI$ER+
CONTROLLER
LABELS
GEAR
DRIVEN
DAMPER
OUTDOOR AIR
TEMPERATURE
SENSOR
BAROMETRIC
RELIEF
DAMPER

—16—
(FIELD-SUPPLIED)
B
TOP
PANEL
INDOOR COIL
ACCESS PANEL
19 1/16”
SCREW
HOOD DIVIDER
LEFT
HOOD
SIDE
33 3/8”
17 1/4”
DIVIDER
BAROMETRIC
RELIEF
CLEANABLE
ALUMINUM
FILTER FILTER
HOOD
FILTER
CLIP
OUTSIDE
AIR
Fig. 21 — Filter Installation
LEGEND
NOTES:
1. Terminals 13-17 are wired to 5-pin plug assembly (P/N CRE+PLUG001A00).
2. Pin numbers are not printed on the controller. They are provided in this book as a reference.
Fig. 22 — EconoMi$er+ Wiring
ECON — Economizer OARH — Outdoor-Air Relative Humidity (Signal) POT — Potentiometer
IAQ—Indoor-Air Quality (4 to 20 mA) OAT — Outdoor-Air Temperature RAT — Return-Air Temperature
IARH — Indoor-Air Relative Humidity (Signal) ORH — Outdoor-Air Relative Humidity (Sensor) SAT — Supply-Air Temperature
IRH — Indoor-Air Relative Humidity (Sensor) PL — Plug
Fig. 20 — Outdoor-Air Hood Construction

—17—
C. EconoMi$er+ Control Mode
Determine the EconoMi$er+ control mode before installing
sensors and accessories. Different sensors are required for
different control modes, and a number of accessories are
available. Refer to Tables 3 and 4.
Outdoor Dry Bulb Changeover
The standard control mode for the EconoMi$er+ is Outdoor
Dry Bulb Changeover. The outdoor air and supply air tem-
perature sensors are also included as standard.
EconoMi$er+ control is based on the outdoor temperature
relative to a set point in the software. If the outdoor air
temperature is above the set point then the EconoMi$er
should be in minimum position. If the outdoor air tempera-
ture is below the set point, the position should be controlled
to maintain the leaving air temperature set point. The set
point range is 45 to 70 F.
Differential Dry Bulb Changeover
The control supports differential dry bulb changeover con-
trol. This requires an accessory return air temperature
sensor CRTEMPSN001A00 installed in the return air-
stream. Refer to the Start-up section for details on how to
configure and enable the control mode. The user can check
the operation of the sensor using the Read function.
Outdoor Air Enthalpy Changeover
The control supports outside air enthalpy changeover con-
trol. This mode requires a factory-supplied outdoor air tem-
perature sensor (OAT) and an accessory outdoor air
humidity sensor (ORH) (part no. CRHUMDSN001B00).
Refer to the Start-Up section for details on how to configure
and enable the control mode. The user can check the opera-
tion of the sensors using the Read function.
Differential Enthalpy Changeover
The control supports differential enthalpy changeover con-
trol. This requires the factory-supplied outside air tempera-
ture sensor, an accessory outdoor air humidity sensor, an
accessory return air temperature sensor, and an accessory
indoor air humidity sensor. Refer to the Start-Up section for
details on how to configure and enable the control mode. The
user can check the operation of the sensors using the Read
function.
D. Damper Movement
When the EconoMi$er+ board receives initial power, it will
take the damper up to 21/2minutes before it begins to posi-
tion itself. After the initial positioning, subsequent changes
to damper position will take up to 30 seconds to initiate.
Damper movement from full open to full closed (or vice
versa) takes 21/2minutes.
If the damper is in the process of changing positions (for
example it is trying to open to 100%) and the fan signal is
turned off, the damper will continue to its 100% open posi-
tion before closing.
NOTE: Occupied minimum position can not be set lower than
+1% higher than the value of IAQ minimum economizer
position. Refer to the setup examples on page 42.
E. EconoMi$er+ Controller Wiring
The EconoMi$er+ is supplied from the factory with a supply
air temperature sensor and an outside air temperature sen-
sor. This allows for operation of the EconoMi$er+ with out-
side air dry bulb changeover control. Additional accessories
can be added to allow for different types of change over con-
trol and operation of the EconoMi$er+ and unit.
F. Thermostats
The EconoMi$er+ control works with conventional thermo-
stats that have a Y1 (cool stage 1), Y2 (cool stage 2), W1
(heat stage 1), W2 (heat stage 2), and G (fan). The
EconoMi$er+ control does not support sensor thermostats
like the T56 and T57. Connections are made at the thermo-
stat terminal connection board located in the main control
box.
0
500
1000
1500
2000
2500
0.05 0.15 0.25
STATIC PRESSURE (in. wg)
FLOW IN CUBIC FEET PER MINUTE (cfm)
0
5
10
15
20
25
30
0.13 0.20 0.22 0.25 0.30 0.35 0.40 0.45 0.50
STATIC PRESSURE (in. wg)
FLOW IN CUBIC FEET PER MINUTE (cfm)
0
1000
2000
3000
4000
5000
6000
0.05 0.10 0.15 0.20 0.25 0.30 0.35
STATIC PRESSURE (in. wg)
FLOW IN CUBIC FEET PER MINUTE (cfm)
Fig. 23 — Barometric Flow Capacity
Fig. 24 — Outdoor-Air Damper Leakage
Fig. 25 — Return-Air Pressure Drop

—18—
Table 3 — EconoMi$er+ Sensor Usage
NOTES:
1. CO2Sensors (Optional, 5-Pin sensor wiring plug CRE+PLUG001A00 required for installation.).
33ZCSENCO2 — Room sensor (adjustable). Aspirator box is required for duct mounting of the sensor.
33ZCASPCO2 — Aspirator box used for duct-mounted CO2room sensor.
33ZCT55CO2 — Space temperature and CO2room sensor with override.
33ZCT56CO2 — Space temperature and CO2room sensor with override and set point.
CRCBDIOX002A00 — Return air CO2sensor.
2. All units include the following Standard Sensors:
Outdoor-Air Sensor — set point adjustable from 45 F to 70 F, factory set at 65 F.
Supply-Air Sensor — set point adjustable from 40 F to 65 F. Factory set at 55 F.
All temperature adjustments are made at the EconoMi$er+controller.
Table 4 — EconoMi$er+ Field-Installed Accessories
*5-pin sensor wiring plug accessory (P/N CRE+PLUG001A00) is
required to install IAQ sensor.
G. Outdoor Air Temperature (OAT)Sensor (Provided)
The outdoor air temperature sensor is a 10K thermistor used
to measure the outdoor-air temperature. The sensor controls
EconoMi$er+ changeover and compressor lockout. The sen-
sor is factory-installed on the EconoMi$er+ in the outdoor
airstream. The operating range of temperature measure-
ment is 0° to 158 F. See Tables 5 and 6 for thermistor resis-
tance and resolution values.
The temperature sensor looks like an eyelet terminal with
wires running to it. The sensor is located in the “crimp end”
and is sealed from moisture.
The user can read the value of the sensor using the Read
mode, described in the Start-Up section.
H. Supply Air Temperature (SAT)Sensor (Provided)
The supply air temperature sensor is a 10K thermistor
located at the inlet to the indoor fan. This sensor must be
field installed. The operating range of temperature measure-
ment is 0° to 158 F. See Tables 5 and 6 for thermistor resis-
tance and resolution values.
The temperature sensor looks like an eyelet terminal with
wires running to it. The sensor is located in the “crimp end”
and is sealed from moisture.
The user can read the value of the sensor using the Read
mode, described in the EconoMi$er+ Controller section.
I. Indoor Air Quality (IAQ) Sensor
Any indoor air quality or CO2sensor that provides a 4 to
20 mA output can be used as the IAQ sensor. The controller
will modulate the outdoor-air damper to provide ventilation
based on the sensor output and the IAQ setting of the con-
troller. The CO2sensor will modulate the outdoor-air damper
from the minimum position (IAQ minimum damper position
set point) to the maximum position (occupied minimum
damper position). When there is no CO2call, the damper will
go to the unoccupied minimum position. When there is a CO2
call, the damper will be between the IAQ minimum econo-
mizer set point position and the occupied minimum damper
position.
Mount the sensor according to manufacturer specifications.
In order to wire this sensor, an accessory 5-pin plug (part
number CRE+PLUG001A00) is required. See Fig. 22.
The IAQ sensor is wired to the ground and IAQ wires in the
harness. The accessory 5-pin wiring plug is connected to pins
13-17 of J3 on the EconoMi$er+ controller. Push the plug
down onto the pins of the EconoMi$er+ controller to install.
Pins 13 and 14 are used for the IAQ sensor. Pins 15-17 are
used for the field-installed remote potentiometer. Connect
the IAQ sensor to the BRN and WHT wires of the accessory
5-pin plug.
NOTE: Pin numbers are not shown on the controller. They
are provided only as reference for the installer. On the
EconoMi$er+ board, they numbered 1-17 from left to right,
but only the 1 and the 17 are printed on the board.
Sensor wiring should be extended with wire and wire nuts
and routed to the IAQ sensor location. Adjust the IAQ set-
ting at the controller to correspond to the IAQ voltage output
of the sensor at the user-determined set point. See Fig. 26.
Power the sensor with a field-supplied transformer.
J. Return Air Temperature (RAT)Sensor
The EconoMi$er+ controller will accept input from the
accessory 10K return air temperature sensor
(CRTEMPSN001A00) in addition to the outdoor air tempera-
ture sensor shipped with the EconoMi$er+. By using both
sensors, the outdoor air and the return air temperatures are
compared (differential dry bulb) for optimal energy savings.
See Tables 5 and 6 for thermistor resistance and resolution
values.
The temperature sensor looks like an eyelet terminal with
wires running to it. The sensor is located in the “crimp end”
and is sealed from moisture.
APPLICATION STANDARD OUTDOOR AIR
TEMPERATURE SENSOR
ACCESSORY RETURN AIR
TEMPERATURE SENSOR
ACCESSORY
OUTDOOR AIR
HUMIDITY SENSOR
ACCESSORY INDOOR
RETURN AIR
HUMIDITY SENSOR
Standard Unit Included — HH79NZ039 — — —
Differential
Dry Bulb Included — HH79NZ039 Required — CRTEMPSN001A00 ——
Outdoor Air
Enthalpy Included — HH79NZ039 — Required — CRHUMDSN001B00 —
Differential Enthalpy Included — HH79NZ039 Required —
CRTEMPSN001A00
Required —
CRHUMDSN001B00
Required —
CRHUMDSN001B00
DESCRIPTION PART NUMBER
3-6 Ton Power Exhaust 208-230 v 1 PhCRPWREXH030A00
3-6 Ton Power Exhaust 460 v 3 PhCRPWREXH021A00
Return Air Temperature Sensor with
Harness CRTEMPSN001A00
Outdoor Air Humidity Sensor withHarness CRHUMDSN001B00
Indoor Air Humidity Sensor withHarness CRHUMDSN001B00
Return Air CO2Sensor CRCBDIOX002A00*
CO2RoomSensor 33ZCSENCO2*
Aspirator Box for Duct Mount
CO2Sensor 33ZCASPCO2
Space Temperature and CO2
RoomSensor withOverride 33ZCT55CO2*
Space Temperature and CO2
RoomSensor withOverride
and Set Point
33ZCT56CO2*
5-Pin Sensor Wiring Plug CRE+PLUG001A00*

—19—

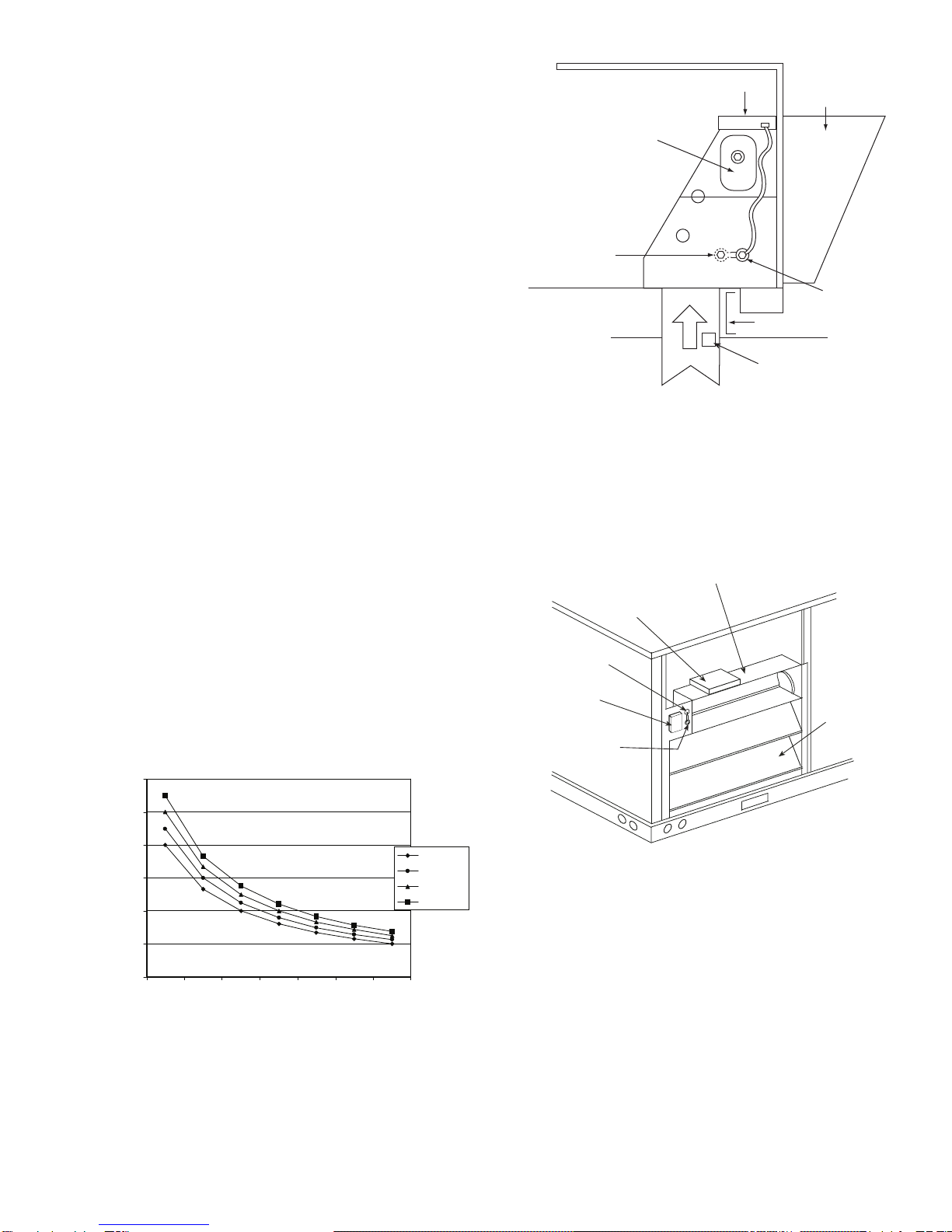

The user can read the value of the sensor using the Read
mode, described in the EconoMi$er+ Controller section.
Mount the return air temperature sensor on the
EconoMi$er+, through pre-punched holes. See Fig. 27.
The return air temperature (RAT) sensor is provided with a
2-wire, 42-in. long wiring harness with a 2-pin connector. The
plug is installed on pins 5 and 6 on J3 of the EconoMi$er+
controller. The pins are labeled with a ground symbol and
RAT on the EconoMi$er+ controller. See Fig. 22. The red wire
of the harness is connected to pin 5 (ground). The black wire
of the harness is connected to pin 6 (RAT). The wiring har-
ness should be routed from the EconoMi$er+ controller to the
sensor. The controller compares the temperatures of the two
airstreams, chooses the best one, and modulates the
EconoMi$er+ actuator accordingly.
This 10K thermistor is used to measure the return air
temperature vs. resistance curve, per Table 5. The range of
temperature measurement is between 0° and 158 F. See
Table 6 for resolution.
K. Outdoor Air Humidity Sensor
The EconoMi$er+ controller accepts input from the accessory
outdoor air humidity sensor in addition to the outdoor air
temperature sensor shipped with the EconoMi$er+. By using
both sensors, the total enthalpy of the outside air is
calculated.
Mount the outdoor-air humidity sensor in to the
EconoMi$er+, through the pre-punched holes. See Fig. 28.
The outdoor-air humidity sensor is provided with a 2-wire,
42-in. wiring harness with a 2-pin connector. The plug is
installed on pins 11 and 12 on J3 of the EconoMi$er+ con-
troller. The pins are labeled ORH and VREF on the
EconoMi$er+ controller. See Fig. 22. The orange wire of the
harness is connected to pin 11 (ORH). The blue wire of the
harness is connected to pin 12 (VREF). The wiring harness
should be routed from the EconoMi$er+ controller to the sen-
sor location.
The outdoor enthalpy changeover curve is set at the
EconoMi$er+ controller. The factory default is curve “A.” See
Fig. 29. See Fig. 30 for Sensor Curve vs. Humidity.
ECONOMI$ER+ CONTROLLER
ACTUATOR
RETURN AIR
TEMP SENSOR
(HIDDEN)
HOOD
GROMMET
CURB
VERTICAL ECONOMI$ER+
(3 TO 12 1/2 TON UNITS)
(SIDE VIEW)
INDOOR AIR
HUMIDITY SENSOR
Fig. 27 — Return Air Temperature Sensor
ECONOMI$ER+
WIRING
GROMMET
OUTDOOR AIR
HUMIDITY
SENSOR
OUTDOOR AIR
TEMPERATURE
SENSOR
RELIEF
BLADE
CONTROLLER
ECONOMI$ER+
Fig. 28 — Outdoor-Air Humidity Sensor
0
1000
2000
3000
4000
5000
6000
2345678
800 ppm
900 ppm
1000 ppm
1100 ppm
RANGE CONFIGURATION (ppm)
DAMPER VOLTAGE FOR MAX VENTILATION RATE
CO SENSOR MAX RANGE SETTING
2
Fig. 26 — Indoor Air Quality Voltage Setting

—20—
Table 5 — Outdoor Air, Return Air, and Supply Air Temperature Sensors
(CRTEMPSN001A00 or HH79NZ039)— 10K Thermistor Curve
Table 6 — Outdoor Air, Return Air, and Supply Air
Temperature Sensors (CRTEMPSN001A00 or HH79NZ039)—Thermistor Resolution
TEMPERATURE RESISTANCE TEMPERATURE RESISTANCE TEMPERATURE RESISTANCE
CF ohmsCF ohmsCF ohms
120 248.0 390.0 66 150.8 2,011.0 12 53.6 18,090.0
119 246.2 401.2 65 149.0 2,083.0 11 51.8 18,972.0
118 244.4 412.8 64 147.2 2,157.0 10 50.0 19,903.0
117 242.6 424.8 63 145.4 2,235.0 9 48.2 20,883.0
116 240.8 437.2 62 143.6 2,315.0 8 46.4 21,918.0
115 239.0 450.0 61 141.8 2,400.0 7 44.6 23,013.0
114 237.2 462.5 60 140.0 2,488.0 6 42.8 24,117.0
113 235.4 475.5 59 138.2 2,579.0 5 41.0 25,396.0
112 233.6 488.9 58 136.4 2,675.0 4 39.2 26,686.0
111 231.8 502.7 57 134.6 2,774.0 3 37.4 28,052.0
110 230.0 517.0 56 132.8 2,878.0 2 35.6 29,498.0
109 228.2 531.0 55 131.0 2,986.0 1 33.8 31,030.0
108 226.4 545.6 54 129.2 3,099.0 0 32.0 32,654.0
107 224.6 560.5 53 127.4 3,217.0 –1 30.2 34,367.0
106 222.8 576.0 52 125.6 3,340.0 –2 28.4 36,182.0
105 221.0 592.0 51 123.8 3,469.0 –3 26.6 38,109.0
104 219.2 608.5 50 122.0 3,603.0 –4 24.8 40,153.0
103 217.4 625.5 49 120.2 3,743.0 –5 23.0 42,324.0
102 215.6 643.0 48 118.4 3,889.0 –6 21.2 44,617.0
101 213.8 661.2 47 116.6 4,042.0 –7 19.4 47,052.0
100 212.0 680.0 46 114.8 4,203.0 –8 17.6 49,640.0
99 210.2 700.0 45 113.0 4,370.0 –9 15.8 52,392.0
98 208.4 720.6 44 111.2 4,544.0 –10 14.0 55,319.0
97 206.6 742.0 43 109.4 4,727.0 –11 12.2 58,415.0
96 204.8 764.1 42 107.6 4,918.0 –12 10.4 61,711.0
95 203.0 787.0 41 105.8 5,117.0 –13 8.6 65,219.0
94 201.2 810.8 40 104.0 5,327.0 –14 6.8 68,957.0
93 199.4 835.5 39 102.2 5,546.0 –15 5.0 72,940.0
92 197.6 861.0 38 100.4 5,774.0 –16 3.2 77,162.0
91 195.8 888.5 37 98.6 6,014.0 –17 1.4 81,662.0
90 194.0 915.0 36 96.8 6,266.0 –18 –0.4 86,463.0
89 192.2 944.0 35 95.0 6,530.0 –19 –2.2 91,588.0
88 190.4 974.0 34 93.2 6,806.0 –20 –4.0 97,060.0
87 188.6 1005.0 33 91.4 7,096.0 –21 –5.8 102,868.0
86 186.8 1037.0 32 89.6 7,401.0 –22 –7.6 109,075.0
85 185.0 1070.0 31 87.8 7,720.0 –23 –9.4 115,710.0
84 183.2 1104.0 30 86.0 8,056.0 –24 –11.2 122,807.0
83 181.4 1140.0 29 84.2 8,407.0 –25 –13.0 130,402.0
82 179.6 1177.0 28 82.4 8,776.0 –26 –14.8 138,482.0
81 177.8 1215.0 27 80.6 9,164.0 –27 –16.6 147,134.0
80 176.0 1255.0 26 78.8 9,571.0 –28 –18.4 156,404.0
79 174.2 1297.0 25 77.0 10,000.0 –29 –20.2 166,342.0
78 172.4 1340.0 24 75.2 10,449.0 –30 –22.0 177,000.0
77 170.6 1385.0 23 73.4 10,921.0 –31 –23.8 188,340.0
76 168.8 1431.0 22 71.6 11,418.0 –32 –25.6 200,510.0
75 167.0 1480.0 21 69.8 11,942.0 –33 –27.4 213,570.0
74 165.2 1530.0 20 68.0 12,493.0 –34 –29.2 227,610.0
73 163.4 1582.0 19 66.2 13,071.0 –35 –31.0 242,700.0
72 161.6 1637.0 18 64.4 13,681.0 –36 –32.8 258,730.0
71 159.8 1693.0 17 62.6 14,323.0 –37 –34.6 275,970.0
70 158.0 1752.0 16 60.8 15,000.0 –38 –36.4 294,520.0
69 156.2 1813.0 15 59.0 15,714.0 –39 –38.2 314,490.0
68 154.4 1876.0 14 57.2 16,464.0 –40 –40.0 336,000.0
67 152.6 1943.0 13 55.4 17,255.0
RANGE RESOLUTION
Low High
FF F
–41 –18 4.0
–17 14 2.0
15 28 1.0
29 47 0.8
48 86 0.7
87 108 0.8
109 126 1.0
127 171 2.0
127 195 4.0
