BSi OGCare User manual

USER’S
MANUAL
In-Vitro Diagnostic
aid for self testing
of GLUCOSE

CONTENTS: Welcome
Intended Use
Application
Test Principle
Special Features
Usage and Storage
Important Test Strip Information
Safety Information
Healthcare Professional Information
OGCARE Meter
OGCARE Test strips
Explanation of the display
Disinfection before test
Performing a Blood Glucose Test
Flagging Test Results
Handling the Used Test Strip
Alternative Site Testing (AST)
Lancing and sampling from
an alternative site
4
4
5
5
5
6
7
8
9
10
12
13
14
15
22
23
24
26
Testing Your
Blood Glucose
About Your
New System

Using The Set-Up Mode
Deleting Test Results
Reviewing Test Results
Downloading Test Results to a PC
When perform Control Tests
Performing a Control Solution Test
Understanding Control Solution Test Results
Performing the Check Strip Test
Cleaning your meter
Replacing Battery
Screen Messages
Troubleshooting
Specifications
Warranty
Symbols
EMC Test results
Disposing of your meter
Warrant Card
Additional Supplies
28
33
35
37
38
39
41
42
43
44
45
47
48
49
49
50
50
51
51
Meter Setup,
Memory and
Downloading
Control Test
Maintenance
and
Troubleshooting
Technical
Information
and Warranty

4
# WELCOME
Thank you for selecting the OGCare BGMS (Blood Glucose
Monitoring System). Follow steps for using the system in this
manual. Before using your monitoring system for the first time,
please read this manual carefully.
# INTENDED USE
This OGCare Blood Glucose Monitoring System is intended for the
quantitative measurement of the concentration of glucose
in whole blood from fingertip, palm and forearm by diabetic
patients or healthcare professionals as an aid in the
management of diabetes. It is intended for use outside of
the body (in vitro diagnostic use) and not for diagnosis of or
screening for diabetes, nor for use on neonates or arterial blood.
The alternative site testing (palm and forearm)
in this system can only be used during steady-state blood
glucose conditions.
ABOUT
YOUR
NEW SYSTEMS

5
# APPLICATION
OGCare Test Strips are for in vitro diagnostic use only.
The OGCare Meter is not a substitute for your healthcare professional.
Use the OGCare Meter in conjunction with your healthcare program.
# TEST PRINCIPLE
Glucose in the blood sample reacts with glucose oxidase (GOD) on the test strip
and a harmless DC electrical current is produced. This current is measured by
the OGCare Meter and displayed as your blood glucose result. The strength of
these currents changes with the amount of glucose in the blood sample.
The OGCare Meter automatically interprets this reaction.
Blood glucose results from test strips that are plasma-referenced are
approximately 11% higher than those obtained with whole-blood referenced test
strips.
# SPECIAL FEATURES
The OGCare system applies the auto coding system.
Store up to 300 test results. Your meter was set at the factory to the unit
used in your country.

6
# USAGE AND STORAGE
• Before using your monitoring system, please place it in the environment of
system’s normal operating temperature ranging 10-40°C (50-104°F ) for about
20 minutes.
• Don’t allow dust and foreign bodies into test strip slot in order to avoid
affecting the system’s accuracy.
• Don’t decompose, demolish, repair or transform the system at any time.
• Don’t put the system near any electromagnetic field. (e.g. TV, microwave
oven, mobile phone)
• Don’t allow the monitoring system to collide with others during usage.
• Keep away from direct sunlight and humid environment for long time.
• Please use a soft cotton cloth to wipe the system.
• Don’t use a corrosive product (e.g. Benzene, Acetone) to wipe the monitoring system.

7
# IMPORTANT TEST STRIP INFORMATION
• Use test strips immediately after retrieving from the vial.
• Keep the test strip vial tightly closed at all times.
• Take test strips out with clean, dry hands for accurate results.
• Do not use test strips beyond the expiration date printed on the package since
they may cause inaccurate results.
• Never reuse a test strip that has had either blood or control solution applied to it.
The OGCareTest Strip is for one time use only.
• Before the test you must make sure that the code number on the meter is
identical with the one on the test strip vial.
• Be sure to check the glucose measurement unit on the meter before the test.
• Store in capped vial in a cool and dry environment between 5-30°C (41-86°F).
• Keep away from direct sunlight and heat. Do not refrigerate.
CAUTION:
OGCare Meter is for use only with OGCare Strips

8
# SAFETY INFORMATION
• Before using the system, please read this manual carefully.
• The meter and test strips should be handled at same temperature.
• For accurate results, keep the OGCare blood glucose monitoring system at test
place under the operating temperature 10-40°C (50-104°F ) for more than 20
minutes before testing.
• The OGCare Blood Glucose Monitoring System shows accurate results
between 10-40°C (50-104°F).
Do not store the meter, test strips, lancing device and lancet in a place where
the children can reach easily.
• Please disinfect instruments and parts for blood collection.
• Do not reuse the test strips.
• The used test strips and lancets should be handled carefully.
• The OGCare Blood Glucose Monitoring System is for testing outside
of the body (in vitro diagnostic use). Safety Information.
•

9
#HEALTHCARE PROFESSIONAL INFORMATION
Healthcare professionals performing blood
glucose tests with this system on multiple
patients must always wear gloves and should
follow the infection control policies and
procedures approved by their facility.
• When using the OGCare meter follow always the recognized procedures for
handling objects that are potentially contaminated with human material.
• Practice the health and safety policy of your laboratory or institution.
• A drop of blood is required to perform a blood glucose test.
• Only capillary blood can be used.
• Avoid air bubbles when using pipettes.
• Refrigerated samples should be brought to room temperature slowly before
testing.

10
#OGCARE METER
Display
“M” Button
FRONT
Test strip slot
“C” Button

11
USB port BACK
Battery lid Serial number

12
# OGCARE TEST STRIPS
Use OGCare Test Strip with the OGCare Meter.
Please check the expiration date of test the strips before use.
Please write the opening date of the new test strip vial in order to avoid using
the expired products.
Lot Number
EXP. Date
Sample channel
TEST STRIP
VIAL TEST STRIP
•
•
•

13
# EXPLANATION OF THE DISPLAY
Low Battery Warning
Stored test result
Test results
Unit of measurement
Temperature error
No beep
Pre/post meal mark
Ready to test
Control solution
Average result
Month/Date
Time
1 2 1
2
3
4
5
6
7
8
9
10
11
12
3
4
12
8 7 9
10
11
6
5

14
.Before test, please clean hands with soap and water and then dry then well.
.You can also use an alcoholic cotton cloth to clean the finger.
.Please wait until the alcohol disappears completely.
# DISINFECTION BEFORE TEST
TESTING
YOUR BLOOD
GLUCOSE

15
# PERFORMING A BLOOD GLUCOSE TEST

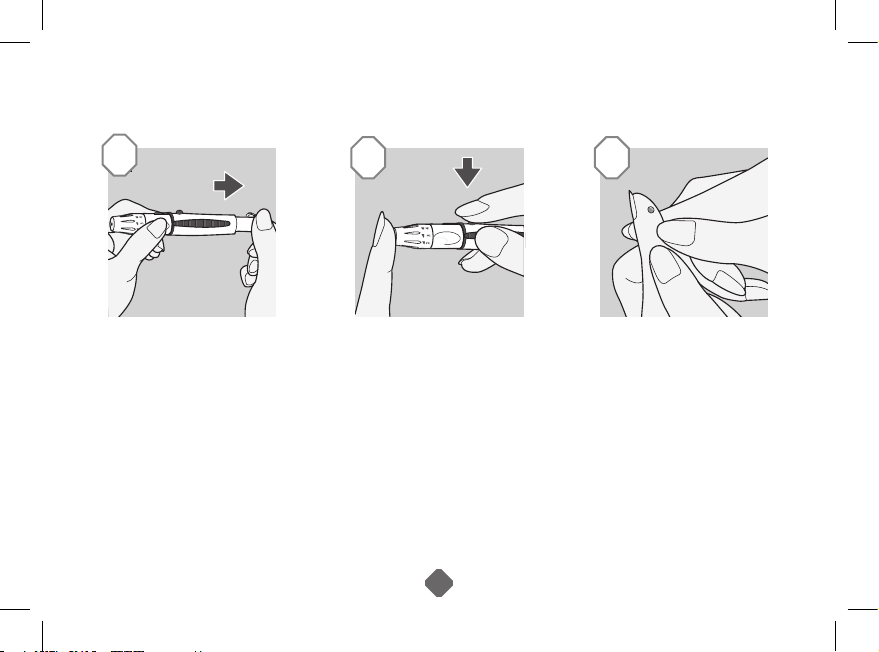

1. Turn the cap counterclockwise to remove it.
2. Insert the lancet into the lancet holder and push down firmly until it is fully
seated. Do not twist the lancet.
3. Twist the protective disk until it separates from the lancet.
Replace the lancing device cap. Turn it clockwise until it is snug.
12 3

16
4. Insert a test strip to turn on the meter. Push it all the way in until it will go no
further. Avoid bending the test strip.
5.The meter identifies the code number automatically. Compare the code number
display with the code number on the test strip vial. If they do not match try again
with an another test strip. If the problem happens with another test strip, please
contact to Customer Service.
6. When the blood symbol appears, the meter is ready for testing.
5 6
56

4
4

17
7. Select the puncture depth if necessary with the lancing device cap. Activate
the lancing device by pulling back the barrel until it clicks. If it does not click, the
lancing device may have been activated when the lancet was inserted.
8. Hold the lancing device firmly against your finger. Press the release button.
9. Gently squeeze your finger to assist the flow of blood.
Do not squeeze excessively on the puncture site.
9
78 9

18

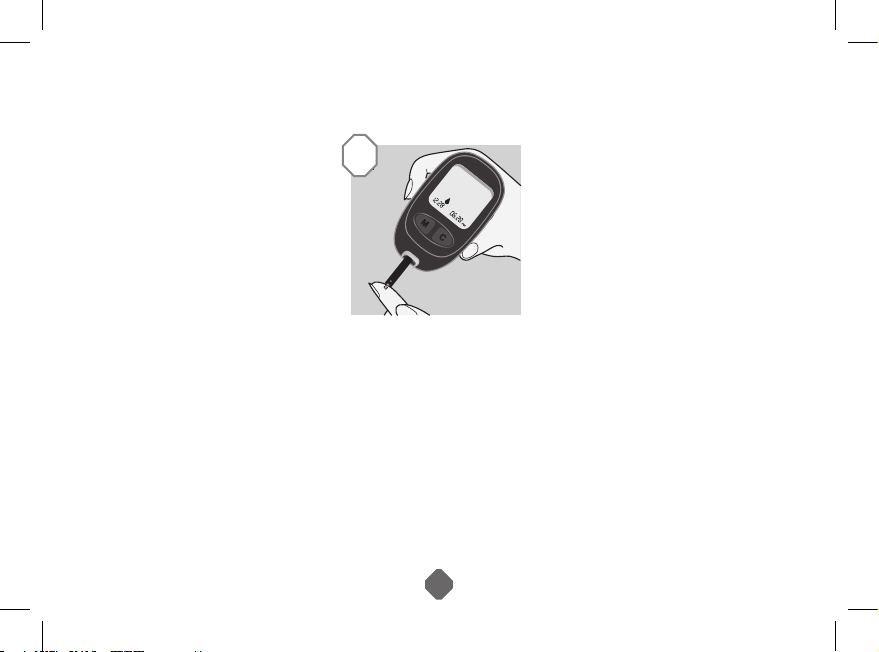

10. Put blood on top of the test strip. When you hear the beep sound, you have
enough blood in the test strip. After five seconds, the test result will appear.
NOTICE:
When the blood sample is not sufficient, the display will show the message of
‘Er 4’.(Please refer to error messages in this manual.)
10
10

19
CAUTION:
• Do not drop the blood directly on the end of the test strip.
The sample channel at the end of the strip should be filled with
blood.
• When you hear the beep sound, you have enough blood in the
test strip.



20
11. The test result will appear after the meter counts down 5 seconds.
During count down, please do not shake it.
12. After 5 seconds, you can hear the beep sound: the screen will display test result.
After taking the strip out, the meter will be turned off automatically.
11 12
Display for unit mg/dL Display for unit mmol/L
NOTICE:
If the test result is abnormal, please retest with a new test strip. If the new test
result has also problems, please refer to the Troubleshooting in this manual.
11 12
