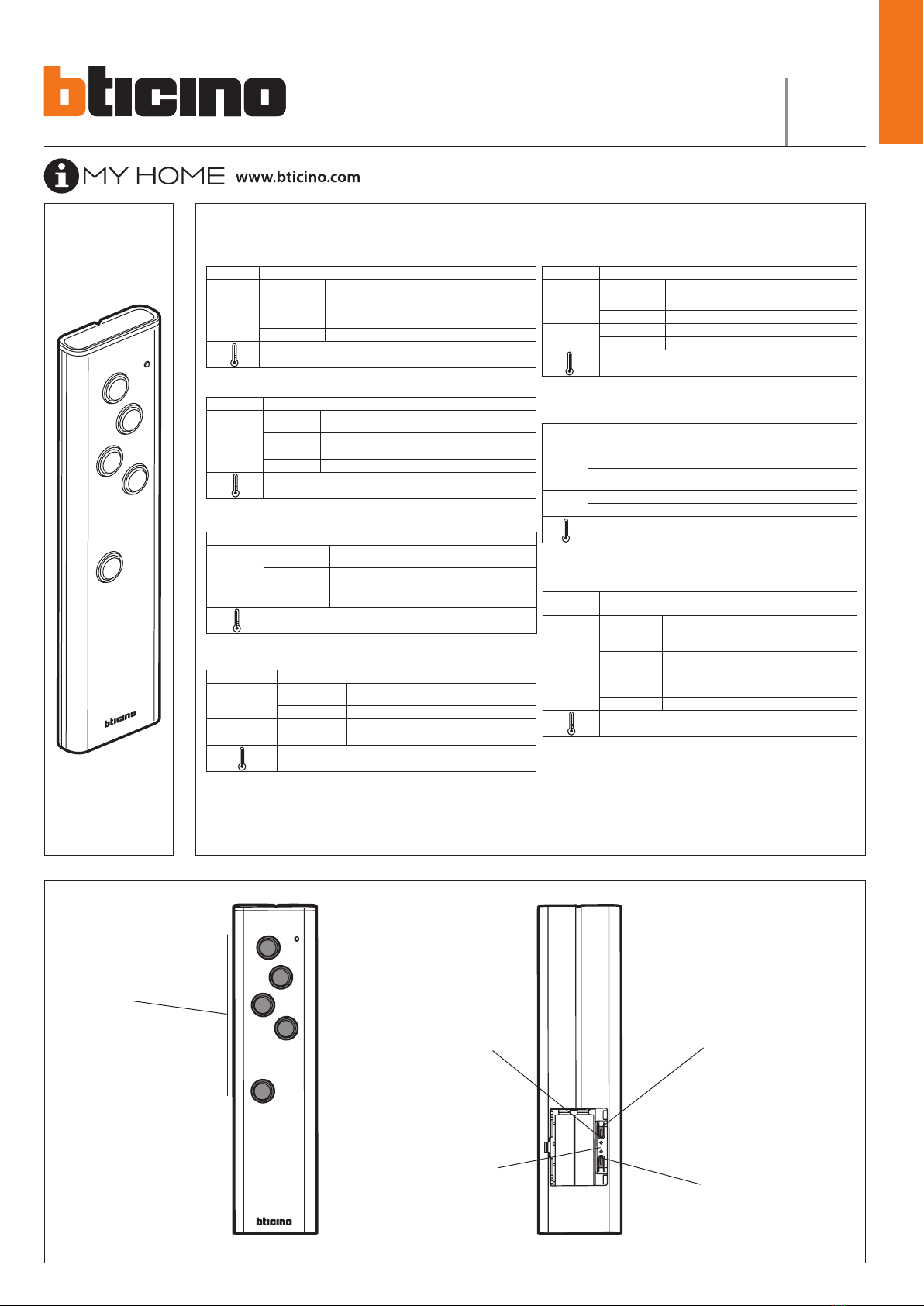

Bticino MyHOME 3527N User manual

3527N
LE04093AA
Caractéristiques
Kenmerken
Characteristics
Technische Daten
Caratteristiche
Características
Características
Bouton RÉSEAU
«NET»-knop
NETWORK Button
NETZWERK-Taste
Pulsante RETE
Botón de RED
Botão “REDE”
LED RÉSEAU
«NET»-led
NETWORK Led
NETZWERK-Leuchtdiode
LED RETE
LED de RED
Led“REDE”
Bouton mode APPRENTISSAGE
«LEARN»-knop
LEARN Button
LEARN-Taste
Pulsante modalità APPRENDIMENTO
Botón LEARN
Botão LEARN
LED témoin d’APPRENTISSAGE
LEARN Led
«LEARN»-led
LEARN-Leuchtdiode
LED APPRENDIMENTO
LED LEARN
Led LEARN
Alimentation 2 x 1,5V LR03 / Durée de vie de la pile : 2 ans
RF
Caractéristiques Radio fréquence 2,4 GHz – Produit certié ZigBee
Prol spécique au fabricant – Maillage de réseau sans l
Performances Portée : 100 m en champ libre point à point
IR
Caractéristiques Fréquence 36 KHz
Performances Portée 10 m
+5°C à +45°C
Suministro
eléctrico 2 x 1,5V LR03 / Vida útil de la pila: 2 años
RF
Características Producto certicado ZigBee con 2,4 GHz de radiofrecuencia
Red de malla con perl especíco de fabricante
Rendimiento Alcance: 100 m en conexión punto a punto y en
campo libre
IR
Características Frecuencia: 36 KHz
Rendimiento Alcance: 10 m
+5 °C a +45 °C
Alimentação
eléctrica 2 x 1,5V LR03 / Duração de vida da pilha: 2 anos
RF
Características Produto certicado ZigBee de radiofrequência 2,4
GHz
Rede mesh, perl especíco do fabricante
Desempenho Alcance: 100 m em ligação ponto a ponto e em
campo livre
IR
Características Frequência 36 KHz
Desempenho Alcance 10 m
+5 °C a +45 °C
Stromversorgung 2 x 1,5V LR03 / Batterielebensdauer: 2 Jahre
RF
Stromversorgung 2,4 GHz Hochfrequenz ZigBee Zertiziertes Produkt
Herstellerspezisches Prol Vermaschtes Netz
Leistung Reichweite: 100 m bei Punkt-zu-Punkt-Verbindung und im Freifeld
IR
Stromversorgung Frequenz: 36 kHz
Leistung Reichweite: 10 m
+5°C bis +45°C
Power supply 2 x 1.5V LR03 / Life cycle of the battery: 2 years
RF
Characteristics 2.4 GHz Radiofrequency ZigBee Certied Product
Manufacturer Specic Prole MESH networking
Performances Range: 100 m in point-to-point link and free eld
IR
Characteristics Frequency 36 KHz
Performances Range 10 m
+5°C to +45°C
Voedingsbron 2 x 1,5V LR03 / Levenscyclus van de batterij: 2 jaar
RF
Kenmerken Product met een radiofrequentie van 2,4 GHz en ZigBee-
certicering – Fabrikantspeciek proel MESH-netwerking
Prestaties Bereik: 100 m in punt-tot-puntverbinding en in het vrije veld
IR
Kenmerken Frequentie 36 KHz
Prestaties Bereik 10 m
+5 °C tot +45 °C
Alimentazione 2 x 1,5V LR03 / Durata di vita della batteria: 2 anni
RF Caratteristiche Radiofrequenza 2,4 GHz–Prodotto certicato ZigBee
Prolo specico del fabbricante – Maglie di rete
senza li
Performance Portata: 100 m in campo libero punto a punto
IR Caratteristiche Frequenza 36 KHz
Performance Portata 10 m
da +5°C a +45°C
Bouton-poussoir
Drukknop
Push Button
Drucktaste
Pulsante a pressione
Botón pulsador
Botão de envio




>PC<
ZLE02
IR/RF
ID XXXXXXXX
2x1,5V LR03
>PC<
ZLE02
IR/RF
ID XXXXXXXX
2x1,5V LR03
>PC<
ZLE02
IR/RF
ID XXXXXXXX
2x1,5V LR03
>PC<
ZLE02
IR/RF
ID XXXXXXXX
2x1,5V LR03
2
Consignes de sécurité
Avant toute intervention, couper le courant.
Respecter strictement les conditions d’installation et d’utilisation.
Veiligheidsvoorschriften
Onderbreek voor enige ingreep de stroom.
Neem de installatie- en gebruiksvoorwaarden nauwgezet in acht.
Safety instructions
Make sure the power supply is disconnected before any intervention.
Strictly comply with instructions for installation and use.
Sicherheitshinweise
Vor jeglichem Eingri die Spannungsfreiheit sicherstellen.
Einbau- und Gebrauchsanleitungen sind genau zu beachten.
Istruzioni di sicurezza
Prima di qualsiasi intervento, interrompere l’alimentazione.
Rispettare scrupolosamente le condizioni d’installazione e uso.
The directive 1999/5/CE of the european parliament
and of the council of March 9th, 1999
EN 301 489
EN 300 328
EN 60669-2-1
CONFORMITY DECLARATION
We declare that the products satisfy the provisions of :
On condition that they are used in the manner intented and/or in accordance with the current installation
standards and/or with the manufacturers recommandations
These provisions are ensured for directive 1999/5/CEE by conformity to the following standards :
Channel availability depends on local country regulations. Wireless LAN system administrator must choose
correct country of operation. Channels are then automatically configured to comply with specified
country's regulations.
Consignas de seguridad
Antes de realizar cualquier intervención, cortar la corriente eléctrica.
Respetar estrictamente las condiciones de instalación y uso.
Instruções de segurança
Antes de qualquer intervenção, desligar a corrente.
Respeitar rigorosamente as condições de instalação e de utilização.
Changement de la batterie
De batterij vervangen
Replacing the battery
Batteriewechsel
Sostituzione batteria
Reemplazo de batería
Substituição da pilha
10s
BB
BB
Mode IR
Mode RF

3
L
N
L
N
A A
C C
L
N
L
N
A
++....
B B
A
3s
C C
10s
OFF ON SLOW FLASHING (1s) QUICK FLASHING (0.25s) FLASHING MODE (60ms) 3 PULSE / 3s
Network
Created

4
L
N
L
N
L
N
A
B
B
B
A
A
++ .....
LE RN
A
NETW.
LN
LE RN
A
NETW.
LN
LE RN
A
NETW.
LN
L
N
L
N
L
N
C
C
CA
A
A
CC
10s
OFF ON SLOW FLASHING (1s) QUICK FLASHING (0.25s) FLASHING MODE (60ms) 3 PULSE / 3s
Push and learn
Binding
