BUFFALO TURBINE BT-HYSS3M Parts list manual
1
TABLE OF CONTENTS
Ref. Number
Description
Page Number
1.0
Introduction
2
2.0
Safety
3
2.1
Safety Decals
4
2.2
General Safety
4
2.3
Operating Safety
4
2.4
Maintenance Safety
4
2.5
Transport Safety
5
2.6
Storage Safety
5
2.7
Sign-off Form
5
3.0
Warranty Information
6
3.1
Warranty Registration Form
7
4.0
Operations
8
4.1
To the new operator or owner
8
4.2
Break-in
8
4.3
Pre-Operation Checks
8
4.4
Model BT-HYSS3M Assembly Instructions
9
4.5
Field Operation
9
4.6
Operating RPM
9
4.7
Storage
9
5.0
Troubleshooting
10
6.0
Machine Specification
10
7.0
Maintenance
11
7.1
Maintenance Safety
11
7.2
Fluids
11
7.3
Service Checklist
11
BT-HYSS3M Parts Reference
12

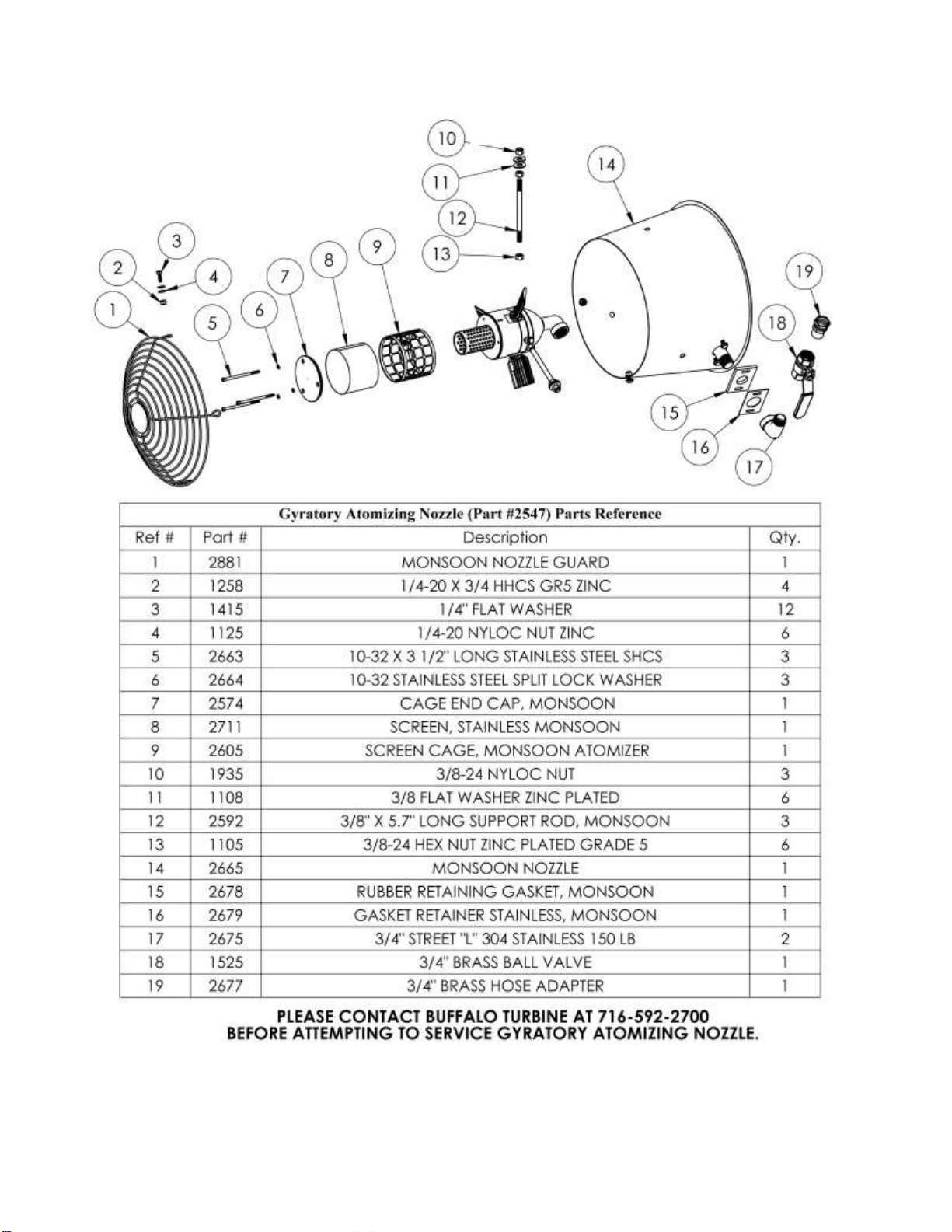

Gyratory Atomizing Nozzle Parts Diagram
13
Wiring Schematic for Control Box
14
Bill of Materials for BT-HYSS3M
15
Nozzle Options
16
Buffalo Turbine Additional Products
17
2
1.0 INTRODUCTION
Congratulations on your choice of a Buffalo Turbine Monsoon. This equipment has been designed and manufactured to meet
the needs of the construction/demolition industry.
Safe, efficient and trouble-free operation of your Buffalo Turbine Monsoon requires that you and anyone else, who will be
operating or maintaining the Blower, read and understand all of the safety, operation, maintenance and troubleshooting
information contained within this Operator’s manual.
This Manual covers the BT-HYSS3M Turbine Monsoon.
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Buffalo Turbine dealer or
distributor if you need assistance, information, or additional copies of the manuals.
SERIAL NUMBER LOCATION
Always give your dealer the serial number of your Monsoon when ordering parts or requesting service or other information.
The serial number plate(s) is located where indicated in the pictures below. Please document the number in the space provided for
easy reference.
OPERATOR ORIENTATION –The directions left, right, front and rear, as mentioned throughout the manual, are as seen from
the driver’s seat and facing in the direction of travel.
MODEL BT-HYSS3M
TOP SURFACE OF TURBINE
Serial Number: _______________
Serial #
3
2.0 SAFETY
YOU are responsible for the SAFE operation and maintenance of your Buffalo Turbine Monsoon. YOU must ensure that you
and anyone else, who is going to operate, maintain or work around the Buffalo Turbine Monsoon be familiar with the
operating and maintenance procedures and related SAFETY information contained in this manual. This manual will take you
step-by-step through your working day and alerts you to all good safety practice while operating the Monsoon.
Remember YOU are the key to safety. Good safety practices not only protect you but also the people around you. Make these
practices a working part of your safety program. Be certain that EVERYONE operating this machine is familiar with the
procedures recommended and follows safety precautions. Remember most accidents can be prevented. Do not risk injury or
death by ignoring good safety practices.
Monsoon owners must give operating instructions to operators or employees before allowing them to operate the
Monsoon, and at least annually thereafter.
The most important safety device on this equipment is a SAFE operator. It is the operator’s responsibility to read and
understand ALL Safety and Operating instructions in the manual and to follow these. All accidents can be avoided.
A person who has not read and understood all operating instructions is not qualified to operate the machine. An untrained
operator exposes themselves and bystanders to possible serious injury or death.
Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety which could
affect the life of the equipment.
Think SAFETY! Work SAFELY!
This Safety Alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
The Safety Alert symbol identifies important safety messages on the Buffalo Turbine Monsoon and in the manual. When you
see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message.
SIGNAL WORDS: Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The
appropriate signal word for each message has been selected using the following guidelines
1. DANGER –injury or death if the proper precautions are not taken.
2. WARNING -- A specific hazard or unsafe practice that COULD result in severe personal injury or death if proper
precautions are not taken.
3. CAUTION –Unsafe practices that COULD result in personal injury if proper practices are not taken, or as a reminder of
good safety.
The Safety Alert symbol identifies important safety messages on the Buffalo Turbine Monsoon and in the manual.
When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the
safety message.
Why is SAFETY important to you?
3 Big Reasons: Accidents Disable and Kill
Accidents Cost
Accidents Can Be Avoided
4
2.1 SAFETY DECALS
The types of decals on the blower unit are shown below. Good safety requires that you familiarize yourself with the various
Safety Decals, the type of warning and the area, or particular function related to that area that requires your SAFETY
AWARENESS.* THINK SAFETY! WORK SAFELY!
REMEMBER –If safety decals have been damaged, removed, become illegible or parts replaced without decals, new
decals must be applied. New decals are available from your authorized dealer.
2.2 GENERAL SAFETY
1. Read and understand the Operator’s Manual and all safety signs before operating, maintaining, and adjusting.
2. Provide a first-aid kit for use in case of an accident. Store in a highly visible place.
3. Provide a fire extinguisher for use in case of an accident. Store in a highly visible place.
4. Wear appropriate protective gear. This list includes but is not limited to:
A hard hat
Protective shoes with slip resistant soles
Protective glasses or goggles
Heavy gloves
Wet weather gear
Hearing protection
5. Do not operate without guards or shields properly installed.
6. Do not allow riders.
7. Wear appropriate ear protection for prolonged exposure to excessive noise.
8. (All Models) Set Monsoon on the ground, stop engine, set park brake, remove ignition key and wait for all moving
parts to stop before dismounting to service or adjust.
9. Clear the area of people, especially small children, before starting the unit.
10. Review all safety related items annually with all personnel who will be operating or maintaining the Monsoon.
11. Keep hands, feet, hair and clothing away from moving parts. Operate equipment only while seated in the operator’s seat.
2.3 OPERATING SAFETY
1. Read and understand the Operator’s Manual and all safety signs before operating, servicing or adjusting.
2. Before servicing or repairing, Set Monsoon on the ground, stop engine, set park brake, remove key, and wait for all
moving parts to stop.
2.4 MAINTENANCE SAFETY
1. Read and follow ALL general, operating, maintenance and safety information in this manual.
2. Support the machine with blocks or safety stands when changing tires or working beneath it.
3. Set Monsoon on the ground, stop engine, set park brake, remove ignition key and wait for all moving parts to stop before
operating, servicing or adjusting.
4. Make sure all guards are in place and properly secured when operating or maintaining the Blower.
!ATTENTION!
1. KEEP HANDS, FEET AND CLOTHING AWAY FROM POWER DRIVEN PARTS.
2. STOP ENGINE AND REMOVE KEY BEFORE LEAVING OPERATOR’S POSITION.
3. MACHINE MUST COME TO A COMPLETE STOP BEFORE ANY MAINTENANCE, TO
INCLUDE ADJUSTING, LUBRICATING OR CLEANING, IS PERFORMED.
4. KEEP PEOPLE AND PETS AT SAFE DISTANCE FROM MACHINE.
5. KEEP ALL GUARDS AND SHIELDS IN PLACE.
Never operate without eye
protection due to blowing debris.
Never operate without ear
protection due to prolonged
exposure to excessive noise
Never operate without guards
in place because there are
sharp rotating components
that will cause serious injury.
Never operate without ear
protection due to prolonged
exposure to excessive noise
5
2.5 TRANSPORT SAFETY
1. Make sure you are in compliant with all local DOT regulations regarding transporting Buffalo Turbine equipment on
public roads and highways.
2.6 STORAGE SAFETY
1. Store the Monsoon on a firm, level surface.
2. Store away from areas of human activity. Do not permit children to play on or around the stored machine.
3. Make sure the unit is sitting, or blocked up firm and solid and will not tip or sink into a soft area.
4. Cover with a weatherproof tarpaulin and tie down securely.
2.7 SIGN-OFF FORM
Buffalo Turbine recommends that anyone who will be operating and/or maintaining the Buffalo Turbine Monsoon must
read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual.
Do not operate or allow anyone else to operate this equipment until such information has been reviewed. Annually
review this information before the season start-up.
Make these periodic reviews of SAFETY and OPERATION a standard practice for all of your equipment. We feel
that an untrained operator is unqualified to operate this machine.
A sign-off sheet is provided for your record keeping to show that all personnel who will be working with the equipment have
read and understand the information in the Operator’s Manual and have been instructed in the operation of the equipment.
SIGN-OFF FORM
DATE
EMPLOYEES SIGNATURE
EMPLOYERS SIGNATURE
6
Buffalo Turbine Warranty Policy
3.0 MACHINE WARRANTY INFORMATION
Buffalo Turbine warrants the DEBRIS BLOWER, to the original owner, to be free from defects in material and workmanship,
under normal use and service. All machines must have a completed registration form sent to Buffalo Turbine within 30
days of purchase for warranty to apply. Obligation under this warranty shall extend for a period of 10 years from date of
purchase and, at the option of Buffalo Turbine, replacement of any parts found, upon inspection by Buffalo Turbine, to be
defective. Any parts replaced under warranty will have the remainder of the warranty from the original date of purchase.
Warranty parts during first 2 years will be shipped free of charge via standard ground shipping
*If expedited shipping is required charges will be paid by the end user*
Year 1: parts and labor
Year 2: parts only
Customer will be required to pay shipping charges for years 3-10
Year 3: Engine, per engine manufacturer’s standard / Turbine Assembly / Frame (parts only)
Year 4-10: Turbine Assembly / Frame (parts will be prorated)
Buffalo Turbine reserves the right to incorporate improvements in material and design of its
products without notice and is not obligated to make the same improvements to equipment
previously manufactured.
ALL WARRANTY REPAIRS NEED PRE-APPROVAL BY A FACTORY PERSON (FROM BUFFALO
TURBINE) PRIOR TO COMMENCING WITH A WARRANTY REPAIR TO INCLUDE SERIAL
NUMBER AND HOURS FROM HOUR METER (IF EQUIPPED). PRE-APPROVAL WILL BE
REQUIRED BY THE END USER AND DEALER/DISTRIBUTOR LEVEL.
Factory ordered Buffalo Turbine parts must be used when filing a warranty claim.
LIMITATIONS OF LIABILITY
This warranty is expressly in lieu of all other warranties expressed or implied and all other obligations or liabilities on our part
of any kind or character, including liabilities for alleged representations or negligence. We neither assume nor authorize any
other person to assume on our behalf, any liability in connection with the subsequent sale of the DEBRIS BLOWER.This
warranty shall not apply to any DEBRIS BLOWER, which has been altered outside the factory in any way so as, in the
judgment of Buffalo Turbine, to affect its operation or reliability, or which has been subject to misuse, neglect, or accident.
This warranty does not cover parts and accessories, which are under separate guarantee from the manufacturers and service
can be, obtained from their service facilities. No warranty is extended to regular service items such as lubricants, belts, paint
and the like.
Original Instruction Manual
The Purchaser acknowledges having receiving training in the safe operation of the DEBRIS BLOWER and further
acknowledges that Buffalo Turbine does not assume any liability resulting from the operation of the DEBRIS BLOWER in
any manner other than described in the Operator’s Manual supplied at the time of purchase.
WARRANTY VOID IF NOT REGISTERED (see Page 2 for warranty registration form)
DO NOT SPLIT THE TURBINE HOUSING FOR ANY REASON.
DO NOT ATTEMPT TO SERVICE OR DISASSEMBLE THE TURBINE BLOWER.
DO NOT USE THE TOP OF THE TURBINE HOUSING TO STRAP OR TIE DOWN BLOWER UNITS.
Unauthorized service work on the Turbine Blower will null and void all warranties.
If there are any questions regarding any of our products call Buffalo Turbine at 716 592 2700.
7
3.1 Warranty Registration Form
BUFFALO TURBINE
WARRANTY REGISTRATION FORM & INSPECTION REPORT
Any units not registered with Buffalo Turbine are not eligible for warranty claims
This form must be filled out by the dealer and signed by both the dealer and the customer at the time of delivery
Customer's Name _______________________ Dealer’s Name __________________________
Address _______________________ Address __________________________
City, State, Zip, Country ____________________ City, State, Zip, Country______________________
Email Address (important) ___________________ Email Address ____________________________
Telephone Number _______________________
Blower Model _______________________ Circle one:
Serial Number _______________________ Commercial Use
Delivery Date _______________________ Private Use
DEALER INSPECTION REPORT SAFETY CHECKS
________ Tire Pressure Check -- Model KB ________ All Decals Installed
_________ Wheel Bolts ________ Review Operating and Safety Instructions
_________ Belt Tension
_________ Lubricate Machine ________ Guards in Place
_________ Fasteners Tight _______ Trailer assembly bolts properly installed and tightened
ALL 3 POINT HITCH MODELS: PTO SHAFTS MUST TELESCOPE IN EVERY POSITION
I have thoroughly instructed the buyer on the above described equipment which reviews the included Operator's Manual
content, equipment care, adjustments, safe operation and applicable warranty policy.
Date __________________ Dealer's Rep. Signature ____________________________
The above equipment and Operator's Manual has been received by me and I have been thoroughly instructed as to the care,
adjustments, safe operation and applicable warranty policy.
Date __________________ Owner's Signature _________________________________
Or fax to 716 592 2460
8
4.0 OPERATIONS
4.1 TO THE NEW OPERATOR OR OWNER
Buffalo Turbine Monsoon are designed to spray a fine mist of water particles to control dust. The material is conveyed on a stream of high
volume and velocity of air and water to remove it from the area of concern.
Many of the features incorporated into the machine are the result of suggestions made by customers like you. Read the manual carefully to
learn to operate the machine safely and how to set it to provide maximum efficiency. The manual will take you step-by-step through your
working day. By following the operating instructions in conjunction with a good maintenance program, your Monsoon will provide many
years of trouble-free service.
Potential Mechanical Hazards while operating your machine:
Never operate the monsoon or tractor around others to prevent the possibility of being run over by equipment.
Never ride on your monsoon or tractor to prevent the possibility of being thrown off the machine or hurt severely.
Potential Crushing Hazards while operating your machine:
Between machine arms and blower frame arms
4.2 BREAK-IN
Although there are no operational restrictions on the Monsoon when it is used for the first time, it is recommended that the
following mechanical items be checked:
A. Operating for first ½ hour
1. Re-torque all other fasteners and hardware.
2. Check that the driveline turns freely and that it can easily telescope without bottoming out.
3. Check set screw (nozzle pulley) to ensure it tightened.
B. Operating for first 5 hours
1. Re-torque all hardware and fasteners.
2. Check set screw (nozzle pulley) to ensure it tightened.
3. Go to the normal servicing and maintenance schedule as defined in the Maintenance Section of the manual.
4.3 PRE-OPERATION CHECKS
Efficient and safe operation of the Buffalo Turbine Blower requires that each operator reads and understands the operating procedures and
all related safety precautions outlined in this section. A pre-operation checklist is provided for the operator. It is important for both personal
safety and maintaining the good mechanical condition of the machine that this checklist is followed.
Before Operating the Monsoon and each time thereafter, the following areas should be checked off.
1. Make sure all guards and shields are in place, secured and functioning as designed.
2. Lubricate machine per maintenance schedule.
3. Ensure that the machine is properly attached to the (appropriate) power unit attaching arms and that the mounting pins are secured in
position.
4. Ensure that ALL Hydraulic lines are securely connected.
5. Check that all clamp bands are secure.
6. Check the belts and pulleys for proper tension and alignment.
WARNING:
This Product can expose you to chemicals which are
known to the State of California to cause cancer and birth
defects or
other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
9
4.4 MODEL BT-HYSS3M Assembly Instructions
1. Make sure the tractor has proper Hydraulic Specifications and is in good working order, including mounting brackets and
safety equipment.
2. Make sure there is enough room to safely drive up to the blower. Align mounting pins of the blower unit to match the
tractor mounting brackets of the tractor. Engage into the mounting brackets and secure pins. (See Tractor attachment
installation instructions)
3. Connect Hydraulic lines.
4. Check Upper and lower limits.
5. Connect the remote nozzle control to a 12 volt system only. Red wire needs to be connected to positive terminal of
battery. White wire needs to be connected to negative terminal of battery. (wiring schematic on PG. 18)
6. To unhook the Monsoon from the tractor, reverse the above procedures. Always park the Monsoon and tractor in a dry,
level area.
4.5 FIELD OPERATION
1. Do not direct monsoon towards people, pets, autos, windows, etc.
2. Starting Monsoon unit: Always start engine at a lower engine speed with nozzle pointed down or away.
3. The air stream direction is changed (in either direction) by pressing the nozzle buttons on the transmitter. The nozzle will stop
turning by releasing the transmitter button. ALWAYS CHECK THE GROUND CLEARANCE WHEN OPERATING THE NOZZLE
IN THE DOWN VERTICAL POSITION.
4. Stopping Monsoon unit: Gradually slow the tractor RPM down to a lower speed using the throttle.
5. Allow the monsoon fan speed to come to a complete stop before disconnecting from tractor.
4.6 Operating RPM (All Models)
The manufacturer’s engine section normally recommends the unit be run at a RPM that will insure efficient operation. The
Monsoon can operate at a slower RPM if it can effectively move the debris. Increase engine RPM as needed.
Moving light material, such as dry leaves, requires much less wind than wet or heavier material.
Always try to blow with the wind. The Blower can be used for a wide variety of applications to move leaves, grass clippings,
aeration plugs and debris. Drying wet areas has been another use with these powerful Debris Blowers.
4.7 Storage
At the end of the working season or before storing the blower unit, prepare the machine by following this procedure:
1. Select a storage area that is dry, level and free of debris.
2. Thoroughly wash the machine with a water hose to remove all debris and residue.
3. Run the machine at low RPM to dry the Monsoon Components.
4. Touch up all paint chips and scratches to prevent rusting.
5. Inspect for worn or failed components. Order the replacement parts and repair the blower unit when time allows. This will
eliminate unnecessary down time at the start of next season.
6. Store in an enclosed building. If space is not available, cover with a waterproof tarpaulin and tie it down securely.
7. Store the machine away from areas of human activity.
8. Do not allow children to play around the stored unit.
10
5.0 TROUBLE SHOOTING
The Buffalo Turbine Monsoon uses a high volume and velocity of air and water to move material from one place to another.
The system is simple and reliable requiring minimal maintenance.
If you encounter a problem that is difficult to solve, even after reading through this trouble shooting section, please call your
local dealer or distributor. Before calling, please have this Operator’s Manual and the serial number from your Monsoon
ready.
In the following section, we have listed causes and solutions to the problems that you may have encountered.
TURN OFF ENGINE, REMOVE KEY, AND DISCONNECT BATTERY BEFORE SERVICING BLOWER UNITS.
INSTALL GUARDS BEFORE OPERATING.
PROBLEM
CAUSE
SOLUTION
No air flow
Buildup of debris inside turbine
Broken coupling
Remove nozzle and clean debris from inside turbine
Replace coupling
No air flow
Blower fan not turning
See solutions above
Reduced or no air flow
Blower fan turns
Air intake or exhaust restricted
Shut off engine
Blower or tractor –remove restrictions
Debris cannot be allowed to build up between the
blower fan and stationary vanes
Machine vibrates or
Unusual sounds
Bearing or coupling failure
Out-of-balance
Replace bearings or coupling
Have your dealer check blower for damaged blades.
Wash and clean blower fan blades
6.0 Machine Specifications
Model BT-HYSS3M Series
Length:
68” With nozzle
43” Without nozzle
Width:
46”
Height:
33” With nozzle
Weight:
300 lbs
Electrical System:
12 Volt
Input RPM:
Up to 3600 RPM
Outlet Size:
Approximately 12”
Hydraulic Motor Specifications
Displacement size
.915 cu.in./Rev
Required minimum hydraulic pressure (to operate @ stated values)
2900 psi
Maximum shock and surge pressure
3500 psi
Maximum flow rate
40 gpm
Minimum flow rate
13 gpm*
Maximum speed (continuous)
up to 3600 rpm*
Mounting (any position)
SAE “A” size, 2 bolt
Shaft seal
150 psi
(*) Flow Rates below 16 gpm will reduce the Blower output (RPM) please contact Buffalo Turbine for more information.
Repairs: Motors are not repairable in the field except for replacement of shaft seals.
11
7.0 MAINTENANCE SECTION
7.1 Maintenance Safety
1. Set Monsoon on a level surface, stop engine, set park brake, remove ignition key and wait for all moving parts to stop
before dismounting to service, adjust or repair.
2. Reinstall and secure all guards removed for servicing before starting to use machine again. *We recommend wearing
gloves when removing or installing the guard to avoid getting cut*
3. Securely support machine with blocks or safety stands when changing tires or working beneath it.
7.2 Fluids
Change oil per Manufacturer’s specification (see Engine owner’s manual section).
A Teflon spray type lubricant on the nozzle base and slides provides for freer rotation.
7.3 SERVICE CHECKLIST
See Lubrication and Maintenance sections for details of service. Copy this page to continue record.
TURN OFF ENGINE, REMOVE KEY & DISCONNECT BATTERY BEFORE SERVICING BLOWER UNIT
CODE: LUBRICATE-(L) / CHECK-(*) / CHANGE-(C) / REPLACE-(B) / CLEAN-(CL)
SCHEDULED MAINTENANCE HOURS ________________________
SERVICED BY ____________________
MAINTENANCE
8 hrs or daily
(*) Remove all debris that has settled between the blower wheel fan and the stationary vanes.
Helps maintain peak performance.
(CL) Clean debris from air intake and other cooling areas on the engine
(*) Check Clamp Band Bolt for tightness
40 hours or weekly
(*) Check condition of belts
(L) Nozzle base slides (Teflon or Silicone spray)
(*) Check set screw (nozzle pulley) to ensure it is tightened
(*) Wash and Clean any dirt or grime build up that has accumulated on blower wheel
fan blades. Helps to minimize vibration balance and maintain peak performance.
(*) Check condition of coupling (center section # 1256) connecting bolts and nuts during each oil
change or when experiencing vibration or unusual noises
200hrs or annually
(CL) Machine
DO NOT OPERATE BLOWER UNIT WITHOUT GUARDS SECURELY ATTACHED
12
13
14
15
BILL OF MATERIALS FOR BT-HYSS3M
REF PAGE #
PN
DESCRIPTION
QTY
1100
3/8-24 X 1-1/4 HHCS ZINC GR 5
6
1101
3/8-24 X 1-1/2 HHCS ZINC GRADE 5
7
1102
3/8-24 X 1-3/4 HHCS ZINC
3
1105
3/8-24 HEX NUT ZINC PLATED GRADE 5
18
1107
3/8 LOCK WASHER ZINC PLATED
20
1108
3/8 FLAT WASHER ZINC PLATED
18
12
1110
KEY, 1/4 X 1-1/2
1
12
1119
14-221-D1 BELLMOUTH
1
1130
5/16-18 X 3/8 SET SCREW
1
1139
3/8 NOTCHED WASHER
2
12
1142
A-54 V-BELT
1
12
1145
SHEAVE AK32 X 1/2
1
1156
SERIAL TAG
1
1169
¼-20 X 1HHCS ZINC
4
12
1171
ELBOW SEGMENT
1
12
1173
CLAMP BAND W/ BOLT & NUT
2
1182
4 X 4 BT DECAL
2
1184
WARNING –EYE PROTECTION DECAL
1
1185
WARNING –EAR PROTECTION DECAL
1
1186
CAUTION DO NOT OPERATE DECAL
3
1222
½ LOCK WASHER
2
1226
½ FLAT WASHER
4
1231
½-13 HEX NUT
2
1233
AMERICA & SAFETY FIRST DECAL
1
1236
3/16 X 1 ROLL PIN
4
1259
¼ LOCKWASHER
7
1275
BLACK CABLE TIES 8”
3
12
1352
1” FLANGE BEARING
1
12
1424
BLOWER ASSEMBLY LEFT HAND ROTATION
1
1444
½-13 X 4 HHCS GR 5 ZINC
2
1660
7/16-20 HEX NUT
2
1661
7/16 LOCK WASHER
2
1669
¼-20 X .055 HEAD INSERT
4
1783
CE LABEL
1
12
1785
GUARD ROTATION MOTOR BELT
1
1819
BLACK CABLE TIES 12”
1
12
2049
FRAME HYSS1
1
12
2050
GUARD HYSS2
1
2076
16/14 FULLY INSULATED FEMALE QUICK DISCONNECT
2
12
2499
PLASTIC BELT GUARD MOUNT
1
12
2500
1/8” X 2-1/2” COTTER PIN
1
12
2547
GYRATORY ATOMIZING NOZZLE ASSEMBLY
1
3152
¼-28 X 1” LONG HHCS
3
3181
MONSOON DECAL
2
3384
NYLON SELF-RETAINING WASHER
4
12
3398
ROTATION MOTOR, RIGHT ANGLE
1
12
3407
ROTATION MOTOR BRACKET
1
12
3836
3/8-24 X 2” LG FHCS
4
12
3837
ELBOW BASE RING BEARING
4
12
3840
V-GROOVE BASE RING
1
12
3843
BEARING BUSHING
8
3881
7/16-20 X 1-1/2 HHCS
2
12
3920
HYDRAULIC MANIFOLD PACKAGE
1
4246
3/16” VINYL COATED LOOP CLAMP
2
12
4281
JOYSTICK CONTROLLER, 12’ CORD
1
4409
1" HYDRAULIC HOSE ASSEMBLY WITH FLUSH FACE COUPLER INCLUDED
1
4410
1" HYDRAULIC HOSE ASSEMBLY WITH FLUSH FACE PLUG INCLUDED
1
16
17
