Buffalo TeraStation User manual

Network Attached Storage
TeraStation User Manual
Buffalo Inc.
www.buffalotech.com
35011187-05

TeraStation User Manual 1
Contents
Chapter 1
Diagrams and Layout ..................................................................................... 5
TeraNavigator Setup .....................................................................................................................................5
Diagrams and Layout ...................................................................................................................................10
Auto Power Mode ..........................................................................................................................................12
Chapter 2
Using your TeraStation .................................................................................. 13
Opening a Shared Folder ............................................................................................................................13
Opening a Shared Folder from a Second PC ........................................................................................14
Adding Additional TeraStations ...............................................................................................................15
Opening Settings ...........................................................................................................................................16
Chapter 3
Changing RAID Modes ................................................................................... 18
RAID Arrays .......................................................................................................................................................18
Using Normal mode ......................................................................................................................................20
Using RAID 5 mode (4 hard drives) ..........................................................................................................21
Using RAID 5 mode (3 hard drives) ..........................................................................................................22
Using RAID 10 mode .....................................................................................................................................23
Using RAID 1 mode .......................................................................................................................................24
Using RAID 0 mode .......................................................................................................................................25
Conguring a Hot Spare ..............................................................................................................................26
Drive Failures ..................................................................................................................................................26
Chapter 4
Adding an External Hard Drive ..................................................................... 27
Connect an External Drive ..........................................................................................................................27
Formatting the External Drive ...................................................................................................................28
Set Access Restrictions on the External Drive ......................................................................................29

TeraStation User Manual 2
Chapter 5
Removing External Hard Drives .................................................................... 30
Dismounting with the Function button ................................................................................................30
Dismounting from Settings ........................................................................................................................31
Chapter 6
Backup ........................................................................................... 32
Back Up from your Windows PC ...............................................................................................................32
Back Up from the TeraStation ...................................................................................................................32
Using TeraStation Batch Backup ..............................................................................................................38
Replication........................................................................................................................................................39
Time Machine ..................................................................................................................................................43
Restoring Backup Data .................................................................................................................................45
Chapter 7
Conguring Access Restrictions .................................................................... 46
Adding a Shared Folder ...............................................................................................................................47
Adding Users ...................................................................................................................................................51
Adding Groups................................................................................................................................................53
Access Restrictions ........................................................................................................................................54
Access Restrictions on NT Domain ..........................................................................................................56
Access Restrictions on Active Directory .................................................................................................58
Access Restrictions through Delegate Authority to External SMB Server .................................60
Chapter 8
Managing your TeraStation ........................................................................... 63
Name, Date and Time ...................................................................................................................................63
RAID Scanning ................................................................................................................................................65
Disk Check ........................................................................................................................................................66
Encrypt Hard Drives on the TeraStation ................................................................................................66
Formatting Disks ............................................................................................................................................67
Email Notication ..........................................................................................................................................68
UPS Settings .....................................................................................................................................................70

TeraStation User Manual 3
Beep Alerts .......................................................................................................................................................71
LCD Display Settings .....................................................................................................................................71
Changing the Admin Username and Password ..................................................................................72
Erase Data on the TeraStation Completely ...........................................................................................73
Initialization .....................................................................................................................................................74
Changing the IP Address .............................................................................................................................76
Network .............................................................................................................................................................77
Port Trunking ...................................................................................................................................................79
Update the TeraStation’s Firmware ........................................................................................................80
Chapter 9
Extensions ........................................................................................... 81
Using WebAccess ...........................................................................................................................................81
Direct Copy.......................................................................................................................................................82
Eye-Fi connected ............................................................................................................................................84
PrintServer ........................................................................................................................................................86
Sleep Timer ......................................................................................................................................................90
Disk Quotas ......................................................................................................................................................92
TeraSearch ........................................................................................................................................................97
Oine Files .......................................................................................................................................................99
DFS (Distributed File System) ....................................................................................................................102
FTP Server .........................................................................................................................................................104
Accessing from a NFS Client ......................................................................................................................106
Encrypting Data Transmission ..................................................................................................................109
Wake on LAN ...................................................................................................................................................111
Web Server .......................................................................................................................................................112
MySQL server ...................................................................................................................................................113
SNMP ..................................................................................................................................................................113
Chapter 10
NAS Navigator2 ........................................................................................... 114
OS X 10.3.9 or later .......................................................................................................................................118

TeraStation User Manual 4
Chapter 11
Software ........................................................................................... 119
NAS Navigator2 ..............................................................................................................................................119
File Security Tool ............................................................................................................................................119
NS-SHFT .............................................................................................................................................................120
EXT3 Reader .....................................................................................................................................................121
Chapter 12
List of Items in Settings .................................................................................. 122
Common items (left side of the screen) .................................................................................................122
Shared Folders ................................................................................................................................................122
Users/Groups ...................................................................................................................................................125
Network .............................................................................................................................................................127
System................................................................................................................................................................133
Extensions.........................................................................................................................................................147
Appendix ........................................................................................... 149
Assign as Network Drive (Windows) .......................................................................................................149
Mount as a Network Drive (OS X 10.3.9 or later).................................................................................150
Specications ..................................................................................................................................................151
Factory Defaults .............................................................................................................................................152
Software ............................................................................................................................................................153
Info Folder ........................................................................................................................................................155
Troubleshooting.............................................................................................................................................156
Data Backup .....................................................................................................................................................157
GPL Information .............................................................................................................................................157
Compliance Information .............................................................................................................................158

TeraStation User Manual 5
Chapter 1

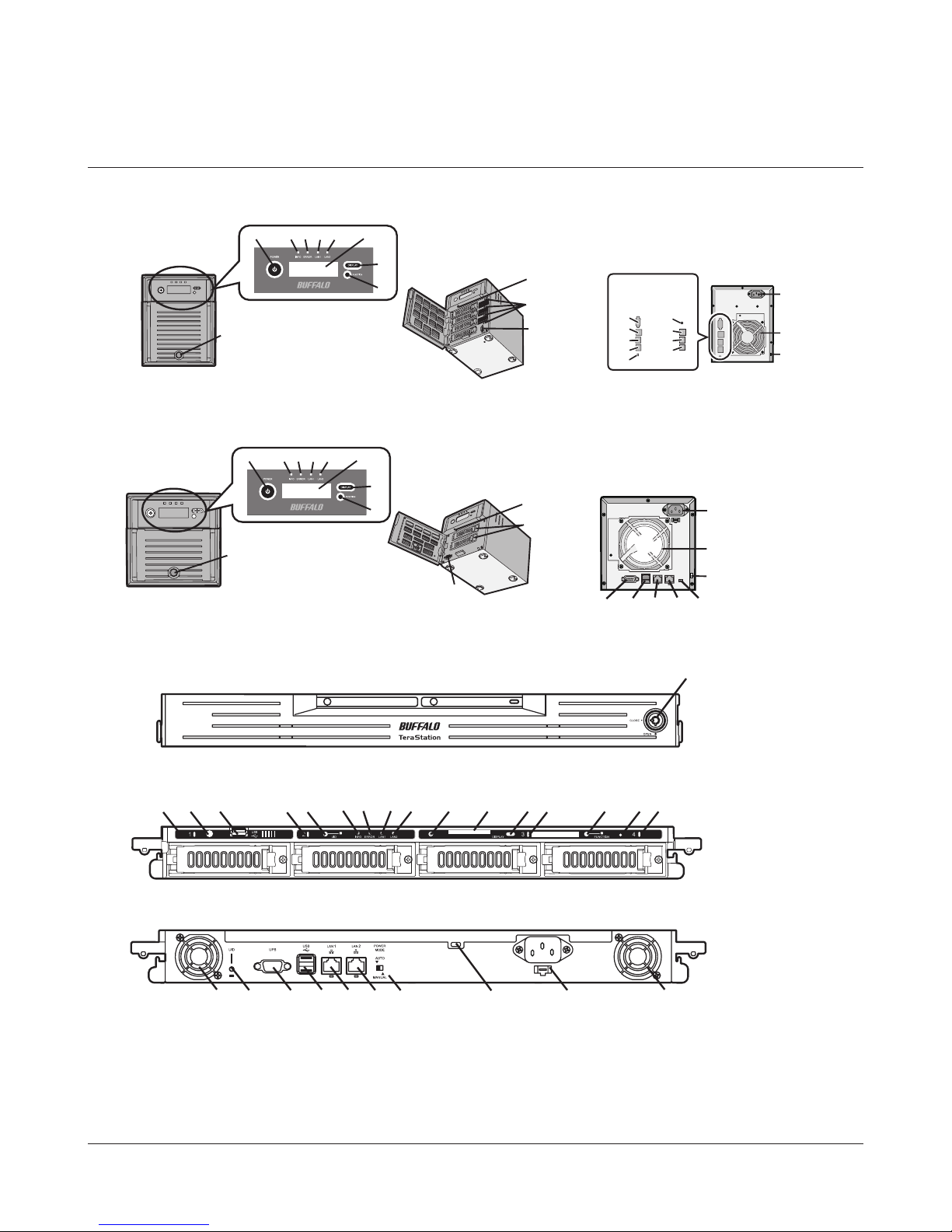

Diagrams and Layout
TeraNavigator Setup
To congure your TeraStation, insert the TeraNavigator CD into a Windows computer on the network and follow the
directions, or use the following procedure.
Note:
Use LAN Port 1 for initial setup. After setup, you may connect a second cable to LAN Port 2. If used, congure the IP
address of LAN Port 2 at Network - Setting - IP Address Settings in Settings or NAS Navigator2.
123
123
123
1
TS-XL, TS-XEL
TS-WXL/R1, TS-WXL/1D
TS-RXL
* TS-XL TeraStations Only

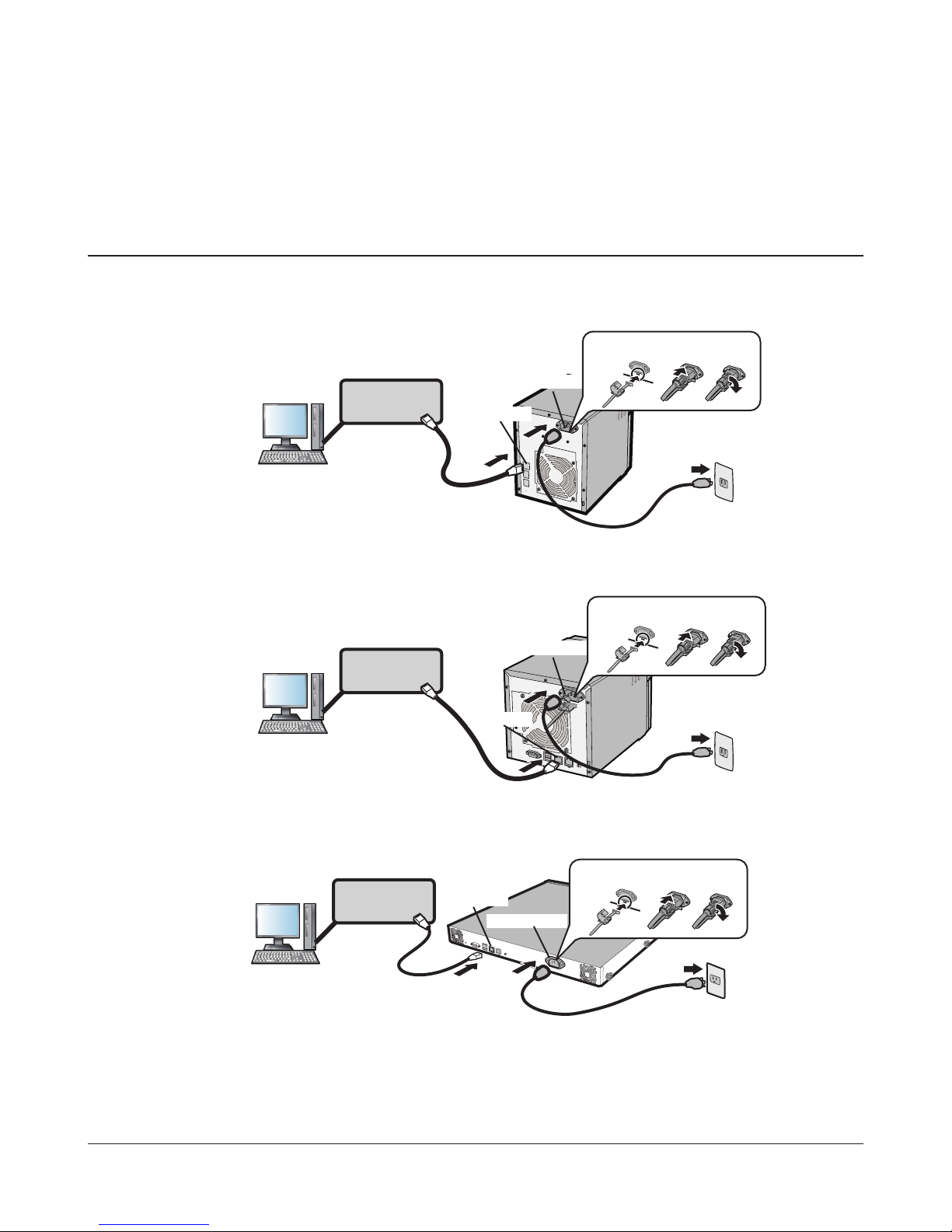

Connect cables
Network
(Hub or Router)
Network
(Hub or Router)
Network
(Hub or Router)
Fasten the plug with the clamp.*
Fasten the plug with the clamp.
Fasten the plug with the clamp.
Ethernet Cable
Ethernet Cable
Ethernet Cable
Power Connector
Power Connector
Power Connector
Power Outlet
Power Outlet
Power Outlet
LAN Port 1
LAN Port 1
LAN Port 1
AC Cable
AC Cable
AC Cable

TeraStation User Manual 6
Notes:
• If you are using Windows 8, Windows 7 or Vista, the autoplay screen may appear. Click Run TSNavi.exe.
• If “Do you want to allow the following program to make changes to this computer ?” is displayed in Windows 8
or Windows 7, click Yes.
• If “A program needs your permission to continue” is displayed in Windows Vista, click Continue.
• For Mac OS, open the CD and double-click the TeraNavigator icon.
• Disable your antivirus software or  rewall before continuing. The TeraNavigator software may not install
properly if antivirus or  rewall is enabled. Re-enable antivirus and  rewall after setup.
2
3
Hold down the power button on the TeraStation for three seconds to turn it on.
Wait until the green power LED changes from  ashing to lit. In the TS-RXL TeraStations, the LED is
not illuminated. Continue to Step 4.
4
5
Insert the TeraNavigator software CD into your computer. The TeraNavigator wizard will launch.
Click Begin Installation.
When “Finish” is displayed, initiate NAS Navigator2 by clicking Launch NAS Navigator2.
Note: Alternately, you can click Next to display more information about the power mode switch, which can turn
the TeraStation on and o automatically.
Note:
If the wizard doesn’t open automatically, navigate to the TeraNavigator CD
and double-click the icon (TSNavi.exe).
Step through the wizard to connect cables and install software.
Note:
For Mac OS, hold the Control key, click the TeraStation icon, then click Con gure -
IP Address.

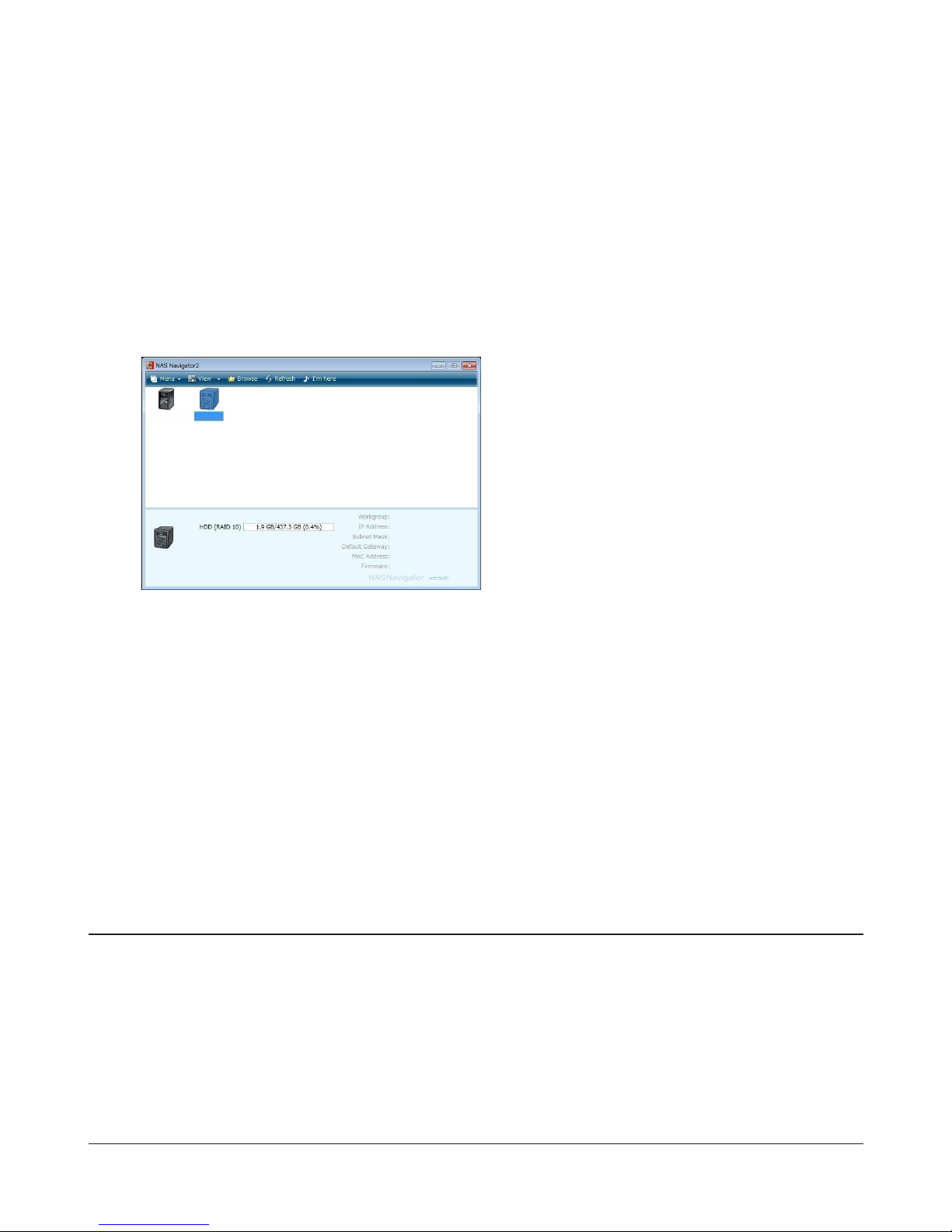

6Right-click your TeraStation’s icon, and choose Properties - IP Address.

TeraStation User Manual 7
71 Enter the desired IP Address, Subnet Mask, and Default Gateway.
Note:
If you don’t know how to con gure these settings, click Use DHCP to check
the box. For Mac OS, click Use DHCP.
2 Click OK.
Note:
If you are prompted to enter the administrator’s password, enter the
TeraStation’s password (it is set to “password” by factory default).
Continue to set the TeraStation's Clock.
10 Click System - Settings - Date and Time.
11 Click Modify Settings.

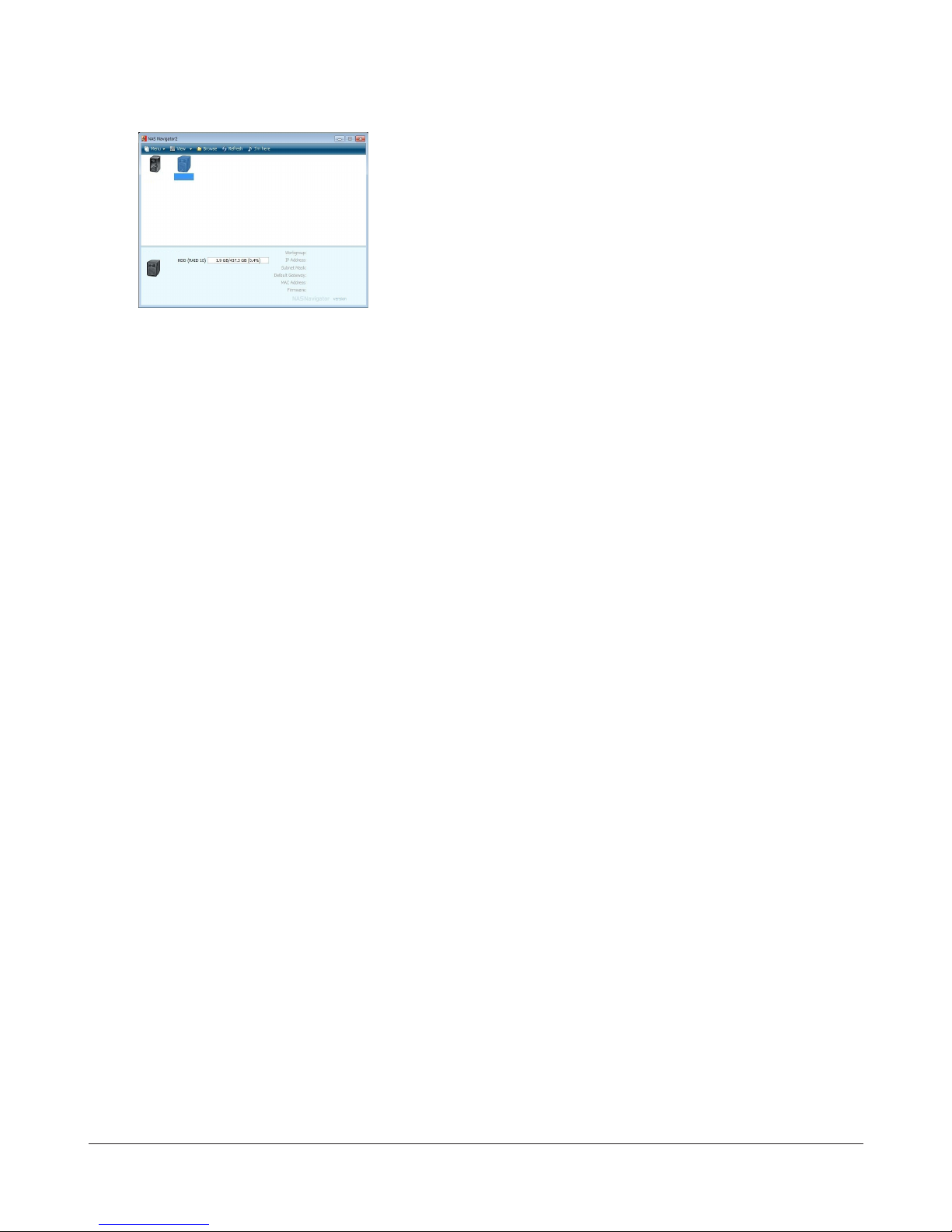

8Right-click the TeraStation icon in NAS Navigator2 and choose Settings.
Notes:

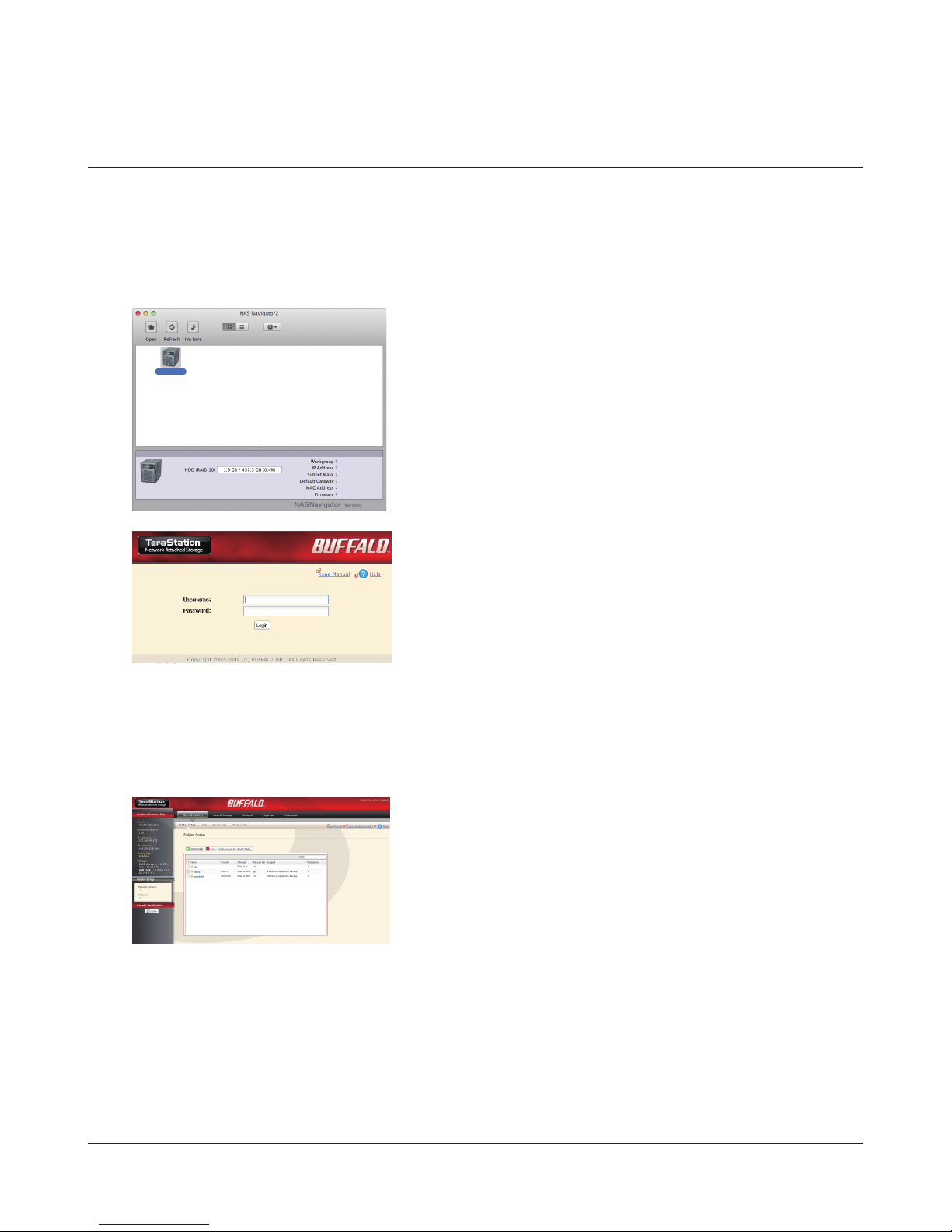

• For Mac OS, hold the Control key, click the TeraStation icon, and click Settings.
• Settings requires Firefox 1.5 or later, Internet Explorer 6.0 Service Pack 2 or later, or Safari 3 or later.
9Enter the administrator name and password, and click Login.
Notes:
• The following settings are set by factory default.
Username: admin
Password: password
•The default language for Settings is English. To change the display language,
click System - Settings - Language - Modify Settings, select Display Language, and click Save.

TeraStation User Manual 8
The following settings changes are recommended.
Notes:
• By default, the TeraStation will attempt to use an NTP server to set the time.
• NTP may not be usable in some network environments.
• Read the terms of use for Internet Multifeed Co. at www.jst.mfeed.ad.jp. Internet Multifeed Co. is the group
that manages the NTP Server at www.jst.mfeed.ad.jp. Internet Multifeed Co. is not responsible for any loss or
damages caused by this service.
• BUFFALO is not responsible for any loss or damage caused by using of this service, stopping the service, or
missing service.
• If your TeraStation fails to automatically obtain the time from NTP Server, verify the settings for the DNS server
address of the TeraStation. You must set a primary DNS server address to specify an NTP server by host name.
Otherwise you will have to specify the DNS server by IP address. You can change the DNS server settings at
Network - Settings - IP Address Settings in Settings.
Change your administration password
We recommend that you change the default password to a secure password.
1 Click Users/Groups - Local Users in Settings.
2 Select admin from the user list and click Edit User.
3 -1 Enter a new password (twice).
-2 Click Save.
Your administrator password is now changed.
Congure RAID Scanning
RAID Scanning checks your RAID 1, 5 or 10 arrays for problems and automatically xes any errors it can. To
congure:
1 Click System - Storage - RAID Scanning - Modify Settings.
2 Click Enable for RAID Scanning.
3 Select the schedule to perform RAID Scanning.
Note: With Immediate checked, RAID Scanning will run immediately.
4 Click Save.
You have completed the settings for RAID Scanning.
12
13
Note: Click Use Local Date/Time to use your computer's time (or Time Zone)
for the TeraStation's time.
1 To manually configure the date and time, click Manual for Date/Time
Source and adjust Date, Time, and Time Zone.
2 Click Save.

TeraStation User Manual 9
14
15
Double-click your TeraStation’s icon.
The TeraStation’s shared folders are displayed.
Note:
For Mac OS, TeraStation is mounted as a drive icon on the desktop, or displayed in the sidebar of the Finder.
Setup is now complete. You can now use the TeraStation's shared folders to save les just like other hard drives.
Note:
Keep the TeraStation updated with the latest rmware. You can download the latest rmware from
www.bualotech.com. The currently installed rmware version is displayed on the main screen of NAS Navigator2.

TeraStation User Manual 10
Diagrams and Layout
TS-XL, TS-XEL
TS-WXL
TS-RXL
with cover attached
Rear View
with cover removed
9
1 6 7 810 11
11 14 11 21 234 5 11
19 21 13 14 15 16 17 18 19
20
12
Front View
Front View
Rear View
Rear View
1 2 3 4 5 6
7
8
9
10
11
12
1 2 34 5 6
7
8
9
10
11
12 13 14 15 16 17
18
19
20
±¸
±¹
²°
±³
±´
±µ
±¶
±·
±·
±´
±µ
±¶
TS-XL TS-XEL

TeraStation User Manual 11
1 Power Button
Power ON/OFF: Press and hold the Power Button for 3
seconds until it beeps.
Note: To power on, connect the AC cable and wait for 10
seconds. Then press the Power Button.
2 Info LED
If there is a message about the current status, the amber info
LED is illuminated. Check the LCD display for current status.
3 Error LED
The red error LED is illuminated when an error occurs. Check
the LCD display for more information.
4 LAN1 LED
When the LAN Port 1 is connected to a network, it is
illuminated in green (the light next to the LAN Port 1 will be
illuminated as well).
5 LAN2 LED
When the LAN Port 2 is connected to a network, it is
illuminated in green (the light next to the LAN Port 2 will be
illuminated as well).
6 LCD Display
Displays the status of the TeraStation.
7 Display Button
Switches between the dierent display modes.
8 Function Button
Use this button to perform the following operations:
• DirectCopy
• Removal of USB devices
• Rebuild RAID after replacing hard drives
9 Drive Lock
Open the front panel with the key to replace hard drives or
press the Reset Button.
10 Reset Button
With the TeraStation powered on, hold down this button
until it beeps (about 5 seconds) to reset the TeraStation’s IP
address and password to the factory defaults. The password
will not be reset if this functionality has been disabled from
within Settings.
Note: To access the TS-RXL series’ reset button, insert the tip
of an unfolded paper clip.
11 Status LEDs 1 - 4
LEDs 1 through 4 will be illuminated in green when the
corresponding hard drives are accessed. If an error occurs on
a hard drive, the corresponding LED will be illuminated or
ash in red or amber.
12 Factory Use Only
TS-XEL TeraStations do not have this port.
13 UPS Port
Connect a UPS (Uninterruptible Power Supply).
TS-XEL TeraStations do not have this port.
14 USB Connector (USB 2.0/1.1 Series A)
Compatible Bualo USB hard drives, USB ash drives,
and digital cameras can be connected. USB hubs are not
supported.
15 LAN Port 1
Connect to a router, hub, or switch on your Ethernet network.
16 LAN Port 2
Use this second Ethernet port for redundancy or backup. For
backup, a second TeraStation may be connected directly.
17 Power Mode Switch
Switches between “AUTO” and “MANUAL” power modes
(page 12).
18 Power Connector
Use the included AC cable to connect to an UPS, surge
protector, or outlet.
19 Fan
Do not block the fan when installing the unit.
20 Anti-Theft Security Slot
You can also secure it using an o-the-shelf wire lock.
21 UID Button
The blue LED next to the UID button will be illuminated or
turned o every time you push this button on the front or
back.

TeraStation User Manual 12
The TeraStation can be congured to automatically turn on and o with your computer. To use this feature, install NAS
Navigator2 on your computer(s) and then set the power mode switch on the back of your TeraStation to “AUTO”.
Notes:
• After you turn o your computer, it may take several minutes for the TeraStation to shut down.
• When the power mode switch is changed from Auto to Manual or vice-versa, it takes about ve minutes for
the change to take eect.
• Power on the TeraStation before moving the switch to the Auto position.
• Auto Power Mode doesn’t work if port trunking is enabled or if NasNavi detection is disabled.
• Install NAS Navigator2 on all computers that will be accessing the TeraStation before switching to Auto Power
Mode.
• Some networks may not support the Auto Power Mode. If there are persistent issues with the network, use
Manual Power Mode for safety.
Manual (default):
In this position, the power button on the front of the TeraStation turns it on
and o. It is not aected by the power state of connected computers.
Auto:
In this position, if all connected computers are turned o, the TeraStation
will turn o too. If a connected computer is powered on, the TeraStation will
power on too.
TS-XL TS-XEL
TS-WXL
TS-RXL
Auto Power Mode

TeraStation User Manual 13
Chapter 2
Using your TeraStation
Opening a Shared Folder
2
1Launch NAS Navigator2.
Notes:
• For Windows, double-click the Bualo NAS Navigator2 icon on your desktop.
• For a Mac, double-click the NAS Navigator2 icon in the Dock.
3The TeraStation’s Shared folders are displayed.
Note:
With a Mac, the TeraStation is mounted as a drive icon on the desktop, and displayed in the
sidebar of the Finder.
Double-click the TeraStation icon.
You can now use the TeraStation's shared folders to save les just like other hard drives.

TeraStation User Manual 14
Opening a Shared Folder from a Second PC
Insert the TeraNavigator CD into your computer. TeraNavigator will launch.
Notes:
• For Windows 8, Windows 7, or Vista, click Run TSNavi.exe when the auto-play screen is
displayed.
• If “A program needs your permission to continue” is displayed, click Continue.
• For Mac OS, double-click the TeraNavigator icon in the utility CD.
3Step through the wizard to install NAS Navigator2.
4After NAS Navigator2 is installed, click the in the right top right corner of the window to
close the installer. Then, use NAS Navigator2 to open the TeraStation’s shared folder.
Note:
If this screen doesn’t open, open the CD and double-click the icon (TSNavi.exe).
Once you’ve connected the  rst computer to the TeraStation, you don’t have to run the setup
program again to connect additional computers. Just install NAS Navigator2 on each additional
computer and use it to open the TeraStation’s shared folder as necessary.
1
Click Install NAS Navigator2.
2

TeraStation User Manual 15
6
5Launch NAS Navigator2.
Note:
• For Windows computers, double-click the Bualo NAS Navigator2 icon on the Desktop.
• For a Mac, double-click the NAS Navigator2 icon in the Dock.
7The TeraStation’s Shared folders are displayed.
Note:
With a Mac, the TeraStation is mounted as a drive icon on the desktop, and displayed in the
sidebar of the Finder.
You can now use the TeraStation’s shared folders to save les just like other hard drives.
Double-click the TeraStation icon.
Adding Additional TeraStations
Run the TeraNavigator installation program from the CD for each TeraStation that you add to the
network. You cannot set up multiple TeraStations at the same time.

TeraStation User Manual 16
Opening Settings
To con gure your TeraStation, use Settings from a browser on a computer connected to the same network.
1 Launch NAS Navigator2. For Windows, click the BUFFALO NAS Navigator2 icon on your desktop. For Mac OS,
double-click the NAS Navigator2 icon in the Dock.
2
3
Note:
• To login as a guest, type “guest” for the Username, leave the password blank, and click OK. Guests can check the
TeraStation’s name, IP address, workgroup, and disk status. Regular users can change their login passwords as well
as check the TeraStation name, IP Address, workgroup, and disk status. Administrator user, “admin” by default, can
con gure all options.
4
Notes:
• Settings supports Firefox 1.5 or later, Internet Explorer 6.0 with SP2 or later, and Safari 3 or later. It may not display
properly in other browsers.
• Settings may not display correctly in Internet Explorer due to your browser security settings. If this happens, navigate
to Tools - Internet Options - Security on Internet Explorer, and set the Security Settings to Local intranet.
Settings is organized by tabs across the top. The following tabs are available.
1 Enter your username and password, and click Login.
Initially, use the default username and password:
Username: admin
Password: password
2 After you log in, change the password for security.
Right-click the TeraStation icon (on Mac OS, click the icon
while holding down the control key) and select Settings from
the menu.
Notes:
• If multiple TeraStations and TeraStations are connected
to the network, multiple icons will be displayed. Click the
correct TeraStation.
• Record the TeraStation’s IP address from the bottom right of
the NAS Navigator2 window.
This is Settings. This page displays the TeraStation’s current
status, including name, IP address, workgroup, and hard disk
settings.

TeraStation User Manual 17
Notes:
•To open Settings from a dierent computer, refer to Quick Setup Guide and install NAS Navigator2. After the
installation, follow Chapter 2, or, you may type the IP address of TeraStation on a web browser.
• You may also open Settings by typing the IP address that you wrote down in step 2 into the address eld of your
browser. Press the Enter key and bookmark this page in your browser so that you can return to it easily.
•With OS X 10.4 or later, you can open Settings from within Safari with Bonjour.
1 Launch Safari.
2 Select View - Show Bookmarks Bar from Safari’s menu.
3
4
5
1 Enter your username and password.
2 Click Login.
Note: To log in as a guest, type “guest” as the username and
leave the password blank.
Select Bonjour from the left-side menu, then click your
TeraStation in the bookmark list.
Settings opens.
The TeraStation’s name, IP address and disk information are
displayed on the left.
• Shared Folders
Add or delete Shared Folders; congure Access Restrictions,
DirectCopy, DFS and TeraSearch.
• Users/Groups
Add, delete, and congure Users and Groups.
• Network
Congure Network, Workgroup, and NFS settings.
• System
Congure Name, Date and Time, RAID setup, RAID Scanning, Check Disk/Format Disk, Backup, Replication,
Email Notication, Sleep Timer, UPS Settings, Restore/Erase.
• Extensions
Congure WebAccess, Print Server, Time Machine, and Web Service Support.

TeraStation User Manual 18
Chapter 3
Changing RAID Modes
TS-XL, TS-XEL and TS-RXL series TeraStations default to RAID 5 mode (4 hard drives), TS-WXL/R1 series default to RAID
1 mode, and TS-WXL/1D series default to Normal mode. The characteristics of each type of RAID are described below.
If you change the RAID mode, all of the data on the hard drive is deleted. Always back up any important data before
changing the RAID mode.
Note:
In this document, the term “Recovery” means reverting the TeraStation back to the state prior to the drive error or RAID
mode change. It does not refer to reading data from failed hard drives.
• RAID 5 mode (4 hard drives) (Default for TS-XL, TS-XEL and TS-RXL)
Note:
TS-WXL/R1 and TS-WXL/1D TeraStations don’t support this mode, as they don’t have 4 hard drives.
Arranges 4 hard drives in one array. Parity is generated during writes, so access speeds will be slower than other RAID
modes. Total usable space is the sum of the 3 drives. If one of the drives fails, you can recover data on the array by
replacing the damaged drive. However, data cannot be recovered if 2 or more drives become damaged.
• RAID 5 mode (3 hard drives)
Note:
TS-WXL/R1 and TS-WXL/1D TeraStations don’t support this mode, as they don’t have 3 hard drives.
Arranges 3 hard drives in one array. Parity is generated during writes, so access speeds will be slower than other RAID
modes. Total usable space is the sum of 2 drives. A fourth drive may be congured as a hot spare that will automatically
replace a drive if it fails. If one of the drives fails, you can recover data on the array by replacing the damaged drive.
However, data cannot be recovered if 2 or more drives become damaged.
• RAID 10 mode
Note:
TS-WXL/R1 and TS-WXL/1D TeraStations don’t support this mode, as they don’t have 4 hard drives
Arranges 4 hard drives in one array, with 2 stripes of mirrored drives. Total usable space is the sum of 2 hard drives. Data
is written quickly and access speed is faster than other RAID modes (except for RAID 0). Since data is written into 2 hard
drives at the same time, even if one of the drives fails, data can still be recovered by replacing the damaged drive (data
cannot be recovered if both drives become damaged).
RAID Arrays

TeraStation User Manual 19
• RAID 1 mode (Default for TS-WXL/R1)
Arranges 2 hard drives in one array. You can set up to 2 arrays on TS-XL, TS-XEL, and TS-RXL series. Total usable space
is 1 hard drive’s space for each array. Data is written to 2 hard drives at once. If a drive fails, data can be recovered by
replacing the damaged drive (data cannot be recovered if both drives in the array become damaged).
You can create an array and designate another drive as a hot spare (which automatically replaces a failed drive) for TS-
XL and TS-RXL TeraStation models. You can also use 2 drives to create a RAID 1 array, use another drive as a hot spare,
and use another as a regular drive, all at once.
• RAID 0 mode
This is the fastest RAID mode, but if any of the drives fails, data cannot be recovered.
• Normal Mode (Default for TS-WXL/1D)
This mode uses the hard drives inside the TeraStation as individual hard disks. It is sometimes referred to as JBOD. The
disk space you can use is the total space of all hard drives in the TeraStation. If a hard disk is damaged, you cannot
recover data from that drive.
Note:
During a recovery, the TeraStation’s front LED display shows “RAID ARRAY* Resyncing” and le transfer speeds are
slower than usual until the RAID array is rebuilt.
