Bugatti Eva User manual

11
IMPORTANT NOTICES
Dear Customer,
thank you for choosing EVA, the Bugatti’s Hand Blender. Like any domestic appliance, this Hand
Blender must be used with care and attention to prevent people getting injured and the Hand Blender getting
damaged.
BEFORE USING THE HAND BLENDER FOR THE
FIRST TIME, READ ALL THE INSTRUCTIONS ON
INSTALLATION, USE AND MAINTENANCE AND
THE SAFETY INSTRUCTIONS CAREFULLY.
DO NOT USE THE HAND BLENDER UNLESS YOU ARE THOROUGHLY FAMILIAR WITH THE INSTRUCTIONS.
WARNING
No liability is accepted for damage due to:
- incorrect use or different use from its intended purpose
- repairs carried out by unauthorized persons
- use of non-original spare parts or accessories
Use of the owner’s guide
For further information, or in the event of problems that have not been sufciently described in these
instructions, contact Customer Care at CASA BUGATTI
SAVE THESE INSTRUCTIONS CAREFULLY
and remember to pass them on to those who will use the Hand Blender after you. If the instructions are lost
before you use the Hand Blender, request the instruction booklet at Customer Care at CASA BUGATTI or send
an e-mail to: [email protected].
On the rst page of the cover
you will nd the illustrations
related to the text. Keep
the rst page open as you
read the instructions on use.

12
Power Cord with plug
On-Off Button
Motor Unit
High Speed Selector Button (15.000 RPM no loading
11.000 RPM under loading)
Low Speed Selector Button (10.000 RPM no loading
6.000 RPM under loading)
Start Button
Hand safety Sensor
Release Button for the bar (9) of the blender
Power supply See rating plate underneath appliance
Power rating See rating plate underneath appliance
Hand blender dimensions Diam. 11 x H 41 cm (diam. 4 ¼“ x 16 ¼“) approximately
Measuring Jug dimensions Diam. 8,5 x H 18 cm (diam. 3 ¼” x h 7 “) approximately
Max blending capacity : 350 ml – Max measuring capacity: 600 ml
Body and parts material ABS housing - Stainless steel Blender Bar and blades – PCT (BPA free) JUG –
ABS blade box
Weight 1.1 Kg approx
Length of power cable 1.5 meters approximately
Specications
Description of hand blender
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Index
Pag. 12 Specication
Pag. 12 Description of hand blender
Pag. 13-15 Important safeguards
Pag. 15-16 Installation and starting up
Pag. 16-18 Advice and recommendation on use
Pag. 18 Cleaning and maintenance
Pag. 19 Troubleshooting
Pag. 20 Guaranty
Bar of the Blender
Blender Stand
Blender Blade
Whisk disk
Beater/Mixer disk
Cover of the blade box
Base of the blade box
Jug : 350 ml maximum level for blender use.
600 ml maximum level for measuring cup use
only. It is in PCT BPA free
Plug

13
IMPORTANT SAFEGUARD
1.READ ALL INSTRUCTIONS CAREFULLY.
THE APPLIANCE MUST BE USED ONLY BY ADULTS
WHO HAVE BEEN TRAINED IN ITS USE.
KEEP THESE INSTRUCTIONS.
2. TO PREVENT SERIOUS INJURIES, ELECTRIC SHOCKS AND FIRE DO NOT
IMMERSE CABLES, PLUGS, OR THE HAND BLENDER ITSELF IN WATER OR
OTHER LIQUIDS, EITHER PARTIALLY OR TOTALLY, NOR RINSE IT
UNDER TAP.
3. The Hand Blender has been designed for HOUSEHOLD USE ONLY.
Use the Hand Blender only for its intended aim. Do not make any technical modications.
4. Close supervision is necessary when any appliance is used near children. The appliance must not be used by children or
persons with reduced physical, sensorial or mental capabilities, or with lack of experience and knowledge, unless they are
under supervision or have been given instruction. The Hand Blender must be used only by adults who know how to use it in
accordance with these instructions.
5. The use of attachment not recommended or sold by the manufacturer may cause re, electric shock or injury.
6. Never touch live electrical parts. They may cause electric shocks and serious personal injury. Connect
the Hand Blender to a wall socket which has the appropriate voltage. The voltage must correspond to the voltage
indicated on the rating label on the appliance. Do not use the Hand Blender with bare or wet feet.

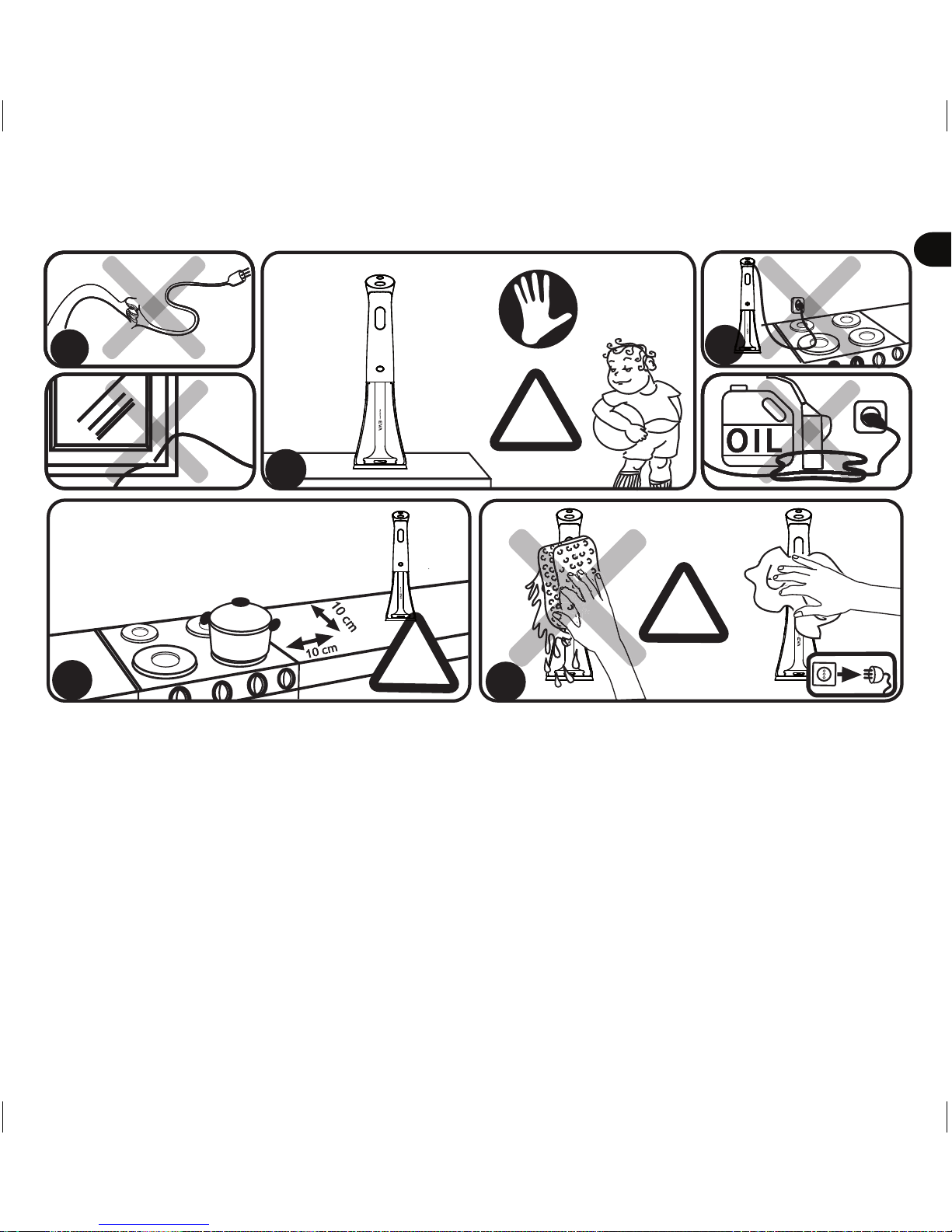

7. Figure A: power cable with plug. A short power cable with plug is supplied. Long detachable power
cord or extension cables should not be used. Use only if a QUALIFIED ELECTRICIAN can conrm that they comply with wiring
regulations. DO NOT USE plug/socket adapters.
If a long detachable power cable or extension cable is used:
a) The electrical rating of the detachable power cable or extension cable should have the same technical, electrical properties
of the Hand Blender as indicated on the rating label underneath the Hand Blender itself.
b) A long cable or extension cable must never protrude from furniture or over counter tops or table tops where it may be pulled
on by children or tripped over.
c) Do not place Hand Blender or cable on or near a hot gas range or electric hotplate, or in or near the oven (picture C).
d) Do not use the Hand Blender outdoors or anywhere the cord or motor body might come into contact with water while in use.
e) Do not let the cables hang over the edge of the table or counter, or touching hot surfaces.
f) Do not operate the Hand Blender after it has developed faults, or has been damaged in any manner. Return appliance to the
nearest authorized service facility for examination or repair.

14
g) If the power cable or plugs are damaged, they must be replaced by the manufacturer or by an authorized service centre or
by a qualied person in order to prevent all risks. Using accessories that have not been recommended by the manufacturer may
cause res, electric shocks and personal injuries.
8. Figure B: make sure that children cannot play with the Hand Blender. Children are not aware that electrical appliances are
dangerous.
Place the Hand Blender on a at surface, making sure that the feet rest rmly on the at surface so that the Hand Blender is
stable. Do not put the Hand Blender on hot surfaces or near open ames (picture C).
9. Do not place kitchen utensils or other implements near the blade when the Hand Blender is on. Placing any utensil near
the blade, while the Hand Blender is running, may cause serious personal injury or irreparable damage to the Hand Blender.
10. Figure D: In order to ensure that the Hand Blender works properly, place it on a at surface, in a well-lit and hygienic room
near to a power socket. Keep the Hand Blender at least 10 cm (4 inches) away from the wall.
11. Unplug the plug (17) from the power socket when the Hand Blender is not in use, before removing any part, before cleaning
and before assembling and disassembling.
12. Figure E: Never touch the Hand Blender, for any reason, with wet or damp hands or with a damp or wet cloth. Always unplug
the appliance if it is not used and before cleaning. Never pull on the cable to remove the plug (17). Always remove the plug (17)
before removing and tting different parts. The Hand Blender must be cleaned with a dry or slightly damp non abrasive cloth,
adding a few drops of non-corrosive neutral detergent (never use solvents). Clean only and exclusively the outside surfaces
of the Hand Blender.
13. The Hand Blender must always be supervised while it is in use.
A
B
!

!
E
!
D

15
14. Do not touch moving parts. Do not touch the blades, especially when the appliance is plugged in. The blades are very
sharp. If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
15.The appliance may be used for a maximum of one (1) minute and rest for three (3) minutes after each use.
16. Do not attempt to remove the safety devices: you could cause yourself serious personal injury or severely damage the Hand
Blender.
17. In the event of faults, defects or suspected defects after a fall, remove the plug (17)immediately from the power socket.
Never use the Hand Blender if it is faulty. Repairs must be carried out by CASA BUGATTI Service Centre. Contact your dealer
and/or CASA BUGATTI Customer Care.
18. Use a carbon dioxide (CO
2
) extinguisher to ght res. Do not use water or powder extinguishers.
19. When mixing liquids, expecially hot liquids, use a tall container or make small quantities at time to reduce spillage.
20. Keeps hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage
to the unit. A scraper may be used but must be used only when the unit is not running.
21. Blades are sharp. Handle carefully.
22. FOR USA/CANADA version
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will t
in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a
qualied electrician. Do not modify the plug in any way.
Installation and starting up
The original package is designed for dispatch by post. Keep it in case you need to return the Hand
Blender to the supplier. Before installing the Hand Blender strictly follow all points of the safety
instructions specied above.After removing the Hand Blender from its package, check that it is in
perfect condition and check that no type of material, packaging, guarantee sheet or anything else has
accidentally entered the motor unit (3) and on top and bottom of the Bar (9) of the Hand Blender. Keep
the plastic bags containing the Hand Blender and its components away from children: they may cause
suffocation.
Do not plug (17) in the Hand Blender until it has been correctly and completely assembled and always
unplug the Hand Blender after use. Before use for the rst time, wash all removable components as the
blades (11) (12) (13), the jug (16). Wash with neutral, non-abrasive and non-corrosive detergents, rinse
and dry carefully. Just rinse under the tap the Blender BAR (9) and dry it very well immediately.
To remove the dust that may accumulate on the motor Unit (3) and all the other parts of the Hand
Blender, simply wipe with a dry soft cloth. DO NOT RINSE UNDER TAP or IMMERSE THEM IN WATER.
After cleaning, assemble all the components. Before removing and
assembling any part, unplug from the socket the plug (17) . Do not unplug
the hand blender by pulling on the cord but only pulling the plug (17).
Assembling/Disassembling the Blades
Always remember to unplug the plug (17) from socket. Be cautious in
handling blade attachments as they are sharp and may cause injury.
ASSEMBLING of the BLADE:
Detach the Blender Bar (9) by pressing the Release Button (8)
and pull the Bar (9) away from the Motor Unit (3). Picture (C)
15
14
B
To un-screw:
Turn anti-clockwise
To screw:
Turn clockwise
11
1312
9
A
C

16
Turn upside down the Blender Bar (9) and insert the lower part of it into the Center hole (A) of the inner part of the cover of
the blade box (14).
Then take the blade intended for use (11 for Blending) or (12 for whisking) or (13 for beating) and align it on the shaft (B) of
the Blender Bar (9).
Turn the blade clockwise direction for one lap to screw it on the shaft (B).
Take the blade box Base (15) and turn it upside down to insert it on top of the blade.
Turn it clockwise till the two pins of the blade box Base (15) hook the blender blade (or the notches of the Beater/
Whisk) and continue to turn till the blade is rmly xed.
DISASSEMBLING THE BLADE:
Detach the Blender Bar (9) by pressing the Release Button (8) and pull the Bar (9) away from the Motor Unit (3).
Turn upside down the Blender Bar (9) and insert the lower part of it into the center hole(A) of the inner part of the cover of the
blade box (14). Take and hold the blade box Base (15) and turn it upside down to insert it on top of the blade.
Turn it anti-clockwise till the two pins of the blade box Base (15) hook the blender blade (or the notches of the Beater/
Whisk) and continue to turn anti-clockwise till the blade is removed from the shaft (B).
The removed blade attachments can be stored inside the compartment of the blade box (14+15) .
Advice and recommendations on use
TIPS AND HINTS
1.(adhere strictly to all points of the safety instructions specied above). Never use defective
or damaged cables. Never allow parts carrying live voltage to come into contact with water:
you may cause a short circuit!!!
2. Take the Blender Bar, already assembled with the blade intended for use, and insert it into the bottom of the motor unit (3)
until you hear a “click” sound. Picture “C”
3. Put the food ingredients in the Jug (16) ( ATTENTION the max level for blender use is 350 ml)
4. Connect the plug (17) of the
Hand Blender to a wall socket having the appropriate voltage. The voltage must correspond to the voltage indicated on the rating
label on the motor unit (3) of the appliance.
C
E

17
Advice and recommendations on use
5. Take out the hand blender from its stand (10) by holding the motor unit (3). (See picture E) .
When not in use we suggest to leave the hand blender on its stand (10) with the blade NOT assembled.
6. Press the On/Off button (2) (see picture F) to switch on the hand blender to the stand-by mode.
The LED blue light of the low speed button (5) start to blink (Picture G).
7. Select your desired speed by pressing the Speed Buttons (High = button 4 with two LED blue lights or
Low = button 5 with one LED blue light ) (see picture G and H). The selected speed (default is Low) is
indicated by ashing of the LED blue lights on the button.
8. ATTENTION: if the EVA hand blender is left idle in stand-by mode for more than 30 seconds, it will
switch-off automatically for safety purposes. If so, press again the ON/OFF button (2) to resume the
stand-by mode.
9.Eva Hand Blender is provided with a safety sensor (7) (see picture I) that allows the motor to start
to run only if the sensor is well covered by the palm of a hand (see picture L).
10. Tightly grip the hand blender with the Hand Sensor (7) facing the palm, dip the blender bar into the jug (16) press the Start
Button (6) with index nger or middle nger.
WARNING:
- TO AVOID SPLASHES, BEFORE TO PRESSING THE START BUTTON (6), ALWAYS DIP THE BAR (9) OF THE MINIPIMER, PREVIOUSLY
ASSEMBLED WITH THE BLADE OR DISC, DEEP IN THE JUG (16). DO NOT PRESS FIRMLY THE BLADE AGAINST THE SOLID INGREDIENTS
INTENDED TO BE BLENDED. THE ENGINE GOES UNDER STRESS AND THE BLADE / DISC MAY BLOCK AND IT CAN NOT TURN. REDUCE THE
PRESSURE ON THE SOLID FOOD SO THAT THE BLADE / DISC MAY ROTATE FREELY.
- DURING OPERATION THE BLADE/DISC MUST BE ALWAYS DIPPED INTO THE INGREDIENTS
- WHEN YOU DIP THE HAND BLEDER INTO A POT REMEMBER THAT THE LIQUID MUST NOT REACH FOR ANY REASON THE JOIN LINE
BETWEEN THE MOTOR UNIT (3) AND THE HAND BLENDE BAR (9)
11. Press the Start Button (6) with index nger or middle nger and slowly move the hand blender up and down to blend the
food ingredient.
HG
FI
L
E

18
12. Releasing the Start Button (6) or parting the Hand Sensor(7) from the palm will stop the operation of the hand blender. To
start again the hand blender you have rst to cover the hand Sensor (7) by the palm of hand and only after doing it you can
press the Start button (6) to start the running of the motor unit (3).
13. Between the intervals of blending, the hand blender can be put onto the Blender Stand (10) for convenient handling (Picture E)
14.The appliance may be used for a maximum of one (1) minute and rest for three (3) minutes after each use.
15. After blending, unplug the hand blender by pulling the plug (17) from the wall socket. Never unplug by pulling the cord.
16.Detach the Blender Bar (9) by pulling it when pressing the Release Button (8).
17. Disassemble the blade attachment with the help of blade box (14/15) (see Assembling/Disassembling the Blades section).
Clean the unit (see Cleaning and maintenance Section) and store properly for next use.
Cleaning and maintenance
ALWAYS UNPLUG THE HAND BLENDER WHEN IT IS NOT IN USE AND BEFORE CLEANING. DO NOT UNPLUG THE HAND BLENDER
BY PULLING ON THE CABLE.
DO NOT IMMERSE CABLES, PLUGS OR THE HAND BLENDER IN WATER OR OTHER LIQUIDS, EITHER PARTIALLY OR TOTALLY.
1) The Hand Blender must be unplugged from the socket before cleaning. Do not pull on the cable to unplug.
2) You are advised to clean the Hand Blender immediately after use because some food is difcult to remove and may stain all
parts in contact with it.
3) To remove the dust that may accumulate on the motor Unit (3) and all the other parts of the Hand Blender, simply wipe with a
dry soft cloth. DO NOT RINSE UNDER TAP or IMMERSE THEM IN WATER or PUT THEM IN THE DISHWASHER.
4) Wash all removable components as the blades (11) (12) (13),
the jug (16). Wash with neutral, non-abrasive and non-corrosive
detergents, rinse and dry carefully. Just rinse under the tap the
Blender BAR (9) and dry it very well immediately after use.
DO NOT WASH IN THE DISHWASHING MACHINE.
5) The blade attachments are very sharp. Handle with care
when cleaning.
6) After cleaning, put the blade attachments, Blender Bar and
Motor Unit in area with good air ventilation to dry completely
before storing them properly.
7) Before using the Hand Blender again, check that all its parts
are correctly assembled and perfectly dry.
BLENDER BLADE
In few seconds your vegetables become soft and creamy.
Perfect to blend vegetables fruit and Jam.
Ideal to blend SMALL quantities of raw and cooked meat
or sh. The exceptions are : Spinach, rhubarb, asparagus
and other brous vegetables
11
BEATER DISK
To beat creams, mash
steamed potatoes.
To mix cream, pudding and
the best barman cocktails
and drinks
13
WHISK DISK
To whisk egg white, mousse,
milk cream and sauce.
Ideal for Chocolate Mousse,
Tiramisù, zabaione (egg ip)
egg white and omelette
12
!
E
!
D

19
The motor does not start
to turn
The motor starts to run
but the blade does not
turn.
Some drops of food splash
out from the jug
The plug(17)is not well
inserted into the socket
The power supplied
does not correspond to
the rating label of the
appliance
The button on/off (2) is
not yet activated
The hand safety sensor (7)
is not tightly covered by
the palm of your hand.
The start button(6) is not
properly pressed.
The blender bar (9) is
not well inserted into the
motor unit (3) .
The level of food into
the jug is over the
maximum blending level
Check if the plug (17)
is well inserted into the
socket
Check if the plug (17) is well inserted into the socket
Check if there is power in your system
Press on/off button to switch on the motor unit (3)
Make sure that the palm of your hand is well
covering the surface of the hand safety sensor (7).
Make sure that the start button (6) is well pressed by
your index or middle nger.
insert the Blender Bar (9) till the bottom of the
motor unit (3) until you hear a “click” sound.
Make sure that the food level is not over the maximum
blending level marked on the jug that corresponding
to 350ml.
Trouble Possible cause Solution
Troubleshooting
If the Eva Hand Blender develops faults or defects or if irregularities are suspected, unplug it immediately.
If you cannot eliminate the fault by following the instructions in this manual, contact Customer Care
at CASA BUGATTI. Repairs carried out incorrectly can expose the user to serious harm. No liability is
accepted for damage or injury caused by repairs carried out incorrectly and in such cases guaranty rights
are voids.
SPARE PARTS
The following parts can be simply ordered and replaced by yourself:
Motor Unit (3) code: 16EVA003/.. (COUNTRY)
Blender Bar (9) code: 16EVA009 - Blade set of 3 pcs : 16EVA011/3 - Blender stand (10) code :
16EVA010/.. (Colour)

20
Guaranty
1) A Guaranty is deemed to be the replacement or repair free of charge of the parts making up the Hand
Blender that were faulty at the time of purchase due to manufacturing faults.
2) In the case of irreparable or repeated faults which are due to manufacturing faults as above, at the
manufacturer’s sole discretion, the machine will be replaced.
3) The guaranty does not cover damage due to:
a) Improper or faulty use
b) Defects caused by accidental breakages or carelessness
c) Failure to follow instructions and warnings, incorrect installation and maintenance
d) Maintenance and/or modications performed by unauthorized personnel
e) Use of non-original spare parts
f) Carriage
g) Any other circumstance that cannot be ascribed to manufacturing faults. Any other claims apart from
statutory rights are excluded.
h) When the following rule is not followed: 15.The appliance may be used for a maximum of one (1)
minute and must rest for three (3) minutes after each use.
4) The guaranty does not cover damage due to improper use and in particular due to non-domestic use.
5) The manufacturer accepts no liability for any direct or indirect damage or injury to persons, things and
domestic animals that may arise from failure to abide by all the safety instructions contained in this
manual, especially failure to abide by the instructions on installation, use and maintenance of the Hand
Blender.
6) Replacement or repair shall not extend the guaranty period.
7) The guaranty runs from the date on the receipt of evidence of purchase and from receiving of the
guaranty card by CASA BUGATTI.
SERVICE CENTRE
In the event of a Hand Blender fault, contact an authorized BUGATTI dealer or CASA BUGATTI directly. The
purchaser is responsible for all carriage and/or dispatch costs for all repairs, regardless of whether or not
they are covered by guaranty. If possible, keep the Hand Blender’s original packing for dispatch.
DISPOSAL OF THE PRODUCT IN CONFORMITY TO EUROPEAN DIRECTIVE 2002/96/EC.
At the end of its working life the product must not be disposed of alongside urban waste. It can be delivered
to local-authority separated waste collection centers or to dealers who provide this service. Separated
disposal of a household appliance enables possible negative consequences for the environment and health
arising from improper disposal to be eliminated and enables the materials of which it is made to be recovered
in order to make signicant power and resource savings. The symbol of a moveable waste bin marked with
cross displayed on the product indicates that as a household appliance it must be disposed of separately.
