Bull 45550 Quick reference guide

ASSEMBLY & OPERATING INSTRUCTIONS
MODEL #45550 30” CART BOTTOM
FOR USE WITH ANGUS (PICTURED), LONESTAR SELECT & OUTLAW GRILL HEADS

TABLE OF CONTENTS PAGE #
HARDWARE LIST……............………………...…………………………………………………….………………………..………………………...2
ASSEMBLY INSTRUCTIONS………………………..….…….………………...…….....….………………………………....…...…………..….…..3
CLEANING & MAINTENANCE………………………………………………………………….……………………..….……….…..……….………7
CLEANING THE GRILL CART…………………...….…...………….….……...….............................……..…....….….….….…….…...……7
PARTS LIST………………………………………………….…….….……….……….….….…………..……….……………………........................8
EXPLODED ILLUSTRATION………………………………….…………………….…………………..……….…….…………….…..….….………9
LIMITED WARRANTY…………………………………….………….…….……….….……………..….………….……….….…..….…….....……..10
- READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR GRILL CART IS PROPERLY INSTALLED, ASSEMBLED AND
CARED FOR. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS BODILY INJURY AND/OR PROPERTY DAMAGE.
IF YOU HAVE QUESTIONS CONCERNING ASSEMBLY OR OPERATION, CONSULT YOUR DEALER OR APPLIANCE SERVICE
REPRESENTATIVE.
- NOTE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION.
- NOTE TO THE CONSUMER:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
*FOR WARRANTY PURPOSES, PLEASE RECORD YOUR MODEL NUMBER, SERIAL NUMBER, DATE OF PURCHASE & A COPY OF YOUR
RECEIPT OR INVOICE IN THE BACK OF YOUR MANUAL ON PAGE 10.
1

HARDWARE LIST
1A –1/2” Allen wrench head screw (8x) 1B – 9/16” Phillips head screw (2x) 1C –1” Phillips head screw (2x)
1D –1” Phillips head screw (16x) 1E – 7/16” Small flat washer (8x) 1F –9/16” medium flat washer (2x)
1G –5/8” Medium flat washer (16x)
2

ASSEMBLY INSTRUCTIONS
Before attempting to assemble your grill cart, check that all the necessary parts are included by using the illustrated parts list. Inspect parts for any
damage and contact our service center or local dealer for replacement of any damaged parts. Do not assemble or operate a grill cart that appears
to be damaged. For your safety, Bull recommends the assistance of another person when assembling larger and/or heavier items.

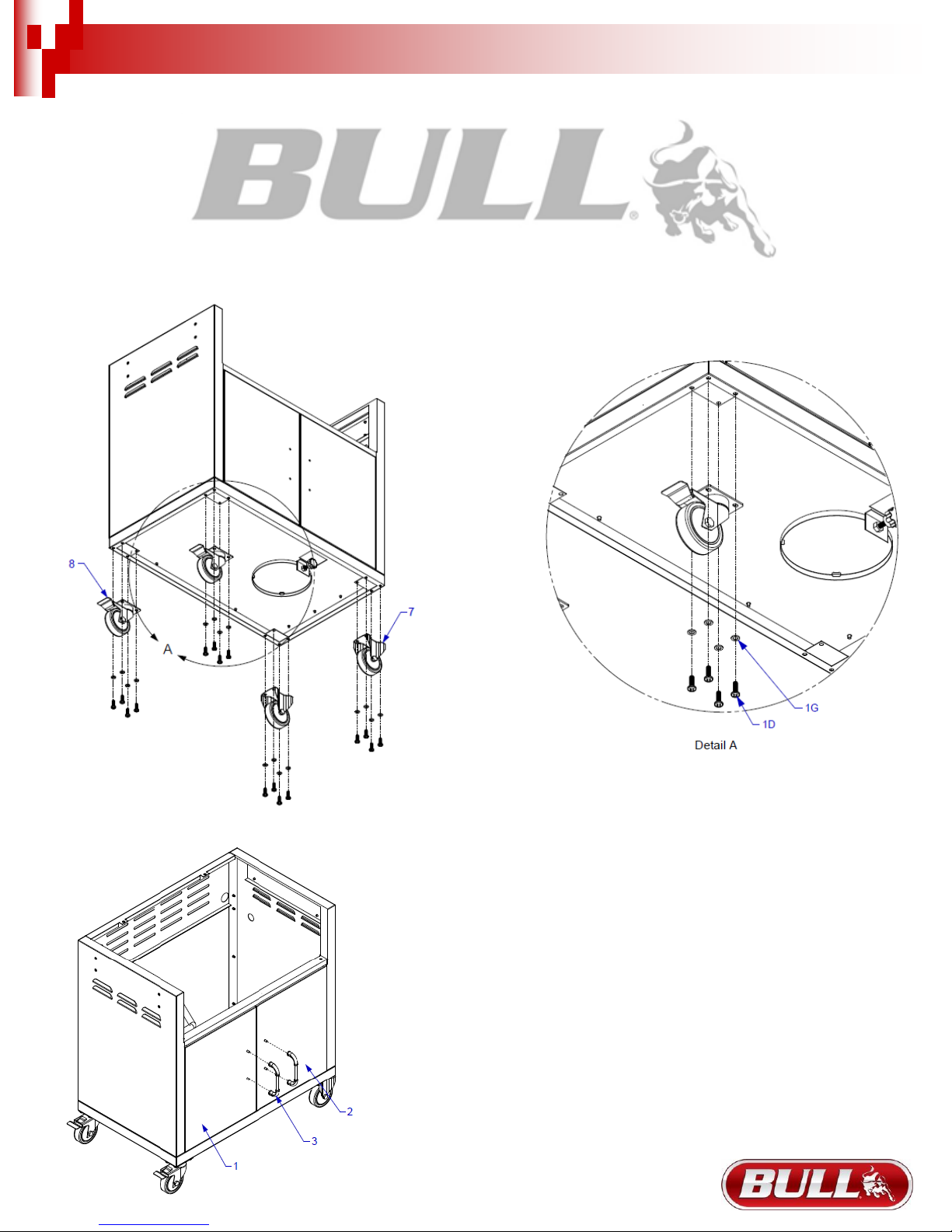

Step #1. Remove the four casters, screws and washers from the included package. Assemble the casters onto the bottom panel of the cart body
with four 1” phillips head screws (1D) and four 5/8” medium flat washers (1G) per caster. Be sure to attach the two casters with brakes on the same
end. Note: Hand tighten all caster screws prior to tightening with a screwdriver. Failure to do so may cause irreparable damage to the caster
screws.
Step #2: The door handles are pre-assembled on the reverse side of each door. Simply remove the screws and attach the handles on the exterior
of each door.
3

ASSEMBLY INSTRUCTIONS (Cont.)

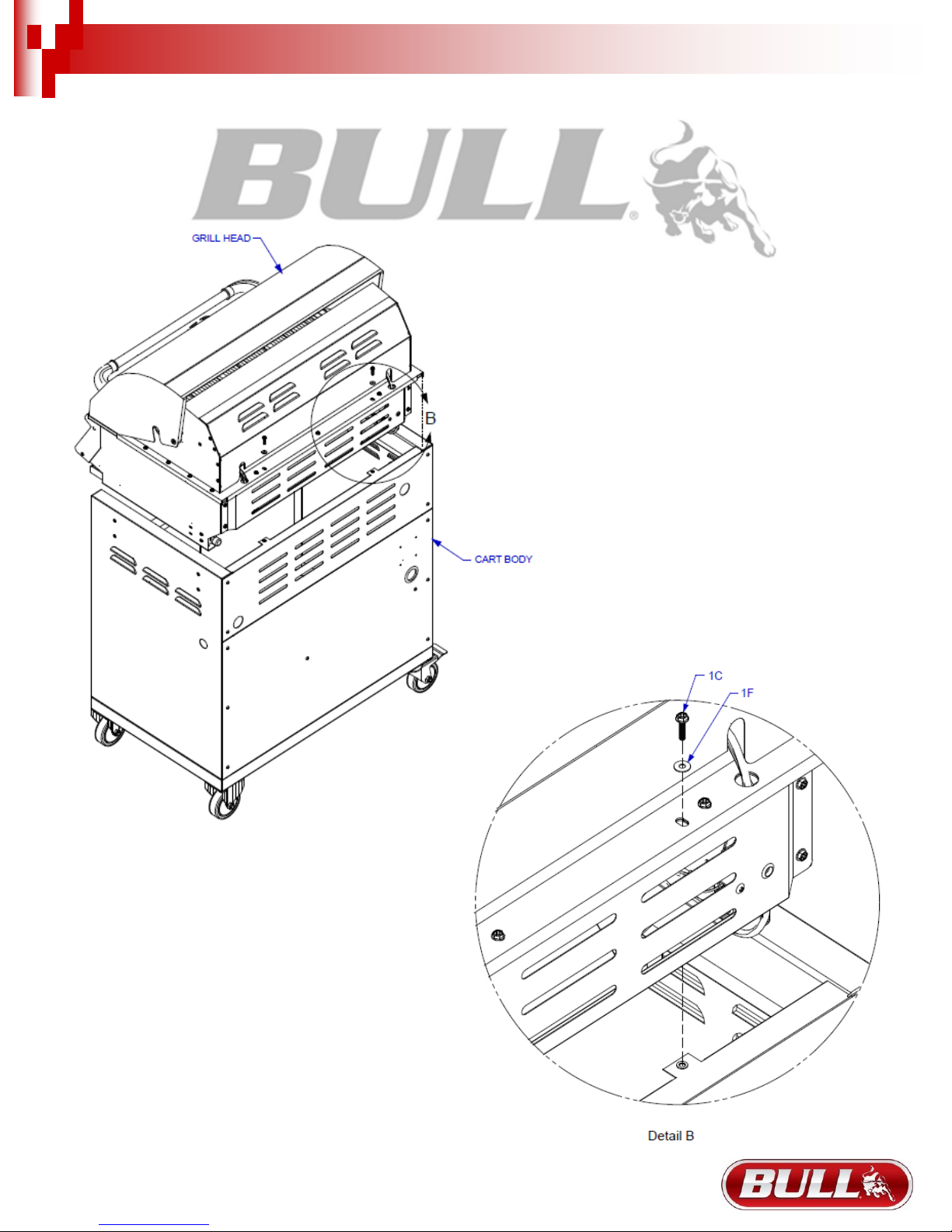

Step #3. Ensure the swivel casters are in the locked position in order to prevent the cart from moving and causing injury. Place the grill head onto
the cart (this step will require at least 2 people). Attach the grill head to the cart body using two 1” phillips head screws (1C) and two 9/16” medium
flat washers (1F). Align the slots on the back of the grill head to the tabs of the cart. Caution: cross threading will cause irreparable damage to the
cart.
4

ASSEMBLY INSTRUCTIONS (Cont.)

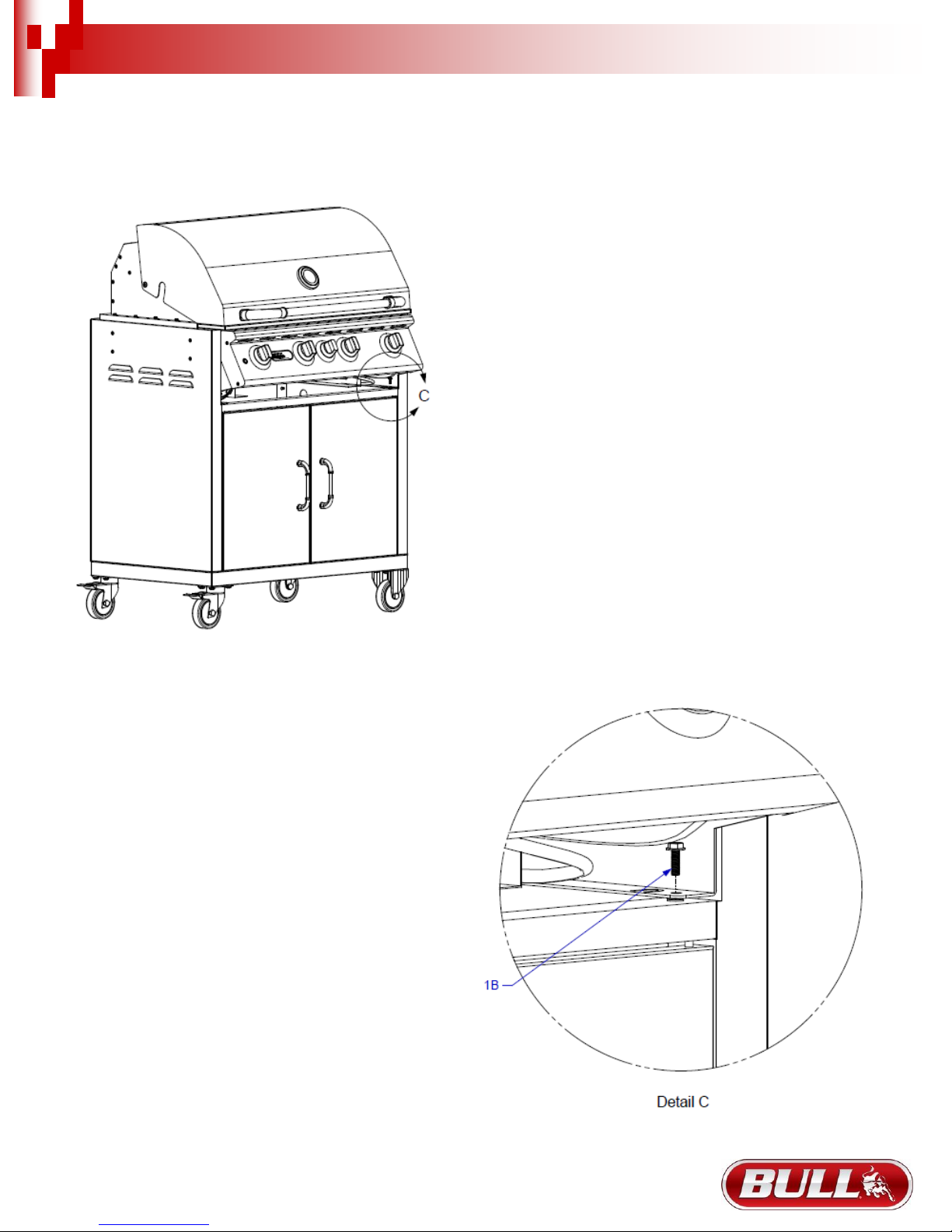

There is a secondary grill head attachment spot located in the front which is not necessary as long as you have the back attached. However, If you
wish to secure the front, simply remove the grease tray from the grill head and attach using two 9/16” Phillips head screw (1B).
5

ASSEMBLY INSTRUCTIONS (Cont.)

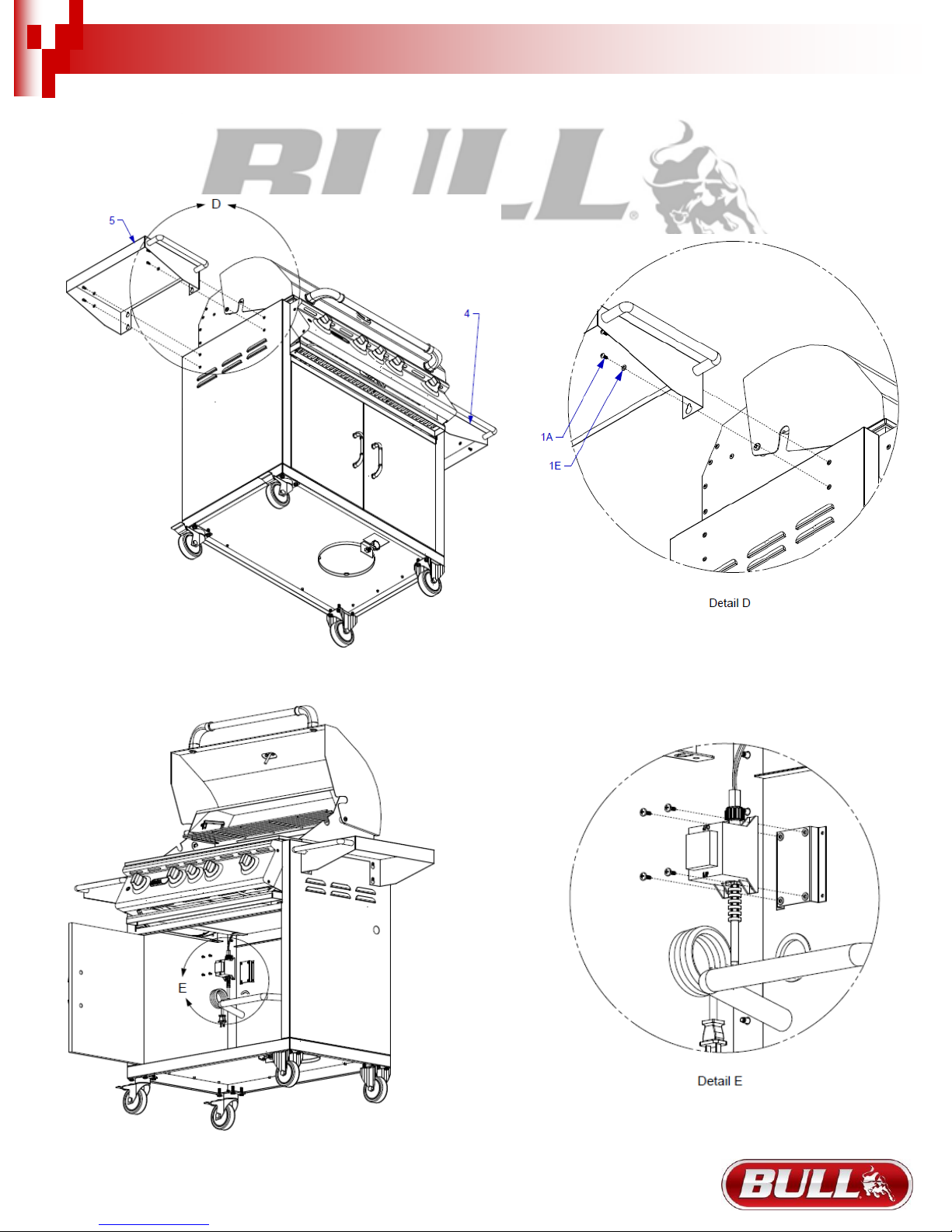

Step #4. Attach the left and right side shelves to the cart body with four 1/2” allen wrench head screws (1A) and four 7/16” small flat washers (1E)
per shelf. Note: To prevent damage to the cart, do not lift unit by the side shelves.
Step #5. If your grill head is equipped with an interior light system, attach the grill head transformer to the plate on the inside left of the cart. The
screws are already pre-assembled onto the plate.
Your grill cart is now completely assembled and ready for use!
Please read and understand all safety, warning and use instructions in the grill manual before use.
6

CLEANING & MAINTENANCE
CLEANING THE GRILL CART
2 easy steps to help you clean your grill cart:
Make sure the grill head and cart are cool to the touch.
Wipe down the cart with stainless steel cleaner.
STAINLESS STEEL CLEANING AND MAINTENANCE
Stainless steel is a corrosion resistant chromium/nickel alloy steel that is both durable as well as strong with an outstanding luster. The goal of your
cleaning and maintenance routine should be to keep the stainless steel’s protective chromium oxide layer intact. This is what prevents corrosion.
Contrary to popular belief, stainless steel is NOT rustproof, especially in the environment of a swimming pool. Chlorine, bromine, some fertilizers
and other elements are extremely caustic chemicals for stainless steel. These chemicals combined with heat and humidity greatly increase the
corrosiveness of these chemicals. Regular cleaning is the best way to prevent corrosion and add years of enjoyment to your Bull stainless steel
products.
WARNING! Do not remove the secondary tank prevention bar. Storing a second tank in your cart could cause serious injury.
7

PARTS LIST
MODEL #45550 30” CART BOTTOM
HOW TO ORDER REPLACEMENT PARTS
Please refer to the parts list on this page.
To make sure you obtain the replacement parts for your grill cart, the following information is required to assure the correct part.
1. Reference number of replacement part needed.
2. Description of replacement part needed.
3. Quantity of parts needed.
IMPORTANT: Use only factory authorized parts. The use of any part that is not factory authorized can be dangerous and will void your warranty.
IMPORTANT: Keep this assembly and operating instruction manual for referral, and for replacement parts ordering.
Serial number location: Please record your serial number on the limited warranty page of this manual. It is important that this step is completed in
order to ensure that correct parts are provided.
8
REF # PARTS # QTY WARRANTY PERIOD
145500 1 1 Yr
245501 1 1 Yr
316572 2 1 Yr
445509 1 1 Yr
545510 1 1 Yr
645505 2 1 Yr
716513 2 1 Yr
816514 2 1 Yr
975321 1 1 Yr
TANK RETENTION BOLT
DESCRIPTION
LEFT DOOR PANEL
RIGHT DOOR PANEL
DOOR HANDLE
SWIVEL CASTER
SIDE SHELF - RIGHT
SIDE SHELF HANDLE
SIDE SHELF - LEFT
FIXED CASTER

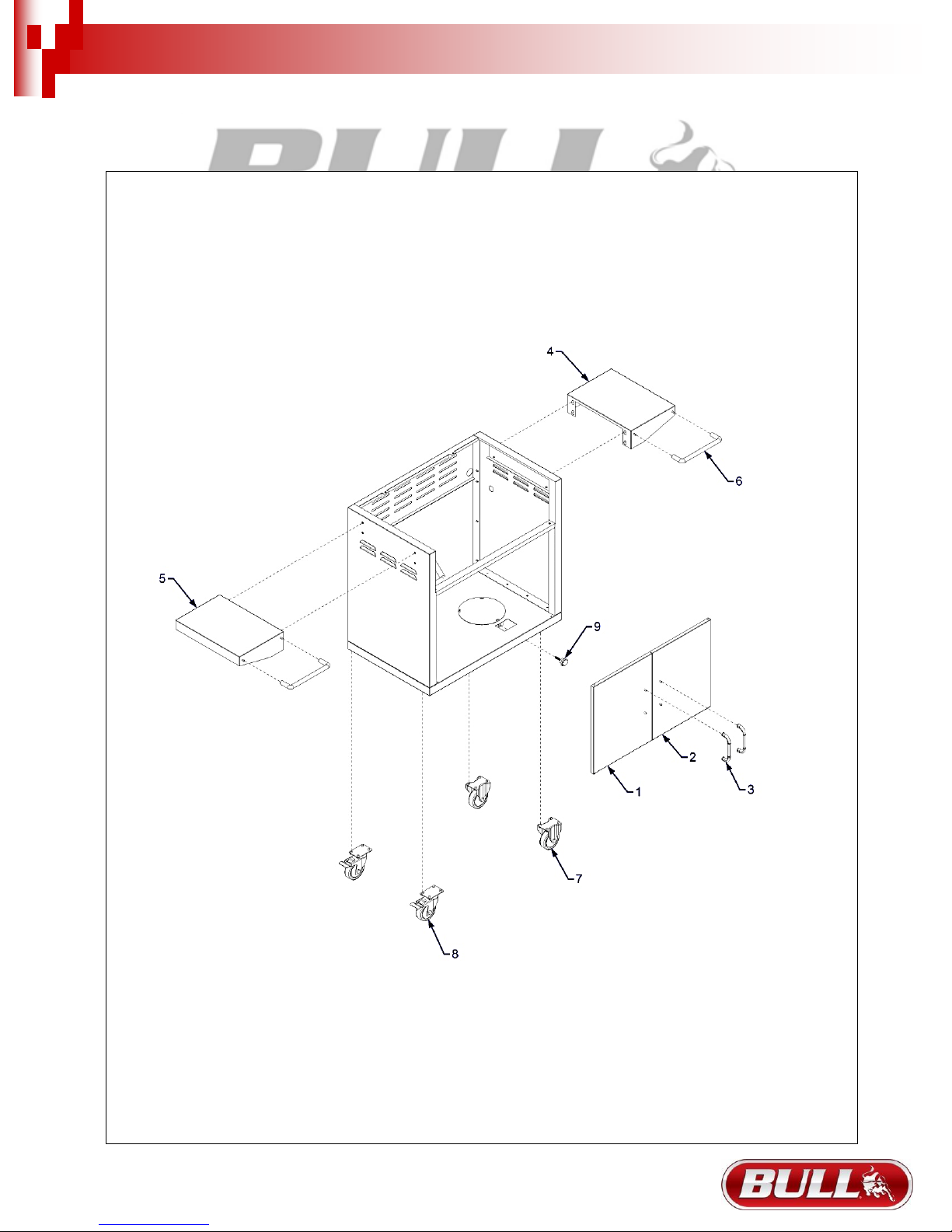

EXPLODED ILLUSTRATION
9
