BullFrog MON AMOUR OD2210 User guide

ASSEMBLY AND INSTRUCTION MANUAL
MODEL OD2210 MON AMOUR
© 2022 K URT BEI E R &KATI QU I N G E R
www.bullfrog-design.com

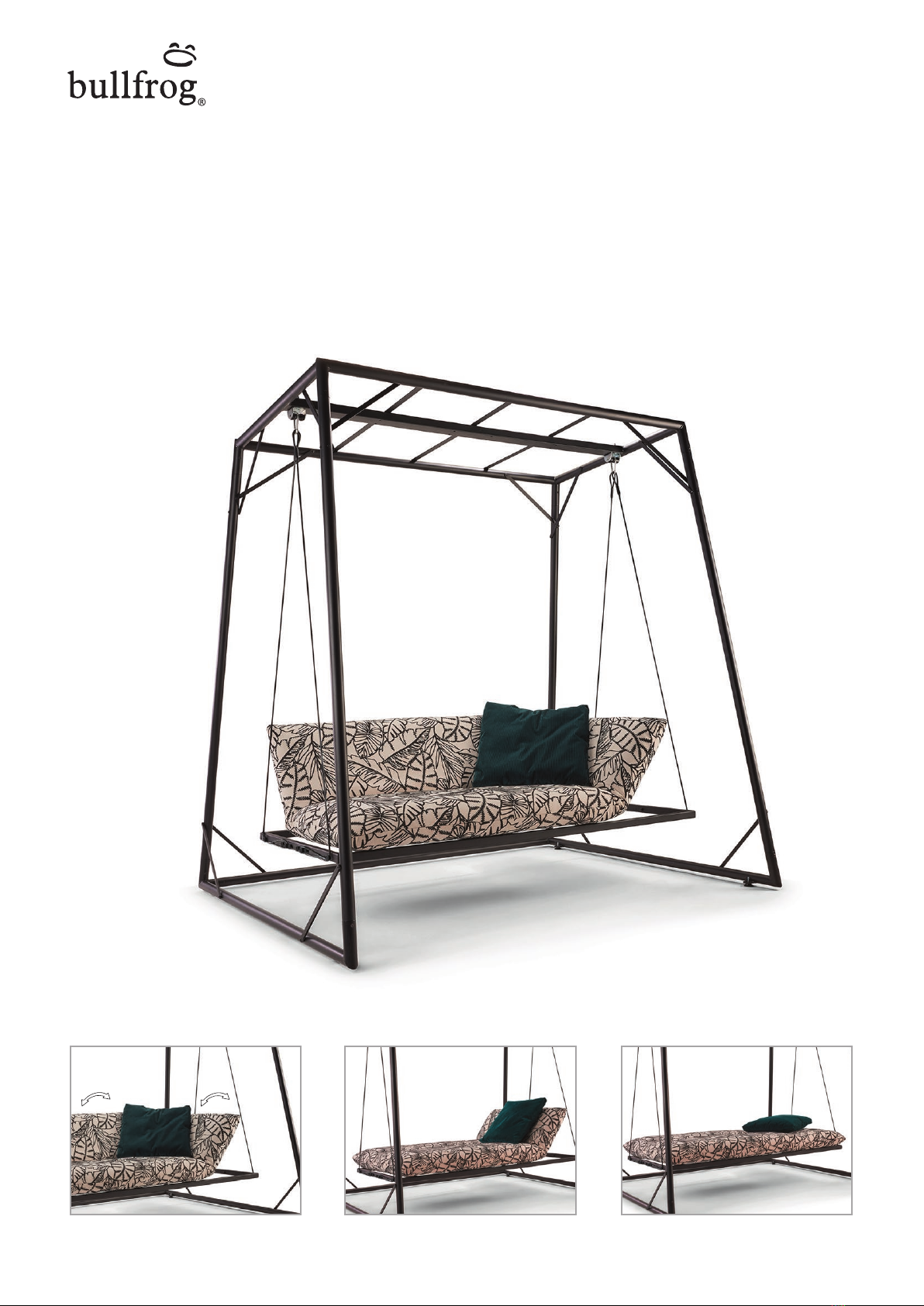

Functional back and functional armrest
(fig. functional armrest, right)
Relax Reclining position

Attention! The standard version requires a ceiling height of 240 cm. Special lengths may be requested (for an extra charge).
Please note that the clearance (floor to ceiling) is specified exact to the centimeter (inch-perfect).
For made-to-measure products, the basic position is set in the middle of the adjustment options. Thus, you have the possibility of
adjusting the height upwards or downwards by 1 steps each. For a detailed description, see "Assembly for made-to-measure products".
General installation information for ceiling rocking joints:
Packaging unit (concrete/ aerated concrete or wood):
4 x ropes (C)
Concrete / aerated concrete Wood beam installation
4 x screws (F)
4 x dowels (E)
1 x bit (H)
TX40
1 x bit (H)
TX40
4 x screws (G)
1 x mounting/installation template, ceiling installation (fig. folded) for the rocking joint:
2 x carbines (A) 2 x rocking joints (B)
OD2210 MON AMOUR
© 2022 K URT BEI E R &KATI QU I N G E R

In order to enable correct rocking, it is required to apply the rocking joints parallel to each other.
Internal spacing (center rocking joint to center rocking joint): 186 cm
Template for fastening points on the ceiling:

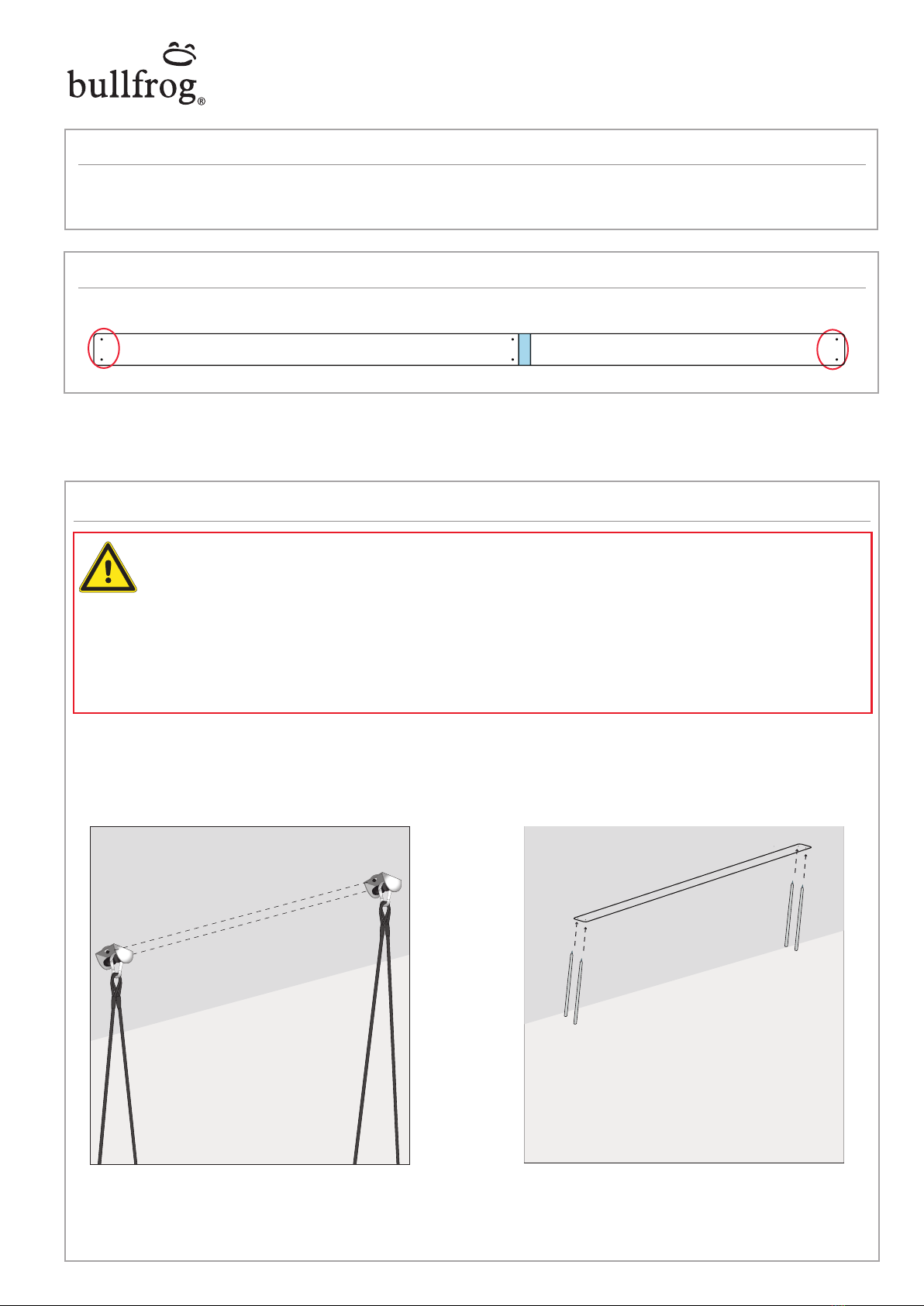

Preparations, ceiling mounting:
The rocking joints have to be aligned parallel
to each other.
Mark the drilling and/or screwing points on the
ceiling by means of the provided template.
ATTENTION! In order to ensure a safe installation, please follow the individual steps in the instruction manual!
The piece of furniture should be assembled/installed by two persons of a specialist company/specialist staff!
Info:
Attention! The ceiling mount has to carry the weight of the swing as well as the weight of the occupant. Make
absolutely sure that the ceiling respectively the bean is solid and that it is possible to safely install the ceiling mount.
Every ceiling type is dierent. Have this imperatively checked by a specialist. No liability for personal injury or damage
to property shall be assumed in case of any improper installation.
Please note that a safety distance of 120 cm has to be observed all around the rope swing. No objects which may constitute obstacles
should be placed around the swing. The safety distance to the front and back depends on the respective rocking behavior. However,
up to a ceiling height of 250 cm, we recommend to observe a minimum distance of 120 cm to the front and back. With increasing
ceiling height, the safety distance to the front and back will also increase.
OD2210 MON AMOUR
© 2022 K URT BEI E R &KATI QU I N G E R
OD2210 MON AMOUR: Use (with unfolded template) the outer markings (186 cm).
186 cm

1. Drill an 80 mm deep bore hole into the ceiling at the points marked before
using a 10 concrete drill.
2. Insert 2 dowels each through the fastening bores of the
rocking joint flush into the ceiling borehole.
ø 10
80 mm
Ceiling mounting, rocking joint for concrete/aerated concrete:
1. Insert 2 dowels each through
the fastening bores of the
rocking joint and tighten the
rocking joint on the ceiling
markings.
Installation on a wooden beam:
3. Screw them tight with
the enclosed screws.
OD2210 MON AMOUR
© 2022 K URT BEI E R &KATI QU I N G E R

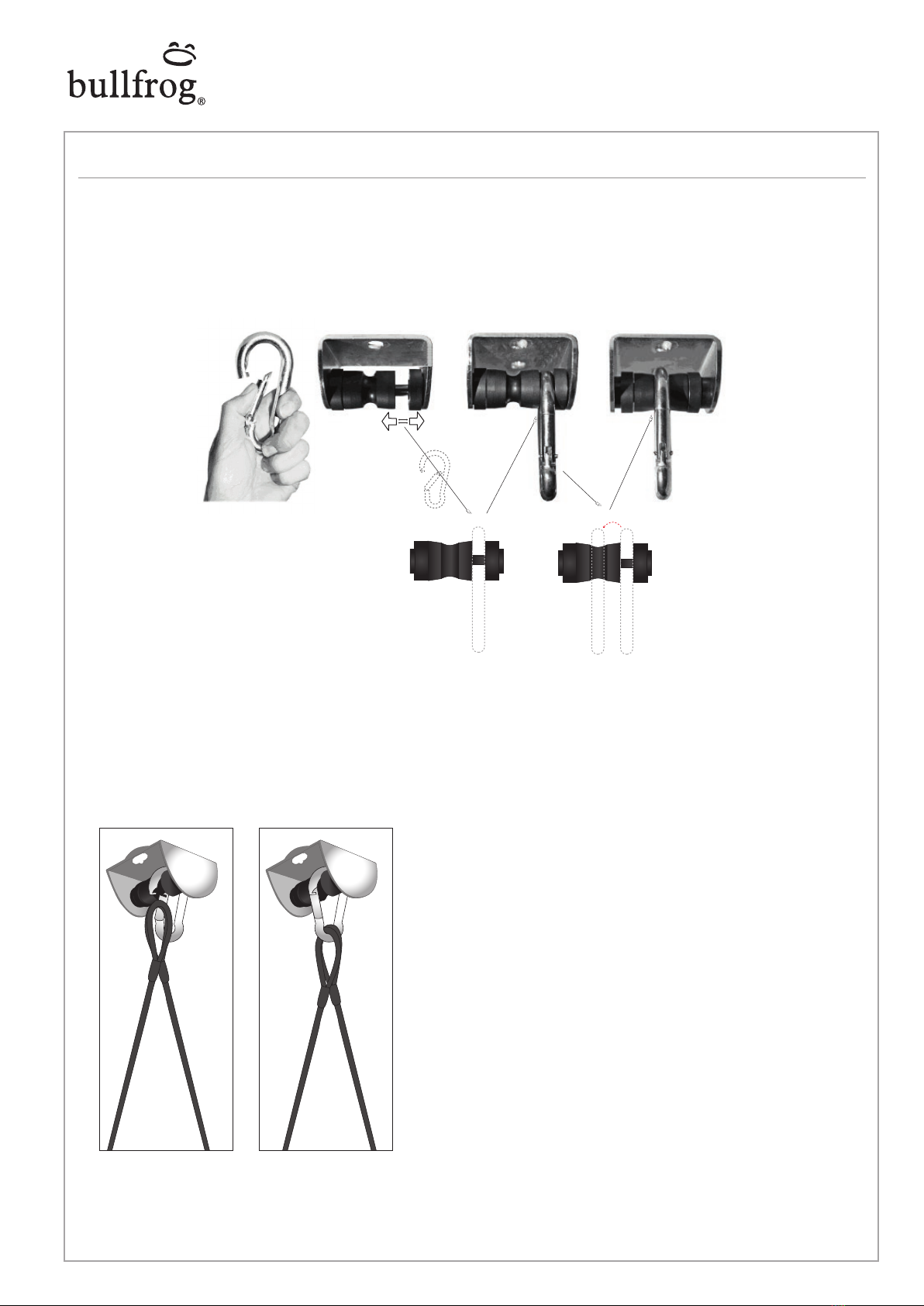

1. Push the roller segment (D) right or le apart and hook in the carbines (A).
2. Li the carbines (A) into the middle of the roller segment (D).
3. Repeat step 1 and 2 on the second rocking joint.
4. Per side, hook 2 ropes (C) in the carbine (A).
Carbines & ropes:
2 x C
A
A A
AAA
A
B
2 x C
A
B
D
B B B
DD
DD
2.1. 3. 4.
After that, the ropes are fastened to
the frame of the element.
Please also see “Rope installation”.
OD2210 MON AMOUR
© 2022 K URT BEI E R &KATI QU I N G E R

OD2210 MON AMOUR
© 2022 K URT BEI E R &KATI QU I N G E R
Standard ceiling height and hight of Mon Amour: 233 cm - 243 cm
Made-to-measure:
3 adjustment options in 5 cm steps:
The adjustments have to be identical front/back and le/right.
Attention! In case of made-to-measure products, the basic position is defined in the middle (i.e. position P2) of the
adjustment options. Thus, you are able to adjust the height each by 1 step upward and downward.
P1 P1P2 P2P3 P3
Attention! All 4 ropes have to be fastened in the same position at the front and the back.
The loop must always be fastened at position P1, P2, or P3; at position (L), the rope is wrapped around a bolt (U1).
LL
U1 U1

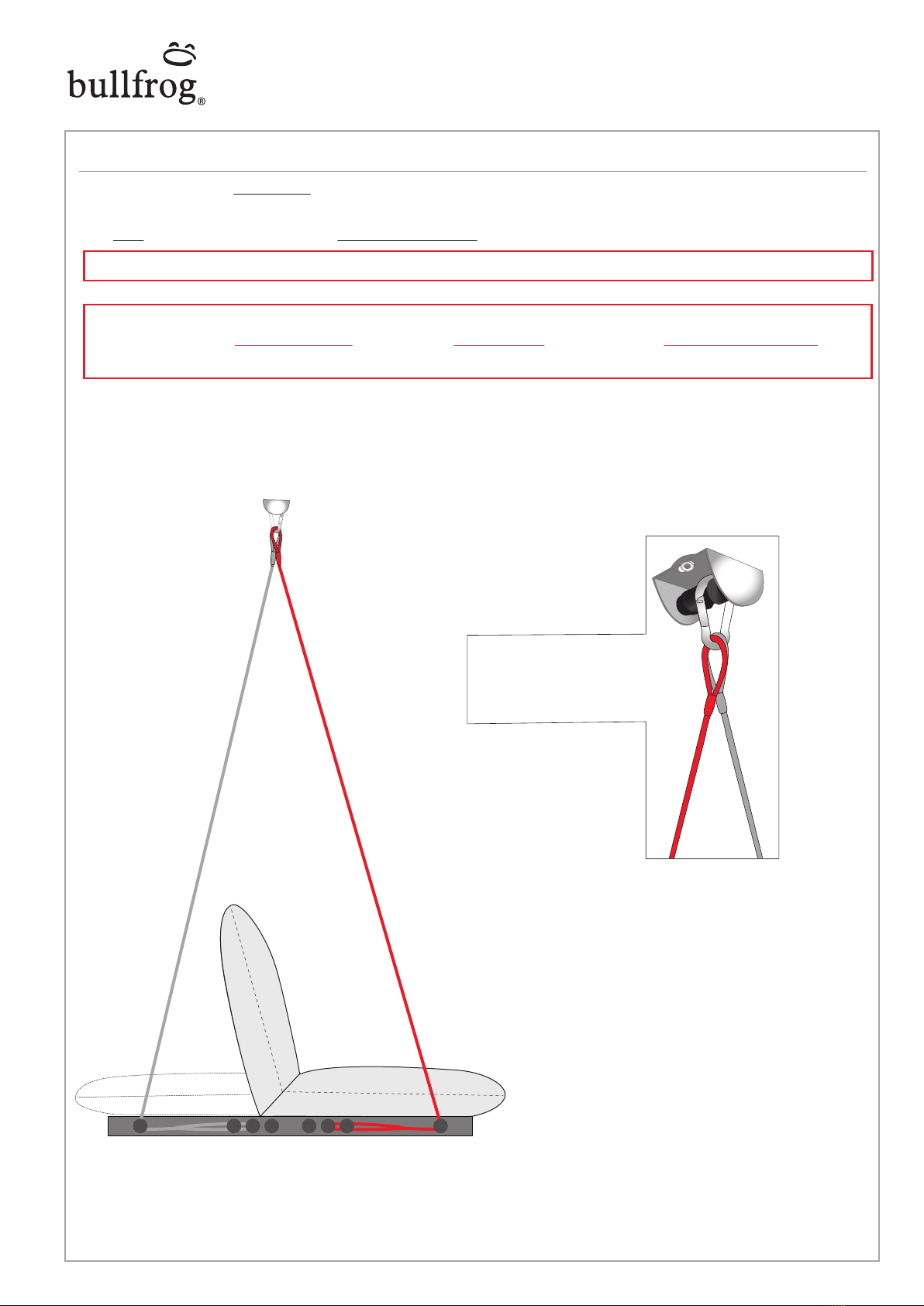

Rope installation, frame:
Rope position:
The rope lying up front in the carbine is
also hooked in at the front of the frame.
The rope lying in the back in the carbine
is hooked in at the back of the frame.

Safety Instructions!
Please observe the following safety instructions for your pleasure with Mon Amour:
2. Before using the rope swing, please check again whether everything is mounted
professionally.
3. Attention: the maximum load bearing capacity amounts to 200 kg.
4. While rocking, it is not allowed for anyone to stay within the swing’s range, next
or below the rocking sofa (risk of injury).
1.Please ensure a safety distance of 120 cm around the rope swing. Do not place
any objects which may constitute obstacles in this area (around the swing).
5. Do not stand on the product or climb up or pull on the rope. The rocking sofa is
not a toy, gymnastics apparatus or climbing frame. Children must not use the
product without supervision of an adult.
Do not sit on the arm- or backrest
OD2210 MON AMOUR
© 2022 K URT BEI E R &KATI QU I N G E R
No liability shall be assumed in case of any improper use.
Please check the mounting for signs of wear and tear or damages on a regular
basis. In case or worn or damaged parts, please immediately replace the defective
parts for your own safety.
No liability shall be assumed for direct and indirect consequential damages
caused by modifications of this product, the equipment, the performance and the
material usage done by the customer.
Subject to changes and error.
You have observed all of the safety instructions? Then, Bullfrog wishes you a good rocking time!
