Bunn WL2 Instruction Manual

WL2
WARMER
FRONTREAR
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: [phone] FAX: [phone]
www.bunnomatic.com
BUNN
®
29753.0000 02/02 ©1999 Bunn-O-Matic Corporation

2
WARRANTY
Bunn-O-Matic Corp. (“Bunn”) warrants the equipment manufactured by it to be commercially free from
defects in material and workmanship existing at the time of manufacture and appearing within one year from the
date of installation. In addition:
1.) Bunn warrants electronic circuit and/or control boards to be commercially free from defects in material
and workmanship for three years from the date of installation.
2.) Bunn warrants the compressor on refrigeration equipment to be commercially free from defects in mate-
rial and workmanship for two years from the date of installation.
3.) Bunn warrants that the grinding burrs on coffee grinding equipment will grind coffee to meet original
factory screen sieve analysis for three years from date of installation or for 30,000 pounds of coffee, whichever
comes first.
This warranty does not apply to any equipment, component or part that was not manufactured by Bunn or
that, in Bunn’s judgement, has been affected by misuse, neglect, alteration, improper installation or operation,
improper maintenance or repair, damage or casualty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Theagents,dealersoremployeesofBunnare
not authorized to make modifications to this warranty or to make additional warranties that are binding on Bunn.
Accordingly,statementsbysuchindividuals,whetheroralorwritten,donotconstitutewarrantiesandshouldnot
be relied upon.
The Buyer shall give Bunn prompt notice of any claim to be made under this warranty by telephone at (217)
529-6601 or by writing to Post Office Box 3227, Springfield, Illinois, 62708-3227. If requested by Bunn, the
Buyer shall ship the defective equipment prepaid to an authorized Bunn service location. If Bunn determines, in
itssole discretion,thattheequipment doesnotconformto thewarranty,Bunnshallrepairtheequipment withno
chargeforpartsduringthe warranty period and no chargeforlaborbyaBunnAuthorizedServiceRepresentative
during the warranty period. If Bunn determines that repair is not feasible, Bunn shall, at its sole option, replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE
SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AS
SPECIFIED HEREIN, TO REPAIR OR, AT BUNN’S SOLE OPTION, REPLACEMENT OR REFUND.
In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost
sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substi-
tute equipment, facilities or services, or any other special, incidental or consequential damages.
29753 020402

3
WARMER ASSEMBLY (without Fresh Light) .................................................................................................. 4
WARMER ASSEMBLY (with Fresh Light) ........................................................................................................8
TABLE OF CONTENTS
29753 080100

4
BUNN
®WL-2
FRONT REAR

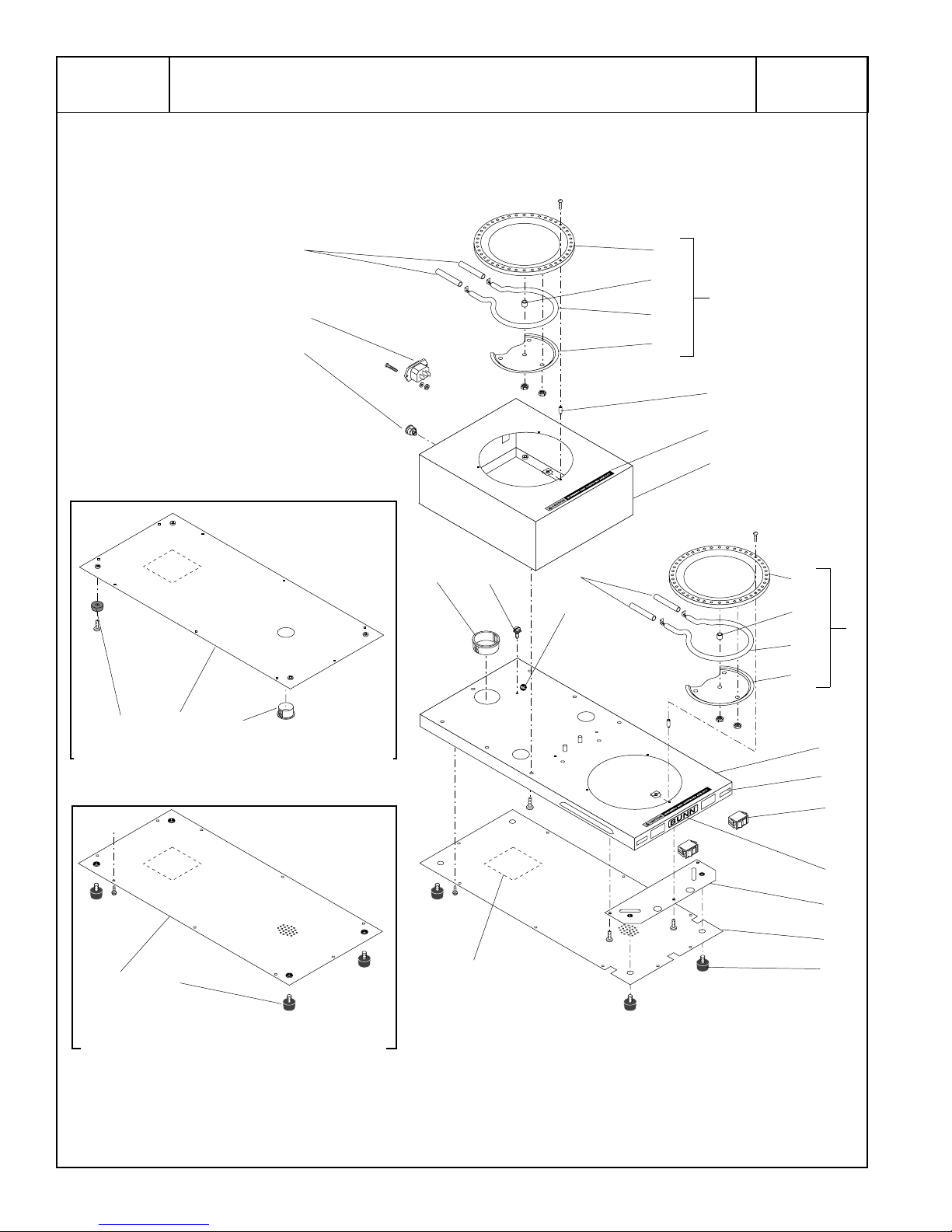

WARMER ASSEMBLY (without Fresh Light)
First Type-One Piece Floor With Adjustable Legs
First Type-One Piece Floor Without Adjustable Legs
2
3
4
5
1
7
9
10
2
3
4
5
1
8
12
11
8
16
14 15
13
18
17
19
20
21
27
26 22 24
23 27 25
P1862
29753 080100

ITEM PART NO. QTY. DESCRIPTION
5
WARMER ASSEMBLY (without Fresh Light)
1 11440.0006 2 Warmer Assy 100W, 120V (Includes items 2 thru 5)
02817.0002 2 Warmer Assy, Upper, 100W, 240V (Includes items 2,4,5 & 6)
02817.0001 2 Warmer Assy, Lower , 100W, 240V (Includes items 2,4,5 & 6)
01304.0000 6 Screw, Pan Head #4-40 x .75"
00916.0000 6 Fastener, J-Type #4-430
2 03656.0000 1 Warmer Dish
3 13042.0001 1 Spacer (120V only)
4 11443.0000 1 Warmer Element 100W, 120V
01951.0000 1 Warmer Element 100W, 220V
5 05212.0000 1 Plate, Retaining
00970.0000 2 Nut, Keps #8-32
6 21016.0024 1 Lead, Upper Warmer, GRN/YEL 7.0" (240V only)
21016.0011 1 Lead, Lower Warmer, GRN/YEL 15.0" (240V only)
7 03666.0000 6 Spacer, Warmer Dish
8 - - - - - - - - 4 Tube, Silcone, .25" Dia x 1.88" (Order item 33)
9 12364.0000 2 Decal, CAUTION - WARMERS ARE HOT
10 - - - - - - - - 1 Housing, Warmer (Not serviced separately)
02308.0000 7 Screw, Truss Head #8-32 x .38"
11 02423.0000 1 Bushing, Strain Relief (120V only)
12 01908.0000 1 Power Connector (240V only)
01362.0000 2 Screw, OHV Slotted #4-40 x .50"
01509.0000 2 Lockwasher, #4
00937.0000 2 Nut #4-40
13 - - - - - - - - 1 Base, Warmer (Not serviced separately)
14 01593.0000 1 Bushing, Hole 1.50" Dia.
15 02337.0001 1 Screw, Ground #10 x .375" (120V only)
01375.0000 1 Screw, Ground #10-32 x .50"
01512.0000 1 Lockwasher, #10
16 00824.0000 1 Decal, Ground (240V only)
17 11444.0000 2 Switch, Lighted (120V)
11409.0000 2 Switch, Lighted (240V)
18 00786.0000 1 Decal, FRONT
00787.0000 1 Decal, REAR
19 00851.0000 1 Decal, BUNN
Not Illustrated
(240V only)
(Continued)
29753 080100

6
BUNN
®WL-2 WARMER ASSEMBLY (without Fresh Light)
(Continued)
FRONT REAR
First Type-One Piece Floor With Adjustable Legs
First Type-One Piece Floor Without Adjustable Legs
2
3
4
5
1
7
9
10
2
3
4
5
1
8
12
11
8
16
14 15
13
18
17
19
20
21
27
26 22 24
23 27 25
P1862
29753 080100

ITEM PART NO. QTY. DESCRIPTION
7
WARMER ASSEMBLY (without Fresh Light)
Order item 32
20 29244.0000 1 Plate, Foot Mounting (Second Type with two piece floor)
01347.0000 3 Screw, Truss Head #6-32 x .38"
21 29212.0000 1 Plate, Bottom Base (Second Type with two piece floor)
02332.0002 9 Screw,Hex Crimptite #6 x .38"
22 - - - - - - - - 1 Plate, Bottom Base (One piece floor without adjustable legs. Order 29260.0000 and
four 25137.0000)
02332.0002 9 Screw,Hex Crimptite #6 x .38"
23 29260.0000 1 Plate, Bottom Base (First Type. One piece floor with adjustable legs)
02332.0002 9 Screw,Hex Crimptite #6 x .38"
24 03011.0000 1 Plug, Vent 1.0" Dia (First Type. One piece floor without adjustable legs)
25 00986.0000 1 Decal, WARNING-ELECTRICAL
26 11435.0000 4 Foot, Rubber ( One piece floor without adjustable legs)
02308.0000 4 Screw, Truss Head #8-32 x .38"
27 25137.0000 4 Foot, Adjustable
Items 28 thru 33 are not illustrated
28 11449.0000 1 Harness, Main 120V
11421.0000 1 Harness, Main 240V
29 02405.0000 1 Power Cord (120V only)
30 21016.0013 1 Lead, GRN 4.0" (240V only)
31 - - - - - - - - 2 Splice, Closed End (120V only)(Not serviced)
32 22568.0000 1 Foot Kit (Includes 4 Feet and screws)
33 04828.1001 - Tube, Silicone .25" Dia x 24.0"
29753 080100

8
BUNN

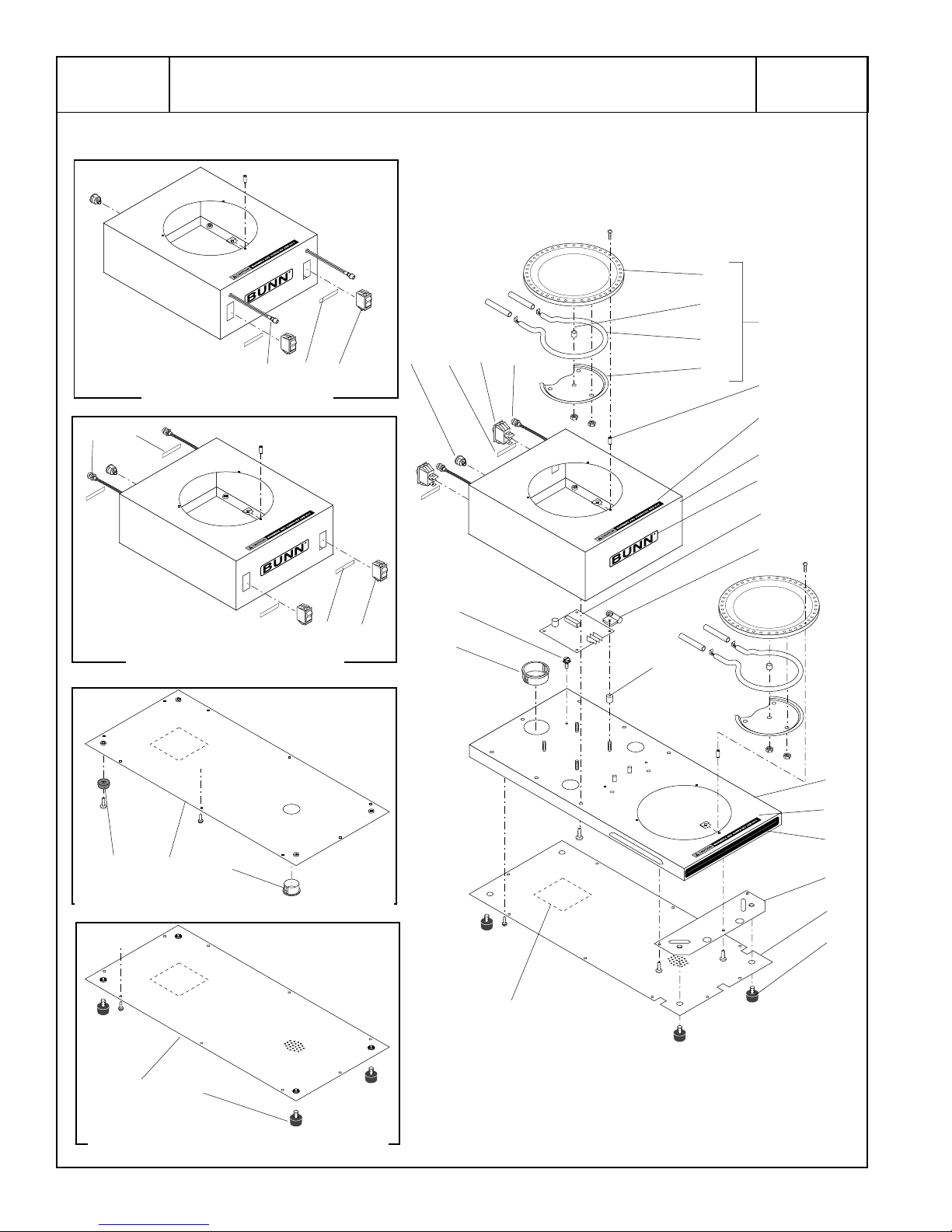

®WL-2 WARMER ASSEMBLY (with Fresh Light)
First Type-One Piece Floor With Adjustable Legs
First Type-One Piece Floor Without Adjustable Legs
Switches In Front, Lights In Rear
Switches And Lights In Front
2
3
4
5
1
6
8
9
22
11
13
17
16 12
14
8
15
23
24
30
28
26 30
29 25 27
10 19 18 20
20 19 18
20 21
19 18
P1863
29753 080100

ITEM PART NO. QTY. DESCRIPTION
9
WARMER ASSEMBLY (with Fresh Light)
1 11440.0006 2 Warmer Assy 100W, 120V (Includes items 2 thru 5)
01304.0000 6 Screw, Pan Head #4-40 x .75"
00916.0000 6 Fastener, J-Type #4-430
2 03656.0000 1 Warmer Dish
3 13042.0001 1 Spacer
4 11443.0000 1 Warmer Element 100W, 120V
5 05212.0000 1 Plate, Retaining
00970.0000 2 Nut, Keps #8-32
6 03666.0000 6 Spacer, Warmer Dish
7 - - - - - - - - 4 Tube, Silcone, .25" Dia x 1.88" (Order item 35)
8 12364.0000 2 Decal, CAUTION - WARMERS ARE HOT
9 - - - - - - - - 1 Housing, Warmer (Not serviced separately)
02308.0000 7 Screw, Truss Head #8-32 x .38"
10 02423.0000 1 Bushing, Strain Relief
11 28763.1000 1 Control Board, Freshness Light (Requires Programming)
00973.0000 4 Nut, Keps #6-32
12 01533.0002 4 Spacer
13 26263.0002 1 Clamp
14 - - - - - - - - 1 Base, Warmer (Not serviced separately)
15 22306.0000 1 Decal, Red Stripe
16 01593.0000 1 Bushing, Hole 1.50" Dia.
17 02337.0001 1 Screw, Ground #10 x .375"
18 11444.0000 2 Switch, Lighted
19 28785.0000 1 Decal, LOWER
28786.0000 1 Decal, FRONT
20 12517.0001 2 LED, Freshness Light
21 28785.0001 1 Decal, LOWER
28786.0001 1 Decal, FRONT
22 00651.0000 1 Decal, BUNN
(Continued)
Lights in back,
switches in front
29753 020402

10
BUNN
®WL-2
(Continued)
First Type-One Piece Floor With Adjustable Legs
First Type-One Piece Floor Without Adjustable Legs
Switches In Front, Lights In Rear
Switches And Lights In Front
2
3
4
5
1
6
8
9
22
11
13
17
16 12
14
8
15
23
24
30
28
26 30
29 25 27
10 19 18 20
20 19 18
20 21
19 18
P1863
WARMER ASSEMBLY (with Fresh Light)
29753 080100

ITEM PART NO. QTY. DESCRIPTION
11
23 29244.0000 1 Plate, Foot Mounting (Second Type with two piece floor)
01347.0000 3 Screw, Truss Head #6-32 x .38"
24 29212.0000 1 Plate, Bottom Base (Second Type with two piece floor)
02332.0002 9 Screw,Hex Crimptite #6 x .38"
25 - - - - - - - - 1 Plate, Bottom Base (One piece floor without adjustable legs. Order 29260.0000 and
four 25137.0000)
02332.0002 9 Screw,Hex Crimptite #6 x .38"
26 29260.0000 1 Plate, Bottom Base (First Type. One piece floor with adjustable legs)
02332.0002 9 Screw,Hex Crimptite #6 x .38"
27 03011.0000 1 Plug, Vent 1.0" Dia (First Type. One piece floor without adjustable legs)
28 00986.0000 1 Decal, WARNING-ELECTRICAL
29 11435.0000 4 Foot, Rubber ( One piece floor without adjustable legs)
02308.0000 4 Screw, Truss Head #8-32 x .38"
30 25137.0000 4 Foot, Adjustable
Items 31 thru 35 are not illustrated
31 28783.0000 1 Harness, Main
32 02405.0000 1 Power Cord
33 - - - - - - - - 2 Splice, Closed End (Not serviced)
34 22568.0000 1 Foot Kit (Includes 4 Feet and screws)
35 04828.1001 - Tube, Silicone .25" Dia x 24.0"
Order item 34
WARMER ASSEMBLY (with Fresh Light)
29753 080100

12
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00651.0000 .........................9
00786.0000 .........................5
00787.0000 .........................5
00824.0000 .........................5
00851.0000 .........................5
00916.0000 ......................5,9
00937.0000 .........................5
00970.0000 ......................5,9
00973.0000 .........................9
00986.0000 ....................7,11
01304.0000 ......................5,9
01347.0000 ....................7,11
01362.0000 .........................5
01375.0000 .........................5
01509.0000 .........................5
01512.0000 .........................5
01533.0002 .........................9
01593.0000 ......................5,9
01908.0000 .........................5
01951.0000 .........................5
02308.0000 ..............5,7,9,11
02332.0002 ....................7,11
02337.0001 ......................5,9
02405.0000 ....................7,11
02423.0000 ......................5,9
02817.0001 .........................5
02817.0002 .........................5
03011.0000 ....................7,11
03656.0000 ......................5,9
03666.0000 ......................5,9
04828.1001 ....................7,11
05212.0000 ......................5,9
11409.0000 .........................5
11421.0000 .........................7
11435.0000 ....................7,11
11440.0006 ......................5,9
11443.0000 ......................5,9
11444.0000 ......................5,9
11449.0000 .........................7
12364.0000 ......................5,9
12517.0001 .........................9
13042.0001 ......................5,9
21016.0011 .........................5
21016.0013 .........................7
21016.0024 .........................5
22306.0000 .........................9
22568.0000 ....................7,11
25137.0000 ....................7,11
26263.0002 .........................9
28763.1000 .........................9
28783.0000 .......................11
28785.0000 .........................9
28785.0001 .........................9
28786.0000 .........................9
28786.0001 .........................9
29212.0000 ....................7,11
29244.0000 ....................7,11
29260.0000 ....................7,11
29753 020402
