Busch & Mueller E-werk User manual

E-WERK
Bike-mobile hub dynamo powered supply unit for electronic devices
Instruction manual. Please study carefully before using E-WERK!
Capable of powering small electronic devices – e.g. mobile phone, MP3 player, GPS (also 12 V models for
cars) – or of charging batteries – NiCd, NiMh, Li and Pb. Translates energy created created by the hub
dynamo.
CAUTION: Busch & Mueller vouches solely for a faultless functioning of the E-WERK. Exempt from liability is
any damage to connected devices of all kinds. It cannot be guaranteed that the E-WERK is able to power all
connectable devices. For example, some mobile devices only use their internal battery during operation and
cannot be charged at the same time, also not by the E-WERK. Please contact the device’s manufacturer for
information! However, the E-WERK is able to charge an external battery, e.g. our buffer battery 461A (not
included). With it, such devices can be recharged after the trip. Other rare exceptions are devices whose
technical properties prevent them from being charged while riding the bike because of voltage fluctuations.
They, too, can be powered by the E-WERK using an adequate buffer battery. Further information can be found
on our website www.bumm.de
Contents

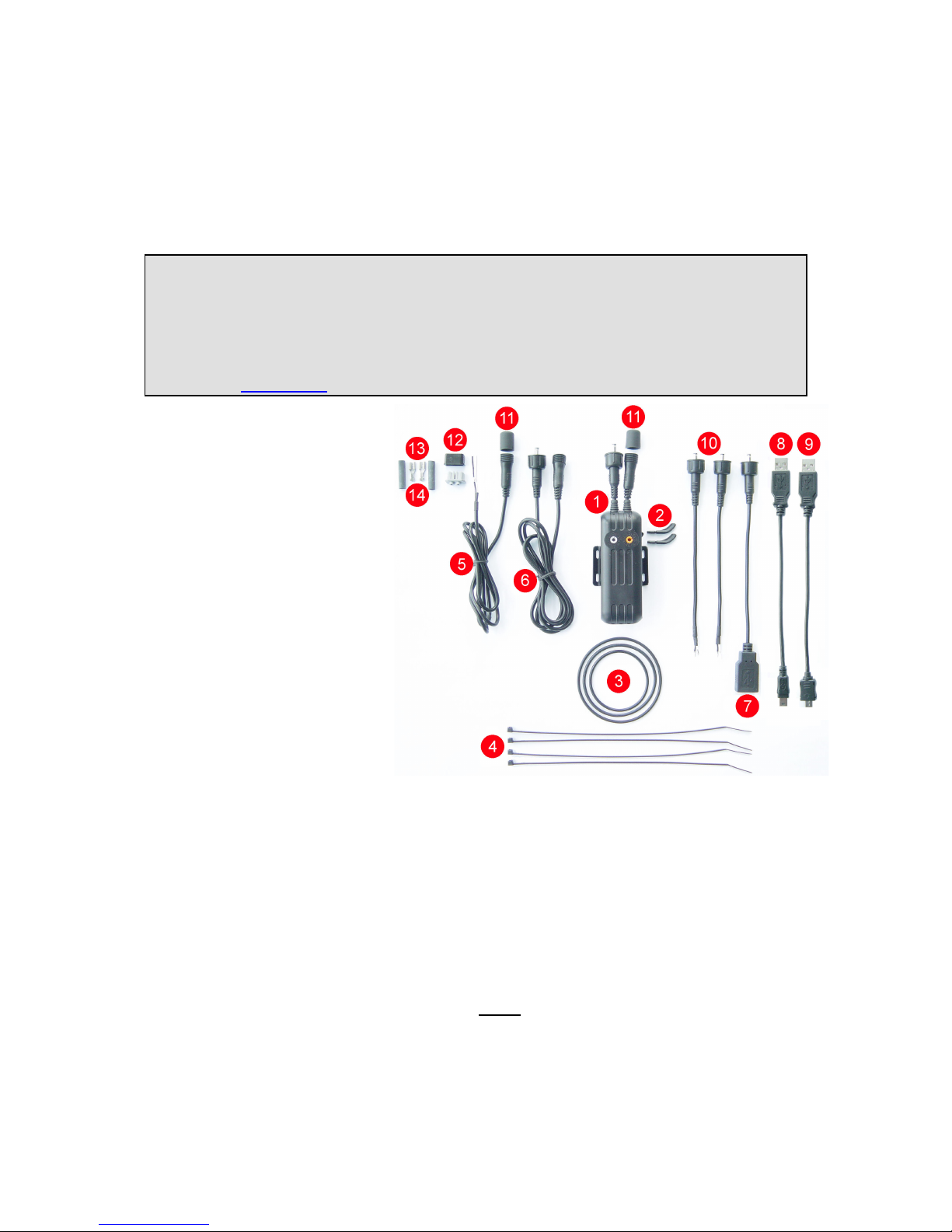

E-WERK, splash and rain water proof (1)
3 plastic pens for control dials (2)
3 rubber bands (3)
4 cable straps (4)
1 connection cable for dynamo (80 cm) (5)
1 extension cable (100 cm) (6)
1 cable with USB socket (19.5 cm) (7)
1 cable with Mini-USB plug (19.5 cm) (8)
1 cable with Micro-USB plug (19.5 cm) (9)
2 free cables for connecting custom plugs (10)
2 caps for plug connections (11)
1 plug (casing and inner part) for Shimano hub dynamo (12)
2 flat connectors for SON hub dynamo (13)
2 heat shrink tubes for SON flat connectors (14)
Mounting on a bike
The E-WERK can be fastened to a large variety of frame tubes in any suitable place by using rubber bands (3) or
cable straps (4). The E-WERK is splash and rain water proof!
Mounting with cable straps: Pull one cable strap each through the opposed slots in the fixing bracket, guide them
around the frame tube and tighten.
Without mounting: The E-WERK can be carried in any bag that allows a cable connected to the hub dynamo to
exit. In this case, the fixing bracket can be removed.
Connection to a dynamo/power source
The E-WERK works with all hub and tire driven dynamos without electronic voltage limitation. Connected to
dynamos with integrated limitation, the E-WERK can give off a maximum of 7 V.
Connect E-WERK to the dynamo with the bared ends of the connection cable (5) (see the following connection
options). Connect the other end to the input (IN) of E-WERK (remove cap from plug connection first). By
tightening the screw caps, those connections can be made splash and rain water proof!
Connection options
1

Shimano hub dynamo: Twist together one bared cable end each of the connection cable and the headlight
cable. Insert twisted “cable pairs” into each of the apertures of the the Shimano plug’s inner part (picture 1).
Please mind the polarity of the headlight, the E-WERK has no set polarity. Insert cable ends as far as possible
into the casing, bend them and place them in the lateral grooves (picture 2). Cut overlapping cable strands.
Click on the Shimano plug casing (picture 3). Insert the finished plug into the Shimano hub dynamo.
Picture 1 Picture 2 Picture 3
SON hub dynamo: Crimp one connection cable each – shortened if necessary – together with one headlight
cable into a flat connector (picture 4). For insulation, shrink one of the included tubes around the connectors,
e.g. with a lighter flame. Hook the flat connector up to the SON hub dynamo. Please mind the polarity of the
headlight, the E-WERK has no set polarity.
Picture 4
Other dynamos, also side runners: Connect the cable of the dynamo together with the headlight cable
(parallel connection).
Other power sources (e.g. E-Bike / car): The E-WERK (input) can also take continuous current up to 50 V.
Therefore, you can also use E-Bike batteries or car cigarette lighters (12 V) as power sources.
Connecting electronic devices and batteries
Connect devices to the output (OUT) of the E-WERK.
Connection options:
Cable with USB socket (7)
Cable with Mini-USB plug (8)
Cable with Micro-USB plug (9)
2 cables (free ends) (10). If the aforementioned options do not fit the device to be connected, these cables can be
equipped with fitting plugs/sockets (generally available in specialist shops). Please mind the polarity: plus = white
cable (inner part of the plug); minus = black cable (outer part of the plug).
Caution: The connections to the devices are not splash or rain water proof.
Extension: The extension cable (6) can be used to extend the connection to the dynamo/power source or to the
connected device.
2

Operation
Caution: Before connecting a device, always adjust voltage and current according to the device’s needs.

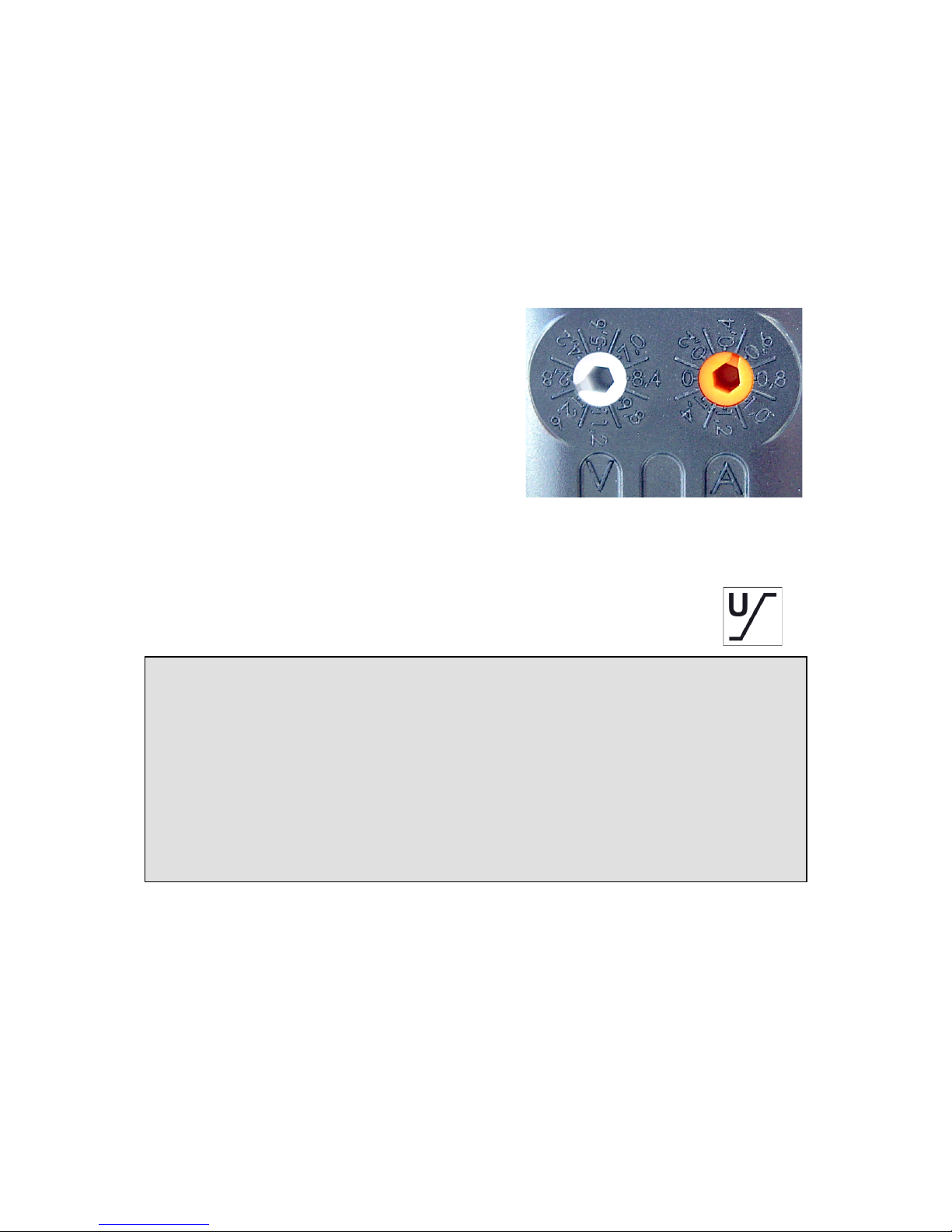

Adjusting with control dials on the E-WERK. Use the special plastic pen (remove from the bottom side of the E-
WERK, hexagonal pen 2.5 mm). When reinserting into the bottom holder, the pen must snap in audibly.
Output voltage: Adjustable from 2.8 V to 13,3 V - in steps of 0.7 V. (This way, mobile devices can be powered/
charged that are run by 1 to 3 serial Li cells or 2 to 9 serial NiCd/NiMh cells.) The integrated voltage converter
prevents the voltage created by the hub dynamo (depending on speed) from exceeding the set value.
Output current: Adjustable from 0.1 A to 1.5 A - in steps of 0.1 A.
Markings between the numbered values are steps for intermediate values:
3.5 V = marking between 2.8 V and 4.2 V
4.9 V = marking between 4.2 V and 5.6 V
etc.
0.1 A = marking between 0 A and 0.2 A
0.3 A = marking between 0.2 A and 0.4 A
etc.
CAUTION. Marking between highest and lowest numbered
value is the respectively highest value:
13.3 V = marking between 12.6 V and 2.8 V
1.5 A = marking between 1.4 A and 0 A
Since the control dials can be switched seamlessly between the maximum and minimum values, please watch
out as to not choosing a wrong (too high!) value.
Only if dynamos without integrated electronic overvoltage protection are used (without the
adjacent symbol), the E-WERK can give of the highest possible amount of energy.
CAUTION. Too high voltage and/or current can destroy the connected device. When changing devices,
the settings must always be adjusted properly. Mind the polarity of the output voltage when using self
tailored cables.
When powering a device, the output voltage of the E-WERK is always to be set to the value that is noted on the
input socket of the device, on the power supply unit or in the instruction manual of the device. This value is
usually stated in connection with one of the following terms: secondary, SEC, output, OUT, or similar. If this
voltage value cannot be set exactly, use the setting closest to it. If a current value (Ampere) is noted, the E-
WERK should be set to the closest possible value accordingly.
If no current value is stated, the current can be determined if charging time and battery capacity are known. For
this purpose, the battery capacity in ampere hours is divided by the charging time in hours. An example: A
battery with a stated capacity of 3.2 Ah and a charging time of 4 h necessitates the current of the E-WERK to
be set to 3.2 Ah / 4 h = 0.8 A.
Powering devices without built in batteries
In general, the E-WERK can power devices without built in batteries. When starting the ride, the output voltage of
the E-WERK slowly increases with the velocity. Therefore, the connected device will not operate before the
necessary minimum voltage is reached. This can be remedied by a cache battery (as offered by different
manufacturers): Before using the battery, set the output voltage on the E-WERK’s control dial according to the
cache battery. Set output current to 1.5 A.
Powering and charging devices without built in batteries
Many mobile devices have a low voltage entrance for powering them with an external power supply unit. Connect
the E-WERK to this entrance. The way that device and battery act when connecting an external power source has
to be differentiated:
3
Picture 4: set values 13.3 V and 0.5 A

a. If the device automatically switches to the external power source upon connecting the E-WERK, the built in
battery is neither used nor charged. (If the battery shall be charged after all, connect the E-WERK directly to the
battery contacts - if possible.)
b. If the connected device’s built in battery is charged simultaneously and unavoidably upon connecting the E-
WERK, caution must be exercised so that the battery is not overcharged. Many devices feature an automatic
charging deactivation that prevents overcharging. If such a deactivation is not present and if the device shows the
charge status, the battery must be disconnected from the E-WERK immediately as soon as it is fully charged. If
neither an automatic deactivation nor a charge status display are present, a warming battery is a sign for the
onset of overcharging.
Direct charging of batteries
Independently from devices, single batteries can be charged by the E-WERK separately or joined together. Use
batteries purchased in specialist shops and connect the E-WERK to + and -.
Depending on the number of cells and the battery technology, the E-WERK has to be set to the correct value:
number of
cells
voltage setting of E-WERK for...
NiCd/NiMh
nominal voltage
per cell 1.2 V
Li-Ion/Polymer
nominal voltage
per cell 3.6 V
Pb
nominal voltage
per cell 2 V
1 4.2 V
2 2.8 V 8.4 V
3 4.2 V 12.6 V 7.0 V
4 5.6 V
5 7.0 V
6 8.4 V
7 9.8 V
8 11.2 V
9 12.6 V
With these values, overcharging is not possible. Caution: These values only apply to batteries without a
charging electronic.
Too high voltage can lead to the destruction of the connected battery. If more than one cell are connected
serially during charging, all cells must have the same build, capacity and charge state.
The output current of the E-WERK should not be set higher than the value stated on the battery (capacity value;
the maximum value for the E-WERK is 1500 mA). Li and Pb batteries are charged 100% when using the values
stated above. NiCd and NiMh batteries are charged to about 80% (To prevent overcharging, limited voltage is
used for charging).
Already at a speed of about 15 km/h the charging time of the E-WERK is on par with standard mains connected
charging units.
Powering battery headlights by Busch & Mueller
The E-WERK can be used for charging and – if needed – simultaneous powering of battery headlights by
Busch & Mueller. The following values have to be set:
IXON IQ: 6.3 V, 1 A (use charging socket, charge control integrated in the headlight)
IXON IQ Speed: 7 V, 1.5 A (connect E-WERK to one socket of the battery, headlight to the other)
Big Bang: 8.4 V, 1.5 A
Fitting adaptor cables for headlights are available upon request. The batteries of IXON IQ Speed and Big Bang
can be charged separately (without using the headlight).
Simultaneous use of dynamo lighting system and E-WERK
A simultaneous use is possible. Please note that a functioning parallel operation until 6.3 V can only be
guaranteed when using a diode rear light and IQ headlight by Busch & Mueller. The output of the lighting
4

system drops up to 50%. For other lighting systems, no statements can be made. Simultaneous operation
diminishes the output accordingly.
Please note: Depending on national law, you may not be allowed to use the E-WERK and the lighting system at
the same time after dark.
Technical details
Ref. no.: 361
IN: 0 to 40 V AC voltage, 0 to 100 kHz. Soft limitation at 50 V peak voltage.
0 to 50 V DC voltage, no polarity has to be considered
OUT: voltage and current limiting, short circuit proof, reverse polarity proof
Output: max. 16 W
Idle output: 0.03 W at 30 km/h
Charge time (non binding): at approx. 15 km/h comparable to charging with standard mains connected chargers
Version: September 2009. Technical modifications reserved.
