Bushnell ImageView 118328 User manual

Instruction Manual
LIT. #: 982384/1212
DIGITAL CAMERA BINOCULAR
Model#: 118328

Section Index Page #
Camera and Binocular Parts Guide 3
LCD Display Icon Guide 4
Basic Setup 5-6
Taking Still Photos 7-8
Shooting Videos 9
Using the Capture (Still Photo) Menu 10-12
The Video Output Menu 13
The Play (Review) Menu 14-15
The Setup Menu 16-17
Transferring the Photos/Videos to Your PC 18-19
Using the Binocular 20-21
General Care and Cleaning 21-22

3

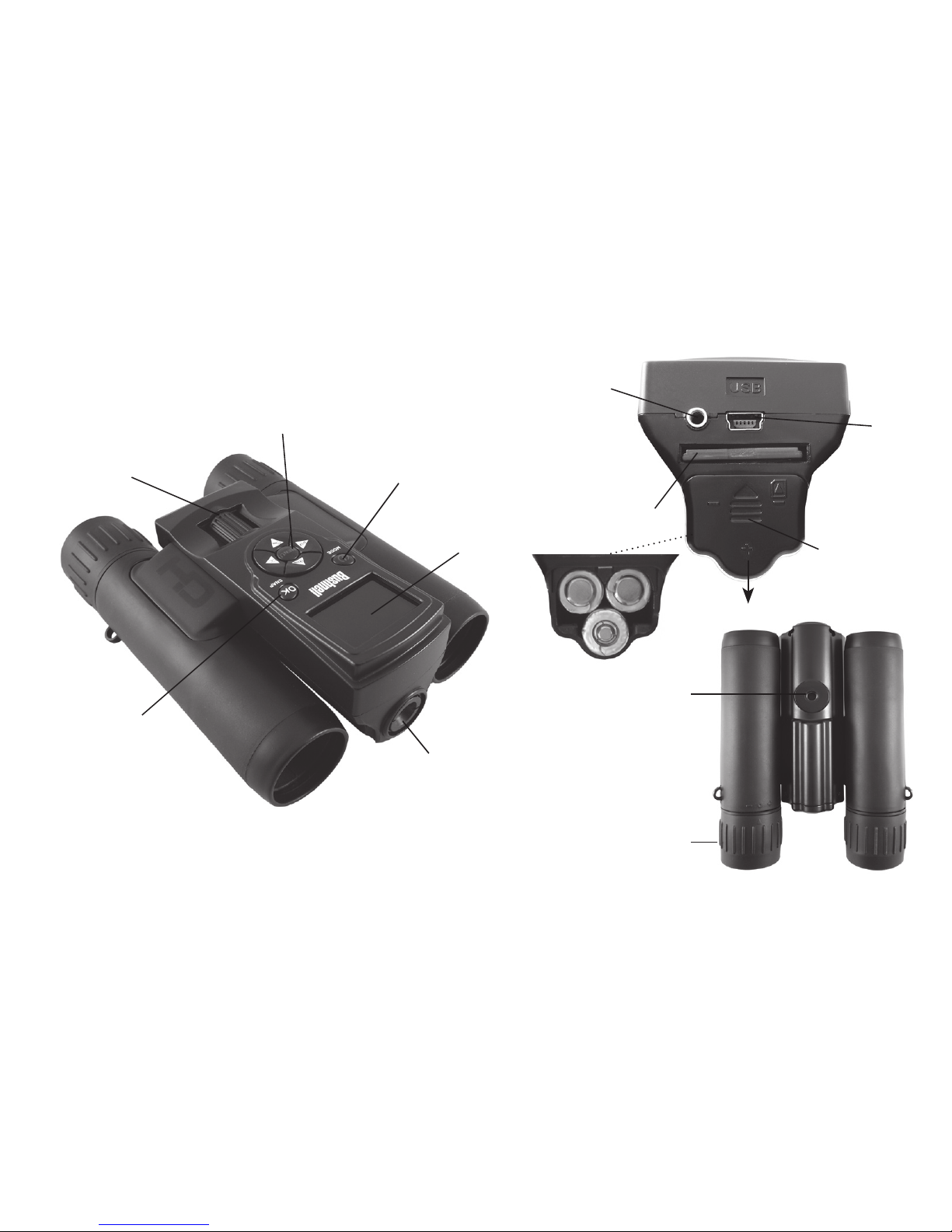

Camera and Binocular Parts Guide
(L) LCD Display
(D) Arrow Keys & MENU
Button
(F) Binocular
Focus Knob (C) POWER/MODE
Button
(E) OK/SNAP
Button (K) Camera
Lens
(I) USB
Port
(H) Remote
Jack
(B) Card
Slot (A) Battery
Compartment
(G) Tripod
Socket
(J) Diopter Adjustment
(right eyecup)
Slide down to open
Battery polarity
+
--

4

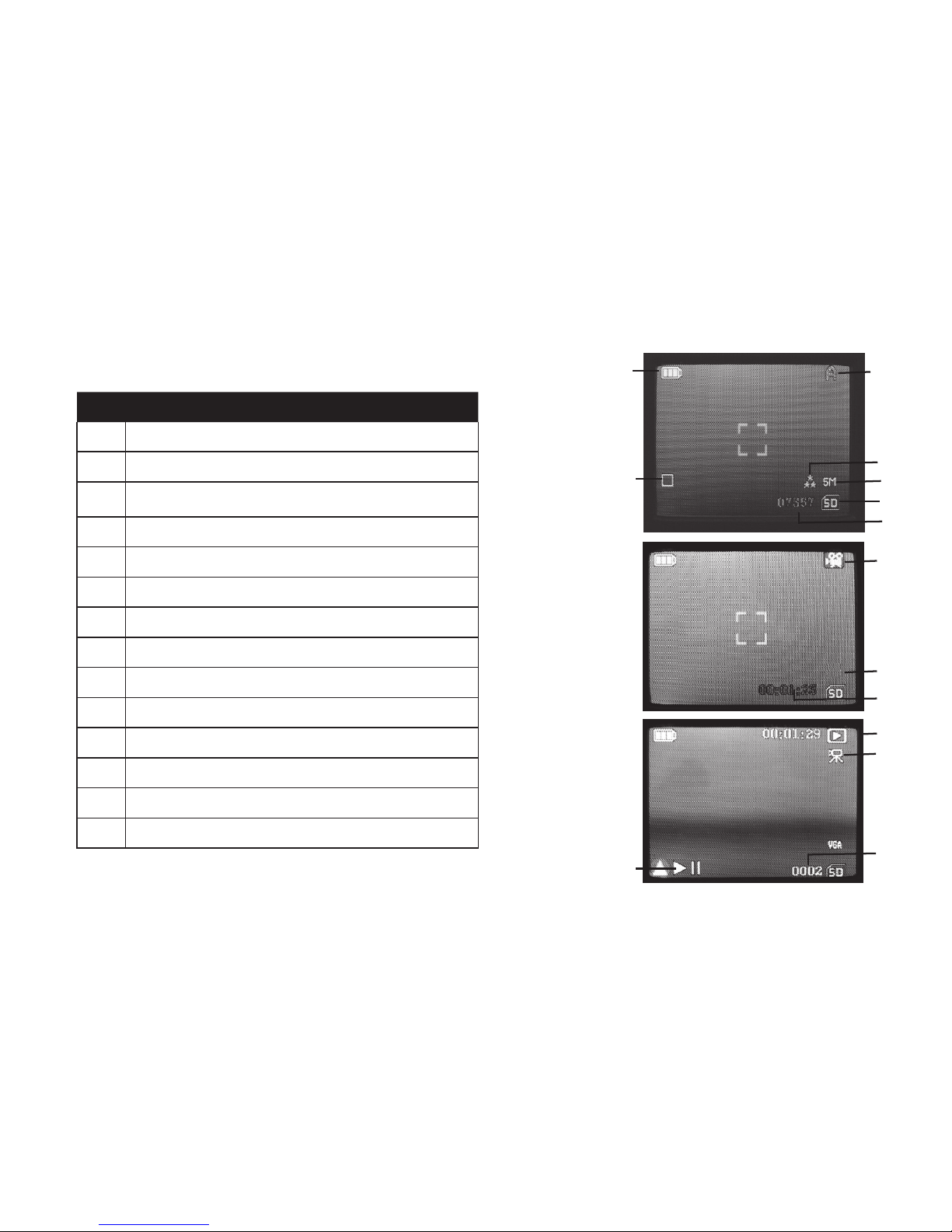

LCD Display Icon Guide
#Icon
1 Battery Indicator (full battery shown)
2 Single Shot (Burst setting=O)
3 Scene Setting (Auto shown)
4 Photo Quality setting (3 stars=Fine)
5 Photo Resolution setting (5 Megapixels)
6 SD Card Inserted
7# of Photos Remaining (based on unused card memory)
8 Video Mode
9 Video Resolution (HD)
10 Elapsed Video Recording Time
11 Playback (Review) Mode
12 Video Clip
13 File Number (Photo or Video #)
14 Press Up Key to Play/Pause the Video clip
Live Preview
Screen
(Still Photo
Mode) 4
3
7
2
1
6
5
8
9
10
Live Preview
Screen
(Video Mode)
11
Play/Review
Screen
(Video Clip)
12
13
14
HD

5
BASIC SETUP
Loading Batteries
Slide the battery compartment cover (A) down, remove and set aside. Insert 3 AAA Alkaline or Lithium
batteries into the compartment oriented as indicated by the polarity marks on the cover (both upper batteries
“negative facing up”, lower battery “positive facing up”- see “Battery polarity” on pg. 3). Replace the cover, sliding
it back into place until it clicks. Note: Rechargeable NiMh type batteries may also be used, but some may not
deliver adequate current to power the camera and display. An indicator in the top left corner of the display (L)
monitors the battery power level (pg. 4, #1). The batteries will need to be replaced soon after the level meter
drops to the last segment.
Inserting An SD Card
The ImageView model 118328 requires an SD or SDHC (High Capacity) memory card, with 32GB or lower
capacity (64GB or higher cards will not work), to store the photos and/or videos it captures. As there is no
internal memory, the message “INSERT CARD” appears on the display after power on, and the ImageView
cannot be used until a card is inserted. Insert a compatible card (not included) into card slot (B), with the metal
contacts on the card facing up, until it clicks into place. Press the POWER/MODE button (C) until the display
comes on. The camera will automatically turn itself o after 3 minutes of inactivity (this can be changed in the
“Auto O”options in the Setup menu).
If the SD card you inserted was previously used in other devices, format it before taking photos. Press the
MENU button (D) to display the “Capture” menu, then press the RIGHT arrow key to select the “Setup” menu.

6
The rst item in the Setup menu is “Format”. Press the OK/SNAP (E) button, then press the DOWN arrow key
to select “Execute”. Note: formatting the card will erase all les-make sure you have backed up any les you
wanted to keep. Press OK/SNAP again to format the card (the display reads“One Moment”). Press the LEFT key
twice to select and then exit the Capture menu.
Setting the Menu Language Preference (Optional-only necessary for non-English speakers)
To set the menu language (default=English), press the MENU button (D) to display the “Capture” menu, then
press the RIGHT arrow key to select the “Setup”menu. Press the DOWN arrow key twice to select“Language”,
then press the OK/SNAP button. Select your preferred language using the UP or DOWN keys, then press OK/
SNAP to set it. Press the LEFT key twice to exit the Setup and Capture menus.
Setting the Date and Time (Optional-only necessary if you want to imprint date/time on photos)
The Date/Time Stamp feature is turned o by default. If you want to use it, rst set the date and time by
pressing MENU. Press the Right arrow key to select the Setup menu, then press the UP arrow key to select
“Date Input”, and press OK/SNAP. Select “set”, press OK, and use the LEFT/RIGHT arrow keys to select a eld
(format, day, month, year, hour, etc.) and use the UP/DOWN arrow keys to change the setting. When nished,
press OK/SNAP, then press the LEFT arrow key to select the Capture menu. “Time Stamp” should already be
highlighted. Press OK/SNAP, select the option you prefer, and press OK/SNAP again. Press the LEFT arrow key
to exit the menu. Reset the date/time after you replace batteries.

7
TAKING STILL PHOTOS
After completing the basic setup as described in the previous pages, you are ready to take a photo. To turn on
the camera, press the POWER/MODE button until the Bushnell logo screen appears. The“live preview”display
shows the battery condition, number of photos remaining on the SD card, and the current setting of various
options, along with the image from the camera lens located between the binocular objective lenses. Please
refer to “LCD Preview Display Icon Guide” for more details. Press the left arrow key (DSP) to turn o the display
icons (to see only your photo subject). Press again to view the icons again.You may compose your photo while
looking through the binocular. However, for the most accurate framing, checking the LCD preview display is
recommended.
The ImageView will default to high resolution and quality settings, as well as“everything on automatic”when
it is turned on for the rst time, so you’re ready to take photos under normal conditions with no need to
change anything. If you’d like to explore the various available options, see the manual section titled “Using
the Main Menu-Options and Settings” for directions regarding how to select and change settings such as
resolution, image quality and exposure.
Hold the camera steady with both hands and press the OK/SNAP button (E) to take a still photo. The binocular
focus knob (F) does not aect the focus of the camera lens, which is preset to deliver sharp photos at all
distances from “innity” to about 50 ft. Attach the supplied mini tripod to the socket (G) to help avoid the
eects of camera shake. The included remote shutter cable can be inserted into the remote jack (H) to reduce
vibration, instead of using the OK/SNAP button.

8
The “remaining photos” indicator near the lower right corner of the display (see pg. 4, #7) will drop as photos
are taken. Once you are out of memory (storage space on the SD card), you will need to download the photos
you have taken so they can be deleted to make room on the card for new photos, or you may remove the lled
up card and install another SD card if you are on a trip away from your computer.
A digital zoom feature is available (up to 8.0x in addition to the normal 8 power optical magnication). Press
the UP (+) arrow key to zoom in (you will see the result on the LCD, and the digital zoom indicator bar moves
upwards). Press the DOWN (-) arrow key to zoom back out (the zoom indicator bar moves downwards).To turn
o all digital zoom (returning to optical magnication only) keep pressing the DOWN (-) key until the zoom
bar indicator goes all the way down (indicating“1.0” digital zoom).
To review a photo after you take it, press the RIGHT arrow key. To see other photos taken previously, press
the LEFT arrow key-each press takes you back one photo, and pressing the RIGHT arrow key moves forward
to more recent photos. Press the MODE button to exit Review mode and return to the live preview. See the
section“Play (Review) Menu”for details on how to use the menu functions for deleting photos, viewing a slide
show of all images, and protecting important photos.
NOTE: Use care during handling to avoid touching the camera lens (K), located in the center between the
binocular lenses, to prevent degrading the image quality. Clean the camera lens only with dry lens tissue or
microber cloth. DO NOT use liquids of any type.

9
SHOOTING VIDEOS USING VIDEO MODE
To enterVideo mode (from Photo mode), briey press the POWER/MODE button (C).The red movie camera icon
appears at the top right corner of the display (pg. 4, #8). Start shooting the video at any time by pressing the
OK/SNAP button. The counter at the bottom of the display changes to red and shows the elapsed recording
time.The recording time is limited only by the amount of internal or card memory currently available.You may
record a single long video until you run out of memory or multiple shorter videos by stopping and starting
recording whenever you wish by pressing OK/SNAP. Press OK/SNAP again to stop recording. Press POWER/
MODE to switch back to still photo mode.
The video quality/le size can be set by pressing MENU, select“Size”(if not already highlighted) and press OK/
SNAP. You can the select your preferred video resolution from “HD” (highest quality, largest les) to “QVGA”
(lowest quality, smallest les). Note: regardless of the resolution setting, all videos are recorded in at a 30 fps
frame rate, in .avi format. The ImageView does not record audio.
Press the RIGHT arrow key to review a video after you shoot it. Press the UP arrow key to begin playback, press
it again to pause playback. During playback, the counter on the right displays elapsed time. When you are
ready to return to the live preview display to shoot more videos (or stills), press the POWER/MODE button.

10
USING THE CAPTURE STILL PHOTO MODE MENU
As mentioned earlier in this manual, your ImageView is already set for high resolution and quality right out of
the box. Exposure, white balance, and other variables are set automatically. This means that you will get good
results for most subjects and lighting without the need to go into the menu to change any settings. However,
you should become familiar with the available options so that you can improve your photos if, for example,
you decide they are coming out too dark (common in photos with snow or at the beach), or too green (under
some uorescent lights). Press the MENU button to enter the main menu. Use the UP/DOWN arrow keys to
highlight an option within the menu, then press OK/SNAP if you wish to change the settings for that option.
Use the UP/DOWN keys to select the setting you want, then press OK/SNAP to conrm and activate the new
setting. Here are all the parameters and settings available in the CAPTURE (Still Photo Mode) menu, along with
a description of their function:
Parameter Settings
(Bold=Default)
Function/Description
Size 12M*, 8M*, 5M, 3M,
2M, 1.5M
* via software interpo-
lation. Actual sensor
resolution is 5MP.
Sets resolution for still photos in pixels/megapixels. Higher resolution settings produce sharper/
larger prints but require more space on the SD card. Use lower settings to store more images on
the SD card, or for email.

11
CAPTURE MENU
Parameter Settings
(Bold=Default)
Function/Description
Quality Fine, Standard,
Economy
Sets the amount of .jpg le compression, which aects the quality of the photo and the size
of the le it creates.This can be used independently of Size to store more photos (with lower
quality) if you choose.“Fine”produces the highest quality, but also generates larger les that ll
available card memory quicker.
Scene Mode Auto, Sport, Night,
Portrait, Landscape,
Backlight
Leave on default“Auto”(auto exposure) for general purpose photos.“Sport”preset selects
faster shutter speeds to help stop motion blur.“Night”preset selects slower shutter speeds to
gather more light (use tripod).“Portrait”preset opens lens aperture to help blur background.
“Landscape”preset closes lens aperture to help sharpen background.“Backlight”preset adds
overexposure to avoid dark subject in center.
EV +2.0~-2.0 in 0.5 EV
steps, default=0
Provides manual under/over exposure adjustment . Minus values produce darker photos, plus
values lighter. When the background is very bright (for example, snow in winter scenes), you
may need to add some“+”EV to prevent underexposure.
White Balance Auto, Daylight, Cloudy,
Tungsten, Fluorescent
Sets the reference for neutral white, so that colors are reproduced correctly. If“Auto”does not
provide good results (colors appear too orange or blue), try the setting that matches the light
source.

12
Parameter Settings
(Bold=Default)
Function/Description
ISO Auto, 100, 200, 400,
800
Sets the sensor’s sensitivity to light.“Auto”will automatically select lower ISO in bright light,
higher ISO in lower light. Lower ISO settings=better image quality
Color Standard,Vivid,
Sepia, Monochrome
Standard=normal colors,Vivid=extra rich colors, Sepia=”antique”photo eect,
Monochrome=black & white photo eect.
Saturation High, Normal, Low Selects amount of color saturation. High=deeper colors, Low=softer colors.
Sharpness Hard, Normal, Soft Sets the amount of sharpening applied by the internal processor.You may want to select“Soft”if
you prefer to add sharpening later using photo software on your PC.
Preview On, O “On”=captured image is briey shown on display immediately after snapping photo.
Time Stamp O, Date Only,
Date&Time
Select“Date Only”to imprint date on photos/videos. Select“Date &Time”to imprint both date
and time. Be sure correct date/time has been set, using“Date Input”in the Setup Menu. Select
O (default) if you don’t want date or time imprinted on images.
Burst On, O When set to“On”, a rapid series of 3 photos will be taken with each press of the SNAP button.
Noise Reduce On, O “On”=software processing is automatically applied to help reduce appearance of digital noise
(grain) in photos taken under low light and other dicult conditions.
CAPTURE MENU

13
THE VIDEO OUTPUT VIDEO MODE MENU
Whenever the ImageView is switched to Video mode (see “Shooting Videos-Using Video Mode), pressing the
MENU button will display the Video Output menu instead of the Capture menu. It is much shorter, providing
only a Size (video resolution) option, along with EV and White Balance, which have the same functions as they
do in the Capture menu. Use the UP/DOWN arrow keys and OK/SNAP button to select parameters, change
settings, and conrm a new setting the same way as previously described in “Using the Capture Menu”. Press
the LEFT arrow key to exit the menu.
Parameter Settings
(Bold=Default)
Function/Description
Size HD, D1, QVGA,VGA Selects video resolution. HD=1280x720 pixels per frame, D1=720x480, QVGA=320x240,
VGA=640x480.
EV +2.0~-2.0 in 0.5 EV
steps, default=0
Provides manual under/over exposure adjustment . Minus values produce darker videos, plus
values lighter. When the background is very bright (for example, snow in winter scenes), you
may need to add some“+”EV to prevent underexposure.
White Balance Auto, Daylight, Cloudy,
Tungsten, Fluorescent
Sets the reference for neutral white, so that colors are reproduced correctly. If“Auto”does not
provide good results (colors appear too orange or blue), try the setting that matches the light
source.
VIDEO OUTPUT MENU

14
THE PLAY REVIEW MENU
When you are in Still Photo or Video modes, pressing the RIGHT arrow key enters Play (Review) mode, which
allows you to view previously captured photos or videos that are stored on the SD card. Once you are in Play
(Review) mode, pressing the MENU button enters the Play menu, which oers the options shown below. Use
the UP/DOWN arrow keys and OK/SNAP button to select parameters, change settings, and conrm a new
setting the same way as previously described in “Using the Capture Menu”. Press the LEFT arrow key to exit
the menu.
PLAY (REVIEW) MENU
Parameter Settings
(Bold=Default)
Function/Description
Delete Single, All, Select Select“Single”then press OK to delete the currently displayed (last) photo or video. Select“All”
then press OK to delete all photos/videos stored on the SD card. Select“Select”to choose from
thumbnail images of all photos/videos stored on the card (use the arrow keys to highlight the
image you want, then press MENU), then press OK to deleted the selected image only.
Slide Show 3 Sec, 5 Sec, 10 Sec Select desired time per image and press OK to view a slide show of all images stored on the SD
card.

15
Parameter Settings
(Bold=Default)
Function/Description
Protect Single, All, Select Select“Single”then press OK to protect the currently displayed (last) photo or video from
accidental deletion. Select“All”then press OK to protect all photos/videos stored on the SD card.
Select“Select”to choose from thumbnail images of all photos/videos stored on the card (use the
arrow keys to highlight the image you want, then press MENU), then press OK to protect the
selected image only. Use this function a second time to“unprotect”a previously protected image
if you decide you want to erase it.
Thumbnail Execute Select“Execute”then press OK to view all photos/videos stored on the SD card as thumbnails
(multiple small images on one screen). Use the arrow keys to highlight the image you want,
then press MENU to view it full screen.
PLAY (REVIEW) MENU

16
Parameter Settings
(Bold=Default)
Function/Description
Format Cancel, Execute Press OK. Select“Execute”and press OK to format the inserted SD card. CAUTION: ALL FILES
WILL BE DELETED FROMTHE CARD ONCE YOU PRESS THE OK BUTTON. MAKE SUREYOU HAVE
DOWNLOADED/BACKED UP ANY FILESYOUWISH TO KEEP BEFORE USING THE FORMAT FUNCTION.
Beep On, O On=conrmation beep sounds when any button is pressed. O=no beep sound
THE SETUP MENU (Additional Menu Tab- Accessed from Capture Menu, Play Menu or Video Output
Menu)
After you rst enter any other menu screen, press the RIGHT arrow key to switch to the Setup menu.The Setup
menu provides a variety of basic operating functions that are unrelated to capturing or reviewing photos and
videos. The SETUP tab at the top right of the menu display will be highlighted after you select it. Use the UP/
DOWN arrow keys and OK/SNAP button to select parameters, change settings, and conrm a new setting the
same way as previously described in“Using the Capture Menu”. Press the LEFT arrow key once to return to the
Capture menu, twice to exit all menus and return to the preview display and take photos or videos.
SETUP MENU

17
Parameter Settings
(Bold=Default)
Function/Description
Language English, French,
German, Italian,
Spanish, Portuguese,
Chinese 1, Chinese 2,
Japanese
Selects language used for all menu screens.
Auto O 1 Min, 3 Min, 5
Min, O
Selects elapsed time after last button press before camera shuts o to conserve battery power.
Select“O”to cancel (power stays on unless camera is manually turned o by holding Mode/
Power button)
Sys. Reset Cancel, Execute Press OK. Select“Execute”and press OK to restore all settings for all options (in all menus) to
their original factory default settings.
Light Freq 60 Hz, 50 Hz Set to the AC line frequency used in your country. Primarily aects images shot under uorescent
lighting.
Date Input O, Set Select “Set”and press OK to set the year, month, day and time. See“Time Stamp”in the Capture
Menu.
SETUP MENU

18
TRANSFERRING THE PHOTOS &VIDEOS TO YOUR PC
1. Make sure the ImageView is powered o. Connect the supplied cable to the USB port (I) above the SD card
slot on the ImageView, then connect the other end directly to a main USB port on your computer-do not use
front panel/keyboard USB ports or unpowered“hubs”.
2. The ImageView will be recognized as a standard “USB Mass Storage” device by your PC or Mac computer.
This means that the camera les can be easily viewed, edited, or copied to your hard drive, just as if they were
stored on an external hard drive or ash drive.
3. (This step is not required with some Windows operating systems, simply use the options in the pop-up window
to view, copy or edit your photos). Open My Computer or Windows Explorer. The camera will be seen as a new
“Removable Disk” with an unused drive letter assigned to it. Mac Users: the SD card will appear as a new disk
drive icon on your desktop. Double click this new “Disk” icon, open the “DCIM”folder inside, then the folder(s)
inside that (“100DSCIM” ,etc). Your photos/videos are the les inside-they have the prex “PICT__” followed
by a number, same as seen earlier on the camera’s display when you review photos. Still photos have a “.JPG”
le extension, video les end with “.AVI”. Double click a le to view it full screen, or select the “Filmstrip” or
“Thumbnail” options from the View menu of the open window.
4. Click “Edit>Select All” in the Windows menu (or click on one photo, contol+click to select multiple photos),
then “Edit>Copy to Folder” (in Windows menus). Select an existing folder on your hard drive, such as “My
Pictures”, or create a new folder (“Hawaii Vacation”, etc), then click“OK”to transfer copies of the photo les you
want. Mac Users: select the photos you want, then drag them into (user name)>Pictures, or any other folder.

19
5. After the photos are transferred to your computer, you can disconnect the ImageView. (Mac Users: you
should “eject” the “disk” that appeared on your desktop when the camera was connected-you can simply drag
it to the Trash to eject it).
6. You’re now ready to open the photo les in any photo editing software. Just use File>Open and go to the
folder where you stored the photos earlier. It is also possible to open and work with your photos directly from
the ImageView while it is still connected. If you choose to work this way, from a connected camera, be sure
that you save the photo (when you are done editing) to your hard drive, and not the camera’s memory or card.
7. If you are new to photo editing on a computer, consult your photo application’s“Help”menu or instruction
manual. Along with adjusting the brightness, contrast, sharpness and color of your photos, you can resize
the photo to t the paper if you are printing, or save a smaller, low or medium resolution version for email
or inserting into documents. When you are ready to save your edited le, you may want to use “Save As”and
give it a more descriptive name than “PICT0001”, etc. Doing this also preserves the original le as a backup
to reopen and re-edit later. Make sure you have successfully transferred all the photos/videos you wanted
to save before using the“Format”on the ImageView to delete all the les previously stored on the SD card.
NOTE: Photos/videos may also be downloaded by removing the SD card and using any USB card reader with
an SD slot. Follow the directions supplied by the card reader manufacturer.
Note: If your PC will not play the .avi movie les in Windows Media Player, you may need to download a newer
version of Media Player or Direct X from Microsoft.com. The movie les can also be played back with the QuickTime
Player, included with many computers, or available as a free download from www.apple.com.

20
USING THE BINOCULAR
Adjusting the Binocular IPD
The distance between the eyes, called“interpupillary distance,”varies from person to person. To set the hinge
to the right spacing for your eyes: Hold the binocular in the normal viewing position, with a rm grip on each
side. Move the barrels closer together or further apart until you see a single circular eld. Always re-set your
binocular to this position before using.
Eyecups
The ImageView binocular is tted with rubber roll-down eyecups designed for your comfort and to exclude
extraneous light. If you wear glasses, roll down the eyecups. This will bring your eyes closer to the binocular
lens so you can view the entire image without any cuto.
Setting the Diopter Adjustment
1. Rotating the right eyecup (pg. 3, J) allows you to ne tune the binocular focus to your vision (diopter
adjustment). Make sure the right eyecup is set to “zero” for now (arrow on the underside of the eyecup
pointing to “0”). Keep both eyes open at all times.
2. Using your hand, cover the objective (front) lens on the right side of the binocular as you look into the
eyepieces.
3. Turn the binocular focus knob (F), until a distant object with ne detail (e.g., brick wall, tree branches, etc)
appears as sharp as possible through the left side of the binocular.
4. Uncover the objective lens on the right side, and cover the left objective lens while continuing to view
the same object.
