BVA P352 User manual

MODEL: P352
Hand Pump
Instruction Manual
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Maximum Operating Pressure 10,000 PSI
P352-M0_102021
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
Model No. H3902
Approved By:
Checked By:
Drawn By: 蕭益彰
Date: 2016.08.05
File name: H3902_1608OUT
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov

2
SAFETY AND GENERAL INFORMATION
Save these instructions. For your safety, read and understand the information contained within. The owner and operator shall have an understanding of this product and safe
operating procedures before attempting to use this product. Instructions and safety information shall be conveyed in operator’s native language before use of this product is
authorized. Make certain that the operator thoroughly understands the inherent dangers associated with the use and misuse of the product. If any doubt exists as to the safe and
proper use of this product as outlined in this factory authorized manual, remove from service immediately.
Inspect before each use. It is recommended that, prior to each use, an inspection be done by qualied personnel and that any missing or damaged parts, decals, warning/
safety labels or signs be replaced with factory authorized replacement parts only. Any pump that appears to be damaged in any way, is worn, leaking or operates abnormally
shall be removed from service immediately until such time as repairs can be made. Owners and operators of this equipment shall be aware that the use and subsequent repair
of this equipment may require special training and knowledge.
PRODUCT DESCRIPTION
BVA Hydraulic Hand Pumps are engineered to meet most industrial standards for performance and safety. These lever operated pumps supply compressed hydraulic uid to
compatible applications i.e. rams, presses, spreaders, compactors and crimping machines, anywhere that 10,000 PSI of uid pressure is needed. Special skill, knowledge and
training may be required for a specic task and the product may not be suitable for all the jobs described above. Unsuitable applications would include applications that call for
a device to move, level or support persons, animals, hazardous materials, mobile homes/dwellings in general, mirrors and/or plate glass, and/or to connect/secure hatches,
components, etc. between bulkheads. The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety
for himself/herself and others in the work area.
WARNING: Always check connections before using. Alteration of these products is strictly prohibited. Use only those adapters and attachments provided and approved
by the manufacturer.
WARNING: To reduce the risk of personal injury and/or property damage, ensure that the rated working pressure of each pressurized attachment be equal to or greater
than the rated working pressure developed by the hydraulic pump
!
!
Figure 1 - Components
Handle
Release Valve
Reservoir
Spring Loaded Handle Lock Pin
Oil Vent Plug
Oil Outlet Port
3/8ʺ-18NPTF
Model No. H3902
Approved By:
Checked By:
Drawn By: 蕭益彰
Date: 2016.08.05
File name: H3902_1608OUT

3
• Study, understand, and follow all
instructions provided with and on this
device before use.
• All WARNING statements must be
carefully observed to help prevent
personal injury.
•
No alteration shall be made to this
device.
• Always wear protective gear when
operating hydraulic equipment.
• Keep hydraulic equipment away from
ames and heat. Hydraulic uid can
ignite and burn. Do not operate if leaks
are detected.
• Crush Hazard. Keep hands and feet
away from loading area. Avoid pinch
points or crush points that can be
created by the load, cylinder, or any
equipment of system.
• To avoid crushing and related injuries:
NEVER work on, under or around a
lifted load before it is properly supported
by appropriate mechanical means.
Never rely on hydraulic pressure alone
to support load.
HYDRAULIC PUMPS
• The user must be a qualied operator familiar with the correct
operation, maintenance, and use of pumps. Lack of knowledge
in any of these areas can lead to personal injury.
• Do not exceed rated capacity of the pump or any equipment in
the system.
• Never attempt to lift a load weighing more than the capacity of
the cylinder.
• Do not subject the pump and its components to shock loads.
• Burst hazard exists if hose or connection pressure exceeds
rated pressure.
•
Inspect pump, cylinder, hoses and connections before each use
to prevent unsafe conditions from developing. Do not use if they
are damaged, altered or in poor condition. Do not operate the
system with bent or damaged coupler or damaged threads.
• Never hold or stand directly in line with any hydraulic connections
while pressurizing.
• Use gauge or other load measuring instrument to verify load.
• Never attempt to disconnect hydraulic connections under
pressure. Release all line pressure before disconnecting hoses.
•
Use only approved accessories and approved hydraulic uid.
• Never attach ANY component not authorized by manufacturer.
• Always ensure that the chosen application is stable to work on
and around.
• Do not connect to application which can return more oil to the
reservoir than the pump reservoir can hold.
• Do not connect pump to hydraulic system powered by another pump.
• This device is not suitable for use as support device! As
the system load is lifted, use blocking and cribbing to guard
against a falling load.
• All personnel must be clear before lowering load or
depressurizing the system.
• Never try to disassemble a hydraulic cylinder, refer repairs to
qualied, authorized personnel.
HYDRAULIC HOSES & FLUID TRANSMISSION LINES
• Avoid short runs of straight line tubing. Straight line runs do
not provide for expansion and contraction due to pressure
and/or temperature changes.
• Reduce stress in tube lines. Long tubing runs should be supported
by brackets or clips. Before operating the pump, tighten all hose
connections with proper tools. Do not overtighten. Connections
should only be tightened securely and leak-free. Overtightening can
cause premature thread failure or high pressure ttings to burst.
• Should a hydraulic hose ever rupture, burst or need to be
disconnected, immediately shut o󰀨 the pump and release all
pressure. Never attempt to grasp a leaking pressurized hose with
your hands. The force of escaping hydraulic uid can inict injury.
• Do not subject the hose to potential hazard such as re, sharp
objects, extreme heat or cold, or heavy impact.
• Do not allow the hose to kink, twist, curl, crush, cut or bend so
tightly that the uid ow within the hose is blocked or reduced.
Periodically inspect the hose for wear.
• Do not pull, position or move setup by the hose.
•
Hose material and coupler seals must be compatible with
hydraulic uid used. Hoses also must not come in contact with
corrosive materials such as battery acid, creosote-impregnated
objects and wet paint. Never paint a coupler or hose.
• FAILURE TO HEED THESE WARNINGS MAY RESULT IN
PERSONAL INJURY AS WELL AS PROPERTY DAMAGE.
SPECIFICATIONS
Model
Number
Pump
Type
Oil
Capacity
(in³)
Usable
Oil
Capacity
(in³)
Used
with
Cylinder
Pressure
Rating (psi)
Oil
Displacement
(in³)Max.
Operating
Force (lbs)
Piston
Stroke
(in)
Oil
Outlet
Port
Weight
(lbs)
1st
Stage
2nd
Stage
1st
Stage
2nd
Stage
P352 Two
Speed 24.9 21.4 Single Acting 200 10,000 0.2 0.05 81 0.38 3/8”- 18NPTF 6.6
WARNING
!

4
BEFORE USE
1. Before using this product, read the instruction manual completely
and familiarize yourself thoroughly with the product, its
components and recognize the hazards associated with its use.
2. Verify that the product and the application are compatible.
Inspect before each use. Do not use if bent, broken, leaking or
damaged components are noted.
3. Replace worn or damaged parts and assemblies with
BVA Hydraulics Authorized Replacement Parts only (See
Replacement Parts Section). Lubricate as instructed in
Maintenance Section.
4 Ensure method of conrming load is accurate and working
properly. Have gauge or load cell accuracy veried by qualied
personnel on a yearly basis.
5. Pumps should be stored where protected from the elements,
abrasive dust, and damage. Pumps can be stored horizontally
or vertically.
SET UP
WARNING: The pump’s maximum working pressure is
10,000 PSI. Make sure that all hydraulic equipment such as
cylinders, hoses, couplers and etc. used with this pump are
rated at 10,000 PSI operating pressure or more.
1. Prepare the pump for use:
• Pull spring loaded lock pin, pivot toward rear to unlock the
handle (Fig. 3).
• Loosen vent screw counter-clockwise (Fig. 4).
2. Depressurize system by opening release valve counter-
clockwise, but no more than 2 full turns. Then carefully remove
the threaded plug on oil outlet port, and connect 3/8ʺ NPTF
hydraulic connection to oil outlet port, i.e. coupler, gauge
adapter, hydraulic hose etc. Ensure all uid ports and thread
connections are clean before connect.
NOTICE: Always secure threaded connections with non-hardening
pipe thread compound. Take care not to introduce compound into
port orices. Tighten securely to prevent accidental removal of
components while in use.
3. Install a pressure gauge in-line from the pump for better control
and safety purpose.
NOTICE: It is recommended to use BVA ttings, gauge adapter
and guage.
4. Tighten securely to prevent accidental removal of components
while in use.
5. Check for leaks in system and repair by qualied personnel as
needed. Depressurize the hydraulic system before servicing.
OPERATION
WARNING: ALWAYS monitor pressure, load or position
using suitable equipment. Pressure may be monitored by
means of an optional manifold and gauge (contact BVA
Hydraulics). Load may be monitored by means of a load cell
and digital indicator. Correct application position can only be
determined by the operator of the equipment.
1. Remove the threaded plug, then connect the pump to suitable
application.
2. Ensure the oil level is correct and the system ttings and
connections are leak free before operating the pump.
3. Pump may be used in horizontal and vertical position as
illustrated in Figure 5.
CAUTION: NEVER operate pump with release valve closed
and disconnected from application. If operated in this
condition, the hose and connections become pressurized.
This increases burst hazard. Damage may occur to pump
and its components
4. Close release valve by turning it clockwise. Finger tight ONLY.
Using tools on release valve can damage it and cause the
pump to malfunction.
5. Pump handle until desired pressure, load or position is
reached.
6. Pressure will maintain until the release valve is opened.
7. To retract application, turn the release valve knob slowly
counterclockwise (never more that 2 full turns).
!

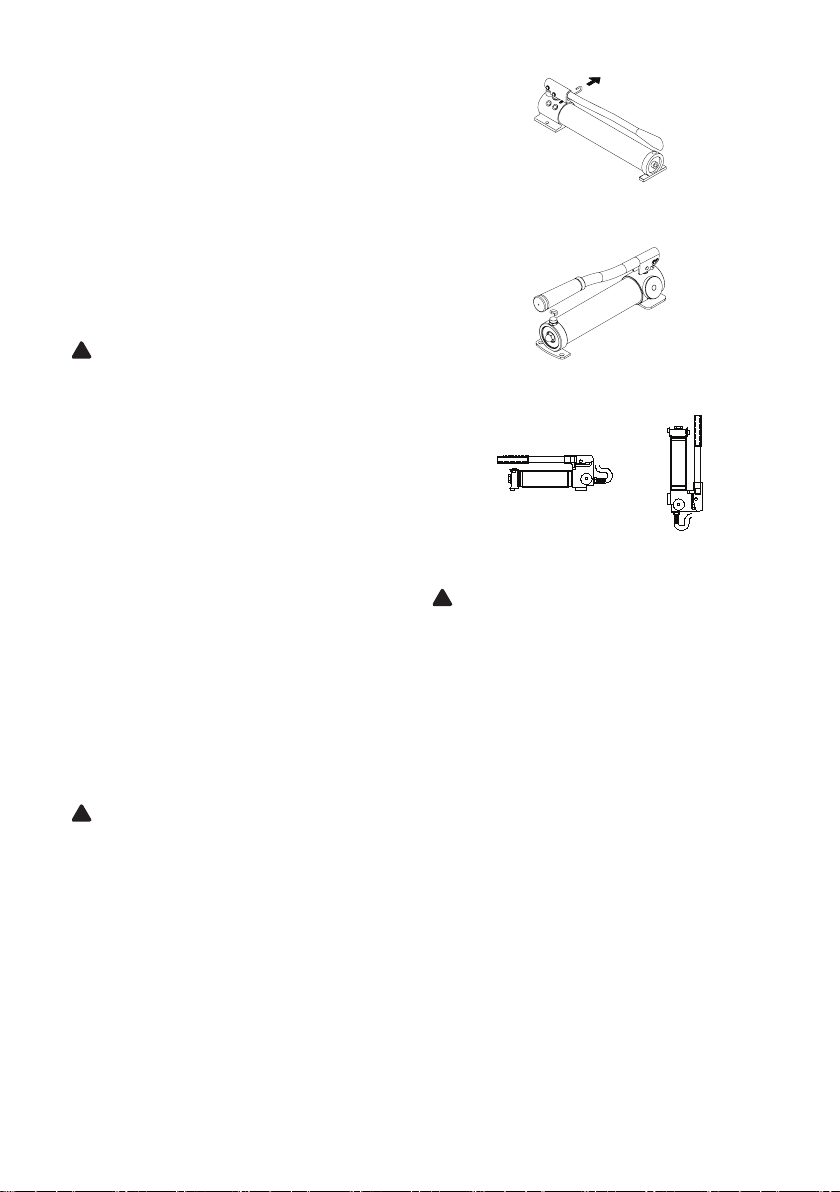

Figure 4 - Loosen vent screw counter-clockwise .
Figure 3 - Pull spring loaded lock pin, pivot toward
rear to unlock pump handle.
Figure 5 - Horizontal and Vertical Position
!
!
Model No. H3902
Approved By:
Checked By:
Drawn By: 陳神佑
Date: 2017.07.12
File name: H3902_1707OUT

5
OPERATION (con’t)
NOTICE: operate pump handle at slower speed during the high
ow 1st stage to ensure the pump delivers maximum oil volume.
MAINTENANCE
1. Inspect hoses and connections daily. Replace damaged
components immediately with BVA Hydraulics Replacement
Parts only.
2. Tighten connections as needed. Use pipe thread sealing
compound when servicing connections.
3. Use only good quality hydraulic uid. We recommend using
premium hydraulic uid. Never use brake uid, transmission
uid, turbine oil, motor oil, alcohol, glycerine etc. Use of other
than good quality hydraulic oil will void warranty and damage
the pump, hose, and application.
Adding Hydraulic Fluid
1. Depressurize and disconnect hydraulic hose from application.
2. With pump in its upright, horizontal position, remove vented oil
ller plug/screw located on top of the reservoir.
3. Use a small funnel to ll reservoir to within 1/4ʺ (6 mm) of the
opening.
4. Wipe up any spilled uid and reinstall the vented oil ller plug/
screw.
Changing Hydraulic Fluid
For best results, change uid once a year.
1. Remove vented oil ller plug/screw and drain used uid into a
sealable container.
2. Dispose of uid in accordance with local regulations.
3. Fill with a good quality hydraulic jack oil as recommended above.
Reinstall vented oil ller plug/screw.
Lubrication
Use a light machine oil to lubricate pivot points, hinges etc.
Storage
1. When not in use, depressurize and disconnect hoses from
application.
2. Wipe clean, throughly
3. Pump should be stored where protected from the elements,
abrasive dust, and damage. Store in clean, dry environment.
Avoid temperature extremes. Lock handle into position using
the spring loaded locking pin mechanism.
4. Shield pump with a protective cover.
TROUBLESHOOTING GUIDE
The following information is intended as an aid in determining if problem exists. Pumps should be repaired only by authorized BVA Service
Center. For repair service, contact service center in your area.
Symptom Possible Causes Corrective Action
Erratic application action • Air in the system.
• External leak.
• Internal hydraulic leak.
• Vent the system.
• Tighten all connections.
• Contact service center.
Application does not extend, move
or respond to pressurized uid
• Overload condition.
• Release valve not closed.
• Loose couplers/connections.
• Faulty couplers/connections.
• Pump malfunction.
• Remedy overload condition.
• Ensure release valve closed.
• Tighten couplers/connections.
• Replace couplers/connections.
• Contact service center.
Application responds to pressurized
uid, but system does not maintain
pressure
• Overload condition.
• Release valve not closed.
• Pump or valve malfunction.
• Application/connection leaking.
• Remedy overload condition.
• Ensure release valve closed.
• Contact Service Center.
• Replace application/connection.
Application responds slower than
normal
• Loose connection or coupler.
• Restricted hydraulic line or tting.
• Application/connection leaking.
• Tighten connection or coupler.
• Clean and replace if damaged.
• Replace application/connection.
Application does not return uid to
pump (i.e. cylinder will not retract)
• Malfunctioning coupler, damaged
application.
• Reservoir overlled
• Secure load by other means. Open release
valve, depressurize pump and hose,
remove coupler and/or application, then
renew or replace.
• Secure load by other means. Open release
valve, depressurize pump and hose,
remove application, then drain uid to
proper level.
Poor performance • Fluid level in pump is low. • Ensure proper uid level.

6
MODEL: P352
23
20
2
3
9
30
29
22
Drawn By: 蕭益彰
**
***
Parts Illustration
Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.
Hand Pump
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.

7
MODEL: P352
Item Part Number Description Qty
1N/A Base 1
2 H39-6-2108-208 Fixing Pillar 1
3 H39-6-2109-109 Fixing Ring 1
4 644-1-0060-05311 Screw 1
53/8”-18NPTF Plug 1
6 *** Steel Ball 3
7 * O-ring 1
8 H18-4-1603-107 Release Valve 1
9 H39-6-1308-100 Iron plate 1
10 649-1-0050-028 Screw 1
11 H39-6-1603-102 Base Plate 1
12 651-1-0050-103 Screw 5
13 532-8-0040-012 Filter 1
14 H18-4-1902-208 Low Pressure Valve Assy. 1
15 H18-4-1901-105 High Pressure Valve Assy. 1
16 * Washer 2
17 H39-6-4401-105 Screw Bar 1
18 * O-ring 1
19 H39-6-1502-207 Support Plate 1
20 671-2-0100-205 Nut 1
21 H39-6-2112-108 Gable 1
22 H18-4-1905-103 Air Vent Assy. 1
Item Part Number Description Qty
23 H39-6-1803-302 Tube 1
24 */*** Nut 2
25 */*** Special Washer 2
26 */*** Bevel Compressing
Spring 2
27 */*** Steel Ball 2
28 */*** Bevel Compressing
Spring 2
29 * Back-up Ring 1
30 * O-ring 1
31 H39-4-1606-207 Piston Assy. 1
32 ** E-clip 1
33 ** E-clip 2
34 ** Pin 1
35 ** Pin 1
36 ** Pin 1
37 H39-3-2100-204 Handle 1
38 H18-6-2112-105 Handle Grip 1
- H39-3-9902-104 Repair Kit 1
-
H39-3-9920-106 Handle Hardware Kit 1
-
H39-3-9930-109 Pressure Valve Repair Kit 1
Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.
Parts List
Hand Pump
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
(*) - Indicates items included in, and available only as part of Repair Kit. Repair Kits require special skill, training and
equipment to repair. Installation must be done by Authorized Service Center. Contact BVA for list of Authorized
Service Centers.
(**) - Indicates item is included in the H39-3-9920-106 Handle Hardware Kit
(***) - Indicates item is included in the H39-3-9930-109 Pressure Valve Repair Kit
N/A - Part is not available as replacement.

8
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
BVA ITEMS LIMITED LIFE TIME WARRANTY
BVA Hydraulics®, represented in the United States by SFA Companies [ʺSFAʺ] warrants this product to be free from defects in
material and workmanship for the life of the product. The warranty is non-transferable and is subject to the terms, exclusions,
and limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as
well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not
provide any warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear past one year from the date of purchase. Overloading, alterations
(including repairs or attempted repairs not performed by BVA Hydraulics or one of its authorized personnel), improper uid use,
or use of the product in any manner for which the product was not intended or the use of which is not in accordance with the
instructions or warnings provided with the product are not covered under warranty.
• In the unlikely event that a BVA Hydraulics product fails due to material defect in workmanship, you may contact SFA for
disposition. In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty is limited to
the repair or replacement of the defective product.
• Under no circumstances is BVA Hydraulics liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED ISTRIBUTORS AND OTHER
CHANNELS DESIGNATED BY BVA HYDRAULICS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF BVA
HYDRAULICS IS AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR
PURPOSE.
• Components not manufactured by BVA Hydraulics including certain motor systems, gasoline engines, and others are not
covered by this warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the
package.
• BVA Hydraulics’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.
