BVF 100 Series User manual

INSTALLATION AND USER MANUAL
WWW.BVFHEATING.COM
BVF L-PRO
100 Series

3
BVF L-PRO 100 SERIES installation and user manual
CONTENT
Important safety notice 3
1 General information 3
1.1 Introduction to the Installation and User Manual 3
1.2 Safety requirements 3
1.3 Resistance reading 4
1.4 10 years extended warranty 4
2 BVF L-PRO system 4
2.1 BVF L-PRO technical specification 4
2.2 Typical areas of use and installation of BVF L-PRO 5
3 Designing floor heating and choosing the product 6
3.1 Pre-installation planning 6
3.2 Choosing the right product 7
4 Installation 9
5 Registration of read values 13
5.1 Reading insulation resistance 13
5.2 Reading heating mat resistance 14
6 Troubleshooting 14
User Manual 15
Extended warranty 16
Take special note of the following information:
Important information: i
Safety notice: I
IMPORTANT SAFETY NOTICE
I Safety notice: Danger! Electric shock and electrical fire risk!
Improper installation of the BVF L-PRO system may cause electric shock or electronic fire related
personal and material injury. For your own safety, read the attached information carefully!
Use a double sensor thermostat suitable for the control of electric floor heating exclusively.
Have your system installed by an electrician acquainted with the proper sizing, installation,
implementation and operation of the system, obtaining adequate knowledge on the specifications of
floorheatingsystems.Installation mustbecarriedoutonlyincompliancewithlocallegalrequirements.
If you are not certain regarding relevant regulations, assign a professional with the installation.
BVF L-PRO is to be used for floor heating purposes only. Remove all remained sharp objects, nailheads,
and any contamination from the floor which may damage the system during installation or future
rebuilding.
BVF L-PRO heating mat is not to be installed/placed when damaged. Home improvement and repair of
the damaged system is strictly prohibited.
1 GENERAL INFORMATION
1.1 Introduction to the Installation and User Manual
The present Installation and User Manual presents the details of BVF L-PRO floor heating system
application: Process of layout design, choosing the ideal size heating mat, as well as the installation.The
detailed study of the information material prior to installation is highly advised.
For more information contact the distributor.
1.2 Security requirements
Safety and proper operation of the floor heating system is coherent with thorough planning,
implementation and control. Improper use and installation of the product may cause damage in the
heating mat and its parts, or may cause danger of fire and accident. Make sure to proceed by the provided
information of the User Manual in order to ensure reliable operation of the BVF L-PRO system.
ISafety notice: Application of a layer order different from the general (Figure 1) may result in losing
warranty rights.

4 5
BVF L-PRO 100 SERIES installation and user manual
1.3 Resistance reading
Read the resistance between the brown and blue terminals, then compare it with the data shown in the
table. Maximal allowed variance shall be between -10% and +10%. Resistance value between grounding
and brown / blue terminals ideally is infinite value. Should you notice a different value, contact the
distributor of the product.
For more information on resistance reading see Chapter 5.
i Important information: During installation, make sure to check resistance 4 times.
During installation, read and record resistance values by work phases. Firstly, following the removal of
product packaging, then following placement as well. Thirdly, right before floor finish installation. Lastly,
for the fourth time, when finishing covering. The 4 values shall match. Should the values not match,
contact the distributor of the product!
1.4 10 years extended warranty
Product Distributor undertakes 10 years warranty for BVF L-PRO heating mats in relation of material
and construction errors originated during production. Warranty shall be enforceable exclusively upon a
properly filled-out and submitted Warranty card, and alongside professional installation.
2 BVF L-PRO SYSTEM
2.1 BVF L-PRO technical specification
Cable type: Double insulation heating cable / grounded, shaded
Grid voltage: 230V
Capacity: 100W/m2±10%
Distance between cables: 50 mm
Cable diameter: 1 mm
Core insulation: Fluorpolimer
Surface material: Alu fiber
Operation temperature: + 30 °C - +50 °C
Min. installation temperature: + 5 °C
Connecting cable: Twin conductor cable + grounding; Length: 2.5 m
2.2 Typical areas of use and installation of BVF L-PRO
Figure 1 – example for laminate floor
1. Laminate floor 5. Leveling concrete
2. PE humidity barrier 6. Sized floor insulation
3. BVF L-PRO heating mat 7. Concrete slab
4. XPS insulation board (min. 6mm, step-proof)
I Safety notice
In case of implementation of materials by other construction methods, ask for the professional opinion of
the distributor or contact our expert colleagues.
i Important information
Read the instructions prior to installing the BVF L-PRO system.
Make sure to read the resistance of the product 4 times during installation (Section 1.3).
This product is intended for indoor floor heating purposes only.
Minimal temperature for the installation shall be +5°C.
Length of the heating cable should not be shortened by cutting, cables should not cross each
other and should not go directly next to each other (keep min. 5 cm distance)!
The use of sized cross-section copper cable is advised during connection.
1
2
3
4
6
5
6
7

6 7
BVF L-PRO 100 SERIES installation and user manual
3 DESIGNING FLOOR HEATING AND CHOOSING THE PRODUCT
3.1 Pre-installation planning
1. Assess the surface to be heated
Define the surface to be heated by leaving out the territory covered with fix furniture (wardrobe) and
obstacles (shafts etc.) Calculate the size of the surface to be heated.
Example: the wardrobe shown on Figure 2 is 8.75 m². When deducting the area covered by the wardrobe
and shafts the remaining area is only 6.45 m². Choose the 6 m²size heating mat with the competent
capacity.
2. Check grid voltage and available capacity
The system operates on 230 V alternate current. Check the available load capacity, and request extension
from the provider if necessary.
3. Design the system
Plan the optimal placement of the heating mat with full coverage. When defining the place of the
thermostat, take note of the 2.5-meter-long connection cable of the heating mat required to reach the
thermostat, as well as of the signal transmitter of the thermostat in the floor to be in adequate distance.
It is advised to lead/install the connection cable of the heating mat from the place of the thermostat. See
Figure 3.
i Important information
To ensure even heat distribution, keep cable distance as set by default during installation.
By increasing cable distance, cooler floor areas may be created.
Figure 2 – calculation of the heating surface
Figure 3 – typical connection scheme
3.2 Choosing the right product
Make sure that the size of BVF L-PRO heating mat matches the size of the surface to be heated, as well as
the planned capacity. With reference to Figure 2, when the surface to be heated is 6.45 m2, choose the
6m2size product.

8 9
BVF L-PRO 100 SERIES installation and user manual
BVF L-PRO electric heating mat in 100 W/m2capacity
Type Heating surface Width Length Capacity Amps Ohm
BVF L-PRO/100-200-2.0 2,0 m250 cm 4 m 200 W 0,9 264,5
BVF L-PRO/100-300-3.0 3,0 m250 cm 6 m 300 W 1,3 176,3
BVF L-PRO /100-400-4.0 4,0 m250 cm 8 m 400 W 1,7 132,3
BVF L-PRO/100-500-5.0 5,0 m250 cm 10 m 500 W 2,2 105,8
BVF L-PRO/100-600-6.0 6,0 m250 cm 12 m 600 W 2,6 88,2
BVF L-PRO/100-800-8.0 8,0 m250 cm 16 m 800 W 3,5 66,1
BVF L-PRO/100-1000-10.0 10,0 m250 cm 20 m 1000 W 4,3 52,9
BVF L-PRO /100-1200-12.0 12,0 m250 cm 24 m 1200 W 5,2 44,1
4 INSTALLATION
i Important information: Tools needed for the installation
You will need the following tools for the installation and check-up of the heating system:
Scissors
Blade utility knife
Cable stripping tool
Measuring tape
Screwdriver
Electric measuring device / multimeter

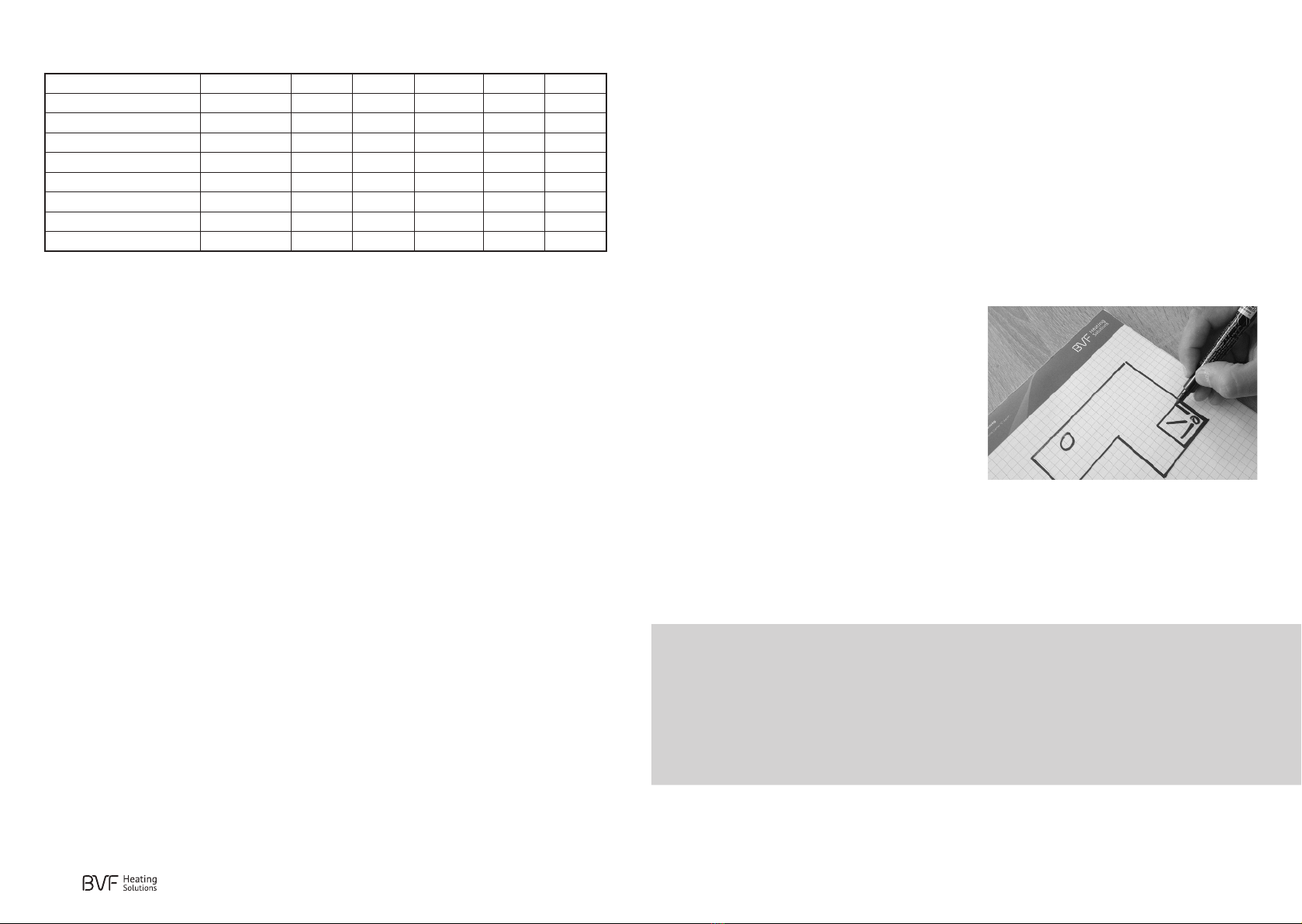

1. Make a drawing of the layout
Make a drawing or sketch indicating planned
layout. Indicate every area covered by fix shafts,
obstacles etc.) Calculate the size of the surface to
be heated. Write down all the needed size data
for the surface to be heated, and define the place
of the thermostat and the floor sensor.
2. Copy the drawing onto the floor
Draw the outlines of the planned system on the floor. Leave out the places of devices to be placed as fix
later.Roll out and place the first couple of meters of the heating mat.The starting point of the cable should
not be more than 2.5 meters away from the thermostat.
i Important information
Make sure that the connection point (connection cable – heating cable) of the BVF L-PRO cable
is placed in a conduit. Make sure to place the floor sensor of the thermostat exactly in between two
heating cables (on heated surface), in a distance at least 65 cm from the wall, in a conduit pipe,to enable
replacement if necessary.

10 11
BVF L-PRO 100 SERIES installation and user manual
3. Installation of the sensor
Place the thermostat’s floor sensor lead in a
conduit pipe. It is advised to use a conduit pipe
to enable easy replacement in the unlikely case
of malfunction. The thermostat’s floor sensor and
conduit pipe shall be led to the wall module box
of the thermostat. The conduit pipe shall be partly
encased in the floor.
i Important information
Make sure to place the floor sensor of the thermostat between two heating cables, in equal distance.
Secure the conduit pipe as well to avoid floating.
4. Preparation of the subfloor
Clean or vacuum the subfloor removing all kinds of contamination which may damage the cable. The
pre-installation manual presents the method of preparation in detail.
Check the flatness of the floor. Fill in any gaps or uneven parts to prevent cable damage. Install XPS step-
proof insulation board with minimum thickness of 6mm on the whole surface and fix them together with
tape.

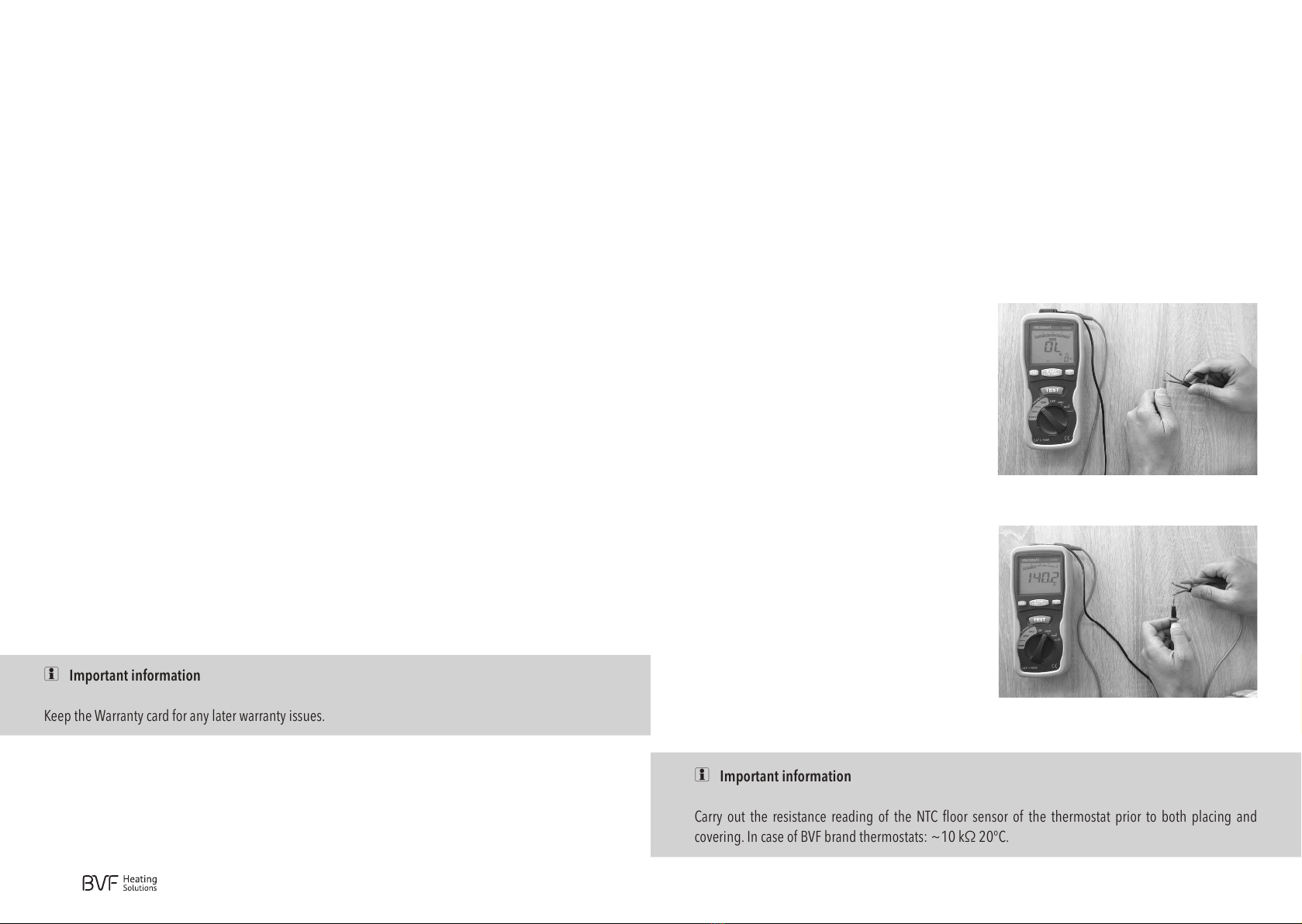

5. Read system resistance (1st time)
By using an electric measuring device, carry out a resistance reading (between the blue and brown
terminals) and compare the data with the values shown in the table (Section 3.2). Record the date on
the Warranty card. Recorded resistance values may be required during later eventual warranty issues.
Then, read the resistance between the blue,brown and the grounding, which should show an open circuit
reading. For more information on resistance reading see Chapter 5.
6. Placement of the heating mat
I NEVER CUT OR SHORTEN THE HEATING MAT!
Begin the placement in a way that the connection
cable and the sensor are put on its places when
starting the placement. Lead the connection cable
and sensor cable to the thermostat’s connection
point.
Install the heating mat evenly on the previously
marked places. When reaching the wall, cut the
foil, and turn the heating mat in the needed
direction. Cross-connect the cutted parts of the
heating elements with alu tape pieces provided
to ensure proper grounding. Connect he heating
element parts with the fiberglass aluminium tape
lengthwise.
Make sure that BVF L-PRO is directly fixed to the
floor on the entire surface. Avoid stepping on the
placed heating mat. If it is inevitable, use smooth
bottom shoes.
Remember that cutting the cable is prohibited!

12 13
BVF L-PRO 100 SERIES installation and user manual
i Important information
It is advised to take a photo of the system prior to covering.
7. Read system resistance (2nd time) in accordance with Section 5.
8. Covering
Prior to covering check the fixing of the thermostat’s floor sensor (as in Section 3.).
9. Read system resistance (3rd time) in accordance with Section 5.
10. Placing the cover
Place the cover in accordance with the instructions provided by the producer.
11. Connection of the thermostat and electricity
Assign an electrician to carry out electricity and thermostat connection. Following connection, read the
resistance for the last time, and record the values on the Warranty card. See Section 13.
Note: Mark the circuit-breaker of the heating system on the switch board.
12. Read system resistance (4th, last time) in accordance with Section 5.
13. Documentation
Fill-out the Warranty card of both the heating mat and the thermostat right after installation. Failing to
do so may result in losing warranty rights. For detailed Warranty terms and conditions se the product’s
Warranty card.
i Important information
Keep the Warranty card for any later warranty issues.
14. Activation of the BVF L-PRO heating mat
After installing the laminate floor cover the system is ready for use.Turn it on and set the desired temper-
ature on the thermostat according to the user manual. Step-by-step heating-up of the system is advised,
particularly when heating-up for the first time.
5 REGISTRATION OF READ VALUES
i Important information
To ensure the validity of the 10 years extended warranty period, carry out the following resistance read-
ings and record the values on the Warranty card of the product. Do not lose the warranty card.
Registration of insulation and resistance reading values are required four times during the installation.
(See Section 4.5)
5.1 Reading insulation resistance
By reading insulation resistance you can make sure that the cable’s electric insulation is not damaged.
1. Connect the grounding’s connection to the black
lead of the measuring device and connect the
other two to the red cable simultaneously.
2. The measuring device shall read “open” or in-
finite value. In case of different values turn to
the distributor of the product.
3. Record the read data on the product’s Warranty
card.
5.2 Reading heating mat resistance
1. Select range 200-2.000 ohm on the device.
2. Connect the device’s leads to the brown and blue
connections.
3. Compare the read values with the data given
in the table. Maximal allowed variance shall be
between -10% and +10%. Should you notice
a different value, contact the distributor of the
product.
4. Record the read data on the product’s Warranty
card.
i Important information
Carry out the resistance reading of the NTC floor sensor of the thermostat prior to both placing and
covering. In case of BVF brand thermostats: ~10 kΩ20°C.

14 15
BVF L-PRO 100 SERIES installation and user manual
6 TROUBLESHOOTING
Nature of trouble Possible reasons Solution
Floor is not heating-up Lack of voltage
Electric circuit-breaker
turns down
Thermostat is not
operating
Too many consumers connected to the same power
circuit. BVF L-PRO may, in certain cases require separate
power circuit. Check the values in the table. Check the
thermostat according to the instructions of its user
manual.
Floor is continuously
heating
Improper thermostat
setting
Check the thermostat according to the instructions of its
user manual
Floor is not heated-
up to the required
temperature
Improper thermostat
setting / Floor limit
Check the thermostat according to the instructions of its
user manual
User Manual for
BVF L-PRO
floor heating system
1. Ensure the electric floor heating’s steady heat radiation, avoid placing sizeable objects/
furniture without legs on the floor.
2. Avoid covering the floor with materials having high thermal insulating qualities
(thick rug, mattress, under-bed bin, thermal proof materials, etc.) during operation.
3. Protect floor covering from moisture, long-term wetting.
1. Calibrate the thermostat using a room thermometer, since default settings of any type may
be different than the actual temperature. (For details see the User Manual of the actual
thermostat)
2. In case of individual heating, place the sensor operating mode of the thermostat to double
(floor+room) position, where the thermostat shows the air temperature based on data
provided by the built-in sensor, and the floor sensor sets the limit temperature of the floor
(heat sink) in the value of the set temperature.
3. Set the disable temperature of the floor sensor to 29-31°C. (For details see the User Manual
of the actual thermostat)
4. If the system is equipped with a programmable thermostat, for the most efficient operation
the use of programming functions is advised.
5. BVF L-PRO floor heating system is NOT a heating storage or partly heating storage system,
thus shorter heating-up times shall be taken into consideration when starting and
programming heating cycles. Heating-up, depending on the floor’s original temperature
and thickness (thermal storage capacity/thermal inertia) may take longer time.
6. During the heating season, for the best results, avoid turning off the heating system, when
out of use set air temperature back by 3-4°C the maximum, thus preventing the overcooling
of walls and other devices. In case the heated premises are to be out of use for a longer
period, the use of anti-freeze program option is advised for conservation purposes.
HEATED FLOOR/COVER
CONTROL
98
Checklist

EXTENDED WARRANTY
Product Distributor undertakes 10 years warranty for BVF L-PRO heating mats in relation of material
and construction errors originated during production. Warranty shall be enforceable exclusively upon
obtaining the original invoice and the properly filled-out and submitted warranty claim form, and
alongside professional installation. For detailed Warranty terms and conditions se the product’s Warranty
card.
Disclaimer
The present installation and user manual had been prepared with the best knowledge of the distributor
at the time of publishing. Distributor shall not be held responsible for printing mistakes on the online or
printed version of its publications, and has the right to make amendments in the technical specifications
of the products without prior notice.
BVF Heating Solutions is a registered brand of BVF Heating Solutions Ltd. All rights reserved.
