BW Technologies M5-C01 Series User manual

GasAlertMicro 5/PID/IR Battery Charger [English] Instruction Sheet
D5688/2 Page 1
Trimmed and folded dimensions: 4.125 (w) x 5.875 (H)
BW TECHNOLOGIES
BY HONEYWELL
GasAlertMicro 5/PID/IR Battery Charger
Instruction Sheet
Introduction
The GasAlertMicro 5/PID/IR Battery Charger (“the charger”) charges the
GasAlertMicro 5, GasAlertMicro 5 PID, and the GasAlertMicro 5 IR
rechargeable battery packs.
Standard GasAlertMicro 5/PID/IR Battery Charger kit includes:
•GasAlertMicro 5/PID/IR Battery Charger unit
•Universal power adapter
•Power cord
•Wall mounting bracket
•Instruction sheet
Table 1. Order Number
Model No. Description Qty
M5-C01*Cradle charger 1
*Add suffix (-UK) for United Kingdom mains plug, (-EU) for European mains
plug, (-AU) for Australian mains plug.
D5688/2
iERP: 124011
© BW Technologies 2006, all rights reserved. Printed in Canada.
All product names are trademarks of their respective companies.
a Safety Information - Read First
⇒For indoor use only.
⇒Warning: Substitution of components may impair Intrinsic Safety of the
detector being charged.
⇒Do not charge the battery pack with any other unapproved charger. Do not
use the charger, change the batteries, or charge the batteries in a
hazardous location. Failure to observe these precautions will impair the
Intrinsic Safety of the detector and can lead to fire and/or explosion.
⇒Do not expose the charger to electrical shock or severe continuous
mechanical shock.
⇒Ensure the battery pack is locked in place prior to operating the detector.
⇒If the charger is damaged or parts are missing, contact
BW Technologies by Honeywell immediately.
⇒To eliminate the risk of electrical shock, unplug the charger whenever
cleaning or other maintenance is required.
⇒Avoid touching the charging cradle contact pins.
⇒Use only BW approved batteries. Do not use alkaline or other non-
rechargeable batteries with this charger.
⇒The detector must be deactivated before charging.
⇒Do not calibrate the detector during or immediately after charging is
complete.
Table 2. International Symbols
Symbol Meaning
nApproved to both U.S. and Canadian Standards by the CSA
International
aCaution – risk of danger
dc current

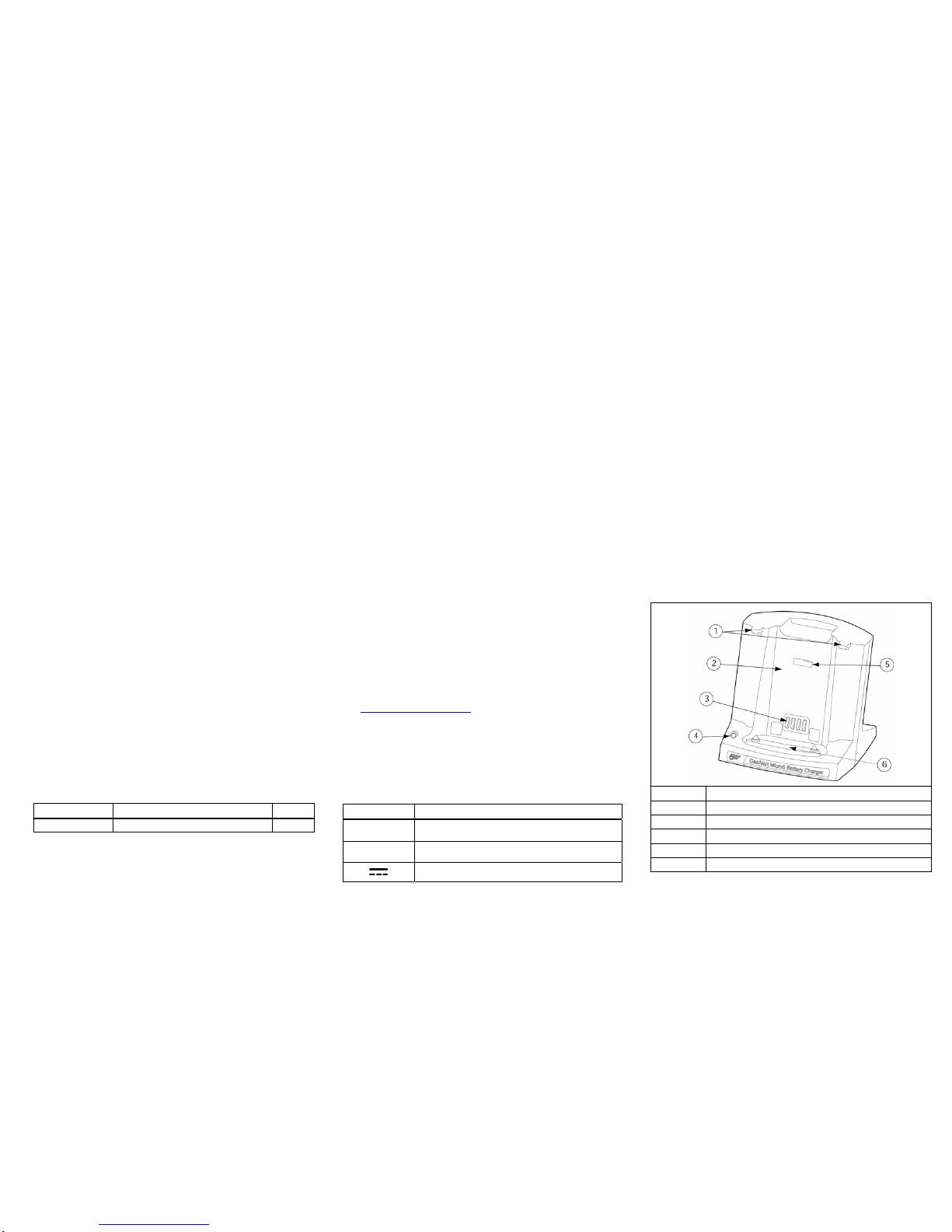

Parts of the GasAlertMicro 5/PID/IR Battery Charger
1 Retaining hooks
2 Charging cradle
3 Battery connectors (contact pins)
4 Charger status LED
5 Mounting access hole
6 Retaining base

GasAlertMicro 5/PID/IR Battery Charger [English] Instruction Sheet
D5688/2 Page 2
Trimmed and folded dimensions: 4.125 (w) x 5.875 (H)

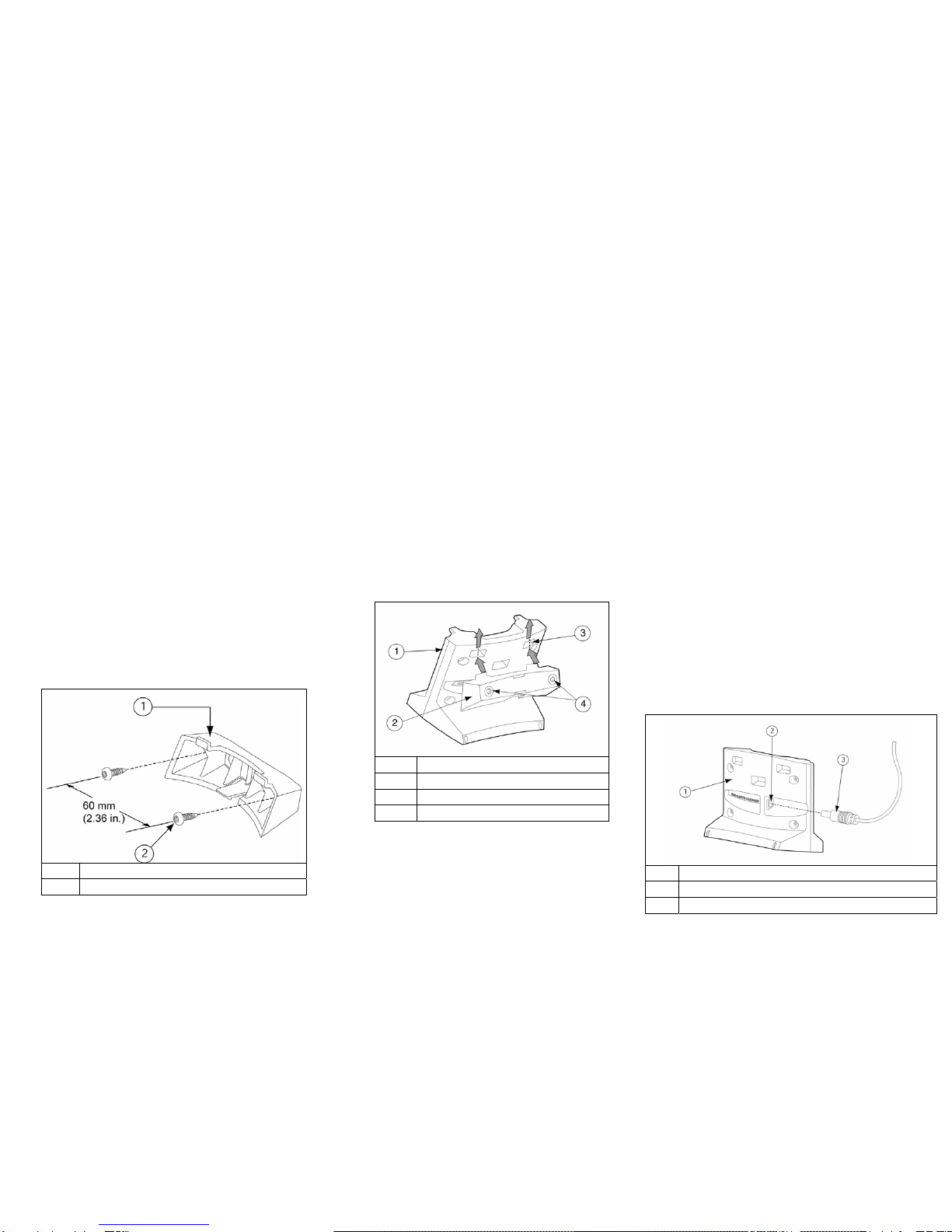

Mounting the Charger
The charger can be easily mounted onto a secure surface. To mount the
charger, complete the following:
1. Select a secure location for the charger to be mounted.
2. Measure a distance of 2.36 in. (60 mm) for the retaining screws.
Refer to Figure 1.
Figure 1. Mounting Bracket
1 Mounting bracket
2 Philips retaining screws (2)
3. Using the screws provided, mount the bracket.
4. Attach the charger to the bracket by sliding the charger mounting
ports down onto the mounting bracket. Refer to Figure 2.
Figure 2. Attaching the Charger Base
1 Charger base
2 Mounting bracket
3 Mounting ports
4 Retaining screw holes
5. Press the charger firmly against the bracket until the release tabs
click.
Charging aWarning
To charge successfully, the temperature must be between
50°F to 95°F (10°C to 35°C). If the detector emits a low battery
alarm, charge the battery immediately.
When charging a new battery for the first time, fully charge the battery pack
before use (approximately 3.5 hours).
Note
If a fully charged battery is inserted into the charger, the charger
status LED lights red for 6 to 10 minutes and then changes to
green (does not damage the battery).
The detector can remain in the cradle after charging is complete.
Charging the battery pack in temperatures above 86°F (30°C)
greatly reduces the life of the battery pack.
The battery pack may be hot immediately after charging.
Approximately three charges are required to achieve a full charge
capacity for a new battery pack.
Charging the Battery Pack with the Detector
To charge the detector, complete the following:
1. Insert the power cord into the charger port. Refer to Figure 3.
Figure 3. GasAlertMicro 5/PID/IR Battery Charger (Back)
1 Back of the charger
2 Power jack port
3 Charger power jack
2. Plug the power cord into a Vac outlet.
The charger performs a self-test. The charger LED lights red then
green during the test. When the self-test is complete, the LED
deactivates.
3. Deactivate the detector.

GasAlertMicro 5/PID/IR Battery Charger [English] Instruction Sheet
D5688/2 Page 3
Trimmed and folded dimensions: 4.125 (w) x 5.875 (H)
4. Holding the detector vertically, insert it into the charging cradle.
Ensure the connector holes at the bottom of the detector align
over the black prongs on the retaining base. Refer to Figure 6.
5. Push the detector down, angle it towards the back of the charger,
and release. Refer to Figure 7. The detector sits securely if
inserted correctly. Refer to Figure 4.
Figure 4. Inserting the Detector into the Charger
The charger emits one beep and the LED lights red to indicate the
battery is charging.
6. Allow the battery to fully charge (approximately 3.5 hours).
The charging LED changes to green when charging is complete.
When the detector is removed from the charger, the LED
deactivates.

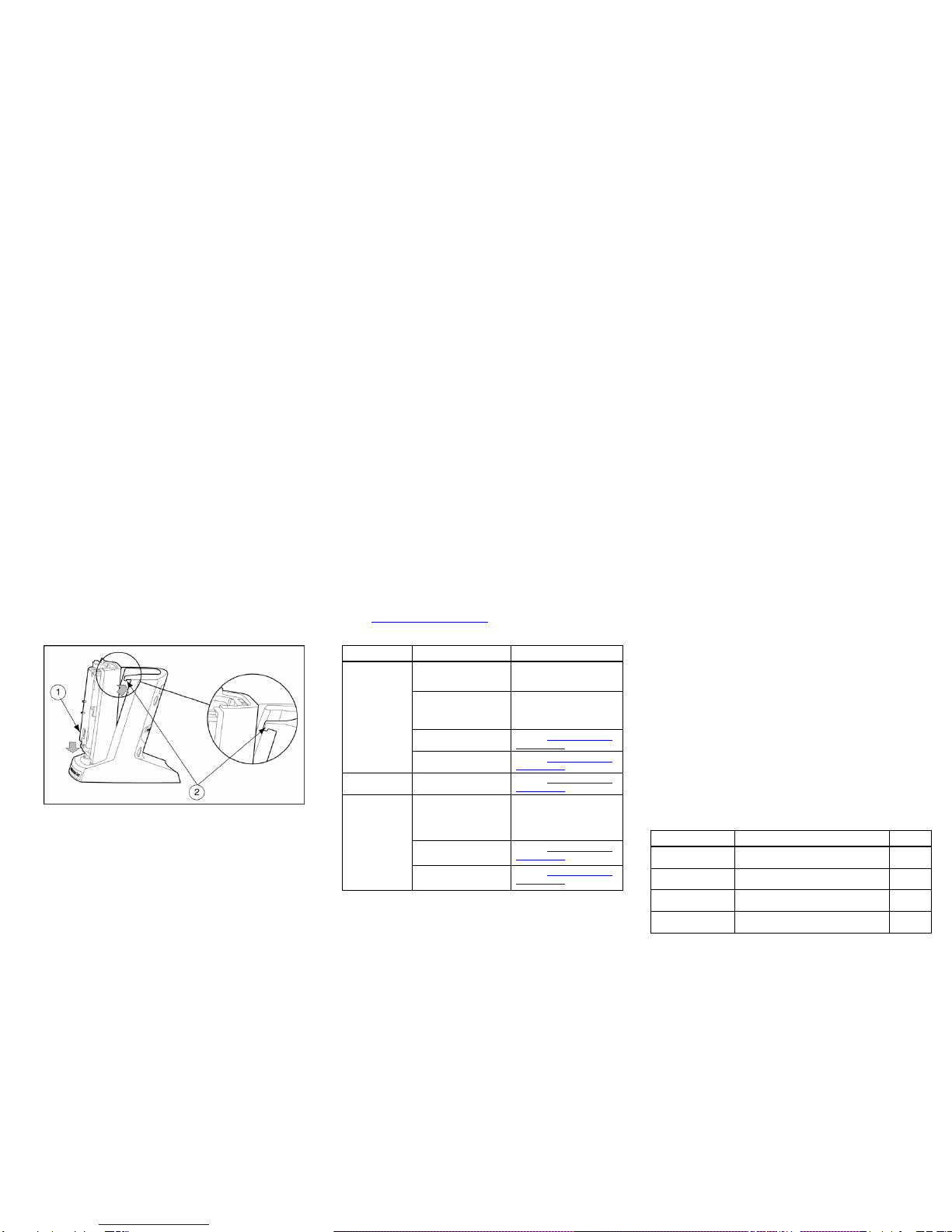

Remove/Replace the Battery Pack
To remove/replace the battery pack, refer to Figure 5 and complete the
following:
1. Deactivate the detector.
2. Open the latch on the bottom of the detector.
3. Remove the battery pack by lifting the bottom of the pack away
from the detector.
4. Insert the new battery pack. Close and press the latch until the
release tabs click.
Figure 5. Removing the Battery Pack
Charging the Battery Pack without the Detector
To charge the battery pack separately, complete the following:
1. Insert the power cord into the charger port. Refer to Figure 3.
2. Plug the power cord into a Vac outlet.
The charger performs a self-test. The charger LED lights red then
green during the test. When the self-test is complete, the LED
deactivates.
3. Deactivate the detector and remove the battery pack. If required,
refer to Remove/Replace the Battery Pack.
4. Holding the battery pack vertically, insert it into the charging cradle.
Ensure the connector holes at the bottom of the battery pack align
over the black prongs on the retaining base. Refer to Figure 6.
Figure 6. Charging the Battery Pack without the Detector (Front)

GasAlertMicro 5/PID/IR Battery Charger [English] Instruction Sheet
D5688/2 Page 4
Trimmed and folded dimensions: 4.125 (w) x 5.875 (H)
5. Push the battery pack down, angle it towards the back of the
charger, and release. Refer to Figure 7. The battery pack sits
securely if inserted correctly.
Figure 7. Charging the Battery Pack without the Detector (Side)
The charger emits one beep and the LED lights red.
6. Allow the battery to fully charge (approximately 3.5 hours).
The charging LED changes to green when charging is complete.
When the battery pack is removed from the charger, the LED
deactivates.
aWarning
When replacing battery packs, ensure the GasAlertMicro 5 IR battery
pack is only inserted into the GasAlertMicro 5 IR detector. The IR
battery packs are not compatible with other Micro 5 models and
vice versa. Refer to the IR warning label located on the back of the
IR battery pack lid.
Troubleshooting
If a problem occurs, refer to the following solutions. If the problem persists,
contact BW Technologies by Honeywell.
Table 3. Troubleshooting Guide
Problem Possible Cause Solution
The detector is not
inserted correctly in the
cradle.
Firmly insert the detector
into the cradle.
The battery pack is
above or below the
operating temperature.
Allow the battery pack time
to adjust to the specified
operating temperature
(approximately 1 hour).
The battery pack is
severely depleted. Contact BW Technologies by Honeywell
The charge
LED does not
activate when
the detector is
inserted.
Damaged or defective
battery pack. Contact BW Technologies
by Honeywell.
There is no
audible beep. Internal damage to battery or charger. Contact BW Technologies by Honeywell.
The battery is above or
below the operating
temperature.
Leave the battery in the
charger. When the battery
returns to room
temperature, charging will
begin.
The battery pack is
severely depleted. Contact BW Technologies by Honeywell.
There is an
audible beep,
but no charge.
Damaged or defective
battery pack. Contact BW Technologies
by Honeywell.
Maintenance
aWarning
No user-serviceable parts inside.
To maintain the charger in good operating condition, perform the following
basic maintenance as required.
•Clean the exterior with a soft, damp cloth. Do not use solvents, soaps,
or polishes.
•Do not immerse the charger in liquids.
Battery Pack Storage
When stored for extended periods of time, ensure that the battery pack is
fully charged and then recharged every 30 days.
Replacement Parts and Accessories
aWarning
To avoid personal injury or damage to the charger, use only
the specified replacement parts.
Table 4. Replacement Parts and Accessories
Model No. Description Qty
M5-BAT01 GasAlertMicro 5 and GasAlertMicro 5
PID rechargeable battery pack 1
M5IR-BAT04 GasAlertMicro 5 IR rechargeable
battery pack 1
M5-C01-BAT01*GasAlertMicro 5 and GasAlertMicro 5
& PID cradle charger / battery pack kit 1
M5IR-C01-BAT04* GasAlertMicro 5 IR cradle charger /
battery pack kit 1
*Add suffix (-UK) for United Kingdom mains plug, (-EU) for European mains
plug, (-AU) for Australian mains plug.

GasAlertMicro 5/PID/IR Battery Charger [English] Instruction Sheet
D5688/2 Page 5
Trimmed and folded dimensions: 4.125 (w) x 5.875 (H)
Specifications
Size: 87 x 83.97 x 80.8 mm (3.4 x 3.3 x 3.2 in.)
Weight: 210 g (7.4 oz.)
Operating temperature: 10°C to 35°C (50°F to 95°F)
Humidity: 0 to 50%
Altitude: 2000 m (6561.66 ft.)
Power: 6 Vdc , 1.0 A
Charger status LED: Color-coded LED advises the following: charging,
charging complete, and charger fault
Charge time: Typically 3.5 hours
Battery life: Typically 500 charges
Pollution degree: 2
Installation category: I
Certifications: Approved to both U.S. and Canadian standards by CSA
International for use in ordinary locations.
This device complies with the FCC Part 15 and ICES-003 Canadian EMI
requirements. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules and ICES-003
Canadian EMI requirements. These limits are designed to provide
reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his/her own expense.
aWarning
This product is designed for installation in an indoor location
only. All required National Electrical Codes and Safety
Standards must be followed.
Contacting BW Technologies by Honeywell
To contact BW Technologies by Honeywell call:
USA: 1-888-749-8878
Canada: 1-800-663-4164
Europe: [phone]
Other countries: [phone]
Address correspondence to:
BW Technologies by Honeywell
2840 – 2nd Avenue S.E.
Calgary, AB
T2A 7X9
CANADA
Email us at: [email protected]
Visit BW Technologies by Honeywell’s web site at: www.gasmonitors.com
BW Technologies by Honeywell BW Technologies by Honeywell
Corporate Headquarters America
2840 - 2 Avenue S.E. 3279 West Pioneer Parkway
Calgary, AB Arlington, TX
Canada T2A 7X9 USA 76013
BW Technologies by Honeywell
Europe
5 Canada Close
Banbury, Oxfordshire
United Kingdom OX16 2RT
Warranty
LIMITED WARRANTY & LIMITATION OF LIABILITY
BW Technologies by Honeywell (BW) warrants this product to be free from defects in material
and workmanship under normal use and service for a period of two years, beginning on the date
of shipment to the buyer. This warranty extends only to the sale of new and unused products to
the original buyer. BW’s warranty obligation is limited, at BW’s option, to refund of the purchase
price, repair, or replacement of a defective product that is returned to a BW authorized service
center within the warranty period. In no event shall BW’s liability hereunder exceed the purchase
price actually paid by the buyer for the Product.
This warranty does not include:
a) fuses, disposable batteries or the routine replacement of parts due to the
normal wear and tear of the product arising from use;
b) any product which in BW’s opinion, has been misused, altered, neglected or
damaged by accident or abnormal conditions of operation, handling or use;
c) any damage or defects attributable to repair of the product by any person
other than an authorized dealer, or the installation of unapproved parts on
the product; or
The obligations set forth in this warranty are conditional on:
a) proper storage, installation, calibration, use, maintenance and compliance
with the product manual instructions and any other applicable
recommendations of BW;
b) the buyer promptly notifyingBW of any defect and, if required, promptly
making the product available for correction. No goods shall be returned to
BW until receipt by the buyer of shipping instructions from BW; and
c) the right of BW to require that the buyer provide proof of purchase such as
the original invoice, bill of sale or packing slip to establish that the product is
within the warranty period.
THE BUYER AGREES THAT THIS WARRANTY IS THE BUYER’S SOLE AND EXCLUSIVE
REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. BW SHALL NOT BE LIABLE FOR ANY SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS
OF DATA, WHETHER ARISING FROM BREACH OF WARRANTY OR BASED ON
CONTRACT, TORT OR RELIANCE OR ANY OTHER THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or
exclusion or limitation of incidental or consequential damages, the limitations and exclusions of
this warranty may not apply to every buyer. If any provision of this warranty is held invalid or
unenforceable by a court of competent jurisdiction, such holding will not affect the validity or
enforceability of any other provision.
