CORDLESS COOLING DEVICE

2 | ENGLISH BYOPLANET.COM
This page has been left blank intentionally

Table of Contents
ENGLISH | 3
BYOPLANET.COM
SAFETY NOTICES
Warnings .............................................................................................................................. 4-6
Safety Decal ........................................................................................................................ 6
Protective Gear ................................................................................................................. 6
IMPORTANT SAFETY PRECAUTIONS
Shock Electrical Hazard ................................................................................................. 6
General Safety ................................................................................................................... 7
Liquid Use ........................................................................................................................... 7
SYSTEM COMPONENTS
Backpack Assembly ........................................................................................................ 8
Spray Wand Assembly ................................................................................................... 9
Harness Assembly ........................................................................................................... 9
Battery Assembly ............................................................................................................. 10
Charger Assembly ............................................................................................................ 10
OPERATING INSTRUCTIONS
Assembly Instructions .................................................................................................... 11
Spare Parts Kit ................................................................................................................... 11
Sprayer Setup .................................................................................................................... 12
Sprayer Operation ........................................................................................................... 12
After Use and Storage..................................................................................................... 12
MAINTENANCE
Sanitizing Liquid Tubing ................................................................................................. 13
Purging the bCOOL Cooling Device.......................................................................... 13
Air Filter ............................................................................................................................... 13
Spray Wand Assembly ................................................................................................... 13
Backpack Assembly ........................................................................................................ 13
Battery Assembly ............................................................................................................. 13
SPECIFICATIONS ............................................................................................................. 13
TROUBLESHOOTING ..................................................................................................... 14
EQUIPMENT WARRANTY ............................................................................................ 14
Notes...................................................................................................................................... 15
Contact Information......................................................................................................... 16

SAFETY NOTICES
This manual contains information that is important for you to
know and understand before operating the bCOOL Cordless
Cooling Device. This information relates to protecting your
safety and ensures product reliability and performance. It is
the owner’s responsibility to ensure that all who operate this
sprayer read this manual.
WARNINGS
To help you recognize this information we use the warning
symbols below. Please read the manual carefully, and pay
special attention to the symbols and warning labels. Warning
labels indicate a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
• Read and fully understand the bCOOL Cordless Cooling
Device Operator’s Manual prior to using the sprayer.
• Read and fully understand the ByoPlanet-approved
product labels prior to using any liquid product with
the bCOOL Cordless Cooling Device, and follow
safe-use instructions such as recommend personal
protective equipment (PPE).
• Never operate cordless sprayers in the presence of
combustible liquids or vapors. Charge can produce
sparks that may ignite combustible liquids or vapors
causing serious injury, death, or damage to property.
• The bCOOL Cordless Cooling Device is for both indoor
and outdoor commercial use.
• The bCOOL Cordless Cooling Device is intended for
indoor storage only. Do not store outdoors or in vehicles .
• The bCOOL Cordless Cooling Device should be stored
and operated between 40° and 100° F (4.5° and 38° C).
Storing or operating the sprayer below 40° F (4.5° C)
or above 100° F (38° C) may result in sprayer damage.
• The bCOOL Cordless Cooling Device should never be
used in an area containing volatile chemicals. Nor
should they be used in hazardous environments nor
any area containing volatile or explosive levels of gas,
vapor or airborne particles.
• The bCOOL Cordless Cooling Device should never be
used by untrained personnel.
WARNINGS
• Check hoses, tubes and couplings
daily. Replace worn or damaged
parts immediately.
PRESSURIZED SPRAYER HAZARD
Fluid from sprayer that leaks or ruptures from a
component can splash in the eyes or on skin, causing
serious injury. In order to help prevent a leak or rupture:
WARNINGS
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many solvents can degrade plastic parts and cause them
to fail, which can lead to serious injury or property
damage. In order to help prevent against degradation:
• Use only compatible water-based
solvents to clean plastic structural
pressure containing parts.
• See technical data in this and all
other sprayer instruction manuals.
Read uid and solvent manufactur-
er’s Safety Data Sheets (SDS) and
recommendations prior to use.
FIRE, EXPLOSION AND ELECTRIC SHOCK HAZARD
Flammable fumes, such as solvent and paint fumes, in
work areas can ignite or explode. To help prevent re,
explosion and electric shock:
• The bCOOL Cordless Cooling
Device must be used only by
trained, qualied personnel who
understand the requirements
of this manual.
• Stop operation immediately if static
sparking occurs or you feel shock.
Do not use sprayer until you
identify and correct the problem.
• Use and clean sprayer only in
well-ventilated area.
• Only spray clean, fresh water
through sprayer.
• Do not plug or unplug power
cords or turn lights on or off when
ammable fumes are present.
• Keep spray area free of debris,
including solvents, rags, gasoline
or any ammable chemicals.
• Keep a working re extinguisher
in the work area.
4 | ENGLISH BYOPLANET.COM

WARNINGS
• Do not operate the sprayer when
fatigued or under the inuence of
drugs or alcohol.
• Do not leave the work area while
sprayer is turned on (including battery).
• Turn off all equipment, including
battery, when not in use.
• Check sprayer daily. Repair or replace
worn or damaged parts immediately
with genuine replacement parts from
ByoPlanet®.
• Do not alter or modify sprayer.
Alterations or modications void your
bCOOL Cordless Cooling Device
warranty and agency approvals, and
create safety hazards.
• Route hoses away from trafc areas,
sharp edges, moving parts and hot
surfaces.
• Hoses may be trip hazards. Avoid
stepping or standing on any hoses.
Watch your step.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by
a person responsible for their safety.
• Children should be supervised to
ensure that they do not play with
the appliance.
SPRAYER MISUSE HAZARD
Misuse can cause death or serious injury
WARNINGS
LIQUID MISUSE HAZARD
Misuse can cause serious injury or death.
• The bCOOL Cordless Cooling Device must only be
used with water. Never spray any liquid product that
is not water. The bCOOL Cordless Cooling Device
warranty is voided if the bCOOL Cordless Cooling
Device is used with products that are not approved
by ByoPlanet®.
• Always ll containers fresh, clean water prior to use.
• Be aware of rst-aid procedures related to the
product in use.
• Ensure the area being sprayed in has proper ventilation.
• Do not use containers for drinking.
• Do not use containers for any purpose other than
cooling skin.
• Thoroughly dry containers after each use and prior
to storage.
• Always inspect container prior to use.
WARNINGS
CAUTION
• The battery used in this device may present a risk of
re or chemical burn if mistreated.
• Do not damage or mishandle battery.
• Do not short circuit.
• Store batteries indoors in a cool, dry place. Do not
store in extreme heat or cold.
• Do not expose to moisture or prolonged sunlight.
• Keep away from children.
• Do not disassemble, puncture, or crush battery.
• Do not tamper with or attempt to disassemble the
battery or remove any component projecting from
the battery terminals.
• The battery and charger have no user serviceable parts.
• Fire or injury may result from tampering prior to
disposal, protect exposed terminals with heavy
insulating tape to prevent shorting.
• Turn battery switch to the "OFF" position after use.
• Battery pack must be securely attached to the sprayer.
If battery pack is detached, personal injury may result.
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack
can explode in a re.
• System must be used with battery supplied by ByoPlanet.
• Battery must be charged with charger supplied by
ByoPlanet
®
.
• Do not splash or immerse in water or other liquids.
• Do not store or use the sprayer and battery pack in
locations where the temperature may reach or exceed
100° F (38° C).
• Damaged battery packs should be recycled if possible
and consistent with applicable laws.
• Transporting batteries can possibly cause res if the
battery terminals inadvertently come in contact with
conductive materials such as keys, coins, hand tools
and the like.
• Do not ship or travel with battery on passenger aircraft.
WARNING
• Do not leave batteries unattended while charging.
• Fire hazard. Do not store or carry battery so that
metal objects can contact exposed battery terminals.
For example, do not place battery in aprons, pockets,
toolboxes, product kit boxes, drawers, etc., with loose
nails, screws, keys, etc.
LITHIUM-ION BATTERY HAZARD
ENGLISH | 5
BYOPLANET.COM

IMPORTANT SAFETY PRECAUTIONS
When using an electrical appliance, it is important to
understand that some circuits are electrically live, even
when the power switch is in the off position. Basic safety
precautions should always be followed to reduce the risk of
burns, re, electrical shock, injury and/or death.
Shock/Electrical Hazard
As with most electrical appliances, electrical parts are
electrically live even when the switch is off. To reduce the
risks of burns, re, electric shock or injury:
• Use this sprayer only for its intended use, as described
in this manual.
• Do not use while bathing.
• Do not place or store sprayer where it can fall or be
placed in water or other liquid.
• If sprayer falls into water, do not reach into water
to retrieve.
• Never operate this sprayer if the sprayer shows sign of
physical damage, e.g., impact damage from a severe
drop, or is working improperly. For technical support or
spare parts purchase contact ByoPlanet®support at
www.byoplanet.com.
• Keep sprayer and battery away from heated surfaces.
• If battery pack case is cracked or damaged, do not insert
into charger. Electric shock or electrocution may result.
• Never block the air openings of the sprayer or place it on
a soft surface (bed, couch, or tall grass), where the air
openings may become blocked.
• Never drop or insert any object into any opening on the
sprayer or battery housing.
• Do not use battery charger with a damaged or broken
extension cord.
• Never use or store at a temperature above 100°F (38°C).
• Do not expose sprayer or battery to rain.
6 | ENGLISH BYOPLANET.COM

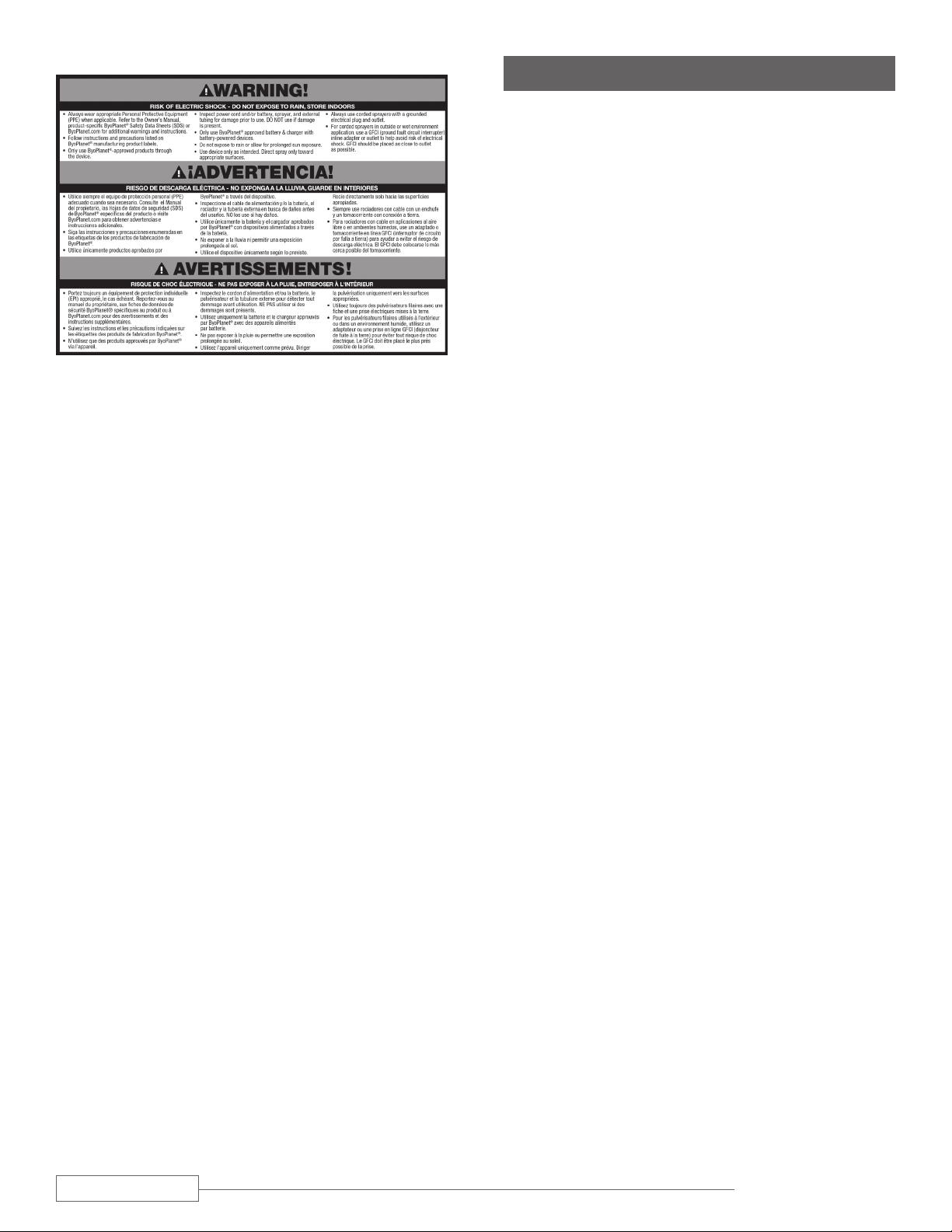

Safety Decal

General Safety
Lack of attention to safety can result in reduced efciency,
accidents, personal injury or death. Watch for safety hazards
and correct deciencies promptly. Use the following safety
precautions as a guide when using this machine.
1. Read the operator’s manual. Failure to do so is
considered misuse of the sprayer.
2. Use the bCOOL Cordless Cooling Device
only for its intended use, as described in this manual.
3. Before operating sprayer, become familiar with all
caution and warning decals afxed to the sprayer.
4. Do not use the bCOOL Cordless Cooling Device in a
hazardous location.
5. Only trained personnel familiar with the bCOOL
Cordless Cooling Device and ByoPlanet®-approved
products should be allowed to operate.
6. Do not allow personnel to operate the sprayer without
proper instruction or under the inuence of alcohol or
drugs.
7. Store sprayer in a cool, dry place. Do not expose to
extreme temperatures.
8. Purge liquid line before storing the sprayer.
9. Be aware, even when the sprayer is off, power is still
supplied to the sprayer when battery is on.
10. Never hang sprayer from hose.
11. A sprayer should never be left unattended when
powered on.
12. Always turn off sprayer and battery after each
application.
13. Always unplug battery charger from outlet when not
in use or when leaving it unattended.
14. Never touch the battery with wet hands.
15. Never pull or carry the sprayer by the hose.
16. Do not crimp the charger or strain it around sharp edges.
Doing so might damage the cord.
17. Do not use the battery charger with a damaged
extension cord.
18. Always thoroughly inspect product before usage.
19. During normal operation, the spray wand and loom may
become warm to the touch. If sprayer becomes hot, turn
off and allow sprayer to sit for 30 minutes.
20. For questions or concerns about the bCOOL Cordless
Cooling Device, contact the ByoPlanet®Support Team
at www.byoplanet.com.
Liquid Use
1. The bCOOL Cooling Device should be used with
designated containers and should be lled with
water only.
2. Designated containers are for cooling sprayer
applications only and should never be used for drinking.
3. Never spray a liquid product other than fresh, clean
water, as this can result in serious injury.
4. Thoroughly dry containers after each use and
prior to storage.
5. Always inspect containers prior to use.
ENGLISH | 7
BYOPLANET.COM

SYSTEM COMPONENTS
The bCOOL Cordless Cooling Device was engineered with
the end-user in mind. It is highly durable. The lters are
the only serviceable components. If you are experiencing
issues with your sprayer, please contact ByoPlanet®support at
www.byoplanet.com.

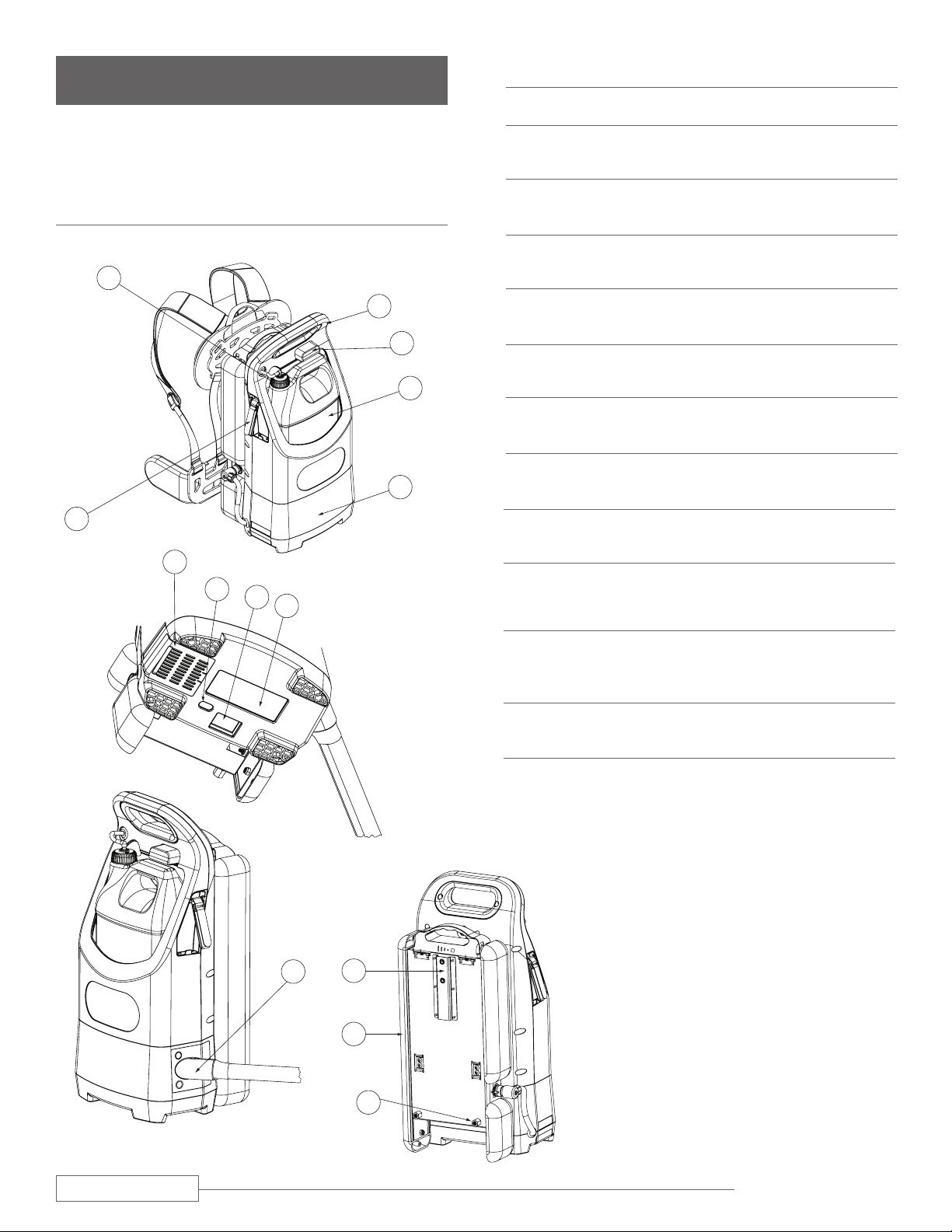

bCOOL Assembly
1. Handle
Soft textured handle to ensure comfort and grip.
2. 1-Gallon (3.8 Liters) bCOOL Container
Rellable container, for water only.
3. Backpack Electrical Compartment
Lower compartment containing all major electrical
components.
4. Dispensing Cap and Tube
Replaces the cap for the product container when container
is installed in backpack.
5. Container Release Button
Prevents container from falling out when tipped over. Press
button to release container.
6. Spray Wand Storage
Located on the right side of the backpack. Stores the
sprayer wand and hose.
7. Loom Connection Plate
Allows for removal of loom/sprayer assembly as well as
access to uid lter.
8. Replaceable Filter
Replaceable air lter to be replaced every 3 months
or 300 operating hours.
9. Diagnostic Center
LED lights provide information to help customer service
representatives more quickly and accurately diagnose issues.
10. Hour Meter
Logs running time of sprayer to assure proper
maintenance.
11. Model Information
bCOOL Cordless Cooling Device
Model: BC-BBP2624
Serial No: BC-BBP262400001
12. Upper Mounting Points for Harness Assembly
Upper position points for mounting backpack harness.
Adjustable depending on operator size. See harness
assembly section of manual for instructions.
13. Lower Mounting Points for Harness Assembly
Lower position points for mounting backpack harness.
See harness assembly section of manual for instructions.
14. Battery Module
Houses 24V battery to supply system power.
1
5
2
3
6
13
12
14
8 | ENGLISH BYOPLANET.COM
8
910 11
7
4

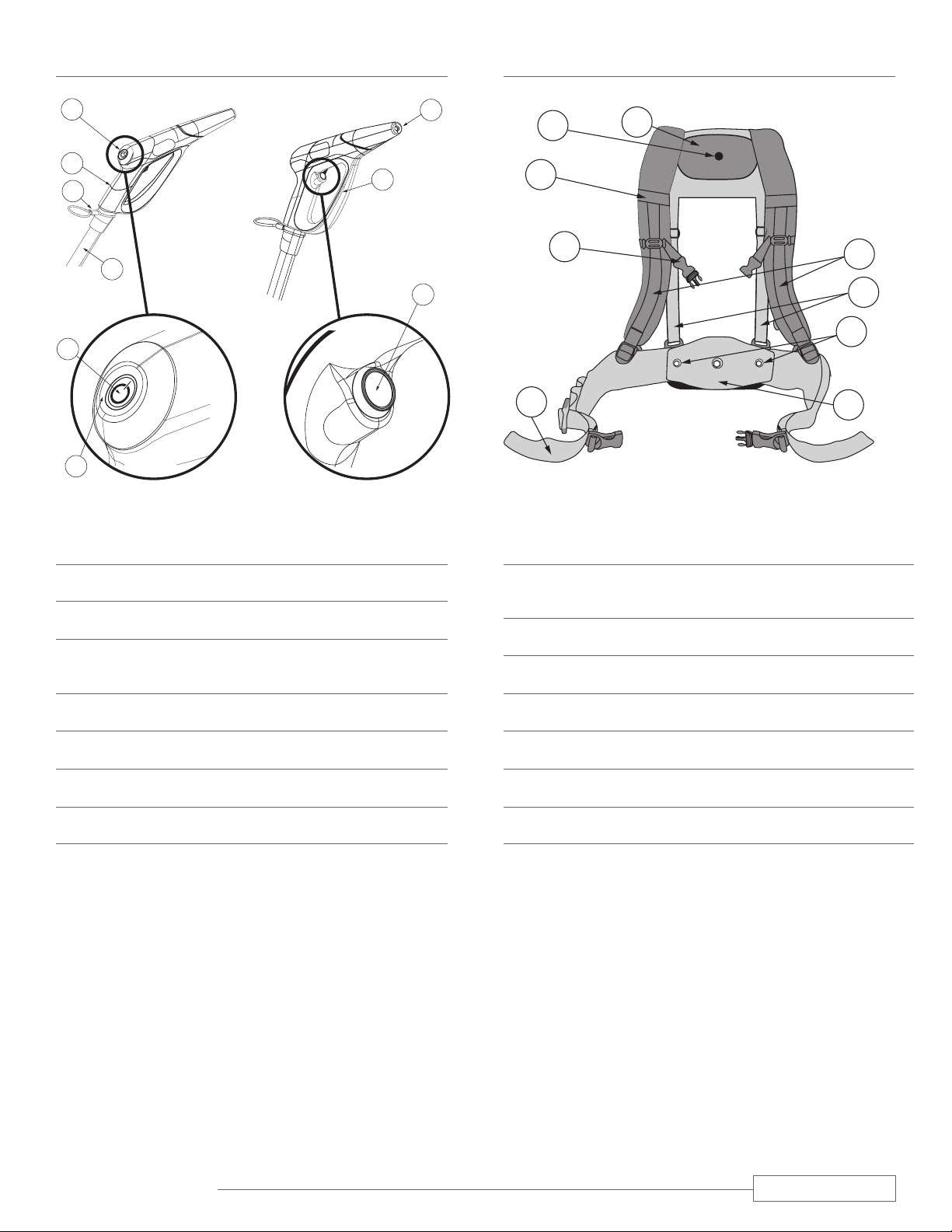

Spray Wand Assembly
1
5
6
4
2
9
8
7
3
1. Main Control Panel
Indicates the power and sprayer are on.
2. Main Power Button
Initiates power to the sprayer.
3. Spray "On/Off" Illuminated Indicator
Indicates activation of liquid spray.
4. Loom Assembly
Connects the electrical line, liquid line, and air line from the
backpack to the spray wand.
5. Spray Wand Handle
Textured handle positioned for ambidextrous use.
6. Lanyard
Attachment point for clipping wand to backpack.
7. Nozzle Assembly
Located on the front of the sprayer.
8. Sprayer Control Trigger Guard
Houses electrical components and protects trigger button.
9. Spray Button
Initiates liquid spray.
Harness Assembly
1
2
3
4
5
6
7
8
9
ENGLISH | 9
BYOPLANET.COM
1. Upper Harness
Breathable padded back support for ventilation and comfort.
2. Upper Attachment Bolt
Secures upper harness to backpack sprayer.
Can be adjusted to t the operator.
3. Wand Attachment Clip
Clip for temporary spray wand storage.
4. Sternum Strap/Buckle
Strap to ensure even weight distribution.
5. Waist Strap/Buckle
Strap to ensure even weight distribution.
6. Shoulder Straps
Breathable padded mesh shoulder straps.
7. Tensioning Straps
Used to lengthen or shorten the backpack shoulder straps.
8. Lower Attachment Bolts (2)
Secures lower back plate to backpack.
9. Lower Back Plate
Breathable padded lower back support for ventilation
and comfort

Battery Assembly Charger Assembly
3
2
4
5
1
2
3
4
1
10 | ENGLISH BYOPLANET.COM
1. Battery Charger
Plugs into AC power outlet to recharge the 24V battery.
2. Barrel Connector
Insert connector into battery charging port to prepare
for charging.
3. Charge Status LED
Indicates battery charging status. Red LED indicates the
battery is charging, green LED indicates the battery is
fully charged.
4. Type A Plug
Plugs into a 110V wall outlet receptacle to charge battery.
1. 24V Lithium Ion Battery
Provides power to the sprayer.
2. Battery ON/OFF Switch
Initiates and shuts off power to the sprayer.
3. Charging Port
Inlet for battery charger barrel connector to
charge battery.
4. State of Charge Indicator
Press button to illuminate LEDs that indicate battery
charge state. Single red LED indicates low battery /
charging required.
5. Handle
Allows for insertion and removal of battery from
battery module.
2
