BZB Gear BG-PSC11X2-HDBT User manual

USER MANUAL
BG-PSC11X2-HDBT
4K 11x2 HDMI Multi-format Presentation Scaler Switcher

2
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.

3
Table of Content
Introduction ...................................................................................................................4
Features .........................................................................................................................4
Panel Descriptions .........................................................................................................5
Front Panel.............................................................................................................5
Rear Panel ..............................................................................................................7
Remote Control Description ..........................................................................................9
Application Diagram ....................................................................................................10
Specifications ...............................................................................................................10
RS-232 Pin Assignment ................................................................................................11
RS232 and Telnet Commands......................................................................................11
Package Contents.........................................................................................................13
Maintenance ................................................................................................................14
Warranty Policy............................................................................................................14
Limitations of Warranty...............................................................................................14
Exclusive Remedies......................................................................................................15
RMA Policy ...................................................................................................................15
Standard Replacement.........................................................................................15
Once you have obtained an RMA number ..........................................................16
Please note:..........................................................................................................16
Warranty Information (Second Year Assurance).........................................................17
Mission Statement.......................................................................................................18

4
Introduction
The BG-PSC11X2-HDBT is a multi-format video presentation scaler switch with audio. It features
11 inputs of various video formats including HDMI, VGA, Component, Composite, and HDBaseT
with HDMI and HDBaseT outputs. Video can be scaled to various aspect ratios and resolutions
from 640x480 up to 1920x1080 @ 60Hz.
Embedded splitter and dual switcher modes, it can work as 11:1x2 multiple splitter and 5x1
&11x1 dual switcher. It also features a switchable digital bypass output allowing any HDMI
input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced
audio embedding and de-embedding, it can provide flexible audio signal integration. Each
source can be switched to the HDMI output using the front-panel, IR remote control or RS-232
interface.
The BG-PSC11X2-HDBT integrates easily in various analog to digital applications such as
when used in collaboration environments, lecture halls, conference rooms, classrooms,
healthcare facilities and control centers.
Features
•Switch & Scale 11-inputs to 2 HD/UHD displays.
•4x HDMI, 4x VGA, 1x YPbPr, 1x Composite, 1xHDBaseT Inputs.
•2 simultaneous outputs (1x HDMI, 1x HDBaseT), bypass and scaled formatted output
selectable.
•Dual mode selectable (1x2 Splitter Mode and 5x1 &11x1 Dual Switcher Mode).
•Scaling from 640x480 to 1920x1080 @ 60Hz.
•HDTV formats up to 4K@30Hz.
•HDBaseT POE Transmitter & Receiver supports distance up to 330ft /100m.
•With built in Ethernet Hub.
•HDCP 1.4 compliant.
•Audio embedder and audio extractor.
•OSD menu for volume control and resolution selection.
•Controllable via front panel, IR remote, TCP/IP or RS232.
•Front-panel LCD display for status feedback.
•Easy installation with rack-mounting ears.

5
Panel Descriptions

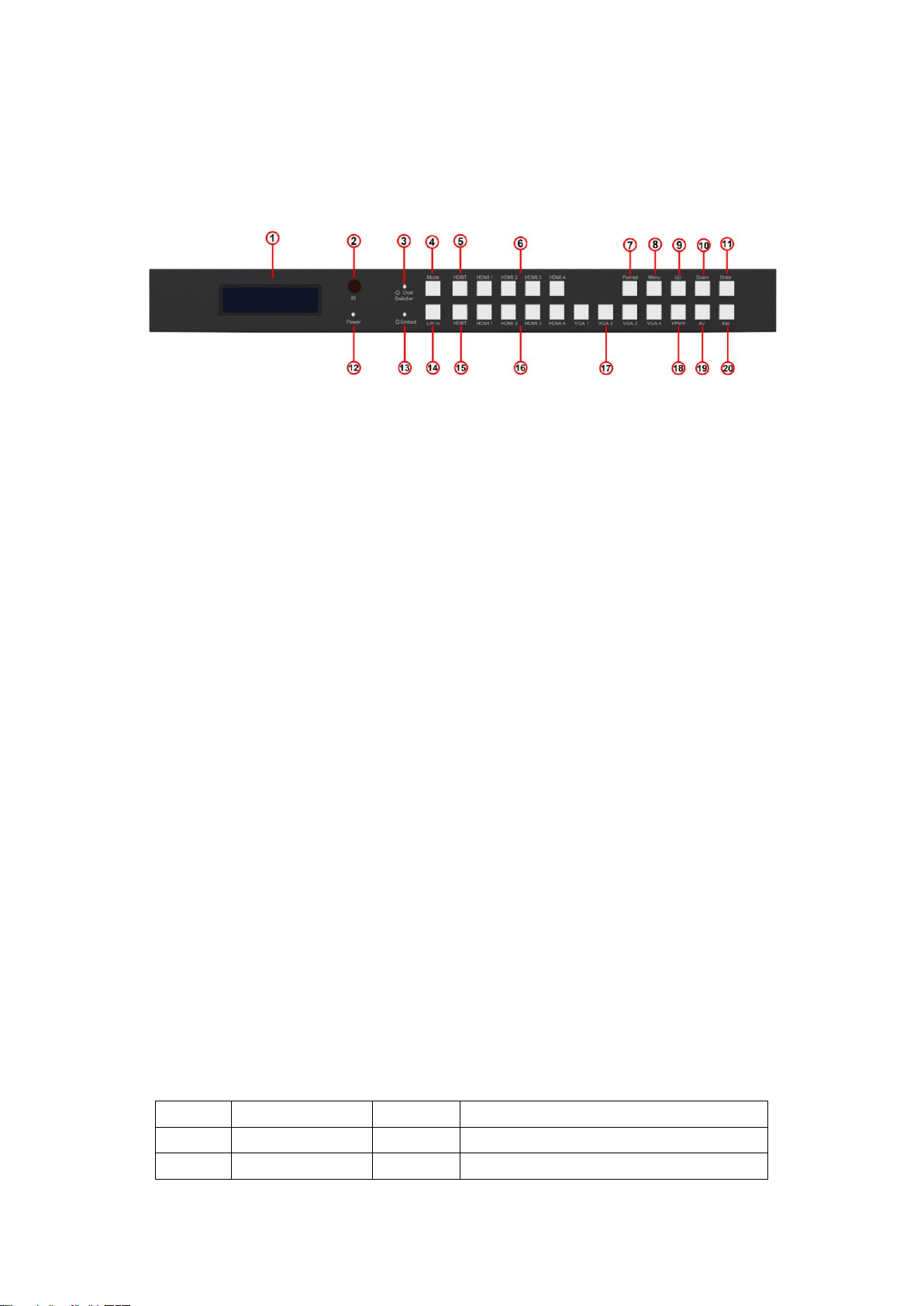

Front Panel
①LCD display---Show the status of input-output selection, EDID info and so on.
②IR receiver window----Receive the IR from the remote control of BG-PSC11X2-HDBT.
③Dual switcher LED indicator---When the LED is lit, dual switcher mode is on. Output HDMI
1 is selected by HDBT/HDMI1/HDMI2/HDMI3/HDMI4 which works as 4K 5x1 switcher in
by-pass mode; Output HDMI2 is selected by HDBT/HDMI1/HDMI2/HDMI3/HDMI4/VGA1
/VGA2/VGA3/VGA4/YPbPr/AV, it will always be scaled & formatted output regardless of
by-pass ON/OFF, works as scaling 11x1 switcher,
④Mode button---Press to set Dual Switcher mode ON/OFF.
⑤HDBT input selection button---Press to select the output 1 from HDBT input working as 4k
5x1 switcher.
⑥HDMI input 1 to 4 selection buttons---Press to select the output 1 from 1 to 4 working as
4k 5x1 switcher.
⑦Format set button---Press to set the resolution for the output.
⑧Menu button---Press to enter EDID set, volume setting or F/W information. Three EDID
segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for example:
IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1. The blinking segment is
the one can be changed currently; press “Menu”button will change the segment.
Segment content items as below:
INPUT
VIDEO
AUDIO
Note
IN1
1080I
2.0CH.
IN2
1080P
5.1CH

6
IN3
3D
7.1CH
IN4
4K2K
NONE
IN5
D1024
D1024=DVI 1024 x 768
IN6
D1080
D1080=DVI 1920 x 1080
IN7
D1200
D1200=DVI 1920 x 1200
IN8
OUT1
OUT1=Copy OUTPUT1 EDID to INPUTx
IN9
OUT2
OUT2=Copy OUTPUT2 EDID to INPUTx
IN10
IN11
ALL
ALL=Set EDID to ALL INPUTs
Note: Volume can be changed by UP and Down button. During F/W mode，press Enter
button will show the current F/W information.
⑨Up selection button--- Press to change segment’s value.
⑩Down selection button---Press to change segment’s value.
⑪Enter button--- Press to confirm the settings.
⑫Power LED indicator---Indicate the status of power.
⑬Embed LED indicator ---When the LED is lit, embed mode is on. When embed in on, the
L/R in will be embedded in to the HDMI outputs (The two outputs will be embedded with
the L/R in audio and the volume is adjustable)
⑭L/R in selection button---Press to embed L/R audio to the HDMI output.
⑮HDBT input selection button ---Press to select HDBT input.
⑯HDMI input selection button 1 to 4---Press to select the input from 1 to 4.
⑰VGA input selection button---Press to select VGA input.
⑱YPbPr input selection button---Press to select YPbPr input.
⑲AV input selection button---Press to select AV input.
⑳ESC---Press to quit EDID set mode.

7

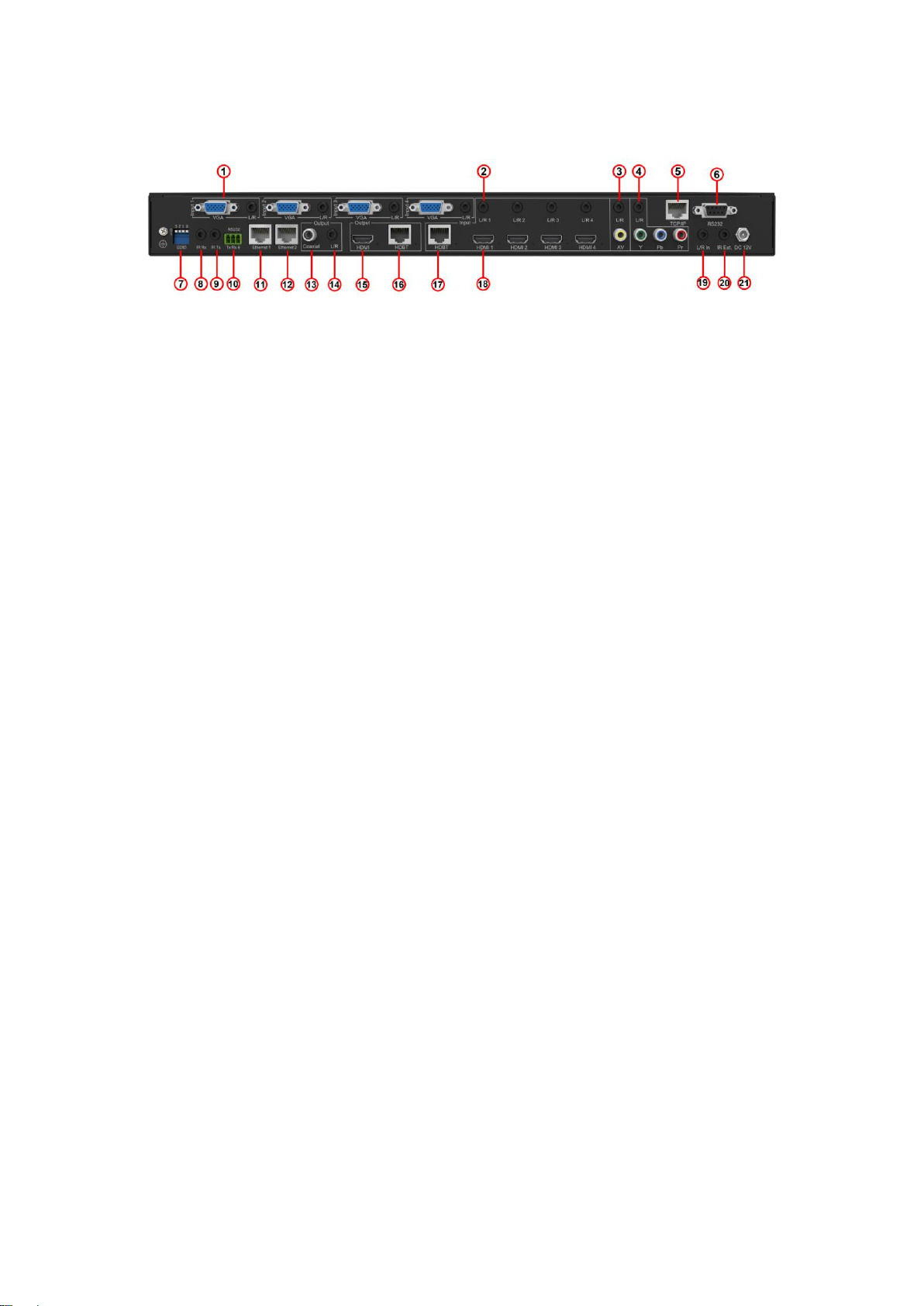

Rear Panel
①VGA input 1 to 4--- VGA input 1 to 4 with L/R audio input.
②L/R In 1 to 4--- Connect to addition audio input to embed to HDMI output 1 to 4.
③AV input--- AV input with L/R audio input.
④YPbPr input--- YPbPr input with L/R audio input.
⑤TCP/IP---Connect to Ethernet for control.
⑥RS232 port--- DB9 connector for local control only.
⑦DIP switcher---EDID settings.
[DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=1111: Copy EDID from HDMI output, i.e., EDID pass through
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2CH PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 1080p@60Hz/3D, Audio 2CH PCM
[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K2K, Audio 2CH PCM
[DIP]=1010: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
⑧IR RX---Connect to IR receiver cable.
⑨IR TX--- Connect to IR emitter cable.
⑩Phoenix terminal---Work with HDBT Transmitter / Receiver for RS232 pass through.
⑪Ethernet port—Connect to Ethernet. (Embedded Ethernet hub)
⑫Ethernet port--- Connect to Ethernet port. (Embedded Ethernet hub)

8
⑬Coaxial audio output --- It will always follow HDMI output 2.
⑭L/R audio output--- It will always follow HDMI output 2.
⑮HDMI output--- Connect to HDTV.
⑯HDBT output---Connect to HDBT class A receiver
⑰HDBT input--- Connect to HDBT class A transmitter.
⑱HDMI input 1 to 4 ---Connect to HDMI sources
⑲L/R In --- Connect to Global Audio Input to embed to both HDMI outputs.
⑳IR Ext. --- Connect to IR receiver cable.
○
21 DC 12V---Connect to 12V/5A power supply.

9
Remote Control Description
HDMI1 Out: Source selection for HDMI
output 1 when in Matrix Switcher mode.
HDMI2/HDBT Out: Source selection for
HDMI output 2 when in Matrix Switcher
mode or when in Splitter mode
Format: Video output resolution selection.
The BG-PSC11X2-HDBT includes in-built
video scaler. Press the required resolution
button on remote control to change the
HDMI output video resolution.
Setting:
Bypass: Audio on HDMI outputs is from
HDMI input selected.
Mute: Mutes the audio on all outputs
(HDMI, Coaxial digital and Analogue
audio)
Mode: Switches between Matrix
Switcher mode and Splitter mode
Embed: Audio on HDMI outputs is from
L/R Analogue audio input (3.5mm Jack)
Volume: Adjust the audio Volume on all
outputs (HDMI, Coaxial digital and Analogue
audio)

10
Application Diagram
Specifications
Bandwidth：
10.2Gbps
Video Input Connectors:
4x HDMI Type A, 4x VGA, 1x RJ45, 1xYPbPr, 1x AV
Video Output Connectors:
1x HDMI Type A, 1x RJ45
Audio Input Connectors:
11x 3.5mm stereo jack
Audio Output Connectors:
1x 3.5mm stereo jack,1x RCA (SPDIF)
RS-232 serial port:
1x DB 9 connector,1x 3 phoenix terminal
TCP/IP
1x RJ45
IR Input ports:
2x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
Dimensions (W x H x D):
438mm x 225mm x 44mm , without feet
Shipping Weight:
1.2Kg
Operating Temperature:
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
Power Supply:
DC 12V/5A

11
RS-232 Pin Assignment
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
RS232 and Telnet Commands
No.
Command
Action
1
?
Print Help Information
2
HELP
Print Help Information
3
STATUS
Print System Status And Port Status
4
PON
Power On, System Run On Normal State
5
POFF
Power Off, System Run On Power Save State
6
IR ON/OFF
Set System IR Control On Or Off
7
KEY ON/OFF
Set System KEY Control On Or Off
8
DBG ON/OFF
Set Debug Mode On Or Off
9
BEEP ON/OFF
Set Onboard Beep On Or Off
10
LCD ON/OFF
Set LCD Always On Or Auto Turn Off In Power On State
BG-PSC11X2-HDBT
Remote Control
Console
PIN
Assignment
PIN
Assignment
1
NC
1
NC
2
Tx
2
Rx
3
Rx
3
Tx
4
NC
4
NC
5
GND
5
GND
6
NC
6
NC
7
NC
7
NC
8
NC
8
NC
9
NC
9
NC

12
11
RESET
Reset System To Default Setting (Should Type "Yes" To
Confirm, "No" To Discard)
12
IR232 vv
Set IR And RS232 Connect To Remote Valens RX/TX
vv=OFF: Disconnect With Valens
vv=RRX: Remote Valens RX
vv=RTX: Remote Valens TX
vv=BOTH: Remote Valens RX and TX
13
OUT xx FR yy
Set OUTPUT:xx From INPUT:yy
xx=00: Select All OUTPUT Port
xx=[01...02]: Select One OUTPUT Port
yy=[01...04]: HDMI Input 01 ~ 04
yy=HDBT: HDBT/Valens Input
yy=AV: AV Input( Output 02 Only )
yy=YPBPR: Component Input( Output 02 Only )
yy=VGA1...VGA4: VGA Input( Output 02 Only )
14
OUT BYP ON/OFF
Set HDMI Input Signal Through Scaler or Bypass
15
OUT SP/MX
Set OUTPUT To Splitter or Matrix Mode
16
OUT RES rr
Set Scaler Output Resolution (Change Output Resolution Will
Effect EDID Setting)
rr=01: 1080P@50Hz
rr=02: 1080P@60Hz
rr=03: 720P@50Hz
rr=04: 720P@60Hz
rr=05: 1280x1024@60Hz
rr=06: 1024x768@60Hz
rr=07: 1360x768@60Hz
rr=08: 1440x900@60Hz
rr=09: 1680x1050@60Hz
17
OUT FREQ mm
Set Output Frequence Mode (When Output Resolution is
1080P or 720P)
mm=AUTO: Set Output Freq Auto Change To Input Freq
mm=FORCE: Set Output Freq By CMD:OUT RES rr Select
18
AUD SCA ORG
Scaler Audio Input Follow Port Selection
19
AUD SCA ANA
Scaler Audio Input From Analog L/R Signal
20
AUD HDMI yy ORG
HDMI Input:yy Use Orginal HDMI/DVI Signal
Signal yy=[01...04]: HDMI Input 01 ~ 04
21
AUD HDMI yy ANA
HDMI Input:yy Embeded Analog L/R
Signal yy=[01...04]: HDMI Input 01 ~ 04
22
AUD HDMI yy AUTO
HDMI Input:yy Embeded Analog L/R When Input is DVI signal
Signal yy=[01...04]: HDMI Input 01 ~ 04

13
23
VOL xx
Set Scaler Audio Volume
xx=[00...30]: Volume Value
xx=+: Volume Increase
xx=-: Volume Decrease
24
EDID xx CP yy
Set Input:xx EDID Copy From Output:yy
xx=00: Select All INPUT Port
xx=01: Select HDBT INPUT Port
xx=[02...05]: Select HDMI INPUT:01~04 Port
yy=[01...02]: Select One OUTPUT Port
25
EDID xx DF zz
Set Input:xx EDID To Default EDID:zz
(cmd: OUT RES rr Will Effect EDID Setting)
xx=00: Select All INPUT Port
xx=01: Select HDBT INPUT Port
xx=[02...05]: Select HDMI INPUT:01~04 Port
zz=00: PC 1080p, HDMI 1080p, 2CH PCM
zz=01: PC 1080p, HDMI 1080p, 5.1CH PCM/DTS/DB
zz=02: PC 1080p, HDMI 1080p, 7.1CH PCM/DTS/DB/HD
zz=03: PC 1080i, HDMI 1080i, 2CH PCM
zz=04: PC 1080i, HDMI 1080i, 5.1CH PCM/DTS/DB
zz=05: PC 1080i, HDMI 1080i, 7.1CH PCM/DTS/DB/HD
zz=06: PC 1080p, HDMI 3D, 2CH PCM
zz=07: PC 1080p, HDMI 3D, 5.1CH PCM/DTS/DB
zz=08: PC 1080p, HDMI 3D, 7.1CH PCM/DTS/DB/HD
zz=09: PC 4K2K, HDMI 4K2K, 2CH PCM
zz=10: PC 4K2K, HDMI 4K2K, 5.1CH PCM/DTS/DB
zz=11: PC 4K2K, HDMI 4K2K, 7.1CH PCM/DTS/DB/HD
zz=12: DVI 1280x1024@60Hz, Audio None
zz=13: DVI 1920x1080@60Hz, Audio None
zz=14: DVI 1920x1200@60Hz, Audio None
Package Contents
1x BG-PSC11X2-HDBT.
1x 12V/5A power supply.
1x Remote control.
3x IR Emitter
4x IR Receiver.
1x Rack-mounting ears

14
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this
unit.
Warranty Policy
BZBGEAR products are warranted against defects in material and workmanship for one year
from the date of shipment. During the warranty period, BZBGEAR will, at its option, repair or
replace products that prove to be defective. Repairs are warranted for the remainder of the
original warranty.
For equipment under warranty, the owner is responsible for freight to BZBGEAR and all
related customs, taxes, tariffs, insurance, etc. BZBGEAR is responsible for the freight charges
only for return of the equipment from the factory to the owner. BZBGEAR will return the
equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to
BZBGEAR.
All equipment returned for warranty repair must have a valid RMA number issued prior to
return and be marked clearly on the return packaging. BZBGEAR strongly recommends all
equipment be returned in its original packaging.
BZBGEAR’s obligations under this warranty are limited to repair or replacement of failed parts,
and the return shipment to the buyer of the repaired or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed, altered, repaired,
or misused in any way that, in the opinion of BZBGEAR, would affect the reliability or detracts
from the performance of any part of the product, or is damaged as the result of use in a way or
with equipment that had not been previously approved by BZBGEAR.
The warranty does not apply to any product or parts thereof where the serial number or the
serial number of any of its parts has been altered, defaced, or removed.
The warranty does not cover damage or loss incurred in transportation of the product.

15
The warranty does not cover replacement or repair necessitated by loss or damage from any
cause beyond the control of BZBGEAR, such as lightning or other natural and weather-related
events or wartime environments.
The warranty does not cover any labor involved in the removal and or reinstallation of
warranted equipment or parts on site, or any labor required to diagnose the necessity for repair
or replacement.
The warranty excludes any responsibility by BZBGEAR for incidental or consequential
damages arising from the use of the equipment or products, or for any inability to use them
either separate from or in combination with any other equipment or products.
A fixed charge established for each product will be imposed for all equipment returned for
warranty repair where BZBGEAR cannot identify the cause of the reported failure.
Exclusive Remedies
BZBGEAR’s warranty, as stated is in lieu of all other warranties, expressed, implied, or
statutory, including those of merchantability and fitness for a particular purpose. The buyer
shall pass on to any purchaser, lessee, or other user of BZBGEAR’s products, the
aforementioned warranty, and shall indemnify and hold harmless BZBGEAR from any claims
or liability of such purchaser, lessee, or user based upon allegations that the buyer, its agents,
or employees have made additional warranties or representations as to product preference or
use.
The remedies provided herein are the buyer’s sole and exclusive remedies. BZBGEAR shall
not be liable for any direct, indirect, special, incidental, or consequential damages, whether
based on contract, tort, or any other legal theory.
RMA Policy
When returning product to BZBGEAR for any reason, the customer should fill out the official
RMA form to obtain an RMA number. Without the permission or approval, BZBGEAR will not
be responsible for any return. This can be initiated by emailing or calling your related sales. All
requests are processed within 48 hours.
Standard Replacement
For customers that agree to return defective product to BZBGEAR first, a Standard
Replacement option is available.

16
An RMA number must first be issued by sales. This RMA number will need to be referenced on
the outside of the return shipment.
Upon receipt of the defective product, BZBGEAR will, at its discretion, either repair or replace
the product and ship it out in the most expeditious manner possible. Subject to availability, the
replacement product will be shipped on the business day following receipt of the defective
product.
In the event the product returned to BZBGEAR has been discontinued (i.e. the product is no
longer being manufactured by BZBGEAR but is still under warranty), BZBGEAR will, at its
discretion, either repair or replace with recertified product.
Once you have obtained an RMA number
After obtaining an RMA number from BZBGEAR, you must send the product - freight prepaid -
to BZBGEAR. The BZBGEAR RMA number must be prominently displayed on the outside of
your package. If you send your product to BZBGEAR without the RMA number prominently
displayed on the outside of the package, it will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery. BZBGEAR does not
accept responsibility for any lost shipments unless proof of delivery to BZBGEAR is provided.
Please note:
Product shipped to BZBGEAR must be properly packaged to prevent loss or damage in
transit.
Shipping your RMA to BZBGEAR using regular mailing envelopes is not acceptable, as they
do not protect the product from damage during shipping.
BZBGEAR will not repair or replace a module that is shipped in such a way that the product is
not properly protected.
BZBGEAR will not accept any product that has been damaged as a result of accident, abuse,
misuse, natural or personal disaster, or any unauthorized disassemble, repair or modification.

17
Warranty Information (Second Year Assurance)
BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our
products that along with the manufacturer's one-year limited warranty, we are offering free
second-year warranty coverage upon registration*!
Taking advantage of this program is simple, just follow the steps below:
1. Register your product within 90 days of purchase by visiting BZBGEAR.com/warranty.
2. Complete the registration form. Provide all necessary proof of purchase details, including
serial number and a copy of your sales receipt.
For questions, please call 1.888.660.2962 or email [email protected].
For complete warranty information, please visit BZBGEAR.com/warranty or scan the QR code
below.
*Terms and conditions apply. Registration is required.

18
Mission Statement
BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while
keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only
adds to it. We believe everyone deserves to see, hear, and feel the advancements made in
today’s AV world without having to break the bank. BZBGEAR is the solution for small to
medium-sized applications requiring the latest professional products in AV.
We live in a DIY era where resources are abundant on the internet. With that in mind, our team
offers system design consultation and expert tech support seven days a week for the products
in our BZBGEAR catalog. You’ll notice comparably lower prices with BZBGEAR solutions, but
the quality of the products is on par with the top brands in the industry. The unparalleled
support from our team is our way of showing we care for every one of our customers. Whether
you’re an integrator, home theater enthusiast, or a do-it-yourselfer, BZBGEAR offers the
solutions to allow you to focus on your project and not your budget.
