BZB Gear BG-IPGEAR-4K User manual

BG-IPGEAR-4K
4K@30Hz UHD HDMI 2.0 AV over IP Multicast System
with Video Wall & PoE Support
User Manual

BZBGEAR IPGEAR-4K PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR IPGEAR-4K PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 6
Connection Diagram 6
BG-VOP-CB Packing List 7
BG- VOP-CB Specifications 7
BG-VOP-CB Panel Descriptions 7
BG-VOP-MT Packing List 8
BG-VOP-MT Specifications 8
BG-VOP-MT Panel Descriptions 9
IR Passthrough 10
System Requirements 11
System Setup 11
Web Control 15
Mapping 16
Groups 18

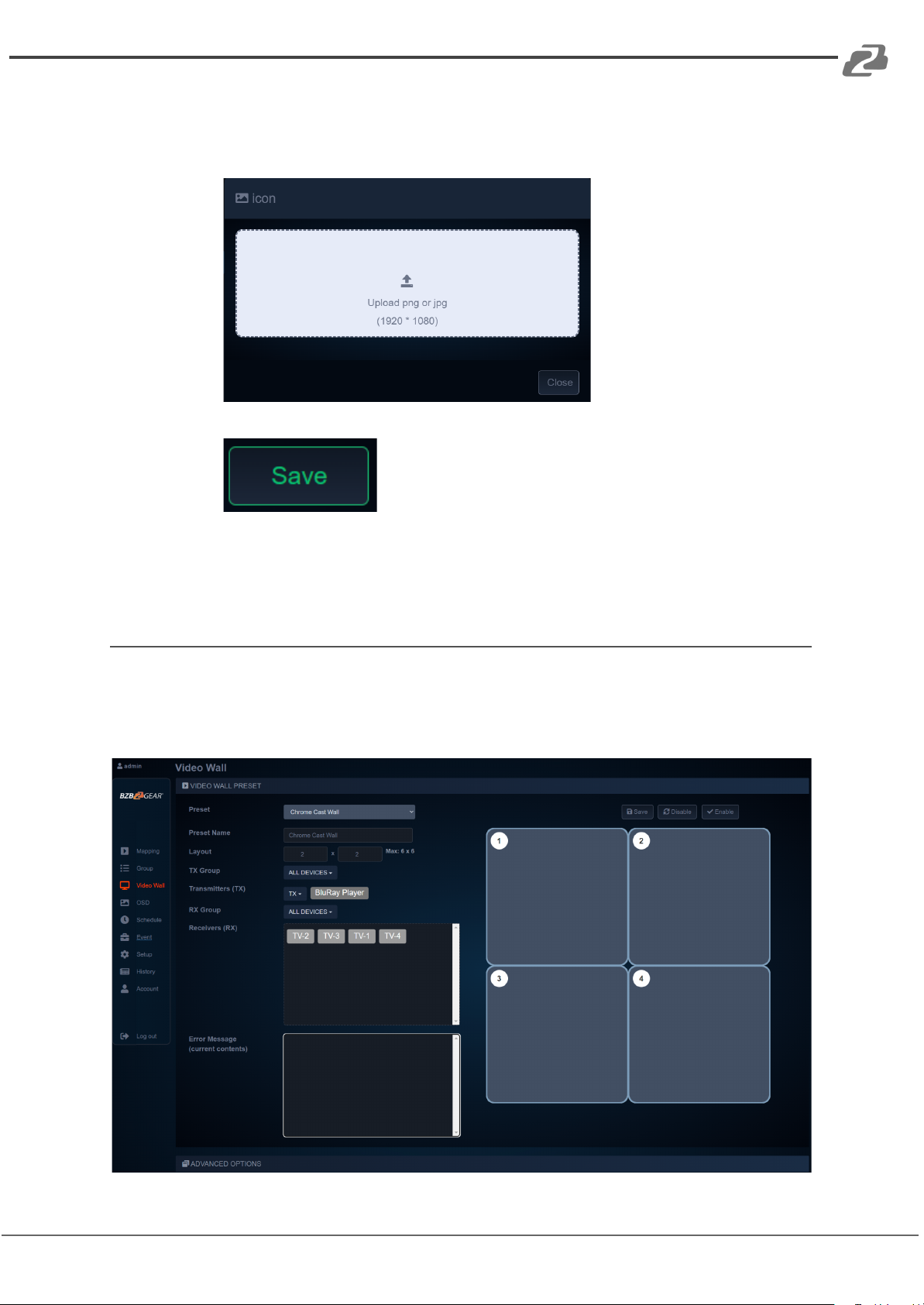

Video Wall Setup 20
On Screen Display (OSD) 24
Schedule (OSD) 25
Setup 26
History 29
Account 30
BZBGEAR Switcher Control Application 31
Troubleshooting 39
Tech Support 40
Warranty 40
Mission Statement 40
Copyright 40
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR IPGEAR-4K PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●Unplug this device during lightning storms
●Clean only with a soft dry microfiber cloth.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Only use accessories specified by the manufacture
●Product specifications may be subject to technical upgrades without further notice
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR IPGEAR-4K PRODUCT MANUAL
Introduction
The BZBGEAR IPGEAR-4K AV over IP (AVoIP) system is composed of three components.
The first is the BG-VOP-CB which is the controller for the system. Next, at least two
BG-VOP-MT transceivers are needed which function as either transmitter or receiver.
The BG-VOP-CB Smart Controller for the IPGEAR-4K system provides central management
and real-time monitoring of the BG-VOP-MT AV over IP transceivers. This highly expandable
system can manage up to 1024 transceivers. The intuitive web-based interface allows users
to quickly change sources using drag and drop commands. The interface also provides
quick and easy creation and management of video walls, custom on screen displays (OSD)
including text and graphics, and alerts for system events to keep administrators up to date.
The BG-VOP-MT is a HDMI 2.0 over IP multicast transceiver with video wall & PoE support.
It can boost audio/video transmission distances up to 120m (396ft) in UHD 4K2K. With
cost-effective ethernet cables, users can easily extend UHD sources such as DVD players,
Blu-ray Disc players, gaming consoles, PCs, and any other HDMI source to any HDMI
display. In addition, BG-VOP-MT is HDCP compliant, and supports PoE, IR, and RS-232
pass-through.
By transmitting the A/V signal over the local area network the BG-VOP-MT makes it easy to
add a source or display to your system anywhere there is an active ethernet connection. To
provide more flexibility for installations, the BG-VOP-MT can work as either a transmitter or
a receiver with the flip of a switch. When combined with broadcasting management
software and a Gigabit Ethernet network switch (supporting IGMP), the BG-VOP-MT is a
complete UHD video broadcasting solution for digital signage. The transceivers can function
in Point-to-Point, Point-to-Many, or Multicast scenarios. Multicasting requires a Managed
Gigabit Ethernet Switch with 802.1Q VLAN functionality to allow multiple video sources.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR IPGEAR-4K PRODUCT MANUAL
Features
●Central Control for the IPGEAR-4K AV over IP system
●Monitors all system devices from one central system
●Optimized for 1 Gigabit networks
●Offers control via the web interface or mobile app (iOS)
●Auto-discovery of transmitters and receivers for easy installation
●One-to-one, one-to-many, & multicasting broadcasting architecture
●Transmitters can be multicast up to 25 displays in video wall applications (5x5) or
unlimited displays in one-to-many multicast applications
●Drag & Drop matrix switching for simple operation
●Quickly and easily create and manage video walls
●Automatically assigns IP addresses to transceivers
●HDMI input up to 4K2K@60 4:4:4 8 bits
●HDMI output up to 4K2K@30 RGB
●High Dynamic Range (HDR)*
●HDMI 2.0a compliant
●HDCP 2.2 compliant
●PoE functionality
●Bi-directional IR
Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR IPGEAR-4K PRODUCT MANUAL
BG-VOP-CB Packing List
●1x BG-VOP-CB
●1x 5v DC power supply
●1x Rack-mounting ear set
●1x User Manual
BG- VOP-CB Specifications
Technical
Usage
IPGEAR-4K System Controller
Inputs
1 x 5VDC, 1 x RJ45, 4 x USB 2.0
Output
1 x HDMI
HDMI Connector
Type A (19-pin female)
RJ-45 Connector
WE/SS 8P8C
Mechanical
Housing
Metal Enclosure (Black)
Dimensions (L x W x H)
90 x 78 x 29mm (Device), 198 x 137 x 74mm (Box)
Weight
222g (Device), 493g (Box)
Mounting Options
Mounting Ears (included)
Power Supply
5V DC
Power Consumption
3.5 Watts max
Operating Temperature
0 - 40°C (32 – 104°F)
Storage Temperature
-20 – 60°C (-4 – 140°F)
Humidity
20 – 90% (Dry)
BG-VOP-CB Panel Descriptions
1. Activity LED - Indicates internal storage activity
2. Power LED - Indicates live power connection
3. +5V DC - Power Connection
4. HDMI Output - System Monitor
5. LAN - Ethernet control port
6. USB - Reserved for factory use
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR IPGEAR-4K PRODUCT MANUAL
BG-VOP-MT Packing List
●1x BG-VOP-MT
●1x IR blaster cable
●1x IR receiver cable
●1x User Manual
BG-VOP-MT Specifications
Technical
HDMI compliance
HDMI 2.0a
HDCP compliance
HDCP 2.2
Input Video
Resolution
Up to 4K2K@30 (4:4:4 8 bits)
Output Video support
Up to 4K2K@30 (RGB)
Latency
2 frames (33 ms) maximum
HDMI over UTP
Transmission [24-bit]
Ultra HD (4K2K60)-120m (396ft) [CAT.X]
Audio Support
Surround sound (up to 7.1ch) or stereo digital
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
IR pass-thru
Full-duplex bi-directional
RS-232 support
Yes
Interface Connections
2x HDMI + 4x 3.5mm + 3x USB + 1x RJ45 + 1x DIN9
HDMI Source Control
Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders
IR remote control
Electro-optical characteristics: τ = 25° / Carrier frequency: 20-60kHz
HDMI connector
Type A [19-pin female]
DB connector
DB-9
RJ45 connector
WE/SS 8P8C with 2 LED indicators
3.5mm connectors
IR blaster (blue), IR receiver (green), Audio in/out (2x black)
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model 180 x 142 x 28mm [7" x 5.5" x 3.2"]
Package 264 x 170 x 77mm [10.3" x 6.7" x 3"]
Carton 430 x 358 x 291mm [1'4" x 1'2" x 11.5"]
Weight
Model 664g [23 oz]
Package 889g [2 lbs]
Surface Mounts
Optional Wall-mounting brackets with screws included
Power Supply
5V 2A DC / 48V POE
Power Consumption
7.5 Watts [max]
Operation
Temperature
0~40°C [32~104°F]
Storage Temperature
-20~60°C [-4~140°F]
Relative Humidity
20~90% RH [no condensation]
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR IPGEAR-4K PRODUCT MANUAL

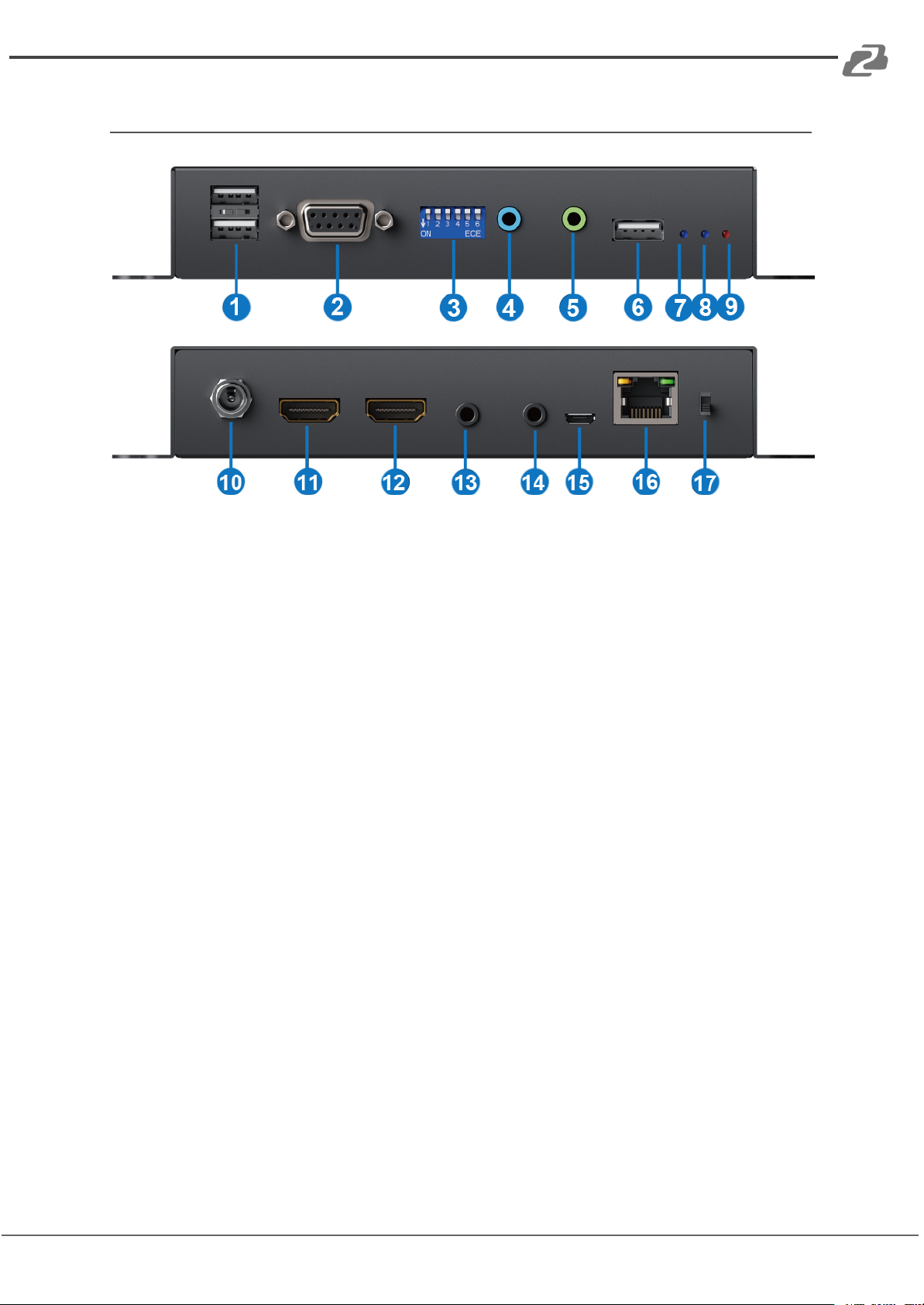

BG-VOP-MT Panel Descriptions
1. USB (USB 2.0 downstream port): Connect to USB flash drive or other USB devices
(when device is configured as RX)
2. RS-232: Connect to PC with a DB-9 cable
3. Dip Switch: Video channel selection
4. IR Blaster: Infrared 3.5mm socket for extension cable of IR blaster
5. IR Receiver: Infrared 3.5mm socket for extension cable of IR receiver
6. USB: Connect to upstream USB host (device configured as TX)
7. Link LED indicator:
[Blinking] When unit is connected to a category cable
[Solid] When transmitting unit is connected to a HDMI source and linked to the RX unit
8. System LED indicator:
[Blinking] When the unit is connected to a power supply unit
[Solid] Device is working normally
9. Info LED indicator: When the user clicks the LED button in the software, the LED light
will blink 30 seconds.
10. +5V DC: Connect to 5V DC power supply
11. HDMI IN: Connect to a HDMI source.
12. HDMI OUT: Connect to a HDMI display.
13. Analog audio line in: Connect to upstream audio output (device configured as TX)
14. Analog audio line out: Connect to downstream headphone output (device configured
as RX)
15. Micro-USB: for F/W updates
16. RJ-45: Gigabit Ethernet port
17. Dip Switch: configures as a transmitter or receiver
[] configure as a transmitter
[] configure as a receiver
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR IPGEAR-4K PRODUCT MANUAL

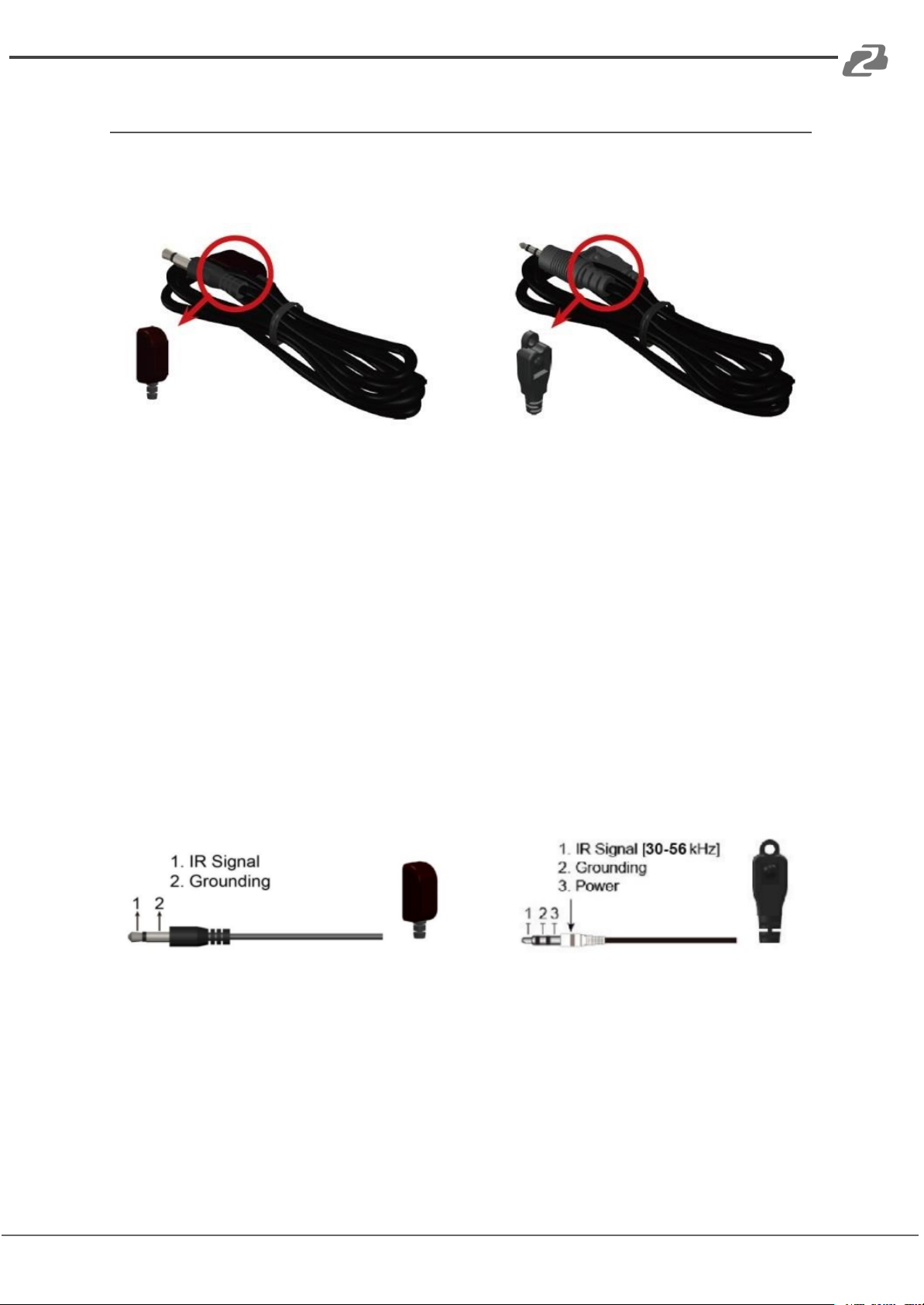

IR Passthrough
[IR Extenders]
IR Blaster IR Receiver
[IR Sockets]
IR BLASTER: Plug in the IR blaster to emit all IR command signals received from the IR
receiver from the other end to control the devices corresponding to the IR signals.
IR RECEIVER: Plug in the IR receiver to receive all IR command signals from the IR remote
controls of the corresponding devices.
CAUTION!
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders.
Please check carefully before plugging in the IR extender to the respective IR sockets.
Warranty will not cover the damage.
[Definition of IR Earphone Jack]
IR Blaster IR Receiver
NOTE: Users can buy any IR extension cables on the market that are compatible with the IR
sockets and extender for replacement use shown in the diagram above. IR cables longer
than 2m (6ft) may not work.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR IPGEAR-4K PRODUCT MANUAL
System Requirements
For the BZBGEAR AVoIP system to function as intended the following items are needed:
●x2 BG-VOP-MT transceivers
●x1 BG-VOP-CB smart controller
●Managed network switch
To ensure complete and reliable functionality any switch selected for an AVoIP system must
meet the requirements below and support the following features:
●Layer 2 or Layer 3 Managed Switch
●1 Gigabit Throughput minimum, 10 Gigabit recommended for larger deployments
●Multicast forwarding or filtering
●IGMP Snooping
●IGMP Querier
●Must support Jumbo Frames (8000 bytes or larger). This may be listed as MTU
(Maximum Transmission Unit) or Jumbo Packets
When using multiple switches these additional features are required:
●Dynamic Multicast Router Port
●Forward Unknown Multicast to Router Port
Note: It is recommended that all listed features are applied to every network switch that
contains the same LAN/VLAN as the AVoIP system. When using PoE (Power over Ethernet)
to power the transceivers allow for a PoE budget of 7.5 watts per unit. For example, if using
10 units make sure the switch has a total PoE budget of at least 75 watts.
For information on how to configure one of BZBGEAR’s recommended and tested AVoIP
network switches, please visit our webpage for this product.
System Setup
The following instructions assume your network can support the IPGEAR-4K AVoIP system
and is already configured properly.
1. The transceivers can function either as a transmitter or receiver by toggling the
switch on the unit to the desired position. There must be at least one transmitter and
one receiver in the system.
[Up] configure as a
transmitter
[Down] configure as a
receiver
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR IPGEAR-4K PRODUCT MANUAL
2. Once the units are assigned as transmitter or receiver the ID of the unit will need to
be set using the dipswitch panel.
●Transmitter
needs to have an
individual ID so
they do not
conflict in the control system. Please see the dipswitch setting chart for proper
configuration for large scale deployments.
●Receivers can be set to receive signal from any transmitter or a specific one. To
receive signal from any transmitter, leave all dip switches in the 0 position (up). To
receive signal from a specific transmitter, toggle the dip switches on the receiver to
match the positions on the desired transmitter.
TX/RX Group ID Dip Switch Settings
1. For IDs 1~63, please refer the table below to set up (Hardware control)
2. For IDs 64~1023, please adjust the DIP switch to ID 0, and the real ID can be decided by
the external software (Software control).
ID
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
ID
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
0
↑
↑
↑
↑
↑
↑
32
↑
↑
↑
↑
↑
↓
1
↓
↑
↑
↑
↑
↑
33
↓
↑
↑
↑
↑
↓
2
↑
↓
↑
↑
↑
↑
34
↑
↓
↑
↑
↑
↓
3
↓
↓
↑
↑
↑
↑
35
↓
↓
↑
↑
↑
↓
4
↑
↑
↓
↑
↑
↑
36
↑
↑
↓
↑
↑
↓
5
↓
↑
↓
↑
↑
↑
37
↓
↑
↓
↑
↑
↓
6
↑
↓
↓
↑
↑
↑
38
↑
↓
↓
↑
↑
↓
7
↓
↓
↓
↑
↑
↑
39
↓
↓
↓
↑
↑
↓
8
↑
↑
↑
↓
↑
↑
40
↑
↑
↑
↓
↑
↓
9
↓
↑
↑
↓
↑
↑
41
↓
↑
↑
↓
↑
↓
10
↑
↓
↑
↓
↑
↑
42
↑
↓
↑
↓
↑
↓
11
↓
↓
↑
↓
↑
↑
43
↓
↓
↑
↓
↑
↓
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 12

BZBGEAR IPGEAR-4K PRODUCT MANUAL
ID
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
ID
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
12
↑
↑
↓
↓
↑
↑
44
↑
↑
↓
↓
↑
↓
13
↓
↑
↓
↓
↑
↑
45
↓
↑
↓
↓
↑
↓
14
↑
↓
↓
↓
↑
↑
46
↑
↓
↓
↓
↑
↓
15
↓
↓
↓
↓
↑
↑
47
↓
↓
↓
↓
↑
↓
16
↑
↑
↑
↑
↓
↑
48
↑
↑
↑
↑
↓
↓
17
↓
↑
↑
↑
↓
↑
49
↓
↑
↑
↑
↓
↓
18
↑
↓
↑
↑
↓
↑
50
↑
↓
↑
↑
↓
↓
19
↓
↓
↑
↑
↓
↑
51
↓
↓
↑
↑
↓
↓
20
↑
↑
↓
↑
↓
↑
52
↑
↑
↓
↑
↓
↓
21
↓
↑
↓
↑
↓
↑
53
↓
↑
↓
↑
↓
↓
22
↑
↓
↓
↑
↓
↑
54
↑
↓
↓
↑
↓
↓
23
↓
↓
↓
↑
↓
↑
55
↓
↓
↓
↑
↓
↓
24
↑
↑
↑
↓
↓
↑
56
↑
↑
↑
↓
↓
↓
25
↓
↑
↑
↓
↓
↑
57
↓
↑
↑
↓
↓
↓
26
↑
↓
↑
↓
↓
↑
58
↑
↓
↑
↓
↓
↓
27
↓
↓
↑
↓
↓
↑
59
↓
↓
↑
↓
↓
↓
28
↑
↑
↓
↓
↓
↑
60
↑
↑
↓
↓
↓
↓
29
↓
↑
↓
↓
↓
↑
61
↓
↑
↓
↓
↓
↓
30
↑
↓
↓
↓
↓
↑
62
↑
↓
↓
↓
↓
↓
31
↓
↓
↓
↓
↓
↑
63
↓
↓
↓
↓
↓
↓
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 13

BZBGEAR IPGEAR-4K PRODUCT MANUAL
3. Once the dipswitches are set, plug the transceivers into the PoE network switch to
power them on.
a. Connect sources to transmitters and displays to receivers using HDMI cables.
b. When powered and connected to a display the receivers will display the
following:
4. Next, plug an ethernet and HDMI cable into the BG-VOP-CB smart controller
followed by power last. NOTE: power for the controller must be connected last or it
will not be able to see that the HDMI port is active.
5. The BG-VOP-CB Smart Controller is preconfigured to be set to DHCP and will
automatically grab an IP address from the network. If a DHCP server is not available,
the unit will assign itself its own IP. Both controller and transceivers must be on the
same network/VLAN to communicate properly.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 14

BZBGEAR IPGEAR-4K PRODUCT MANUAL
6. Once the controller powers on you will see the following on the connected display:
NOTE: If you do not see an image, power cycle the controller with all other cables
connected and wait for the unit to reboot.
7. To access the web interface on your computer, ensure it is on the same network as
the controller. Once connected, open your web browser and navigate to the
displayed IP address, URL, or by scanning the QR code.
Web Control
1. Type in the URL shown by the BG-VOP-CB into your preferred web browser or scan
the QR code using a mobile device connected to the same network as the controller.
2. The login page will be displayed if the system and network were configured correctly
as shown below.
3. Enter the default credentials to login to the system.
a. Default account: admin
b. Default password: admin
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 15

BZBGEAR IPGEAR-4K PRODUCT MANUAL
Mapping
1. Upon logging in you will be taken to the systems Mapping page.
2. On this screen users can pair transmitters and receivers together, view and manage
presets, as well as view grouped units.
3. The image previews on the Mapping page display useful information such as the
group/pair ID in the top right, editable device name in the bottom left, and device IP
address.
a.
b. The lightbulb symbol will illuminate red when clicked
which will cause the corresponding units red LED indicator light to blink for a
short period of time to assist with identification.
c. On transmitting units, the paired symbol shows the number of
receivers that the transmitter is currently broadcasting too.
d. On receiver units the ON/OFF buttons send CEC
commands to compatible displays to turn them on or off.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 16

BZBGEAR IPGEAR-4K PRODUCT MANUAL
4. To set a configuration as a preset click “Save as” dropdown and select the desired
preset location. To recall a preset click the “Recall” drop down and select a preset
that has been previously saved.
5. To select a set of grouped transmitters or receivers, click the drop down at the top of
each respective section.
a. Selecting a group of transmitters or receivers will make the system display
only units in that group for easier identification and management.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 17

BZBGEAR IPGEAR-4K PRODUCT MANUAL
Groups
Transmitters or receivers can be grouped together for easier identification and system
management. To create or manage device groups select the “Group” tab from the menu on
the left hand side of the web interface.
1. To create a receiver or transmitter group, type in a “Group Name” and click “Create.”
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 18

BZBGEAR IPGEAR-4K PRODUCT MANUAL
2. Once the group is created, move to the next section on the screen and select the
group name you just created from the “Group” dropdown menu.
a.
b. Click and drag devices from the bottom “Others” box to the “Group” box
above.
3. Users can also choose to upload an icon for the group to assist with identification.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 19

BZBGEAR IPGEAR-4K PRODUCT MANUAL
a. Click the “Upload icon” button to choose an image to upload for the group.
Note: Group images must be .png or .jpg file formats and no larger than
1920x1080.
b.
4. When you are done editing the group, click the “Save” button to save the group.
a.
5. The grouped device can now be filtered on the Mapping page using their respective
drop down menus.
Video Wall Setup
The BG-IPGEAR-4K system is capable of forming multiple video walls simultaneously
(maximum size 6x6 or 36 displays). To create a video wall select the “Video Wall” tab from
the left hand menu.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 20
