C-me CB-8F User manual

ULTRAVIOLET(O3)
Temperature And Moisture Preservation
<CB-8F, CB-8S> < CB-16F, CB-16S> <CB-32S>
Thanks for your purchasing the ultraviolet (O3) towel warmer of our company. For safely
operation, please carefully read this manual and abide by all directions and notes.

■PRODUCT SPECIFICATION■
Model CB-8F/ CB-8S CB-16F/ CB-16S CB-32S
Rated Power Supply Single phase, 120V/60Hz / 220V/50Hz
Power 150W 200W 400W
Temp. Adjuster Bimetal thermostat
Inside Temp. 60-70℃
Safety Device Safe temp. (105℃)
Sterilization Device Ultraviolet (O3) quartz tube (1) Ultraviolet (O3) quartz
tube (2)
Contour dimensions
(mm) L360×W275×H253 L420×W320×H305 L420×W320×H550
Inside dimensions
（mm）L280×W190×H150 L350×W220×H200 (L350×W220×H200)×2
Inside capacity 8L 16L 32L(16L×2)
Heat-insulation
material Heat preservation wool
Weight 5kg 6.6kg 11kg
Accessories Shelf(2)/water tray(1) Shelf(4)/water tray(1)
■NAMES OF COMPONENTS■
POWERSWITCH
INDICATORLAMP
MAIN SET
PLUG
WATERTRAY
DOORPAD
DOOR
SHELF

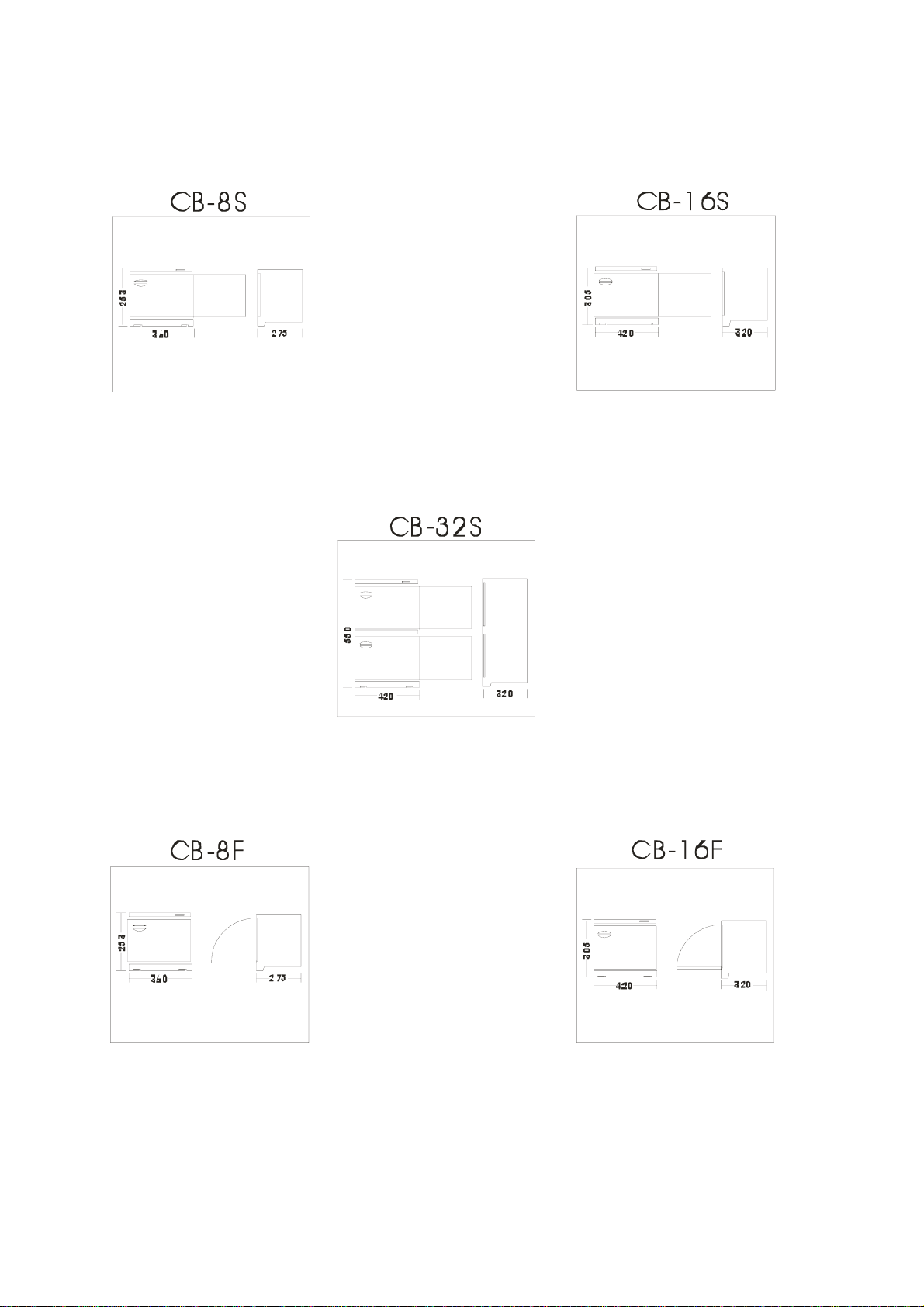

■MODEL& CONTOUR DIMENSIONS(㎜)■
Contour dimension(L W H)
360 275 253
Available Capacity(L): 8
Power W 150
Containtowels(PCS): 50
xx
xx
：
（）：
Contourdimension(L W H)
420 320 305
Available Capacity(L): 16
Power(W) 200
Containtowels(PCS) 100
xx
xx
：
：
：
Contourdimension(L W H)
420 320 550
AvailableCapacity(L): 32
Power(W) 200 2
Contain towels(PCS) 200
xx
xx
x
：
：
：
Contourdimension(L W H)
420 320 305
Available Capacity(L): 16
Power(W) 200
Contain towel(PCS) 100
xx
xx
：
：
：
Contour dimension(L W H)
360 275 253
Available Capacity(L): 8
Power(W) 150
Contain towels(PCS) 50
xx
xx
：
：
：

■FEATURES & FUNCTIONS■
This special ultraviolet (O3) towel incubator has perfect features and functions: Under the high
temperature, wet towels are steaming up to keep warm and sterilizing, Additional to the
ultraviolet (O3) performing accordingly, make the objects more clean, healthy and performable. It
is the best choice suited for beauty parlor, barbershop, and hotels.
■CAUTION BEFORE USE■
1. Keep this appliance in a stable and ventilate place with low temperature and less vibration.
2. With the ground wire installed, prevent electric shock.
3. Insert the water tray horizontally with two hands, and make sure it is installed inside firmly.
■DIRECTIONS■
1. Please confirm the power switch on “OFF”.
2. Firmly insert the plug into the socket.
3. Open the door and take the shelf out.
4. Put clean towels on the shelf with properly dry into the warmer. Don’t put too much for one
time for the sake of direct contaction with the warmer wall. You have better apply plastic
bags here.
5. Close the door tightly.
6. Switch the power on, then the indicator lights and the towel warmer starts to
work.(sterilizing & steaming).
● As inside warmer walls and the shelves are both of high temperature, be careful when taking
off the towels.
● Please empty the water tray timely.
● If you need more service, please press the switch button again.
■MAINTENANCE■
1. Turn the power switch “OFF”.
2. Pull out the plug from the socket.
3. When the temperature falls, take out all towels from the warmer, and dry it.
4. Empty the water tray timely.
5. Wipe dirty of the warmer with a dry and clean towel, if difficult to remove the dirt, add a
little neutral detergent, but never use the solvent such as thinner and the polishing powder.
6. Clean the shelf by taking it out, and then water washes it.
7. Open the door and ventilate the inside.

■SAFETY NOTES■
● Please read the “SAFETY NOTES” carefully, and then follow it correctly when operating this
product.
● All notes recorded here for your health, Correctly operation can prevent from any
unnecessary accident to you and others. Besides, the notes also tell you what will get after
wrong operation. The notes are divided “FORBIDDEN” and “ATTENTION”, which are
important contents of safety. Please keep it in mind.
● After reading this directions, please keep it in a readable place, so it can attention all:
Forbidden Don’t crash, damage, process, or forcefully bend, stretch, tighten and curl the
electric wires, besides, load heavily on the wire or insert the wire into some
place will also damage the wire.
Forbidden for
outdoor service Don’t use it outdoors. When this product wetted by rain, it will also cause electric leakage or shock accident.
Forbidden for
branch wires Please separately use the power socket with rated power over 15A, Don’t use twin socket or branch socket.
Forbidden Don’t use it by children independently; put this product out of the reach of
children, preventing the children from being scalded or electric shock.
Attention Don’t let this product fall for strongly stoke, for it may cause trouble and
breakdown of the product.
Attention Put the towel into the warmer and packed with special plastic bag, otherwise,
the towel will be dry. Please use the heat resistant plastic bag only.
Attention Put the towel into the shelf then into the warmer. Don’t contact the towel
directly with the inside warmer wall, for it may melt the special bag or
discolor the towel.
Attention The towel shall not be in the warmer for over 2 days, otherwise, it will become
dry, then deform the out frame.
Pull the plug Don’t hold the wire to take out the plug, or it will deform the metal piece on
the plug or damage the wire.
Ground wire Use the three-jack socket with ground wire, preventing from machine
breakdown and electric leakage.
GUARANTY
Don’t use with
wet hands Don’t touch the plug and power switch with wet hand, for it may cause electric shock.
Forbidden for
decomposition Don’t decompose, repair or reform this product without professional technical person, for it will cause fire or abnormality, which are harmful for
human body.

Model<CB-8F, CB-8S> <CB-16F, CB-16S> <CB-32S>
PRODUCT WITHIN ONE YEARAFTER PURCHASINGGUAR-
ANTY
TERM SALE DATE -------DATE------ MONTH------ YEAR
BUYER ADDRESS
NAME
DISTRIBUTOR
YOU WILL RECEIVE FREE MAINTENANCE FROM DISTRIBUTOR ACCORDING TO
GUARANTY BOOK WITHIN ONE YEAR AFTER THE SALE’S DATE STATED ABOVE.
FREE MAINTENANCE POLICY:
1. Operate the product according to the guidebook here. If any abnormal things happen, please
refer to the distributor for free maintenance.
2. Within the maintenance term, please present the products & guaranty book for free
maintenance.
3. When the product given as a gift, can’t receive any free maintenance form distributor. Please
directly contact with out company.
4. Under the following conditions, you can’t receive any free maintenance, even though still
within the guaranty term.
A. Miss-use or improper repair or reform by the buyer, lead to damage or breakdown.
B. Damage or breakdown results from moving or dropping.
C. Damage or breakdown result from fire disaster, earthquake, flood, thunder or any
natural disasters, public disasters or unusual voltage.
D. The condition of missing record about sale’s date, buyer’s name, distributor’s name or
rewrite the guaranty book, can’t receive any service from distributor or our company.
● Free maintenance according to GUARANTY BOOK recorded, any questions after guaranty
term, please directly contact with our distributor or our company.
Manufacturer: COME BEAUTY CO. LTD.
■GUARANTY & MAINTENANCE■
Within one year from sale’s date on, if you miss follow the operation direction we will

provide payable maintenance.Attention here:
1. During maintenance term, any abnormal condition occurring, please ask free
maintenance from distributor or branch distributor.
2. It is very danger for the buyer to repair the machine, please not try it.
3. After the guaranty term, please refer to the distributor or our company directly if
you have any questions.
