CA Essential User manual

Quick Start Guide
www.CyberAcoustics.com CA P/N: DS1500 Rev. A00
2020-09
Micro Docking Station

In the Package
Quick-Start Guide
Micro Docking Station
CA Essential Micro Docking Station
Quick Start Guide
www.CyberAcoustics.com
Micro Docking Station
CA P/N: DS1000 Rev. A00
2020-09

Table of Contents
Using the CA Essential Micro Docking Station with Your Laptop
Using CA Essential Micro Docking Station with an Optional
USB Type C AC Power Adapter (Not Included) to Wirelessly
Charge your Device
Using CA Essential Micro Docking Station with your Laptop and
an Optional USB Type C AC Power Adapter (Not Included)
Configurations and Power Delivered to CA Essential Micro Docking
Station Ports
Technical Specifications
Frequently Asked Questions
Contacting Customer Support
Safety and Precautions
Pages
1
2
3
4
5
6 - 7
8
9 - 11

Page 1
Step 1: Insert the end of the USB Type C Docking Station
Cable into the USB Type C port on your Laptop as show
below.
Using the CA Essential Micro Docking Station with Your Laptop
USB Type A
Gen 2 Port
USB Type C
Connection
HDMI Connection
to a TV or Monitor
Step 2: Connect your Peripherals to the
CA Essential Micro Docking Station.
Step 3: Place your device supporting Wireless
charging on the top of the CA Essential
Micro Docking Station.
Note: Power available for the attached peripherals and wirelessly charging are dependent on the power supplied
by your Laptop. For specic congurations supported and power delivered for the Qi Wirelessly Charger, USB
and HDMI ports see page 4.
Qi Wireless Charger

Page 2

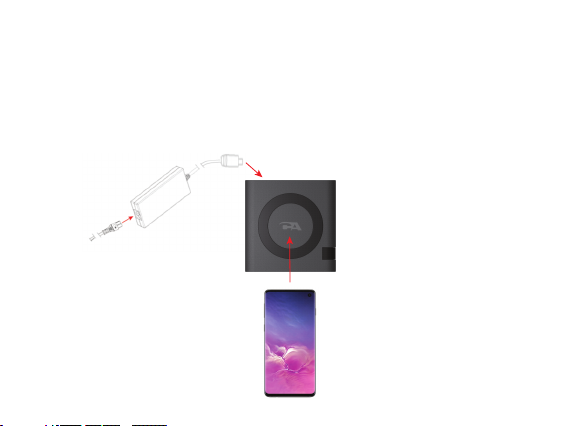

Using CA Essential Micro Docking Station with an Optional USB Type C
AC Power Adapter (Not Included) to Wirelessly Charge your Device
Step 2: Insert the female end of the AC Power
Cable into the connector on the AC Power
Adapter as shown and connect the other
end of the AC Power Cable in a power
source.
Step 1: Insert the USB Type C cable of the AC Power Adapter into
the USB Type C port on the CA Essential Micro Docking Station.
- Standalone wirelessly charging for your devices that support wireless charging (AC Power
Adapter purchased separately).
Qi Wireless
Charger
Step 3: Place your device supporting Wireless
charging on the top of the CA Essential
Micro Docking Station.

Page 3

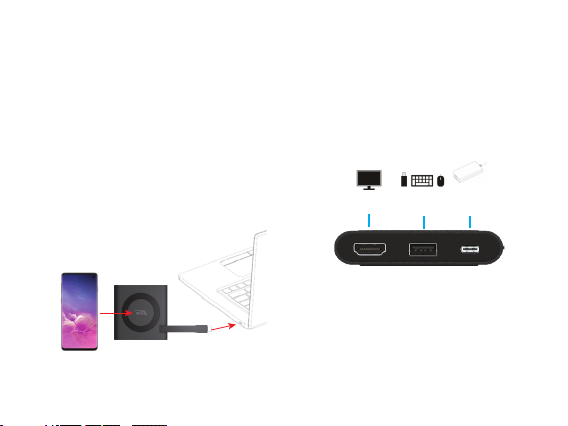

Using CA Essential Micro Docking Station with your Laptop and
an Optional USB Type C AC Power Adapter (Not Included)
- Power your Laptop computer with the CA Essential Micro Docking Station as well as slowly
charge the battery on your laptop.
- Connect your peripherals to the CA Essential Micro Docking Station and wirelessly charge
your devices.
USB Type A
Gen 2 Port
USB Type C
Connection
to USB Type C
AC Power Adapter
HDMI Connection
to a TV or Monitor
Step 1: Connect CA Essential Micro Docking Station to an
USB Type C AC Power Adapter (Purchased separately)
as shown on Page 2.
Step 2: Connect CA Essential Micro Docking Station to your
Laptop.
Insert the end of the USB Type C
Docking Station Cable into the USB
Type C port on your Laptop as show
below.
Step 3: Connect your Peripherals to the CA Essential
Micro Docking Station.
Note: Power available for the attached peripherals and wireless charging are dependent on the power supplied by the type of
USB Type C AC Power Adapter used. For specic congurations supported and power delivered for the Qi Wireless Charger,
the USB and HDMI ports see page 4.
Step 4: Place your device supporting wireless charging
on the top of the CA Essential Micro
Docking Station.
Qi Wireless Charger

The CA Essential Micro Docking Station supports the connection of peripherals with USB Type A
connection, USB Type C connection, a HDMI connection and the charging of your smartphone with the
built in Qi Wireless Charger. Depending on how the CA Essential Micro Docking Station receives power,
from your laptop or an optional USB Type C Power Adapter, the functionality of the CA Essential Micro
Docking Station will vary.
Connecting the CA Essential Micro Docking Station to your Laptop for Power (See instructions on
page 1)
Some Laptops will have a power limitation when connecting the CA Essential Micro Docking Station to
your laptop. The limitation of power from the Laptop may not allow the Qi Wireless Charger, USB Type
A port, USB Type C port and the HDMI port to be used simultaneously. On these Laptops the Qi
Wireless Charger will be disabled when the USB Type A port and USB Type C port are being used.
Connecting the CA Essential Micro Docking Station to an Optional USB Type C Power Adapter for
Power (See instructions on page 3)
When connecting a USB Type C Power Adapter (Sold separately) to the CA Essential Micro Docking
Station for power the USB Type A port, USB Type C port, HDMI port and Qi Wireless Charger can all be
used at the same time. The time it takes to charge your device with the built in Qi Wireless Charge will
vary depending on the power supplied by the USB Type C Power Adapter.
Note: When using all the ports on the CA Essential Micro Docking Station and the Qi Wireless Charging
at the same time the temperature of the CA Essential Micro Docking Station may become high. If the
temperature becomes to high remove the smartphone from the Qi Wireless Charger until the
temperature reduces.
Congurations and Power Delivered to CA Essential Micro
Docking Station Ports
Page 4

Page 5
Technical Specication
Interface
Specication
- USB Type A: Supports USB3.1 Gen1 and Gen2
- USB Type C: Supports USB3.1 Gen1 and Gen2 (Power Delivery
with USB Data and DP ALT mode)
- HDMI: Support HDMI2.0 with HDCP2.3
- Power Delivery: Supports PD3.0 without Fast Power Role Swap
- Video output maximum resolutions:
- 1 x HDMI 2.0b (2 lanes DP HMR3, 3840 x 2160 @ 60Hz)
- 1 x DisplayPort 1.4 (4 lanes DP1.4, 3840 x 2160 @ 60Hz)
- Supports HDR10
- Supports DP1.4 with DPCP
- Video behavior: If video devices are connected to both the
HDMI and the USB Type C ports, the priority is to the HDMI port.
Video Output
Resolution
- Supports 5W Qi wireless charger.
- USB Bus Power: Supports 15W (5V/3A) and 7.5W (5W/1.5A) Laptop Bus Power.
- Maximum upstream USB Type C power delivery for charging: 65W
- Optional external USB Type C AC power adatper specication: 90W
- Supports Power Delivery pass through
- PDO support: Bypass (Follow USB Type C AC power adapter’s PDO)
Power
Requirements
Supported operating
system
Operating temperature
- Windows 10 64-bit
- Product working at ambient temperature for 0~30°C

Frequently Asked Questions
Page 6
Frequently Asked Questions Possible Solution
The CA Essential Micro Docking Station
does not charge your phone.
Please make sure the device you are using supports Qi wireless charging.
What does the blinking LED light on the CA
Essential Micro Docking Station indicate?
Normally, the blinking LED light indicates that one of the internal safety
mechanisms is activated, such as Foreign Object Detection. FOD is an embedded
safety mechanism that automatically stops charging if there is interference
caused by a foreign object such as metal (e.g. coins, paperclips, bankcards). If
applicable, please try removing the phone case or any other accessory (e.g. pop
socket, magnet, etc.) before charging to see if this solves the issue.
Why does my iPhone stop charging before
it reaches 100%?
iOS 13 comes with the “Optimized Battery Charging”feature, which has been
designed to increase the life span of the battery. The software keeps track of
your charging habits and waits to nish charging past 80%. While“Optimized
Battery Charging”can be helpful, it has disadvantages by not allowing your
battery to be fully charged upon demand. This function can be disabled in the
settings of the phone. To disable go to “Settings” “Battery” “Battery
Health” “Optimized Battery Charging”and disable this function.
The CA Essential Micro Docking Station is
not charging your computer through the
USB Type C cable.
Make sure your external Type C AC power adapter is 90W or higher.
The displays are not working. Connect a HDMI monitor to the HDMI port or DisplayPort monitor to the USB
Type C port one at a time to verify the display issue.
Unable to read and write to an external
SSD/HDD and optical (CD/DVD/Blue-ray)
drive when connected to the CA Essential
Micro Docking Station.
- Some external SSD/HDD/Optical drives require higher power than the CA
Essentail Micro Docking Station can support.
- It is recommended that you connect the external SSD/HDD/Optical drive to
your computer directly.

Frequently Asked Questions (Continued)
Page 7
Frequently Asked Questions Possible Solution
Resolutoin on the monitor is lower than
4K @ 60Hz when connected to the HDMI
or Type C port of the CA Essential Micro
Docking Station.
Make sure your computer can support HDMI 2.0b, DisplayPort 1.4 or higher.
No video on the monitor attached to the CA
Essential Micro Docking Station.
- Check the video connection cables.
- Disconnect the monitor from the CA Essential Micro Docking Station and wait
for 10 seconds, then re-connect the monitor again.
Video on the attached monitors is distorted
or corrupted.
- Check the video connection cables.
- Check and update the video resolution under Settings > Display > Display
Resolution.
Video on the attached monitor is not
displayed in extended mode.
- Change the settings under Settings > Display > Multiple Displays.
- Switch modes by pressing the Windows Key + P.

Page 8
Customer Support
Contact us at:
www.cyberacoustics.com/support/contact
If you have a question about your CA Essential Micro Docking Station our
Customer Support Team wants to assist you.

Page 9
Safety and Precautions
- Read and follow all instructions – All operating and use instructions should be followed.
- Protect the USB Type C AC Power Adapter and Cable from being pinched, particularly at
the connectors. Unplug during lightning storms or when unused for long periods of time.
- Do not place near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
- Do not make alterations to the Docking Station.
- Do not place near naked flame sources, such as lighted candles.
- Do not expose to excessive heat (e.g. from storage in direct sunlight, fire or the like)
- Use with Listed Information Technology Equipment only.
2020 Cyber Acoustics or its subsidiaries. All rights reserved. Cyber Acoustics and other
trademarks are trademarks of Cyber Acoustics or its subsidiaries. Other trademarks may be
trademarks of their respective owners.

Safety and Precautions (Continued)
Please take attention that changes or modification not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 18 of the FCC Rules.
FCC Caution
This transmitter must not be co-located or operating in conjunction with any other
Antenna or transmitter.
Page 10

Safety and Precautions (Continued)
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment.
ce matériel est conforme aux limites de dose d'exposition aux rayonnements, FCC /
CNR-102 énoncée dans un autre environnement.
