Cablematic WPS User manual

Wireless Presentation System
User’s Manual
(Model Name: WPS)
Version: 2.0
Date: May. 18, 2007

User’s Manual
Contents of Table
1.
Overview .....................................................................................................3
2. Quick Start .................................................................................................4
3. Client Utility ..............................................................................................7
3.1 Starting Program .................................................................................7
3.2 Login .........................................................................................................8
3.3 Buttons Description ............................................................................9
3.4 Start/Stop Presentation .................................................................10
3.5 Start/Stop Playing Video ................................................................11
3.6 Open Admin Web Page ....................................................................11
3.7 Searching Server ...............................................................................12
3.8 Repeat ...................................................................................................13
3.9 System Information .........................................................................13
3.10 Exit Program ...................................................................................13
4. Web Management .................................................................................14
4.1. Home Page ...........................................................................................14
4.2. Download Software ..........................................................................14
4.3. Conference Control ...........................................................................15
4.4. Login Web Admin ..............................................................................16
4.5. System Status .....................................................................................17
4.6. Network Setup ...................................................................................17
4.7. Projection Setup ................................................................................17
4.8. Change Passwords ............................................................................20
4.9. Reset to Default .................................................................................20
4.10. Firmware Upgrade ........................................................................21
4.11. Reboot System ...............................................................................22
4.12. Logout ................................................................................................23
5. [Appendix] ...............................................................................................24
5.1 Wall Mount Instructions (Optional) ...........................................24
- -
2

User’s Manual
1.Overview
Wireless Presentation System is an easy installation, convenient operation and
user friendly projecting device. It turns your current Projector into a high-end
Projector. With the Wireless Presentation System your Projector become a
wireless device and PC/Notebooks will be easier to project screen to Projector.
Plug & Play
Wireless Presentation System is a plug-and-play device which is easy to install
and connect with. Any Notebooks/PCs with built-in Centrino or Wi-Fi card can
easily download driver and connect to Wireless Presentation System.
Flexibility
Wireless Presentation System is compatible to all kinds of projectors, using
wire-line or wireless connection, to display presentations. Instantly project
your screen to the projector with just one mouse click. Nor more cable
swapping hassles.
Performance
Wireless Presentation System has the ability to deliver real time animation
screens for up to 1280x768 resolutions in 24-bit color depth. It also provides
friendly web-based administrating UI for easy configuration and wireless
security setups.
Security
Support Login code to protect other users from accessing presentation contents.
During presentation, screen images can also be protected by WEP 64/128
encryption.
Conference control
Supporting multi-users to switch presentation, any member at the conference
can easily login to presentation server and switch the computer’s screen to
Projector without moving the computer to Projector.
- -
3

User’s Manual
Intelligent searching function
After perform Wireless Presentation System utility, the utility will automatically
search all the Wireless Presentation System which are available and within the
wireless LAN cover range。Users don’t need to do any other setting, without
worrying about the operation procedures.
¾Features
Wireless presentation, no more cable swapping.
Video projection, projecting your video file on the screen through
WLAN/LAN.
Compatible to all projectors with standard VGA connectors.
One-Click to switch presenters’ displays.
Real time display for PowerPoint presentations, images and
applications.
Supports display resolutions up to 1280x768 with 24-bit color.
No installation CD required, software is directly downloaded from the
device.
Provide session security login and wireless WEP key to protect
presentation contents.
Conference control function is provided for the host to moderate a
meeting.
Provide friendly web-based user interface for easy configuration.
Support static-IP and DHCP server.
2.Quick Start

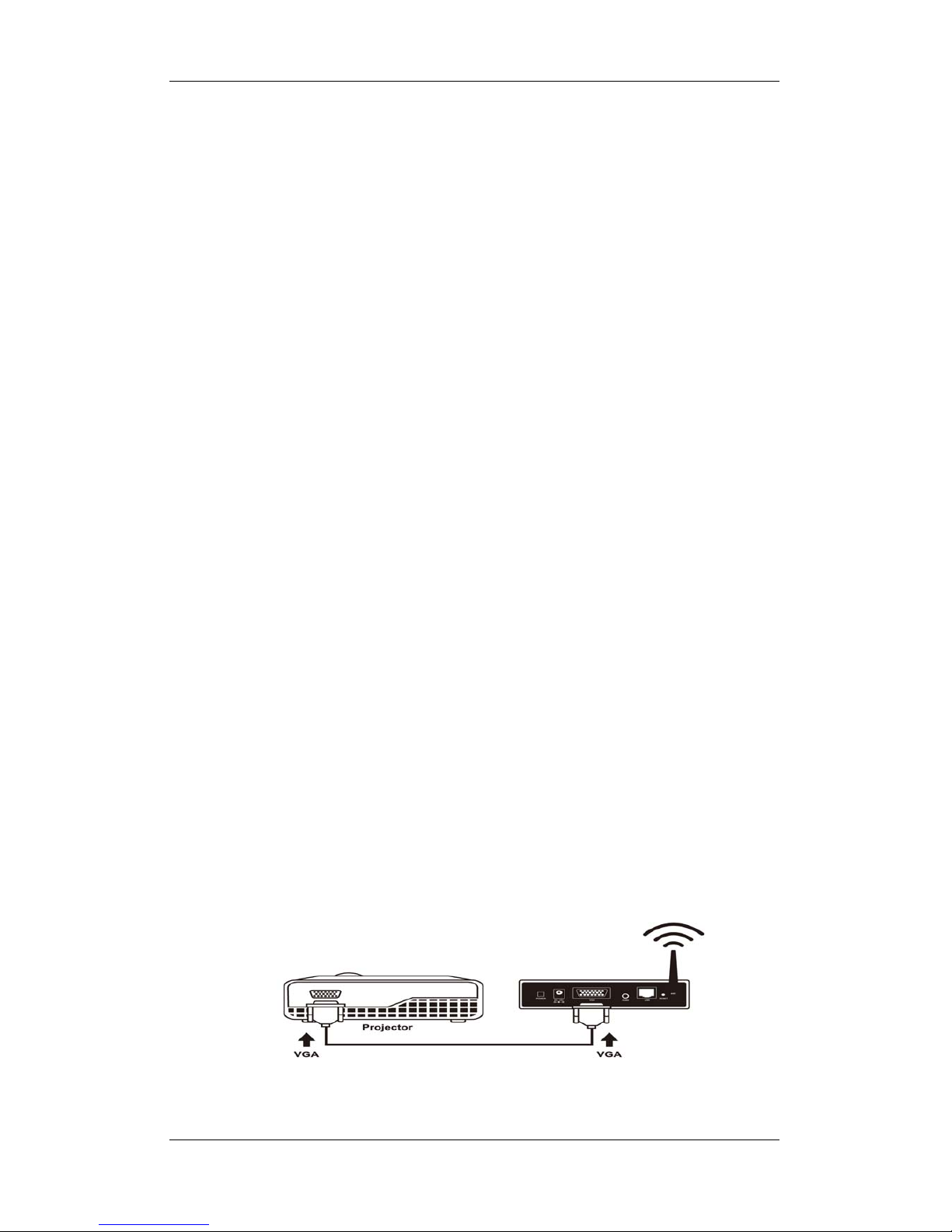

1) Connect projector VGA cable to WPS box VGA connector and turn on
projector power.
2) Turn on WPS box.
- -
4

User’s Manual

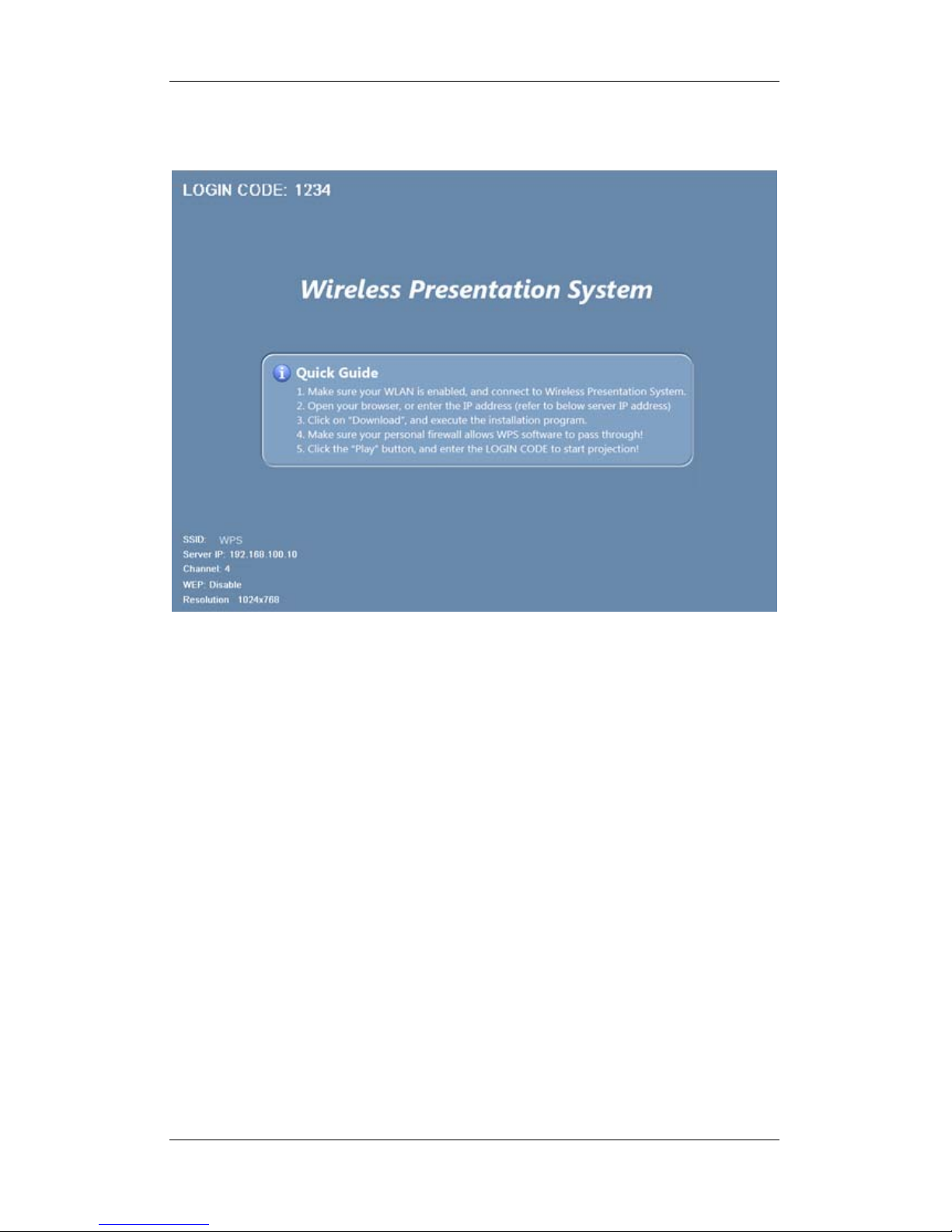

♦When Projector shows the default menu on the screen as below, it
indicates the WPS box is ready now.
3) Make sure your PC WLAN is enabled already, and connect your PC with WPS
box.

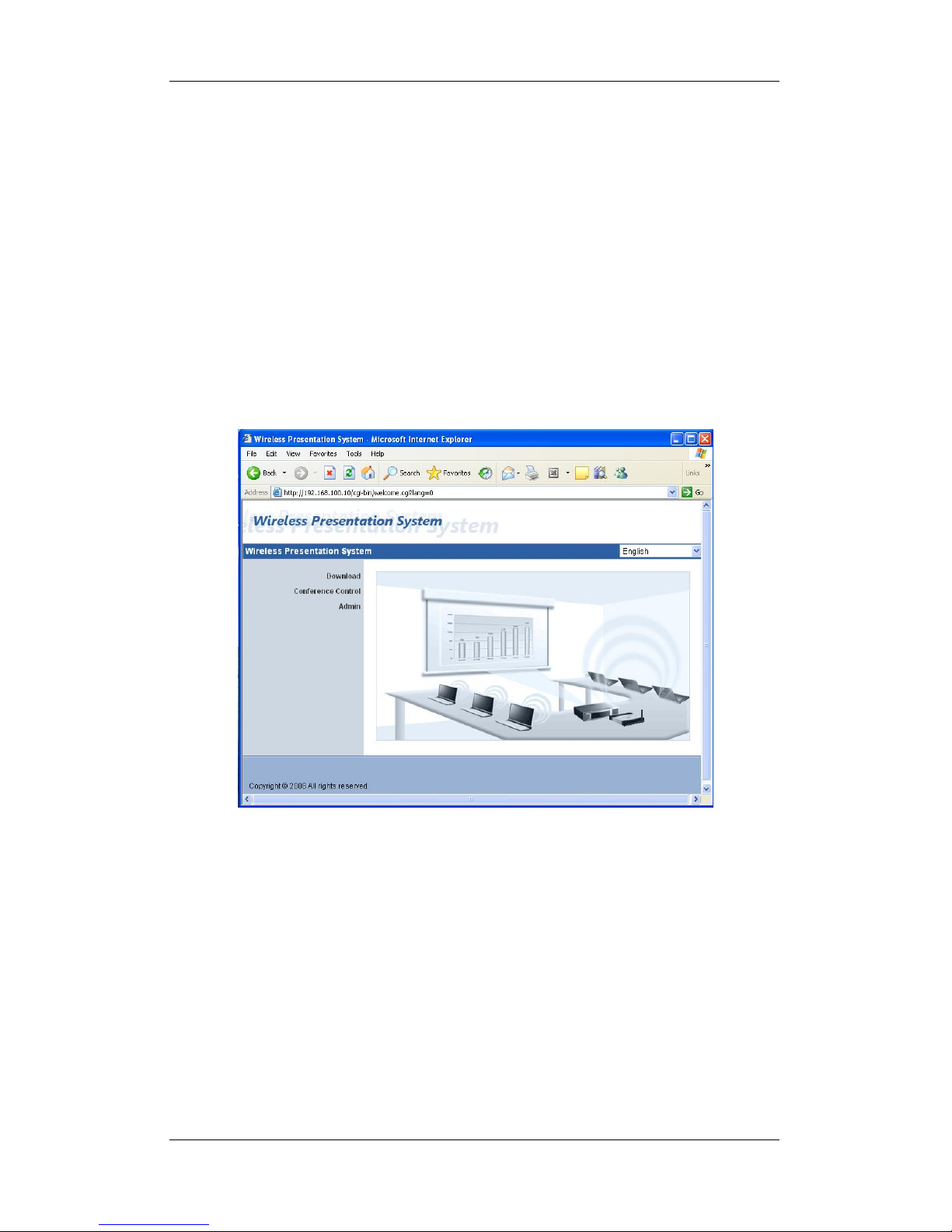

4) Open your browser and enter the IP address to get in WPS web home page.
♦The default IP address of WPS is 192.168.100.10 or refers to the IP
address shown on the left corner of projector screen.
- -
5

User’s Manual

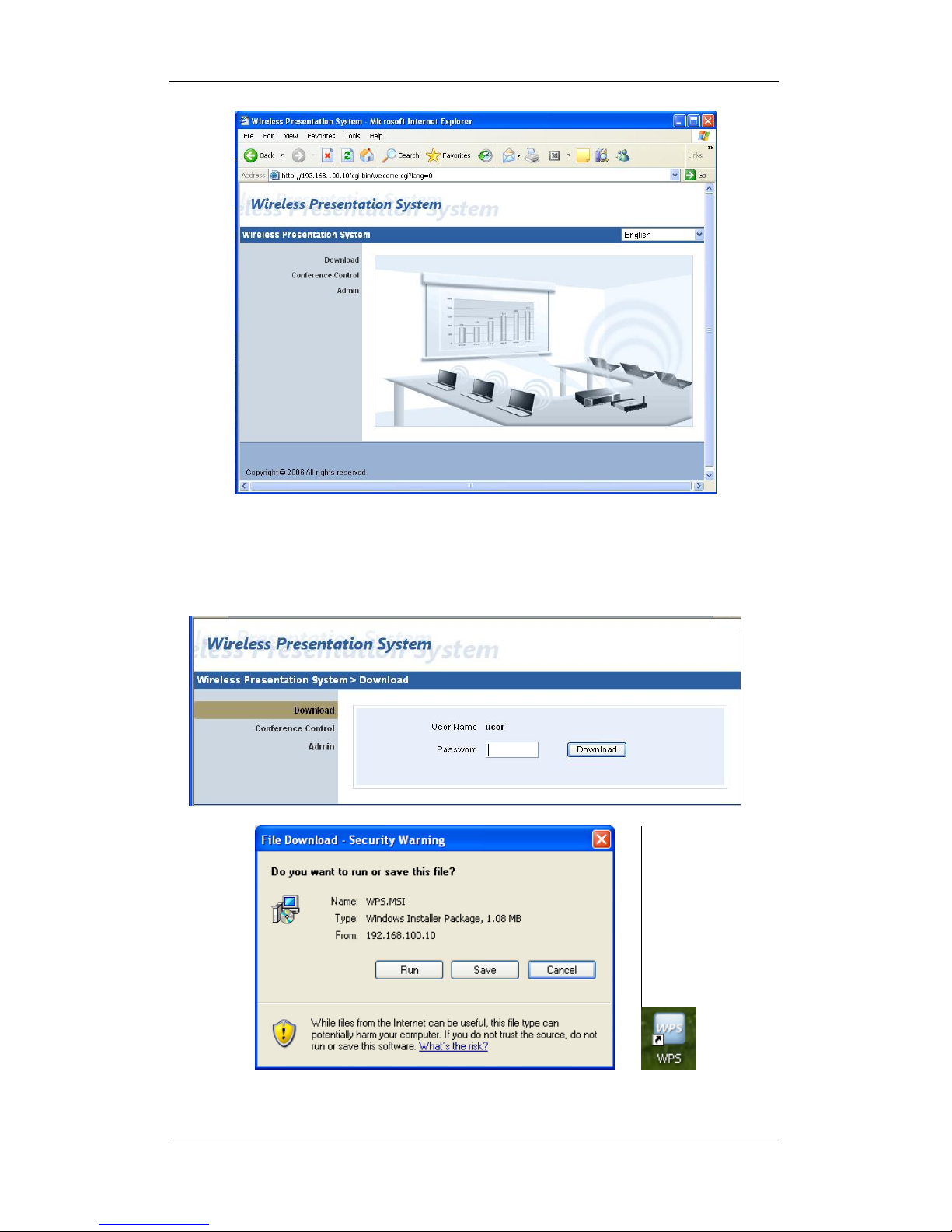

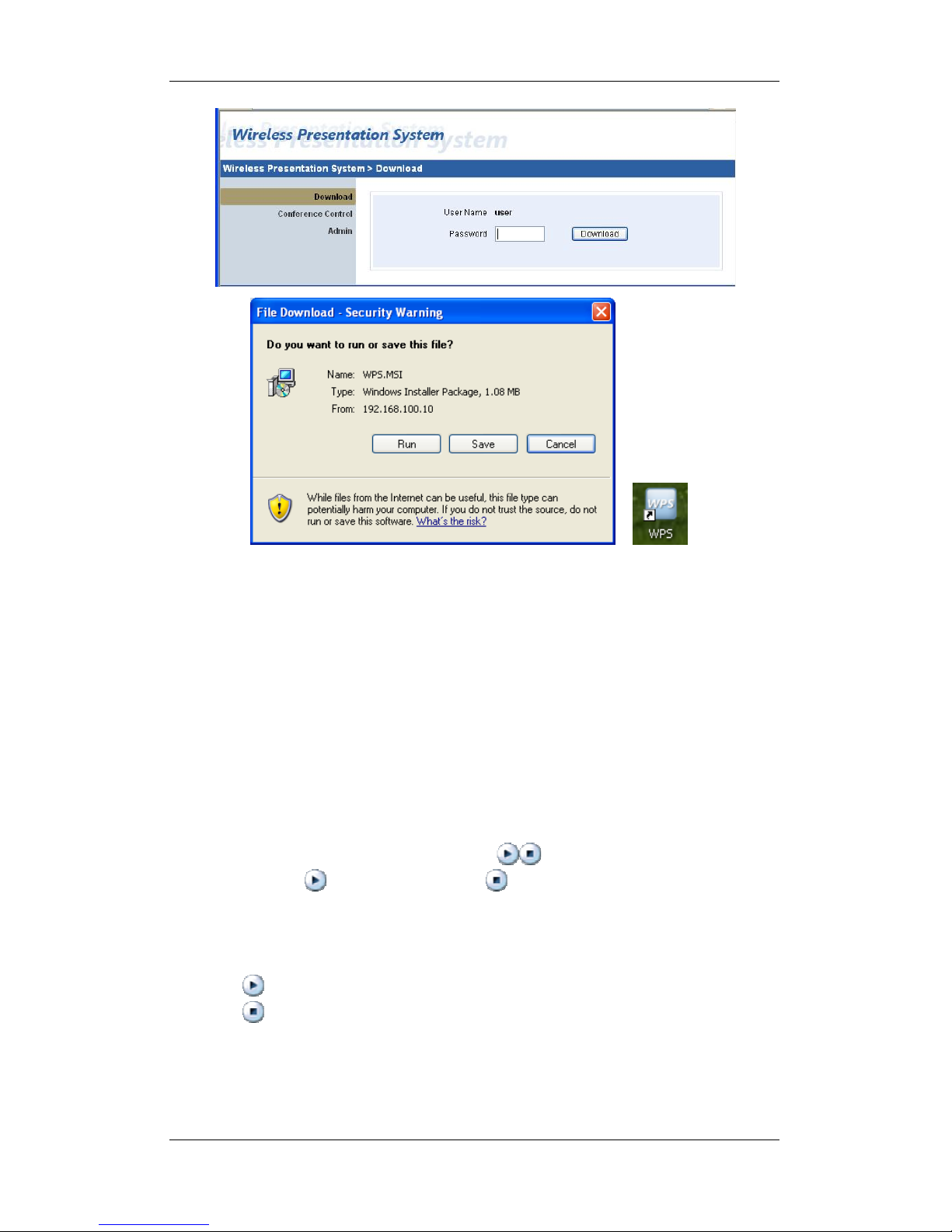

5) Click on “Download Software”, and execute the installation program.
♦After install the program, WPS shortcut will come out on the PC
screen.
- -
6

User’s Manual
6) Make sure your personal firewall allows WPS software to pass through.
7) Enter the LOGIN CODE and
♦You can see the login code on the projector screen
8) Click the “Play” button to start projection!
3.Client Utility

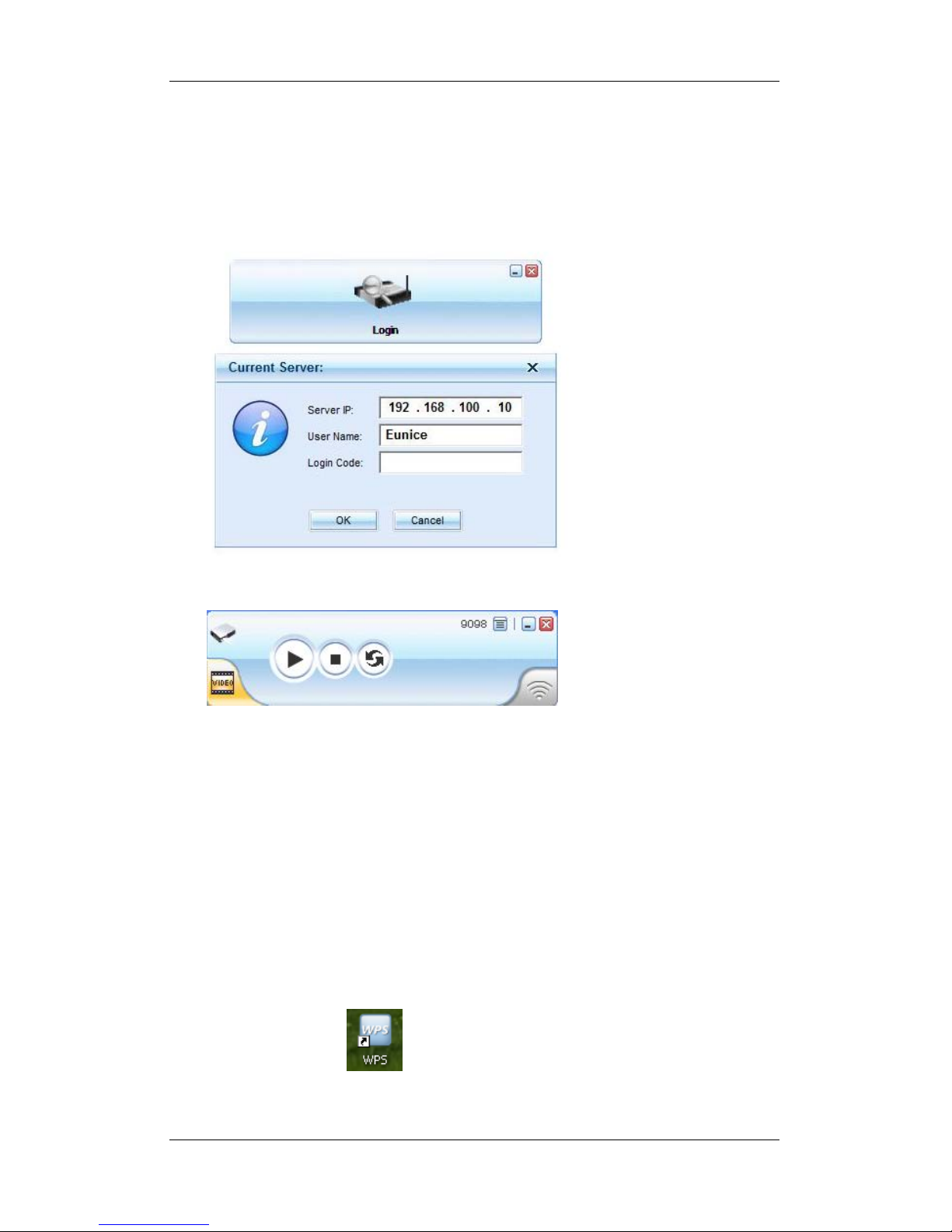

3.1 Starting Program
After you download WPS Windows program via web page successfully, then
follow below steps to start.
1) Click WPS icon to execute the program.
2) Program start to search for WPS box automatically,
- -
7

User’s Manual
3) If WPS box founded then “Login Code” dialog box will be pop up on the PC
screen.
4) If not, will enter to disconnected state and “Reconnect” button shown for
you to try again.

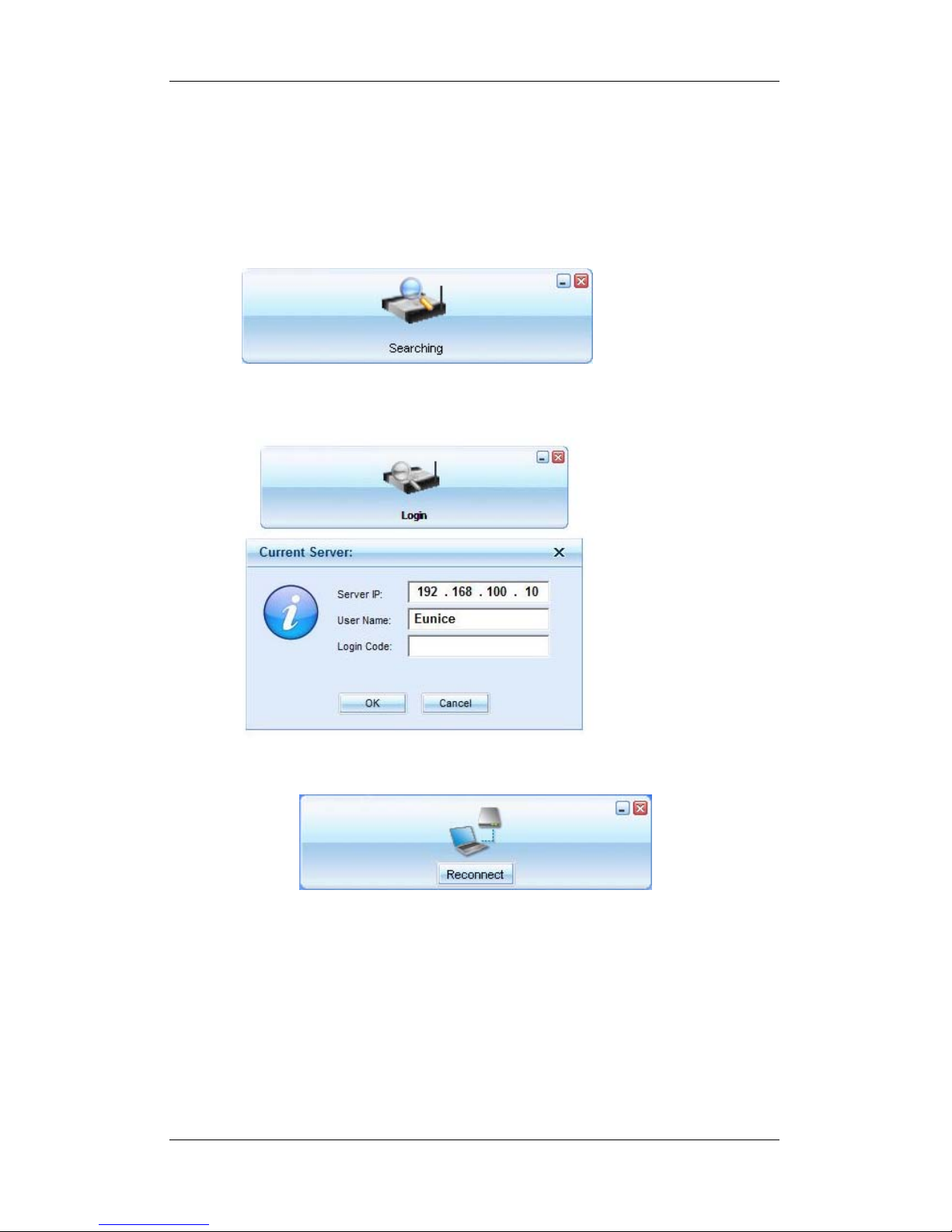

zSearching for WPS box
zWPS box is founded and enter login code to start.
zFailed to find WPS box

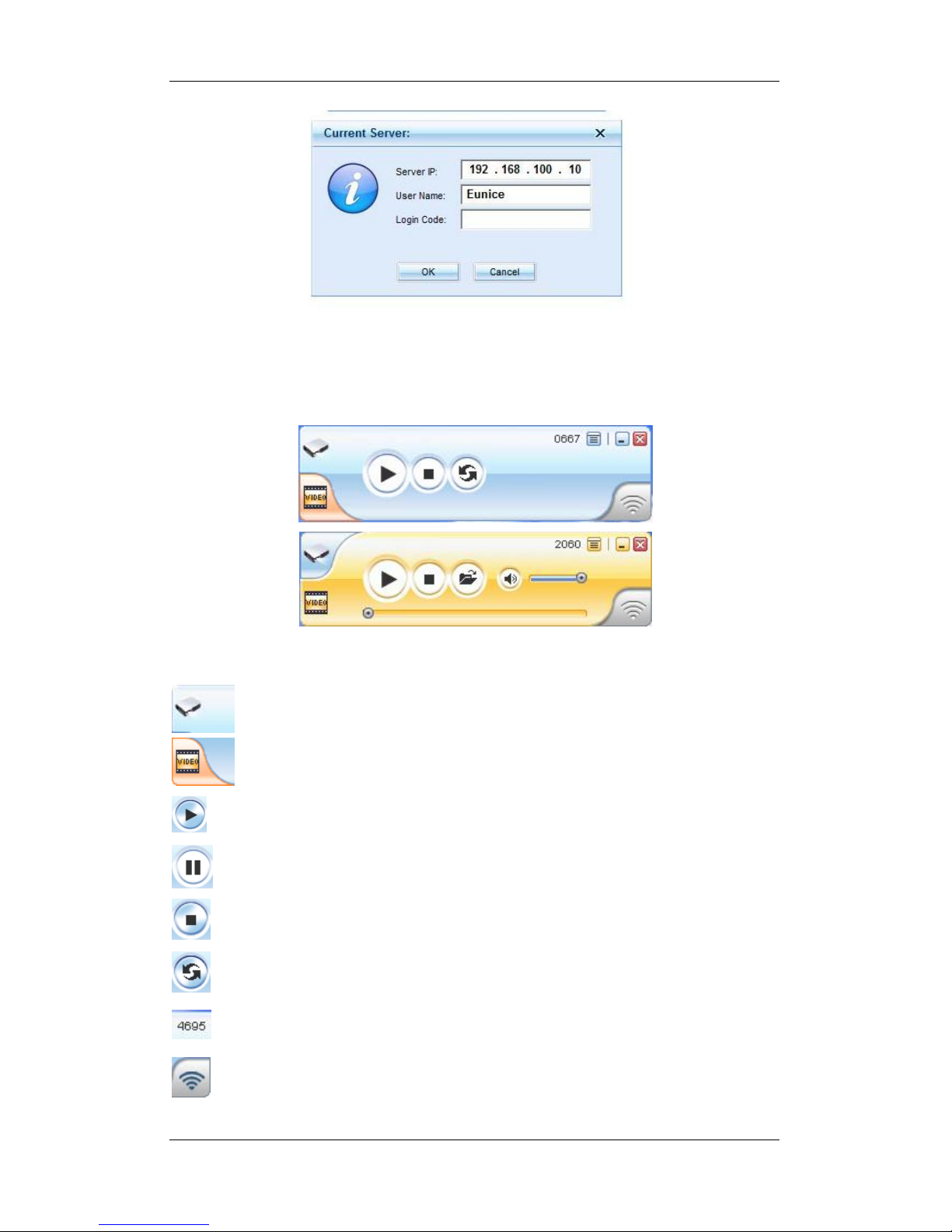

3.2 Login
1) After “Login Code” dialog box shown, enter login code to start presentation.
2) You can see the login code shown on the projector screen.
- -
8

User’s Manual
3.3 Buttons Description
1) After login successfully, you will see main UI of WPS application.
2) Click following buttons to manipulate WPS Application.
Presentation Mode
Video Mode
Start projecting
Pause projecting
Stop projecting
Refresh projecting screen
Server Login Code
While projecting in progress, this icon is blinking
- -
9

User’s Manual

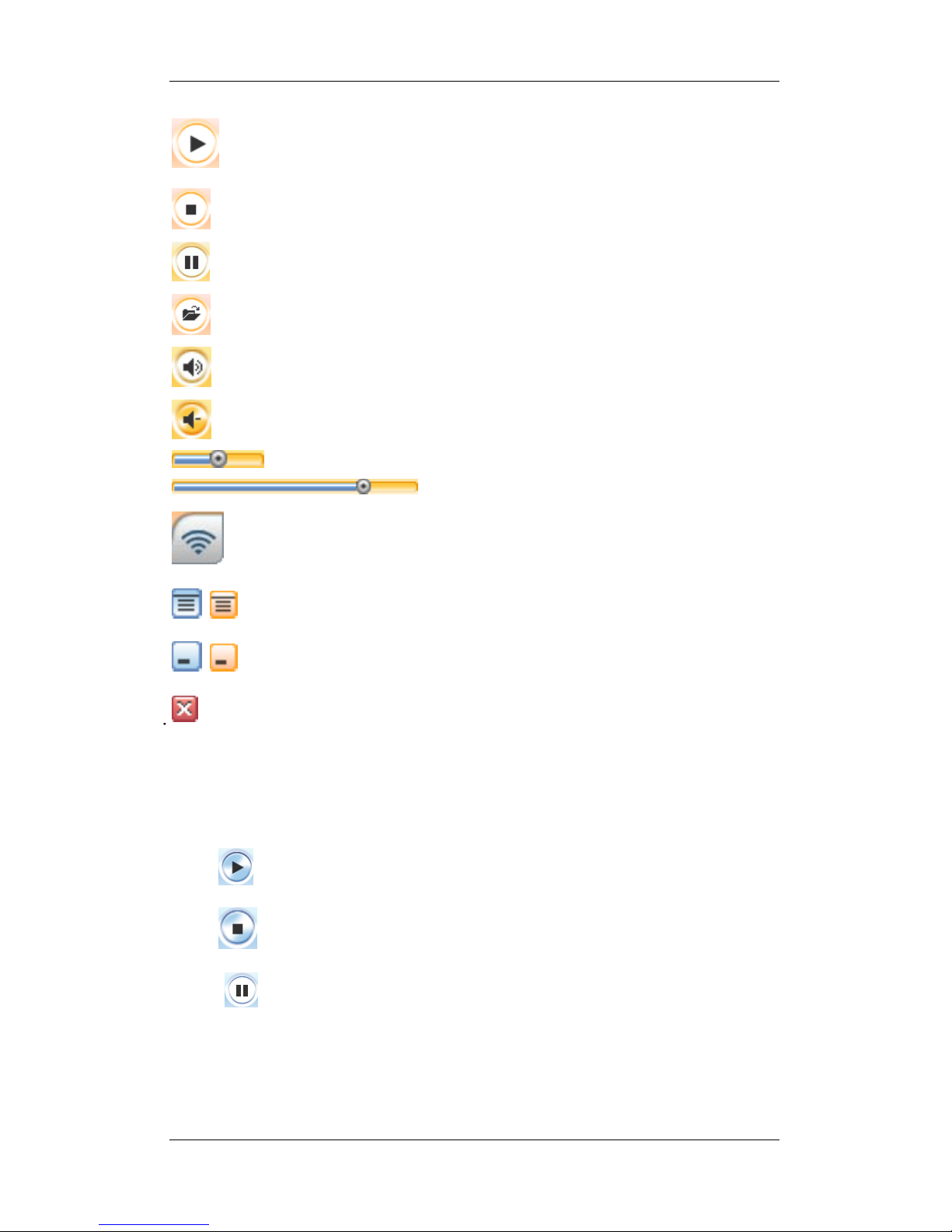

Start Playing Video
Stop Playing Video
Pause Playing video
Open Video File
Audio volume ON.
Audio volume OFF
Audio volume strength bar
Video time bar
While playing video, it will be blinking
Function menu
Minimize the program
 Exit the program

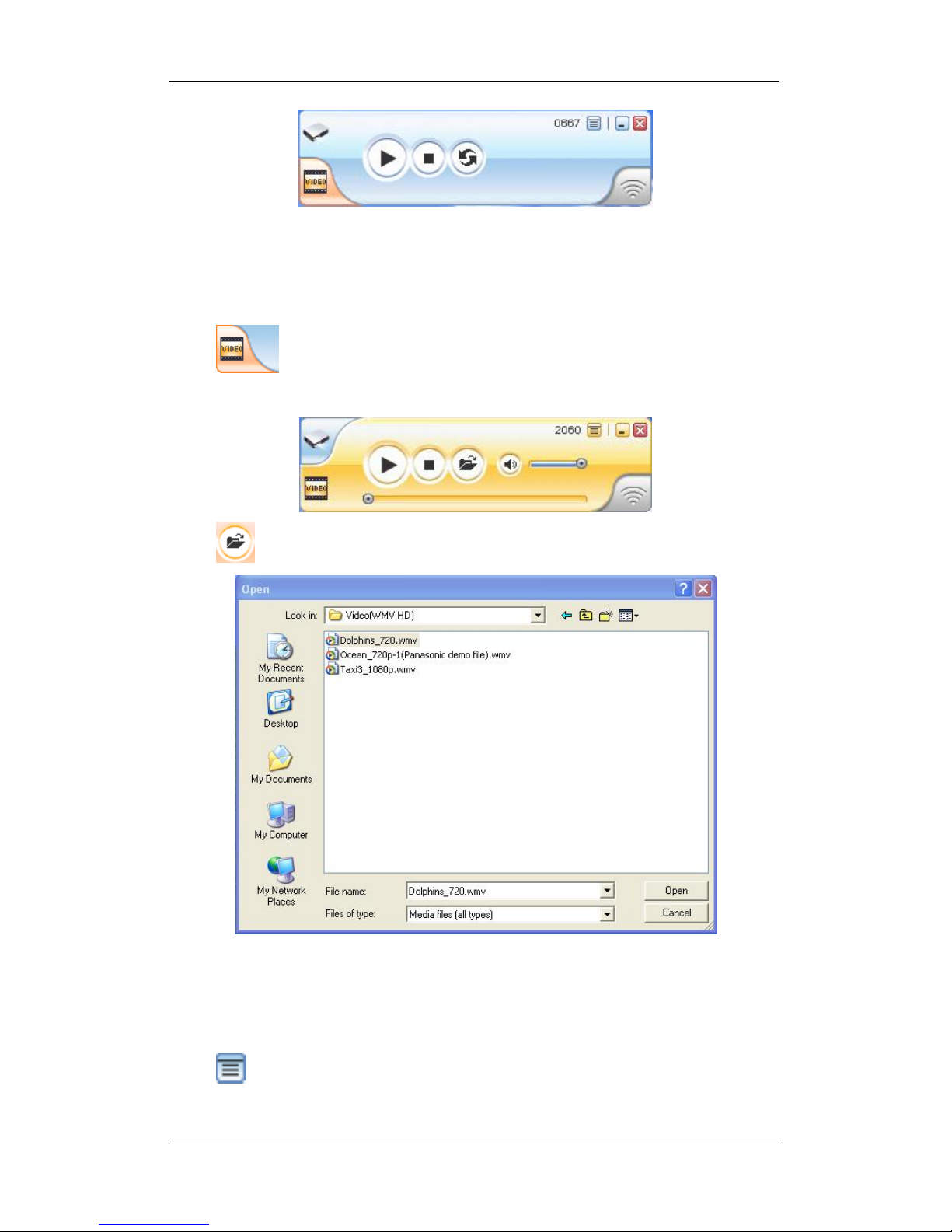

3.4 Start/Stop Presentation
Click to start presentation.
Click to stop presentation.
Click to pause presentation, that will hide any activities of your PC
screen. Once you click “Play” button again, screen projection will be resumed.
- -
10
