Cabletron Systems MMAC-Plus 9H421-12 User manual

SmartSwitch 9000
9H421-12, 9H422-12 and 9H429-12
User’s Guide
9031928-03

i
Notice
Notice
Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED
TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.
© Copyright March 1998 by:
Cabletron Systems, Inc.
35 Industrial Way
Rochester, NH 03867-5005
All Rights Reserved
Printed in the United States of America
Order Number: 9031928-03
LANVIEW is a registered trademark, and SmartSwitch is a trademark of Cabletron Systems, Inc.
CompuServe is a registered trademark of CompuServe, Inc.
i960 microprocessor is a registered trademark of Intel Corp.
Ethernet is a trademark of Xerox Corporation.

Notice
ii
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
VCCI Notice
This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.
DOC Notice
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class Aprescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

iii
Notice
DECLARATION OF CONFORMITY
ADDENDUM
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Cabletron Systems, Inc.
Manufacturer’s Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name: Mr. J. Solari
European Representative Address: Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Equipment Type/Environment: Networking Equipment, for use in a
Commercial or Light
Industrial Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with
this notice conforms to the above directives.
Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari
____________________________________________________ ______________________________________________________
Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.
____________________________________________________ ______________________________________________________
Title Title
Rochester, NH, USA Newbury, Berkshire, England
____________________________________________________ ______________________________________________________
Location Location

Notice
iv
Safety Information
CLASS 1 LASERTRANSCEIVERS
The 9H421-12, 9H429-12 and FE-100FX are Class 1 Laser Product
The 9H421-12, 9H429-12 and FE-100FX use a Class 1 Laser transceiver.
Read the following safety information before installing or operating
these adapters.
The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation
limits. This control loop eliminates the need for maintenance checks or adjustments. The
output is factory set, and does not allow any user adjustment. Class 1 Laser transceivers
comply with the following safety standards:
• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and
Human Services (FDA).
• IEC Publication 825 (International Electrotechnical Commission).
• CENELEC EN 60825 (European Committee for Electrotechnical
Standardization).
When operating within their performance limitations, laser transceiver output meets the
Class 1 accessible emission limit of all three standards. Class 1 levels of laser radiation are not
considered hazardous.
CLASS 1
LASER PRODUCT

v
Notice
Safety Information
CLASS 1 LASERTRANSCEIVERS
Laser Radiation and Connectors
When the connector is in place, all laser radiation remains within the fiber. The maximum
amount of radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10
-6
watts.
Removing the optical connector from the transceiver allows laser radiation to emit directly
from the optical port. The maximum radiance from the optical port (under worst case
conditions) is 0.8 W cm
-2
or 8 x 10
3
W m
2
sr-1.
Do not use optical instruments to view the laser output. The use of optical instruments to
view laser output increases eye hazard. When viewing the output optical port, power must
be removed from the network adapter.

Notice
vi

vii
Contents
Chapter 1 Introduction
Features...........................................................................................................................1-1
Related Manuals............................................................................................................1-5
Getting Help .................................................................................................................. 1-5
Chapter 2 Installing the SmartSwitch 9000 Module
Unpacking the Module.................................................................................................2-1
Installing an FEPIM ......................................................................................................2-1
User Accessible Components......................................................................................2-2
Installing the Module into the SmartSwitch 9000 Chassis......................................2-6
The Reset Switch ........................................................................................................... 2-8
Chapter 3 Operation
FENIB..............................................................................................................................3-3
SmartSwitch ASIC.........................................................................................................3-3
Traditional Switch..................................................................................................3-3
SecureFast Switch (SFS) ........................................................................................ 3-3
i960 Core......................................................................................................................... 3-4
INB NIB ..........................................................................................................................3-4
System Management Buses .........................................................................................3-4
SMB-1 Bus...............................................................................................................3-4
SMB-10 Bus.............................................................................................................3-5
System Diagnostic Controller...................................................................................... 3-5
DC/DC Converter ........................................................................................................3-5
INB Interface..................................................................................................................3-6
Chapter 4 LANVIEW LEDs
Chapter 5 Specifications
Technical Specifications.........................................................................................5-1
CPU...................................................................................................................5-1
Memory............................................................................................................5-1
Standards .........................................................................................................5-1
Network Interface...........................................................................................5-1
Safety .......................................................................................................................5-1
Service...................................................................................................................... 5-2

Contents
viii
Physical....................................................................................................................5-2
Dimensions......................................................................................................5-2
Weight...............................................................................................................5-2
Environment....................................................................................................5-2
Appendix A FEPIM Specifications
FE-100TX........................................................................................................................A-1
FE-100FX........................................................................................................................A-2

1-1
Chapter 1
Introduction
The 9H421-12, 9H422-12 and the 9H429-12, shown in Figure 1-1, are Fast Ethernet
SmartSwitch
®
Modules for the SmartSwitch 9000.
The 9H422-12 is a twelve port switch module, with eleven 10BASE-T/100BASE-
TX ports and one FEPIM (Fast Ethernet Port Interface Module), on the front panel.
The FEPIM port accepts either the FE-100TX, for use with twisted pair copper, or
the FE-100FX, for use with mulitmode fiber optic cabling.
The 9H421-12 is a twelve port switch module, equipped with twelve 100BASE-FX
multimode fiber (MMF) ports.
The 9H429-12 is a twelve port switch module, equipped with twelve 100BASE-FX
single mode fiber (SMF) ports.
These modules connect to the SmartSwitch 9000 INB-2 backplane interface, and
employ the family of SmartSwitch ASICs, a high performance switch design, and
an Intel i960 microprocessor.
Features
Processor
The 9H421-12, 9H422-12, and the 9H429-12 are equipped with an advanced Intel
i960 microprocessor. This microprocessor provides a platform for all management
functions.
Packet Switch Engine
These modules incorporate the family of SmartSwitch ASICs, a collection of
custom ASICs designed specifically for high speed switching. The SmartSwitch
ASIC bus is 64 bits wide with a bandwidth of 845 Mbps. Since all frame
translation, address lookups, and forwarding decisions are performed in
hardware, these modules can obtain a throughput performance of greater than
990K pps.

Introduction
1-2
Management
The 9H421-12, 9H422-12 and the 9H429-12 modules support SNMP for local and
remote management. Local management is provided through the RS-232 Com
ports on the SmartSwitch 9000 Environmental Module using a standard VT-220
terminal or emulator. Remote management is possible through Cabletron’s
SPECTRUM or any SNMP compliant management tool as well as telneting to the
module. Management features include module configuration and statistics. All
Fast Ethernet interfaces provide frames filtered, frames forwarded, and all
Spanning Tree Protocol parameters. All modules support RMON (RFC-1757),
IETF MIB II (RFC-1213), IETF BRIDGE MIB (RFC-1493), and a host of Cabletron
enterprise MIBs. In addition, the front panel provides LEDs for link status per
port as well as transmit and receive activity.
Connectivity
The 9H421-12, 9H422-12 and the 9H429-12 modules have one interface to the INB-
2 and twelve front panel Fast Ethernet interfaces. The front panel connections for
the 9H422-12 are via eleven standard RJ45 connectors and one FEPIM.
Front panel connections for the 9H421-12 are via twelve standard multimode fiber
SC connectors, providing links up to 2000 meters in length, when operating in
half duplex (point to point) or full duplex. Distance of links on a shared LAN in
half duplex is 412 meters.
The 9H429-12 single mode SC connectors provide twelve Fast Ethernet 100BASE-
FX connections, with links up to 10000 to 15000 meters in length, when operating
in half duplex (point to point) or full duplex. Distance of links on a shared LAN in
half duplex is 412 meters.
Auto-negotiation
The auto-negotiation feature (available only with the 9H422-12 module) allows
the module to automatically use the fastest rate supported by the device at the
other end (either 10 Mbps or 100 Mbps at either half or full duplex). To negotiate
duplex, both the 9H422-12 and the attached device must be configured for auto-
negotiation. If only the 9H422-12 is configured for auto-negotiation, the module
will set the connection to half duplex at either the 10 Mbps or 100 Mbps rate. This
technology is similar to how modems negotiate transmission speed, finding the
highest transmission rate possible. Similarly, auto-negotiation determines the
highest common speed between two devices and communicates at that speed. If
no common speed is detected, the device will be partitioned.
All RJ45 connections are capable of auto-negotiation, and can operate at 10 Mbps
or 100 Mbps, full or half duplex. Fiber connections can only operate at the 100
Mbps rate, full or half duplex.
NOTE

1-3
Introduction
Management Information Base (MIB) Support
The 9H421-12, 9H422-12 and the 9H429-12 modules provide MIB support
including:
• Cabletron Fast Ethernet MIB
• IETF MIB II
• IETF Bridge MIB
• RMON
• a host of Cabletron Enterprise MIBs
LANVIEW LEDs
The 9H421-12, 9H422-12 and the 9H429-12 modules use LANVIEW – the
Cabletron Systems built-in visual diagnostic and status monitoring system. With
LANVIEW LEDs, you can quickly identify the device, port, and physical layer
status at a glance.
For a complete list of supported MIBs, refer to the release notes provided in the
9H421-12, 9H422-12 and the 9H429-12 module packages.
NOTE

Introduction
1-4
Figure 1-1. The 9H421-12, 9H429-12 and 9H422-12 Modules
SMB CPU
INB
9H421-12
FAST ENET
SMB CPU
INB
9H429-12
FAST ENET
SMB
INB
9H422-12
FAST ENET
CPU

1-5
Introduction
Related Manuals
The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.
SmartSwitch 9000 Installation Guide
SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide
INB Terminator Modules Installation Guide
SmartSwitch 9000 Module Local Management User’s Guide
Getting Help
For additional support related to this device or document, contact the Cabletron Systems Global Call
Center:
Before calling the Cabletron Systems Global Call Center, have the following information ready:
• Your Cabletron Systems service contract number
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g., changing mode switches,
rebooting the unit, etc.)
• The serial and revision numbers of all involved Cabletron Systems products in the network
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)
• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
Phone [phone]
Internet mail suppor[email protected]
FTP ctron.com (134.141.197.25)
Login anonymous
Password your email address
BBS [phone]
Modem setting 8N1: 8 data bits, No parity, 1 stop bit
For additional information about Cabletron Systems or its products, visit the
World Wide Web site: http://www.cabletron.com/
For technical support, select Service and Support .
To send comments or suggestions concerning this document, contact the
Cabletron SystemsTechnical Writing Department via the following
email address: [email protected]
Make sure to include the document Part Number in the email message.

Introduction
1-6

2-1
Chapter 2
Installing the SmartSwitch 9000
Module
The 9H421-12, 9H422-12 and the 9H429-12 modules each occupy a single slot in
the SmartSwitch 9000 chassis.
Install any of these modules by following the steps starting below.
Unpacking the Module
1. Carefully remove the module from the shipping box. (Save the box and
packing materials in the event the module must be reshipped.)
2. Remove the module from the static bag. Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).
3. Carefully examine the module, checking for damage. If any damage exists,
DO NOT install the module. Contact Cabletron Systems Technical Support
immediately.
Installing an FEPIM
The 9H422-12 provides a slot for a Cabletron FEPIM (Fast Ethernet Port Interface
Module). The 9H422-12 SmartSwitch module is shipped without an FEPIM. To
install an FEPIM, follow the procedure below:
1. Remove the module if it is installed in the SmartSwitch 9000 chassis.
2. Remove the two screws securing the plate on the side of the FEPIM slot.
3. Install the FEPIM as shown in Figure 2-1. Ensure that the rear connector is
seated firmly before tightening the three mounting screws.
4. Replace the plate and two screws on the side of the FEPIM slot.

Installing the SmartSwitch 9000 Module
2-2

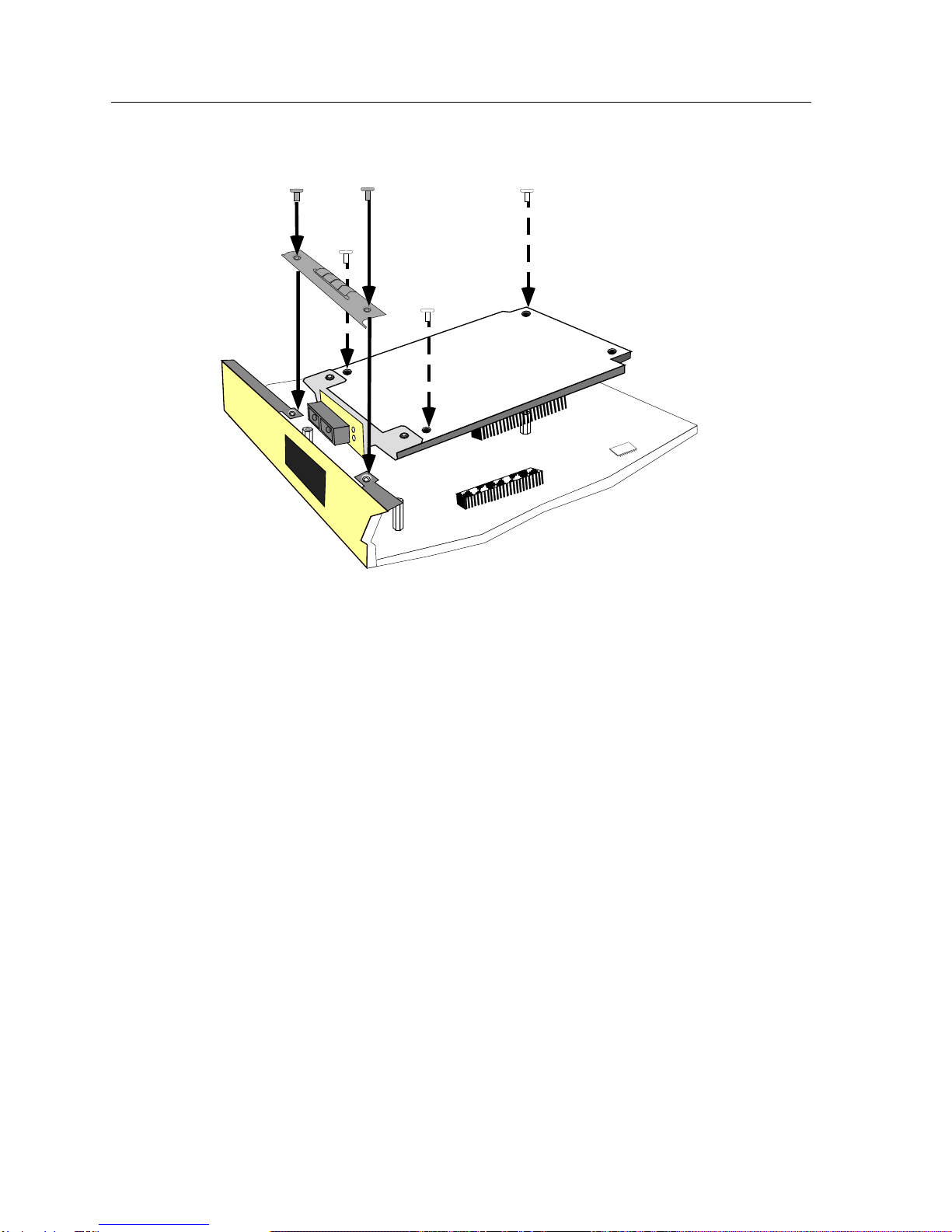

Figure 2-1. Installing an FEPIM
User Accessible Components
Figure 2-2 shows the various components that are accessible to the user. These
consist of an eight position DIP switch (explained below), replaceable PROMs
and sockets for RAM. These will be used for future upgrades. Instructions for
installing the components will be supplied with the upgrade kit.

2-3
Installing the SmartSwitch 9000 Module

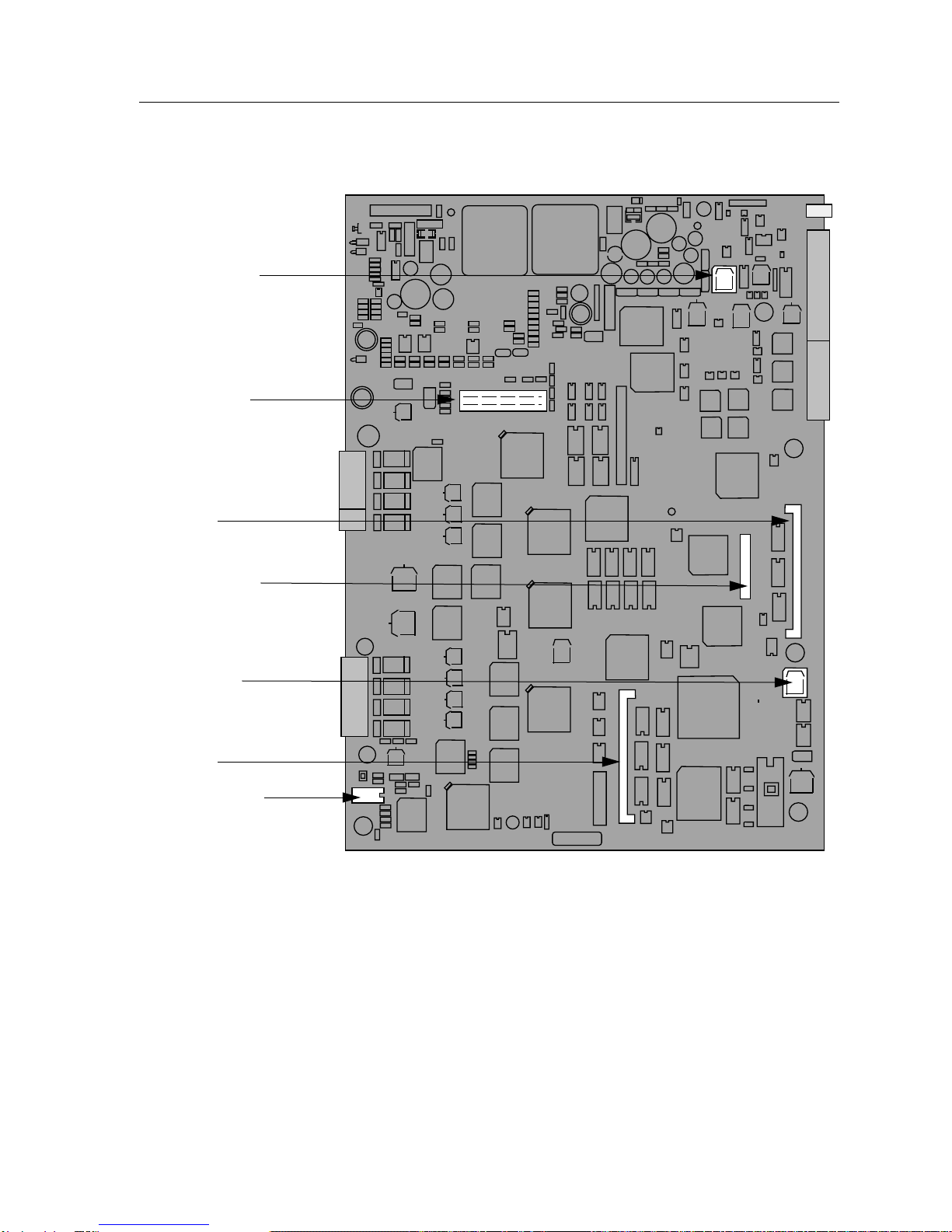

Figure 2-2. 9H422-12 User Accessible Components
St
SMB 10
FEPIM
Connector
Boot Prom
Flash
DRAM
Dip Switches
CNXSTATS
Connector

Installing the SmartSwitch 9000 Module
2-4

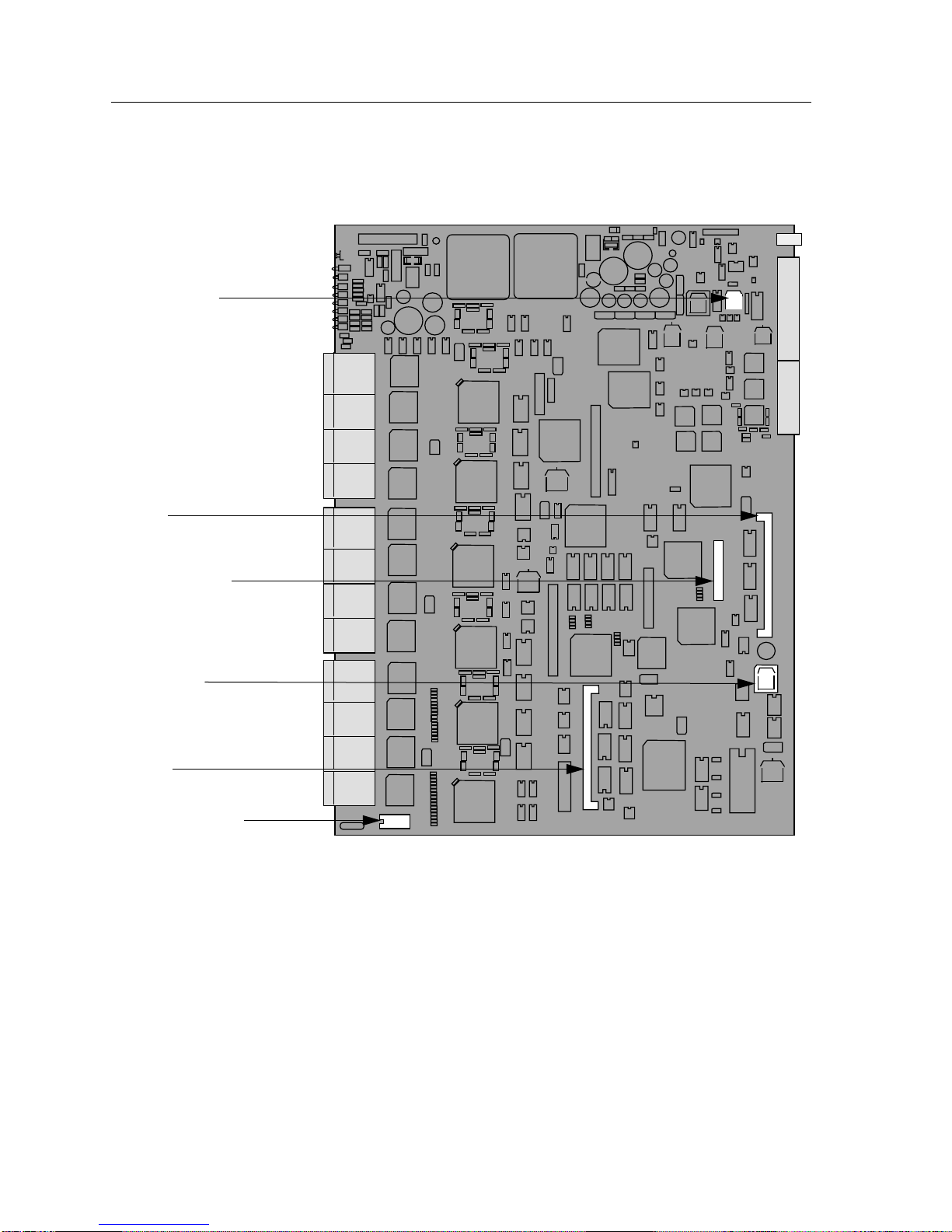

Figure 2-3. 9H421-12 and 9H429-12 User Accessible Components
An eight position DIP switch is located on the module card as shown in Figure 2-2
and Figure 2-3. The function of the switches are listed in Table 2-1.
SMB 10 Prom
Boot Prom
Flash
Dip Switches
CNXSTATS
Connector
DRAM
