Cabletron Systems pmn User manual

2M46-04R/2M46-04RDC
SmartSwitch 2000
User’s Guide
2314 00
COM
RESET
2M46-04R 21
HSIM 1HSIM 2
PWR
CPU
9032363-02

2M46-04R/2M46-04RDC User’s Guide i
NOTICE
Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FORANY INCIDENTAL,
INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT
NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR
THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN
ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.
 1998 by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America
Order Number: 9032363-02 September 1998
Cabletron Systems, SPECTRUM , LANVIEW , QuickSET , and SecureFast are registered
trademarks and SmartSwitch is a trademark of Cabletron Systems, Inc.
All other product names mentioned in this manual may be trademarks or registered trademarks of
their respective companies.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
Only qualified personnel should perform installation
procedures.

Notice
ii 2M46-04R/2M46-04RDC User’s Guide
INDUSTRY CANADA NOTICE
This digital apparatus does not exceed the ClassA limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

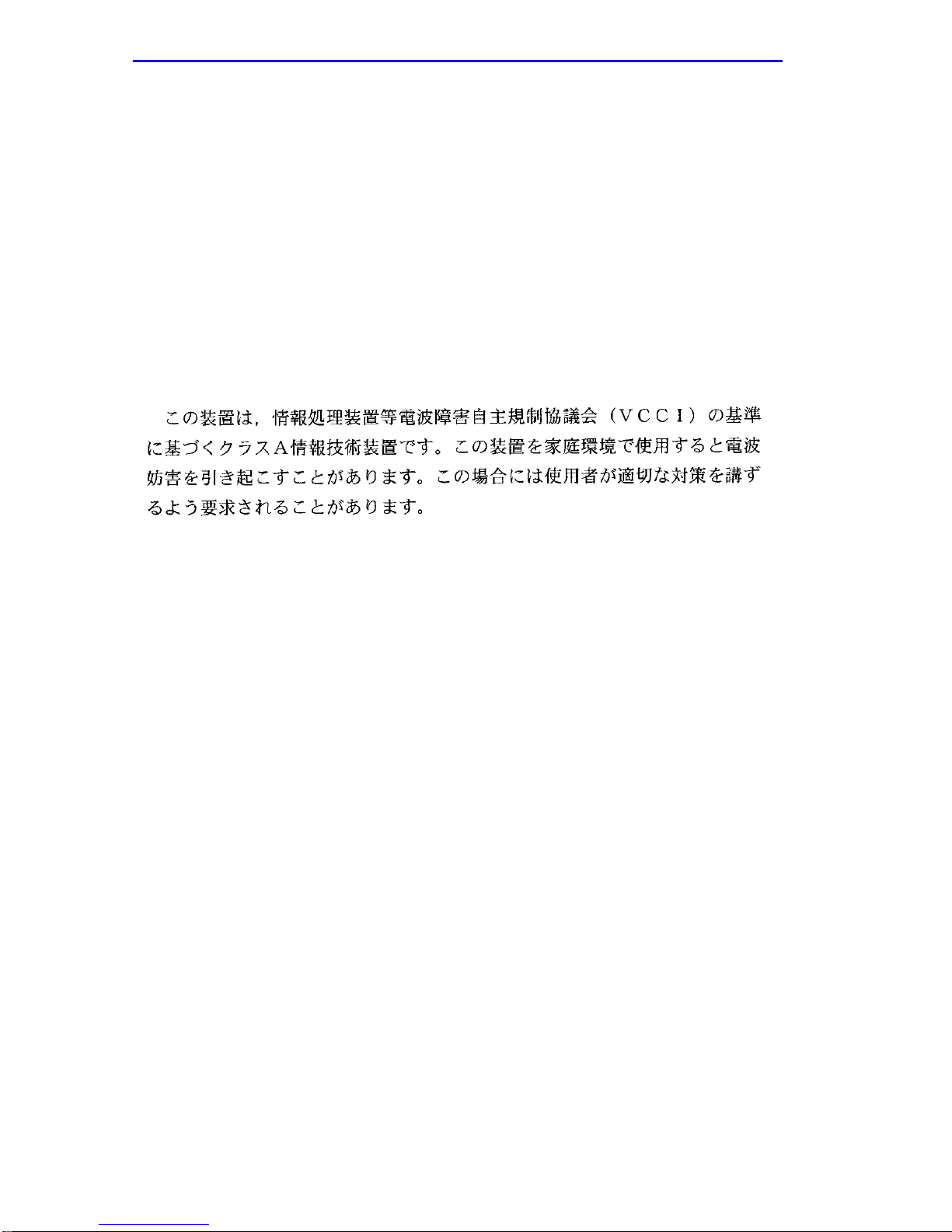

VCCI NOTICE
This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.
CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT
IMPORTANT: Before utilizing this product, carefully read this License Agreement.
This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”)
that sets forth your rights and obligations with respect to the Cabletron software program (the
“Program”) contained in this package. The Program may be contained in firmware, chips or other
media. BY UTILIZING THE ENCLOSED PRODUCT,YOU ARE AGREEING TO BECOME
BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND
THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IFYOU DO NOT
AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN THE UNUSED
PRODUCT TO THE PLACE OF PURCHASE FOR A FULL REFUND.

Notice
2M46-04R/2M46-04RDC User’s Guide iii
CABLETRON SOFTWARE PROGRAM LICENSE
1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this
package subject to the terms and conditions of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the
Copyright Act of the United States or as authorized in writing by Cabletron.
2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the
Program.
3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws
and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and
venue of the New Hampshire courts.
EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY
1. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in
writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including
its documentation and media).
CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO
YOU BY CABLETRON IN WRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE
ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL
CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS,
PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL,
INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS)
ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT,
EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR
ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME
INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO
YOU.
UNITED STATES GOVERNMENT RESTRICTED RIGHTS
The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer
software” submitted with restricted rights in accordance with Section 52227-19 (a) through (d) of the
Commercial Computer Software - Restricted Rights Clause and its successors, and (c) in all respects
is proprietary data belonging to Cabletron and/or its suppliers.
For Department of Defense units, the product is licensed with “Restricted Rights” as defined in the
DoD Supplement to the Federal Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its
successors, and use, duplication, disclosure by the Government is subject to restrictions as set forth in
subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at
252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.

Notice
iv 2M46-04R/2M46-04RDC User’s Guide
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
THE FE-100F3 FAST ETHERNET INTERFACE MODULE, FPIM-05 AND
FPIM-07 FDDI PORT INTERFACE MODULES, AND APIM-29 ATM
PORT INTERFACE MODULE USE CLASS 1 LASER TRANSCEIVERS.
READ THE FOLLOWING SAFETY INFORMATION BEFORE
INSTALLING OR OPERATING THESE MODULES.
The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This
control loop eliminates the need for maintenance checks or adjustments. The output is factory set, and
does not allow any user adjustment. Class 1 Laser transceivers comply with the following safety
standards:
• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and Human Services (FDA).
• IEC Publication 825 (International Electrotechnical Commission).
• CENELEC EN 60825 (European Committee for Electrotechnical Standardization).
When operating within their performance limitations, laser transceiver output meets the Class 1
accessible emission limit of all three standards. Class 1 levels of laser radiation are not considered
hazardous.
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
LASER RADIATION AND CONNECTORS
When the connector is in place, all laser radiation remains within the fiber. The maximum amount of
radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10
-6
watts.
Removing the optical connector from the transceiver allows laser radiation to emit directly from the
optical port. The maximum radiance from the optical port (under worst case conditions) is
0.8 W cm
-2
or 8 x 10
3
W m
2
sr-1.
Do not use optical instruments to view the laser output. The use of optical instruments to view
laser output increases eye hazard. When viewing the output optical port, power must be
removed from the network adapter.

Notice
2M46-04R/2M46-04RDC User’s Guide v
DECLARATION OF CONFORMITY
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Cabletron Systems, Inc.
Manufacturer’s Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name: Mr. J. Solari
European Representative Address: Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Equipment Type/Environment: Networking Equipment, for use in a
Commercial or Light
Industrial
Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged
with this notice conforms to the above directives.
Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari
___________________________________ ___________________________________
Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.
___________________________________ ___________________________________
Title Title
Rochester, NH, USA Newbury, Berkshire, England
___________________________________ ___________________________________
Location Location

Notice
vi 2M46-04R/2M46-04RDC User’s Guide

2M46-04R/2M46-04RDC User’s Guide vii
CONTENTS
CHAPTER 1 INTRODUCTION
1.1 Using This Guide.........................................................................1-1
1.2 Structure of This Guide................................................................1-1
1.3 2M46-04R Overview....................................................................1-2
1.3.1 Connectivity ....................................................................1-3
1.3.2 Full Duplex Switched Ethernet........................................1-3
1.3.3 Auto-Negotiation.............................................................1-4
1.3.4 SmartTrunk.....................................................................1-4
1.3.5 Runtime IP Address Discovery.......................................1-5
1.3.6 Management...................................................................1-5
1.3.7 Switching ........................................................................1-6
1.3.8 Standards Compatibility..................................................1-6
1.3.9 Year 2000 Compliance ...................................................1-6
1.3.10 LANVIEW Diagnostic LEDs............................................1-6
1.3.11 Optional Features ...........................................................1-7
1.4 Document Conventions...............................................................1-8
1.5 Getting Help.................................................................................1-9
1.6 Related Manuals........................................................................1-10
CHAPTER 2 NETWORK REQUIREMENTS
2.1 SmartTrunk..................................................................................2-1
2.2 100BASE-TX Network.................................................................2-1
2.3 100BASE-FX Fiber Optic Network ..............................................2-2
CHAPTER 3 INSTALLATION
3.1 Unpacking the 2M46-04R............................................................3-1
3.2 Installing Options.........................................................................3-2
3.3 Installing the 2M46-04R...............................................................3-2
3.3.1 Tabletop or Shelf Installation ..........................................3-2
3.3.2 2M46-04R and 2M46-04RDC Rackmount Installation....3-4
3.4 Connecting Power.......................................................................3-8
3.4.1 Connecting Power to the 2M46-04R...............................3-8
3.4.2 Connecting Power to the 2M46-04RDC .........................3-9
3.5 Connecting to the Network........................................................3-11
3.5.1 Connecting a UTP Segment to the FE-100TX..............3-11
3.5.2 Connecting a Fiber Optic Segment to the
FE-100FX and FE-100F3 .............................................3-13
3.6 Completing the Installation........................................................3-15

CONTENTS
viii 2M46-04R/2M46-04RDC User’s Guide
CHAPTER 4 TROUBLESHOOTING
4.1 Using LANVIEW...........................................................................4-1
4.2 FE-100TX LED.............................................................................4-4
4.3 Troubleshooting Checklist............................................................4-6
4.4 Using the RESET Button .............................................................4-7
CHAPTER 5 LOCAL MANAGEMENT
5.1 Overview......................................................................................5-1
5.2 Local Management Keyboard Conventions.................................5-2
5.3 Management Terminal Setup.......................................................5-3
5.3.1 Console Cable Connection..............................................5-3
5.3.2 Management Terminal Setup Parameters ......................5-5
5.3.3 Telnet Connections .........................................................5-6
5.3.4 Connecting an Uninterruptible Power Supply..................5-6
5.4 Accessing Local Management.....................................................5-8
5.4.1 Navigating Local Management Screens..........................5-9
5.4.2 Selecting Local Management Menu Screen Items........5-11
5.4.3 Exiting Local Management Screens..............................5-11
5.5 Device Menu Screen..................................................................5-12
5.6 Device Configuration Menu Screen ...........................................5-14
5.7 General Configuration Screen ...................................................5-16
5.7.1 Setting the IP Address...................................................5-19
5.7.2 Setting the Subnet Mask...............................................5-20
5.7.3 Setting the Default Gateway..........................................5-21
5.7.4 Setting the TFTP Gateway IP Address .........................5-21
5.7.5 Setting the Device Date.................................................5-22
5.7.6 Setting the Device Time................................................5-23
5.7.7 Entering a New Screen Refresh Time...........................5-23
5.7.8 Setting the Screen Lockout Time..................................5-24
5.7.9 Setting the Operational Mode........................................5-24
5.7.10 Configuring the COM Port.............................................5-25
5.7.10.1 Changing the COM Port Application.............5-26
5.7.11 Clearing NVRAM...........................................................5-28
5.7.12 Enabling/Disabling IP Fragmentation............................5-29
5.8 SNMP Community Names Screen.............................................5-29
5.8.1 Establishing Community Names ...................................5-31
5.9 SNMP Traps Screen..................................................................5-32
5.9.1 Configuring the Trap Table............................................5-33
5.10 Switch Configuration Screen......................................................5-34
5.10.1 Setting the STA.............................................................5-36
5.10.2 Setting the Age Time Field............................................5-36
5.10.3 Setting (Enabling or Disabling) the Port Status.............5-37

CONTENTS
2M46-04R/2M46-04RDC User’s Guide ix
5.11 Device Specific Configuration Menu Screen.............................5-37
5.12 System Resources Screen........................................................5-39
5.12.1 Setting the Reset Peak Switch Utilization.....................5-41
5.13 High Speed Interface Configuration Menu Screen....................5-42
5.14 High Speed Interface Configuration Screen..............................5-44
5.14.1 Configuring an FE-100FX or FE-100F3
in Port 1 or 2 .................................................................5-46
5.14.2 Setting the FE-100FX or FE-100F3
Desired Operational Mode............................................5-47
5.14.3 Configuring an FE-100TX in Port 1 or 2 .......................5-47
5.14.4 Setting the FE-100TX Desired Operational Mode ........5-47
5.14.5 Setting the FE-100TX Advertised Ability.......................5-48
5.15 Flash Download Screen ............................................................5-48
5.15.1 Image File Download Using BootP...............................5-50
5.15.2 Image File Download Using TFTP................................5-51
5.15.3 Image File Download Using Runtime ...........................5-52
5.16 Port Redirect Function Screen ..................................................5-53
5.16.1 Displaying the Source and Destination Entries.............5-54
5.16.2 Changing Source and Destination Ports.......................5-55
5.17 Broadcast Suppression Screen.................................................5-56
5.17.1 Setting the Threshold....................................................5-57
5.17.2 Setting the Reset Peak Rate ........................................5-58
5.18 Device Statistics Menu Screen..................................................5-58
5.19 Switch Statistics Screen............................................................5-60
5.19.1 Using the Clear Counters Command............................5-61
5.20 Interface Statistics Screen.........................................................5-62
5.20.1 Displaying Interface Statistics.......................................5-65
5.20.2 Using the Clear Counters Command............................5-66
5.21 RMON Statistics Screen............................................................5-66
5.21.1 Displaying RMON Statistics..........................................5-70
5.21.2 Using the Clear Counters Command............................5-70
5.22 Network Tools............................................................................5-70
5.22.1 Built-in Commands .......................................................5-72
5.22.2 Special Commands.......................................................5-80
APPENDIX A SPECIFICATIONS
A.1 Device Specifications ..................................................................A-1
A.2 Physical Properties......................................................................A-1
A.3 Electrical Specifications...............................................................A-1
A.4 Environmental Requirements......................................................A-2
A.5 Input/Output Ports .......................................................................A-2
A.6 COM Port/Pin Assignments.........................................................A-3
A.7 Regulatory Compliance...............................................................A-3

CONTENTS
x 2M46-04R/2M46-04RDC User’s Guide
APPENDIX B FE-100TX, FE-100FX, AND FE-100F3
SPECIFICATIONS
B.1 FE-100TX.................................................................................... B-1
B.2 FE-100FX.................................................................................... B-2
B.3 FE-100F3.................................................................................... B-3
APPENDIX C OPTIONAL INSTALLATIONS AND
MODE SWITCH BANK SETTINGS
C.1 Required Tools............................................................................C-1
C.2 Removing the Chassis Cover .....................................................C-2
C.2.1 Setting the Mode Switch.................................................C-3
C.3 Installing Optional Fast Ethernet Interface Modules ...................C-6
INDEX

2M46-04R/2M46-04RDC User’s Guide 1-1
CHAPTER 1
INTRODUCTION
Welcome to the 2M46-04R/04RDC SmartSwitch 2000 User’s Guide .
This guide describes the 2M46-04R and 2M46-04RDC SmartSwitch
2000 devices and provides information concerning network requirements,
installation, troubleshooting, and the use of Local Management.
1.1 USINGTHIS GUIDE
Read through this guide completely to understand the 2M46-04R
features, capabilities, and Local Management functions.
1.2 STRUCTURE OFTHIS GUIDE
This guide is organized as follows:
Chapter 1, Introduction , outlines the contents of this manual and briefly
describes the 2M46-04R features. Directions about how to obtain
additional help and a list of related manuals are also included.
Chapter 2, Network Requirements , explains the network requirements
to consider before installing the 2M46-04R.
Chapter 3, Installation , provides instructions on how to install the
2M46-04R and connect segments to the device.
Chapter 4, Troubleshooting , describes the function of the LANVIEW
LEDs, which can help to quickly diagnose network/operational problems.
Chapter 5, Local Management , describes how to access Local
Management and use the Local Management screens to manage the
2M46-04R.
NOTE
The 2M46-04R and 2M46-04RDC have identical features and
functions with the exception of their power source connection.
The 2M46-04R connects to an ac power source and the
2M46-04RDC connects to a dc power source. Both the
2M46-04R and 2M46-04RDC are referred to as the 2M46-04R
unless otherwise specified in this guide.

Chapter 1: Introduction
1-2 2M46-04R/2M46-04RDC User’s Guide
Appendix A, Specifications , contains information on functionality and
operating specifications, connector pinouts, environmental requirements,
and physical properties.
Appendix B, FE-100TX, FE-100FX, and FE-100F3 Specifications ,
contains information about FE-100TX pinouts and information
concerning cable types used with the FE-100FX and FE-100F3.
Appendix C, Optional Installations and Mode Switch Bank Settings ,
describes how to install optional Fast Ethernet Interface Modules and how
to set the Mode Switch.
1.3 2M46-04R OVERVIEW
The 2M46-04R, shown in Figure 1-1, is a 4-port high-speed network
switching device that supports traditional switching (bridging), IEEE
802.1Q switching (port based VLANs), and Cabletron Systems
SecureFast Switching Virtual Network technology. The 2M46-04R also
has redundant power supplies.
Ports 1 and 2 on the 2M46-04R support optional Fast Ethernet Interface
Modules and can provide uplinks to 100BASE-TX or 100BASE-FX Fast
Ethernet networks. There are also two HSIM slots that support optional
High Speed Interface Modules (HSIMs) that provide additional
connectivity to various networking technologies such as Asynchronous
Transfer Mode (ATM), Wide Area Networks (WANs), and Fiber
Distribution Data Interface (FDDI).
Figure 1-1 The 2M46-04R
2314_01
RESET Button
Optional Fast Ethernet Interface
Module Ports 1 and 2
COM Port
System LEDs Port Status LEDs
4
PWR
CPU
2M46-04R 12
Optional HSIM Slots
2M46-04R
RESET COM
HSIM 1
HSIM 2

2M46-04R Overview
2M46-04R/2M46-04RDC User’s Guide 1-3
The 2M46-04R is a tabletop unit that can be installed in a standard
19-inch rack using the supplied rack mounting hardware.
The 2M46-04R has two ac power supplies. The power supplies load share
50% (+/-5%) of the power required by the device. If one power supply
fails, the remaining power supply assumes the entire load of the device
without interruption to network traffic. Each power supply module
supports its own ac input connection, which allows the user to connect
each power supply to a different ac power circuit.
The 2M46-04RDC operates from two dc voltage power sources. The
power supplies load share 50% (+/-5%) of the power required by the
device. If one power supply fails, the remaining power supply assumes
the entire load of the device without interruption to network traffic. Each
power supply module supports its own dc input connection, which allows
the user to connect each power supply to a different dc power source.
1.3.1 Connectivity
The 2M46-04R has two front panel slots (ports 1 and 2) for optional Fast
Ethernet Interface Modules to support an uplink to 100 Mbps Fast
Ethernet backbones or a high speed connection to a local server. There are
also two HSIM slots for optional HSIMs to provide additional
connectivity to various networking technologies.
1.3.2 Full Duplex Switched Ethernet
The optional Fast Ethernet Interface Modules can be configured to
operate in Full Duplex Switched Ethernet (FDSE) mode which provides
up to 200 Mbps of throughput per interface.

Chapter 1: Introduction
1-4 2M46-04R/2M46-04RDC User’s Guide
1.3.3 Auto-Negotiation
The optional FE-100TX Fast Ethernet Interface Module can
auto-negotiate the type of connection required to provide a link to another
device. During Auto-Negotiation, two devices automatically exchange
information “telling” each other what their operating capabilities are. The
Auto-Negotiation feature targets the maximum capabilities that can be
reached between the two devices. For example, a 2M46-04R FE-100TX
Fast Ethernet Interface Module adjusts to 100 Mbps when the device on
the other end of the connection can also adjust to 100 Mbps. If the device
on the other end of the connection can only operate at 10 Mbps, then the
2M46-04R Fast Ethernet Interface Module simply adjusts to 10 Mbps.
When Auto-Negotiation is supported at both ends of a link, the two
devices dynamically adjust to full or half duplex operation based on the
maximum capability that can be reached between the two devices. If the
device connected to the 2M46-04R cannot auto-negotiate, the 2M46-04R
Fast Ethernet Interface Module operates according to the capabilities of
the other device.
1.3.4 SmartTrunk
SmartTrunk, also referred to as SmartTrunking, is Cabletron Systems’
terminology for load balancing or load sharing. SmartTrunk technology
provides an easy-to-implement mechanism to group, or aggregate,
multiple physical links together to scale the backbone bandwidth beyond
the limitations of a single link. All links are user-configurable so
administrators can scale the backbone bandwidth by adding SmartTrunk
links. The SmartTrunk benefits are as follows:
• All purchased bandwidth is used.
• Distributed, resilient links increase reliability and performance.
• Multiple technologies are supported within a single trunk for
maximum flexibility.
For more information about SmartTrunk, refer to the Cabletron Systems
SmartTrunk User’s Guide .

2M46-04R Overview
2M46-04R/2M46-04RDC User’s Guide 1-5
1.3.5 Runtime IP Address Discovery
This feature enables the 2M46-04R to automatically accept an IP address
from a BootP server on the network into NVRAM without requiring the
user to enter an IP address through Local Management.
When the 2M46-04R is connected to the network and powered up,
Runtime IP Address Discovery (RAD) checks the 2M46-04R for an IP
address. If one has not yet been assigned, RAD checks to see if any of the
2M46-04R interfaces have a link. If so, RAD sends out Reverse Address
Resolution Protocol (RARP) and BootP requests to obtain an IP address
from a BootP server on the network.
The RAD requests start out at an interval of 1 second, then the interval
doubles after every transmission until an interval of 300 seconds is
reached. At this point, the interval remains at 300 seconds. The RAD
requests continue until an IP address is received from a BootP server, or
an IP address is entered using Local Management.
1.3.6 Management
Management of the 2M46-04R is accomplished using Local Management
tools or remote SNMP management stations. Local Management is
accessible through the RS232 COM port on the front panel using a local
VT100 terminal, or a remote VT100 terminal via a modem connection,
and in-band via a Telnet connection. In-band remote management is
possible through any SNMP compliant Network Management Software.
Local Management provides the ability to manage the 2M46-04R and any
of the optional Fast Ethernet Interface Modules installed in ports 1 and 2
and the optional High Speed Interface Modules (HSIMs).
The associated High Speed Interface Module user’s guide provides
detailed information about Local Management of the HSIM.
Information about how to access and use Local Management is contained
in Chapter 5.

Chapter 1: Introduction
1-6 2M46-04R/2M46-04RDC User’s Guide
1.3.7 Switching
The 2M46-04R provides traditional switching (802.1D), IEEE 802.1Q
switching, or SecureFast Switching (SFS) Virtual Network Services
between all of the optional Fast Ethernet Interface Modules and High
Speed Interface Modules (HSIMs). SFS and 802.1Q switching allow for
migration to Virtual Network technologies without requiring the
replacement of existing equipment.
1.3.8 Standards Compatibility
The optional Fast Ethernet Interface Modules are fully compliant with the
IEEE 802.3u standard.The 2M46-04R provides IEEE 802.1D Spanning
Tree Algorithm (STA) support or DEC spanning tree support to enhance
the overall reliability of the network and protect against “loop”
conditions. The 2M46-04R supports a wide variety of industry standard
MIBs including RFC 1213 (MIB II), RFC 1271 (RMON), RFC 1317
(RS232 MIB), RFC 1493 (Bridge MIB), RFC 1573 (Evolution of MIB II
Interfaces), and RFC 1354 (FIB MIB). A full suite of Cabletron Systems
Enterprise MIBs provide a wide array of statistical information to
enhance troubleshooting.
1.3.9 Year 2000 Compliance
The 2M46-04R has an internal clock that can maintain the time and date
beyond the year 1999.
1.3.10 LANVIEW Diagnostic LEDs
LANVIEW diagnostic LEDs serve as an important troubleshooting aid by
providing an easy way to observe the status of individual ports and overall
network operations. Chapter 4 provides details about the 2M46-04R
LANVIEW LEDs.

2M46-04R Overview
2M46-04R/2M46-04RDC User’s Guide 1-7
1.3.11 Optional Features
Options for the 2M46-04R include Fast Ethernet Interface Modules and
High Speed Interface Modules to add uplink capability. Cabletron
Systems provides Fast Ethernet Interface Modules to support uplinks to
100 Mbps Ethernet backbones or high speed connections to local servers.
The Fast Ethernet Interface Modules are listed in Table 1-1.
.
High Speed Interface Modules (HSIMs) are available from Cabletron
Systems for additional connectivity to various networking technologies.
The HSIMs available for the 2M46-04R are listed in the Release Notes.
Table 1-1 Fast Ethernet Interface Modules
P/N Description Application
FE-100TX Uses RJ45
connector Supports Category 5 Unshielded Twisted Pair (UTP) with impedance of 85 to 111 ohms.
FE-100FX Uses SC
connector Supports multimode fiber optic cabling.
FE-100F3 Uses SC
connector Supports single mode fiber optic cabling.
NOTE
Other Fast Ethernet Interface Modules may be available for the
2M46-04R. Check the Release Notes included with the
2M46-04R.

Chapter 1: Introduction
1-8 2M46-04R/2M46-04RDC User’s Guide
1.4 DOCUMENT CONVENTIONS
The following conventions are used throughout this document:
NOTE
Note symbol. Calls the reader’s attention to any item of
information that may be of special importance.
TIP
Tip symbol. Conveys helpful hints concerning procedures or
actions.
!
CAUTION
Caution symbol. Contains information essential to avoid
damage to the equipment.
Electrical Hazard Warning symbol.Warns against an action
that could result in personal injury or death due to an electrical
hazard.
WARNING
Warning symbol.Warns against an action that could result in
personal injury or death.
