Cabletron Systems CyberSWITCH CSX1000 User manual

WORKGROUP
REMOTE ACCESS SWITCH
QUICK START
Release 7.2
Cabletron Systems
[phone] phone
[phone] fax
[e-mail]

QUICK START
2 CyberSWITCH
NOTICE
You may post this document on a network server for public use as long as no
modifications are made to the document.
Cabletron Systems reserves the right to make changes in specifications and other
information contained in this document without prior notice. The reader should in
all cases consult Cabletron Systems to determine whether any such changes have
been made.
The hardware, firmware, or software described in this manual is subject to change
without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY
INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING
OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF,
KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.
©Copyright 1998 by Cabletron Systems, Inc. All rights reserved.
Cabletron Systems, Inc.
P.O. Box 5005
Rochester, NH 03866-5005
Order Number: 9032106-02
VIRUS DISCLAIMER
Cabletron Systems has tested its software with current virus checking
technologies. However, because no anti-virus system is 100% reliable, we strongly
caution you to write protect and then verify that the Licensed Software, prior to
installing it, is virus-free with an anti-virus system in which you have confidence.
Cabletron Systems makes no representations or warranties to the effect that the
Licensed Software is virus-free.
Copyright © July 1997, by Cabletron Systems, Inc. All rights reserved.
Only qualified personnel should perform installation
procedures.
!
CAUTION

Workgroup Remote Access Switch 3
TRADEMARKS
Cabletron Systems, CyberSWITCH, MMAC-Plus, SmartSWITCH, SPECTRUM,
and SecureFast Virtual Remote Access Manager are trademarks of Cabletron
Systems, Inc.
All other product names mentioned in this manual are trademarks or registered
trademarks of their respective companies.
COPYRIGHTS
All of the code for this product is copyrighted by Cabletron Systems, Inc.
© Copyright 1991-1997 Cabletron Systems, Inc. All rights reserved. Printed in the
United States of America.
Portionsofthecodeforthisproductarecopyrightedbythefollowingcorporations:
Epilogue Technology Corporation
Copyright 1991-1993 by Epilogue Technology Corporation. All rights reserved.
Livingston Enterprises, Inc.
Copyright 1992 Livingston Enterprises, Inc.
Security Dynamics Technologies Inc.
Copyright 1995 by Security Dynamics Technologies Inc. All rights reserved.
Stac Electronics
Stac Electronics 1993, including one or more U.S. Patents No. 4701745, 5016009,
5126739 and 5146221 and other pending patents.
Telenetworks
Copyright 1991, 92, 93 by Telenetworks. All rights reserved.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment uses,
generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
interference in which case the user will be required to correct the interference at his
own expense.

QUICK START
4 CyberSWITCH
WARNING: Changes or modificationsmade to this device which are not expressly
approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
DOC NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la class A prescrites dans le
Règlement sur le brouillage radioélectrique édicté par le ministère des
Communications du Canada.
VCCI NOTICE
This is a Class 1 product based on the standard of the Voluntary Control Council
for Interference by Information Technology Equipment (VCCI). If this equipment
is used in a domestic environment, radio disturbance may arise. When such
trouble occurs, the user may be required to take corrective actions.
CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT
IMPORTANT: Before utilizing this product, carefully read this License Agreement.
This document is an agreement between you, the end user, and Cabletron Systems,
Inc. ("Cabletron") that sets forth your rights and obligations with respect to the
Cabletron software program (the "Program") contained in this package. The
Program may be contained in firmware, chips or other media. BY UTILIZING THE
ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE
TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE
LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO
NOT AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN
THE UNUSED PRODUCT TO THE PLACE OF PURCHASE FOR A FULL
REFUND.

Workgroup Remote Access Switch 5
CONTENTS
Using Quick Start 7
Basics 8
Accessing the Release Notes 8
Accessing the CyberSWITCH 8
Connecting an Administration Console 8
Changing the Baud Rate 9
Telnet Connection 10
Login on the CyberSWITCH 10
Making Configuration Changes 10
Upgrading Software 11
CD File Structure 12
Local Software Upgrade 12
Local Upgrade of the Second Stage Boot (SSB) 12
Local Upgrade of the Operational Software (OSW) 13
Remote Software Upgrade 13
Remote Upgrade of the Second Stage Boot (SSB) 14
Remote Upgrade of the Operational Software (OSW) 15
Change Defaults to Secure System 16
Return Configuration to Factory Defaults 17
Initial Installation Steps 17
Beginning the Configuration Process 17
Physical Resource Configuration 17
Connectivity 19
Overview 19
Connecting a Workgroup Product to a Small Office Product via PPP 19
Bridge to Bridge Configuration 19
Configuration for Site "Remote" 20
IP Router to IP Router Configuration 21
Configuration for Site "Central" 21
Configuration for Site "Remote" 22
IPX Router to IPX Router Configuration 23
Configuration for Site "Central" 23
Configuration for Site "Remote" 24
AppleTalk Router to AppleTalk Router Configuration 25
Configuration for Site "Central" 25
Configuration for Site "Remote" 26
Connecting a Workgroup Product to a CSX100 via PPP 27
IP Router to IP Router with Network Address Translation Configuration 27
Configuration for Site “Central” 28
Configuration for Site “Remote” 28
IPX Router to IPX Router Configuration 29
Configuration for Site “Central” 29
Configuration for Site “Remote” 30
IPX Router to Bridge Configuration 30
Configuration for Site “Central” 31
Configuration for Site “Remote” 31

QUICK START
6 CyberSWITCH
AppleTalk Router to Bridge Configuration 32
Configuration for Site “Central” 32
Configuration for Site “Remote” 33
Index 34

U SING Q UICK S TART
Quick Start is recommended only for those users who are experienced with hardware and software
installation procedures. Quick Start is divided into two parts.
•Basics
This chapter gives detailed instructions on the initial installation steps that are required for all
CyberSWITCH configurations.
• Connectivity
This chapter gives instructions for connecting two of our products together via PPP. Separate
instructions are provided for bridging, IP, IPX, and AppleTalk configurations.

B ASICS
ACCESSING THE RELEASE NOTES
The Release Notes provide release highlights and important information related to this release that
should be reviewed before you begin the system’s installation and configuration.
The Release Notes are located on the CD as well as on the system’s FLASH file system.
The Release Notes on the CD are located in the REL_NOTE.TXT file. This file is a DOS text file you
can read on a DOS machine. Insert the CD into the drive, change to the proper directory, and enter
the following command at the DOS prompt:
[CD-ROM drive]:\[platform directory][ISDN standard directory][option directory]CSX1200>
type REL_NOTE.TXT | more
For example, if your CD-ROM is designated as drive D, you are installing is CSX1204, using US
ISDN standards and the IP/IPX option, you would use the following path:
D:\CSX1204\US\IPIPX> type REL_NOTE.TXT | more
ACCESSING THE CYBERSWITCH
There are two ways to access the system. The first method uses a console connection through the
console port on the back of the system, and connects up either a terminal or a workstation/PC
executing a terminal emulation program. The second method is to Telnet to the system. We
describe each of these methods below.
CONNECTING AN ADMINISTRATION CONSOLE
There are two ways to set up a console connection. The first way is to simply connect up an ASCII
terminal to the console port on the back of the system. This method can only be used to configure
or manage the system. To install or upgrade system software, you must use the second method
described below.
The second way is to use a PC or workstation to connect to the system. The CyberSWITCH does
not have a CD-ROM drive. Therefore, you must upgrade or install the software through an
attached PC, UNIX workstation, or any device that meets the following requirements:
• has a CD-ROM drive
• provides an RS232 terminal program
• has X-Modem communications capability (required for software upgrade only)
• has ASCII transfer capability (required for SSB recovery)
Any computer or terminal that meets these requirements and connects to the administration port
on the system can operate as an administration console.

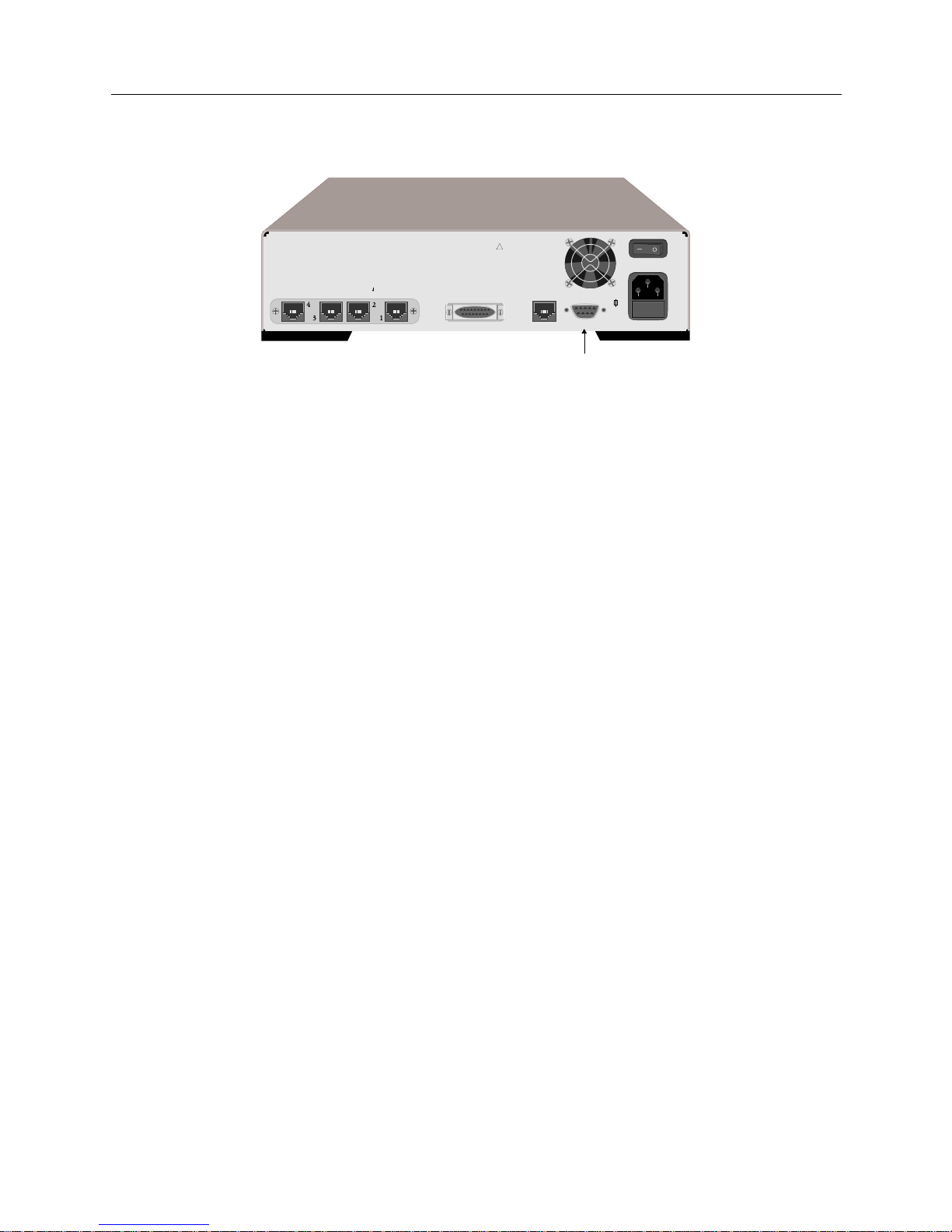

Using the provided RS232 null modem cable, attach an administration console to the system. The
administration port is a 9-pin, male RS232 serial adapter:

Workgroup Remote Access Switch 9
B ASICS
Accessing the CyberSWITCH
Connect one end of a null modem cable to the console port on the CyberSWITCH, and the other
end to the communication port on the PC. On the PC you must then execute a communication
package to emulate a terminal (VT100). Your communication package should support file transfer
(Xmodem and ASCII) for software upgrades and installations.
Use the following default values for your communication package:
Baud rate 9600
Parity None
Data bits 8
Stop bits 1
Duplex Full
CHANGING THE BAUD RATE
The baudrate is changeable. The default rate performs well for configuration changes. A faster rate
is useful, however, to download new software upgrades to your system.
To change the baud rate through CFGEDIT:
1. Select Physical Resources from the main menu.
2. Select Data Line from the physical resources menu.
3. Follow the instructions to make changes to the ASYNCMDM.
4. When asked, enter the baud rate you want to use.
5. Step through the remaining parameters. The last entry will ask you if you would like to save
your changes. Answer yes.
6. To make the new baud rate effective, restart the system (with the
restart command).
7. Change the communications package you are using to the same baud rate.
To change the baud rate using Manage Mode:
1. Enter the Manage Mode by entering the following command:
>
manage
BRI (Termination switches behind plate; see diagram
FUSE TYPE: IEC 127/ III RATED F1.6AL-250V
INPUT
85-250V 47-63 - 1.6A MAX
CONSOLE
10Base-T
AUI
CAUTION
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE,
REPLACE
ONLY WITH SAME TYPE AND
RATING OF FUSE.
!
RS232 Adapter

QUICK START
10 CyberSWITCH
2. At the Manage Mode prompt, enter the following command:
>
ampconf change
3. Follow the on-screen instructions for changing the baud rate.
TELNET CONNECTION
You can access the CyberSWITCH with Telnet. To do this, you must use Telnet client software.The
CyberSWITCH has default IP addresses configured to allow Telnet access. The default LAN IP
address is 1.1.1.1. To access the CyberSWITCH you must set the device’s IP address to be on the
same subnet as the CyberSWITCH. We recommend that you use 1.1.1.2 and do this on a LAN that
is not connected to the internet. Then place the CyberSWITCH on the LAN and Telnet to the
address.
This default address allows immediate access to the system for installation purposes. Be sure to
change this IP address as soon as possible to one on your local subnet.
Note: Do NOT place more than one CyberSWITCH on a LANwiththe default setting. With both
having the same IP address, unpredictable results will occur.
You may also Telnet in via the WAN connection. The general procedures are:
1. Connect the system to the (WAN) ISDN line.
2. From a remote device that supports UnNumbered IP connections, dial in as a PPP CHAP
device USER1 (USER1 as secret). The address on the CyberSWITCH to Telnet to is 1.1.1.1.
3. From a remote device only supporting numbered IP connections, set up an IP Address 2.2.2.3
and have it dial as a PPP CHAP device USER2 (USER2 as secret). The address on the
CyberSWITCH to Telnet to is 2.2.2.2.
After you make a Telnet connection, enter your login id and password. Then you will be presented
with a system prompt and you can enter commands at that time.
LOGIN ON THE CYBERSWITCH
Once you have a connection to the CyberSWITCH, you will be presented with a prompt to enter
your log in id. Use admin as the login id. You will then be prompted for a new password, so choose
a password that you will remember. If your software was previously accessed by your distributor,
your password will be admin (in lower case).
After you have logged in, you many enter any command at the system prompt.
MAKING CONFIGURATION CHANGES
We provide two configuration tools to set up and/or alter your configuration. These tools are:
• CFGEDIT, the full configuration utility
• Manage Mode, the dynamic management utility

Workgroup Remote Access Switch 11
B ASICS
Upgrading Software
The CyberSWITCH is configured using the configuration editor, CFGEDIT. To begin the
configuration process:
Start up the configuration editor, CFGEDIT. Your machine should beat the system prompt.To start
up the configuration editor simply type:
[system name]>
cfgedit
The main configuration menu should now be displayed. Refer to Connectivity for the configuration
steps required for the device you wish to connect.
Note: If you are prompted for configuration information that you don’t know, use the default.
This document will provide detailed instructions if something other than the default is
required.
Once the system is working, minor configuration changes can be made in real time with the
Dynamic Management feature. This feature consists of console commands that enable you to
display current system parameters, change many parameters dynamically, and write changes to
disk files so that they remain permanent. Before usingDynamicManagement commands, youmust
first enter the special Manage Mode by typing the following command at the system prompt:
>manage
While operating in Manage Mode, only Dynamic Management commands are available. All other
system commands are ignored until you exit Manage Mode.
UPGRADING SOFTWARE
An upgrade of system software may involvethe upgrade oftwo components:the second stage boot
(SSB) and the operational software (OSW). For most upgrades, if you have a working SSB, you will
only need to upgrade the OSW. If the new OSW requires an upgraded SSB, you will be alerted in
the Release Notes.
The CyberSWITCH offers two different methods of upgrade—local and remote.
• To perform a local upgrade refer to the section titled Local Software Upgrade. (A local upgrade
is performed via the administration console attached to the system’s RS232 port).
• To perform a remote upgrade refer to the section titled Remote Software Upgrade. (A remote up-
grade is performed over the network using Telnet and TFTP).
For countries other than Japan, upgrade files are located on the CSX1200 CD. Refer to the immedi-
ately following section for CD file structure information.
For Japan, refer to the CSX1200 CD for documentation only. Note that Japanese upgrade files are
provided on diskettes. Keep this in mind while reading through the following file structure and
upgrade instructions.

QUICK START
12 CyberSWITCH
CD FILE STRUCTURE
TheCSX1200CDcontainsinstallation, user documentation and upgradefiles. The CD file structure
is as follows:
For system upgrade, you will need to follow a specific upgrade path (\product name\country or
switchtype\protocol or access package). This path not only depends upon product, but also the ISDN
Standard you will be using, the software options you have purchased, and in many cases, the
switch type. For example:
• If you are installing a CSX1223 in a geographical area that uses US ISDN standards, and you
have purchased the IP/IPX software option, use the files found in the \CSX1223\US\ipipx di-
rectory.
• If you are installing a CSX1204 using a NET3 international switch, and have purchased the IP,
IPX, AppleTalk and Frame Relay options, use the files found in the \CSX1204\intnet3\ipipx-
at.fr directory.
Refer to the Upgrading System Software section of the User’s Guide for a listing of possible upgrade
path directories.
LOCAL SOFTWARE UPGRADE
To perform a local upgrade, use any valid local administration console as defined in Connecting an
AdministrationConsole. Update the SSB first, if the Release Notes indicate this is necessary, and then
follow with the update of the OSW.
LOCAL UPGRADE OF THE SECOND STAGE BOOT (SSB)
To locally upgrade the second stage boot (SSB), follow these steps:
1. Restart the CyberSWITCH.
2. When “Waiting for Commands:” appears on the system screen, enter the following command:
recover
3. Wait for the system to respond with the prompt “Ready for Hex Download”. Using your
communications program:
• Select ASCII to be the protocol used for the file transfer.
• Change character spacing to “0”. (This may be called by another name in some
communications packages. For example, some programs call it character pacing.)
• Set line spacing (or pacing) to “0”.
• insert the CSX CD into the CD drive of your administration console.
Directory Contents
<ROOT>\ installation program files (SETUP.*)
\CSXDOCS\ CSX1200 user documentation and Acrobat reader
\product name\country or switch-
type\protocol or access package UPGRADE.OSW, DEFLTCFG.OSW, RECOVER1, RECOVER2, REL_NOTE.TXT

Workgroup Remote Access Switch 13
B ASICS
Upgrading Software
• Enter the name of the file to be transferred, using the complete pathname. For example,
D:\CSX1204\US\IPIPX\RECOVER1.
4. You will receive a message if the upgrade completes successfully. The system will then
automatically reboot.
LOCAL UPGRADE OF THE OPERATIONAL SOFTWARE (OSW)
To locally upgrade the operational software (OSW) of your system, follow these steps:
1. Change the CyberSWITCH system’s baud rate to be the fastest baud rate supported by your
communications package (up to 115.2 Kbps). Change the baud rate as described on page 9.
2. Login to the CyberSWITCH as admin.
3. At the system prompt, enter the command:
flash update
This message is displayed:
4. At this time you should press “Y” <RET>. After 30 seconds, you will see the startup messages.
5. When it displays the download message, “Ready for Xmodem Download,” return to your
communication program and use the “XMODEM” protocol for the software download.
6. Enter the name of the file that is to be downloaded, using the complete pathname. Forexample,
D:\CSX1204\US\IPIPX\UPGRADE.OSW.
Note: Your terminal program may display a character for the NAKcontrol code, typically the
character “§“. This will be displayed every second until the download has started.
7. After the file has been downloaded, the system will reboot automatically and load using the
new software.
REMOTE SOFTWARE UPGRADE
Note: For security purposes, we recommend that you disable the TFTP Server after the upgrade
is complete.
The following remote upgrade procedure is supported for version 1.1.1 or newer of the Second
Stage Boot (SSB), and software release 1.2 or greater of the Operational Software (OSW). If you are
unsure of the version of software currently running on your CyberSWITCH, issue the
ver
command to display this information.
To remotely upgrade the system, you are required to have a PC/workstation that is connected to
the system’s network. It must have the following features:
• ability to read CDs
>flash update
WARNING: You are about to restart the system.
You should allow 30 seconds before a system restart occurs.
Do you still wish to restart (Y or N)?

QUICK START
14 CyberSWITCH
• TELNET client
• TFTP client
To perform a remote upgrade, first upgrade to the latest SSB, if required, then upgrade the OSW.
The Release Notes will indicate whether or not the SSB needs to be upgraded.
Note: If,during a remote upgrade,the compressed fileset cannot be uncompressed into the Flash
File System due to a lack of space, the compressed file set will not be deleted from the Flash
File System and the previous version of the OSW will be booted. If the OSW determines
there is a compressed file set (a file suffix of .OSW) in the Flash File System, then the
following message is logged in the system log:
OSW, <OSWFileName>, found in the Flash File System. The OSW has not been
updated from this file due to insufficient Flash File System space.
Please delete unnecessary files from the system.
It is possible that you will not have enough room in the \SYSTEM directory to TFTP the
upgrade file to the system. In this case:
• Delete all files in the directory except nex.bin and iop.bin.
•Issuea
flash reclaim command to gain the lost space (thiswill destroy the backup
copy of your configuration, you will be unable to issue restore command unless you
have saved at least one set of changes).
• If the upgrade still fails, delete the nex.binand iop.binand again reclaimthe space.
Your upgrade should nowwork.IMPORTANT:Do not restartthe CyberSWITCH until
the upgrade is complete.
If you are upgrading from a previous version of system software, the above message will
notbe displayed. In this case, thesystem continually restarts, attempting to install theOSW
package each time.
REMOTE UPGRADE OF THE SECOND STAGE BOOT (SSB)
WARNING:
If power is lost on the remote CyberSWITCH during this process, a local upgrade of the
SSB may be necessary before the system can again function.
To remotely upgrade the SSB, follow these steps:
1. Telnet to the CyberSWITCH and login as admin.
2. Enable TFTP, the TFTP client, and the TFTP server with admin access rights (see page 15.)
3. Using the TFTP client on the remote workstation, TFTP the recover1 file to the
CyberSWITCH in binary mode. Be sure to use the file’s full pathname. The exact method to
transfer varies, depending upon your TFTP client.
4. At the system prompt, recover the SSB by issuing the following command:
flash recover
The system will ask you if you are sure you want to remotely recover the SSB, and warn you
of the potential risk in case of a power failure while the SSB is being recovered. Answer “yes”

Workgroup Remote Access Switch 15
B ASICS
Upgrading Software
to the prompt. The window of vulnerability ends after 5 or 10 seconds, when the system tells
you that the SSB was successfully recovered.
5. After the recovery, delete the file by issuing the command:
del \system\recover1
6. Recover lost space with the command:
flash reclaim
Console Messages during SSB Upgrade:
REMOTE UPGRADE OF THE OPERATIONAL SOFTWARE (OSW)
To remotely upgrade the operational software, follow these steps:
1. From the PC/workstation, Telnet to the CyberSWITCH and login as admin.
2. Verify that the system is ready to receive TFTP upgrades:
• Enter MANAGE MODE by typing
manage <RET> at the system prompt.
•UsingtheMANAGEMODEcommand
tftp , verify that:
• TFTP feature is enabled
• TFTP server is enabled
• TFTP server is assigned ADMIN file access rights
•UsingtheMANAGEMODEcommand
fileattr , verify that:
• ADMIN has READ/WRITE access to CONFIG files
• ADMIN has READ/WRITE access to OTHER files
• Exit MANAGE MODE by typing
exit <RET>.
3. Using the TFTP client on the remote workstation, TFTP the UPGRADE.OSW file to the
CyberSWITCH in binary mode. Be sure to include the file’s full pathname. The exact method
to transfer varies, depending upon your TFTP client.
Message Suggested Action
can’t open recover file If you entered a filename after the flash recover
command, makes sure that the file exists on the system.
If you did not enter a filename, make sure that
\SYSTEM\RECOVER 1 exists on the system.
not enough DRAM to
create binary image Remove DRAM-greedy activities on the system, such as connections to other devices, compression, and
authentication. Reboot if necessary.
error in recovery file Make sure that the recover file that you are using is the
same as the one on the CSX CD. Delete, Recover, and
reTFTP if necessary.
Unable to remotely
recover SSB Hardware failure in the boot device. Contact your distributor immediately for a replacement.
successfully updated The SSB has been successfully updated.

QUICK START
16 CyberSWITCH
Note: If you experience a transmission timeout, check the retransmission setting on the TFTP
package. A retransmission rate of 10 seconds is usually sufficient; values less than that
may not work properly.
If you experience a problem transferring the file with TFTP, wait about three minutes
for the TFTP to fail, delete the incomplete file, and try again.
4. Using Telnet, reboot the system by issuing the command:
restart
It should take approximately 3 minutes for the system to restart and install the upgrade.
5. Login via Telnet and type the
ver command to confirm that the system software upgraded
correctly. If the upgrade did not occur, check the system log with the
dr command to find any
potential problems, and retry.
CHANGE DEFAULTS TO SECURE SYSTEM
The system is preconfigured with defaults that were designed to make it possible to have your
system up and running quickly. After your machine is functioning properly, some of these defaults
should be changed to make your system more secure. The following configuration changes are
needed to provide this security:
1. Either delete User1 and User2 or change their names and secrets.
Use Dynamic Management’s manage mode to carry out either of these functions. To enter the
manage mode, type
manage at the system prompt. If you have no need for these types of
devices (PPPdevices), simply delete these two devices. At the manage mode prompt, enter the
following command:
device delete
Follow the on-screen instructions for deleting each device.
To change the preconfigured devices’ names and secrets to secure the access to the system,
enter the following command at the manage mode prompt:
device change
Follow the prompts to change the device name and secret for User1 and User2. After you have
either deleted or changed the device information, make these changes permanent by entering
the
commit command
2. Disable TFTP Server.
Disable through Dynamic Management’s manage mode. This will secure important device
information. Device information must be secure to prevent unauthorized access to the
CyberSWITCH. To disable this access, enter the following command at the manage mode
prompt:
tftp change
Then follow the on-screen instructions to disable the TFTP feature.
3. Change the admin and guest system passwords.

Workgroup Remote Access Switch 17
B ASICS
Return Configuration to Factory Defaults
If your system was previously accessed by your distributor, the preconfigured password will
be admin (in lower case). Change this password to secure your system. To make this change,
enter the following command at the system prompt:
pswd
Then follow the prompts to enter a new password. Your password must be a 3 to 16 nonblank
character string. Be careful, passwords are uppercase and lowercase sensitive.
RETURN CONFIGURATION TO FACTORY DEFAULTS
The default configuration files are located on the CSX1200 CD. If you wish to return to the default
configuration, download the DEFLTCFG.OSW file. Follow the same steps for Local or Remote
Upgrade except you download the file DEFLTCFG.OSW instead of the UPGRADE.OSW file.
INITIAL INSTALLATION STEPS
There are initial configuration steps you must complete (regardless of remote device connections).
We outline these steps in the following sections.
BEGINNING THE CONFIGURATION PROCESS
1. Whenyou power on your system, theCyberSWITCH program automatically starts. Enter your
log-in id (
admin ). Next, enter a password.
2. Start up the configuration editor, CFGEDIT; at the system prompt, type:
cfgedit
Note: If you are unsure of any configuration values, use the defaults.
Use the displayed CFGEDIT menu to complete the remaining configuration steps.
PHYSICAL RESOURCE CONFIGURATION
1. Select Physical Resources from the main menu. Then, select Resource to display your
CyberSWITCH’s resources.
2. A displayof preconfigured resourcesand the pertinent slot numbers and switch types for those
resources appears.
3. Add all WAN resources. Depending on the type of WAN resource you have in your system,
select either a Basic Rate or Primary Rate resource from the displayed list of resources. If you
have selected Primary Rate, you should choose slave as the synchronization type. You will also
need to configure any expansion resources at this time if you selected Primary Rate. (Note: The
BASIC_RATE_NET resource type is a test facility. Do not select this for your resource type.)
After all resources have been added, return to the Physical Resource menu.
4. Configure the WAN lines. Select Data Line from the Physical Resources menu.After you select
to add a line you will be prompted for the line name. Enter LINE1 for the first line name. Next,
select the line’s slot number and port number from the displayed list. The information

QUICK START
18 CyberSWITCH
requested to complete the line configuration will depend on the line type. The following
summarizes the information requested for each line type and the most common responses.
For Basic Rate:
• If you have a 4 port basic rate adapter, configure all basic rate lines at this time (up to four
lines)
• select point-to-point for the interface type
• add a data link (two for DMS and NI-1 switch types)
• use Automatic TEIs for these data links
For Primary Rate:
• ESF is the most common framing type
• B8ZS is the most common line coding type
• chose common-channel as the signaling type
• select the length of the line from the CSU to the CyberSWITCH as line build out
5. Ifyou are using any accessesbesides switched accesses (suchas dedicated accesses, frame relay
or X.25) configure the access now. Select Access. Select the type of access you wish to configure.
Follow the on-screen instructions to complete the configuration.
Note: Frame relay and X.25 accesses are available only if you have purchased the additional
software module for packet switched accesses.
The initial configuration steps on the CyberSWITCH are now complete. Press <return> repeatedly
until you return to the main CFGEDIT menu. Continue with the Connectivity section to complete
remaining configuration steps.

C ONNECTIVITY
OVERVIEW
The Workgroup CyberSWITCH can communicate with various other CyberSWITCH products via
a PPP connection. This connection can be used to transmit data and provide remote management
of your remote systems with Telnet, TFTP and SNMP. We will describe how to set up a PPP
connection with other CyberSWITCH systems, including the CSX100. For these examples, we are
assuming that CyberSWITCH “Remote” is the remote system, and will want to call into
CyberSWITCH “Central”; Central may or may not want to call Remote.
CONNECTING AWORKGROUP PRODUCT TO ASMALL OFFICE PRODUCT VIA PPP
In this section, we describe the configuration steps required for connecting a workgroup system to
a small office system via PPP. Separate instructions are included for bridging,IP routing with an
UnNumbered Interface, IPX routing, and AppleTalk routing configurations.
BRIDGE TO BRIDGE CONFIGURATION
Configuration for Site "Central"
The configuration on Central to allow Bridging to Remote using PPP is as follows:
1. Perform initial configuration steps.
2. Select Options from the main menu.
3. Select Bridging from the options menu, then ensure that bridging is enabled.
4. Select IP Routing from the options menu, then disable IP routing to allow timely bridging of IP
data.
ISDN
Server
CSX1200 CSX150
Phone [phone] Phone [phone]
POWER SERVICE TX RX 10BASE-T
LAN B-CHANNELS E1ONLY
B2 B4 B6 B8 B26B28
B22B24
B18B20
B14B16
B10 B12 B30L1
B1 B3 B5 B7 B25B27
B21B23
B17B19
B13B15
B9 B11 B29B31
E1
DT1
D
"Central" "Remote"

QUICK START
20 CyberSWITCH
5. Under Security, select System Options and Information, then under System Information:
a. Set your System Name (Central). This matches up with Central device information
configured on Remote.
b. Set your System Secret (Central_S). This matches up with Central device information
configured on Remote.
6. Under Security, select Device Level Databases, select On-node Device Entries, then add a device
where the Device Name (Remote) must match the system name on Remote. When you add the
device you must then enter the following information:
a. Under ISDN Information select ISDN Line Protocol, then select PPP.
b. Optional: If you wish to dial out to Remote, under ISDN Information, enter a dial out
number (13135552222) and a base data rate (64Kb).
c. Under Authentication you must:
• Change CHAP Secret so that it matches Remote’s System secret (Remote_S).
• Optional: Configure Calling Line Ids (if Calling Line Id security was enabled).
d. Under Bridge Information you must:
• Make sure that Bridging is enabled
• Optional: If you wish to dial out to Remote you must enable Make calls for Bridge Data.
5. Optional: If you wish to dial out to Remote you have to specify the method that you will use
determine how to make bridge dial out calls. The two methods, and how to configure them are
listed below:
a. Select Options from the main menu, then the bridging menu, and from the bridging menu
select bridge filters. Set up a Bridge filter with connect as the action. For some filter types
you will need to specify Remote as the device.
b. Select Options from the main menu, then the bridging menu, and from the bridging menu
select Known Connect List,then enter the name of the Device (Remote) that you wish to call
if a packet is received whose MAC address is known to be at the location that was
connected earlier by the User’s device.
For a more detailed description of each of the above methods, refer to the Installation Guide’s
chapter titled Configuring Advanced Bridging.
CONFIGURATION FOR SITE "REMOTE"
The configuration on Remote so that it may use bridging to Central using PPP is as follows:
1. Perform initial configuration steps.
2. Under Options, select Bridging and make sure that it is enabled. Also, select IP routing and
disable IP routing to allow timely bridging of IP data.
3. Under Security, select System Options and Information, then under System Information:
a. Set your System Name (Remote). This matches up with Remote device information
configured on Central.
b. Set your System Secret (Remote_S). This matches up with Remote device information
configured on Central.
