Cambria®2XT
Booster Seat
Instruction Manual

2
WE LOVE TO HELP
Hello there, Welcome to the Diono family! We’ve created
this lovingly engineered car seat to help keep your child
comfortable and safe with all of the goods and none of the
gimmicks. We look forward to lending a helping hand
each and every day.
Any questions?
Diono U.S.: 1-855-463-4666
Diono Canada: 1-866-954-9786
CONTENTS
French
Spanish
Registration
Warning
Parts
Certication
Safe Use Guide
Car Seat Use After A Collision
Vehicle Seating Locations
Vehicle Seat Belt Types
First Setup
A. Attaching The Backrest
B. LATCH/UAS Installation
38
76
4
69
10
11
1213
1415
16
1718
1923

diono.com 3
CONTENTS
C. Adjusting The Recline Angle
D. Adjusting The Head Support
Securing The Child
Backless Booster
Using The Shoulder Belt Guide
Cover Removal
Cover Installation
Comfort Features
Cup Holder
Care & Maintenance
Warranty
2426
2730
3132
32
33
34
3537

4
Please take a few moments to promptly ll out and return the attached card
or register online using the direct link to the manufacturer’s registration
website provided.
Child restraints could be recalled for safety reasons. You must register this
restraint to be reached in a recall. Send your name, address, e-mail address
if available, and the restraint’s model number and manufacturing date to:
Diono U.S., PO Box 77129, Seattle, WA 98177
or call 1-855-463-4666 or register online at: http://diono.com/product-
registration/
Diono Canada ULC, 2160 S. Service Rd. W.,Oakville, ON L6L 9Z9
Canada or call 1-866-954-9786 or register online at: http://diono.ca/
product-registration/
For future reference, in the case of a change of address, please take a
moment to ll out the following information:
Model Number:
Manufacture Date:
This information can be found either on the registration card or on the
manufacturing label located on the seat.
For recall information, call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.
REGISTER THIS CAR SEAT

diono.com 5
Time. It goes so fast...
Who would have thought that over two decades have passed since
we rst stepped out into the world and started a business dedicated to
family travel.
Well the world has changed a lot, but we’re proud to say that we haven’t
(sure we’ve grown up), but we are still as passionate about what we do
today as we were back then.
Our story is ‘made of Seattle’, a city like no other. This is a place where
creative minds & innovators rub shoulders within a landscape of
adventure; a place where being‘a little dierent’, is the everyday norm.
With a love for design and an understanding of modern parenting, we
strive to create amazing products, so that you and your littleones can
celebrate the joy in every journey.
People who own Diono products can be found in all four corners of the
big, blue, green ball we all call home. Some are fans & followers, some
are supporters, tweeters, social media magicians, miracle moms and
devoted dads.
Without your passion, pictures, words and stories, we would never hear
your voice. So tell us about your patch of grass, and join in the hustle
and bustle at diono.com.
Share your journey @diono social
or nd the latest news on,
OUR STORY

6
!WARNING! !
!

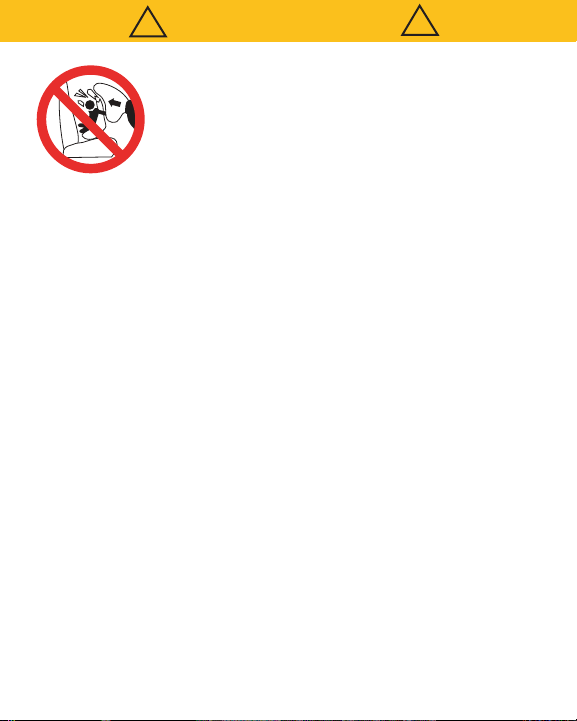

Never place this child restraint in a
vehicle seating location with an active
front air bag. Death or serious injury may
occur. If an air bag inates, it can hit the
child or child restraint with enough force to
cause serious injury or death to your child.
For vehicles with side passenger air bags,
refer to your vehicle owner’s manual for
information on your child restraint
installation.
For any questions or concerns please contact diono at:
Diono U.S.:
1-855-463-4666 or online at www.diono.com
Diono Canada:
1-866-954-9786 or online at www.diono.ca

diono.com 7
!DEATH OR SERIOUS INJURY CAN OCCUR! !
!
EXPIRATION
 DO NOT use the child restraint if any part is damaged
or broken, expired (over eight years from date of
purchase), missing instructions, missing parts, or if the
straps are cut, frayed, or damaged in any way. Call to
nd out if the damaged part or parts can be replaced.
Diono U.S.: 1-855-463-4666
Diono Canada: 1-866-954-9786
SAFE PRACTICES
 DO NOT leave loose objects, such as books, bags, etc.,
in the back of the vehicle. In the event of a sharp
turn, sudden stop, or collision, loose objects can be
thrown around and possibly cause serious injury to
vehicle occupants.
• ALWAYS check all surfaces of restraint before securing
your child. In warm weather, child restraints can
become very hot. Do not allow children to play with
vehicle seat belts.

8
!WARNING! !
!
• Before installing this child restraint in a vehicle, be sure
to also check the vehicle owner’s manual for information
on proper installation. You can store these instructions
in the pocket provided under the seat cover of your
booster seat.
• DO NOT use child restraint in any conguration not
shown in the instructions.
• Use ONLY with children who weigh 40–120 lb (18–54 kg)
AND whose height is 38–63 in (97–160 cm).
• ALWAYS make sure the vehicle seat belt can properly
retract before each use.
• NEVER leave your child unattended.
• NEVER install in rear-facing, side-facing or on the back
of a folded down vehicle seat.
 ALWAYS install this child restraint in the rear vehicle seat.
• DO NOT use this child restraint backless unless there is
a vehicle headrest for that seating position.

diono.com 9
!DEATH OR SERIOUS INJURY CAN OCCUR! !
!
• DO NOT use this child restraint with any other backrest
or cushions.
 ALWAYS secure the child restraint using the vehicle seat
belt or LATCH/UAS (Lower Anchors and Tether for
CHildren/Universal Anchorage System) connectors even
when it is unoccupied. It could injure other occupants in
a sudden stop or collision.
• DO NOT use any accessories, inserts or products not
included with this child restraint, unless approved by
Diono. Items not tested with this child restraint could
injure your child.
• DO NOT modify your child restraint.
• NEVER provide this child restraint to another person
without also providing them with the instruction manual.

10

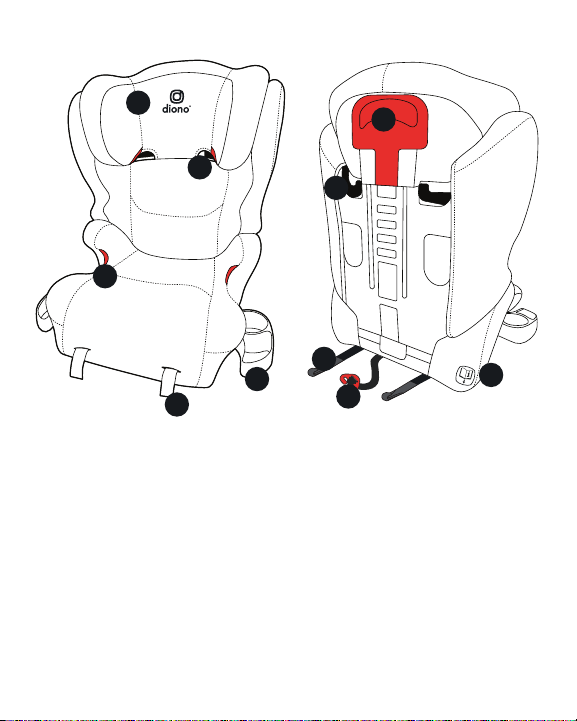

PARTS
7. Cup Holder
8. Instruction Manual Storage
Pocket. Located Under The
Seat Cover.
9. Backless Booster Shoulder Belt
Guide Strap. Located Under
The Seat Cover.
1. Head Support
2. Head Support Adjuster
3. Upper Belt Guide
4. Lower Belt Guide
5. LATCH/UAS Connectors
6. LATCH/UAS Adjuster Straps
3
2
9
8
5
6
4
1
3
7

diono.com 11
This child restraint system conforms to allThis child restraint system conforms to all
applicable requirements of U.S. Federal Motorapplicable requirements of U.S. Federal Motor
Vehicle Safety Standards (FMVSS) 213 andVehicle Safety Standards (FMVSS) 213 and
Canadian Motor Vehicle Safety Standard (CMVSS)Canadian Motor Vehicle Safety Standard (CMVSS)
213.2 and is certied for use in passenger cars,213.2 and is certied for use in passenger cars,
multi-purpose passenger vehicles, and trucks only.multi-purpose passenger vehicles, and trucks only.
THIS RESTRAINT IS NOT CERTIFIED FOR USE
IN AIRCRAFT. Aircraft seats do not have
shoulder belts which are required for use with
this child restraint.
CERTIFICATION

12
WARNING – failure to follow these
instructions and the product labels can result
in serious injury or death to your child.
Your child’s safety depends on you. Death or serious
injury can occur.
No child restraint can guarantee protection from injury in
every situation, but proper use helps to reduce the risk of
serious injury or death.
Carefully read and understand all instructions and
warnings in this manual. Your child’s safety depends on
you knowing how to setup, install and use this child
restraint properly.
This child restraint is designed for use only with children
who weigh 40–120 lb (18–54 kg) and whose height is
38-63 in (97-160 cm).
SAFE USE GUIDE

diono.com 13

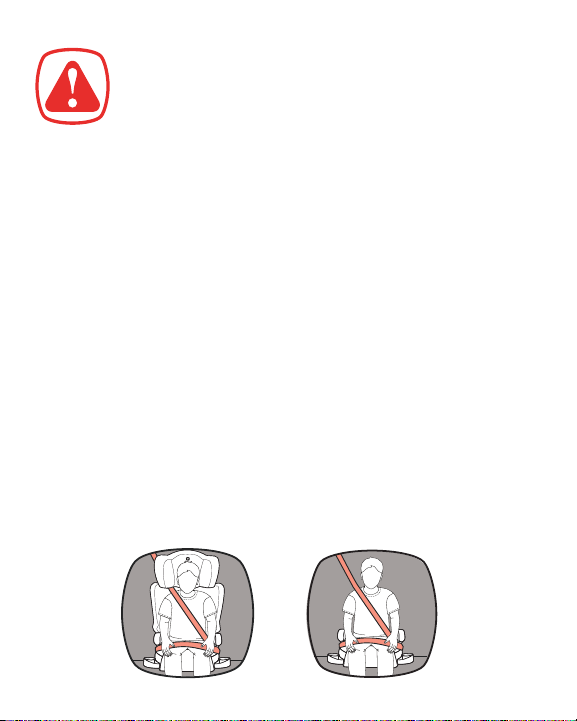

WARNING! Use ONLY the vehicle’s lap and shoulder belt
system when restraining the child in this booster seat. DO
NOT use a lap belt only! This could result in serious injury
or death.
UseUse ONLY with children whose earswith children whose ears
are below the top of the fully raisedare below the top of the fully raised
vehicle seat or headrest.vehicle seat or headrest.
SAFE USE GUIDE

14
CAR SEAT USE AFTER A COLLISION
UNITED STATES
The U.S. National Highway Trac Safety Administration
(NHTSA) recommends that car seats be replaced
following a MODERATE or SEVERE collision in order to
ensure a continued high level of collision protection for
child passengers. In the U.S., car seats do not automatically
need to be replaced following a MINOR collision.
NHTSA denes a MINOR crash as one in which ALL of
the following apply:
• The vehicle was able to be driven away from the
crash site.
• The vehicle door nearest the car seat was not
damaged.
• None of the passengers in the vehicle sustained any
injuries in the crash.
• If the vehicle has air bags, the air bags did not deploy
during the crash; and
• There is no visible damage to the car seat.
NEVER use a car seat that has been involved in a
MODERATE or SEVERE collision.

diono.com 15
CAR SEAT USE AFTER A COLLISION
CANADA
 DO NOT USE THIS CHILD RESTRAINT SYSTEM IF IT
HAS BEEN IN A VEHICLE ACCIDENT.
 Transport Canada designates that you MUST
replace this child restraint if it has been involved
in a collision.
 You must dispose of your child seat or booster seat if
the child seat was in a vehicle during a crash. Even if
the child seat was empty or was not directly hit, it may
be damaged.
 You must dispose of your child seat or booster seat if the
shell is cracked or the webbing of the child car seat is
frayed, torn or discolored.

16
According to accident
statistics, children are
safer when properly
restrained in the rear
seating positions than in
the front seating positions.
The safest seating position is one that works best for your
specic child restraint, family and vehicle model.
Before installing this child restraint you must determine the
method of installation and the best vehicle seating position
for that method.
When determining whether the child restraint can be used
with vehicle LATCH/UAS anchors in the rear center seating
position, it is critical that you refer to your vehicle owner’s
instruction manual.
Vehicle
LATCH/UAS
Anchors
VEHICLE SEATING LOCATIONS

diono.com 17
VEHICLE SEAT BELT TYPES
The following types of vehicle
belts CANNOT BE USED with your
child restraint.
If any of the belt types listed below are in
the chosen seating position, you MUST
choose another seating position or use
LATCH/UAS if available.

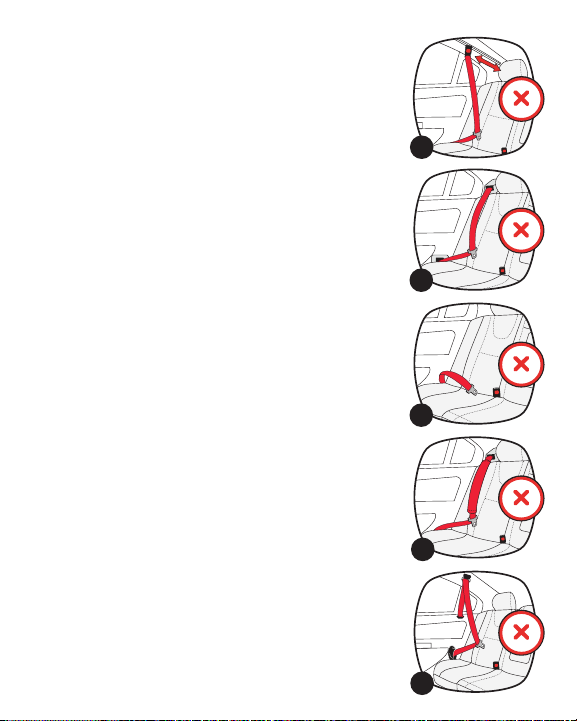

1. Motorized (Automatic) Vehicle Belts
2. Dual Retractor Lap/Shoulder Belts
3. Non-Locking (ELR) Lap Belts
4. Inatable Seat Belts
5. Door Mounted Vehicle Belts
Please refer to your vehicle owner’s
manual for specic information
about seat belts and their use with
child restraints.
2
1
3
4
5

18
TYPES OF RETRACTORS
1. Emergency Locking Retracors (ELR)
 Only locks with sudden stops, accelerations, turns or if
involved in an accident.
2. Automatic Locking Retractor (ALR)
 Found in older vehicles.
3. Switchable Retractor
Most common type of retractor and is switchable from
(ELR) to (ALR).
 Leave in ELR mode for booster use.
VEHICLE SEAT BELT TYPES

diono.com 19
FIRST SETUP
A. ATTACHING THE BACKREST
1. With seat lying at on the oor,
place hooks at seat bottom.
2. Attach the backrest hooks to
seat mounting points.
3. Push down on backrest just
above hooks until fully engaged.
4. Rotate backrest to an upright
position while maintaining
pressure just above the hooks.
To detach backrest, follow steps
backwards starting from step 4.

20
B. LATCH/UAS INSTALLATION
To improve safety and performance, this booster seat is
equipped with a lower anchorage system that allows
secure attachment to a vehicle’s lower anchor locations.
DO NOT use LATCH/UAS if installation interferes with
vehicle seat belt.
IMPORTANT: When using booster seat in center seating
position, make sure it is does not rock from side-to-
side, otherwise choose a dierent seating position.
WARNING! Unsecured objects can become ying
hazards and can cause serious injury in an accident. If
your vehicle is equipped with lower anchors, Diono
always recommends installation utilizing the LATCH/
UAS connectors with this booster seat.
1. Disengage LATCH/UAS connectors from storage
slots and lay booster seat on its side. While
PRESSING the silver cam lock lever, pull LATCH/UAS
connectors away from the booster seat and extend
both straps. Do not overextend connector straps.
FIRST SETUP
