4&RQQHFWLQJ#WKH#PL[HU#V\VWHPV
414 &RQVROH#PRGXODULW\
The B-Type features CADAC’s unique frame design which allow users to put any
module in any position,thus configuring the console to suit the project in hand. Each
module is fitted with XLR connectors and jack sockets on the rear vertical face,
enabling the module to be moved quickly and easily.
The B-Type module’s design features a motherboard, with plug-in daughter boards
for all audio and digital control functions. This ensures servicing simplicity and fast
replacement of any faulty component. Each module maybe plugged into any posi-
tion in the console frame, by means of top quality two-part connector system, which
is designed as a mating pair to provide excellent mechanical and electrical reliability.
A rail system is used to guideeach module into its correctposition. Also, the console
design allows modules to be removed or inserted without powering down.
415 )UDPH#UHDU#FRQQHFWLRQV
The connections on the B-Type console rear frame include the following (from left to
right):
■
■■
■Audio Bus - frame to frame, up to 4 frames can be connected.
■
■■
■Data Bus - frame to frame
■
■■
■Frame selector
■
■■
■Comms to CCM
■
■■
■PFL output to next frame.
■
■■
■PFL input from module.
■
■■
■PSU1 connector
■
■■
■PSU2 connector
■
■■
■Output for monitoring of PSUs
■
■■
■GND - 0 - FRAME
■
■■
■Littlite input from PFL module.
■
■■
■Littlite output to next frame.
■
■■
■Littlite output to lights
■
■■
■Audio Bus
■
■■
■Data Bus
The use of these connectors is described in 1.3.5 Main and extension frame power
connections, 1.4 Connecting the console frames and 1.5 Connect Console Automa-
tion System.
6
7
4
5
6
7
4
5
AUDIO BUS AUDIO BUS
HEADPHONES NEXT FRAME
GND - 0 - FRAME
PSU 1 PSU 2
5 AMP FAN FUSE
FRAME TO FRAME FRAME TO FRAME
DATA BUS DATA BUS
FRAME
SELECTOR COMMS TO CCM
INPUT TO HEADPHONES JACK SOCKETS FROM PFL NEXT LIGHTS
PSU INDICATOR
FIG 1-1. B-Type frame rear connections.

1-2 Connecting the mixer systems
B-Type Revision B2005-2
416 &RQQHFW#3RZHU#VXSSO\#V\VWHPV
41614 3RZHU#VXSSO\#V\VWHP#GHVFULSWLRQ
Cadac consoles are designed to allow the use of two independent power supply sys-
tems in a redundant configuration – “main” and “backup”. Both sets of power supply
units are used to power the console system so that under normal conditions, the
‘load’is shared between the “main” and “backup” PSU’s.Ifa fault occurs in one of the
power units (causing it to ‘shut-down’), the remaining power unit will power the con-
sole.
For smaller B-Type consoles (consuming no more than 44A), it is possible to use the
8400 PSU. See 1.3.7 8400 switch-mode power supply unit.
One ±18V PSU and one +13V/+48V PSU is referred to as a “PSU System”.
Designate one pair of power supply units as “SYSTEM 1" and the other as “SYSTEM
2". PSU System 1 and PSU System 2 should be connected to the same
phase
and
on the same ‘spur’, wherever possible. In situations where it is necessary to provide
a separate ‘feed’ to each PSU system pair, make sure that the cable lengths are the
same. This is to minimize any induced a.c. power input noise by ensuring that the
“EARTH IMPEDANCE” is the same for both PSU systems.
/
1
(
/
1
(
/
1
(
/
1
(
-
-
-
-
$5($#%5$1&+#3$1(/
$5($#%5$1&+#3$1(/
$5($#%5$1&+#3$1(/
*1'#%$5 *1'#%$5
1#/
0$,1#*5281'#5()(5(1&(#($57+#(/(&752'(#6<67(0

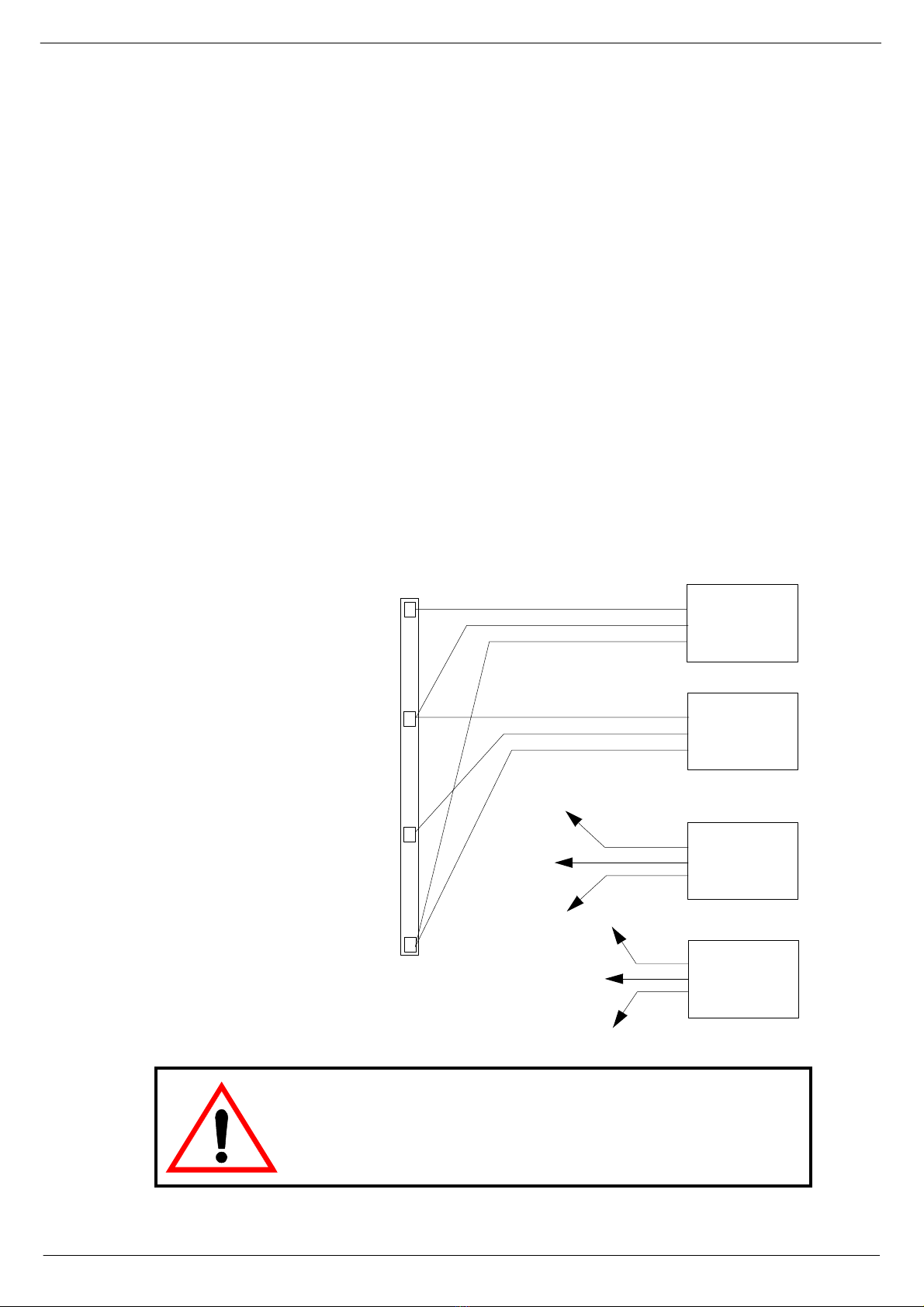

FIG 1-2. AC mains grounding diagram (single phase 200-240V)
368#4$
368#4%
368#5$
368#5%

Connecting the mixer systems 1-3
Revision B2005-2 B-Type
The a.c.-input connectors on each power supply unit have three conductors: ‘LIVE’
(brown), ‘NEUTRAL’ (blue) and ‘EARTH’ (yellow/green). For safety and electromag-
netic compatibility considerations, it is essential that the ‘EARTH’ conductor is con-
nected on all PSUs and the a.c. supply has an ‘EARTH’ conductor that has a
continuous circuit to the “zero-signal reference potential” point in the building. The
ZSRP point in a building is usually found near the place where the a.c. ‘mains’ supply
enters the building (often referred to as the “MAIN GROUND REFERENCE EARTH
ELECTRODE SYSTEM”). The basic concept for correct a.c. mains wiring distribution
is shown in figure 1-1. If you need further information about this complex subject,
please refer to “Grounding Systems and their Implementation” by Charles Atkinson
and Philip Giddins published in the AES Journal Vol. 43, No. 6 – June 1995.
The grounding scheme in CADAC consoles is designed to meet the rigorous EEC
Electromagnetic Compatibility
requirements (EMC Directive - 1996). Any RF noise
induced in the console frame(s) is directed to the “local” ZSRP, which is the metal-
work of the power supply units. In order to take full advantage of the “RF noise immu-
nity” capability of the CADAC system, PSU a.c. mains cables and the a.c. mains
supply EARTH conductor must be connected correctly.
41615 $&#SRZHU#UHTXLUHPHQWV
CADAC power supply units are designed to run from a minimum of 208 V up to a
maximum of 260V, 50/60Hz a.c. In many parts of the world the normal a.c. single-
phase supply is 100-127V, this means that the CADAC power supply units must be
connected across two of the phases in the three-phase a.c. supply, see 1.3.4 Con-
necting to a 3-phase outlet.
41616 6ZLWFK00RGH#3RZHU#6XSSO\#8QLWV
CADAC 8019 and 8020 switch-modepower supply units are designed to run from a
minimum of 208V up to a maximum of 260V a.c, 50/60Hz.
The8019 “18V” unit israted at 100Aper rail and the 8020 “13V” unit is rated at 100A.
See also Appendices, B. Switch-Mode Power Supply Units,
;34<#´4;9µ#VZLWFK0PRGH#SRZHU#VXSSO\#XQLW
The older version of 8019 ±18v unit is based on two ADVANCE F20006 ‘power-
blocks’, with additional circuitry as shown on CADAC drawing number C3.8015. The
new version is based on PowerOne PSUs (serial number 34949 onwards).
The a.c. input is connected to the PSU via a 3-core cable, CMA reference 3183TQ –
BASEC approved, rated at 20A.

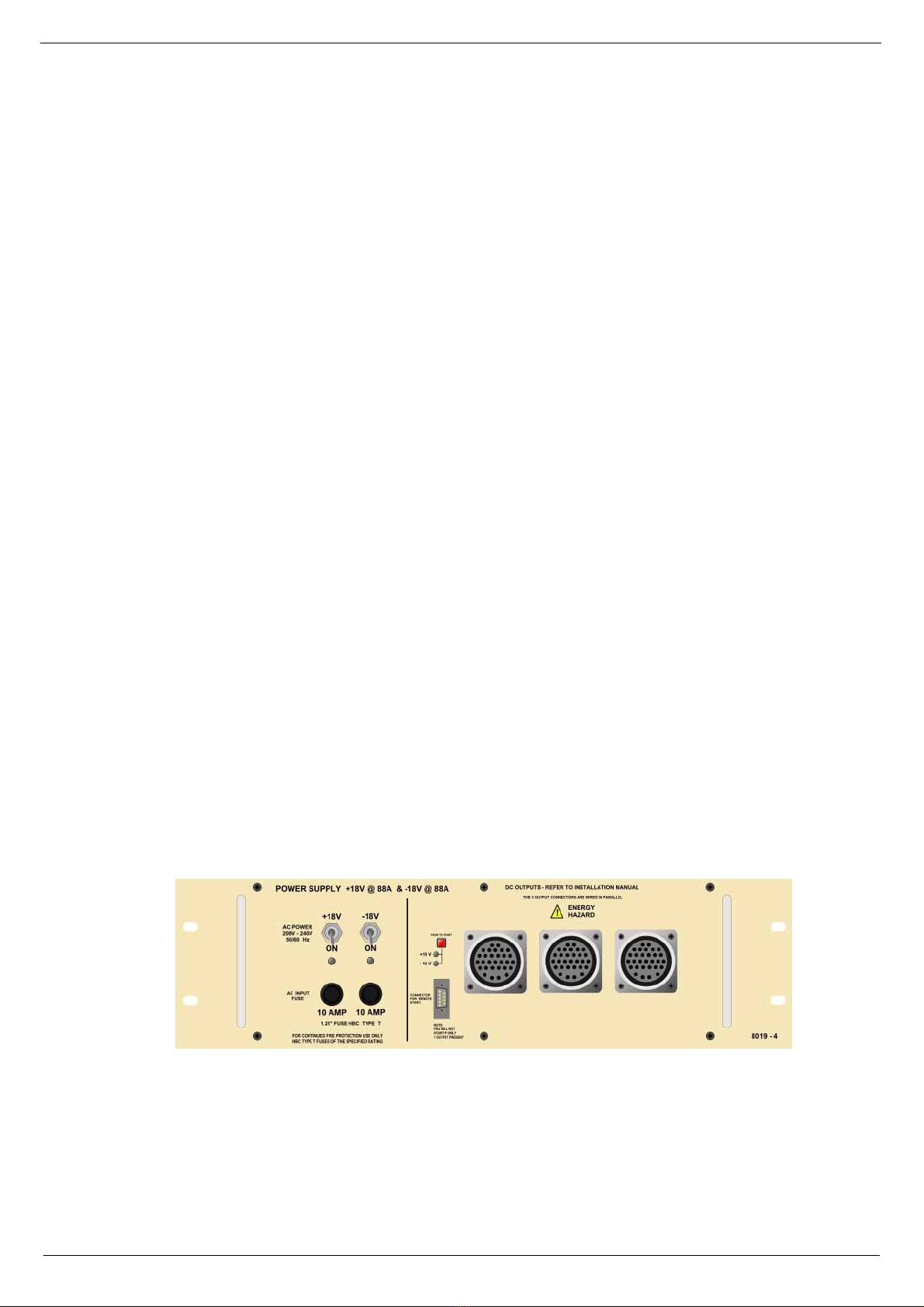

FIG 1-3. 8019 power supply unit

1-4 Connecting the mixer systems
B-Type Revision B2005-2
;353#´469µ#VZLWFK0PRGH#SRZHU#VXSSO\#XQLW
The older version of 8020 +13v/48v unit is based on one ADVANCE F20006 ‘power-
block’, with additional circuitry as shown on CADAC drawing number C3.8016. The
new version is based on PowerOne PSUs (serial number 34949 onwards).
The a.c. input is connected to the PSU via a 3-core cable, CMA reference 3183TQ –
BASEC approved, rated at 20A.
5HSODFLQJ#D#SRZHU#VXSSO\#XQLW
If replacing a switch-mode power supply unit is required, please note the following:
■
■■
■Make sure that the power supply system’s power switches are in the position
OFF and disconnected from the mains.
■
■■
■The work should only be carried out by a suitably qualified electrician.
■
■■
■Be careful to observe correct polarity when connecting the new PSU.
■
■■
■Note that a console must never have one voltage without the other, for example
+18V must never be fed into the console without -18V.
When switching the power supply system back ON after replacement has taken
place, make sure that both LEDs on the front of the PSU-system come on. If only
one LED comes on, let go of the ON push-button immediately. Failure to do so may
lead to fire hazard and major damage to the console.
NOTE: Under no circumstances, should the 8019 or 8020
PSU be used without a SAFETY EARTH connection. Failure
to follow this instruction is both a fire and safety hazard.

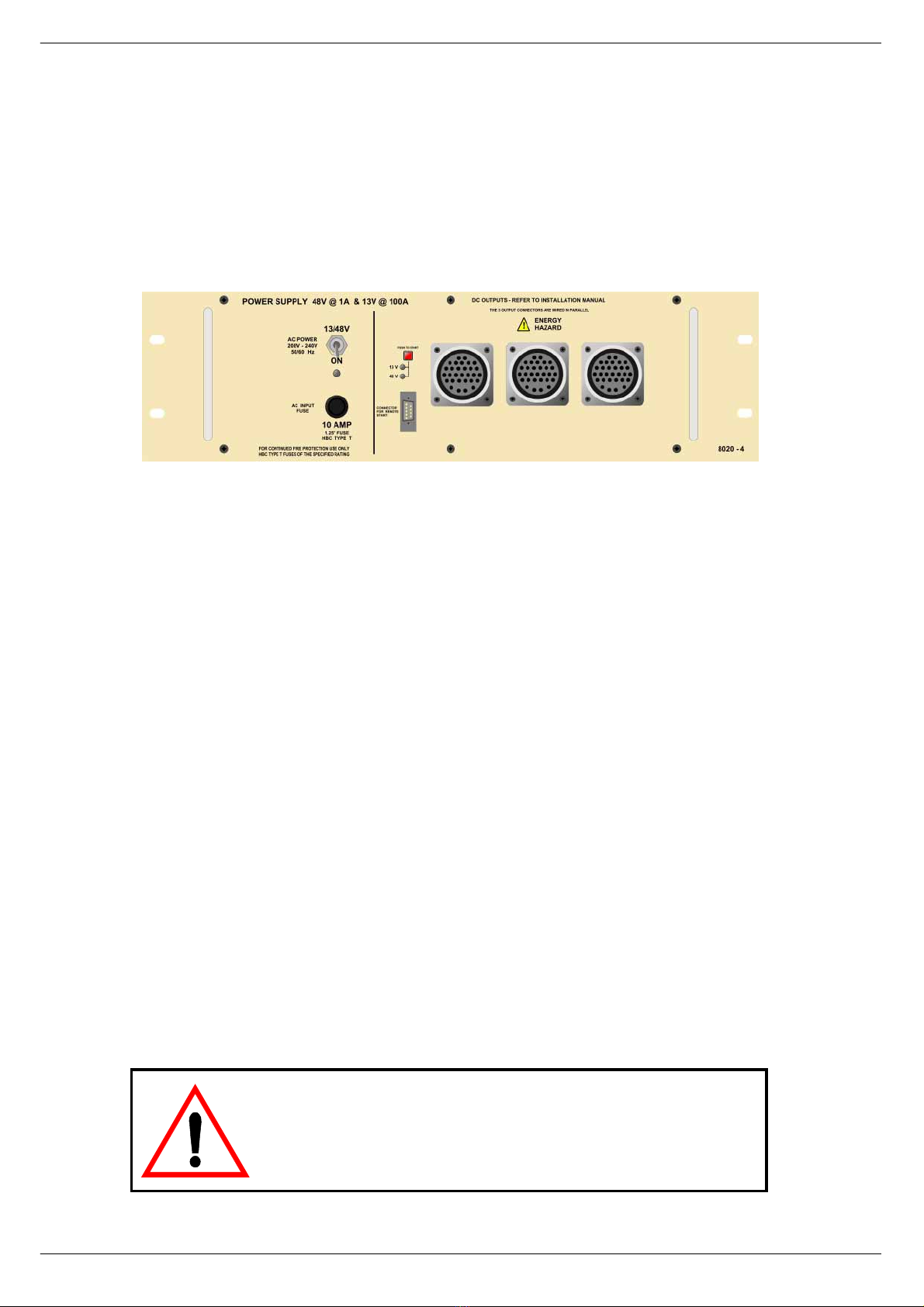

FIG 1-4. 8020 power supply unit

Connecting the mixer systems 1-5
Revision B2005-2 B-Type
41617 &RQQHFWLQJ#WR#D#60SKDVH#RXWOHW
Connection to a 3-phase outlet is required on sites where the system voltage
between any one of the phases and neutral is 100-127V and the voltage between
any two of the phases is 200-240V. Before connecting to any 3-phase outlet, please
refer to a qualified electrician who understands your particular installation and the
local safety and wiring regulations. Under no circumstances should the 8019 and
8020 switch-mode power supply units be operated without the green/yellow safety
earth conductor connected to the building safety earth conductor system. Each
power unit is equipped with an input supply filter whose reference ground conductor
is the chassis. Failure to connect the green/yellow safety earth conductor to the cor-
rect earth/ground building reference is a safety and fire hazard.
1. Connect the LIVE (Brown) conductor on the “system 1” 8019 unit to the phase 1
(L1, RED) terminal on the 3-phasepower outlet connector.
2. Connect the NEUTRAL (Blue) conductor on the “system 1” 8019 unit and the
LIVE (Brown) conductor on the “system 1” 8020 unit to the Phase 2 (L2, YEL-
LOW) terminal on the 3-phase power outlet connector.
3. Connect the NEUTRAL (Blue) conductor on the “system 1” 8020 unit to the
Phase 3 (L3, BLUE) terminal on the 3-phase power outlet connector.
4. Connect the EARTH (Yellow/Green) conductor on the “system 1” 8019 unit and
theEARTH(Yellow/Green) conductor on the“system1 “8020 unit tothe SAFETY
EARTH (Yellow/Green) terminal on the 3-phase power outlet connector.
5. Repeat 1-4 for the “system 2” power units.
/LYH
1HXWUDO
(DUWK
/LYH
1HXWUDO
(DUWK
/LYH
1HXWUDO
(DUWK
/LYH
1HXWUDO
(DUWK
;34<
;353
;34<
;353
3+$6(#4#+/4/#5(',
3+$6(#5#+/5/#<(//2:,
3+$6(#6#+/6/#%/8(,
/4
/5
6$)(7<#($57+ /4
/5
6$)(7<#($57+
6$)(7<#($57+
<(//2:2*5((1
NOTE: Connection between two phases in a 3-phase outlet should underno
circumstances be carried out where the single-phase voltage (the voltage
between one of the phases and neutral) exceeds 127V. The installation
should be carried out by a qualified electrician who understands your partic-
ular installation and the local safety and wiring regulations.
FIG 1-5. Connecting to a 3-phase outlet
(100-127V/200-240 system voltages)

1-6 Connecting the mixer systems
B-Type Revision B2005-2
41618 0DLQ#DQG#H[WHQVLRQ#IUDPH#SRZHU#FRQQHFWLRQV
See fig 1-4 below for schematics of the frames power connections.
1. Using a short U-LINK cable (supplied), connect one of the outputs on the ±18V
PSU to one of the outputs on the +13V/+48V PSU in the “SYSTEM 1" power
supply rack. This operation “links” the d/c outputs on both power supply units in
the rack so that ±18V, +13V and +48V is available on all remaining output con-
nectors on either power unit.
2. Connect the second short “U-LINK” cable (supplied)between the ±18V PSU and
the +13V/+48V PSU’s in the “SYSTEM 2" power supply rack.
3. Connect a PSU cable between the “SYSTEM 1" rack and the “PSU SYSTEM 1"
connector on the MAIN FRAME.
4. Connect a PSU cable between the “SYSTEM 2" rack and the “PSU SYSTEM 2"
connector on the MAIN FRAME.
5. Connect a PSU cable between the “SYSTEM 1" rack and the “PSU SYSTEM 1"
connector on the EXTENSION FRAME 1.
6. Connect a PSU cable between the “SYSTEM 2" rack and the “PSU SYSTEM 2"
connector on the EXTENSION FRAME 1.
7. Repeat procedures 5 and 6 for EXTENSION FRAME 2 (a 3 frame console).

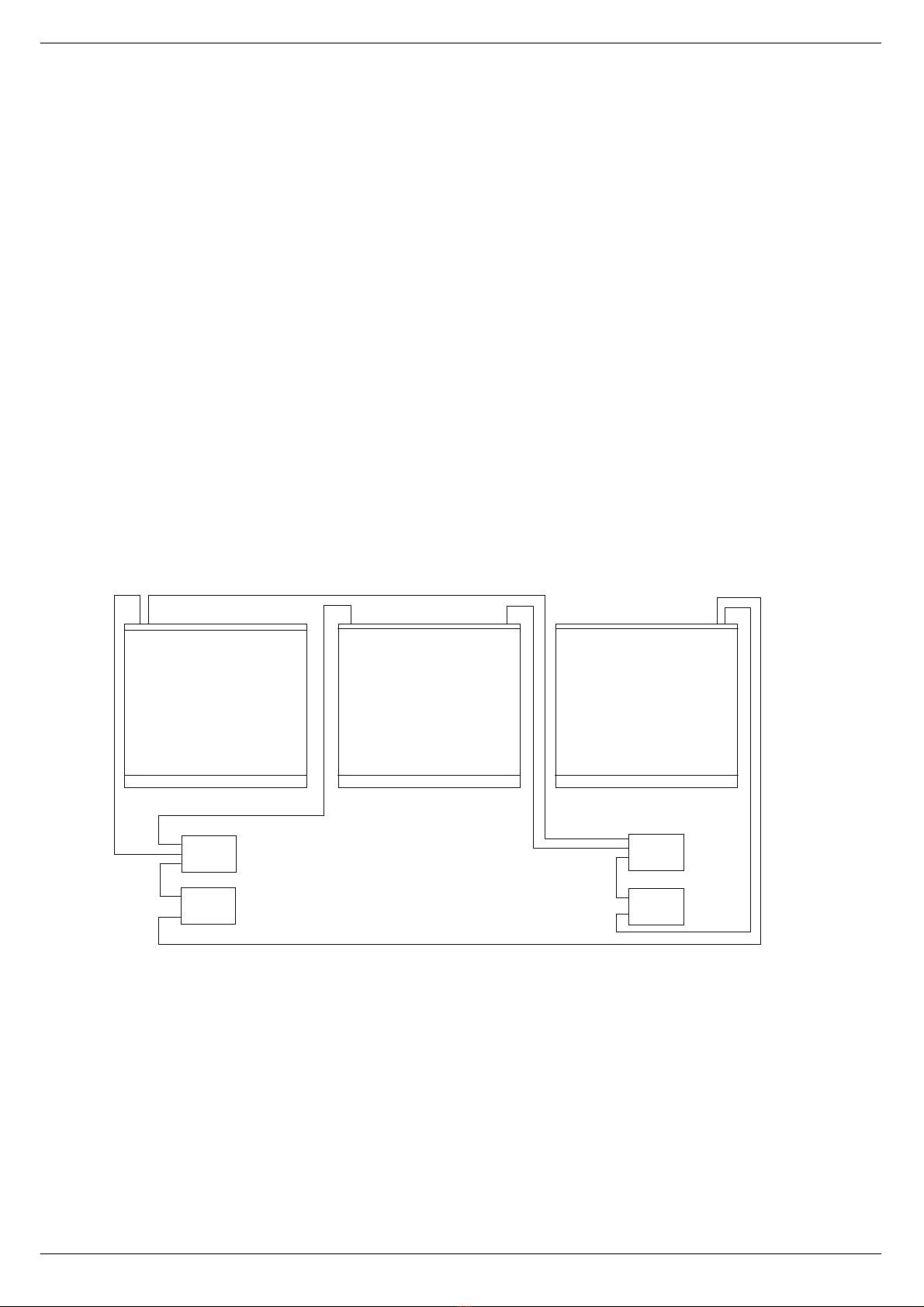

FIG 1-6. Power connections
368#6<67(0#4#+“4;9,
368#6<67(0#5#+“4;9,
368#6<67(0#4#+7;92.469,368#6<67(0#5#+7;92.469,

Connecting the mixer systems 1-7
Revision B2005-2 B-Type
41619 ;34<#DQG#;353#FRPELQHG#5HPRWH#VWDUW
Each 8019 and 8020 switch-mode power supply is fitted with a front panel mounted 9
way ‘D-type’ connector. This connector is labelled “Connections for Remote Start”.
You may connect a single remote start switch to each unit, have one switch start a
“system” pair, or wire up a single switch to start “system 1” and “system 2” all at the
same time.
Fig 1-5 applies to 8019 and 8020 PSUs up to serial number 34949 and shows the
circuit for starting up a “system” pair with a single switch. This has proved to be the
most popular method of connecting the remote start facility. This circuit can easily be
extended to provide a single switch remote four all four PSUs if required.
For 8019 and 8020 PSUs from serial number 34950 onwards, see fig 1-6 and 1-7.
NOTE:
■
■■
■The remote must be a ‘momentary’ type. You will need a two-pole switch for a
single PSU, a four-pole switch for a “system” pair, or a six-pole switch for controlling
all four units.
■
■■
■The remote switch(es) must be mounted on a metal panel.
■
■■
■Use shielded cable for the remote switch wiring.
■
■■
■The 9-way ‘D-type’ free plug must have a conductive shell. This is to ensure that
the cable shield connects directly to the PSU unit chassis.
■
■■
■Connect the cable shield to the metal panel where the remote start switch(es)
are mounted.
Great care must be taken with the wiring of the switch(es) to ensure that no short-cir-
cuits can occur between any two power supply units.
FIG 1-7. Remote start of 8019/8020 up to serial number 34950
PANEL MOUNTED 4-POLEVIEW FROM SOLDER
CUP/TAG SIDE
5
9
4
8
3
2
6
1
7
5
9
4
8
3
2
6
1
7
MOMENTARY SWITCH
TO CONNECTION
FOR REMOTE START
ON 8019 FRONT PANEL
TO CONNECTION
FOR REMOTE START
ON 8020 FRONT PANEL
NOTE: CABLE SCREEN IS
CONNECTED AT BOTH ENDS

1-8 Connecting the mixer systems
B-Type Revision B2005-2
300R
300R
18V
“START” MOMENTARY PUSH BUTTON
VIEW FROM SOLDER
CUP/TAG SIDE
OVER
TEMPERATURE
POWER FAILURE
5
9
4
8
3
2
6
1
7
FIG 1-8. Remote start of 8019 PSU
(from serial number 34950)
300R
300R
13V
“START” MOMENTARY PUSH BUTTON
VIEW FROM SOLDER
CUP/TAG SIDE
OVER
TEMPERATURE
POWER FAILURE
5
9
4
8
3
2
6
1
7
FIG 1-9. Remote start of 8020 PSU
(from serial number 34950)

Connecting the mixer systems 1-9
Revision B2005-2 B-Type
4161: ;733#VZLWFK0PRGH#SRZHU#VXSSO\#XQLW
CADAC 8400 switch-mode power supply units are designed to run from a minimum
of 208V up to a maximum of 260V a.c, 50/60Hz.
The 8400 is rated thus +13V@92A, ±18V@44A and 48V@5A.
The a.c. input is connected to the PSU via a 3-core cable, CMA reference 3183TQ –
BASEC approved, rated at 20A.
The 8400 unit is based on one POWER ONE RPMS-ETETGDGD1ETK Power block,
with additional circuitry as shown on CADAC drawing number C3.8397.
4161; 5HPRWH#VWDUW#RI#;733#368

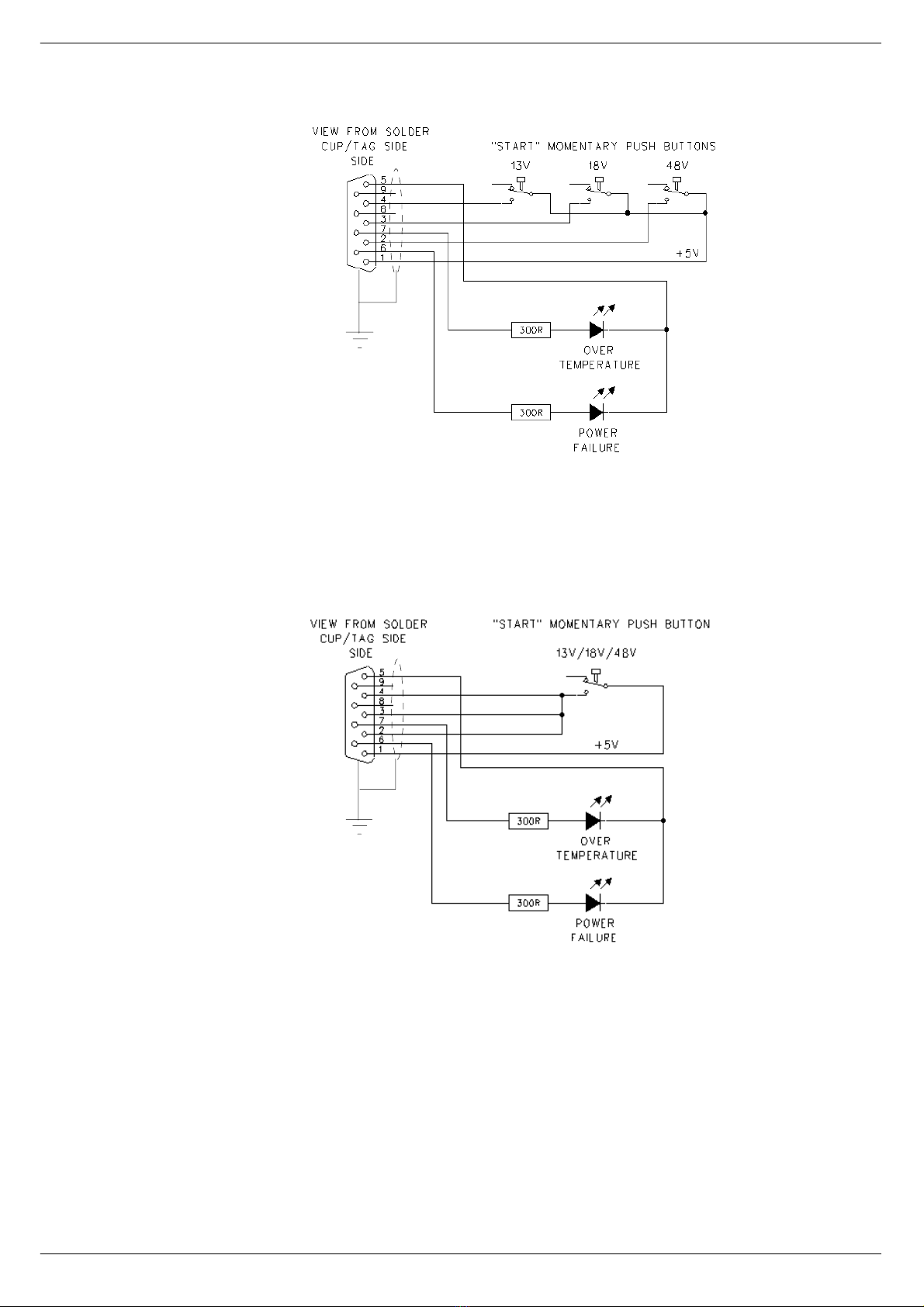

Each 8400 switch-mode power supply provides the following outputs: 13v, ±18v and
48v. Each PSU is fitted with a front panel mounted 9-way 'D-type’ connector labelled
‘Connections for Remote Start’. If a remote start facility is used, Power Failure and
Over-Temperature LEDs may also be fitted with the remote start switches if required.
Fig 3-15 shows the circuit for starting up a “system” with a single switch. This has
proved to be the most popular method of connecting the remote start facility. This cir-
cuit can easily be extended to provide a single switch remote four all four PSUs if
required. If muliple switches are to be used, see fig 3-14.
NOTE:
■
■■
■The remote start switch must be a ‘momentary’ type. You can use 3 separate sin-
glepole switches for each Power Supply to turn on 13v,±18v and 48v outputs of the
PSU alternatively use one single pole for the whole lot.
■
■■
■The remote switch(es) must be mounted on a metal panel.
■
■■
■Use shielded cable for the remote switch wiring.
■
■■
■The 9-way ‘D-type’ free plug must have a conductive shell. This is to ensure that
the cable shield connects directly to the PSU unit chassis.
■
■■
■Connect the cable shield to the metal panel where the remote switch(es) are
mounted.
FIG 1-10. 8400 power supply unit.

1-10 Connecting the mixer systems
B-Type Revision B2005-2
Great care must be taken when wiring the switch(es) to ensure that no short-circuits
can occur between any two power supply units.
FIG1-11. Remotestartof
PSU 8400 with multiple
switches.
FIG 1-12. Remote start of PSU
8400 with a single switch

Connecting the mixer systems 1-11
Revision B2005-2 B-Type
417 &RQQHFWLQJ#WKH#FRQVROH#IUDPHV
41714 $XGLR#%XV#2#'DWD#%XV#&RQQHFWLRQV
If the console is used in a multi-frame configuration then the busses need to be con-
nected in a ‘daisy chain’ fashion.
Each end
of a frame has seven bus connectors -
four audio and two data busses plus fader bus (see fig 1-13). The bus cables are
simply linked between similar connectors on the end of the nearest frame.
Make sure that each frame has its “Frame Select” switch set to a different number.
See also appendix A. Important information regarding EMC.
41715 )DGHU#FRPPXQLFDWLRQV
When motor faders are used in extension frames, a 9-way “FADER COMMS” cable
must be connected between the CCM connectors shown (see fig 1-3) and the
COMMS input on the extension frame rear panel.
Extension frames fitted with motor-faders require control data from the CCM. Three
9-pin female connectors Three 9-pin female connectors located on the rear panel of
the CCM are connected directly to the extension frame using the supplied ‘fader
comms’ cable. The frame containing the CCM sends motor data fader data, via the
7303 interface module (always mounted directly belowthe CCM on J-type consoles).
Thus, a 3 frame console would require two “FADER COMMS” cables:
“FADER COMMS on EXTENSION FRAME 1 TO “FADER COMMS 2” on CCM
“FADER COMMS on EXTENSION FRAME 2 TO “FADER COMMS 3” on CCM
41716 3)/
PFL mixing amplifiers are located in the “Oscillator/Communications” module. There
are two PFL outputs:
■
■■
■PFL Direct is a line level output that appears on an XLR 3-32 connector on the
rear panel of the OSC/Comms module, labelled “PFL DIRECT”;
■
■■
■PFL to Headphones is a high level output suitable for driving headphones that
appears on an XLR 3-32 connector and a TRS jack socket connector on the rear
panel of the OSC/Comms module, labelled “PFL TO HP”.
The PFL to Headphones signal can be connected to the TRS jack sockets mounted
on the front of the console frame by using the “OSC/COMM TO FRAME” cable sup-
plied. This cable has a male XLR 3-pin connector on one end and a female XLR 3-
pinon the other end. Connect one end of the “Oscillator/Communications” module’s
“PFL TO HP” connector and the other end to the rear frame connector labelled
FIG 1-13. Audio/Data Bus connections.
6
7
4
5
AUDIO BUS
FRAME TO FRAME
DATA BUS FRAME
SELECTOR
COMMS TO CCM

1-12 Connecting the mixer systems
B-Type Revision B2005-2
“FROM PFL HEADPHONE XLR”.
Additional inter-frame connections are required to enable the PFL signals from mod-
ules in extension (side) frames to be monitored. Use the cable(s) labelled “PFL
FRAME TO FRAME” to interconnect two or more frames:
■
■■
■Connect one end of a “PFL FRAME TO FRAME” cable to the connector labelled
“TO NEXT FRAME” on the console frame containing the “Osc/Communications”
module.
■
■■
■Connect the other end of a “PFL FRAME TO FRAME” cable to the connector
labelled “FROM PFL HEADPHONE XLR” on the next frame.
Repeat this procedure for all other frames in the console system.
41717 /LWWOLWHV
Surface illumination of the console is provided bythe use of two or more “Littlite”
units that plug into the top bar of the console frame. Control for the “Littlites” - on/off
and intensity - is located on the “Oscillator/Communications” module. The variable
voltage power supply is mounted inside the console frame.
Two cables are required to interconnect the “Littlite” controls, the variable voltage
power supply and the lamp units.
■
■■
■Connect one of the cable labelled “OSC TO LITTLITES” to the connector on the
rear panel of the “Oscillator/Communications” module labelled “LITTLITES” (this
cable has 4-pin XLR male and female connectors).
■
■■
■Connect the other end of the cable labelled “OSC TO LITTLITE” to the connector
on the rear panel of the console frame labelled “FROM PFL MODULE”;
■
■■
■Connect one end of the cable labelled “LITTLITE FRAME TO BAR” to the con-
nector on the rear panel of the console frame labelled “TO LIGHTS” (this cable has a
4-pin male XLR connector at one end and a 5-pin XLR connector at the other end).
■
■■
■Connect the other end of the cable labelled “LITTLITE FRAME TO BAR” to the
5-pin XLR-connector mounted at the rear of the top bar on the console frame.
Additional inter-frame connections are required to enable the LITTLITE control sig-
nals to be delivered to any extension frame(s) in the console system. Use the
cable(s) labelled “LITTLITE FRAME TO FRAME” to interconnect two or more frames.
■
■■
■Connect one end of a “LITTLITE FRAME TO FRAME” cable to the connector
labelled “TO NEXT FRAME” on the console frame containing the “Oscillator/Commu-
nications” module;
■
■■
■Connect the other end of a “LITTLITE FRAME TO FRAME” cable to the connec-
tor labelled “FROM PFL MODULE” on the next frame;
■
■■
■Connect one end of a cable labelled “LITTLITE FRAME TO BAR” to the connec-
tor on the rear panel of the console frame labelled “TO LIGHTS” (this cable has a 4-
pin male XLR connector at one end and a 5-pin XLR connector at the other end.
■
■■
■Connect the other end of a cable labelled “LITTLITE FRAME TO BAR” to the 5-
pin XLR connector mounted at the rear of the top bar on the console frame.
Repeat this procedure for all other frames in the console system.
41718 368#,QGLFDWRU
Two sets of four LEDs are incorporated into the CCMfront panel to give the operator
visual indication that the “main” (PSU System 1) and “backup” (PSU System 2)
power supply units are working correctly. A cable, labelled “PSU IND.” is supplied to
interconnect the CCM and the console frame.
■
■■
■Connect one end of the “PSU IND” cable to the “PSU IND” 15-way male D-sub
connector on the CCM.
■
■■
■Connect the other end of the “PSU IND” cable to the “PSU IND” 15-way female
D-sub connector on the rear console frame adjacent to the two multi-pin power input
connectors.
