Cadex TRI User manual

|ENGLISH| CADEX TRI USER MANUAL
1
2.6.
|ENGLISH| CADEX TRI USER MANUAL

|ENGLISH| CADEX TRI USER MANUAL
2
TABLE OF CONTENTS
1Frame Sizing
2Stack And Reach Range
3Tri Bar Removal Assembly
4Top Tube Storage & Toolkit Removal & Installation
5Hydration System
6Seat Post & Saddle Adjustment

|ENGLISH| CADEX TRI USER MANUAL
3
1. FRAME SIZING
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
XXS
XS
S
M
L
HEIGHT (cm)
150 - 162
156 - 168
164 - 176
172 - 186
180 - 195
INSEAM (cm)
62 - 76
65 - 80
70 - 85
75 - 90
80 - 98
A
SADDLE HEIGHT RANGE (mm)
540-710
580-750
620-790
660-830
700-870
B
SEAT TUBE LENGTH (mm)
440
475
510
545
580
C
SEAT TUBE ANGLE
76 - 80°
76 - 80°
76 - 80°
76 - 80°
76 - 80°

|ENGLISH| CADEX TRI USER MANUAL
4
D
TOP TUBE LENGTH (mm)
475
495
520
550
580
E
HEAD TUBE LENGTH (mm)
70
95
120
145
170
F
HEAD TUBE ANGLE
71.0°
73.0°
73.0°
73.0°
73.0°
G
FORK RAKE (mm)
40
40
40
40
40
H
TRAIL (mm)
76.1
63.3
63.3
63.3
63.3
I
WHEELBASE (mm)
968
976
1005
1039
1072
J
CHAIN STAY LENGTH (mm)
405
405
405
405
405
K
BOTTOM BRACKET DROP (mm)
80
80
77
74
74
L
ARMREST STACK (15D) (mm)
545 - 615
575 - 645
595 - 665
615 - 685
640 - 710
M
ARMREST REACH (15D) (mm)
340 - 430
355 - 445
375 - 465
400 - 490
425 - 515
FRAME STACK (mm)
483
513
534
555
579
FRAME REACH (mm)
390
405
426
452
478
N
HEIGHT (mm)
530 - 570
560 - 600
580 - 620
600 - 640
625 - 665
O
HANDLEBAR WIDTH (mm)
400
400
400
400
400
P
EXTENSION WIDTH (mm)
110 | 190
110 | 190
110 | 190
110 | 190
110 | 190
Q
ARMREST WIDTH (mm)
190 - 310
190 - 310
190 - 310
190 - 310
190 - 310
COMPATIBLE SIZE (mm)
700 x 28C
700 x 28C
700 x 28C
700 x 28C
700 x 28C

|ENGLISH| CADEX TRI USER MANUAL
5
2. STACK AND REACH RANGE
FIT DATA CHART
GEOMETRY
0
XXS
XS
S
M
L
L
ARMREST STACK-MIN (mm)
560
590
610
630
655
L
ARMREST STACK-MAX (mm)
640
670
690
710
735
M
ARMREST REACH-MIN (mm)
340
355
375
400
425
M
ARMREST REACH-MAX (mm)
430
445
465
490
515
5
XXS
XS
S
M
L
L
ARMREST STACK-MIN (mm)
555
585
605
625
650
L
ARMREST STACK-MAX (mm)
625
655
675
695
720
M
ARMREST REACH-MIN (mm)
340
355
375
400
425

|ENGLISH| CADEX TRI USER MANUAL
6
M
ARMREST REACH-MAX (mm)
430
445
465
490
515
10
XXS
XS
S
M
L
L
ARMREST STACK-MIN (mm)
550
580
600
620
645
L
ARMREST STACK-MAX (mm)
630
660
680
700
725
M
ARMREST REACH-MIN (mm)
340
355
375
400
425
M
ARMREST REACH-MAX (mm)
430
445
465
490
515
15
XXS
XS
S
M
L
L
ARMREST STACK-MIN (mm)
545
575
595
615
640
L
ARMREST STACK-MAX (mm)
615
645
665
685
710
M
ARMREST REACH-MIN (mm)
340
355
375
400
425
M
ARMREST REACH-MAX (mm)
430
445
465
490
515

|ENGLISH| CADEX TRI USER MANUAL
7
3. TRI BAR REMOVAL & ASSEMBLY
REMOVAL
1. Install fork pads F-R and F-L onto the upper part of fork (A).
2. Loosen but don't remove the four cockpit fixing bolts with a 4mm hex key (B).
3. Lift up the extension assembly and detach base bars from both sides. Install protective spacer to the four fixing bolts.
(C).
4. Gently flip down both base bars without putting too much tension on the brake hoses. Gently lay each bar against the
fork leg on the same side. (D).
5. Secure both base bars to the fork legs with the shorter Velcro straps. (E).
6. Secure spacers with Velcro straps. Completely loosen the four cockpit fixing bolts. (F).
7. Flip the assembly down and position it gently against the front of the fork. Secure the entire assembly with the longer
Velcro straps. (G).
A
B
D
E
F
C
G

|ENGLISH| CADEX TRI USER MANUAL
8
ASSEMBLY
NOTE:
Always use a torque wrench.
After assembly, with both wheels on the floor, hold both brakes and gently rock the bike forward and backward to make
sure nothing is loose.
1. Remove securing Velcro strap from assembly (A).
2. Replace extension bar assembly and loosely refit the four fixing bolts. Remove Velcro straps (B).
3. Remove protective spacers. (C).
4. Replace base bars. Tighten all cockpit fixing bolts to 5.5Nm with a 4mm hex (D)
5. Remove protective pads (E).
6. Replace arm cups. Tighten bolts to 4Nm with a 3mm hex (F).
A
B
D
E
F
C

|ENGLISH| CADEX TRI USER MANUAL
9
4. TOP TUBE STORAGE & TOOLKIT REMOVAL & INSTALLATION
NOTE:
Make sure all storage parts fit snugly to the frame and do not rattle.
TOP TUBE STORAGE REMOVAL
1. Hold the lower end firmly and push upwards (A).
2. Pivot the storage box upwards to remove. (B).
TOP TUBE STORAGE INSTALLATION
1. Insert and firmly push front latch into the frame recess (A).
2. Push storage box downward into the frame (B).
A
B
A
B

|ENGLISH| CADEX TRI USER MANUAL
10
TOOLKIT REMOVAL
1. Hold the lower end firmly and push upwards (A).
2. Pivot the toolkit sideways to remove (B).
TOOLKIT INSTALLATION
1. Insert and firmly push upper latch into the frame recess (A).
2. Push tool box into the frame until it fits snugly. (B).
A
B
A
B

|ENGLISH| CADEX TRI USER MANUAL
11
5. HYDRATION SYSTEM REMOVAL & INSTALLATION
REMOVAL
1. Remove front aero cover by pulling outward with both hands (A)
2. Take out the bladder and disconnect the straw. Replace the bladder (B).
3. Use your index finger to unclip the straw while pressing the clip with your thumb (C)
4. Remove the straw by gently pulling through from the front side of the bike (D).
A
B
C
D

|ENGLISH| CADEX TRI USER MANUAL
12

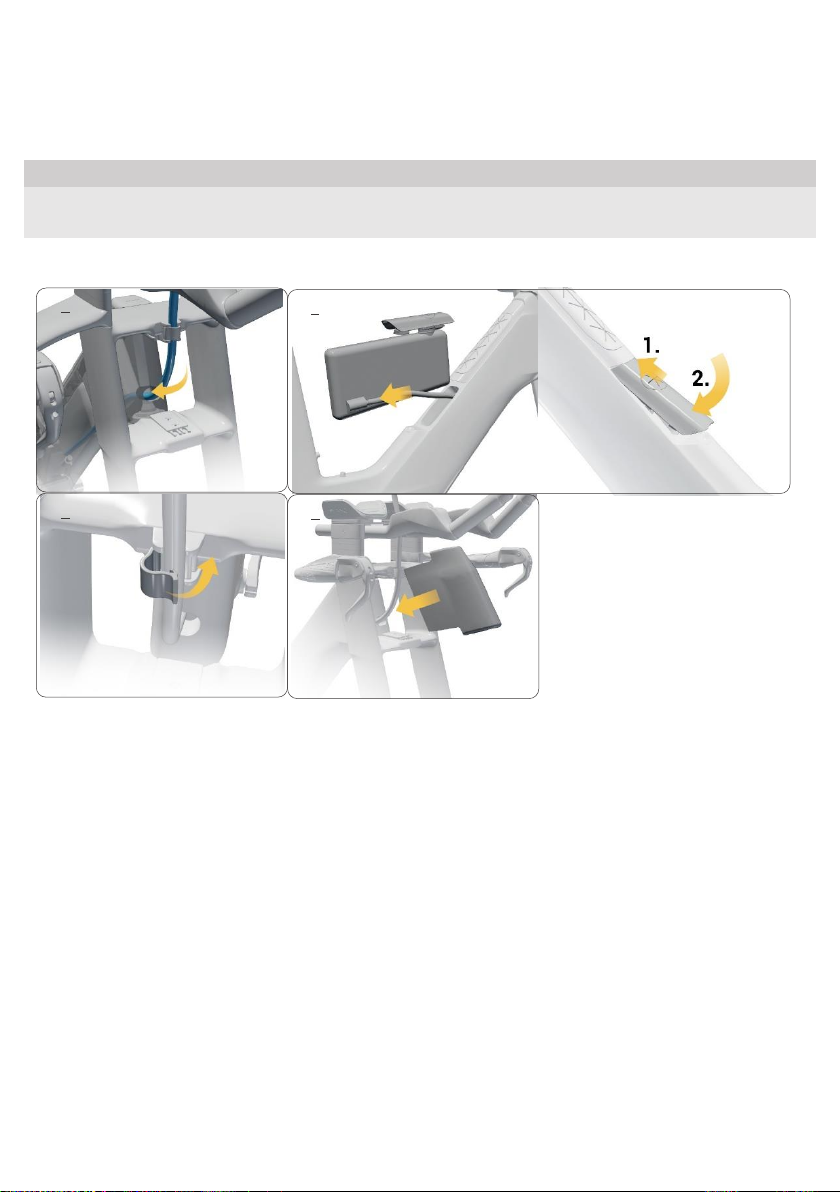

INSTALLATION
NOTE:
Once the straw has been refitted, turn the handlebar from side to side to make sure is not compromised. If you feel any
interference, remove the straw and refit again.
1. Feed the straw from the head tube trough the right-side of steerer (A).
2. Take out the bladder and reconnect the straw. Replace the bladder (B).
3. Adjust the straw to desired length and secure the straw onto the clip (C).
4. Refit the front aero cover (D).
A
B
C
D

|ENGLISH| CADEX TRI USER MANUAL
13
6. SEAT POST & SADDLE ADJUSTMENT
CLAMP POSITION
Front position 78°to 80°seat tube angle
Rear position 76°to 78°seat tube angle

|ENGLISH| CADEX TRI USER MANUAL
14
SADDLE CLAMP ADJUSTMENT
1. Remove saddle (A).
2. Loosen and remove both clamp fixing bolts (B).
3. Pull out clamp , turn it 180°horizontally and refit it into seat post (C).
4. Replace clamp fixing bolts , tighten to 5Nm (D).
SEAT POST
Minimum insertion - 80mm.
A
B
C
D

|ENGLISH| CADEX TRI USER MANUAL
15
NOTE:
1. Always use a torque wrench
2. Once the installation or adjustment has been completed, grab the saddle and rock it back and forth to ensure all
fasteners are snug.
SADDLE POSITION ADJUSTMENT
1. Loosen the side bolt a full turn; Loosen the top bolt a full turn (A)
2. Adjust saddle angle, fore or aft to preferred position (B).
3. Tighten the top bolt to 5 Nm with 4 mm hex; Tighten the side bolt to 5 Nm with 4 mm hex (C)
4. Double check clamp fixing bolts ➌(D)
A
B
C
D
➌

|ENGLISH| CADEX TRI USER MANUAL
16
SADDLE REMOVAL & INSTALLATION
1. Loosen and remove the side bolt (A).
2. Loosen and remove the top bolt and the upper piece (B).
3. Remove the saddle from the clamp. Rock the saddle back and forth to help removal. (C).
4. Select 7mm top clamp for alloy rail saddle or 9mm top clamp for carbon rail saddle. ➍(D)
5. Apply carbon paste to the clamp housing (E).
6. Replace top clamp ➍and loosely tighten the top bolt and upper piece (F).
A
B
D
E
F
C
➍
➍

|ENGLISH| CADEX TRI USER MANUAL
17
7. Refit saddle with the lower piece and lightly tighten the side bolt (G)
8. Adjust saddle angle, fore and aft to preferred position (H).
9. Tighten the top bolt and the side bolt to 5 Nm (I)
10. Double check clamp fixing bolts ➌(J)
G
H
I
J
➌
