Cadmus PIC 688 User manual

1
CADMUS ELECTRONIC CO., LTD.
PICMG 1.3 Half Size CPU Board PIC 688 User Manual

2
Contents
Preface
Copyright ..............................................................................................5
Disclaimer..............................................................................................5
Acknowledgements...........................................................................5
RoHS Compliance...............................................................................5
Package Contents…………………………………………………………….6
Ordering information……………………………………………………….7
Chapter 1: Product Introduction
Overview.................................................................................................8
Key Features...........................................................................................8
Block Diagram.......................................................................................9
Hardware Specifications....................................................................10-11
Knowing Your PIC 688….....................................................................12
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors................................13
Jumpers......................................................................................................14
Connector pin define............................................................................15-19
External Connectors..............................................................................15-16
Internal Connectors..............................................................................16-20

3
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means without the prior written consent from CADMUS ELECTRONIC CO., LTD.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from CADMUS ELECTRONIC CO.,LTD.,However, users may update their knowledge of
any product in use by constantly checking its manual posted on our website: http://www.cadmus.com.tw shall not be liable for direct, indirect, special, incidental, or consequential damages arising
out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular
purpose is also disclaimed.
Acknowledgements
PIC 688 is a trademark of CADMUS ELECTRONIC CO.,LTD. All other product names mentioned herein are registered trademarks of their respective owners.
RoHS Compliance
Cadmus certifies that our products including (but not limited to) components, semi‐finished products, finished products, raw materials and packaging materials are
in compliance with Directive 2011/65/EU of the European Parliament related to the restriction of the use of certain hazardous substances in electrical and
electronics equipment (RoHS Directives).
RoHSrestrictstheuseofLead(Pb)< 0.1%or1,000ppm,Mercury(Hg)< 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB)
< 0.1% or 1,000ppm,andPolybrominateddiphenylEthers(PBDE)<0.1%or1,000ppm.
CADMUSELECTRONIC CO., LTD.
Copyright © Cadmus Electronic Co., Ltd. All rights reserved
[e-mail]
http://www.cadmus.com.tw

4
Package Contents
Before continuing, verify that the PIC 688 package that you received is complete. Your package should have all the items listed in the following table.
Item
Part Number
Name
Description
Qty
1
343280000104
USB cable x2 port with bracket
CABLE2xUSB AF-6P(2.5) L=240mm
1
2
343820030002
Supportive power cable
CABLE;3P-3P P=3.96mm L=120mm
1
3
343220070017
Standard SATA cable
CABLE;SATA W/LOCK 7P L=450mm
1
4
ETX board (Q170 and C236 only)
ETX board for high speed interface, with
bracket
1
If any of these items are missing or damaged, contact your distributor or sales representative immediately. We have carefully inspected the PIC 688 mechanically and
electrically before shipment. It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the PIC 688, check it for signs of shipping
damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales
representative immediately. Also notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection, we will make
arrangements to repair or replace the unit.
Optional Accessories
Item
Part Number
Name
Description
1
343820040003
4 pin power cable
CABLE;ATX POWER L=150mm BLK/Y
2
343220090003
COM port cable with bracket
9P COM port cable x2 Port L:200mm
3
TBD
PS2 cable
Mini DIN 6P L:250mm
4
343220250018
Print port cable with Bracket
DB25P L:250mm
5
343420000010
DP cable with bracket
DP20P L:250mm
6
32607L07AB01
CPU cooler INTEL LGA1156
84L×84W×26.4H DC12V 0.45A 5500RPM±10%

5
Ordering information
Processor Support
Model
Cadmus P/N
CPU processor
Base Freq.
Cores
TDP
PIC688-H
PIC688-Q
8850PIC688H0
8850PIC688Q0
i7-6700
3.4 Ghz
4C
65W
i7-6700TE
2.4 Ghz
4C
35W
i5-6500
3.2 GHz
4C
65W
i5-6500TE
2.3 GHz
4C
35W
i3-6100
3.7 GHz
2C
51W
i3-6100TE
2.7 GHz
2C
35W
G4400
3.3 GHz
2C
54W
G4400TE
2.4 GHz
2C
35W
G3900
2.7 Ghz
2C
65W
G3900TE
2.2 Ghz
2C
35W
PIC688-C
8850PIC688C0
E3-1275 v6
4.2 Ghz
4C
73W
E3-1275 v5
3.6 Ghz
4C
80W
E3-1268L v5
2.4 Ghz
4C
35W
E3-1225 v5
3.3 Ghz
4C
80W
Backplane Support Matrix table
Backplane
Model processor
NBP1468
NBP1307
NBP1257
8850NBP14681
8850NBP10370
TBD
PIC 688-H
V
PIC 688-Q
V
V
PIC 688-C
V
V

6
Chapter 1: Product Introduction
Overview
Key Features
Complies with PCIMG1.3
Supports Intel Xeon series, Core i7/i5/i3 LGA1151 processors with
C236 / Q170 / H110
Dual Channel DDR4 1866 / 2133 up to 32 GB
Supports triple display
Support maximum PCIx16 X1, PCIex4 X3, PCIex1 X2
Supports TPM module (optional)
External IO
CADMUSELECTRONIC CO., LTD.
Copyright © Cadmus Electronic Co., Ltd. All rights reserved
[e-mail]
http://www.cadmus.com.tw

7
Block Diagram

8
Hardware Specifications
CPU Support
6th generation Intel® Xeon and Intel® Core™ i7/i5/i3 processor (65W/35W) TDPs, Socket LGA1151
Main Memory
2 x SODIMM, support Dual channel DDR4 Non-ECC SODIMM 1866/2133 MT/S (Maximum 32GB)
Platform Control Hub
Intel®H110 Express Chipset PCH (PCI Express GEN2.0)
Intel®Q170 Express Chipset PCH (PCI Express GEN3.0)
Intel®C236 Express Chipset PCH (PCI Express GEN3.0)
BIOS
AMI system BIOS
I/O Bracket
USB3.0 *2 port
RJ45*2 port
DVI-I *1 port
On-board LAN
1 x Intel®WG1219LM GbE PHY
1 x Intel®I211 Gigabit Ethernet Controller
Support Boot from LAN (PXE) and Wake from LAN
Display
The Processor Graphics contains a refresh of the ninth generation graphics Intel® HD Graphics 530
Support independent triple display
DVI-I(VGA): Resolution up to 1920*1200 pixels @60MHz
DVI-D(HDMI): Resolution up to 4096*2304 pixels @60MHz
DP: Resolution up to 4096*2304 pixels @60MHz
*Supporting 4K display required two DDR channels of same size

9
On-Board I/O
4 x SATA port Support RAID 0/1/5/10
DP port with 20pin Connector
SIO: ITE8786
COM 1,2,3,4 Support RS232 with single mini type connector, support 5V. (refer to pin define )
PS2 KB/MS *1 JST connector
Parallel Port: 20-pin box header x 1
2Ports USB2.0 with 6Pin wafer connector
High definition audio interface
1 x Smart FAN connector for CPU
On-board buzzer
Power Requirements
▪Power source from backplane through golden finger and AUX +12V
▪Support ATX/AT function by jumper setting
▪BIOS default is (ATX MODE)
Environment
▪Board level operating temperatures: -20°C to 60°C
▪Storage temperatures: -20°C to 85°C
▪Relative humidity:
0% to 90% (operating, non-condensing)
0% to 95% (non-operating, non-condensing)
Certifications
▪CE approval
▪FCC Class A
CADMUSELECTRONIC CO., LTD.
Copyright © Cadmus Electronic Co., Ltd. All rights reserved
[e-mail]
http://www.cadmus.com.tw

10
Knowing Your PIC688
CADMUSELECTRONIC CO., LTD.
Copyright © Cadmus Electronic Co., Ltd. All rights reserved
[e-mail]
http://www.cadmus.com.tw

11

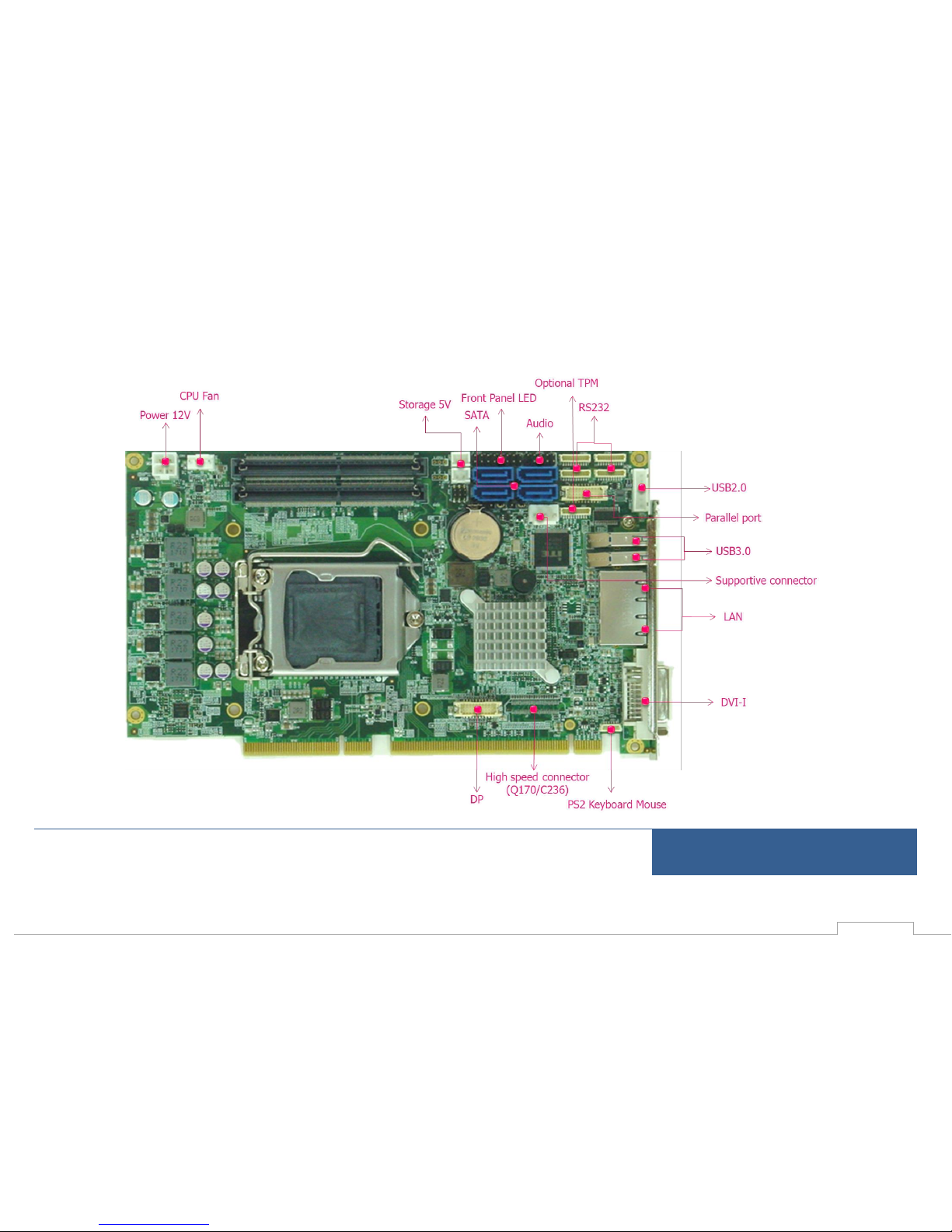

Chapter 2: Jumpers and Connectors Locations of the Jumpers and Connectors
CADMUSELECTRONIC CO., LTD.
Copyright © Cadmus Electronic Co., Ltd. All rights reserved
[e-mail]
http://www.cadmus.com.tw

12
Jumpers
CMOS Clear Select
Connector type: 1x3 3-pin header Connector location:JBAT1
Pin
Settings
1-2 On
*Normal
2-3 On
Clear BIOS Setting
AT/ATX mode Select
Connector type: 1x3 3-pin header Connector location: ATX1
Pin
Settings
1-2 On
*ATX Mode
2-3 On
AT Mode
CADMUSELECTRONIC CO., LTD.
Copyright © Cadmus Electronic Co., Ltd. All rights reserved
[e-mail]
http://www.cadmus.com.tw

13
Connector Pin Definitions External Connectors
DVI-I
Connector location: DVI U23
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
DVIdata 2-
9
DVIdata 1-
17
DVIdata 0-
C1
Analog Red
2
DVIdata 2+
10
DVIdata 1+
18
DVIdata 0+
C2
Analog Green
3
GND
11
GND
19
GND
C3
Analog Blue
4
CRT DDC clock
12
N/C
20
VGA_SCL
C4
Analog horiz. Sync
5
CRT DDC data
13
N/C
21
VGA_SDA
C5
Analog GND
6
DVIDC clock
14
5V
22
NC
7
DVIDC data
15
GND
23
DVI clock +
8
Analog vert. sync
16
Hot piug detect
24
DVI clock -
LAN1 / LNA2 (LED)
Connector location: LAN1 / LAN2
Pin
Definition
Pin
Definition
1
LAN_MDI0P
2
LAN_MDI0N
3
LAN_MDI1P
4
LAN_MDI1N
5
LAN_MDI2P
6
LAN_MDI2N
7
LAN_MDI3P
8
LAN_MDI3N

14
USB3.0
Connector location: USB2 / USB3
Pin
Definition
Pin
Definition
1
P5V_OC01_C
2
USB_0N_C
3
USB_0P_C
4
GND
5
USB3_RX1_N_C
6
USB3_RX1_P_C
7
GND
8
USB3_TX1_N_C
9
USB3_TX1_P_C
Internal Connectors
USB2.0
Connector location: JUSB2
Pin
Definition
Pin
Definition
1
P5V_OC45_C
2
USB4-
3
USB4+
4
USB5-
5
USB5+
6
GND
Power input connector
Connector location : JCON1
Pin
Definition
Pin
Definition
1
GND
2
GND
3
+12V
4
+12V
SATA connector
Connector location : SATA1/ SATA2 / SATA3 /SATA4
Pin
Definition
Pin
Definition
1
GND
2
SATA_TXP1
3
SATA_TXN1
4
GND
5
SATA_RXN1
6
SATA_RXP1
7
GND

15
COM port (RS232)
Connector location :COM1/ COM2 /COM3 / COM4
Pin
Definition
Pin
Definition
1
COM_DCD
2
COM_RXD
3
COM_TXD
4
COM_DTR
5
GND
6
COM_DSR
7
COM_RTS
8
COM_CTS
9
COM_RI
10
VCC5
Parallel port
Connector location : PRT1
Pin
Definition
Pin
Definition
1
PR_AD0
2
PR_ACK
3
PR_AD1
4
PR_BUSY
5
PR_AD2
6
PR_PE
7
PR_AD3
8
PR_AFD
9
PR_AD4
10
PR_ERR
11
PR_AD5
12
PR_INIT
13
PR_AD6
14
PR_SLIN
15
PR_AD7
16
PRSLCT
17
PR_STB
18
NC
19
NC
20
NC
HDA Pin Header
Connector location : HJDA1
Pin
Definition
Pin
Definition
1
S_HDA_SDO
2
VCC5
3
S_HDA_RST#
4
GND
5
S_HDA_SYNC
6
+12V
7
S_HDA_SDI0
8
S_HDA_SDI1
9
S_HDA_BCLK
10
NC
Front panel Pin Header
Connector location : JFP1
Pin
Definition
Pin
Definition
1
SATA_LED+
2
PWR_LED+
3
SATA_LED-
4
GND
5
GND
6
PWR_BTN
7
RESET_BTN
8
GND
9
SPEAK+
10
SMBCLK
11
NC
12
SMBDAT
13
NC
14
S1_SYSTIN
15
SPEAK-
16
AGND

16
SATA HDD power Connector
Connector location : JSP1 / JSP2
Pin
Definition
Pin
Definition
1
5V
2
GND
CPU fan connector
Connector location : CFAN1
Pin
Definition
Pin
Definition
1
GND
2
+12V
3
FAN TAC
4
FAN CTL
PS2 Keyboard Mouse
Connector location : JKB1
Pin
Definition
Pin
Definition
1
KM_VCC5
2
KBDAT
3
KBCLK
4
MS_DAT
5
MS_CLK
6
GND
LPC Connector (optional TPM)
Connector location : JDB1
Pin
Definition
Pin
Definition
1
GND
2
RST_SIO
3
CLK_PCI_P80
4
LPC_FRAME
5
LPC_AD3
6
LPC_AD2
7
LPC_AD1
8
LPC_AD0
9
LPC_SERIRQ
10
VCC3
DP Pin Header
Connector location : DP1
Pin
Definition
Pin
Definition
1
DPD_PWR_R
2
DPD_PWR_R
3
GND
4
GND
5
DDI3_TXN_R1
6
DDI3_TXN_R3
7
DDI3_TXP_R1
8
DDI3_TXP_R3
9
GND
10
GND
11
DDI3_TXN_R0
12
DDI3_TXN_R2
13
DDI3_TXP_R0
14
DDI3_TXP_R2
15
GND
16
GND
17
DPD_AUX_P_R
18
DPD_HPD_R
19
DPD_AUX_N_R
20
DP_GND

17
PS2 Keyboard Mouse
Connector location : JKB1
Pin
Definition
Pin
Definition
1
KM_VCC5
2
KBDAT
3
KBCLK
4
MS_DAT
5
MS_CLK
6
GND
LPC Connector (optional TPM)
Connector location : JDB1
Pin
Definition
Pin
Definition
1
GND
2
RST_SIO
3
CLK_PCI_P80
4
LPC_FRAME
5
LPC_AD3
6
LPC_AD2
7
LPC_AD1
8
LPC_AD0
9
LPC_SERIRQ
10
VCC3
Supportive Power Connector
Connector location : SPW1
Pin
Definition
Pin
Definition
1
5V
2
GND
3
5V

18
