Kontron DIMM-PC/MD User manual

DIMM-PC/MD
Product Manual
Document Revision 1.0

DIMM-PC/MD Product Manual Content
Kontron® Embedded Modules GmbH iRevision 1.0
CONTENTS
1. USER INFORMATION...................................................................................................1
1.1 ............................................................................................. ABOUT THIS MANUAL 1
1.2 .......................................................................................................... TRADEMARKS 1
1.3 ................................................................................................................. GENERAL 1
1.4 ..............................................................................................................WARRANTY 2
1.5 ...............................................................................................TECHNICAL SUPPORT 3
2. INTRODUCTION ............................................................................................................4
2.1 ..............................................................................KONTRON DIMM-PC-CONCEPT 4
3. FEATURES OF THE DIMM-PC/MODEM..................................................................6
4. BLOCK DIAGRAMM DIMM-PC/MODEM ................................................................7
5. MECHANICAL SPECIFICATION ...............................................................................8
5.1 ....................................................................................ELECTRICAL SPECIFICATION 11
5.2 ................................................................................PERFORMANCE SPECIFICATION 12
5.3 .......................................................................... ENVIRONMENTAL SPECIFICATIONS 13
6. HARDWARE-INSTALLATION ..................................................................................14
6.1 ...................................................................................................LINE-CONNECTION 14
6.2 ................DEFINITION OF THE HARDWARE-INTERRUPTS AND OF THE I/O-ADDRESS 15
7. SOFTWARE SPECIFICATION...................................................................................16
7.1 ........................................................................................................DIMM-PC/MD 16
7.2 ....................................................................AT COMMANDS REFERENCE MANUAL 17
8. TROUBLESHOOTING.................................................................................................25
9. REVISION HISTORY...................................................................................................25

DIMM-PC/MD Product Manual User Information
Kontron® Embedded Modules GmbH 1Revision 1.0
1. USER INFORMATION
1.1 About This Manual
Copyright 2002. Kontron Embedded Modules GmbH.
In this document Kontron Embedded Modules GmbH will also be referred to by the short
form "Kontron".
The information in this document has been carefully reviewed and is believed to be
accurate and reliable. However, no responsibility is taken for inaccuracies. Furthermore,
Kontron reserves the right to make changes to any part of this manual to improve
reliability, function or design. Kontron does not assume liability for any product or circuit
described.
1.2 Trademarks
AT and IBM are trademarks of International Business Machines
XT, AT, PS/2 and Personal System/2 are trademarks of International Business Machines
Corporation.
Microsoft is a registered trademark of Microsoft Corporation.
Intel is a registered trademark of Intel Corporation.
All other products and trademarks mentioned in this manual are trademarks of their
respective owners.
The reproduction, transmission or use of this document or its contents is not permitted
without expressed written authority.
Violators will be liable for damages. All rights created by patent grant or registration of a
utility model or design, are reserved.
Kontron 1996Standards
1.3 General
For the circuits, descriptions and tables indicated no responsibility is taken as far as
patents or other rights of third parties are concerned.
The information in the technical descriptions describes the type of the boards and shall
not be considered as assured characteristics.

DIMM-PC/MD Product Manual User Information
Kontron® Embedded Modules GmbH 2Revision 1.0
The reproduction, transmission or use of this document or its contents is not permitted
without expressed written authority. Violators will be liable for damages. All rights,
including rights created by patent grant or registration of a utility model or design, are
reserved.
1.4 Warranty
Each board is carefully and thoroughly tested before being shipped. If, however,
problems should occur during the operation, please check your user specific settings of
all boards included in your system. That is often the source of the error. If a board is
defect, it can be sent to your supplier for repair. Please take care of the following steps:
1. The board returned should correspond to the factory default settings since a test is
only possible under these settings.
2. Upon receipt of the board, please be aware that your user specific settings were
changed during the test.
Within the guarantee, the repair is free as long as the guarantee conditions were held. If
no error has been found, you will be charged with the test costs due to the high test
expenditure. Repairs outside of duration of the guarantee will be charged.
This Kontron product is warranted against defects in material and workmanship for our
guaranteed warranty period from the date of shipment. During the warranty period,
Kontron will, at its option, either repair or replace products which prove to be defect.
For warranty service or repair, the product must be returned to a service facility
designated by Kontron.
The foregoing warranty shall not apply to defects resulting from improper or inadequate
maintenance or handling by buyer, unauthorized modification or misuse, operation
outside of the environmental specifications for the product, or improper installation or
maintenance.
Kontron will not be responsible for any defects or damages due to a faulty Kontron
product other than the products supplied by Kontron

DIMM-PC/MD Product Manual User Information
Kontron® Embedded Modules GmbH 3Revision 1.0
1.5 Technical Support
Technicians and engineers from Kontron and/or its subsidiaries are available for
technical support. We are committed to making our product easy to use and will help you
use our products in your systems.
Before contacting Kontron technical support, please consult our Web site for the latest
product documentation, utilities, and drivers. If the information does not help to solve the
problem, contact us by email or telephone. The table below lists Kontron technical
support contacts and service facilities.
Asia Europe North/South America
Kontron®Embedded Modules Asia Ltd.
Kontron Embedded Modules GmbH Kontron
5F-1, 341, Sec 4
Chung Hsiao E. Road
Taipei, Taiwan
Brunnwiesenstr. 16
94469 Deggendorf
Germany
3988 Trust Way
Hayward, CA 94545
USA
Tel: [phone] Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone] Fax: [phone]
[email protected] [email protected]

DIMM-PC/MD Product Manual Introduction
Kontron® Embedded Modules GmbH 4Revision 1.0
2. INTRODUCTION
2.1 Kontron DIMM-PC-Concept
It is likely that anyone who deals with micro-controller-development, has already thought
of the application of PC-architecture and considered the PC as the engine for an
application. However, most design engineers will get back to the old 87C51 or a similarly
more or less efficient micro-controller. The reasons why the Embedded PC was not yet
able to push away the micro-controllers from the printed boards, are many.
Embedded PCs are mechanically larger than a solution with a micro-controller.
The hardware of an Embedded PC is much more expensive than the micro-controller
solution.
The power consumption of an Embedded PC is usually higher than the one of a micro-
controller circuit.
A lot of times PCs have to be used with ribbon cables which are a possible cause of error.
Micro-controllers are available with a large number of peripheral functions, the PC,
however only has a standard periphery.
On the other hand there are some serious disadvantages of micro-controller solutions.
The software-development is much more complicated and expensive than under a
standard operating system.
Connection to standard-interfaces such as LANs and modems requires complicated driver
software.
Graphical user interfaces can be realized only by large programming efforts.
The development tools are by far not as powerful as PC-programming systems.
Micro-controllers do by far not have as many different PC-SW development tools
available.
This is why the purchase price is usually considerably higher for micro-controller
development tools.
Ready-made software solutions for standard tasks are only available in a very limited
extent.
The specified reasons are only a few of the more common ones, which are important in
deciding whether to implement a micro-controller or to change to PC-architecture.

DIMM-PC/MD Product Manual Introduction
Kontron® Embedded Modules GmbH 5Revision 1.0
It is a matter of fact, that these points are not always estimated objectively. Who knows
for sure at the beginning of a project how much programming efforts will have to be
made for realizing the application? In most cases, this can only be rated afterwards which
means, too late. Also the problematic nature/software care within the course of the
product life-span is often ignored.
If the Embedded PC is to be implemented in today's micro-controller applications, the
advantages of the PC-architecture have to prevail, compared to a micro-controller
solution.
With the DIMM-PC, JUMPtec has aimed at the micro-controller market and has
presented a completely new concept for the Embedded PC-solution.
The DIMM-PC solves the problems of size and cabling. The prices have been drastically
reduced thanks to new technical designs, making the solution of using a DIMM-PC
possible for many applications. The driving of peripheral functions was also made easier
by the expansion towards the ISA-bus-standard.

DIMM-PC/MD Product Manual Features of the DIMM-PC/Modem
Kontron® Embedded Modules GmbH 6Revision 1.0
3. FEATURES OF THE DIMM-PC/MODEM
The DIMM-PC/Modem incorporates following features:
•?Low power CMOS technology.
•?5V only power supply.
•Signal pinning according DIMM-PC specification
•Different selectable I/O-Addresses and IRQs
•?Board size : Modem-module 68 x 40 mm (2,68" x 1,57")
DAA-module 30 x 50 mm (1,18” x 1,97”)
•support for:
V.21, V.22(1200bps), V.22bis(2400bps),V.23, Bell 103, Bell 212, V.32, V.32bis,
V.34, V.34+, K56flex, V.90, V.92, V.17, V.29, V.27ter and V.21 channel 2

DIMM-PC/MD Product Manual Block Diagramm DIMM-PC/Modem
Kontron® Embedded Modules GmbH 7Revision 1.0
4. BLOCK DIAGRAMM DIMM-PC/MODEM
The modem may be connected directly to the ISA BUS signals of the DIMM-PC.
DAA Module DIMM-PC/
MODEM DIMM-PC
DIMM-PC BUS
(ISA-BUS)
I/O
PSTN

DIMM-PC/MD Product Manual Mechanical Specification
Kontron® Embedded Modules GmbH 8Revision 1.0

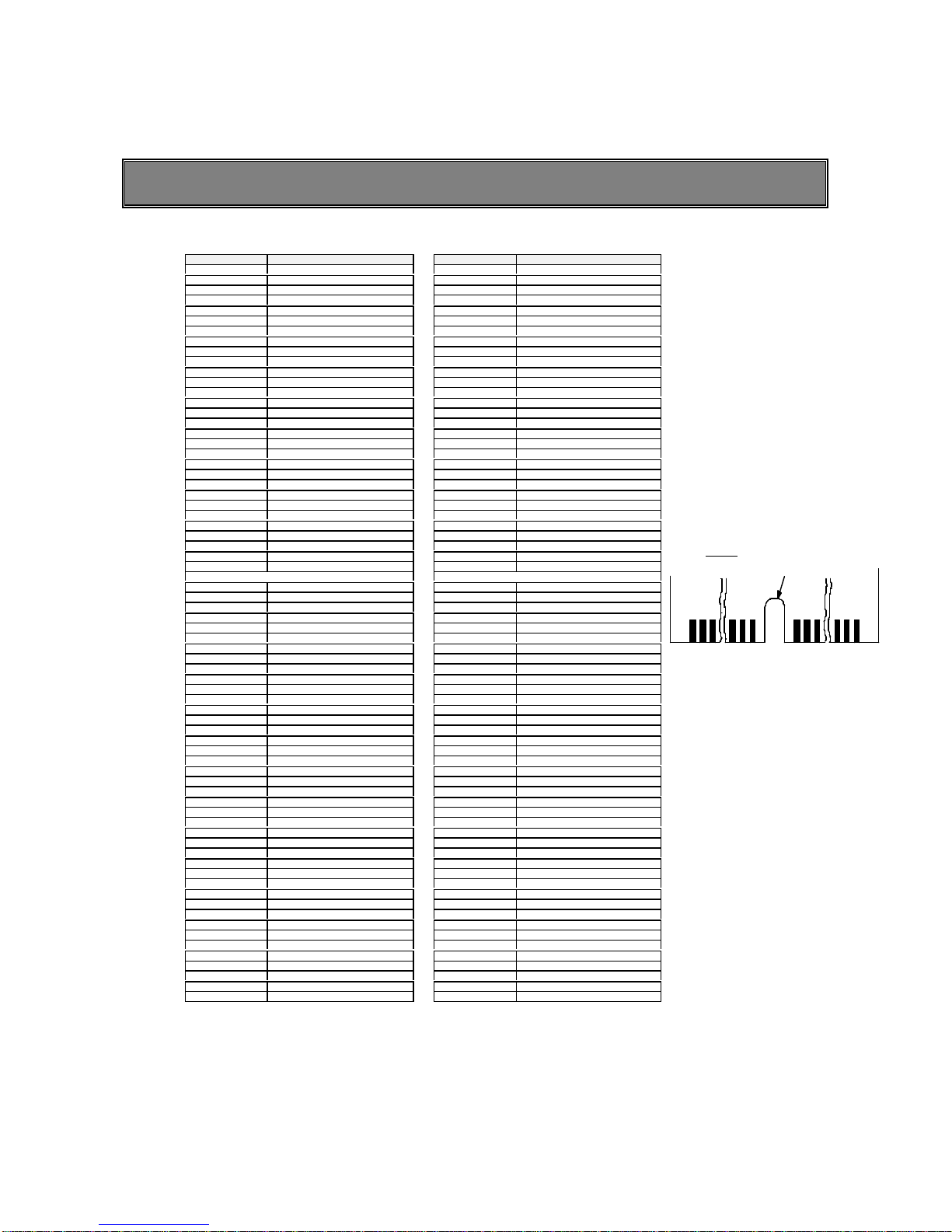

5. MECHANICAL SPECIFICATION
Pinout of DIMM-PC/Modem
Pin number
Signal
Pin number
Signal
1
SA0
2
GND
3
OSC
4
BATT
5
SA1
6
VCC
7
SA2
8
RI4#
9
MASTER#
10
DCD4#
11
SA3
12
DTR4#
13
BALE
14
DSR4#
15
SD15
16
RTS4#
17
SA4
18
CTS4#
19
TC
20
TXD4 / DO
21
SD14
22
RXD4 / DI
23
SA5
24
RI3#
25
DACK#2
26
DCD3#
27
SD13
28
DTR3#
29
SA6
30
DSR3#
31
IRQ3
32
RTS3#
33
DRQ7
34
CTS3#
35
DACk#7
36
TXD3
37
IRQ4
38
RXD3
39
SA7
40
41
SD12
42
43
IRQ5
44
TXD+
45
SA8
46
TXD-
47
SD11
48
RXD+
49
IRQ6
50
RXD-
51
SA9
52
LNLED
53
SD10
54
LKLED
55
IRQ7
56
GND
57
SA10
58
MD14
59
SD9
60
MD13
KEY
KEY
61
SYSCLK
62
MD12
63
SA11
64
65
SD8
66
67
REF#
68
BLUE
69
SA12
70
GREEN
71
I2DAT
72
RED
73
SA13
74
VCC
75
I2CLK
76
VSYNC
77
SA14
78
GND
79
DRQ0
80
HSYNC
81
SA15
82
FPBACK
83
DACK#0
84
MODUL
85
IRQ14
86
SA16
87
IOR#
88
GND
89
SA17
90
FPVDD
91
IRQ15
92
BLANK#
93
IOW#
94
P17
95
SA18
96
P16
97
IRQ12
98
P15
99
SMEMr#
100
P14
101
SA19
102
P13
103
IRQ11
104
P12
105
SMEMW#
106
P11
107
AEN
108
P10
109
IRQ10
110
P9
111
IOCHRDY
112
P8
113
SBHE#
114
P3
115
SD0
116
P2
117
IOCS16#
118
GND
119
ZWS#
120
P1
121
SD1
122
P0
123
MEMCS16#
124
P7
125
SD2
126
P6
127
SD3
128
P5
129
DRQ2
130
P4
131
SD4
132
VPANEL
133
SD5
134
FPVEE
135
IRQ9
136
VDCLK
137
SD6
138
LLCLK
139
SD7
140
VCC
141
RSTDRV#
142
LFS
Pinout of the western socket on the Modem-Module
57551 3 5
top side
14314113965636159
KEY

DIMM-PC/MD Product Manual Mechanical Specification
Kontron® Embedded Modules GmbH 9Revision 1.0
pin description
1not connected
2a2
3La (TIP)
4Lb (RING)
5 b2
6not connected
La and Lb are from PSTN. a2 and b2 are feedback for serial connected telephones. In
Germany, Austria, Switzerland, France etc. the telephone can be connected in serial. In
the USA, UK etc. the telephone will be connected in parallel (a2 and b2 will not be used
in this case).
Please check the max. REN-number for parallel connection.
Telephone line cables are not harmonized like ISDN-cables. They are country-depending.
Please use the correct cable.
Western
Socket

DIMM-PC/MD Product Manual Mechanical Specification
Kontron® Embedded Modules GmbH 10 Revision 1.0
4mm
R2.5mm
R0.75mm
R2mm
40mm
1mm
2.5mm
18mm
2mm
4mm
27.5mm
28.25mm
side view
front view
67.6mm
goldplatedgold plated
free area on PCB for further
fixing possibility on applikation

DIMM-PC/MD Product Manual Mechanical Specification
Kontron® Embedded Modules GmbH 11 Revision 1.0
Mechanical Specification of the Modem-DAA-Modul
top view
side view
5.1 Electrical Specification
Supply voltage: 5V DC +/- 5%
Supply voltage ripple: 150mV peak to peak 0 - 20 MHz
Supply current, max: Standby 150 mA
On Line Mode 180 mA

DIMM-PC/MD Product Manual Mechanical Specification
Kontron® Embedded Modules GmbH 12 Revision 1.0
5.2 Performance Specification
ITU Recommendations:
V.21, V.22(1200bps), V.22bis(2400bps),V.23, Bell 103, Bell 212, V.32
V.32bis, V.34, V.34+, K56flex, V.90, V.92
V.17, V.29, V.27ter and V.21 channel 2
Error correction and
data compression: MNP 2-4,V.42 LAPM, MNP10, MNP 10EC
Fax Group 3, Class1, Class1.0.Class2 :
Serial Interface: 300...230.400bps, Autobauding
Data format 10 / 11 bit asynchronous
Command Control Hayes (AT) commands .
Auto dial DTMF (Touchtone), Pulsedial
Auto answer
a/b-Interface external Line-Interface (DAA)

DIMM-PC/MD Product Manual Mechanical Specification
Kontron® Embedded Modules GmbH 13 Revision 1.0
5.3 Environmental Specifications
Temperature
operating 0°C - 60 °C see note (*1)
non-operating -40 °C - 85 °C
Thermal gradient
operating 25 °C per hour
non-operating 40 °C per hour
Relative Humidity
operating 10 % - 90 % RH non-condensing
non-operating 5 % - 95 % RH non-condensing
Mechanical
Shock 50G/20ms square wave maximum
Vibration 1G/0-600Hz, dwell not to exceed
Altitude
operating 0 - 3000 m
non-operating 0 - 5000 m
(*1) The maximum operating temperature is the maximum measurable temperature on
any spot on the modules surface. It is the users responsibility to keep this temperature
within the above specification.

DIMM-PC/MD Product Manual Hardware-Installation
Kontron® Embedded Modules GmbH 14 Revision 1.0
6. HARDWARE-INSTALLATION
ATTENTION:
Please FIRST disconnect your DIMM-PC System from any power supply!
The Modem Cards are delivered with settings adjusted to the IRQ5 and to I/O address
3E8h. If those configuration positions are already attributed to other cards, then the
hardware settings for the DIMM-PC/Modem will have to be changed.
6.1 Line-Connection
Please connect the DIMM-PC/Modem with a telephone cable (country depending)to the
PABX or PSTN line

DIMM-PC/MD Product Manual Hardware-Installation
Kontron® Embedded Modules GmbH 15 Revision 1.0
6.2 Definition of the Hardware-Interrupts and of the I/O-Address
The definition of the Hardware-Interrupts and the I/O addresses is performed by means of
the DIP-switches located in the middle of the card ( see the picture below).
The relevant switch positions for the possible I/O Addresses and Hardware-Interrupts are
described in detail in the following table.
S1 S2 S3 S4 Address S1 S2 S3 S4 S2 S5 S6 S7 S8 Interrupt
OFF OFF OFF OFF 2E0 ON OFF OFF OFF OFF OFF OFF OFF OFF IRQ3
ON OFF OFF OFF 2E8 OFF ON OFF OFF OFF OFF OFF OFF OFF IRQ4
OFF ON OFF OFF 2F0 OFF OFF ON OFF OFF OFF OFF OFF OFF IRQ7
ON ON OFF OFF 2F8 OFF OFF OFF ON OFF OFF OFF OFF OFF IRQ9
OFF OFF ON OFF 3E0 OFF OFF OFF OFF ON OFF OFF OFF OFF IRQ10
ON OFF ON OFF 3E8 (default) OFF OFF OFF OFF OFF ON OFF OFF OFF IRQ11
OFF ON ON OFF 3F0 OFF OFF OFF OFF OFF OFF ON OFF OFF IRQ12
ON ON ON OFF 3F8 OFF OFF OFF OFF OFF OFF OFF ON OFF IRQ15
XXX ON IRQ5 (default) OFF OFF OFF OFF OFF OFF OFF OFF OFF IRQ5
NOTE:
The IRQ and I/O Address of the card should not be used by any other computer
peripheral equipment. If necessary, you should define your own address and IRQ.

DIMM-PC/MD Product Manual Software Specification
Kontron® Embedded Modules GmbH 16 Revision 1.0
7. SOFTWARE SPECIFICATION
7.1 DIMM-PC/MD
For controlling the modem select a suitable COM Port address and IRQ.
The Modem appears at the ISA Bus (DIMM-IO Bus) as device with UART 16550
compliant register set according the specified settings.
The modem will be controlled by AT (Hayes) commands. The baud rate is selectable
from 300...230.400 baud asynchronous. 10 and 11 bit transmission is supported
(including START and STOP bit).
For modem control just use a standard terminal program (TELIX, Procom etc.).
For instance, hyper terminal or similar can be used for Windows based PCs.
The baud rate will automatically set by typing „AT CRLF“. Then the modem will answer
„OK“
The AT command reference is based on the original CONEXANT documentation. The
complete document can be downloaded from our webpage, section “Embedded Internet”.
Since the modem acts as standard serial device, no specific software and operating
system drivers are required. Usually, the modem is directly supported by the operating
system (as “modem with standard hayes command set”).

DIMM-PC/MD Product Manual Software Specification
Kontron® Embedded Modules GmbH 17 Revision 1.0
7.2 AT Commands Reference Manual
NOTE:
Take the section below as short reference to the content of the complete conexant
modem chip manual (which can be downloaded from our web page). Some functions
require additional hardware e.g. speaker control. Some commands for voice and
speakerphone control requires code which is not part of the DIMM-PC/Modem.
These commands are not supported.
Contents of the conexant manual
Figures
1 lntroduction 1-1
1.1 Overview 1-1
1.1.1 Command Syntax 1-1
1.1.2 Command Descriptions 1-1
1.1.3 CaII Progressand Blacklisting Parameters 1-1
1.1.4 ConfigurACE II for Windows Utility Program 1-2
1.2 Reference Documentation 1-2
2 Syntax and Procedures
2.1 Alphabet 2-1
2.2 DTE Commands Lines 2-1
2.2.1 Command Line General Format 2-1
2.2.2 Command Line Editing 2-2
2.2.3 Command Line Echo 2-2
2.2.4 Repeating a Command Line 2-2
2.2.5 Types of DTE Commands 2-2
2.3 Basic Syntax Commands 2-2
2.3.1 Basic SyntaxCommand Format 2-2
2.3.2 S-Parameters 2-3
2.4 Extended Syntax Commands 2-4
2.4.1 Command Naming Rules 2-4
2.4.2 Values 2-4
Numeric Constants 2-4
String Constants 2-5
Compound Values 2-5
2.4.3 Action Commands 2-5
Action Execution Command Syntax 2-5
Action Test Command Syntax 2-6
2.4.4 Parameter Commands 2-6

DIMM-PC/MD Product Manual Software Specification
Kontron® Embedded Modules GmbH 18 Revision 1.0
Parameter Types 2-6
Parameter Set Command Syntax 2-7
Parameter Read Command Syntax 2-7
Parameter Test Command Syntax2-7
2.4.5 Additional Syntax Rules 2-7
Concatenating Commands after Extended Syntax Commands 2-7
Concatenating Commands after Basic Format Commands 2-8
2.5 Issuing Commands
2.6 Executing Commands
2.6.1 Aborting Commands 2-8
2.6.2 Handling of lnvalid Numbers and S-Parameter Values 2-9
2.7 Modem Responses
2.7.1 Responses 2-9
2.7.2 Extended Syntax Result Codes 2-10
2.7.3 Information Text Formats for Test Commands 2-11
Range of Values 2-11
Compound Range of Values 2-11
3 Data Command Set 3-1
3.1 Command Guidelines 3-1
3.1.1 Escape Code Sequence 3-1
3.2 Data Commands 3-1
3.2.1 Generic Modem Control 3-2
Z - Soft Reset and Restore Profile 3-2
+FCLASS - Select Active Service Class 3-2
+VCID - Caller ID (CID) 3-3
+VRJD - Report Retrieved Caller ID (CID) 3-4
\N - Operating Mode 3-5
I - Identification 3-6
+GMI - Request Manufacturer ldentification 3-7
+GMI9 - Request Conexant ldentification 3-7
+GMM - Request Model ldentification 3-8
+GMR - Request Revision ldentification 3-8
+GCAP - Request Complete Capabilities List 3-8
+GCI - Country of Installation 3-9
&F - Restore Factory Configuration (Profile) 3-10
&T - Local Analog Loopback Test 3-10
&Y - Designate a Default Reset Profile 3-11
&W - Store Current Configuration 3-11
&Zn=x - Store Telephone Number 3-12
%7 - Plug and PIay Serial Number 3-12
%8 - PIug and PIay Vendor ID and Product Number 3-13
** - Load Flash Memory 3-14
3.2.2 DTE-Modem Interface commands 3-16
E - Command Echo 3-16
0 - Ouiet Results Codes Control 3-16
