Introduction
INTRODUCTION
The CAE SimEquip™ is a collection of tools that expertly simulates a variety of medical devices. These
tools can be used for complex Simulated Clinical Experiences, improving training in both mobile and
bedside applications. SimEquip is based on CAE’s Maestro software platform allowing users to
practice subject-specific techniques and methods in ventilation, anesthesia, and cardiac resuscitation
with patient simulators or standalone devices.
The simulated equipment is not intended to replace any courses or hands-on sessions with live
subjects, but should be implemented as part of a blended learning solution.
IMPORTANT: The simulator is not intended to diagnose or identify life-threatening conditions in a
live patient.
SimEquip provides simulated medical devices and accessories for:
CAE SimEquip
CAE SimEquip Simulations
Portable Devices and
Bag
CAE SimEquip Defibrillator
CAE SimEquip AED
CAE SimEquip Transport Ventilator
Bedside Devices and
Medical Cart
CAE SimEquip Ventilator
CAE SimEquip Anesthesia

Introduction
6 ©2021 CAE 905K720652 v1.0
CAEProduct

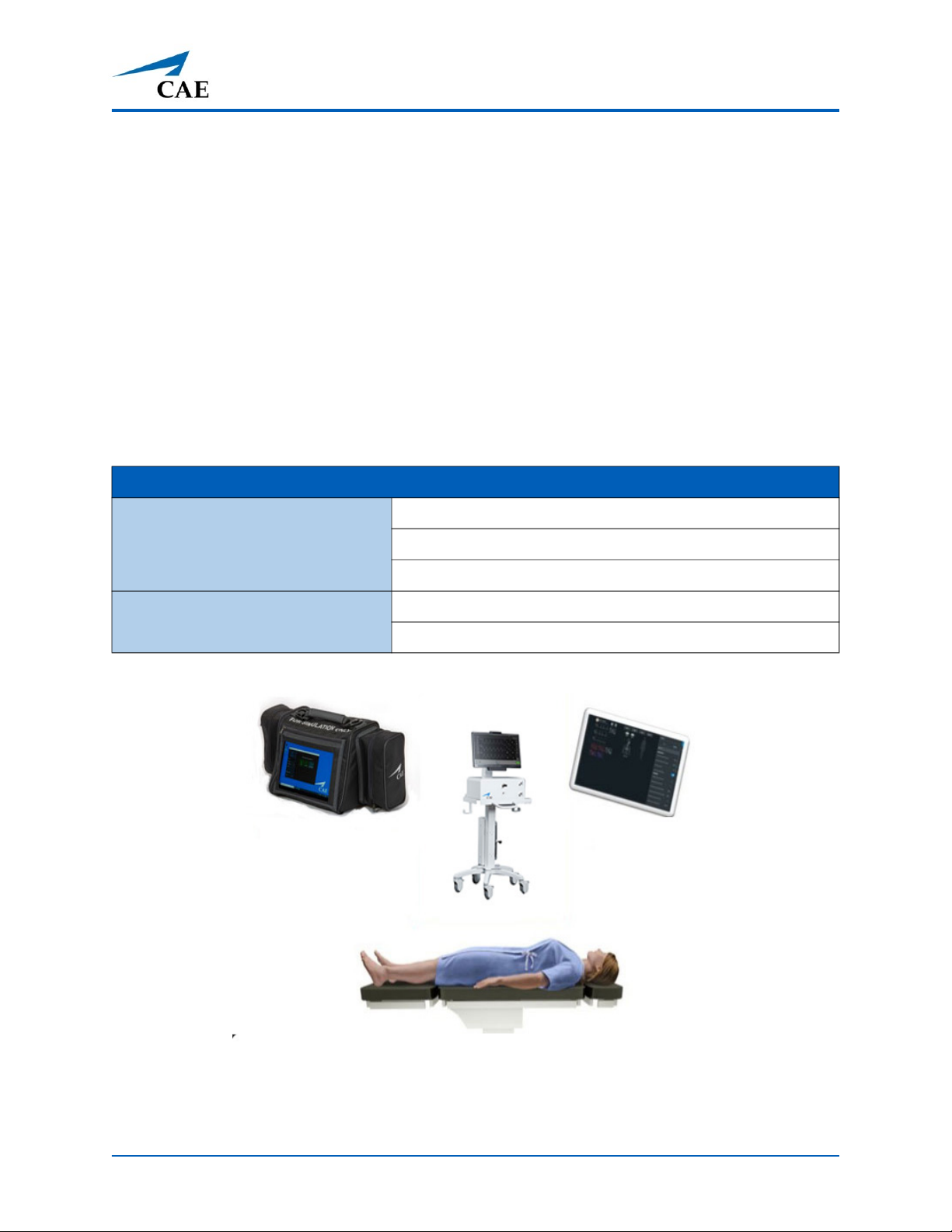

The Sim Equip system is designed for compatiability with the following CAE patient simulators using
Maestro:
• Apollo
• Ares
• Athena
• Juno
• Embody (CAE’s virtual patient)
Note: Patient simulators are sold separately from the SimEquip system. Embody is included with the
Maestro standalone package.
Virtual Equipment
CAE SimEquip offers virtual equipment that may be used during simulation, providing user interfaces
that mirror authentic medical equipment. Running equipment, modifying settings, and applying
treatments will impact the physiology of the patient status in the CAE Maestro software offering a
deeper learning experience.
Virtual equipment options include:
•SimEquip AED - a virtual automated external defibrillator that is easy to use, providing
audible prompts guiding the learner on appropriate actions to take.
•SimEquip Defibrillator - an electrotherapy device that simulates cardiac pacing,
cardioversion and defibrillation to the virtual patient during the simulation, providing the
learner with knowledge of how to use this life-saving device.
•SimEquip Transport Ventilator - has many of the same features as the SimEquip
Ventilator, though providing an interface that more closely resembles equipment used for
portable respiratory support.
•SimEquip Ventilator - offers both invasive and non-invasive options, various modes, and
a display featuring waveforms and audible alarms. Much like bedside medical equipment,
the virtual ventilator allows for monitoring and treating the virtual patient with respiratory
needs.
•SimEquip Anesthesia - provides the learner with anesthesia technology, by delivering the
ability to virtually administer medical gases, adjusting pressure and flow while monitoring
and providing ventilatory support.
º CAEPatient Monitor - included with the SimEquip Anesthesia, this provides the
ability to dynamically capture a patient’s status from the display. Some of the on-
screen patient monitor features are: 12-Lead ECG reports and preconfigured layouts
or the ability to modify settings for the user’s preference.

©2021 CAE 905K720652 v1.0 7
Introduction
SimEquip Software
The following identifies the software version associated with the release of this guide.
Contained In This Guide
This Getting Started Guide provides information regarding:
• Cautions and Warnings
• Setup
• Appendix A - Troubleshooting
• Appendix B - Software Upgrades
For further information on using the SimEquip software and Virtual Equipment applications, see the
SimEquip User Guide which may be found on the CAE website at https://caehealthcare.com/support/
user-guides/
Document Document Version Software Version
CAESimEquip
Getting Started Guide
905K720652 v1.0 CAESimEquip v1.0

Introduction
8 ©2021 CAE 905K720652 v1.0
CAEProduct
THIS PAGE INTENTIONALLY LEFT BLANK

©2021 CAE 905K720652 v1.0 9
CAUTIONS AND WARNINGS
Please read and understand these cautions and warnings before you begin using SimEquip.
General
• When unpacking equipment for the first time, use box cutters carefully to protect both the
packaging and the product.
• Be careful when unpacking the Medical Cart. There may be sharp metal corners and
edges.
• Do not use equipment in a manner that is not specified by the manufacturer.
• Keep all electronic equipment free from high humidity or liquids.
• Do not leave the hardware powered on when the simulator is not in use.
Operations
• When using the medical cart, always ensure the computer and monitor are plugged into a
power source during simulator operation.
• Do not use or connect any USB device or cable to the devices other than the those
provided.
• When installing equipment near an electric outlet, ensure cables do not represent a
hazard.
• Allow for plenty of room when setting up the medical cart and accessories. There will be
cords, cables and hoses used that may present tripping hazards. The power cord will be 6’
or 7’ long (depending upon the country). During assembly, keep the long power cord
around the metal wrap attached to the power bar box.
• Avoid weighing down the equipment with any tools or accessories not relevant to the
immediate exercise.
• Refrain from bending, kinking, or stepping on breathing tubes and medical hoses.
• Be aware and avoid people when maneuvering the equipment on the medical cart.
Injuries may occur.
• Injuries may occur if the monitors and/or the cart falls or tips over.
• Always lock the caster wheels on the medical cart to ensure stability during setup and
operations.
• NEVER attach medical gas hoses to real gas sources. These hoses are intended for
simulation purposes only.
• Keep side flaps on the Transport Bag closed when not in use, to avoid debris from
accumulating inside of bag and on equipment.

Cautions and Warnings
10 ©2021 CAE 905K720652 v1.0
CAESimEquip
Ergonomics
• Viewing a monitor screen for extended periods of time may result in eye strain.
• Lock the caster wheels on the medical cart to ensure proper orientation of monitors,
display, and buttons. Equipment misuse and ergonomic injuries may result from improper
setup.

©2021 CAE 905K720652 v1.0 11
Setup
SETUP
Before Setting Up SimEquip
Proper operation requires correct configuration. Before setting up the system, keep in mind these
basic guidelines:
• Read and understand the Cautions and Warnings in the beginning of this guide.
• Do not power on any components until instructed in the text.
• Do not install any Windows updates or anti-virus software when connecting to the
network.
• Allow for plenty of room when setting up the medical cart and accessories. There will be
cords, cables and hoses used that may present tripping hazards. The power cord will be 6’
or 7’ long (depending upon the country). During assembly, keep the long power cord
around the metal wrap attached to the power bar box.
• Allow for plenty of room when setting up the medical cart and accessories. Bending and
reaching may be involved.
• Using a table to set equipment and tools on during the setup process is beneficial. This
will allow for easier access to what is needed during setup and may prevent damage to
equipment.
• Be careful when unpacking the Medical Cart. There may be sharp metal corners and
edges.
• Prior to attaching items to the Medical Cart, lock the caster wheels on the Medical Cart so
that the cart is stable during the completion of setup.

Setup
12 ©2021 CAE 905K720652 v1.0
CAESimEquip
Portable Simulation Setup Steps
Setup steps are required for simulations that may use:
• Defibrillator
• AED or
• Transport Ventilator
Steps should be performed in the sequence provided in the Portable Simulation Setup table.
Accompanying details are in the following pages.
Step 1. Remove Equipment from Boxes
Tools required:
• Box Knife - suggested for opening cardboard boxes
WARNING: Be careful if using knives to open boxes, to prevent personal injury or damage to
equipment.
It may be beneficial to place equipment on a table during unpacking so that it is visible and available
during the setup process.
1. Check the battery power prior to running a simulation. The battery may require charging.

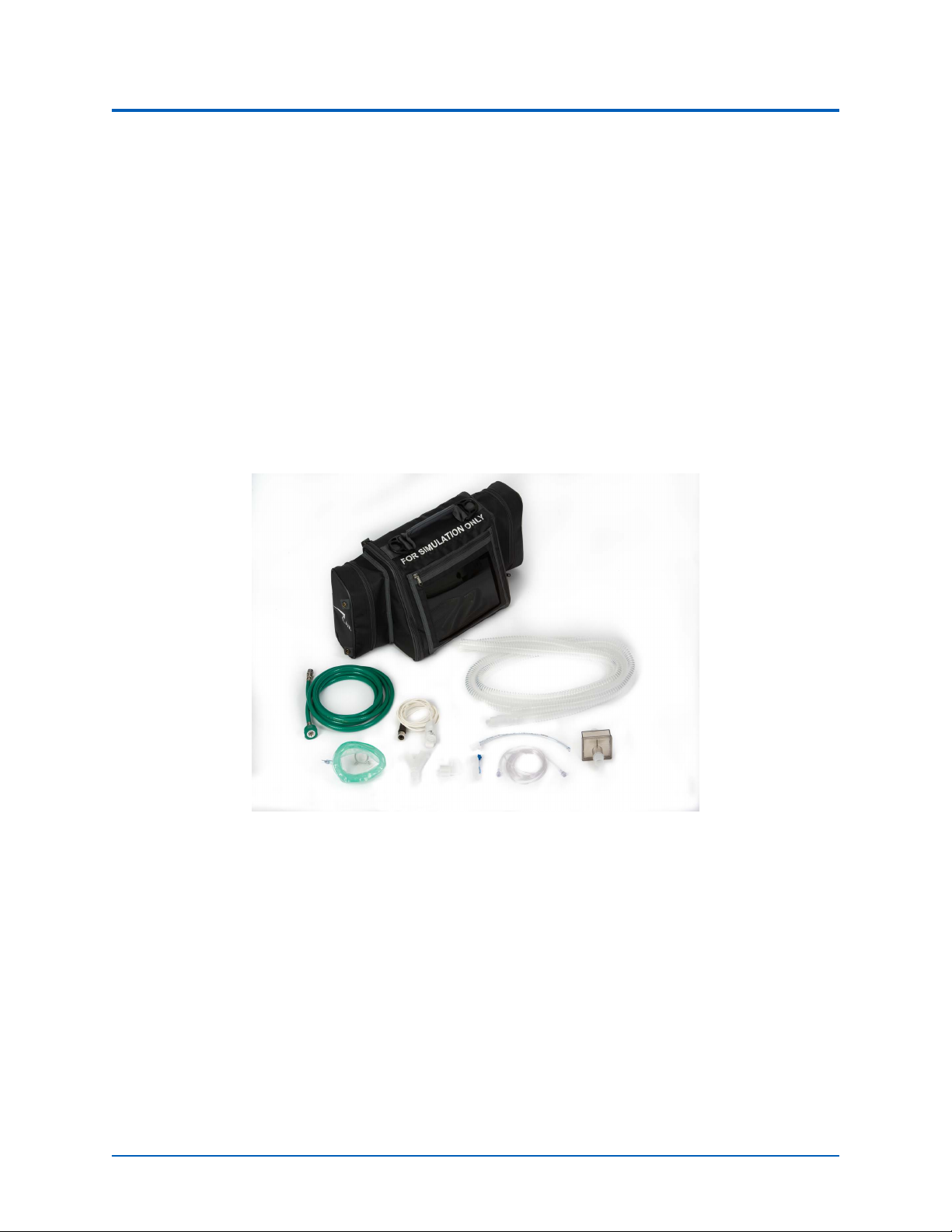

2. Place the router and router cable inside the Transport Bag.
3. Place the tablet inside the front sleeve of the Transport Bag. Place the tablet cables inside
the Transport Bag
4. All additional limbs, cables, and equipment may be placed inside the Transport Bag until
ready to use.
Portable Simulation Setup
1 Remove equipment from boxes.
2 Connect breathing circuit or medical cables.
3 Power on equipment.
4 Connect to WiFi:
• Using a Patient Simulator or
• Standalone - Setup the Router
5 Launch Maestro software.
6 Launch SimEquip software.

©2021 CAE 905K720652 v1.0 13
Setup
Step 2. Connect Breathing Circuit or Medical Cables
The connection of the breathing circuit or cables will be determined by the type of simulation that is
running and the intended use of virtual equipment.
CAE SimEquip Defibrillator
The Defibrillator equipment:
• Transport Bag
• 3-Lead ECG Cable
• Therapy Pads
• SpO2 Probe (Optional)
• IBP Transducer (Optional)
• NIBP Cuff (Optional)
• Temperature Sensor (Optional)
• EtCO2 Sample Line (Optional)
• EtCO2 Nasal Sample Line (Optional)
To assemble the Defibrillator:
1. Unzip the front pocket on the Transport Bag and slide the SimEquip Surface Go 2 tablet
out of the pocket.
Slide Out SimEquip Tablet
2. Plug the power cord into the tablet. Slide the tablet back into the pocket and zip the
pocket closed, leaving the power cord exposed.

Setup
14 ©2021 CAE 905K720652 v1.0
CAESimEquip
3. Place the opposite end of the power cord into the battery pack. Place the battery pack
inside the middle section of the Transport bag. Zip the middle compartment closed.
4. When facing the front of the Transport Bag, open the right compartment on the bag.
5. Connect the 3-Lead ECG cable to the electrotherapy pads.
6. Pass the 3-lead ECG cables through the elastic port in the zippered compartment on the
right side of the transport bag.
7. Secure the 3-lead ECG cable by passing the connector end of the cable through the elastic
loop and inside the middle compartment of the Transport Bag.
8. Repeat the steps 3 and 4 for the SpO2 Probe.
Defibrillator Assembled

©2021 CAE 905K720652 v1.0 15
Setup
CAE SimEquip AED
To assemble the AED, follow the same steps for assembling the Defibrillator, eliminating the 3-Lead
ECG cable.
AED Assembled

Setup
16 ©2021 CAE 905K720652 v1.0
CAESimEquip
CAE SimEquip Transport Ventilator
The Transport Ventilator includes:
• Transport Bag
• Breathing Circuit with Non-invasive Mask or Endotracheal Tube
• Filter
• O2 Hose
• SpO2 Probe
• EtCO2 Sample Line
Transport Ventilator Unassembled
The Transport Ventilator uses a breathing circuit. To assemble the breathing circuit:
1. Connect plastic cuffs to the end of each breathing circuit limb.
2. Connect one of the limbs to the wye connector (at the y).
3. Connect the opposite limb to the wye connector (at the opposite side of the y).
4. Connect the elbow to the wye connector (at the top of the y).
5. Connect the T-connector to the elbow.

©2021 CAE 905K720652 v1.0 17
Setup
6. Connect the EtCO2 sample line to the T-connector.
7. Connect the mask or the endotracheal tube to the T-connector (at the open end).
Breathing Circuit Assembled with Non-Invasive Mask
To assemble the Transport Ventilator:
1. Unzip the front pocket on the Transport Bag and slide the SimEquip Surface Go 2 tablet
out of the pocket.
Slide Out SimEquip Tablet
2. Plug the power cord into the tablet. Slide the tablet back into the pocket and zip the
pocket closed, leaving the power cord exposed.
3. Place the opposite end of the power cord into the battery pack. Place the battery pack
inside the middle section of the Transport Bag. Zip the middle compartment closed.
4. When facing the front sleeve side of the Transport Bag, open the left compartment on the
bag. Two ports will be visible, labeled: EXP and INSP.
Limbs Wye
Elbow
T
EtCO2
Sample
Line
Mask

Setup
18 ©2021 CAE 905K720652 v1.0
CAESimEquip
5. Using the metal snap, secure the open flap to the back of the transport bag.
6. Attach a plastic adapterr to each of the ports.
7. Attach the filter to the port on the bag labeled EXP.
8. Attach the plastic cuff to the port on the bag labeled INSP.
9. Attach the breathing circuit limbs to the filter and cuff.
Transport Bag - Expiratory and Inspiratory Connections
10. Open the side compartment on the opposite side of the transport bag and pull the O2
hose through the elastic opening.
11. Pull the SpO2 probe through the same elastic opening on the right side of the bag.
12. Attach the exposed end of the O2 hose (outside of the bag) to a simulated oxygen source.
WARNING: Never attach the hose to a real O2 source. The medical gas hoses included
with SimEquip are intended for simulation purposes only.

©2021 CAE 905K720652 v1.0 19
Setup
13. Proceed to Step 3. Power On Equipment to complete setup for Transport Ventilator.
Transport Ventilator Assembled
Step 3. Power On Equipment
Power on the tablet in the Transport Bag by pressing and holding the button at the top of
the tablet.
Step 4. Connect to WiFi
Connection to WiFi may be done in two ways. The way to connect will be determined by whether the
type of simulation running is:
• using a patient simulator or
• standalone (and requiring a router)
Using a Patient Simulator
If the simulation will include a patient simulator, the system will use the manikin’s WiFi.
1. Turn on the patient simulator.
Note: The power switch may be in different locations on the manikin depending upon the
patient simulator being used. Reference the patient simulator User Guide if there is
difficulty locating the power switch.
2. If this is the first time running SimEquip, it may be necessary to update Maestro on the
patient simulator. See Appendix B - Software Upgrades for more information on upgrading.
3. If there is an Instructor tablet, power this tablet on also.

Setup
20 ©2021 CAE 905K720652 v1.0
CAESimEquip
4. If the tablet(s) does not automatically connect to the simulator’s network follow these
instructions:
a. From the home screen, tap the Network icon located in the lower-right corner of the
screen in the taskbar.

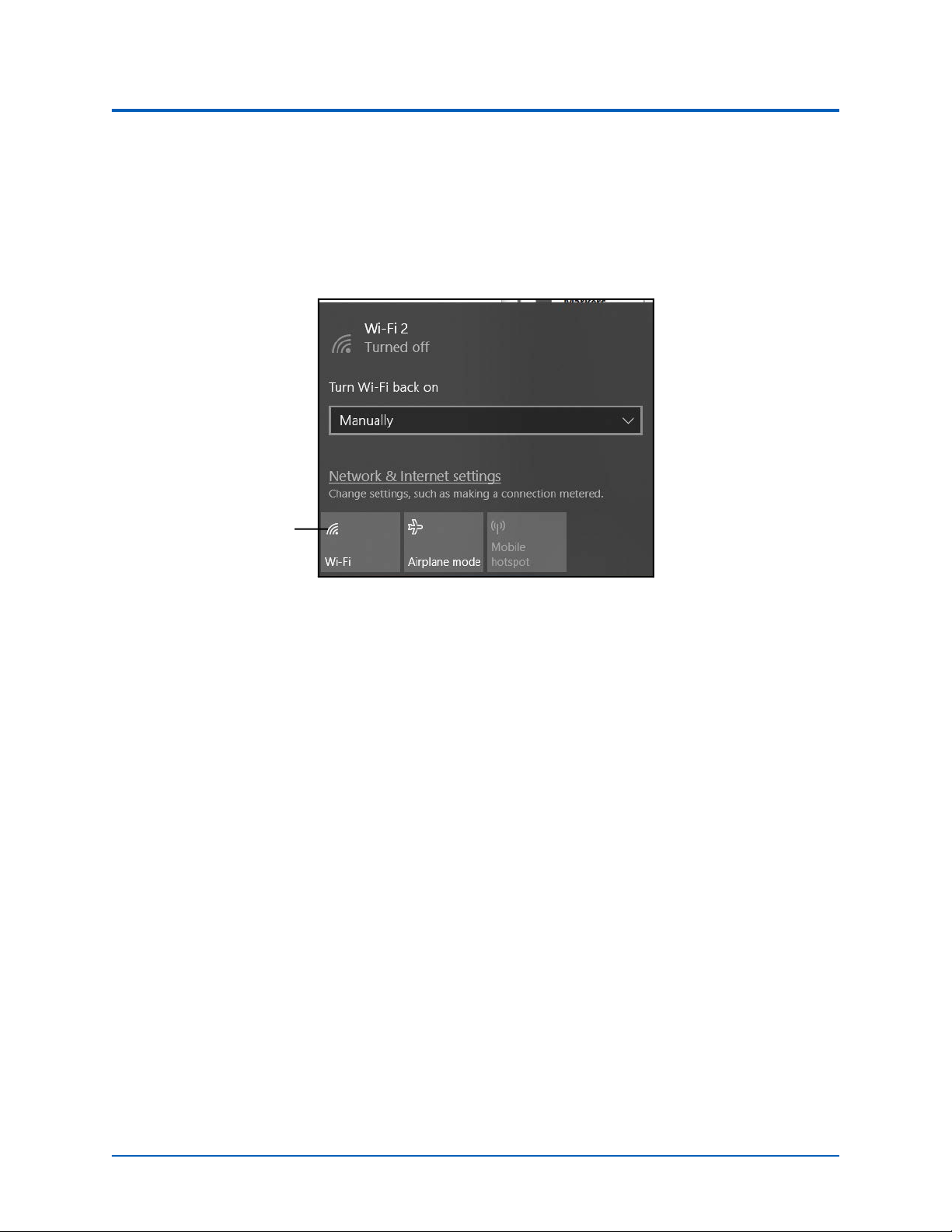

The Network window appears.
The Network Window
b. Tap WiFi button to turn on WiFi (button turns blue).
c. In the Network window, locate the simulator network from the list of available
networks. The type of patient simulator that is being used, will determine the name
of the network and where the name appears on the simulator. For example, the Ares
network name is ARE00XXXX (where XXXX is the last 4 digits of Ares’ serial number
and is found on a label attached to Ares’ side).
The WiFi button
