CAE Aria User manual

Your worldwide
training partner
of choice
User Guide

Proprietary Notice
This document, including the information contained herein, is condential and/or proprietary to CAE Inc., and shall not be
reproduced or disclosed in whole or in part, or used for any purpose whatsoever without the prior written authorization of CAE Inc.
Trademark Information
Trademarks and/or registered trademarks of CAE Healthcare Inc. and/or its aliates include but are not limited to: Apollo,
Ares, AresAR, Aria, Athena, BabySIM, BluePhantom, Caesar, CathLabVR, EndoVR, HPS, ICCU, InfantSIM, iStan, Juno, LapVR,
LearningSpace, Lucina, LucinaAR, Luna, Maestro, METIman, Müse, NeuroVR, PediaSIM, SimEquip, Simulex, StethoSym, SymDeb,
SymEyes, UniSIM, Vimedix, VimedixAR and Vivo. All other brands and product names are trademarks or registered trademarks
of their respective owners. All logos, tradenames and trademarks referred to and used herein remain the property of their
respective owners and may not be used, changed, copied, altered, or quoted without the written consent of the respective
owner. All rights reserved.
CAE ©2021

©2021 CAE 905K690052 v1.0 i
Contents
CONTENTS
Cautions and Warnings .............................................................................................. 1
Electrical Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product Use Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Manikin, Tablet and Wireless Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Latex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Fluids System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Skin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Simulator Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Battery Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Precautions for Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Potential Health Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

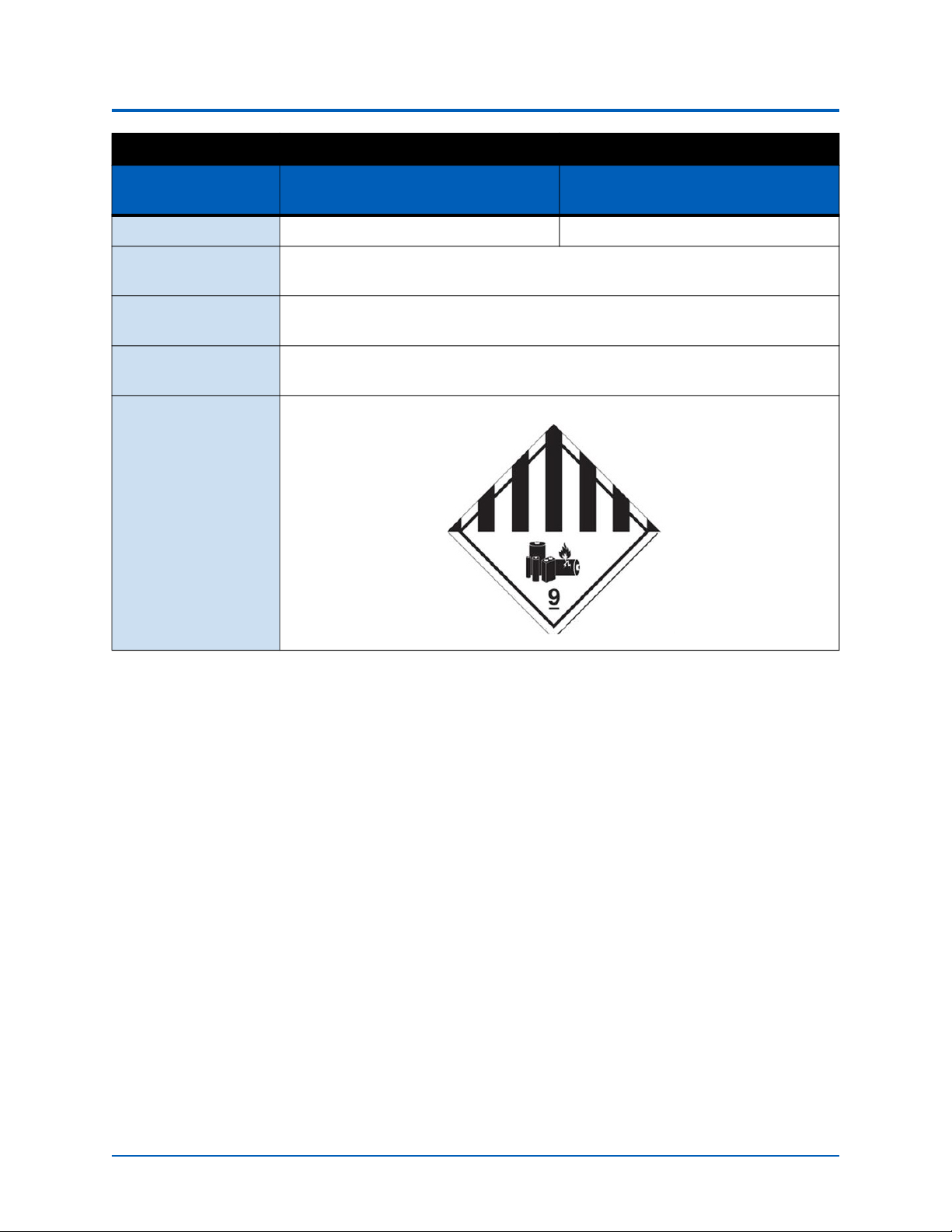

Transport Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications .............................................................................................................. 7
Size and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ambient Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Electrotherapy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

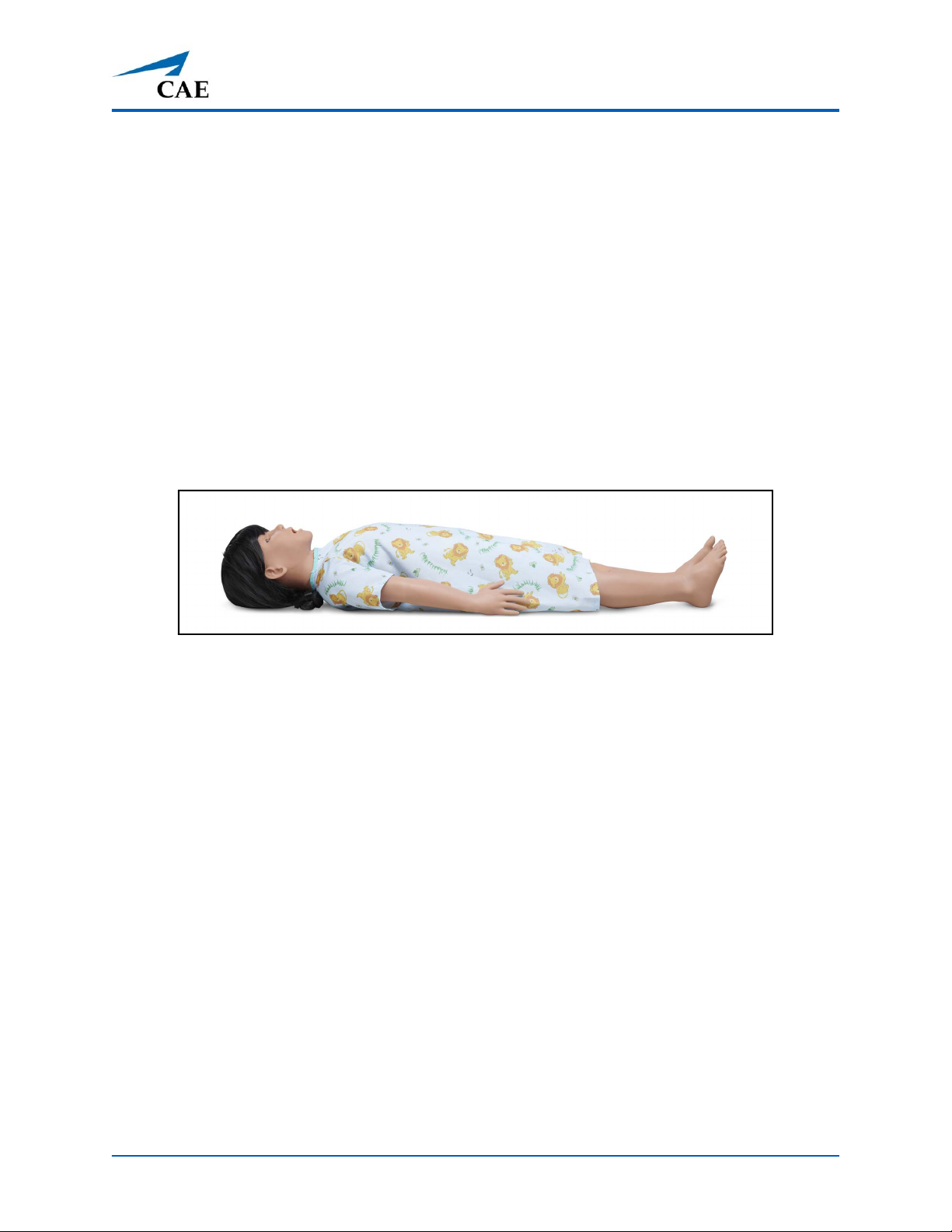

Meet Aria ................................................................................................................... 11
Simulator Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Equipment Overview................................................................................................ 15
Standard Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Full Body Wireless Manikin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Male and Female Genitalia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Male and Female Wigs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Gown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Accessories Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
NIBP Pulse Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Pediatric BP Cuff T-Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Live and Advanced Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CAE Maestro Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Contents
ii ©2021 CAE 905K690052 v1.0
CAEAria
Surface Go 2 Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Tablet Carrying Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
CAE StethoSym . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CAE SymEyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CAE SymDefib . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
SpO2 Finger Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Optional Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Setup .......................................................................................................................... 21
Unpacking the Manikin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Setup Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Setup Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Step 1: Place the Aria Manikin in the Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Step 2: Connect the Manikin Power Cord to Aria. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Step 3: Connect the Manikin Power Cord to a Power Source . . . . . . . . . . . . . . . . . . . . .24
Step 4: Charge the Instructor Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Step 5: Charge the Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Step 6: Power On the Aria Manikin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Step 7: Power on the Instructor Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Step 9: Modify the Blood Pressure Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Step 10: Prime the Fluids Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Aria Features ............................................................................................................. 33
Physiological Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Articulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Neurological System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Respiratory System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Cardiovascular System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Gastrointestinal System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Genitourinary System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Medication Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Simulated Clinical Experiences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
System Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Application Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Using Aria................................................................................................................... 39
Neurologic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Neurologic System Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

©2021 CAE 905K690052 v1.0 iii
Contents
Eyes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Respiratory System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Respiratory System Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Airway Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Intubation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Right Mainstem Intubation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Laryngospasm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Bronchial Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Gastric Distention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Tracheostomy Tube Placement and Suctioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Chest Excursion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Cricothyrotomy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Pneumothorax (Needle Decompression) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Chest Tube. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Cardiovascular System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Cardiovascular System Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Pulses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
IV Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
IV Cannulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Intramuscular (IM) Subcutaneous (SQ) Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Intraosseous (IO) Cannulation and Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Chest Compressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
ECG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Defibrillation, Cardioversion, and Pacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Blood Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Blood Glucose Fingers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
SpO2 Finger Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Gastrointestinal System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Genitourinary System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Urinary Catheterization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Changing the Simulator’s Genitalia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Auscultated Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Speech . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Using the StethoSym . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Contents
iv ©2021 CAE 905K690052 v1.0
CAEAria
Care and Maintenance ............................................................................................. 85
General Simulator Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Step 1: Clean the Manikin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Step 2: Flush and Drain the Left Arm IV Sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Step 3: Maintain IM Injection Site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Step 4: Flush and Drain the Jugular, Tibial IO and Gastrostomy Sites . . . . . . . . . . . . . .89
Step 5: Flush and Drain the Urinary System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Step 6: Flush and Drain the Chest Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Step 7: Flush and Drain the Bleeding System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Step 8: Power off the Instructor Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Step 9: Power Off the Manikin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Airway Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Short-Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Long-Term Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Appendix A - Recommended Clinical Supplies ...................................................... 95

©2021 CAE 905K690052 v1.0 1
Cautions and Warnings
CAUTIONS AND WARNINGS
Please read and understand these cautions and warnings before you begin using the Product.
Important: Do not use the product in any manner other than specified, as safety features designed
for protection may be impaired.
Electrical Safety
• This product must be connected to an electrical outlet that is properly grounded. Take
precaution to ground or polarize correctly.
• Always use the supplied power cords. Do not substitute.
• Always use the supplied power adapter to run the simulator from AC.
• Operate the system from a power source with the following ratings.
• Do not allow excess fluids to flow on or into electronic parts.
• Do not attempt to disassemble the simulator or service any of the electrical components
without receiving instructions from Customer Service.
• Do not operate the manikin in rain. Apply water to the manikin only in accordance with the
supported clinical procedures explained in this guide.
Power Frequency
(cycles per second)
Location
120 VAC 50/60 hertz North America, Japan
220 VAC 50/60 hertz Europe

Cautions and Warnings
2 ©2021 CAE 905K690052 v1.0
CAEAria
Product Use Warnings
Manikin, Tablet and Wireless Modules
• Make sure the manikin is set up on a stable, sturdy work surface that will not collapse and
cause injury to users.
• Operate the manikin in ambient temperatures below 104°F (40°C).
Note: This only applies when using the manikin without the tablet where CAEMaestro
software is installed. For information about temperature ranges for the tablet, see
Ambient Temperature Range in the Specifications section of this User Guide.
• Do not disassemble factory-assembled parts of the manikin without receiving instructions
from Customer Service.
• Clean the manikin with water and a light soap solution only. Do not use chemical solvents.
Do not immerse the manikin in liquid or use abundant liquid to wash the manikin. For
more information, see the Care and Maintenance section.
• Do not place foreign substances into the airway, with the exception of small amounts of
approved lubricant. Only perform invasive procedures supported by the Product as
described in the applicable sections of the User Guide.
• Do not insert any materials into the manikin except the equipment or probes supplied.
• Do not lift the manikin by its limbs. Support the head and lift it from the torso. If necessary,
have another person help you lift and move the manikin using a patient transfer device
such as a patient transfer board, when available.
• Keep the manikin plugged in between training sessions due to a slow drain of the battery
that occurs.
• Under normal circumstances, unplugging the external DC power used for powering and
charging the manikin is not necessary because the charging stops when the battery is full.
A topping charge is only applied when the battery voltage drops to a certain level.
• Do not spill fluids over the manikin’s chest, abdomen, or inside the manikin’s torso. This
could damage the system and may also present a possible hazard for the operator.
Special attention should be taken while using the the various fluid features.
• Do not use the manikin or equipment in locations where children are likely to be present.
Latex
The IV cannulation tubing in the left IV arm contains latex. The user may come into contact when
changing out the IV tubing during routine maintenance. Users with latex sensitivity should use
caution.

©2021 CAE 905K690052 v1.0 3
Cautions and Warnings
Fluids System
For manikins such as Aria that are equipped with fluid systems:
• Do not use theatrical blood in the bleeding system.
• Only use small amounts of food coloring for urine or blood and flush the system when
training is complete.
• Do not modify the reservoirs or any assembly component.
• Always protect your eyes, skin, and clothing against accidental exposure.
Skin
• Avoid contact with sharp surfaces and excessive pulling on skin.
Simulator Batteries
• Manikins and tablets use lithium batteries that all have special handling requirements to
avoid hazardous situations.
• Batteries can be charged while the manikin is between 35°F (4°C) and 95°F (35°C) .
• Do not store, use or charge the battery inside of an automobile as temperatures can
exceed 176˚F (80˚C).
Battery Replacement
• If the simulator battery power diminishes significantly or needs to be replaced, contact
Customer Service to replace the battery.
• Before disposing of a simulator battery, apply vinyl tape to its positive (+) and negative (-)
terminals to avoid short circuits.
• Dispose of or recycle batteries responsibly.
Battery Safety Information
For information about battery specifications, see the Specifications section of this user guide.
Important: Refer to the battery manufacturer’s Safety Data Sheet (SDS) for complete safety
instructions and handling information.
Precautions for Handling
Hazards are associated with the contents of the cell or battery. Under recommended use conditions,
the electrode materials and liquid electrolyte are non-reactive, as long as the cell or battery integrity
remains, and the seals remain intact.

Cautions and Warnings
4 ©2021 CAE 905K690052 v1.0
CAEAria
Potential exposure should not exist unless the cell or battery:
• leaks,
• is exposed to high temperatures,
• is mechanically, electrically or physically abused/damaged.
If the cell or battery is compromised and starts to leak, based upon the battery ingredients, the
contents are classified as hazardous. In general, if liquid leaks from the battery or foul odor is
detected, DO NOT use the battery and keep it away from heat or flame.
• Avoid short circuiting the battery. Do not store with coins, screws or other similar objects.
• Do not immerse in water.
• Do not disassemble or deform the battery.
• Do not expose to, or dispose of the battery in fire.
• Avoid excessive physical shock or vibration.
• Keep out of the reach of children.
• For rechargeable batteries, the battery must be charged in an approved charger.
• Never use a modified or damaged charger.
• Store in a cool, dry, and well-ventilated area.
• Never use a battery that has been damaged or deformed.
• Do not short-circuit the positive (+) and negative (-) terminals.
• Do not place the battery in a device with the positive (+) and negative (-) terminals in the
wrong positions.
• Do not solder a battery directly.

©2021 CAE 905K690052 v1.0 5
Cautions and Warnings
Potential Health Effects
• Acute (short term): In the event that the cell or pack ruptures, the electrolyte solution
contained within the cell will corrode and can cause burns to skin and eyes.
• Inhalation: Inhaling materials from a sealed cell is not an expected route of exposure.
Vapors or mists from a ruptured cell can cause respiratory irritation.
• Ingestion: Swallowing materials from a sealed cell is not an expected route of exposure.
Swallowing the contents of an open cell can cause serious chemical burns to mouth,
esophagus, and gastrointestinal tract.
• Skin: Contact between the cell and skin will not cause any harm. Skin contact with the
contents of an open cell can cause severe irritation or burns to the skin.
• Eye: Contact between the cell and the eye will not cause any harm. Eye contact with the
contents of an open cell can cause severe irritation or burns to the eye.
• Interactions with other chemicals: Immersion in high conductivity liquids can corrode
or breach the cell or battery enclosure. The electrolyte solution inside of the cells can react
with alkaline (basic) materials and present a flammability hazard.
Safety Measures
Review the precautions for handling before replacing a battery utilizing guidance from CAE.
Should exposure to hazardous battery components occur, or in the event of a fire, follow all local first
aid measures and safety protocols.
Transport Information
CAE complies with the most current International Air Transport Association (IATA) Dangerous Goods
Regulations when transporting and shipping Li-ion batteries. The following terms are defined as
follows:
Consignment - Equivalent to the term "shipment,” meaning one or more packages of
hazardous materials accepted from one shipper at one time and at one address, receipted
in one lot, and moving to one consignee at one destination address.
Equipment - The device or apparatus for which the lithium cells or batteries will provide
electrical power for its operation.
It is the shipper’s responsibility to ensure that the consignment is packed in compliance to the latest
edition of the applicable regulations. Regulations require appropriate training for shipping dangerous
goods. Shipping regulations and requirements may vary depending upon:
• Wattage of the battery.
• Whether the battery is shipped independent of, contained within, or packed with the
equipment.

Cautions and Warnings
6 ©2021 CAE 905K690052 v1.0
CAEAria
Item Description
Batteries Shipped Independent of
the Manikin
Batteries contained in or packed
with the Manikin
UN No. U3480N No. 33480480 3481
UN Shipping
Name:
Lithium-ion Batteries
Transport Hazard
Class:
9
Required
Documentation:
Dangerous Goods Declarations must be completed.
Labeling:

©2021 CAE 905K690052 v1.0 7
Specifications
SPECIFICATIONS
All hardware and software needed for operating the simulator are provided with the shipment.

Specifications
8 ©2021 CAE 905K690052 v1.0
CAEAria
Size and Weight
Ambient Temperature Range
Battery
Equipment Size Weight
Manikin/Simulator 48” H x 15” W x 8” D
(121.92 cm x 38 cm x 20 cm )
50 lbs (22.7 kg)
Shipping Container 64” H x 40 W x 32” D
(162.56 cm x 101.6 cm x 81.28 cm )
200 lbs (90.7 kg)
Tablet Surface Go 2
9.65” x 6.9” x 0.33”
(24.5 cm x 17.5 cm x .83 cm)
Surface Go 2
1.2 lb (544 g)
Item Operation Storage Relative Humidity
Manikin/Simulator Wall source: 32°F to
104°F (0°C to 40°C)
Note: Battery will not
be charging when
temperature exceeds
86°F (30°C)
Battery source: 32°F
to 104°F (0°C to 40°C)
40°F to 122°F
(4°C to 50°C)
0% to 90%
non-condensing
Tablet 50°F to 95°F
(10°C to 35°C)
-13°F to 113°F
(-24°C to 45°C)
0% to 90%
non-condensing
Item Description
Commercial product name RRC2054-2
Use of the substance/
preparation
Lithium-ion (Li-ion) battery
Additional information Battery-System: Lithium-ion
Nominal Voltage: 14.4 V
Nominal Capacity per battery: 6.90 Ah

©2021 CAE 905K690052 v1.0 9
Specifications
Power
Communications
Item Description
Power Adapter • AC Voltage Input: 85 - 264 VAC
• Nominal DC Output: 20 V
• Maximum DC Current Output: 8 A
• Nominal Power (Watts): 160 W
• Batteries Limited Charging Current: 4 A
Manikin/
Simulator
• Internal Batteries (14.4 V x 2)
• Charger DC Output: 19.5 V
• Charger Maximum Current Output: 8 A
• Charger Typical Current Output: 5.5 A
• Batteries Nominal DC Output: 14.4 V
• Batteries Minimum DC Output: 12.5 V
• Batteries Maximum Current Output: 12 A
• Batteries Typical Current Output: 5.5 A
• Run Time: 4+ hours (typical with fully charged battery)
• Both batteries discharge together at the same rate
StethoSym • Run Time: 2 hr 45 min while constantly reading a RFID tag and playing
audio; 4 hours when ON and receiving signal (Sleep Mode)
• Recharge time: 50 minutes
SymDefib • Run Time: 17 hours (with Pads not on Manikin)
• 2-3 hours (with Pads on Manikin)
Tablet • Power Adapter AC Input: 100-240 VAC, 50/60 Hz, 11 W (34 W charging)
• Power Adapter DC Output; 15 V
• Power Adapter Power Output: 24 W
• Power Adapter DC Current Output: 1.6 A
• Battery Typical Output Voltage: 7.66 V
• Battery Capacity: 26.81 W hours
• Run Time: 5 hours (typical)
• Recharge Time: (4 hours (typical - while in use)
Item Description
Simulator Network,
Instructor Tablet,
Patient Monitor
• Wireless: IEEE 802.11 g
• Security: WPA2
• Bands Available: 2.4 GHz and 5.0 GHz
WiFi Modules -
StethoSym, SymDefib
• Wireless: IEEE 802.15.4 WPAN, Personal Area Network

Specifications
10 ©2021 CAE 905K690052 v1.0
CAEAria
Electrotherapy
Item Description
Defibrillation • 20 to 200 Joules (Monophasic, Biphasic)
Pacing • 20 mA to 180 mA

©2021 CAE 905K690052 v1.0 11
Meet Aria
MEET ARIA
CAE Aria™ represents a seven-year old child and offers a wide range of pediatric training scenarios.
CAE Aria’s features allow for realistic training in emergency pediatric care. A wireless and tetherless
patient simulator, CAE Aria helps future and current healthcare professionals practice the skills
needed to build safety proficiency and expertise.
The simulator is available in (2) two configurations: Live and Advanced. Our CAE MaestroTM software
(tablet included) is pre-programmed for each configuration to allow facilitators to control and
monitor the simulator and create Simulated Clinical Experiences (SCEs). Its flexibility and ease of use
allows for a versatile and dynamic training experience that can be tailored to meet your needs and
capabilities.
For CAE MaestroTM and Patient Monitor information and instructions, see the Maestro for Aria user
guide.
CAE Aria™
Simulator Configurations
The simulator is available in two configurations: Live and Advanced.

Meet Aria
12 ©2021 CAE 905K690052 v1.0
CAEAria
Configuration Components
Live • Realistic articulated wireless manikin
• Internal battery
• Software compatible instructor tablet with case
• Wireless facilitator control
• CAE MaestroTM instructor-driven software
• Emulated patient monitor software
• Ten Simulated Clinical Experiences (SCEs) - Manual mode
• SymEyes
• Scripted, wireless male and female speech and vocal sounds
• Two-way VOIP communication
• Stiff neck
• Head tilt/Chin lift/Jaw thrust
• Spontaneous chest excursion
• Retrograde and fiberoptic intubation
• Right mainstem intubation with detection
• Espophageal intubation with gastric distension
• Surgical/Needle cricothyrotomy
• Tracheostomy
• Airway adjuncts placement
• Manual ventilation (BVM)
• Trantracheal Jet Ventilation
• Nasopharyngeal suctioning (no fluids)
• Bronchial occlusion
• Ventilation detection
• Simulated pulse oximeter
• StethoSym
• Audible breath sounds
• Auscultation of lung, heart and bowel sounds
• Manual right NIBP arm with Korotkoff sounds
• Chest compressions with detection and advanced CPR
metrics
• Bilateral carotid, brachial, radial and femoral pulses
• Variable pulse strength
• Library of cardiac rhythms
• 4-lead ECG
• Commercial ECG device compatibillity
• Software-based 12-lead ECG

©2021 CAE 905K690052 v1.0 13
Meet Aria
Live • Defibrillation, cardioversion and pacing via software
• Fingerstick blood glucose
• Orogastric/Nasogastric tube insertion (no fluids)
• Gastrostomy tube with fluids
• Interchangeable genitalia
• Urinary catheritization with fluids
• Suppository administration
• Preported IV sites at right jugular and left dorsum of hand
• Unilateral IV cannulation left arm at antecubital site
• Left humeral (no fluids) and left tibial IO access (fluids)
• Left humeral and left thigh IM access
• Software-based drug administration
• Unilateral chest tube placement insertion for care and
maintenance
• Unilateral needle decompression with automatic detection
Advanced • Live features
• Pain response via Sternal Rub
• Seizures
• Tongue swelling
• Laryngospasms
• Phayrngeal swelling
• Substernal retractions
• Variable chest compliance and bronchial resistance
• SymDefib
• Commercial Defibrillator Compatible
• Cyanosis
• Capillary refill
• Bilateral Popliteal and Dorsalis Pedis pulses
Aria Options (with
Live or Advanced)
• SymDefib for commercial defibrillator compatibility
• External bleeding module for chest tube drainage and
bleeding moulage
• Simulated Patient Monitor
• CAE Maestro Physiology
• Additional standalone CAE Maestro licenses
• CAE LearningSpaceTM
Configuration Components

Meet Aria
14 ©2021 CAE 905K690052 v1.0
