Caen ELS PS1215 User manual

PS1215
Single Output - Dual Voltage
Low Noise Power Supply
User’s Manual
All Rights Reserved
© CAEN ELS s.r.l.
Rev. 1.5 –November 2022
LOW-NOISE FIXED VOLTAGE AC/DC

PS1215 User’s Manual
2
CAEN ELS s.r.l.
Via Vetraia, 11
55049 Viareggio (LU) –Italy
Mail: [email protected]
Web: www.caenels.com

PS1215 User’s Manual
3
Table Of Contents
1. INTRODUCTION................................................................................................8
1.1 THE PS1215 POWER SUPPLY ..........................................................................8
1.2 THE PS1215 AT A GLANCE .............................................................................9
1.3 TECHNICAL DATA.........................................................................................10
2. SAFETY..............................................................................................................11
2.1 INJURY PRECAUTIONS...................................................................................11
2.2 CAUTION.......................................................................................................11
2.3 INPUT RATINGS.............................................................................................12
2.4 LIVE CIRCUITS ..............................................................................................12
2.5 PART REPLACEMENT AND MODIFICATIONS ..................................................12
3. I/O CONNECTORS...........................................................................................13
3.1 AC LINE INPUT CONNECTOR ........................................................................13
3.2 OUTPUT ........................................................................................................14
3.3 STATUS LED.................................................................................................16
3.4 FIXING ..........................................................................................................17
3.5 MOUNTING POSITION ....................................................................................17
4. TECHNICAL SPECIFICATIONS ..................................................................19
5. MECHANICAL DIMENSIONS.......................................................................20
6. OUTPUT CURRENT DERATING..................................................................21
7. ORDERING CODES.........................................................................................22

PS1215 User’s Manual
4
Document Revisions
Document Revision
Date
Comment
1.0
October 24th 2014
First Release
1.1
October 29th 2014
Manual graphics changed
1.2
December 2nd 2014
Updated the pin-out of the Output
DC connector to match the names
used in the datasheet
1.3
January 18th 2016
Y-Cable CT-I image and description
changed
1.4
September 11th, 2017
Changed and added values on the
output noise
1.5
November 22nd, 2022
Added UKCA compliance logo

PS1215 User’s Manual
5
Safety information - Warnings
CAEN ELS will repair or replace any product within the guarantee period if
the Guarantor declares that the product is defective due to workmanship or materials
and has not been caused by mishandling, negligence on behalf of the User, accident or
any abnormal conditions or operations.
Please read carefully the manual before operating any part of the instrument
WARNING
High voltage inside, do NOT open the boxes
CAEN ELS s.r.l. declines all responsibility for damages or injuries caused
by an improper use of the Modules due to negligence on behalf of the User. It is
strongly recommended to read thoroughly this User's Manual before any kind of
operation.
CAEN ELS s.r.l. reserves the right to change partially or entirely the contents of this
Manual at any time and without giving any notice.
Disposal of the Product
The product must never be dumped in the Municipal Waste. Please check your local
regulations for disposal of electronics products.

PS1215 User’s Manual
6
Read over the instruction manual carefully before using the instrument.
The following precautions should be strictly observed before using the PS1215:
WARNING
•Do not use this product in any manner not
specified by the manufacturer. The protective
features of this product may be impaired if it is
used in a manner not specified in this manual.
•Do not use the device if it is damaged. Before
you use the device, inspect the instrument for
possible cracks or breaks before each use.
•Do not operate the device around explosives gas,
vapor or dust.
•Always use the device with the cables provided.
•Turn off the device before establishing any
connection.
•Do not operate the device with the cover
removed or loosened.
•Do not install substitute parts or perform any
unauthorized modification to the product.
•Return the product to the manufacturer for
service and repair to ensure that safety features
are maintained
CAUTION
•This device is designed for indoor use and in
area with low condensation.

PS1215 User’s Manual
7
The following table shows the general environmental requirements for a correct
operation of the instrument:
Environmental Conditions
Requirements
Operating Temperature
0°C to 50°C
Operating Humidity
30% to 85% RH (non-condensing)
Storage Temperature
-10°C to 60°C
Storage Humidity
5% to 90% RH (non-condensing)

PS1215 User’s Manual
8
1.Introduction
This chapter describes the general characteristics and main features of the
PS1215 low-noise power supply.
1.1 The PS1215 Power Supply
CAEN ELS PS1215 is a single-output, dual-voltage mixed switching-linear
power supply that is designed in order to obtain low-noise operation and high
efficiency and it is especially suited for DCCT measurement systems where switching
power supplies could corrupt measuring noise, accuracy and precision.
The power supply is housed in a robust and compact stainless steel box that can
be placed next to the supplied device in order to reduce cable lengths and minimize
consequent possible noise pick-up.
These power supplies are particularly designed for operation with the following
CAEN ELS DC Current Transducers (DCCT):
•CT-100-C, CT-100V-C
•CT-150-C, CT-150V-C
•CT-200, CT-200V
•CT-300, CT-300V
•CT-400, CT-400V
•CT-600, CT-600V
•CT-1000, CT-1000V
All the above cited devices, combined with a PS1215 low-noise voltage power
supply, guarantee their rated specifications.

PS1215 User’s Manual
9
1.2 The PS1215 at a Glance
The PS1215 linear power supply and its I/Os are represented in Figure 1:

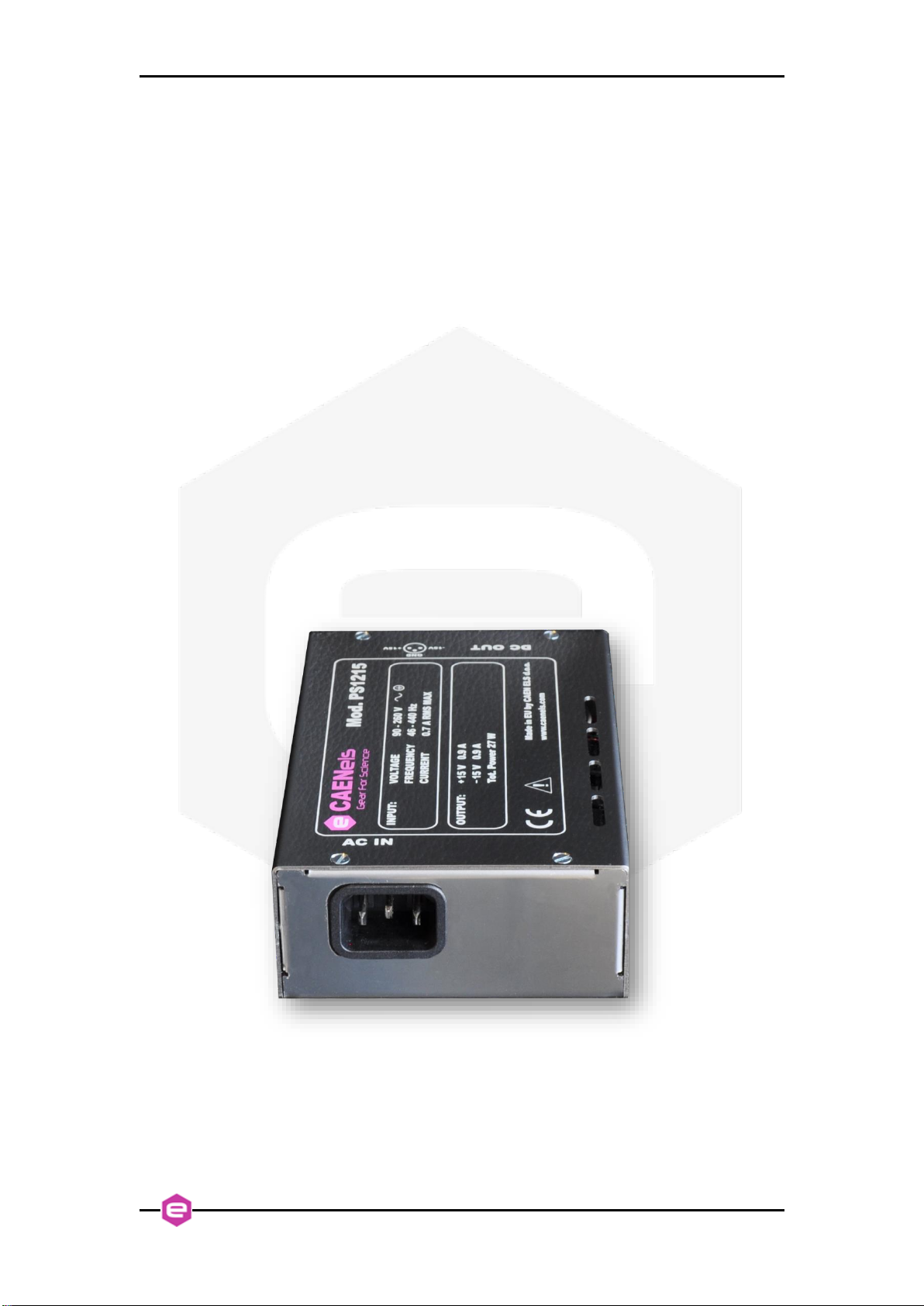

Figure 1: overall view of a PS1215 power supply
The PS1215 is an isolated bipolar power supply, with a 3-pole output
connector, specifically designed to supply DC Current Transducers (DCCT).
The AC Power Line input is placed on the left side of the box while the output
connectors on the right side; LED monitors (indicating the presence of positive and
negative voltage) are placed on the front side.
The PS1215 has a balanced bipolar output voltage, as indicated in the
following Table 1:
Negative Output
Voltage
Positive Output
Voltage
PS1215
-15 V
+15 V
Table 1: output voltage values
Output DC
AC Line Input
“Power Good”
LEDs monitor

PS1215 User’s Manual
10
1.3 Technical Data
The PS1215 power supply has an output voltage accuracy of ±3% on both its
positive and negative outputs.
Maximum peak-to-peak voltage noise measured at the device output terminals
is rated at 4 mV. This value is measured over a 1 MHz bandwidth using a LeCroy
MSO 44MXs-B, 400MHz, 5GS/s with AC Coupling at full load. Typical
measurements of the power spectrum on each output are shown in Figure 2.

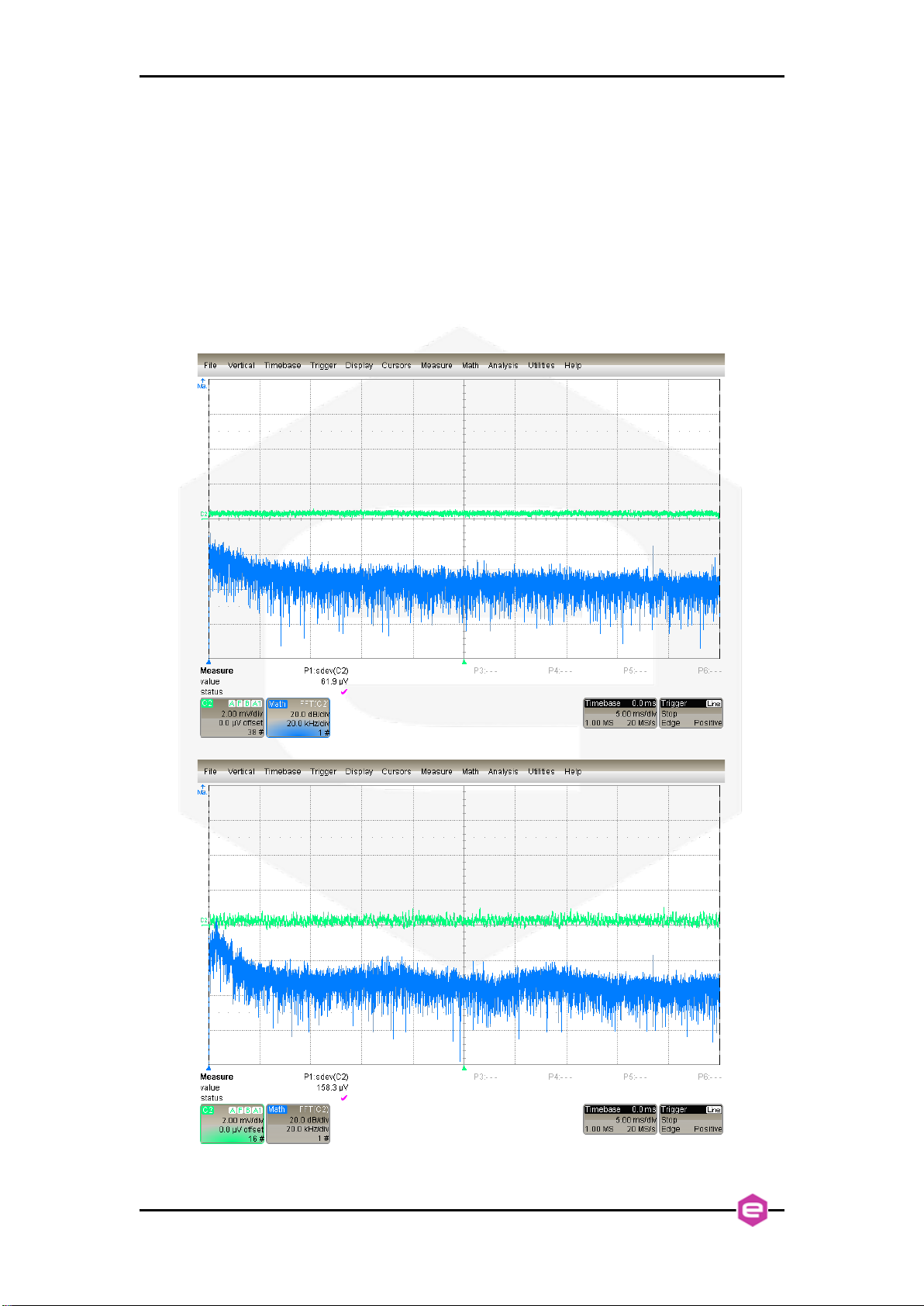

Figure 2: typical output noise - AC coupling
+15 V output
BW = 160 kHz
-15 V output
BW = 160 kHz

PS1215 User’s Manual
11
2.Safety
2.1 Injury Precautions
Prior to shipment this system was inspected and found free of mechanical or
electrical defects. Upon unpacking of the system, inspect for any damage, which may
have occurred in transit. The inspection should confirm that there is no exterior
damage to the system such as broken connectors.
This section contains the fundamental safety rules for the installation and
operation of the system. Read thoroughly this section before starting any procedure of
installation or operation.
2.2 Caution
The following safety precautions must be observed during all phases of
operation, service and repair of this equipment. Failure to comply with the safety
precautions or warnings in this document violates safety standards of design,
manufacture and intended use of this equipment and may impair the built-in
protections within.
CAEN ELS s.r.l. shall not be liable for user’s failure to comply with these
requirements.
To avoid electrical shock or fire hazard, do not apply a power to a load that is
outside the rated conditions.
Do Not Operate Without Covers.
To avoid electric shock or fire hazard, do not operate this product with covers or
panels removed.
Do Not Operate in Wet/Damp Conditions.
To avoid electrical shock, do not operate this product in wet or damp conditions.
Do Not Operate in an Explosive Atmosphere.
To avoid injury or fire hazard, do not operate this product in an explosive
atmosphere.

PS1215 User’s Manual
12
Do Not Operate With Suspected Failures.
If you suspect there is damage to this product, have it inspected by qualified service
personnel.
2.3 Input Ratings
Do not use AC supply which is outside the limits for the input voltage and
frequency ratings of this instrument. For input voltage and frequency rating of the
module see Table 4: PS1215 power supply main specifications. For safety reasons, the
mains supply voltage fluctuations should not exceed above voltage range.
2.4 Live Circuits
No internal adjustment or component replacement is allowed to non-CAEN
ELS s.r.l. personnel. Never replace components with power cables connected.
In order to avoid injuries, always disconnect power plugs, let circuits
discharge and remove external voltage source before touching components (wait 10
min at least).
2.5 Part Replacement and Modifications
Parts substitutions and modifications are allowed by authorized CAEN ELS
s.r.l. service personnel only.

PS1215 User’s Manual
13
3.I/O Connectors
This chapter describes the I/O connectors, their corresponding pinout and their
functionality.
3.1 AC Line Input Connector
The AC Line Input connector is in a standard IEC Male Socket as shown in
Figure 3.
The PS1215 power supply is designed for universal AC input voltage range
since it can operate with voltage from 90V to 260V and input frequency from 47 to 63
Hz. Under the value of 115V AC Mains input the Power Supply is subject to current
(i.e. power) de-rating. See Output Current Derating chapter for further details.
Figure 3: AC Line input connector

PS1215 User’s Manual
14
3.2 Output
Output DC voltages are made available through a 3-pole connector with a screw
locking. The pin-out of the connector (frontal view) is shown in Figure 4.

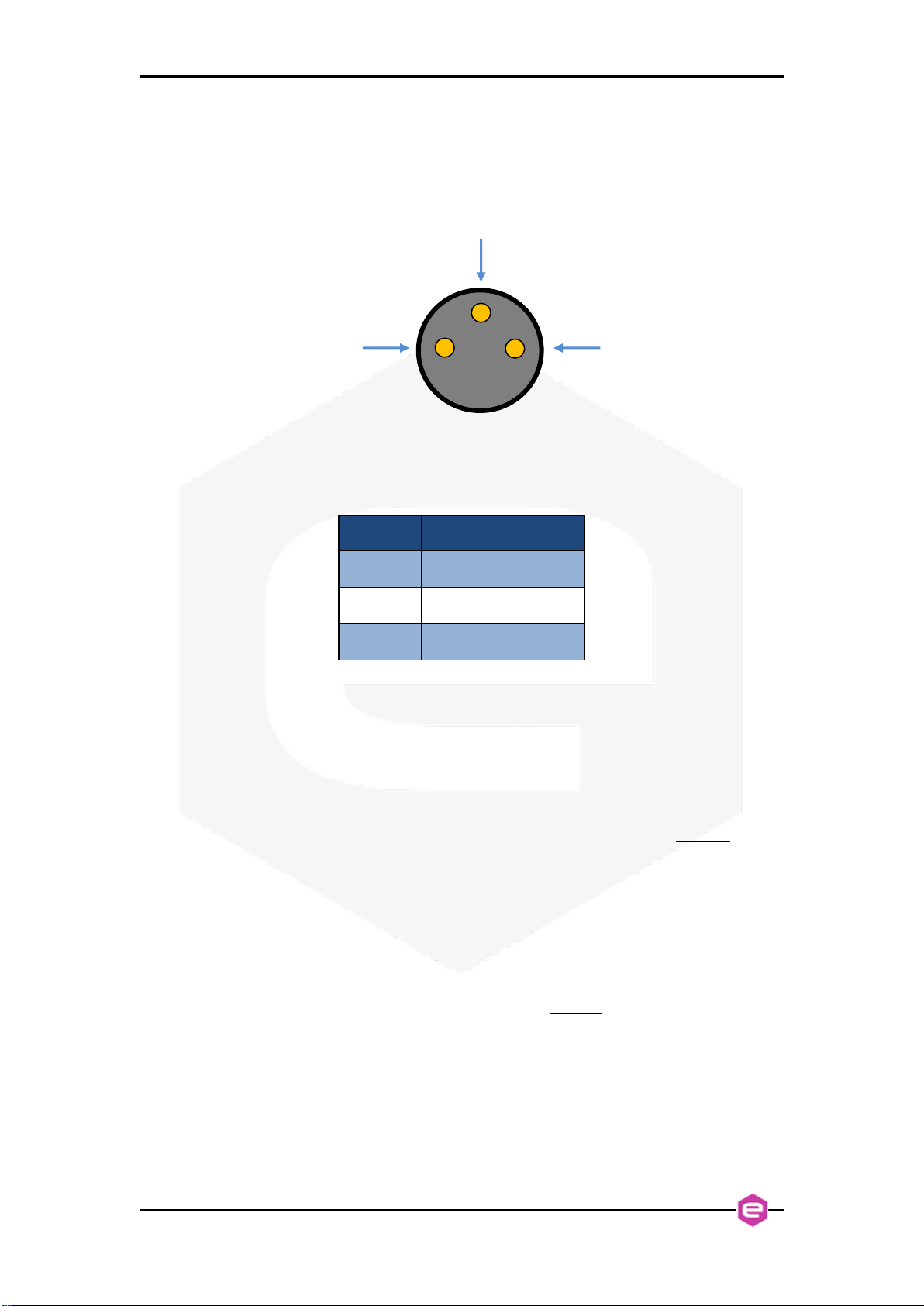

Figure 4: Output DC Connector (TE 1838839-1)
The output connector has the following pin-out:
Pin #
PS1215
1
+15V
3
-15V
4
GND
Table 2: PS1215 output D connector pin-out
The power supply is equipped with a cable for the connection to the DCCT.
Two different cables can be plugged to the Output DC connector:
•Y-Cable CT-V (Figure 6): one side of the cable is terminated with a SUB-D
connector for the direct connection of a DCCT CT-Series with voltage output
(CT-xx00V). The other side is terminated with one connector that fits in the
output DC connector of the PS1215 and one BNC connector for the reading of
the output voltage that is fed from the DCCT Voltage Output. The SUB-D pin-
out is shown in Figure 5 and Table 3.
Y-Cable CT-I (
•Figure 7): one side of the cable is terminated with a SUB-D connector for the
direct connection of a DCCT CT-Series with current output (CT-xx00). The
other side is terminated with one connector that fits in the Output DC
Connector of the PS1215 and two “banana” plugs to feed the customer
external burden resistor. The SUB-D pin-out is shown in Figure 5 and Table 3.
The standard factory length for both cables is 3 meters.
Pin #1
Pin #4
Pin #3

PS1215 User’s Manual
15
Figure 5: D-SUB 9-pin connector pin numbering
Pin #
Y-Cable CT-I
Y-Cable CT-V
1
IS
BNC Ground
2
nc
BNC Central pin -
Voltage
3
nc
4
GND
5
-15V
6
ISReturn
nc
7
nc
BNC Ground
8
nc
9
+15V
Table 3: Y-Cable CT-I and CT-V pin-outs
Figure 6: Y Cable CT-V
Pin #6
Pin #9
Pin #1
Pin #5

PS1215 User’s Manual
16
Figure 7: Y Cable CT-I (Red: IS, Black: ISreturn, Yellow: shield)
3.3 Status LED
On a lateral side of the power supply, two LEDs turn off whenever the +15V or
-15V voltages are not correctly regulated on the output cable.
Figure 8: LED indicators for output voltage
-15V
"Power Good"
LED
+15V
"Power Good"
LED

PS1215 User’s Manual
17
3.4 Fixing
On the bottom side of the PS1215 four threaded M3×4mm holes can be used for
fixing the power supply. These are indicated in the following Figure 9.

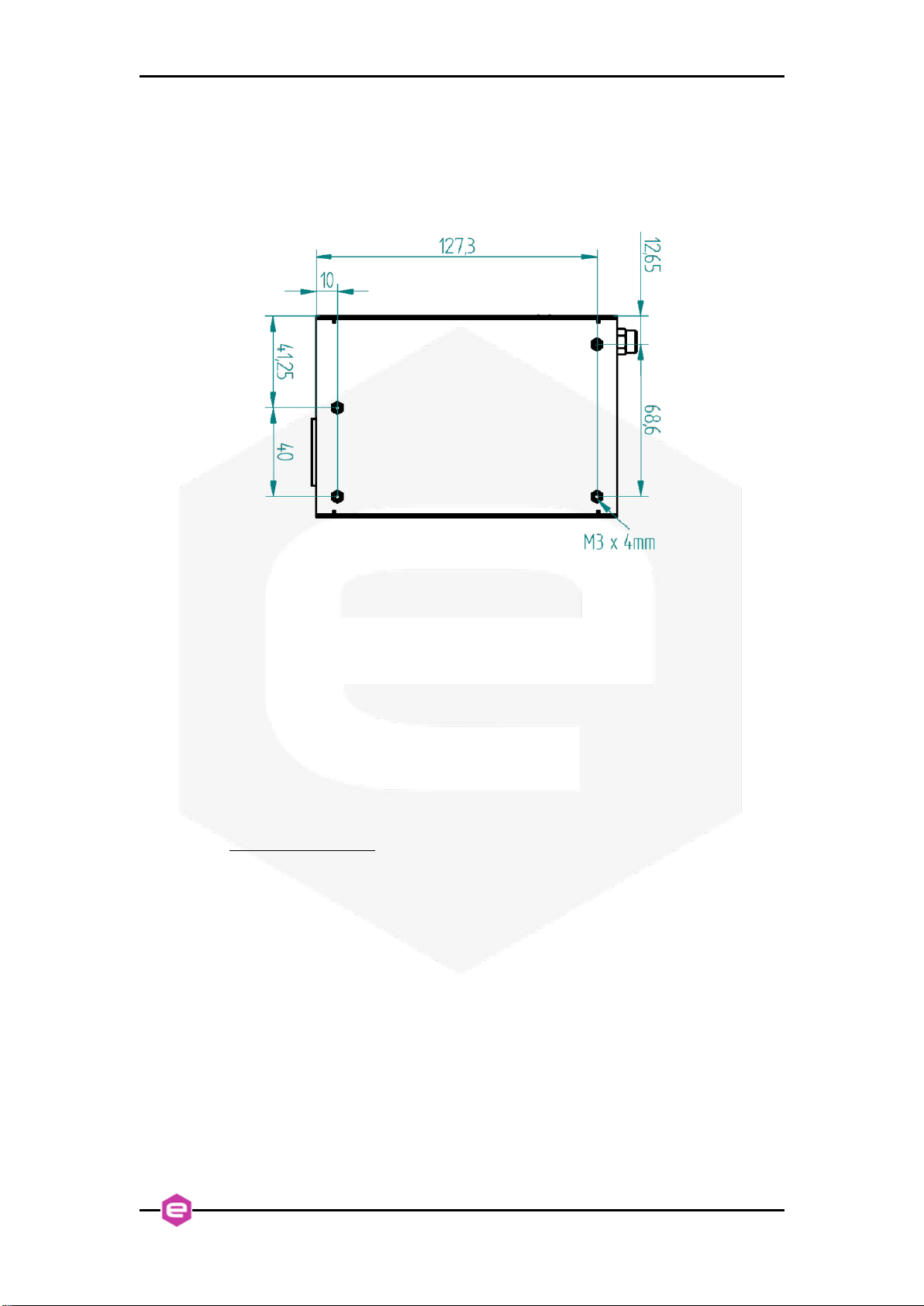

Figure 9: Threaded holes position on the PS1215 bottom
3.5 Mounting position
PS1215 shall NOT be mounted in the two following positions:
•bottom side of the box fixed to the celling (Figure 10);
•lateral side of the box that present ten ventilation holes faced to the top
(Figure 11).
The RECOMMENDED mounting positions for increasing the heat dissipation
and increasing reliability and life-time are:
•bottom side of the box fixed to the floor;
•lateral side of the box that present twenty ventilation holes faced to the
top.

PS1215 User’s Manual
18
Figure 10: Ceiling mounting NOT allowed
Figure 11: Lateral mounting (ten ventilation holes faced to the top) NOT
allowed

PS1215 User’s Manual
19
4.Technical Specifications
Technical Specifications for the PS1215 linear power supplies are presented in
the following Table 4.
Technical Specifications
PS1215
Output Positive Voltage (±3%)
+15 V
Output Negative Voltage (±3%)
-15 V
Maximum Output Power
27 W
Maximum Output Current
+15V @ 900 mA
-15V @ 900 mA
Output Ripple + Noise
< 0.001% RMS @ DC-100 kHz (typ.)
0.003% RMS @ DC-1 MHz
0.025% P-P @ DC-1 MHz
AC Line Voltage Input
90 –260 VAC
AC Line Frequency
47 - 63 Hz
Input to Output Isolation
3kV
Output to Earth-Case Isolation
500V
Hold-up time
16 ms typ. at 115 VAC
Cooling
Natural convection
Dimensions
136.4 × 41 × 90.7 mm
Weight
600 g
Y-Cable length (CT-I and CT-V)
3m
Indicators
2 LEDs
Protections
Output short-circuit
Output over-voltage
Operating Temperature Range
0°C –50°C
Table 4: PS1215 power supply main specifications

PS1215 User’s Manual
20
5.Mechanical Dimensions
The PS1215 low-noise power supply mechanical dimensions are hereafter
shown:
Figure 12: Mechanical drawings
