caenrfid qDock RA0005 Technical document

1
TECHNICAL INFORMATION MANUAL
Revision 01 –31 May 2019
RA0005
qIDmini docking station

2
Scope of Manual
The goal of this manual is to provide the basic information to work with the RA0005 - qDock - qIDmini docking station.
Change Document Record
Date
Revision
Changes
Pages
01 Mar 2016
00
Preliminary release
-
31 May 2019
01
Added Mod. RA0005 - qDock - qIDmini docking station –Gray in the
Introduction paragraph and in the Ordering Options paragraph
5, 6
Modified Regulatory Compliance chapter
8÷10
Reference Document
[RD1] EPCglobal: EPC Radio-Frequency Identity Protocols Class-1 Generation-2 UHF RFID Protocol for
Communications at 860 MHz –960 MHz, Version 2.0.1 (April, 2015).
[RD2] G.S.D. s.r.l. - Report Federal Communication Commission (FCC) –RA0005 - qDock - qIDmini docking station.
Test report n. FCC-16513 Rev. 00 –25 Aug 2016
CAEN RFID srl
Via Vetraia, 11 55049 Viareggio (LU) - ITALY
Tel. [phone] Fax [phone]
[email protected]
www.caenrfid.com
© CAEN RFID srl –2019
Disclaimer
No part of this manual may be reproduced in any form or by any means, electronic, mechanical, recording, or
otherwise, without the prior written permission of CAEN RFID.
The information contained herein has been carefully checked and is believed to be accurate; however, no responsibility
is assumed for inaccuracies. CAEN RFID reserves the right to modify its products specifications without giving any
notice; for up to date information please visit www.caenrfid.com.
Federal Communications Commission (FCC) Notice
This device was tested and found to comply with the limits set forth in Part 15 of the FCC Rules. Operation is subject to
the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received including interference that may cause undesired operation. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This device generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the
instruction manual, the product may cause harmful interference to radio communications. Operation of this product in
a residential area is likely to cause harmful interference, in which case, the user is required to correct the interference
at their own expense. The authority to operate this product is conditioned by the requirements that no modifications
be made to the equipment unless the changes or modifications are expressly approved by CAEN RFID.
Visit qDock RA0005 web page, you will find the latest revision
of data sheets, manuals, certifications and technical drawings.
All you need to start using your product in a few clicks!

3
Disposal of the product
Do not dispose the product in municipal or household waste. Please check your local regulations for
disposal/recycle of electronic products.

Index- qDock RA0005 Technical Information Manual 4
Index
Scope of Manual...........................................................................................................................................................................2
Change Document Record............................................................................................................................................................2
Reference Document....................................................................................................................................................................2
Index ...........................................................................................................................................................................................4
List of Figures.................................................................................................................................................................................4
List of Tables..................................................................................................................................................................................4
1INTRODUCTION...................................................................................................................................................................5
Product Description......................................................................................................................................................................5
Accessories ...................................................................................................................................................................................6
Ordering Options..........................................................................................................................................................................6
2TECHNICAL SPECIFICATIONS................................................................................................................................................7
Technical Specifications Table......................................................................................................................................................7
3REGULATORY COMPLIANCE.................................................................................................................................................8
FCC Compliance............................................................................................................................................................................8
CE Compliance..............................................................................................................................................................................8
RoHS EU Directive.........................................................................................................................................................................8
qDock RA0005 CE Declaration of Conformity...............................................................................................................................9
qDock RA0005 FCC Grant ...........................................................................................................................................................10
List of Figures
Fig. 1.1: qDock RA0005 qIDmini docking station - White ........................................................................................................................5
Fig. 1.2: qDock RA0005 qIDmini docking station - Grey ..........................................................................................................................5
Fig. 1.3: qDock RA0005 Accessories ........................................................................................................................................................6
List of Tables
Tab. 2.1: qDock RA0005 Technical Specifications Table..........................................................................................................................7

INTRODUCTION - qDock RA0005 Technical Information Manual 5
1INTRODUCTION
Product Description
The qDock RA0005 is a low cost, Multiple Charging Docking Station & USB 2.0 Hub that allows to charge and connect
for Data & Firmware upgrade up to three qIDmini R1170I readers directly thought their micro USB connector and
without cables.
The docking station is provided together with its External Power Supply to be connected to a power socket for
charging. When connected to the power supply, the docking station can charge up to three qIDmini Readers in parallel
with a full current rate (500 mA).
The USB device port allows to connect the docking station to a PC to upgrade the firmware of the readers when
needed. The USB port alone (without the Power supply) allows to charge a single Reader (due to the input USB current
limitation). To this purpose, insert the Reader into the slot in the center.
The docking station can be also wall mounted using the provided hooks.
Two LEDs positioned near the side power jack and the USB connector indicate respectively the charging status (green
when charging), and the communication status (orange when connected).
Fig. 1.1: qDock RA0005 qIDmini docking station - White
Fig. 1.2: qDock RA0005 qIDmini docking station - Grey

INTRODUCTION - qDock RA0005 Technical Information Manual 6

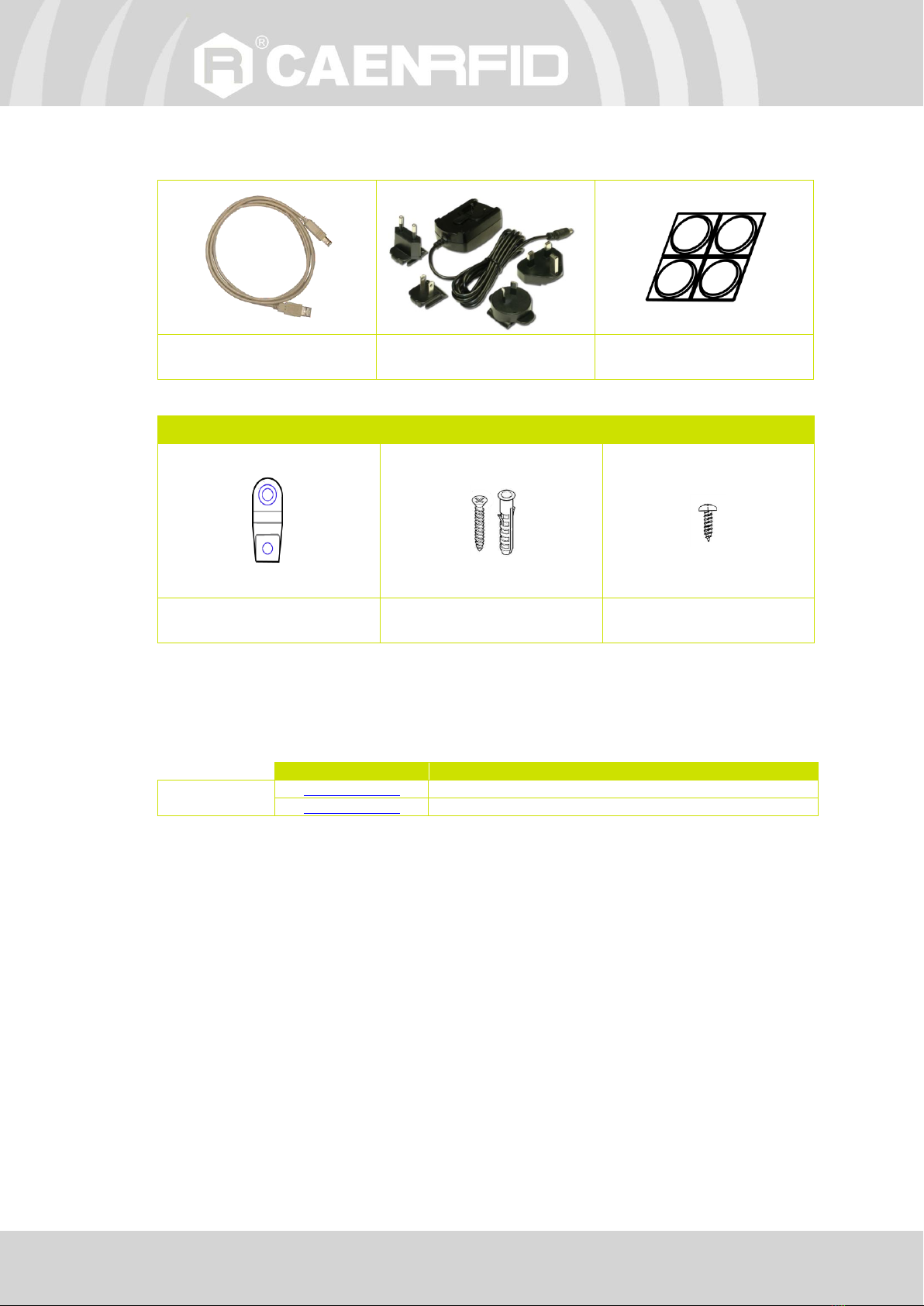

Accessories
Check for the supplied accessories below:
No. 1 USB cable
No. 1 Power supply
No. 4 rubber feet
Wall mounting kit:
No.2 wall hooks
No.2 rawlplugs (ø 4 mm) +screws
No. 2 small screws (ø 3 mm)
Fig. 1.3: qDock RA0005 Accessories
Ordering Options
Code
Description
Accessories
WRA0005XAAAA
RA0005 - qDock - qIDmini docking station - White
WRA0005XGAAA
RA0005 - qDock - qIDmini docking station - Gray

TECHNICAL SPECIFICATIONS –qDock RA0005 Technical Information Manual 7
2TECHNICAL SPECIFICATIONS
Technical Specifications Table
Function
Docking Station
USB Interface
USB 2.0 Full Speed (12 Mbit/s)
USB Connector to Reader
Micro type B
USB Connector to PC - Cable
Type B
User Interface
Green LED ON: external Supply active
Orange LED ON: USB Communication ON
Power Supply Input
5 V dc ± 5% @ 2A max
Power Supply Connector
Power Jack - Negative Central Pin
Battery Charging Time
2h (typical)
Operating Temperature
-10°C to +55°C
IP Rating
IP 40
Dimensions
(W)288 x (L)140 x (H)34 mm3max.
(11.3 x 5.5 x 1.3 in3)
Enclosure
ABS
Tab. 2.1: qDock RA0005 Technical Specifications Table

REGULATORY COMPLIANCE –qDock RA0005 Technical Information Manual 8
3REGULATORY COMPLIANCE
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
a. Reorient or relocate the receiving antenna.
b. Increase the separation between the equipment and receiver.
c. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
d. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modification not approved by CAEN RFID could void the user’s authority to operate the equipment.
Reference document:
Test report n. FCC-16513 [RD2].
See § qDock RA0005 FCC Grant page 10 for the qDock RA0005 FCC Compliance Certificate.
CE Compliance
Reference standard:
CEI EN 55032:2015
CEI EN 61000-3-2:2015
CEI EN 61000-3-3:2014 +/EC:2014
CEI EN 55024:2013 +/A1:2015
CEI EN 60950-1:2007 +/A11:2010 +/A2:2014 +/A12:2014 + A1:2014
See § qDock RA0005 CE Declaration of Conformity page 9 for the qDock RA0005 CE Compliance Certificate.
RoHS EU Directive
qDock RA0005 docking station is compliant with the EU Directive 2011/65/CE on the Restriction of the Use of certain
Hazardous Substances in Electrical and Electronic Equipment (RoHS2).

RA0005
CE DECLARATION OF CONFORMITY
qDock RA0005 CE Declaration of Conformity
We
CAEN RFID Srl
Via Vetraia, 11
55049 Viareggio (LU)
Italy
Tel.: [phone] Fax: [phone]
Mail: [email protected]m
Web site: www.caenrfid.com
herewith declare under our own responsibility that the products:
Code: WRA0005XAAAA
Description: RA0005 - qDock - qIDmini docking station - White
and
Code: WRA0005XGAAA
Description: RA0005 - qDock - qIDmini docking station - Gray
correspond in the submitted version to the following standards:
CEI EN 55032:2015
CEI EN 61000-3-2:2015
CEI EN 61000-3-3:2014 +/EC:2014
CEI EN 55024:2013 +/A1:2015
CEI EN 60950-1:2007 +/A11:2010 +/A2:2014 +/A12:2014 + A1:2014
and declare under our sole responsibility that the specified products meet the principle requirements and other applicable
regulations of directives 2014/30/EU (EMC) and 2011/65/EU (RoHS2)
Date: 31/05/2019
Adriano Bigongiari (Chief Executive Officer)
On the basis of this declaration, these products will bear the following mark:

RA0005

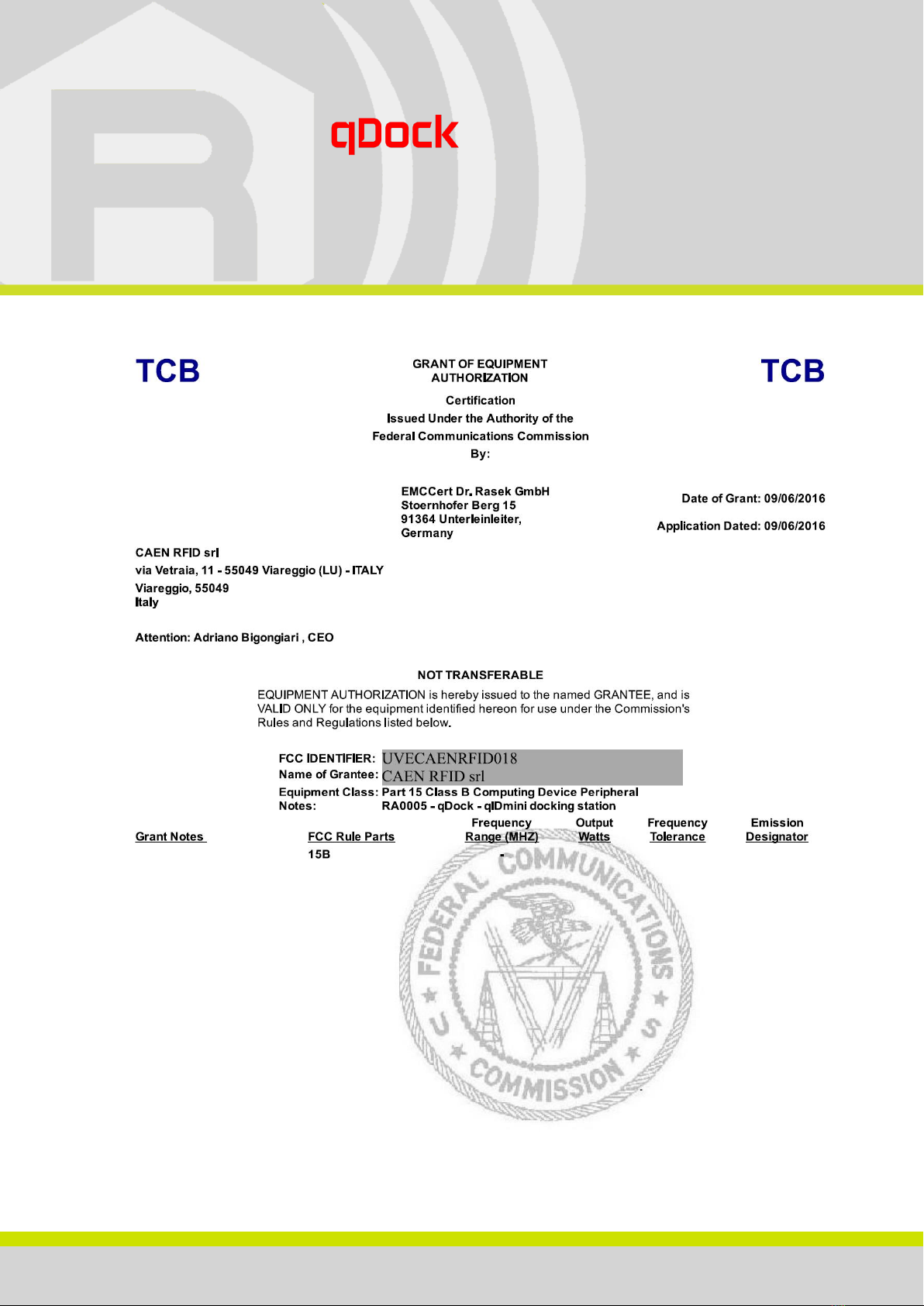

FCC GRANT
qDock RA0005 FCC Grant
