Caffitaly System S24 User manual

MODEL S24
INSTRUCTION MANUAL
Imported by Roasting Australia Holdings Pty Limited
11 Hoyle Avenue, Castle Hill, NSW 2154
Phone: AU 02 9846 0307
NZ 0800 450 894
Email: [email protected]
caffitalysystem.com.au
Your Taste...Your Choice
ONLY USE WITH
Caffitaly System
Capsules

INDEX
2.
Introduction:
• Welcome 3
• Safety Warnings 4
• Symbols Guide 5
Instructions:
• Machine Components 6
• Correct Use Of The Buttons 6
• First Time Use 7
• Dispensing Beverages Using Factory Settings 8
• Dispensing Tea or Hot Water 9
• Turning On The Appliance - Daily Use 10
• Adjusting The Cup/Mug Height 11
• Programming The Quantity Of Beverage In A Cup 11
• General Operating Indications 12
Cleaning and Maintenance:
• Daily Maintenance 14
• Descaling 15
• Saving Energy 17
Miscellaneous:
• Restore Original Settings (RESET) 18
• Troubleshooting 19
• Technical Data 21
• Caffitaly System Care Contact 21
• Warranty Details 22

3.
CONGRATULATIONS
on the purchase of your new Caffitaly System S24 Capsule Machine.
In no time at all you will be producing barista quality coffee, tea or hot chocolate
at any time, day or night, when teamed with one of the many Caffitaly System
capsules from your favourite brands.
Your Taste...Your Choice
Brought to you by Roasting Australia, proudly part of
JOIN the Caffitaly Club to recieve Member Only Specials such as Giveaways,
Competitions and opportunities to try new products before they are released.
Join now and recieve your FREE GIFT.
IMPORTANT NEWS - Register your Machine
When you sign up to join the Caffitaly Club, don’t forget to register your machine
for warranty purposes at: caffitalysystem.com.au

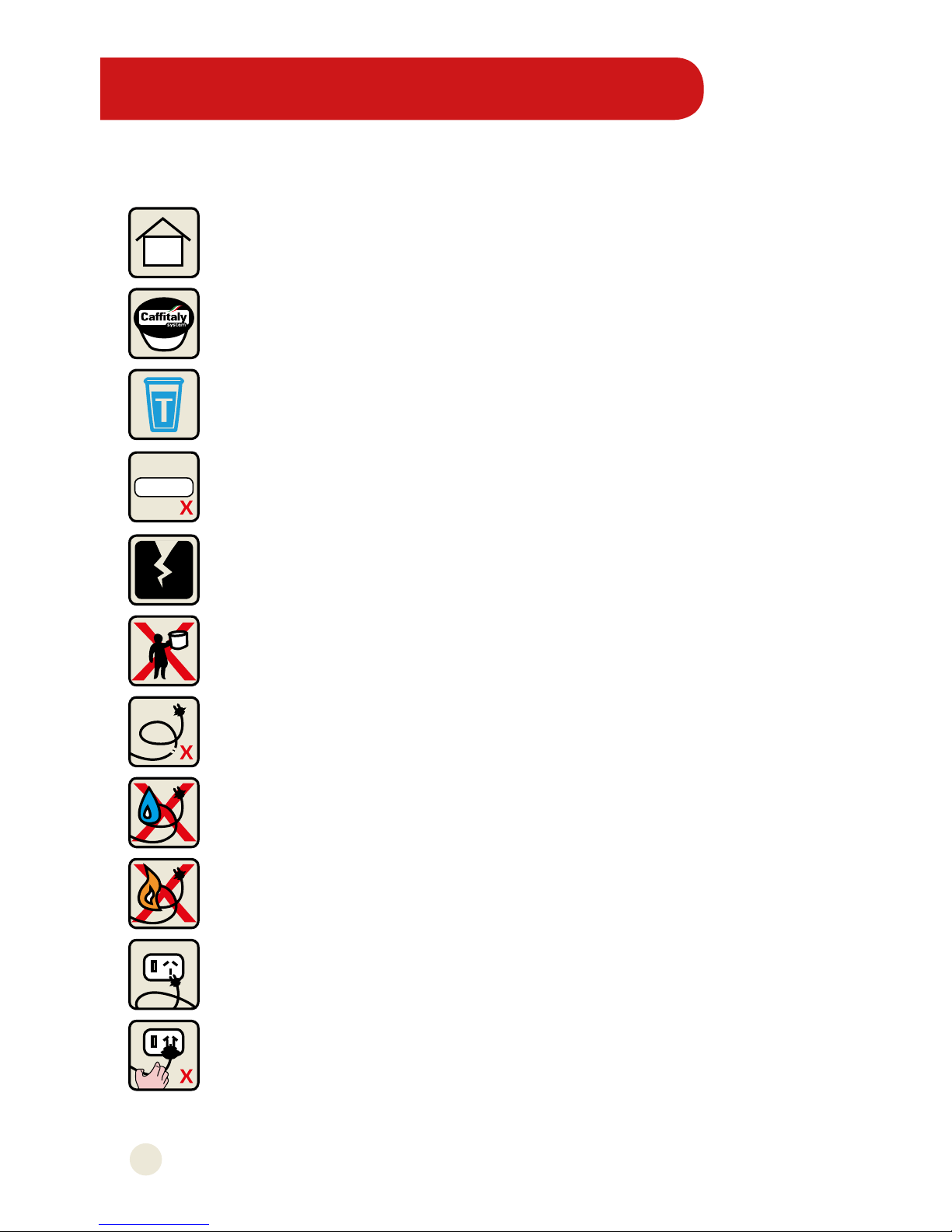

SAFETY WARNINGS
If you do not comply with the operating instructions and safety warnings in this Instruction
Manual, the machine may become dangerous to operate. Please ensure you keep this
Instruction Manual in a safe place. Carefully read the following instructions before use.
This way you will avoid the risk of personal injury and damage to the appliance.
4. Continued on next page... >>
• This appliance is intended to be used in domestic environments.
Not suitable for Professional use.
• ONLY use Caffitaly System compatible capsules.
Damage caused by using incorrect capsules will void the Warranty.
• Use the TEA button (Blue) for Tea and Hot Water ONLY!
Incorrect use of this button will cause damage to the machine and void the Warranty.
• Use of the appliance in any manner other than as directed within this manual could
cause harm to the operator and void the Warranty. The manufacturer will not be
responsible for injury or damage resulting from improper use of the appliance.
• After removing the packaging, check that the appliance is not damaged. If damage is
detected, or upon the first sign of a defect (unusual noise or odours), or if any other
problem is detected inside the appliance, do not use it and contact the Caffitaly System
Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.
• The packaging elements (plastic bags, etc.) must not be left within reach
of children as they are potential sources of danger.
• Only use the appliance if the power cord is intact. If the cord is damaged it must be
replaced by the manufacturer or importer due to potential electrical safety risks.
Contact the Caffitaly System Customer Service Line on AU 02 9846 0307
| NZ 0800 450 894.
• Use and store the appliance indoors. Make sure the electrical elements, plug and cord
are dry. Never submerge the appliance in water. Protect the appliance from sprays and
drips. Water and electricity together constitute a risk of electrocution.
• Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
• Only connect the appliance to power outlets complying with the requirements of the law.
Make sure that the power supply voltage matches the rating shown on the data plate
on the bottom of the appliance. This appliance includes an earthed pin and must be
used with a power outlet with earthed connection.
• Do not pull on the power cord to disconnect it. Remove the plug carefully to avoid
damage to the outlet.
GUARANTEE
VOID
X
X

SAFETY WARNINGS - Continued
SYMBOLS GUIDE
CAUTION: This is the safety warning symbol. It is used to call your
attention to possible risks of personal injury. Abide by the safety
messages provided in order to avoid possible injury or death.
This is the symbol used to
highlight some actions that
will optimise the use of
this appliance.
Not
Dishwasher
Safe
Maintenance
Tips
5.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance
• Never place your hands inside the capsule compartment. There is a risk of injury.
• Do not open the lever while the appliance is operating. If the lever is raised during the
delivery of a product, the machine can emit jets of hot water. Risk of Burns!
• Do not remove parts of the appliance, OR insert objects into the openings. This could
cause electric shocks! Any operation that is not described in this instruction manual
should only be performed by an Authorised Support Centre. Please contact the Caffitaly
System Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.
• Install the appliance on a solid, stable, heat resistant surface with an incline no greater
than 2 degrees.
• When the Indicator Light blinks ORANGE and the machine beeps, it is advisable to
perform the descaling cycle, as illustrated on Page 15. If you do not, the appliance may
be damaged.
• Clean the appliance carefully and regularly with a soft cloth and a mild detergent, do
not use alkaline cleaning agents. If it is not cleaned, the build-up that forms may be
hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
• Unplug the machine if you do not expect to use the appliance for a long period of time
(leaving on vacation, etc.)

MACHINE COMPONENTS
6.
Lever for
opening and
closing Capsule
Compartment
Beverage
Dispenser
Used Capsule
Drawer
Dispensing
buttons and
Indicator light
Water Tank Lid
Capsule
Compartment
Water Tank
Power On/Off
switch
Electricity Cord
Diagram 1:
Diagram 2:
Grid
Drip Tray
Single Espresso Button -
30ml (Lit in WHITE). Use
for dispensing a single
espresso shot. When in doubt follow the directions
on the capsule box regarding required
button use.
Double Espresso Button - 60ml (Lit in WHITE).
Use for dispensing a double espresso coffee
for a stronger beverage. Also suitable for Hot
Chocolate and similar beverages (NOT TEA).
Tea or Hot Water Button - 120mL
(Lit in BLUE) Only be used for tea capsules or to
add hot water.
Do not use the Tea Button for espresso
coffee or any other beverages except tea.
Capsules appropriate for the Tea Button will be
indicated on the packaging.
Inappropriate use of this button may damage
the machine and void your warranty.

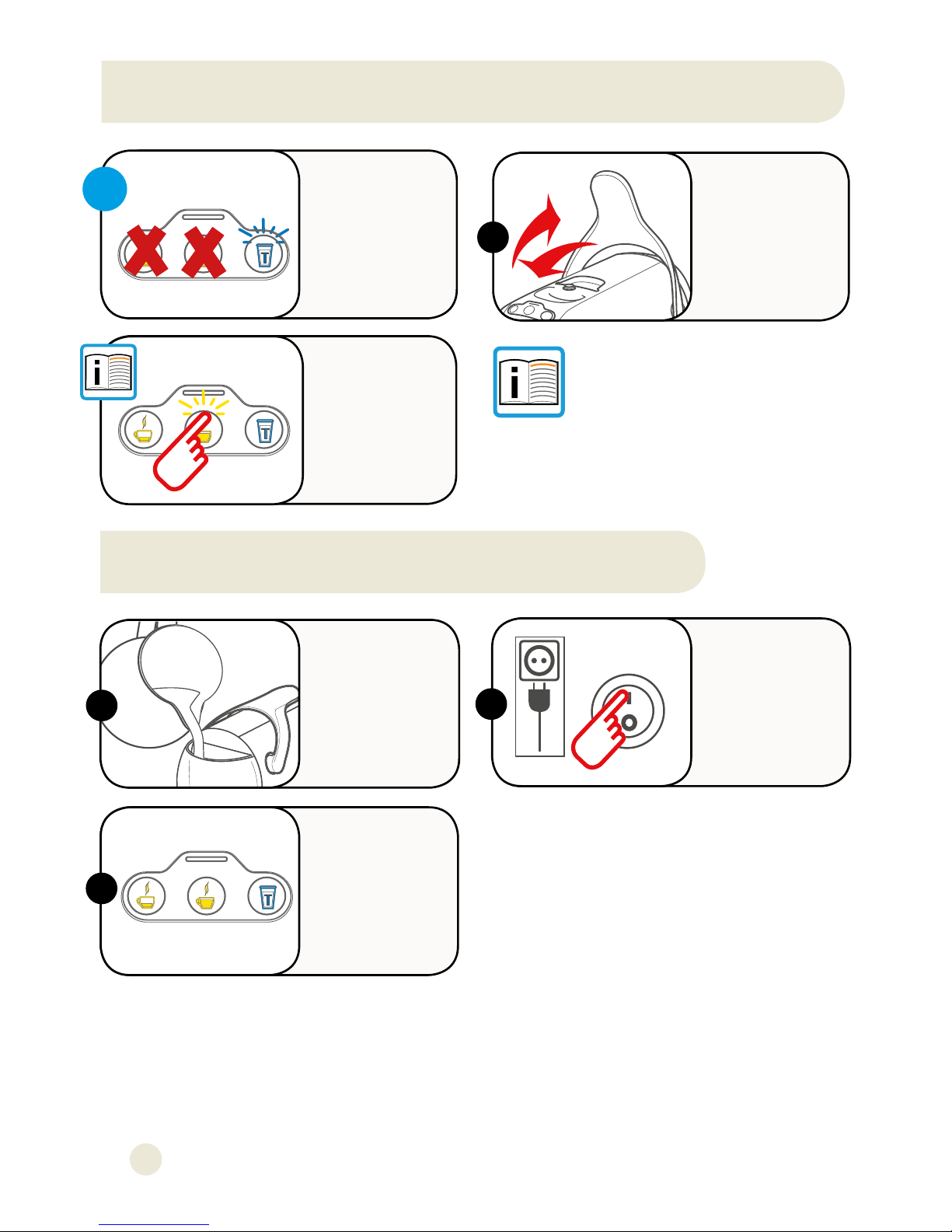

CORRECT USE OF BUTTONS

Check there is no
capsule in the
Capsule
Compartment.
CLOSE the Lever.
7.
FIRST TIME USE
Please ensure you only use Caffitaly
System Capsules which can be
identified by the Caffitaly logo.
ONLY USE WITH
Caffitaly System
Capsules
We recommend following these steps
after not having used the machine for a
long period of time.
8.
Press the Tea
Button. Water will
cycle through the
system (approx. 30
sec.) When done,
the Red Indicator
Light will switch off.
Note: If the Red
Indicator Light
continues to blink
and no water has
been extracted,
repeat Step 6.
When all the button
lights remain steadily
lit, rinse by pressing
the Tea Button.
Press again to
repeat the the rinse
cycle.
After Step 6.
has successfully
completed, all the
button lights will
continue to blink
while your machine
warms up. (Approx.
1 min.)
6.
Place a cup or
mug (at least
250ml) under the
Dispensing Spout.
1.
Open the Water
Tank Cover & fill the
Water Tank with
fresh water to the
Max. Line indicated.
Plug your machine
in and switch it ON
using the
On/Off Switch.
4.
Along with the
button lights, the
Indicator Light will
blink.
Once you have
completed the Rinse
Cycle. Remove the
Drip Tray and Used
Capsule Drawer,
empty any residual
water, rinse with
fresh water and
replace onto your
machine
ON
3.
7.
Continued on next page... >>
2.
9.
WATER
5.

8.

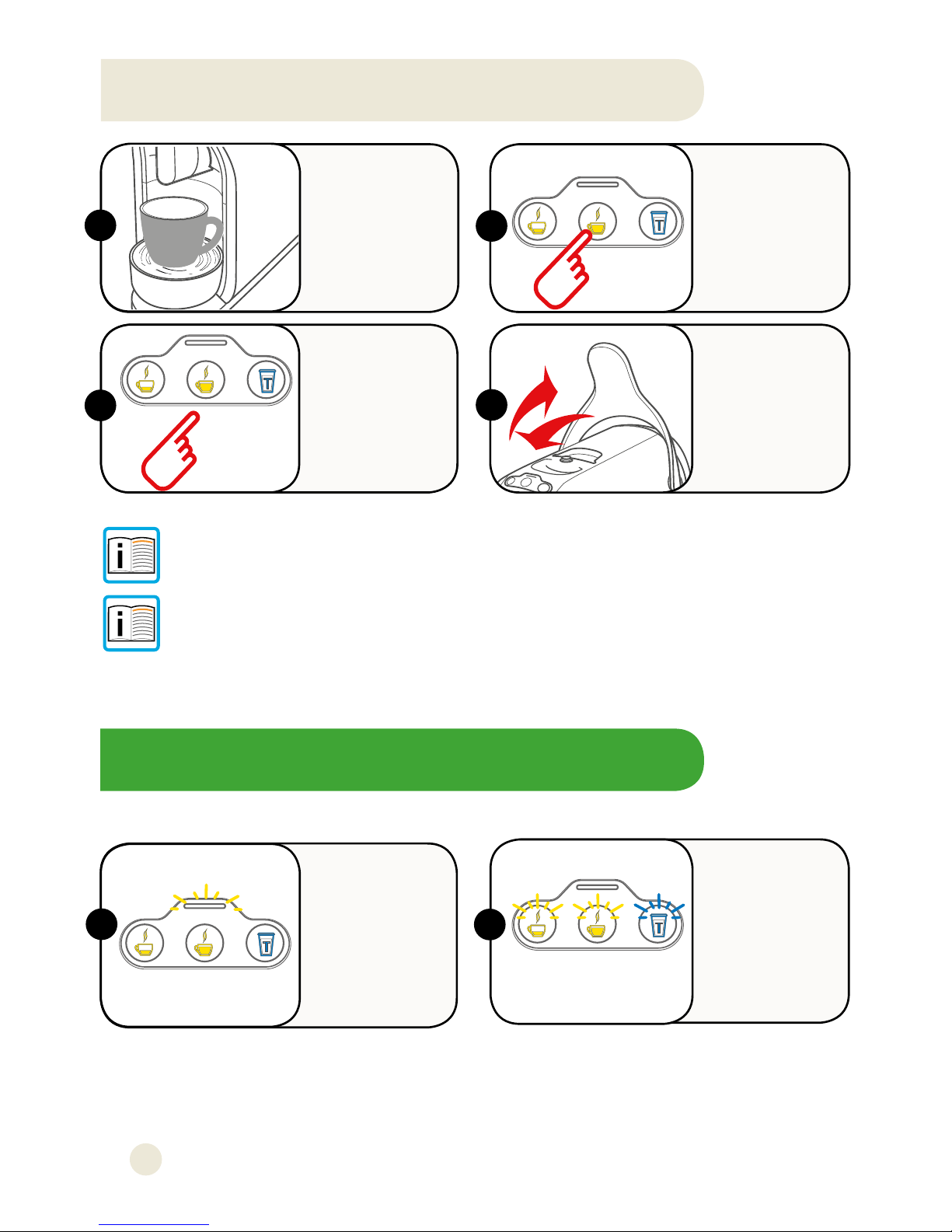

DISPENSING BEVERAGES - Using Factory Settings
3.
Close the
Lever fully.
Insert the capsule,
pressing it gently
into place.
Place a cup or
mug under the
Dispensing Spout.
Select the
Single or Double
Espresso button
depending on the
desired coffee.
The selected
button will blink
and the machine
will stop dispensing
on reaching the
programmed
amount.
4.
2.
Switch the machine
ON using the On/
Off Switch.
Wait for your
machine to warm
up.
Raise the Lever to
open the Capsule
Compartment.
FIRST TIME USE - Continued
10.
Open the Water
Tank Cover & fill
the Water Tank
with fresh water
to the Max. Line
indicated.
Your machine is
now ready to use.
WATER
ON
1.
6.
7.
Warning!
Do not use the
TEA BUTTON (lit in
blue) for dispensing
coffee.
Doing so will damage
the machine and
void your warranty.
Continued on next page... >>
5.

9.
Raise the Lever
to eject the used
capsule into the
Used Capsule
Drawer and then
lower the Lever.
8.
DISPENSING BEVERAGES - Continued
TIP: To ensure
optimum product
delivery between
uses, eject the
used capsule from
your machine &
rinse by pressing
the Double
Espresson button.
DISPENSING TEA OR HOT WATER
Switch the machine
ON using the On/
Off Switch.
Top up the Water
Tank if required.
4.
Raise the Lever to
open the Capsule
Compartment.
ON
1. 2.
All the button
lights will flash
simultaneously for
approx. 60 sec. until
your machine has
warmed up.
When all the
buttons are steadily
lit the machine is
ready for use.
NOTE: If you only
want to use Hot
Water, go directly
to Step 8.
3.
5.
Insert the capsule,
pressing it gently
into place.
Close the
Lever Fully.
Place a cup or
mug under the
Dispensing Spout.
6.
8.
Press and release
the Tea button.
The Tea button will
flash. Dispensing
stops when the
programmed
amount is reached
or press the button
to stop dispensing in
advance.
Continued on next page... >>
7.

10.
DISPENSING TEA OR HOT WATER - Continued
Plug your machine
in and switch it
ON using the On/
Off button. All the
button lights will
flash simultaneously
for approx. 60 sec.
until your machine
has warmed up.
ON
2.
WARNING!
Only use the Tea
button (lit in blue)
for dispensing Tea
and Hot Water.
Dispensing coffee
using this button
will damage your
machine & void your
warranty.
i.
Raise the Lever
to eject the used
capsule into the
Used Capsule
Drawer and close
the Lever.
9.
TIP: To ensure
optimum product
delivery between
uses, eject the
used capsule from
your machine &
rinse by pressing
the Double
Espresson button.
NOTE: The quantity of beverage
dispensed can be programmed
according to personal taste and
the size of the cups or mugs used.
Please refer to ‘Programming the
Quantity of Beverage in a Cup’ on
Page 11.
3.
When all the
button lights are
steadily lit, the
machine is ready
to use.
Open the Water
Tank Cover & fill the
Water Tank with
fresh water to the
Max. Line indicated.
TURNING ON THE APPLIANCE - Daily Use
1.
WATER

11.
Your machine is
initially set for the
use of large cups
or mugs.
For best results
using espresso
cups, you can lift
and rotate the Grid
placed over the
Drip Tray.
This raises the
height of the
cup towards the
Dispensing Spout.
For tall mugs/
latte glasses, the
Drip Tray can
be detached and
removed.
4.

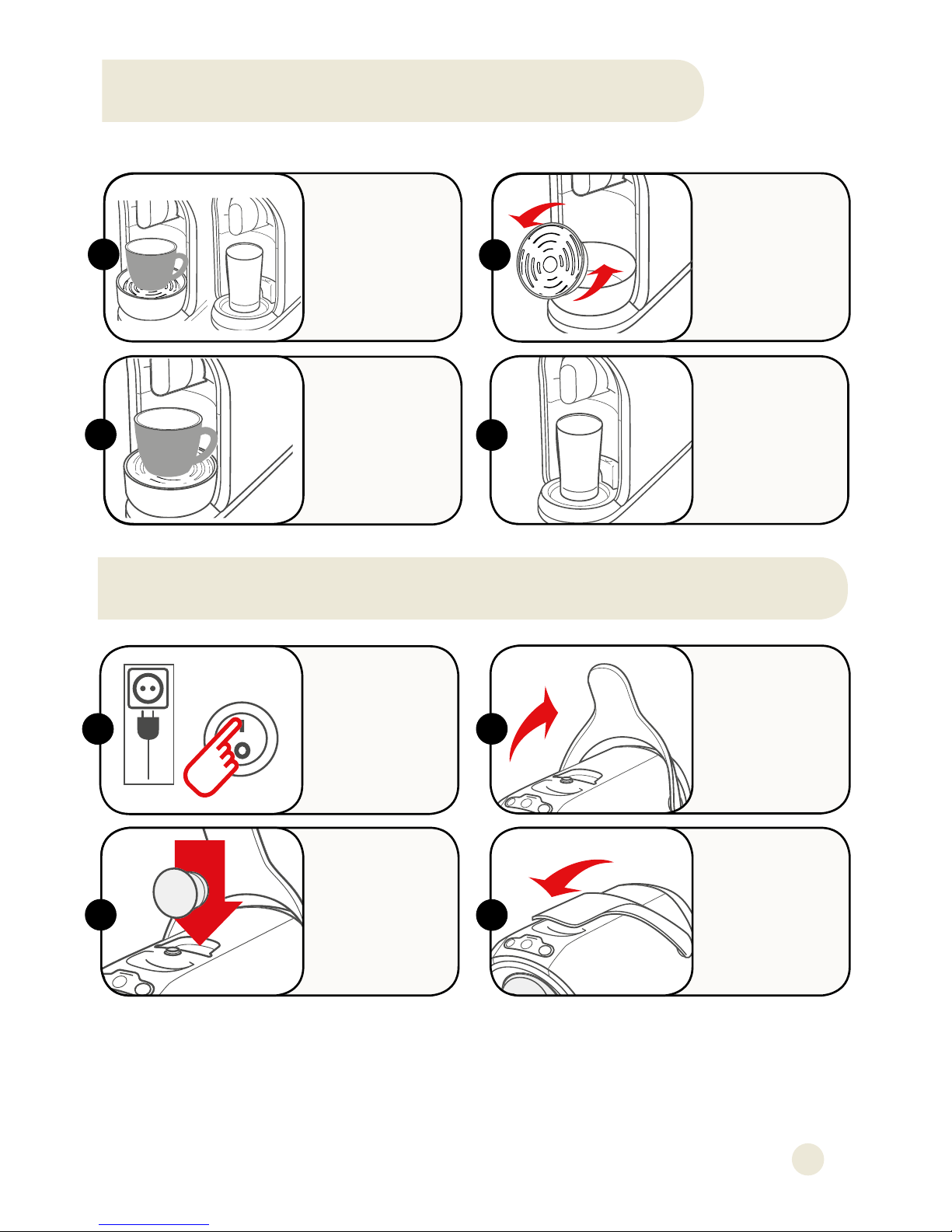

ADJUSTING THE CUP/MUG HEIGHT
Your machine can be adjusted for the use of mugs or espresso cups.
PROGRAMMING THE QUANTITY OF BEVERAGE IN A CUP
Close the
Lever fully.
Insert the capsule,
pressing it gently
into place.
Raise the Lever to
open the Capsule
Compartment.
3. 4.
2.
ON
1.
Switch the machine
ON using the On/
Off Switch.
Wait for your
machine to warm
up.
Continued on next page... >>
2.
1.
3.

12. Continued on next page... >>
PROGRAMMING THE QUANTITY - Continued
NOTE: The quantity of coffee dispensed may be programmed, from a minimum
of 30ml to a maximum of 250ml.
NOTE: Recommend for Programming/Factory Programming:
-30ml: Single Espresso Shot
-60ml: Double Espresso Shot
-120ml: Tea (& Hot Water Button)
*Quantities are approximate and may vary between capsules.
7.
Place a cup or
mug under the
Dispensing Spout.
Press and hold
the desired
beverage button.
On reaching the
desired amount
of beverage,
release the button.
Now the button
is programmed
to your desired
amount.
6.
Raise the Lever to
open the Capsule
Compartment
to eject the used
capsule and lower
the Lever.
9.
GENERAL OPERATING INDICATIONS
When the
Indicator Light
blinks ORANGE
and the machine
emits 3 beeps
it’s advisable to
perform the
Descaling Cycle.
Refer to Page 15
for Descaling
instructions.
DESCALING SIGNAL: HEATING SIGNAL:
1. 2.
When all the
button lights blink
continuously,
the machine is
warming up.
5.

13.
If the Lever is
raised during
the delivery of
a beverage, the
machine can emit
jets of hot water.
RISK OF BURNS!
Close the Lever
fully.
The machine will
immediately stop
dispensing.
The Indicator Light
blinks RED and a
beep is emitted.
2.
IF THE LEVER IS RAISED:
Press any of the
buttons to reset
the alarm.
Your machine is
now ready for use.
4.
3.
1.
WHEN THE WATER RUNS OUT DURING OPERATION:
The Water Tank
is empty when the
Indicator Light
blinks RED and the
machine emits 3
beeps, followed by a
single intermittent
beep.
Press any one of
the buttons. Wait
for the machine
to complete the
Priming Cycle as it
fills up with water.
Fill the Water Tank
with fresh water.
When all the button
lights are lit steadily,
your machine is
ready to use.
1.
3. 4.
2.
GENERAL OPERATING INDICATIONS - Continued
WATER

14.

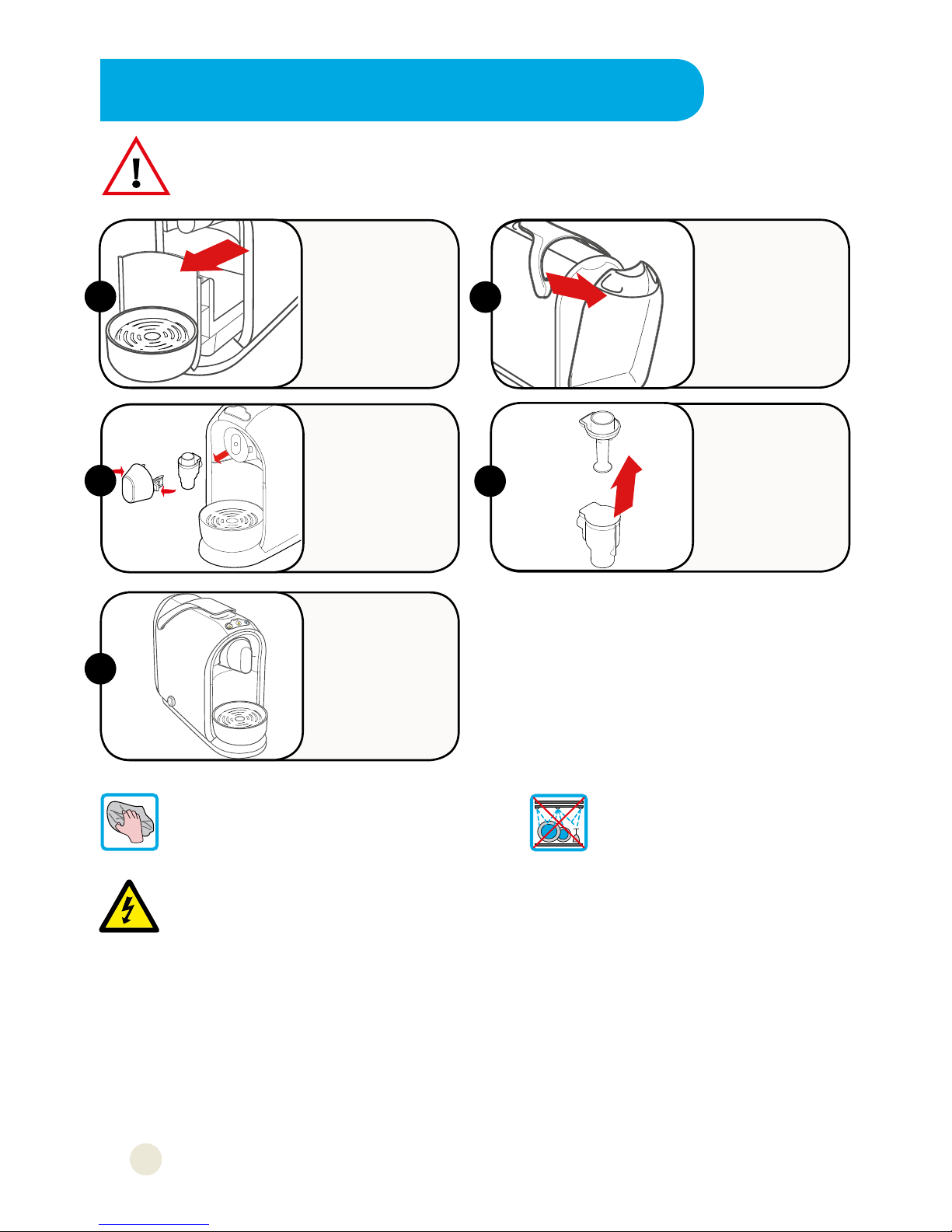

DAILY MAINTENANCE
Remove the Drip
Tray and Used
Capsule Drawer.
Pull out the the
Used Capsule
Drawer, and
remove the Grid
from the Drip Tray.
Remove the Front
Cover of the
Dispensing Spout
by opening the two
tabs at the sides.
Once all the
components
have been rinsed
with fresh water,
reassemble and
replace back onto
your machine.
Disassemble the
Dispenser Body
and rinse with fresh
water.
Remove the Water
Tank. Empty and
rinse with fresh
water.
Note: The Water
Tank is NOT
Dishwasher safe.
2.
Use a soft damp cloth and a mild detergent
to clean the surfaces of the appliance.
DANGER: Never submerge the appliance in water.
Protect the machine from sprays and drips. Water and
electricity together constitute a risk of electrocution.
The plastic parts of the appliance
are NOT dishwasher safe.
4.
5.
1.
3.
Ensure that the beverage dispenser is installed properly prior to operating unit

15.

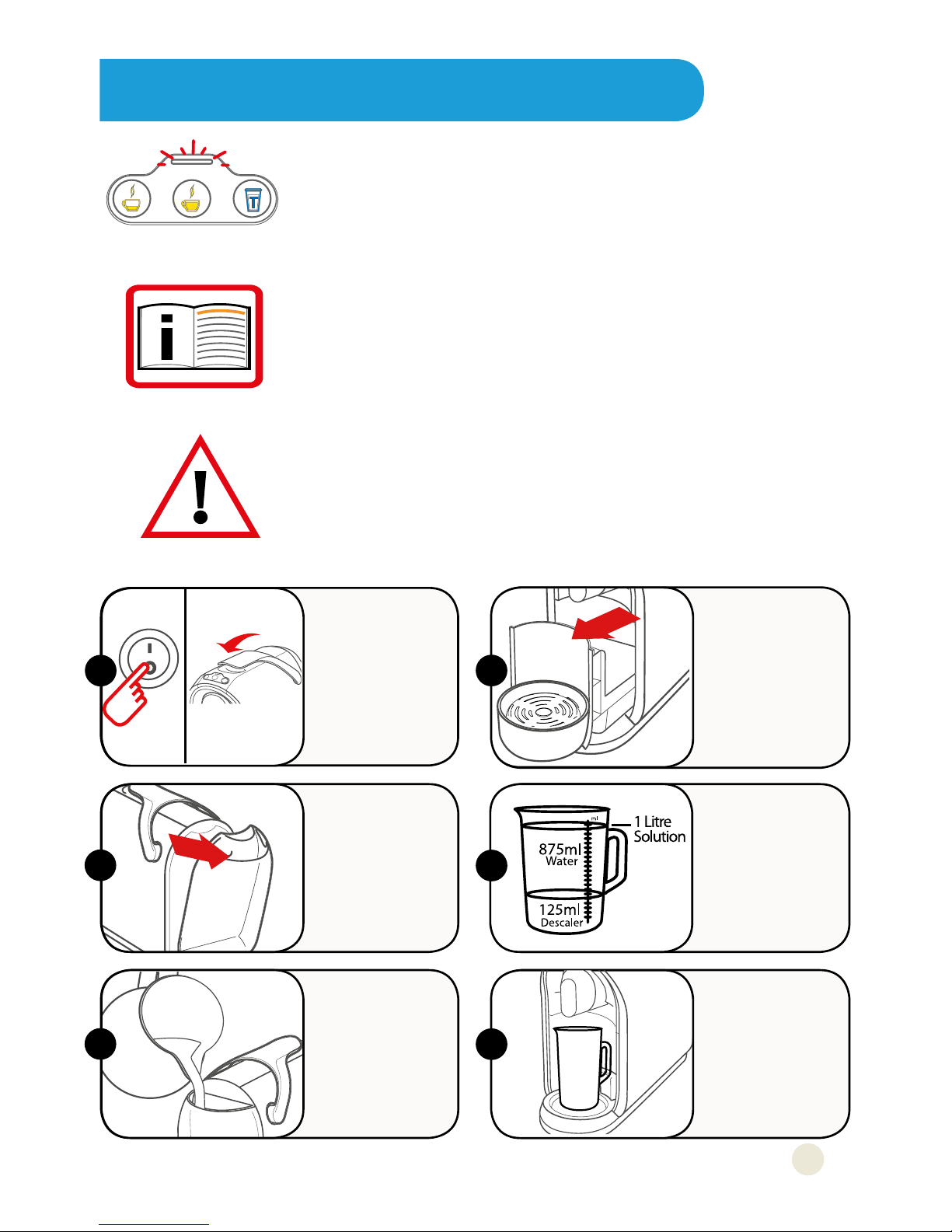

DESCALING INSTRUCTIONS
CAREFULLY read the directions for use on the package of the
descaling agent. Avoid contact with eyes, skin and machine surfaces.
Do not switch the appliance off during descaling, and do not lift the
Lever. Someone must be present during the operation.
Don’t not use vinegar: it could damage your appliance
DESCALING SIGNAL: When the Descaling Indicator Light blinks
Orange and then remains steadily lit. It is advisable to perform the
Descaling Cycle within 48 hours or before next use. Failure to
descale your machine will be detrimental to the taste of the coffee and
may cause long term damage to your machine.
NOTE: Descaling refers to the removal of the natural mineral build
up within the pipes of the machine. If not removed this may result in a
poor quality beverage and eventually block the pipes.
The machine features an advanced program that monitors how much
water is used to dispense beverages. This measurement provides the
user with indications as to when the machine needs to be descaled.
Mix 125ml of the
Descaling Agent
and 875ml of water
to make 1Litre of
Descaling Solution.
Place a 1 Litre
container under the
Dispensing Spout.
Note: Do not leave
the machine as you
may have to empty
the container as it
cycles through the
Descaling Cycle.
Add the 1 Litre of
Descaling Solution
to the Water Tank.
4.
3.
5.
Turn the machine
OFF at the On/
Off Switch.
Ensure there
are no capsules
in the Capsule
Compartment and
lower the Lever.
OFF
1.
Remove the Drip
Tray and Used
Capsule Drawer.
Pull out the the
Used Capsule
Drawer, and
remove the Grid
from the Drip
Tray. Rinse all
components with
fresh water.
Remove the Water
Tank. Empty and
rinse with fresh
water.
Note: The Water
Tank is NOT
Dishwasher safe.
DESCALING
SOLUTION
6.
2.
Continued on next page... >>

DESCALING INSTRUCTIONS - Continued
16. Continued on next page... >>
8.
11.
10.
The appliance
will dispense the
Descaling solution
at intervals: 5 doses
with approx. 4 min.
pause between
each. Total time
approx. 25 minutes.
Remove and rinse
the Water Tank,
refill with fresh
water and replace
into the machine.
Double Espresso
button will be lit and
the Indicator Light
will blink Orange and
Red. Press the
Double Espresso
button to start the
Descaling Cycle.
After approx. 5
min. pause after
the last dose, the
Double Espresso
button will blink &
beep indicating the
Descaling Cycle
has finished.
Do not press any
buttons during this
time. The Indicator
Light will continue
to blink. Note: At the
end of the 5th dose,
the Water Tank will
be empty.
DO NOT REFILL.
Press and hold the
Single and Double
Espresso buttons
and AT THE SAME
TIME, turn ON the
machine.
ON
Remove and
empty the Drip
Tray and Used
Capsule Drawer.
Rinse with fresh
water, reassemble
and replace onto
machine.
13. 14.
Press the Double
Espresso button
to start the Rinse
Cycle. Fresh water
will run through the
machine to rinse.
(Approx. 500ml.)
The Indicator Light
will blink Orange and
Red alternately.
9.
16.
Remove and rinse
the Water Tank,
refill with fresh
water and replace
onto the machine.
When the Rinse
Cycle is complete,
the machine will
beep and all the
button lights will
blink at the same
time. This indicates
the machine is
warming up.
15.
7.
12.

17.
When the button
lights turn on and
remain steadily
lit, the machine is
ready for use.
18.
Remove and
empty the Drip
Tray and Used
Capsule Drawer.
Rinse with fresh
water, reassemble
and replace onto
machine.
17.
DESCALING INSTRUCTIONS - Continued
SAVING ENERGY
2.
The machine will
automatically
reduce power
consumption 10
minutes after last
use.
All the buttons
will slowly and
sequentially blink.
To restore back to
normal operating
conditions, press
any button or lift
the Lever and the
machine will start
warming up.
1.
10Min
3. 4.
When all the button
lights turn on and
remain steadily
lit, the machine is
ready to use.

18.
RESTORE TO ORIGINAL SETTINGS (RESET)
These instructions allow you to reset the machine back to its factory setting – helpful
if you experience an issue with the machine, or you have changed the pour levels for
example, and cannot change them back to their original settings.
Ensure the Lever
is up and switch
the machine Off
using the ON/OFF
Switch.
Switch ON the
machine using the
ON/OFF Switch,
then after 1 second,
CLOSE and OPEN
the Lever within 1
second.
Hold down the
Single Espresso
button for the
whole of STEP 3
and Step 4.
The button lights
will flash and the
RED Indicator Light
will blink indicating
your machine now
needs to be Primed
as directed in ‘First
Time Use’ on Page 7.
5.
OFF
2.
1.
3.
ON The machine will
beep to signal
the reset has
been done, then
release the Single
Espresso button.
4.
If your machine hasn’t entered into Prime mode, please repeat from Step 1. The
timing of Closing and Opening the Lever is precise & may take a couple of attempts
before successful.
If you have reset the machine and the problem still continues, please contact the
Caffitaly System Customer Line. Details on the front cover.

19.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
FIRST USE
There is a burning smell when
the machine first starts and a
beverage button is pressed.
- Machine heating up for the first
time.
- There may be a slight burning smell
coming from the machine when first
used. This is caused by the water
heating as it travels through the
pipes and will dissipate.
- PLEASE NOTE: Steam may appear
be seen coming from the Capsule
Compartment, this is steam from
the hot water entering into the
Capsule Compartment and will
dissipate.
Water residue within the machine
on opening.
- The system is quality checked prior
to dispatch. There may be residual
water left from testing.
- The water residue will be removed
when you conduct the ‘First Time Use’
on Page 7.
RED INDICATOR LIGHT
No beverage is brewed.
The Indicator light blinks RED and
beeps continuously.
- The Water Tank is empty.
- Fill the Water Tank with fresh water.
Press Single or Double Espresso
button. When the buttons remain
steadily lit, the appliance is ready for
use.
The Indicator Light is on and
steadily lit in RED. Water comes
out cold.
- Heating problems.
- Incorrect use of the Tea button.
- Turn off the machine, then turn it back
on after a few minutes.
- The Tea button is only to be used for
Tea capsules and hot water.
Note: If the RED Indicator Light
remains steadily lit after turning the
machine off and on, perform a Factory
Reset as described on Page 18.
If the problem persists please contact
the Caffitaly Customer Service Line
on:
- AU: 02 9846 0307
- NZ: 0800 450 894
The RED Indicator light is lit
steadily and the buttons are
flashing.
- Priming Press the Double or Single Espresso
button to commence the Prime
process. Refer to Page 7, ‘First Time
Use’.
ORANGE INDICATOR LIGHT -
DESCALING. The Indicator Light is
lit ORANGE.
- Machine requires Descaling.- Refer to ‘Descaling’ on Page 15 to
descale the machine.

TROUBLESHOOTING - continued
PROBLEM CAUSE SOLUTION
DISPENSING
When a coffee Dispensing
button is pressed, the
machine starts running, but
stops without dispensing
coffee or after dispensing
only a small amount. (Under
30ml).
- Pre-infusion;
- Incorrect beverage quantity
programming.
- Pre-infusion involves a small amount of
hot water running through the filters
ensuring there is uniform distribution
of water over the entire surface of
coffee before the full beverage is
dispensed.
- Reprogram the quantity of beverage
corresponding to your selected
button.
Refer to “Programming the Quantity
of Coffee in a Cup’ on Page 11.
Coffee being dispensed very
slowly and is weak or poor
quality.
- Incorrect use of the buttons
(Use of Tea button);
- Incorrect coffee capsule being
used.
- Only use the Single or Double Espresso
buttons.
-- Ensure you are using Caffitaly System
compatible capsules only. There will
be a Caffitaly System logo on the
packaging.
Coffee grinds appearing in the
cup or mug
- Incorrect coffee capsule being
used.
- Not cycling water through the
machine after use.
Ensure you are using Caffitaly System
compatible capsules only. There will
be a Caffitaly System logo on the
packaging.
- Cycle water through the machine
after each use by pressing the Double
Espresso button. This also assists in
stopping the coffee grinds building up
and blocking the system.
OTHER
The Lever cannot be lowered.
- The Used Capsule Drawer is full;
- Capsule is stuck in the Capsule
Compartment.
- Empty the Used Capsule Drawer.
- Gently push down on the jammed
capsule with a new capsule.
Water is leaking from the
Used Capsule Drawer.
- Beverage has been dispensed
without using a capsule
(excluding Tea/Hot Water
button):
- Not emptying the Used
Capsule Drawer after using the
Cleaning/Rinse Cycles:
- Used Capsule Drawer is full of
capsules.
- Regularly check the Used Capsule
Drawer for residual water and empty
if required.
-Check & empty the Used Capsule
Drawer after each Cleaning/Rinse
Cycle.
- Empty the Used Capsule Drawer.
20.
