Caffitaly System S14 User manual

INSTRUCTION MANUAL
Imported by Maranatha Import Export Pty Limited
13 Hoyle Avenue, Castle Hill, NSW 2154
Phone: [phone]
E-Mail: [email protected]
www.caffitalysystem.com.au
MODEL S14

z
Introduction:
• Welcome 2
• Safety Warnings 3
• Symbols Guide 4
Instructions:
• Machine Components 5
• First Time Use 6
• Correct Use Of The Buttons 7
• Dispensing Beverages - Using Factory Settings 8
• Turning On The Appliance 9
• Adjusting The Cup/Mug Height 9
• Programming The Quantity Of Beverage In A Cup 10
• General Operating Indications 11
Cleaning and Maintenance:
• Daily Maintenance 12
• Descaling 13
• Saving Energy 15
Miscellaneous:
• Restore Original Settings (RESET) 16
• Troubleshooting 17
• Technical Data 18
• Instructions for Use and Disposal 18
• Caffitaly System Care Contact 18
INDEX
1.

2.
CONGRATULATIONS
on the purchase of your New Caffitaly System S14 Machine.
Thank you for having chosen our product and for your confidence in
our company. You can savour your favourite hot beverages at any
time of the day with our appliance by choosing one of the capsules
that Caffitaly System offers you. For example: an espresso, hot
chocolate or a tea will be ready in just a few seconds.

z
• This appliance is intended to be used in domestic environments.
Not suitable for Professional use.
• Use ONLY Caffitaly System compatible capsules. Damage caused by using incorrect
capsules will void the guarantee.
• Use the TEA button (Blue) for Tea and Hot Water ONLY!
Incorrect use of this button will cause damage to the machine and void the guarantee.
• Use of the appliance in any manner other than as directed herein could cause harm to
persons and void the guarantee. The manufacturer will not be responsible for injury or
damage resulting from improper use of the appliance.
• After removing the packaging, check that the appliance is not damaged. If damage is
detected, or upon the first sign of a defect (unusual noise or odours), or if any other
problem is detected inside the appliance, do not use it and contact the Maranatha
Customer Service Line on 02 9846 0307.
• The packaging elements (plastic bags, etc.) must not be left within reach of children as
they are potential sources of danger.
• Only use the appliance if the power cord is intact, if the cord is damaged it must be
replaced by the manufacturer or qualified person, due to potential electrical safety risks.
Contact the Maranatha Customer Service Line on 02 9846 0307.
• Use and store the appliance indoors. Make sure the electrical elements, plug and cord
are dry. Never submerge the appliance in water. Protect the appliance from sprays and
drips. Water and electricity together constitute a risk of electrocution.
• Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
• Only connect the appliance to power outlets complying with the requirements of the law.
Make sure that the power supply voltage matches the rating shown on the data plate
on the bottom of the appliance.
• Do not pull on the power cord to disconnect it. Remove the plug carefully to avoid
damage to the outlet.
SAFETY WARNINGS
Carefully read the following instructions. In this way you will avoid the risk of personal
injury and damage to the appliance.
GUARANTEE
VOID
X
X
3.
Continued on next page... >>

• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance
• Never place your hands inside the capsule compartment. There is a risk of injury.
• Do not open the lever while the appliance is operating. If the lever is raised during the
delivery of a product, the machine can emit jets of hot water. Risk of Burns!
• Do not remove parts of the appliance, OR insert objects into the openings. This could
cause electric shocks! Any operation that is not described in this instruction manual
should only be performed by an Authorised Support Centre. Please contact the
Maranatha Customer Service Line on 02 9846 0307.
• Install the appliance on a solid, stable, heat resistant surface with an incline no greater
than 2 degrees.
• When the Indicator Light blinks ORANGE and the machine emits 3 beeps, it is advisable
to perform the descaling cycle, as illustrated Page 13. If you do not, the appliance may
be damaged.
• Clean the appliance carefully and regularly with a soft cloth and a mild detergent, do
not use alkaline cleaning agents. If it is not cleaned, the build-up that forms may be
hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
• Unplug the machine if you do not expect to use the appliance for a long period of time
(leaving on vacation, etc.).
SAFETY WARNINGS - Continued
SYMBOLS GUIDE
CAUTION: This is the safety warning symbol. It is used to call your attention
to possible risks of personal injury. Abide by the safety messages provided
in order to avoid possible injury or death.
This is the symbol
used to highlight some
actions that will optimise
the use of this appliance.
Not
Dishwasher
Safe
Maintenance
Tips
4.

z
Power Cord
MACHINE COMPONENTS
5.
Dispensing
Spout
Lever for
opening and
closing Capsule
Compartment
Water Tank
Water Tank
Cover
Capsule
Compartment
Used Capsule
Drawer
Power
On/Off
Switch
Drip Tray
Diagram 1:
Diagram 2:
TEA Button-120ml
(Tea & Hot Water)
(Blue)
Double Espresso
Button
60ml (White)
Single Espresso
Button
30ml (White)
Indicator Light
Orange=Descale
Red=Check System

FIRST TIME USE
We would also recommend following these steps after not
having used the machine for a long period of time.
Continued on next page... >>
Along with the
Button lights,
the Indicator
Light will also
alternately blink
RED.
4.
Plug in
appliance.
Switch machine
on using the
On/Off Switch.
2.
Fill the tank with
fresh, still water
(either by filling
through the
water tank cover
or removing
the water tank).
1.
Press any of the
buttons. The machine
will draw water
through the system.
(This will take about
30 sec). When done
the the Red Indicator
Light will switch off.
6.
7.
Place a large
empty container
(at least 250 ml)
under the coffee
dispensing spout.
!
6.
NOTE: If the Red
Indicator Light
continues to blink
and no water has
been extracted,
repeat step 6.
Make sure the
lever is closed.
*Ensure there is no
capsule in machine.
After Step 6
has successfully
completed all the
button lights will
continue to blink, the
machine is warming
up. (This will take
about 1 min)
ON
5.
3.

z
Tea or Hot Water Button - 120mL
(Lit in BLUE) should only be used for
tea capsules or to add hot water.
Do not use the Tea Button
for espresso coffee or
any other beverages except tea
(capsules appropriate for the Tea
Button will be indicated on the
packaging). Inappropriate use of this
button may damage the machine
and void your warranty.
BEFORE FIRST USE - Continued
CORRECT USE OF THE BUTTONS Single Espresso Button - 30ml
(Lit in WHITE). Use for dispensing a
single espresso shot.
When in doubt follow the
directions on the capsule box
regarding required button use.
Diagram 3:
7.
Double Espresso Button - 60ml
(Lit in WHITE). Use for dispensing
a double espresso coffee for a
stronger beverage. Also suitable
for Hot Chocolate, Chai Latte and
similar beverages (NOT TEA).
6.
8.
When all the
button lights
remain steadily
lit, rinse by
pressing the Tea
Button. Press
again to repeat
rinse cycle.
10.
At the end of this
operation, pull
draw forward and
empty any water
from the used
capsule draw.
All button lights
lit steadily, your
machine is now
ready to use.
9.

DISPENSING BEVERAGES - Using Factory Settings
MAINTENANCE TIP: Between uses, to ensure optimum product delivery, remove
used capsule from machine and rinse by pressing any button.
NOTE: The quantity of beverage dispensed can be programmed according to
personal taste and the size of the cups or mugs used. Please refer to chapter
“Programming the quantity of beverage in a cup” on Page 10.
8.
Raise the lever
to eject the used
capsule into the
drawer.
Close the lever.
Insert the
capsule, pressing
it gently into
place.
Close the lever
fully and place
a cup or mug
under the coffee
dispensing spout.
Raise the lever to
open the capsule
compartment.
Switch the
machine on
using the On/
Off Switch.
Wait about 1
min for machine
to warm up.
Press and release
the button
corresponding
to the type of
beverage you want
as per Diagram 3
on Page 7.
5.
The selected
beverage button will
blink and machine
will stop dispensing
on reaching the
programmed
quantity and emit
a beep.
6.
ON
7. 8.
4.
3.
2.
1.

z

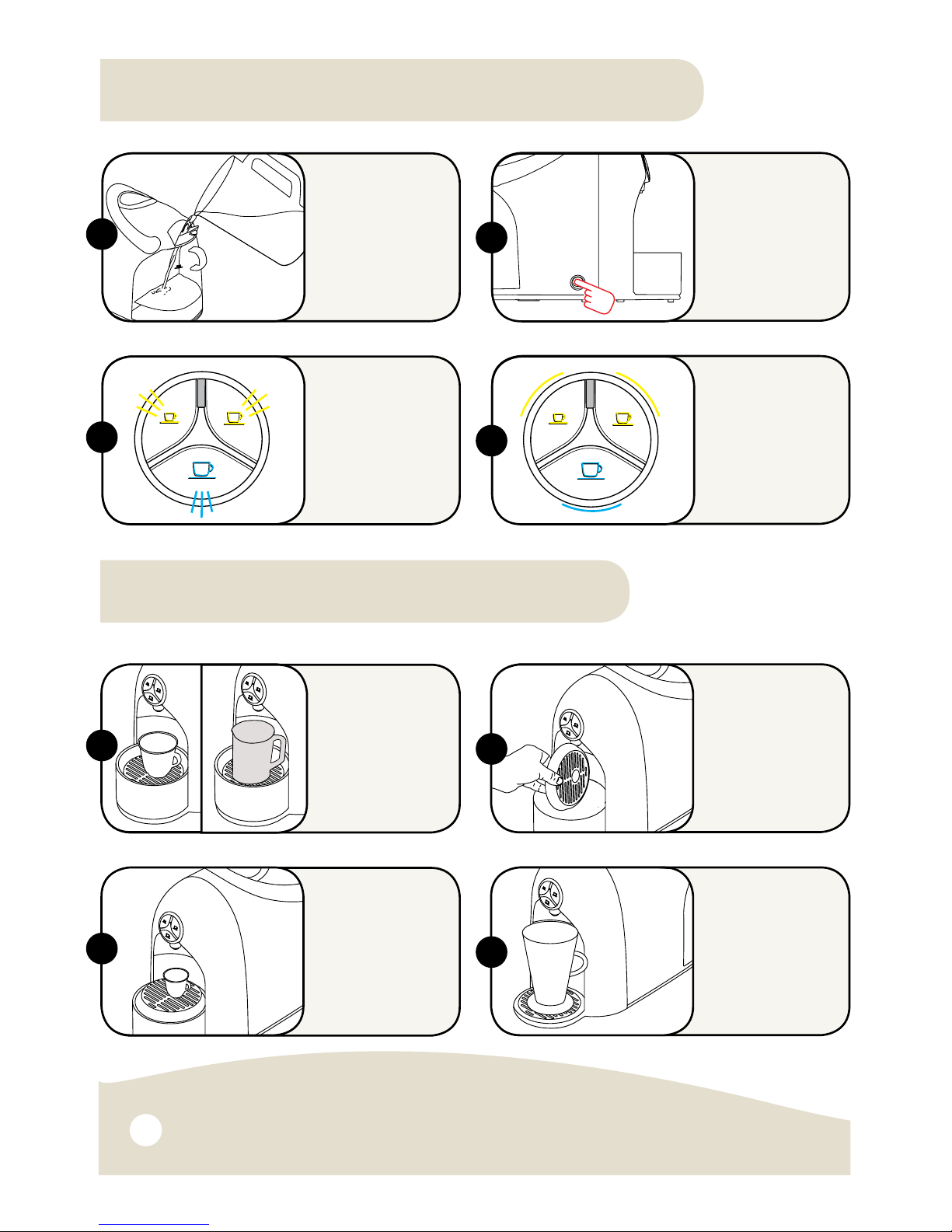

TURNING ON THE APPLIANCE - DAILY USE
ADJUSTING THE CUP/MUG HEIGHT
Fill the tank with
fresh, still water.
The appliance
is initially set for
the use of large
cups or mugs.
The appliance can be adjusted for the use of mugs or espresso cups.
This raises the
height of the
cup towards
the dispensing
spout.
1.
3.
Switch the
machine on
using the On/Off
Switch.
Wait about 1 min
for machine to
warm up.
For best results
using espresso
cups, you can lift
and rotate the
grid placed over
the drip tray.
2.
4.
9.
When all the
button lights blink
continuously,
the machine is
warming up.
(This will take
about 1 min)
When all the
button lights are
lit steadily, your
machine is ready
to use.
ON
1.
3.
2.
4.
For very tall
mugs/latte
glasses the
drip tray can
be removed
completely.

PROGRAMMING THE QUANTITY OF BEVERAGE IN A CUP
ON
Switch the
machine on
using the On/
Off Switch.
Wait about 1
min for machine
to warm up.
1.
Insert the
capsule, pressing
it gently into
place.
Place a cup or
mug under the
coffee dispensing
spout.
On reaching the
desired amount
of beverage,
release the
button.
Now the button is
programmed
to your desired
amount.
Raise the
lever to open
the capsule
compartment.
Close the lever
fully.
6.
NOTE: The quantity of coffee dispensed may be programmed,
from a minimum of 30ml to a maximum of 250ml.
NOTE: Recommended Programming/Factory Programming:
- 30ml: Single Espresso Shot
- 60ml: Double Espresso Shot
- 120ml: Tea (& Hot Water Button)
*Quantities are approximate and may vary slightly between capsules.
10.
2.
3. 4.
5.
Press and release
the button
corresponding
to the type of
beverage you want
as per Diagram 3
on Page 7.
8.7.

z

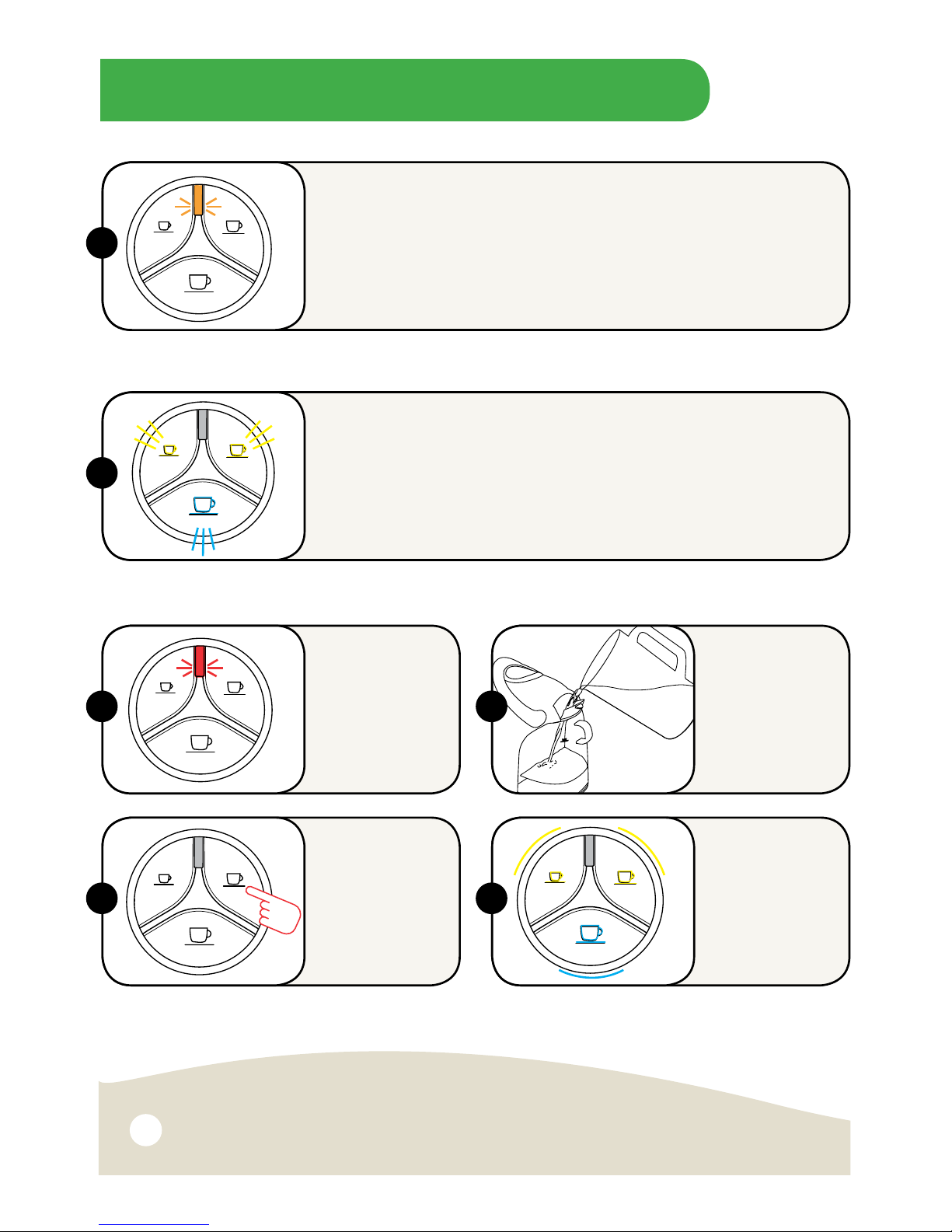

GENERAL OPERATING INDICATIONS
When the Indicator Light blinks ORANGE and the machine emits
3 beeps (after which it will remain lit), it is advisable to perform the
descaling cycle.
See section: Descaling on Page 13
DESCALING SIGNAL:
HEATING:
WHEN THE WATER RUNS OUT DURING OPERATION:
The water tank is
empty when the
Indicator Light
blinks RED and
the appliance
emits 3 beeps,
followed by a single
repeated beep.
Press any one
of the buttons.
Wait for the
machine to
complete the
priming cycle as
it fills with water.
Fill the tank with
fresh, still water.
When the
Button Lights
turn on and
remain steadily
lit, the appliance
is ready for use.
1.
1.
1.
3.
2.
4.
3 Beeps
11.
When all the button lights continuously blink,
the machine is warming up.
(This will take about 1 min)
3 Beeps

DAILY MAINTENANCE
Remove the drip
tray and used
capsule drawer.
Remove the grid.
Empty the drip
tray and rinse it
out with water.
Pull out the
capsule drawer;
empty and rinse it.
Remove the
water tank. Empty
and rinse out the
tank. The water
tank is NOT
dishwasher safe.
4.
Use a soft damp cloth and a mild detergent
to clean the surfaces of the appliance.
DANGER: Never submerge the appliance in water.
Protect appliance from sprays and drips. Water and
electricity together constitute a risk of electrocution.
The plastic parts of the appliance
are NOT dishwasher safe.
12.

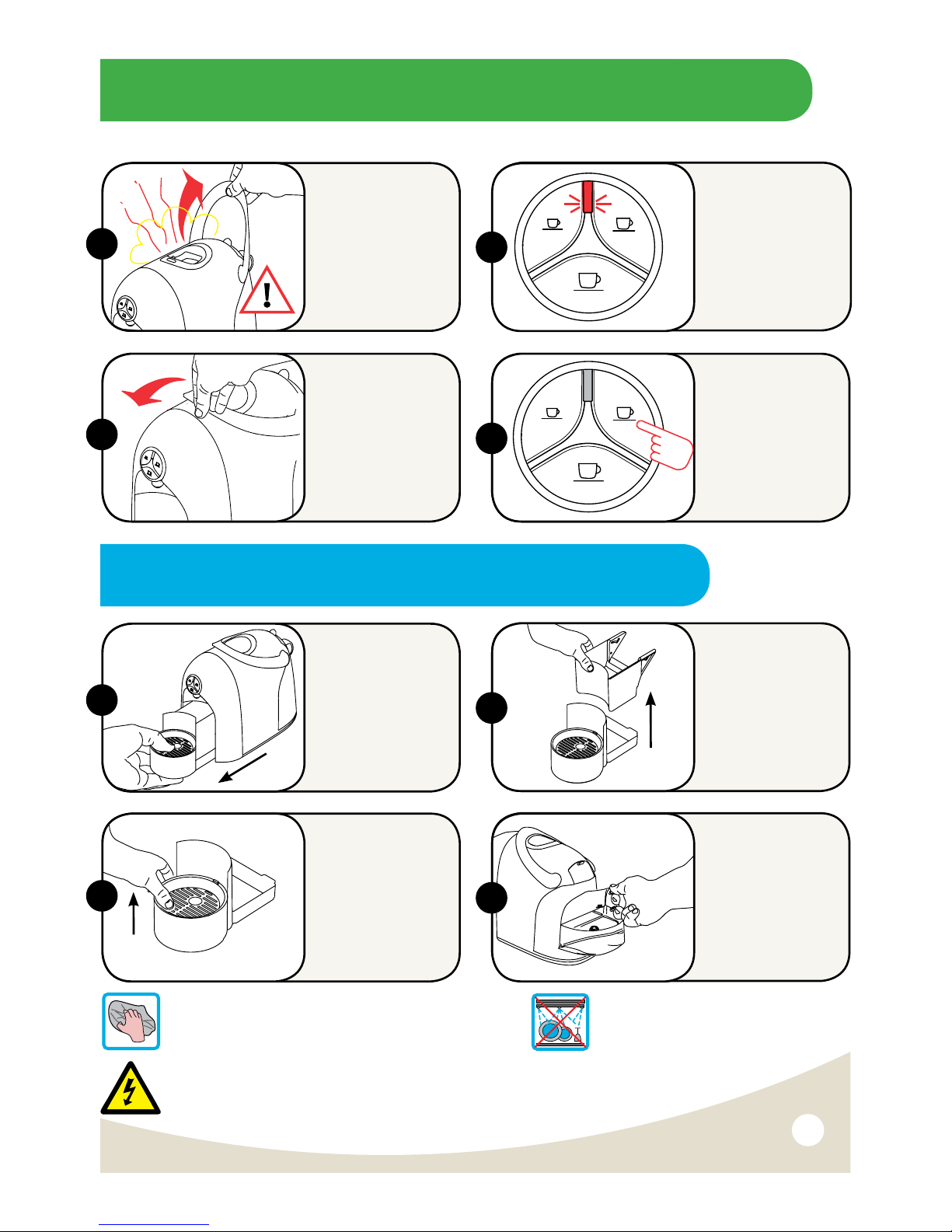

GENERAL OPERATING INDICATIONS - Continued
If the lever is
raised during
the delivery of
a product, the
machine can emit
jets of hot water.
Risk of burns!
Close the lever
fully.
The Indicator light
blinks RED and a
beep is emitted.
The appliance will
immediately
stop dispensing.
2.
IF THE LEVER IS RAISED:
1 Beep
Press any one
of the buttons to
reset the alarm.
The appliance is
ready for use.
4.
1.
3.
1.
3.
2.

z
DESCALING INSTRUCTIONS
Switch off
machine using
the On/Off
Switch. Lower
the lever, ensure
no capsule in
machine.
1.
Remove drip
tray and used
capsule drawer.
Empty, then
replace used
capsule drawer
2.
CAREFULLY read the directions for use on the package of the descaling agent.
Avoid contact with eyes, skin and machine surfaces. Switch the appliance off during
descaling, and do not lift the lever. A person must be present during the operation.
Do not use vinegar: it could damage your appliance
DESCALING SIGNAL: When the Indicator Light blinks ORANGE and the machine emits 3
beeps, it is advisable to perform the descaling cycle, as illustrated below.
PLEASE DO NOT LEAVE THE MACHINE DURUNG THE DESCALING PROCESS
Remove, rinse
and empty the
water tank.
3.
Mix 125ml of the
Cafetto Organic
Descaling agent
and 875ml of
water (to make 1
litre of solution).
1Litre
Solution
875ml
water
4.
OFF
Continued on next page... >>
13.
NOTE: Descaling refers to the removal of the natural mineral build up within the
pipes of the machine. If not removed this may result in a poor quality beverage and
eventually block the pipes.
The machine features an advanced program that monitors how much water is
used to dispense beverages. This measurement provides the user with indications
as to when the machine needs to be descaled.

DESCALING INSTRUCTIONS - Continued
Replace water
tank and pour
1 litre descaling
solution into it.
5.
Continued on next page... >>
14.
The appliance
will dispense the
descaling solution
at intervals: 5
doses with a 4 min
pause between
each. Total time
about 25 min.
9. 10.
25min
12.
Rinse the
water tank and
fill it with fresh
still water to
max line.
11.
2 Beeps
14.
Press the
Double Espresso
button to start the
rinse cycle.
Fresh water will be
run through the
appliance to rinse
(about 500ml).
Remove and
empty used
capsule drawer,
reassemble with
drip tray and
replace.
13.
Press and hold
the Single &
Double Espresso
buttons and at
the same time
turn on the
machine.
Double Espresso
Button will be lit
and Indicator light
will blink.
Press the Double
Espresso button
to start the
descaling cycle.
8.
ON
6.
7.
Place a container
(at least 1L) under
the coffee dispensing
spout. NB: Do not
leave machine as you
may have to empty
the container as it
cycles through the
Descaling process.
Do not press any
buttons during this
time. The Indicator
Light blinks.
NB: At the end of
final cycle 5, the
watertank will be
empty. Do not refill.
The Double
Espresso button
will blink & beep
twice, after about
5-7 mins it will
light up steadily
then descaling is
complete.

z
DESCALING INSTRUCTIONS - Continued
17.
Remove, empty,
rinse and then
replace drip tray
and used capsule
drawer.
18.
15.
The machine will
automatically
reduce
consumption one
hour after the
last use.
1. 2.
4.

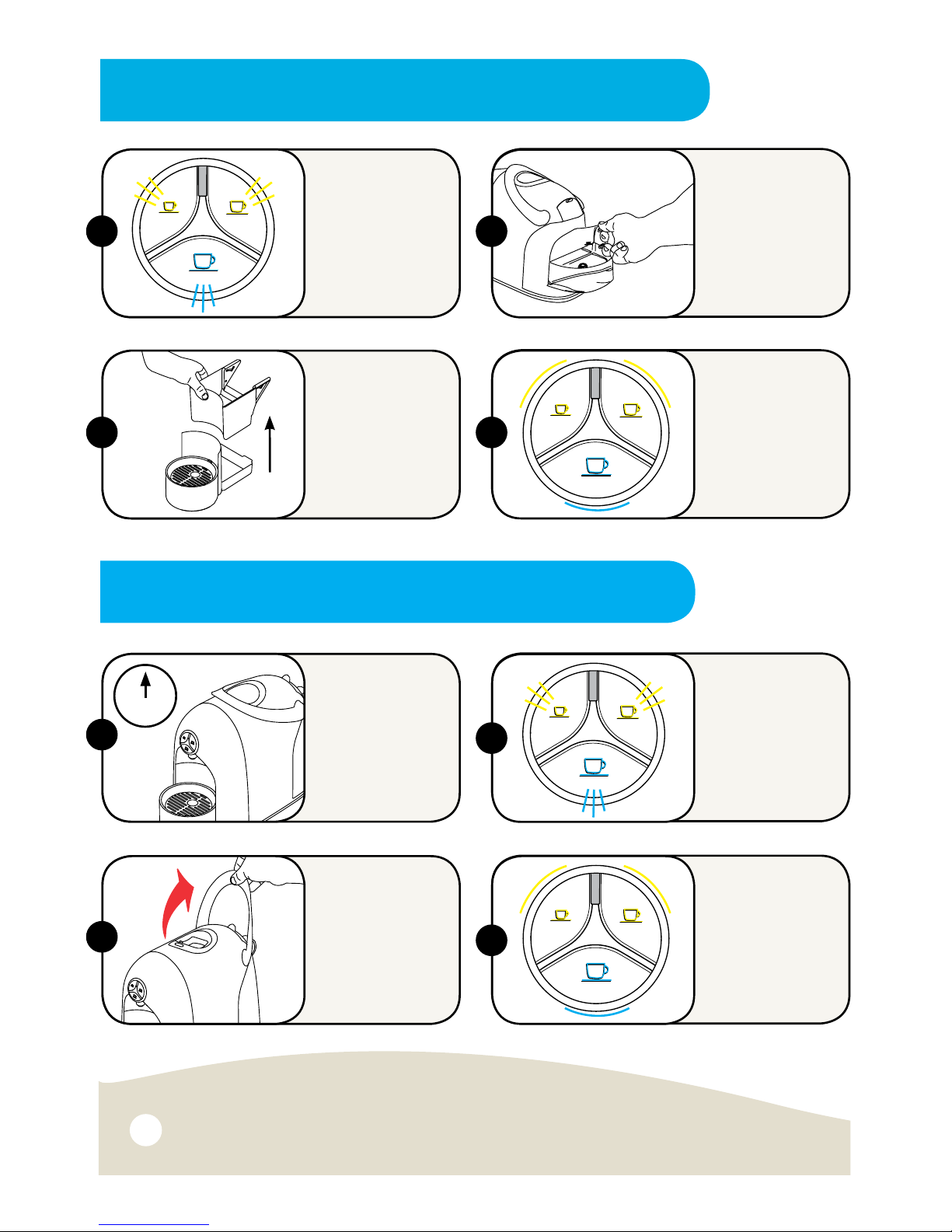

SAVING ENERGY
To restore
normal operating
conditions, press
any button or
raise the lever.
The appliance will
start warming up.
All the buttons
will slowly and
sequentially blink.
When all the
buttons turn
on and remain
steadily lit, the
appliance is ready
for use.
1Hr
When the rinse
cycle is complete,
the machine
beeps and all
the buttons will
blink at the same
time (machine is
warming up).
15.
When the buttons
turn on and
remain steadily lit,
the appliance is
ready for use.
16.
1 Beep Rinse water
tank and fill
it with fresh
still water.
3.

RESTORE ORIGINAL SETTINGS (RESET)
These instructions, allow you to reset the machine back to its factory settings –
helpful if you experience an issue with the machine, or you have changed the pour
levels for example and cannot change them back to their original levels.
Switch off using
the On/Off
Switch. Ensure
Silver Lever is up.
Switch on using
the On/Off
Switch, then
after 1 sec, close
and open the
silver handle.
Hold down the
Single Espresso
button for the
whole of Step 3
and Step 4.
5 beeps signal
that the reset
has been done;
then release
the Single
Espresso button.
2.
4.
OFF
ON
1sec
3.
5 Beeps
1.
NOTE: Now that the machine has been RESET it is in First Use Mode.
We recommend following the First Use steps again on Page 6.
NOTE: If you have RESET the machine and the problem still continues, you should
Contact the Maranatha Customer Service Line on 02 9846 0307.
16.

z
No beverage is brewed.
The Indicator light
blinks RED.
The coffee is not
hot enough.
The lever cannot be
lowered.
The Indicator light
is on and steadily lit in
RED and water is cold.
When a coffee dispensing
button is pressed, the
machine seems to start
running, but stops without
dispensing coffee or after
dispensing only a small
amount.
Indicator Light is Orange
If any of the above solutions are not correcting your problem or you have any further
questions/enquiries, please contact the Maranatha Customer Service line on:
02 9846 0307
- The used capsule drawer
is full or a Capsule stuck
inside the machine.
- Heating problems.
- Incorrect quantity
programming.
- Machine requires
Descaling.
- Incorrect coffee capsule
being used.
Coffee grinds appearing
in cup.
- Empty out the used capsule
drawer.
- Gently push down on jammed
capsule with a new capsule.
- RESET the machine as per
instructions on Page 16.
- If problem persists please contact
the Maranatha Customer Service
Line on 02 9846 0307.
- Reprogram the quantity
corresponding to that button.
See chapter. “Programming the
quantity of coffee in a cup” on
Page 10.
- If that doesn’t work follow the
RESET instructions as illustrated
on Page 16.
- Refer to sections - Descaling and
perform the steps to descale
machine found on Page 13.
- Capsules suitable for the Caffitaly
systems are only suitable for this
machine (there will be a Caffitaly
logo on the packaging).
- Cold milk, cups or mugs. - Preheat milk and preheat cups or
mugs by running under hot water.
- The water tank is empty.
and/or
- Incorrect use of the
Tea button.
- Fill the tank with fresh water.
Press Single Espresso button.
When the buttons remain steadily
lit, the appliance is ready for use.
- The Tea Button is Only to be used
for Tea Capsules and hot water.
PROBLEM CAUSE SOLUTION
TROUBLESHOOTING
17.

TECHNICAL DATA
All materials and objects in contact with food
products comply with the requirements of
European Regulation 1935/2004.
The appliance has been manufactured using high quality
materials that can be reused or recycled. Dispose of the
appliance in a suitable waste collection centre.
See the data plate on the base of the machine.
Max. 15 bar
< 70dB A
Approx. 4 kg
1,2 litres
ambient temperature: 10°C ÷ 40°C
170 mm 280 mm 350 mm
CAFFITALY SYSTEM CARE CONTACT
Phone: [phone]
E-Mail: [email protected]
For more information on the machine operation, available capsules
and other useful hints and tips go to the Caffitaly website:
www.caffitalysystem.com.au
18.

For more information on the machine operation,
available capsules and other useful hints and tips
go to the Caffitaly website:
www.caffitalysystem.com.au
