CM580-59F
User Manual

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
2
Copyright Statement：
All contents included in this user manual are protected by copyright law, any organization or
person has no right to copy, reproduce and spread by any method, unless gets the written
authorization from Xiamen Caimore communication technology co.,Ltd.
Trademark：
、Caimore other Caimore brands are possessed by Xiamen Caimore
communication technology co.,Ltd. Other brands or registered brands mentioned in
this page are possessed by their owner.
Notice:
The file will be updated because of the unscheduled upgrade of products and other reasons.
Unless there are other agreement, the file is only used as the manual guide, the information
and suggestion included in this page do not constitute any express or implied warranty.
Special Statement：
The recommended configuration or default configuration on the product manual does not
represent a suitable configuration. The customer must adjust to the configuration that suits his
or her business according to the needs of his business.
The factory configuration parameters are for user reference only. When the user receives the
device, the user must check all the time, regardless of whether there is any other agreement,
and must adjust and configure the relevant parameters according to their own project and
business needs. We are not responsible for any problems caused by improper parameter
configuration or errors.
Meanwhile, users need to strengthen the prevention of virus attack, our company does not
assume any responsibility for the Abnormal communication caused by the virus attack
Version Statement：
Version
Modify Statement
Release Date
Author
Issued
V1.0
The first time formal modify
2018-08-26
LJH
V1.1
The second time formal modify
2020-08-26
LJH

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
3
Technical support：
Add: 901/904 Unit, No.63 Chengyi North Street, Jimei Software Park III, Xiamen, China
Website：http://www.caimore.net
Tel：[phone] Fax：[phone]
Email：[e-mail]
Safety Instructions
1. Please read this safety instruction carefully.
2. Please keep this manual for future reference.
3. Please unplug the power cord from the socket before cleaning the equipment with a wet
cloth. Do not use liquid or decontamination sprays to clean equipment.
4. For devices that use power cords, there must be an easily accessible power outlet around
the device.
5. Please do not use the equipment in damp environment.
6. Before you connect the device to the power socket, make sure the voltage of the power
socket meets the requirements.
7. Please place the power cord where it is not easy for people to trip over. Do not cover the
power cord with any thing.
8. Please do not turn on the device by yourself. To ensure your safety, turn on the equipment
by a certified engineer.
9. Please do not place the device in an environment beyond the recommended storage
temperature range.
10. The machine should be installed horizontally or on the wall, avoid the installation in the
place of violent vibration, do not put other equipment on the machine.
11. The packaging of the machine has been designed and tested to ensure that the equipment
will not be damaged by accident during transportation. Therefore, it is better to use the
original packaging materials and cartons when handling the machine.
12. If you do not use the device for a long time, please disconnect it from the power socket to
avoid damage by excessive voltage fluctuations.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
4
Contents
1 Product Introduction and Features........................................................................................... 5
1.1 Instruction...................................................................................................................... 5
1.2 Performance Parameter.................................................................................................. 6
2 Product..................................................................................................................................... 8
2.1 Appearance.....................................................................................................................8
2.2 Dimension...................................................................................................................... 8
3 Installation and Interface..........................................................................................................9
3.1 Appearance...................................................................................................................10
3.1.1 Front Panel Interface Description...................................................................... 10
3.1.2 Left Panel Interface Description........................................................................ 11
3.1.3 Back Panel Interface Description.......................................................................11
3.2 Unpacking.................................................................................................................... 12
3.4 System Installation.......................................................................................................13
4.1 U disk or TF card Upgrade...........................................................................................13
4.1.1 U disk or TF card Upgrade under Android system running...............................13

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
5
1 Product Introduction and Features
1.1 Instruction
CM580-59F is an embedded industrial PC with low power consumption and high
performance independently developed by CaiMore. It use Rockchip RK3399 series CPU, and
ARM processor combined with Android operating system to provide a very broad and free
App operating environment.Excellent computing and graphics performance, especially
suitable for harsh conditions or high requirements of industrial occasions and public space
applications. CM580-59F supports wide temperature work and extends a rich peripheral
functional interface.
Applicable Scene:
3D, VR, Face recognition, Intelligent advertising terminal
Industrial field control acquisition
Financial POS machine, on-board control terminal
Intelligent terminal in unattended environment
Security/surveillance/police and IoT
Human-computer interaction, intelligent retail
Portable instrument
Main Features of Rockchip RK3399 series CPU：
Based on the Big.Little architecture, it is a dual-core Cortex-A72 and quad-core
Cortex-A53 composite architecture with independent NEON co-processor.
The GPU is powered by a new generation of four-core ARM high-end image processor
Mali -T860, which integrates more bandwidth compression technologies such as smart
superposition, ASTC, local pixel storage, and supports more graphics and computing
interfaces.
4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
6
Built with multiple high-performance hardware processing engines, it can support video
decoding of multiple formats, such as H.264/ H.265/VP9 of 4K*
2K@60fps,H.264/MVC/VP8 of 1080P@30fps, high-quality JPEG code and image
processor.
Excellent I/O extension capabilities: UART, LVDS, audio, USB, type-c, gigabit Ethernet,
TF card, extended PCIE hard disk, GPIO, I2C, SPI, I2S, HDMI, MIPI.
1.2 Performance Parameter
Model
CM580-59F
System Parameters
OS
Android 7.1.2
Processor
RK3399 dual Cortex-A72 + four Cortex-A53 Big.Little
CPU structure
The main frequency is up to 2GHz
Memory
Default 4GB, support 2G/4G optional
Storage
Onboard eMMC, default 16GB, support 8/16/32GB
optional
TF Card
Support 8G/16G/32G/ 64gb /128G storage expansion
function
Interface Parameters
Display
HDMI
1 channel HDMI, support 1080P @60Hz,4K* 2K@60Hz
output
LVDS
1 channel dual LVDS, output 1080P video, can directly
drive 50/60Hz LCD screen
Engine
Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1,
OpenCL, DX11
Support 4K VP9 and 4K 10bits H265/H264 video
decoding,up to 60fps
1080P multi-format video decoding (VC-1, MPEG-1/2/4,
VP8)1080P video encoding, support H.264, VP8 format
I/O
LED
1 power indicator, 1 wifi indicator and 1 4G network
indicator
KEY
1 RESET key, 1 RETURN key
USB
6-channel standard USB 2.0, 1-channel standard USB 3.0,
1-channel Type-C
Audio
1 channel 3.5mm earphone and Mic Shared interface, 1

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
7
channel 8Ω 15W external speaker interface
Serial Port
4 channel RS232, 1 channel RS485
SIM
1 channel standard push-rod SIM card slot
Communicati
on Interface
3G/4G
Mini PCIE interface, module is optional
Wi-Fi/Blueto
oth
1 on-board dual frequency 5G/ 2.4G WiFi with hotspot
function, 802.11b/G/ n, BT4.0
Ethernet
1 channel 10M/100M/1000Mbps Ethernet
Hardware Parameters
Power
Input Range
DC 9V~28V wide voltage design, built-in power supply
reverse protection and over-voltage over-current
protection,
Standard power supply 12V/3A
Power
Consumption
Standby
Current
9V/330mA，12V/250mA，24V/125mA
Maximum
Operating
Current
9V/660mA，12V/500mA，24V/250mA
Dimension
Machine
Dimension
189.6mm (length) *127.9mm (width) *342.2mm (height)
Environment
Operating
Temperature
-25℃~+70℃
Operating
Humidity
95% no condensation
Industrial
Design
Hardware
Design
It has the characteristics of high seismic resistance,
dustproof, low calorific value and so on
Reinforced
Circuit
Board
PCB follows the principle of 20H and 3W, and the PCB is
produced with Shengyi material to ensure the stability and
reliability of the board
Industrial
Grade
Components
The components of the whole machine are manufactured
by strictly screened industrial-grade components
Anti-interfer
ence Design
Metal shell is adopted to shield electromagnetic
interference, and the system protection grade is IP41;
Lightning protection design of antenna belt

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
8
2 Product
2.1 Appearance

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
9
2.2 Dimension
Dimension: 189.6mm (length) *127.9mm (width) *42.2mm (height), as shown in the
figure below (unit: mm) :

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
10
3 Installation and Interface
3.1 Appearance

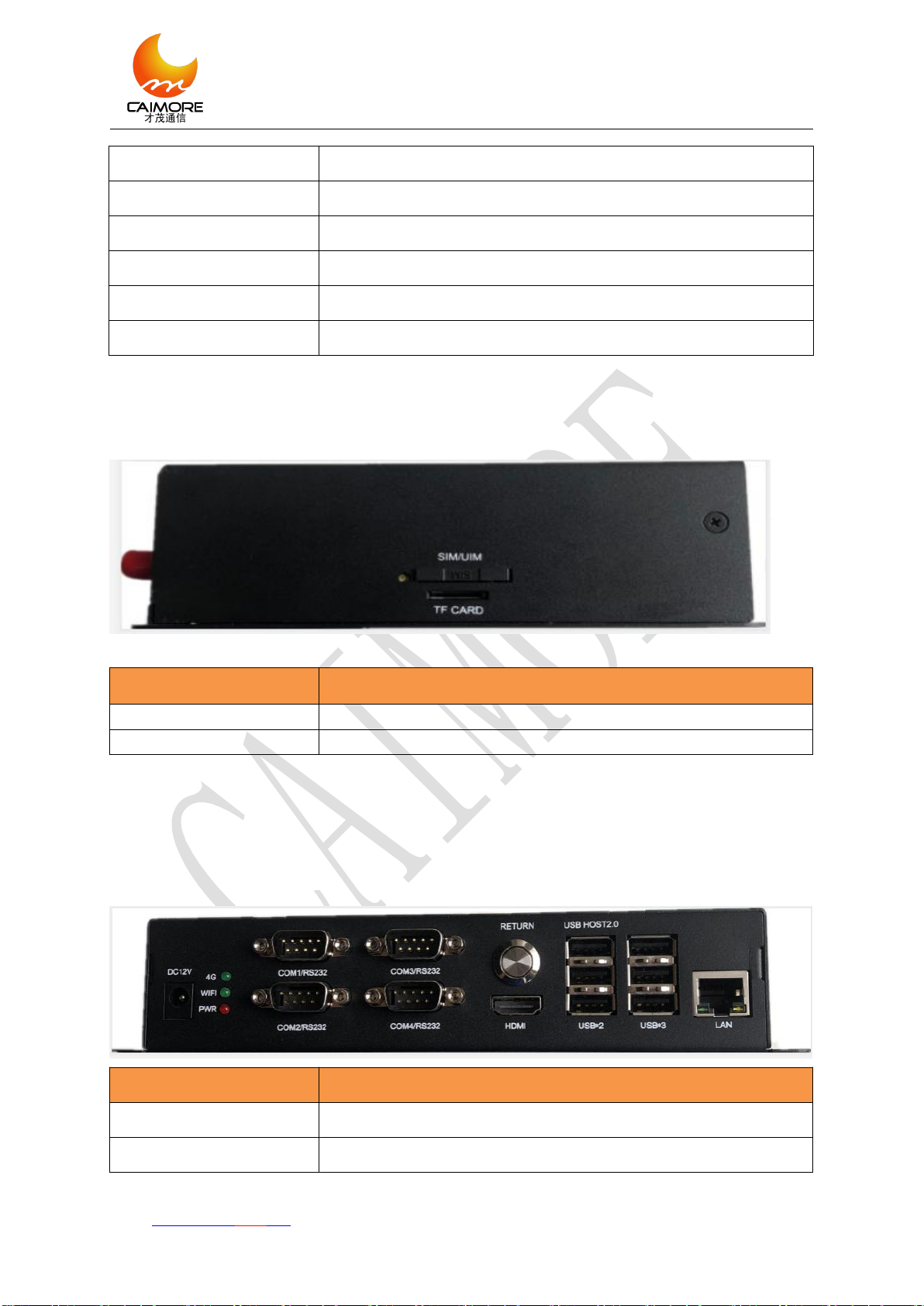

3.1.1 Front Panel Interface Description
Number
Description
A
SMA female interface. WiFi/BT dual frequency dual in one
antenna base.
B
Single layer USB3.0
C
Standard HDMI socket
D
Type-C interface

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
11
E
1 channel dual LVDS, 1 channel BKL interface
F
1 channel RS485 interface
G
1 RESET key
H
1 channel 3.5mm headset and MIC common interface
I
1 channel 4G wireless cellular antenna base
J
1 channel 8Ω 15W external speaker interface
3.1.2 Left Panel Interface Description
Number
Description
K
1 channel SIM/UIM Card Slot
L
1 channel TF Card slot
3.1.3 Back Panel Interface Description
Number
Description
M
1 channel 10M/100M/1000Mbps Ethernet
N
Double layer USB 2.0 *6

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
12
O
4 channel RS485 interface
P
1 channel HDMI
Q
DC12V power input
R
1 RETURN key
S
1 power indicator, 1 system running indicator and 1 4G network
indicator
3.2 Unpacking
When shipping, our company has prepared the products and related accessories in the
packaging box. Please keep all the accessories well after unpacking, so as to use them in the
future.
Components:
1 host;
1 4G wireless cellular antenna (SMA male head);
1 WIFI dual-frequency antenna (SMA male head);
1 GPS antenna (SMA male head);
1 12V/3A Power Adapter;
1 Ethernet cable (RJ45);
4 RS232 data cable(optional);
1 TYPE-C data cable(optional);
1 CD;
Manufacturer's certificate.

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
13
3.4 System Installation
The power supply for CM580-59F is 12V/3A, the specific steps of device’s use are as
follows:
1.Connect a screen to HDMI or LVDS interface;
2.Connect keyboard and mouse to USB interface;
3.Connect the power cable, connect the output end of 12V / 3A adapter to the power input end
of the industrial PC , and then turn it on.
4 System Upgrade
4.1 U disk or TF card Upgrade
4.1.1 U disk or TF card Upgrade under Android system running
When the Android system is running, select the upgrade package to upgrade:
1. Name the upgrade package update.zip and place it in the root directory of the U disk or TF
card;

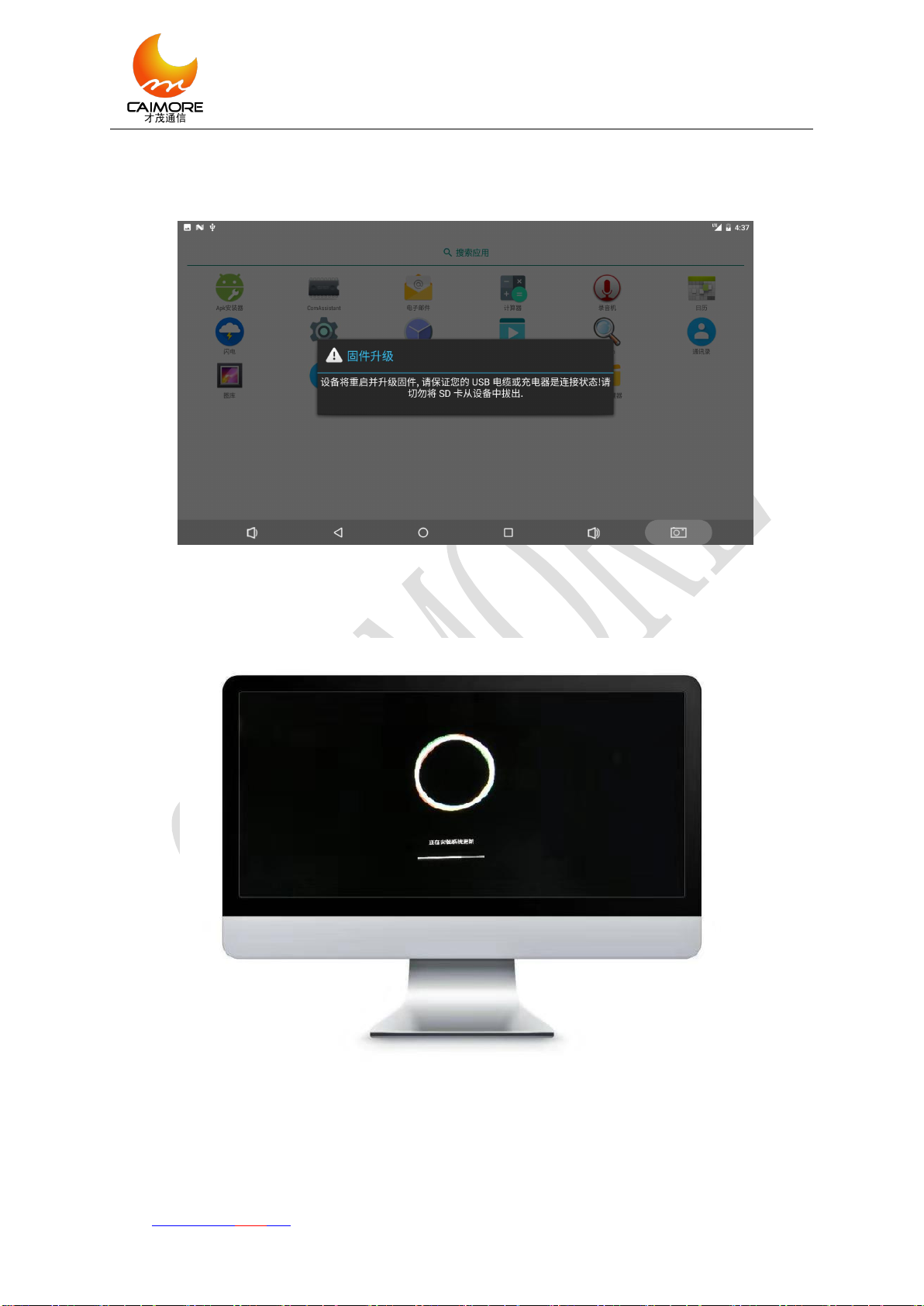

2. Insert the U disk while the system is running, and wait for about 5 seconds. The system
interface will automatically pop up a query box about whether to upgrade the firmware:

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
14
3. Click “Yes” or “Install”. During the upgrade, please make it sure the connection of USB
and power are not disconnected, and don’t take the U disk or TF card off.
4. It will enter system upgrade status

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
15
5. When the upgrade is complete, the device will reboot automatically.
4.2 SD Card recovery
Note: This method will erase all data from the device.

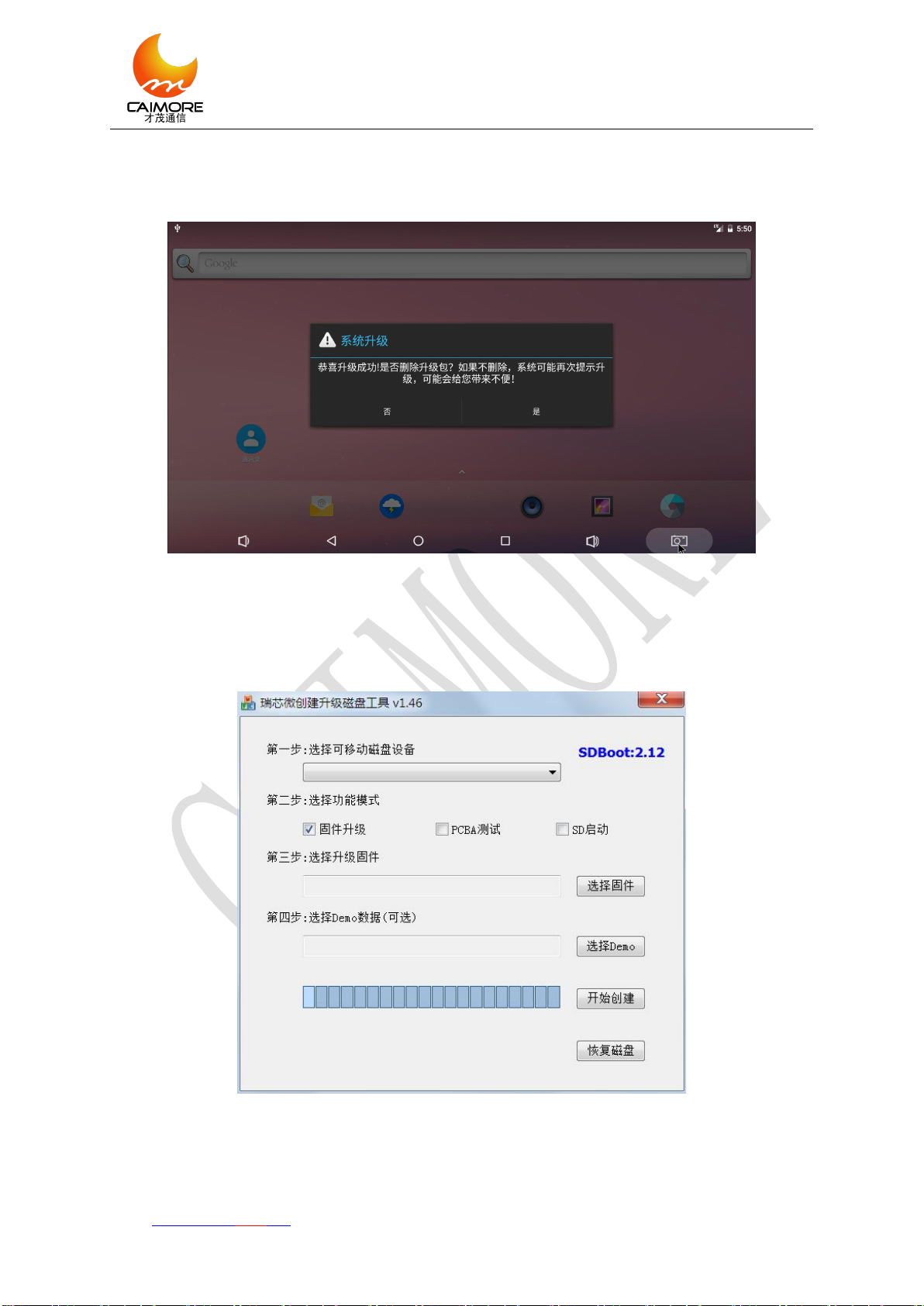

1.Upzig toolkit of SD_Firmware_Tool._v1.46.rar，and open SD_Firmware_Tool.exe ;
2. Connect the storage device to the computer, and after the storage device is recognized
normally, select the corresponding storage device in the "Step 1: Optional removable disk
device" of SD_Firmware_Tool.exe tool;

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
16
3. In "Step 2: Select Function Mode", selected by default;

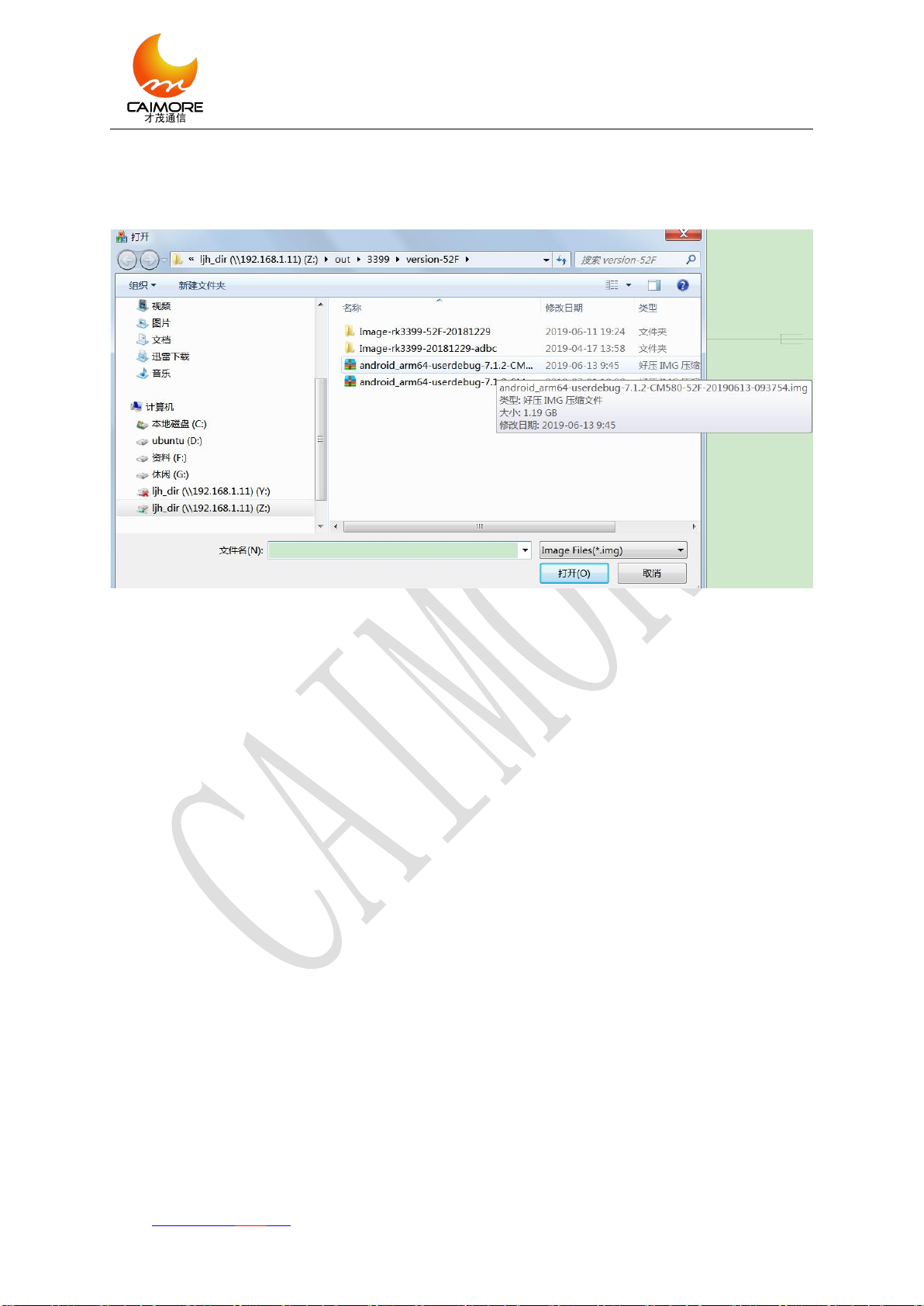

4. Select "Select Firmware" in "Step 3: Select Upgrade Firmware", the above interface
appears, and select the corresponding upgrade firmware, for example:
android_arm64-userdebug-7.1.2-CM580-52F-20190613-093754.img
5. Select in "Step 4: Select Demo Data", start creating, and wait for the completion of
production;
6. Start the upgrade, insert the storage device into the corresponding interface of the device,
and after power off and restart, the following upgrade screen will appear;

厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen Caimore Communication Technology Co.,Ltd
地址:厦门软件园三期诚毅北大街 63 号901、904 单元 电话/Tel: [phone]
网址:http://www.caimore.com 传真/Fax:[phone]
17
7.The upgrade is completed and the following screen appears;
8.Pull out the SD card to complete the upgrade;
