OWNER'S MANUAL
CIT-7011

Table Of Contents
Read all precautions and instructions in this manual before using this
equipment.
! CAUTION
Important Safety Instructions------------------------------------------------------------- 3
Instructions------------------------------------------------------------------------------------ 4
Parts List--------------------------------------------------------------------------------------- 5
Exploded View ------------------------------------------------------------------------------- 6
Measurement Guide------------------------------------------------------------------------ 7
Assembly Instructions---------------------------------------------------------------------- 8
Assembly-------------------------------------------------------------------------------------- 9
Maintenance Schedule------------------------------------------------------------------- 13
General Maintenance Information----------------------------------------------------- 14
Weight Training Tips---------------------------------------------------------------------- 15
Specifications------------------------------------------------------------------------------- 15

─ 3 ─
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equipment,
basic precautions should always be taken, including the following:
* Read all instructions before using the equipment. These instructions are
written to ensure your safety and to protect the unit.
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this
guide. Do not use accessory attachments that are not recommended by
the manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout----no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury.
Periodically check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
Personal Safety During Assembly
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later that
you have to disassemble components and that you may have damaged
the equipment.
* Assemble and operate the equipment on a solid, level surface. Locate the
unit a few feet from walls or furniture to provide easy access. The
equipment is designed for your enjoyment. By following these precautions
and using common sense, you will have many safe and pleasurable hours
of healthful exercise with the equipment.

Instructions
Before beginning assembly please take the time to read instructions
thoroughly. Please use the various lists in this manual to make sure that all
parts have been included in your shipment. When ordering, use part number
and description from the lists. Use only our replacement part when servicing.
Failure to do so will void your warranty and could result in personal injury.
The equipment is designed to provide the smoothest, most effective
exercise motion possible. After assembly, you should check all functions to
ensure correct operation. If you experience problems, first recheck the
assembly instructions to locate any possible errors made during assembly. If
you are unable to correct the problem, call your authorized dealer. Be sure to
have your serial number and this manual when calling. When all parts have
been accounted for, continue on.
Tools Required
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
─ 4 ─

─ 5 ─
Par ts List
NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED
Item No. Description Qty Item No. Description Qty
1 Base Bracket 1 18 Rubber Bumper 1
2 Support Bracket 1 19 Foot Pad 3
3 Back Pad Bracket 1 20 Wheel 2
4 Front Adjustable Bracket (outer) 1 21 Flat Washer Φ13*Φ24*1.5 12
5 Back Adjustable Bracket (outer) 1 22 Flat Washer Φ11*Φ20*2 10
6 Front Adjustable Bracket (inner) 1 23 Hex Head Bolt M10*30 6
7 Back Adjustable Bracket (inner) 1 24 Hex Head Bolt M10*45 2
8 Seat Pad Bracket 1 25 Hex Head Bolt M12*80 2
9 Shaft 1 26 Hex Head Bolt M12*110 2
10 Back Pad 1 27 Hex Head Bolt M12*140 2
11 Spring Pin 2 28 Hex Head Bolt M12*160 1
12 Seat Pad 1 29 Socket Head Cap ScrewM8*30 2
13 Bushing Φ38*Φ25.4*18 2 30 Button Head Cap Screw M6*12 4
14 Bushing Φ38*Φ25.4*7.5 2 31 Hex Nut M6 4
15 Plug 1 32 Nylon Lock Nut M10 2
16 Bushing Φ25*Φ12.2*13 8 33 Nylon Lock Nut M12 7
17 Plastic Tube Guide RT50*100-□30*70 4 34 Hex Key S=6 1

─ 6 ─
Exploded View

─ 7 ─
BHCS = Button Head Cap Screw
SHCS = Socket Head Cap Screw
FHCS = Flat Head Cap Screw
HHB = Hex Head Bolt
Measurement Guide

─ 8 ─
Assembly of the equipment takes professional installers about 2 hours. If this is
the first time you have assembled this type of equipment, plan to spend more
time. It is strongly recommended to assemble the equipment by professional
installers. You may find it quicker, safer, easier to assemble this equipment with
the help of a friend, as some of components may be large, heavy or awkward to
handle alone. It is important that you assemble your product in a clean, clear,
uncluttered area. This will enable you to move around the product while you are
fitting components and reduce the possibility of injury during assembly.
As with any assembled part, proper alignment and adjustment is critical. While
tightening the fasteners, be sure to leave room for adjustments. Do not fully
tighten the fasteners until instructed to do so. Be careful to assemble the
components in the sequence presented in this guide.
Assembly Instructions

─ 9 ─
Assembly

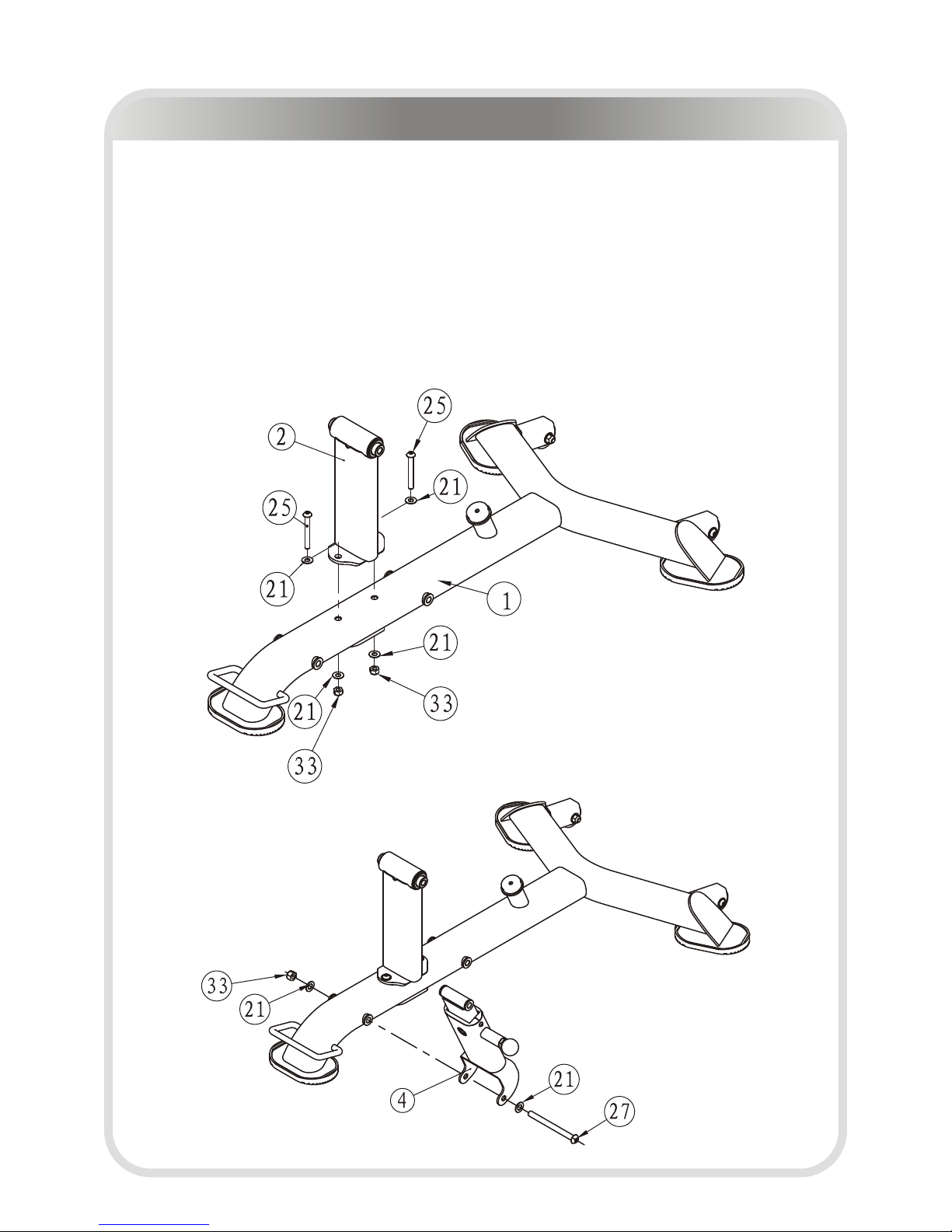

Step 1
Attach the Support Bracket (#2) to the Base Bracket (#1), using:
two M12*80 HHB (#25) four Φ13*Φ24*1.5 Flat Washer (#21)
two M12 Nylon Lock Nut (#33)
Step 2
Attach the Front Adjustable Bracket (outer) (#4) to the Base Bracket (#1), using:
one M12*140 HHB (#27) two Φ13*Φ24*1.5 Flat Washer (#21)
one M12 Nylon Lock Nut (#33)
Step 1
Step 2

─ 10 ─
Assembly

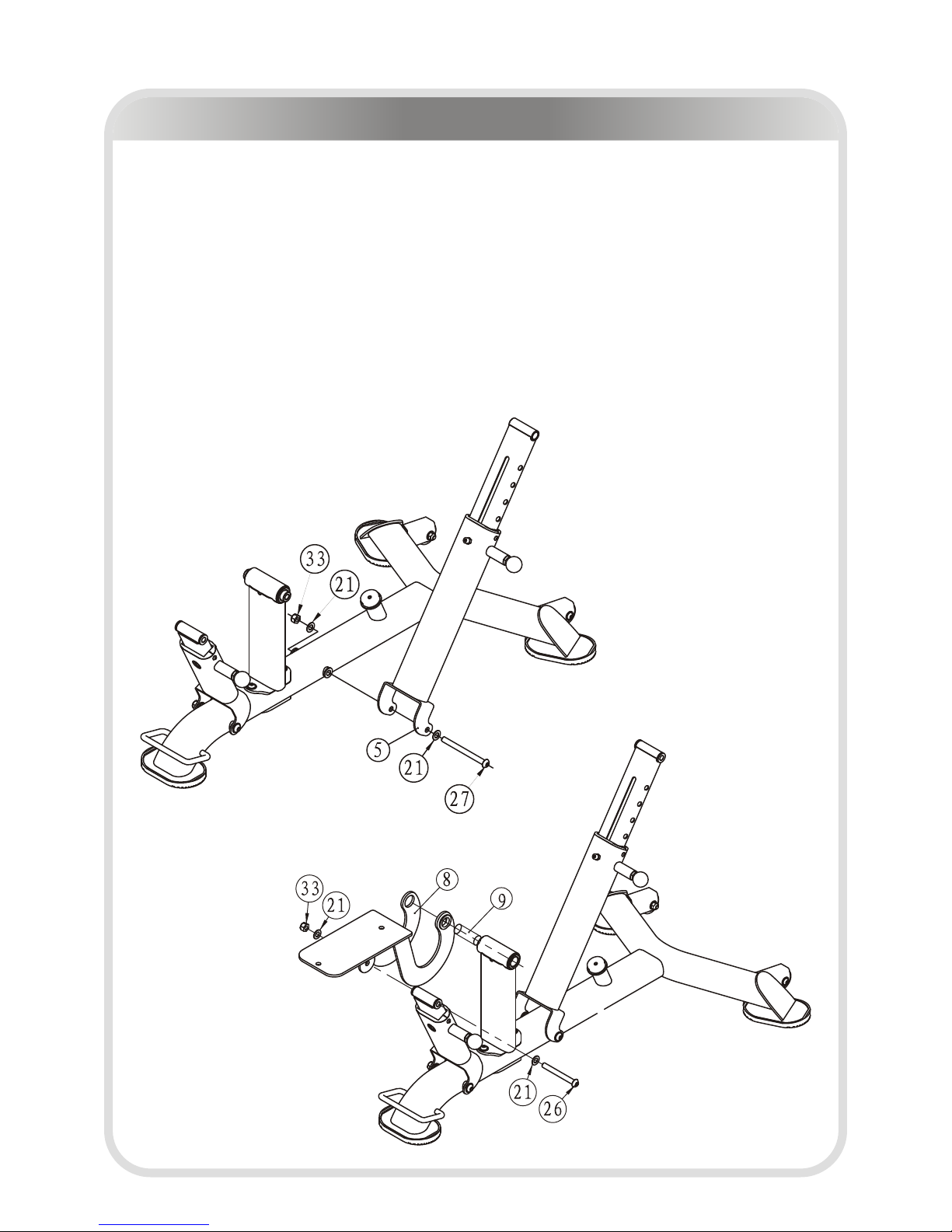

Step 3
Attach the Back Adjustable Bracket (outer) (#5) to the Base Bracket (#1), using:
one M12*140 HHB (#27) two Φ13*Φ24*1.5 Flat Washer (#21)
one M12 Nylon Lock Nut (#33)
Step 4
Attach the Seat Pad Bracket (#8) to the Support Bracket (#2) and the Front
Adjustable Bracket (outer) (#4), using:
one M12*110 HHB (#26) two Φ13*Φ24*1.5 Flat Washer (#21)
one M12 Nylon Lock Nut (#33) one Shaft (#9)
Step 3
Step 4
