Callpod Fueltank User manual

Table of Contents
callpod®1
Copyright © 2008 Patents Pending
1. Technical Specications........................................................................................2
2. General Safety Information....................................................................................3
3. Fueltank Overview...................................................................................................5
4. Fueltank Components ................................................................................................6
5 . C h a r g i n g the Fueltank.............................................................................................7
6. Charging Devices Using the Fueltank..................................................................10
7. Checking the Fueltank Battery Life......................................................................12
8. Care and Maintenance........................................................................................13
9. Battery Information.................................................................................................14
10. Approved Accessories.........................................................................................15
11. Callpod Limited Warranty.....................................................................................16
Exclusions................................................................................................................17
Who Is Covered?...................................................................................................19
What Will Callpod Do?..........................................................................................19
What Other Limitations Are There?......................................................................20
12. Notice to International Users................................................................................21
13. Export Law Assurances.........................................................................................21
14. Product Registration...............................................................................................22
15. Copyright Notice ...................................................................................................23
16. Certification...........................................................................................................24

callpod®
2Copyright © 2008 Patents Pending
Technical Specications
Specifications TypicalUnits
Input Supply
Single Port Current Limit
Total Current Limit
Operating Temperature
Battery Capacity (Max)
Estimated Charging Time
Weight
Dimensions
5.7 / 6.0
500
1.0
0° to 50°
5300
2.5
7.3
4.90 x 3.40
x .72
Volts
mA
Amp
C
mA/hr
Hours
Ounces
Inches

callpod®3
Copyright © 2008 Patents Pending
General Safety Information
Do not open the Fueltank as contents may cause electric shock.
Only use approved Callpod®- branded accessories and components
as well as specied compatible electronic devices to ensure proper
operation.
Please use the Fueltank responsibly while traveling.

callpod®
4Copyright © 2008 Patents Pending
General Safety Information
NO NO
ATTENTION! WARNING!
The Fueltank is NOT designed to charge laptops, notebooks or personal
computers.
The Fueltank is NOT designed to charge from a laptop, notebook or personal
computer.
Please DO NOT attempt to charge the Fueltank from the USB port as it may
overload the port causing it to shut down or become damaged.
•
•
•

Fueltank Overview
For up-to-date compatibility charts, product assistance or to purchase
additional adapters, please visit our website:
www.callpod.com

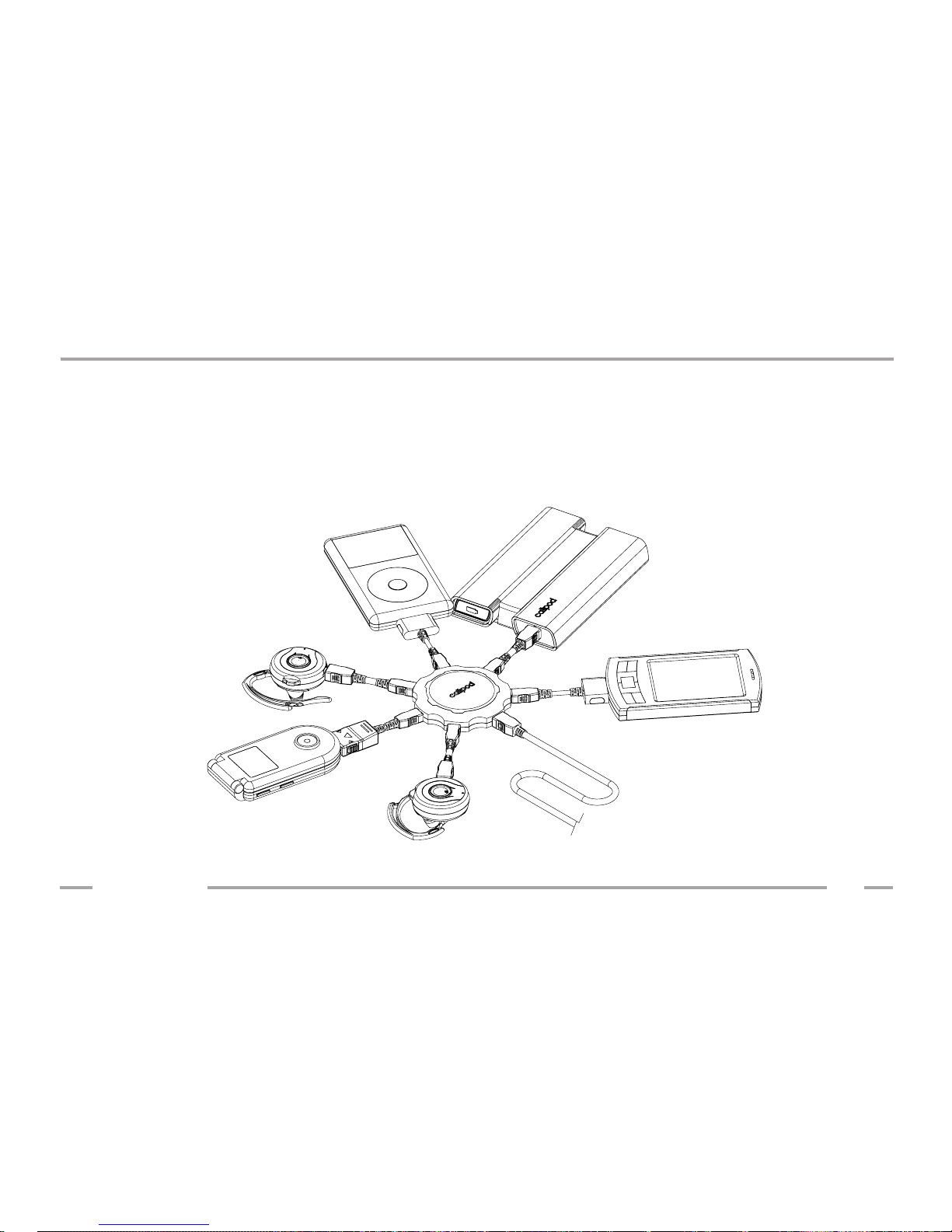

Can charge 2 small electronic devices at the same time.
The Fueltank works by using manufacturer-specic adapters to connect to
your devices.
Capable of charging over 2,000 small electronic devices across all major
brands.
Base unit weighs less than 8 ounces and is perfect for traveling.
•
•
•
•
callpod®5
Copyright © 2008 Patents Pending

callpod®
6Copyright © 2008 Patents Pending
Fueltank Components
a
b
c
d
e
LED battery level indicator
Battery level button
Mini USB charging input port
Device adapter charging ports (2)
LED charging indicators

The charging components that are included with the Fueltank allow you to
charge via AC/DC wall adapter. The Fueltank can also be charged via car
charger (sold separately) and chargepod®by Callpod®(sold separately).
Charging the Fueltank
callpod®7
Copyright © 2008 Patents Pending

callpod®
8Copyright © 2008 Patents Pending
You must charge your Fueltank base unit before rst use, using the included wall
adapter.
Plug AC power adapter into wall outlet/car plug.
Plug power cable into mini USB charging input port on the Fueltank.
The LED charging indicator will light up green while Fueltank battery is
charging.
When the Fueltank is fully charged the green LED charging indicator will turn
off.

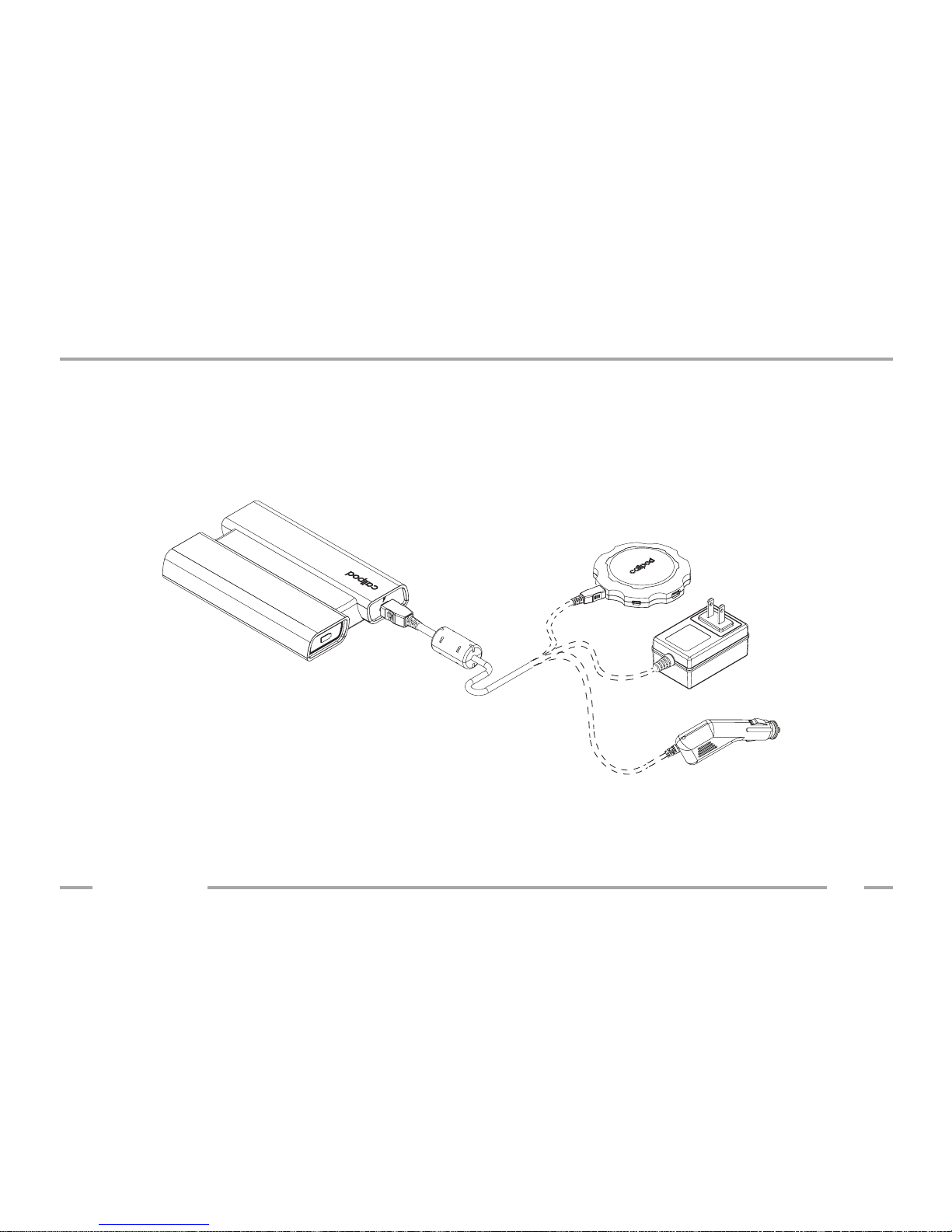

Charging the Fueltank From Wall/Car plug
1.
2.
3.
4.

The Fueltank can be charged with the Callpod®Chargepod (sold separately)
using a wall or car plug. For more information about the Chargepod, visit:
www.callpod.com/chargepod
Charging the Fueltank From chargepod®
callpod®9
Copyright © 2008 Patents Pending

callpod®
10 Copyright © 2008 Patents Pending
Charging Devices Using the Fueltank
The Fueltank contains a rechargeable lithium ion battery that has 7 times the
capacity of most mobile devices.
Proprietary voltage regulator technology determines the amount of power
required to charge your devices. All ports contain independent power indicators
and circuit protection.
* Please note: The Fueltank is NOT designed to charge laptops, notebooks or
personal computers.

callpod®11
Copyright © 2008 Patents Pending
Once the Fueltank is fully charged:
Plug manufacturer-specic Callpod®
device adapter(s) into the Fueltank
device adapter port.
The LED Device indicator will illuminate.
Plug your device(s) into the Callpod
device adapter(s).
Charging Devices Using the Fueltank
1.
2.
3.
*Please note: Leaving manufacturer-specic
Callpod device adapter(s) plugged into the
Fueltank after use will continue to slowly drain
power from the Fueltank battery. Please
completely remove device adapter(s) after
use.

callpod®
12 Copyright © 2008 Patents Pending

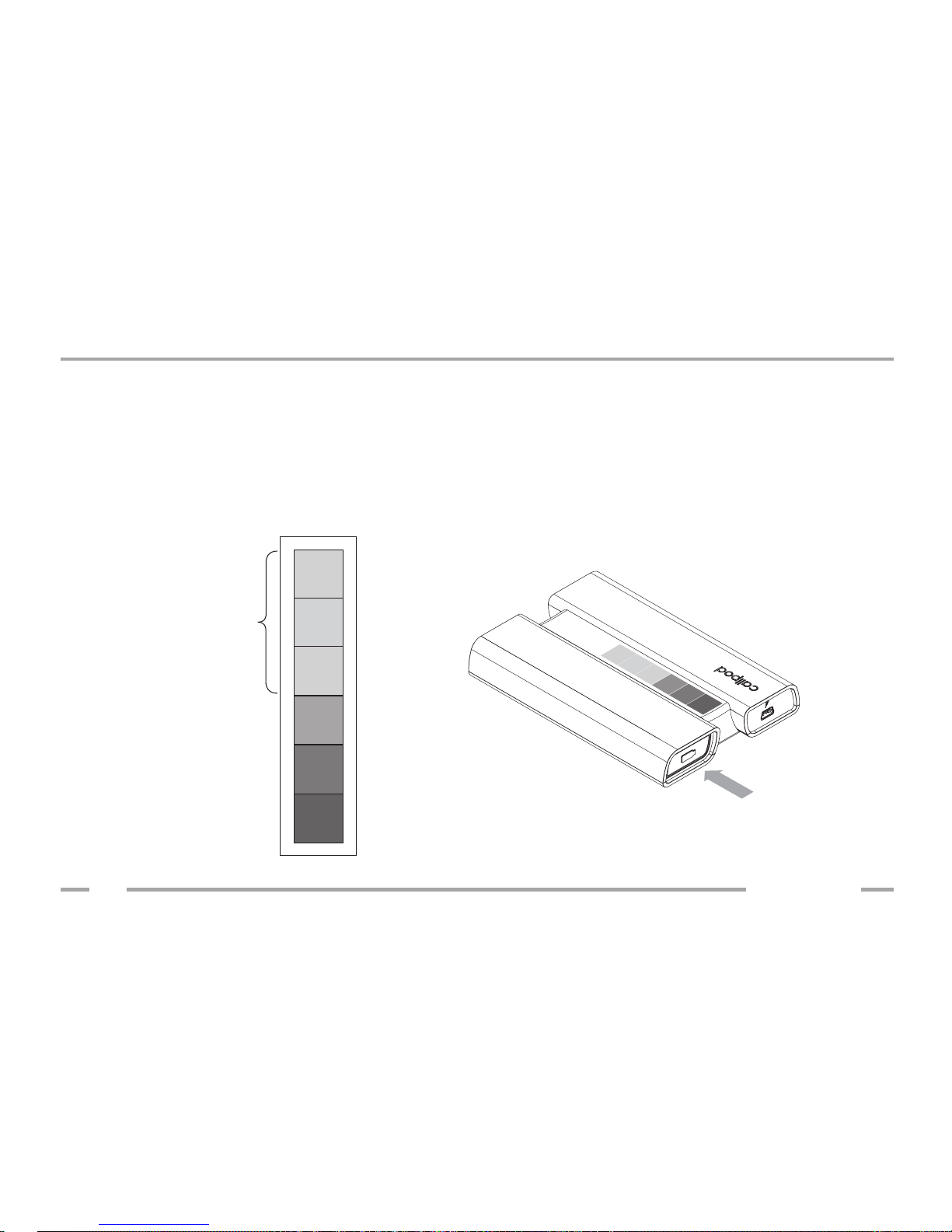

To check the battery life of the Fueltank, simply press and hold the charging
indicator button and a series of LED lights (red, orange, yellow and green) will
appear on the Fueltank indicating the level of battery life. The power level is
indicated by the number of LEDs lit. A full charge will light up all 6 LEDs while no
charge will light up only one red LED.
Checking the Fueltank Battery Life
Green
(Press and Hold Button)
Yellow
Orange
Red
FULL
EMPTY

callpod®13
Copyright © 2008 Patents Pending
Care and Maintenance
• Please keep the Fueltank and all accessories out of the reach of small
children.
• Please do not use other manufacturer’s power supplies or adapters with the
Fueltank.
• Do not attempt to open the outer casing of product.
• Do not clean the Fueltank with harsh chemicals and keep the Fueltank
away from liquids.
• Do not expose the Fueltank to extreme temperatures.
• Do not paint or apply coatings to the Fueltank, as you might damage
external parts or damage internal components.

callpod®
14 Copyright © 2008 Patents Pending
A rechargeable lithium ion battery powers the Fueltank. The full performance of a
new battery is achieved only after two or three complete charge and discharge
cycles. To charge the Fueltank, use only Callpod®designated power supplies
and adapters.
ever

callpod®15
Copyright © 2008 Patents Pending

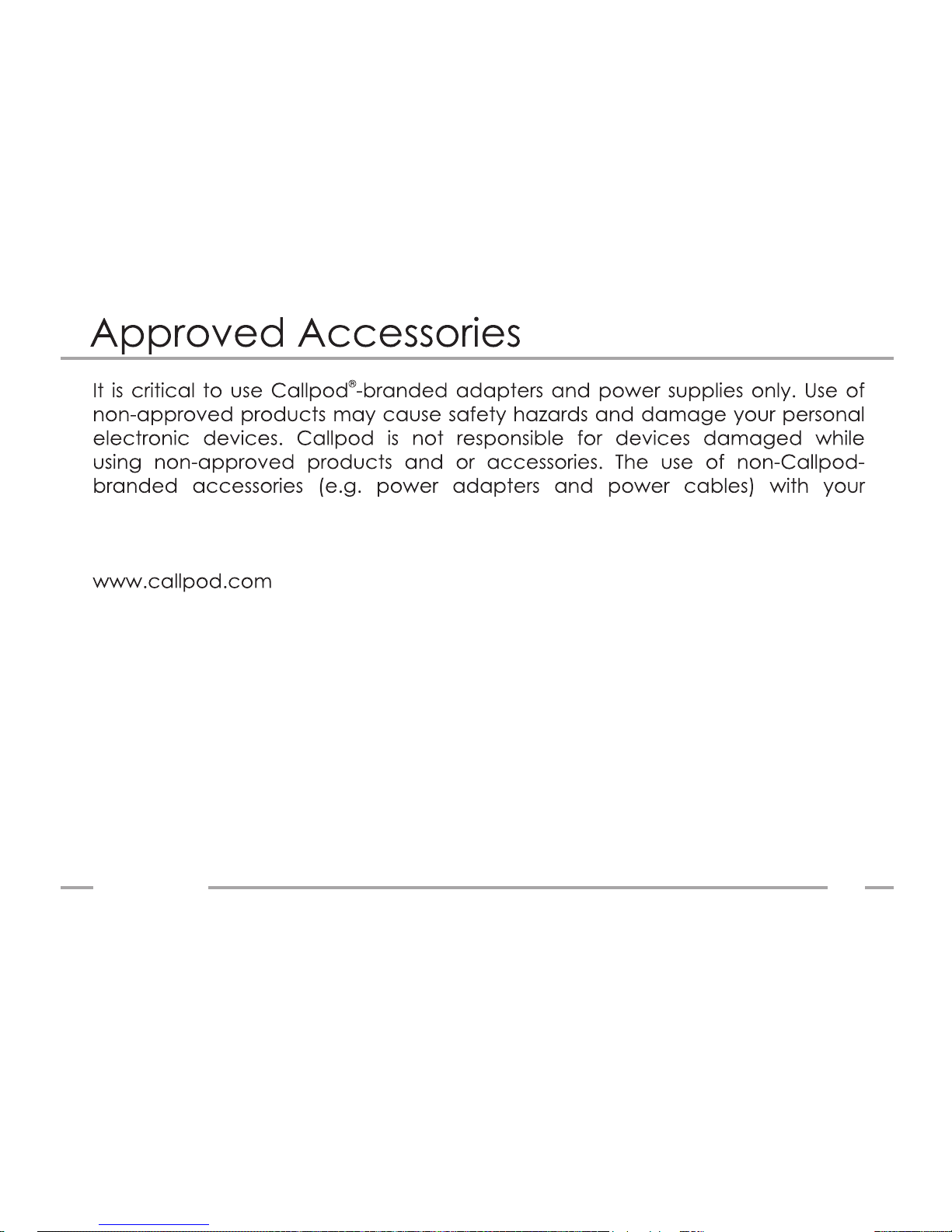

Fueltank unit will void your warranty. For a list of approved Callpod accessories
please visit us at:
