CAME LB90 User manual
LB90
AUTOMAZIONE PER CHIUSURA INDUSTRIALE
INSTALLATION MANUAL
BATTERY CHARGER CARD FOR ZL90 AND ZN2 CONTROL PANEL
#
#
2
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
The LB90 battery charger card is designed as an emergency device for the ZL90 and ZN2
electronic cards.
Any use, other than that above described and, any installations other than those de-
scribed in this manual, are forbidden.
This symbol tells you to read the section with particular care.
This symbol tells you that the sections concern safety issues.
This product complies with the following standards: see declaration of conformity.
“IMPORTANT INSTALLATION, SAFETY INSTRUCTIONS”
“CAUTION: IMPROPER INSTALLATION MAY CAUSE SERIOUS DAMAGE, FOLLOW ALL INSTALLATION
INSTRUCTIONS CAREFULLY”
“THIS MANUAL IS ONLY FOR PROFESSIONAL OR QUALIFIED INSTALLERS”
ON, S
USE SER
TIONS CARE
ROFESSIONAL O
ON, SA
USE SERI
TIONS CAREF
ROFESSIONAL O
N, S
USE SER
IONS CARE
ROFESSIONAL O
N, S
SE SER
ONS CARE
OFESSIONAL
SIO
E S
S C
2 Intended use
1 Legend of symbols
3 Reference Standards
4 Description
4.1 Technical features
Emergency functioning card for 24V d.c. gearmotors and battery recharging.
This product is engineered and manufactured by CAME CANCELLI AUTOMATICI
S.p.A. and complies with current safety regulations. Guaranteed 24 months if not
tampered with.
Idle draw with power up: 150 mA
Idel draw with batteries working: 75 mA
Charging power = 27V
Voltage power: 24V
Charging voltage = 150 mA Max.
3
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
5 Installation
Every time you connect or disconnect the card, cut the main power supply to the system
and disconnect the batteries.
5.1 Preliminary checks
Make sure you have all the tools and materials you will need for the installation at hand to
work in total safety and compliance with the current standards and regulations. Following
are some example drawings.

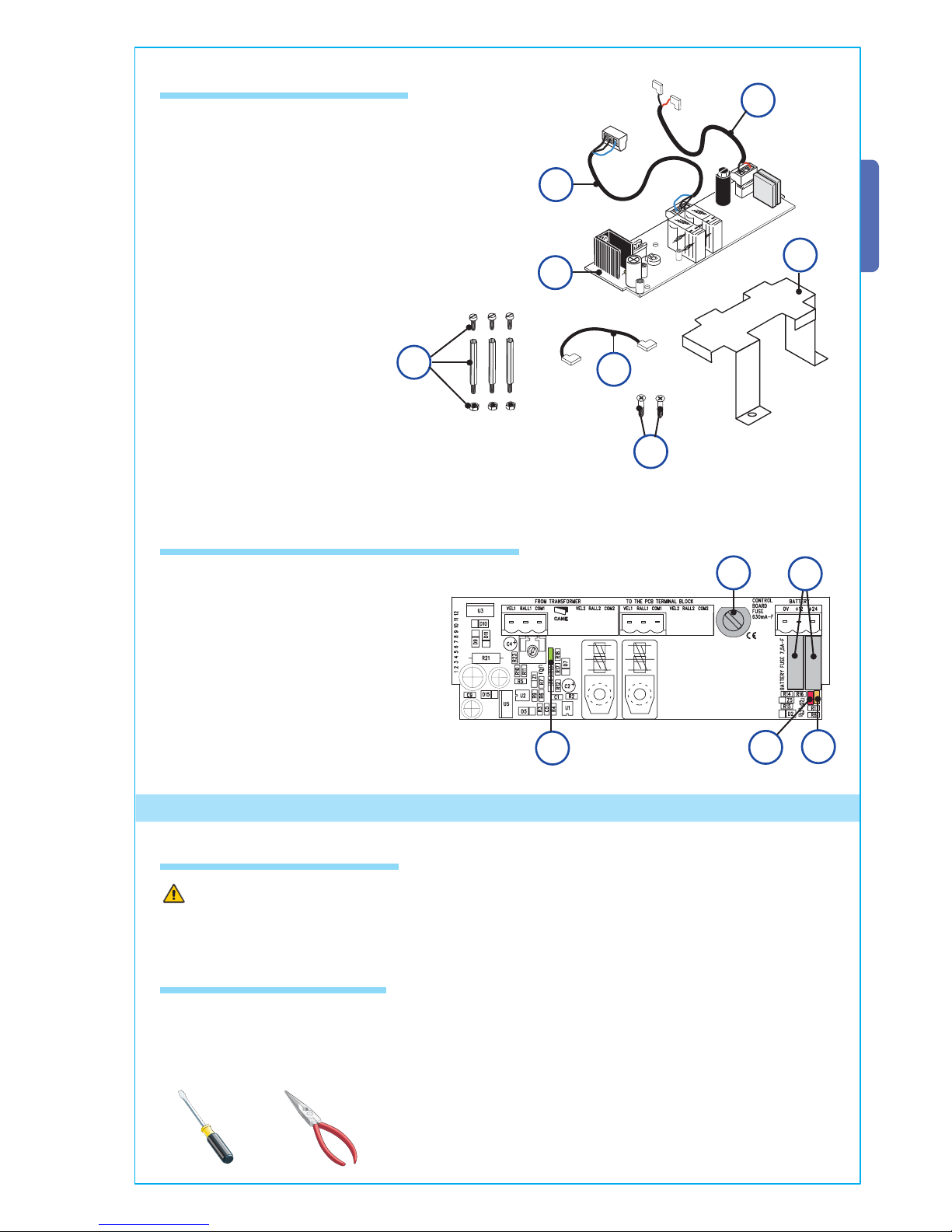

5.2 Tools and materials
1) LB90 card
2) Connection cable for the ZL90 or ZN2 card
3) Battery cable
4) Batteries’ connecting cable
5) Battery rack
6) Battery rack securing screws
7) Nuts and bolts to secured card and distancers
2
3
6
4
LB90 LB180
5
4.2 Description of parts
4
1) Card fuse 630 mA
2) Battery fuse 7,5 A
3) Yellow led: batteries working
4) Red led: batteries down
5) Green led: line voltage up
4.3 Main components of the LB90 card
5
1
1
7
3
2
4
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
- Remove the cover to the container.
5.3 Mounting and electrical connection to the ZL90 panel
- Remove the ZL90 card by removing the four screws.
Bolts ..
Bolts ..
5
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
- Affix the LB90 card atop the electronic card making sure the holes match using the distan-
cers, nuts and bolts supplied.
Distancers
UNI7687 M3x6 bolts
M3 nuts
- Secure the ZL90 card in the container.
LB90
ZL90
6
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
6 6 6
" "
% 0 #8 #9 43
,.- .
%.#
- .
%.#
/.
/.
,"
:,
6 6 6
6 6 6
" "
% 0 #8 #9 43
,.- .
%.#
- .
%.#
/.
6 6 6
6 6 6
/.
6 6 6
6 6 6
,"
:,

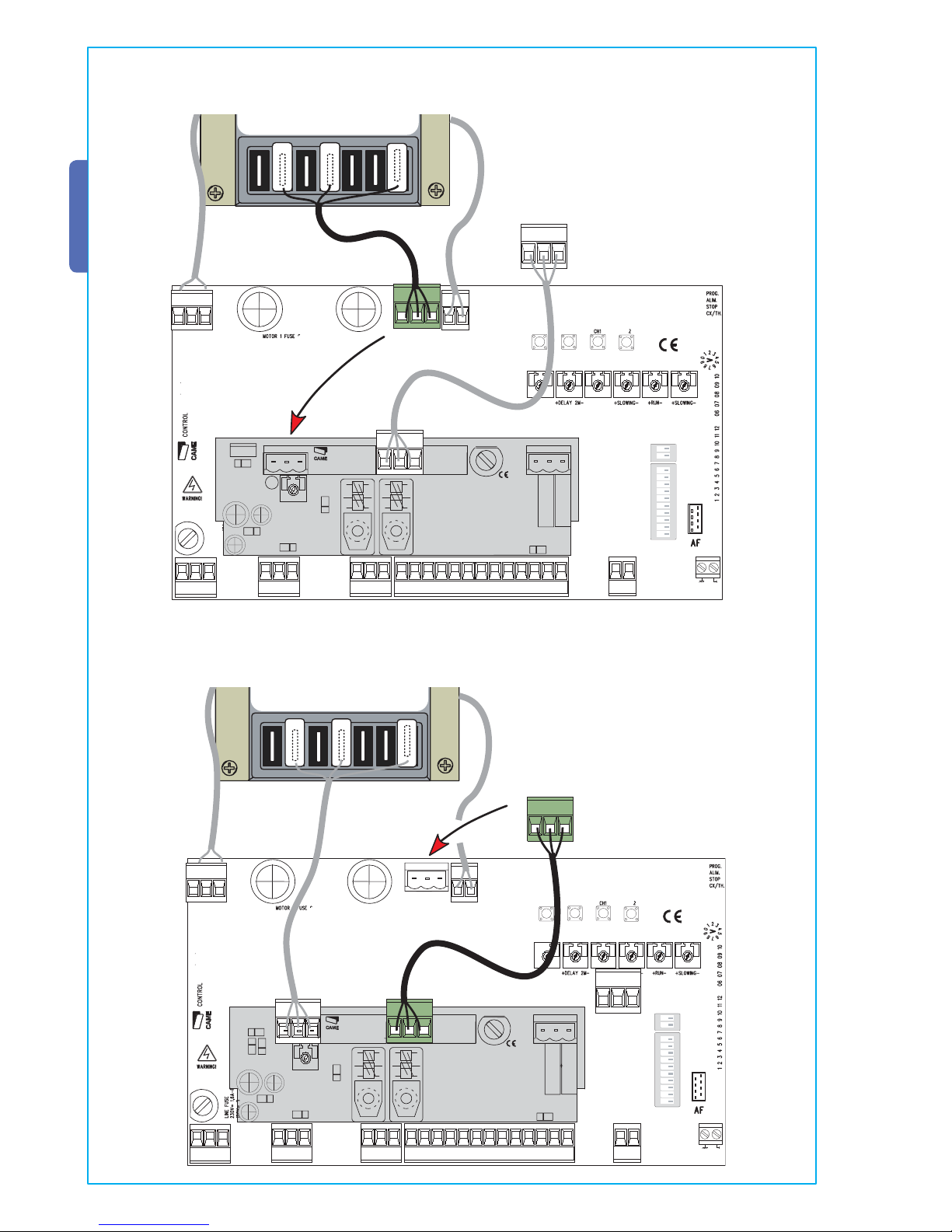

- Remove the terminal board from the ZL90 card’s transformer and insert it into the LB90
card’s free slot (VELL1-RALL1-COM1 from transformer).
- Connect the card by inserting the LB90’s terminal cable into the ZL90’s terminal
free slot.
7
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
- Insert the 12V-1.2Ah batteries (not supplied) into the container, secure them using the
rack and self-threading screws.
Note: the 12V-1.2Ah batteries power the gearmotors for just one emergency run. To increa-
se the number of runs you will need to install 7Ah batteries in an external container. This
involves increased recharging times.
/.
/.
6 6 6
?
?
.
6!H
.
6!H
6 6 6
6 6 6 6 6 6
- Before powering up the system, secure the protective cover.
- Connect the LB90 card to the batteries using the supplied cable with connectors. Insert the plug
with the black wire to the (neg (-) pole) into one of the two batteries or the red one into the (pos
(+) pole) of the other one. Connect the free poles to the supplied batteries’ connecting cable.
UNI6954
ø2,9x9,5 bolts
8
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.

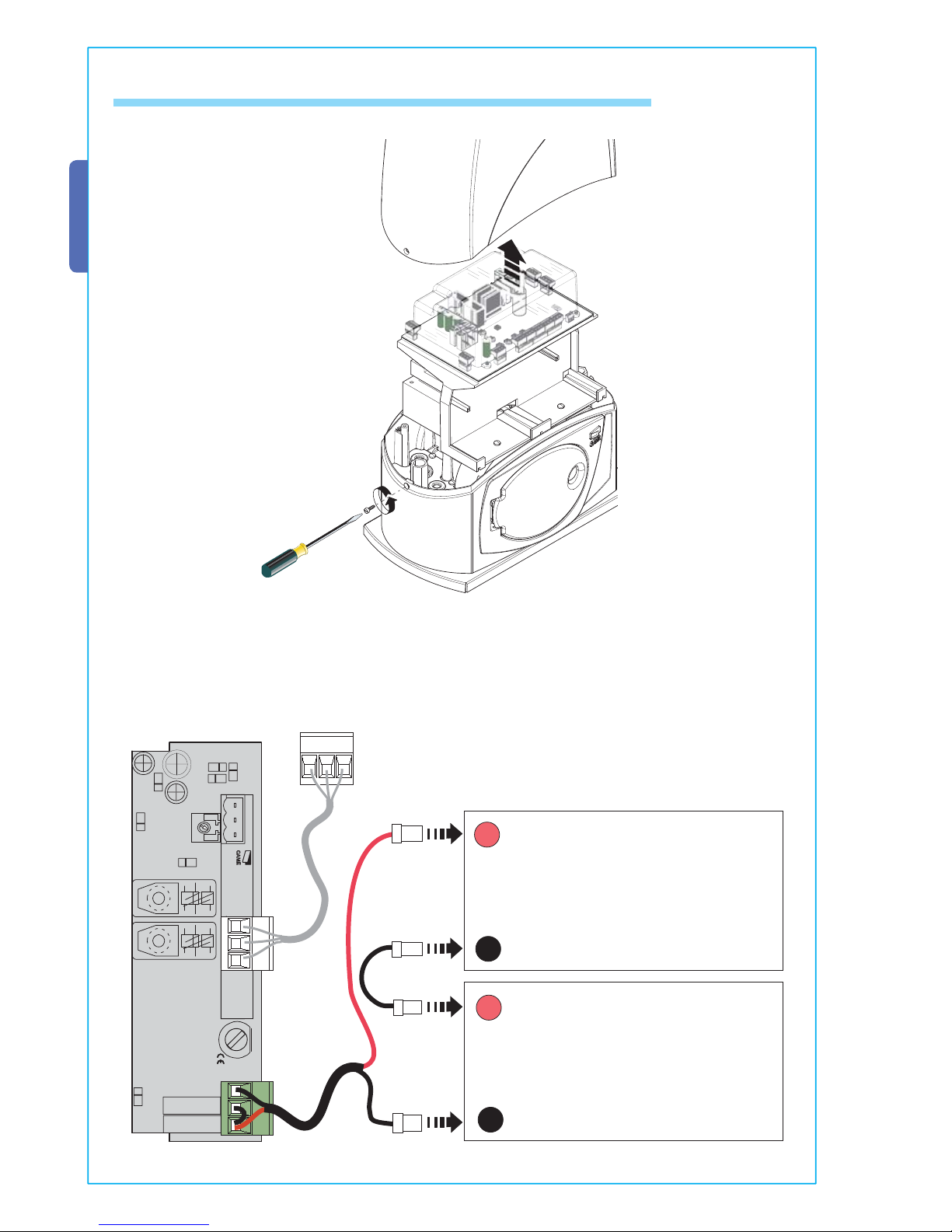

- Remove the gearmotor cover.
6 6 6
6 6 6
?
.
6!H
6 6 6
.
6!H
?
5.3 Mounting and electronically connecting to the ZN2 panel
- Connect the LB90 card to the batteries (not supplied) using the supplied cable with con-
nectors. Insert the plug with the black wire to the (neg (-) pole) into one of the two batteries
or the red one into the (pos (+) pole) of the other one. Connect the free poles to the supplied
batteries’ connecting cable.
9
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
?
?
- To simplify the procedure insert the batteries in the battery-support and then insert the
LB90 card.
10
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
6 6 6
6 6 6
-.
,4 ,4
%
&# &!
&
6 6 6
6 6 6
,"
:.
- Before powering up the system, secure the protective cover.
- Connect the card by inserting the LB90 card’s terminal- fitted cable into the free slot on
the ZN2 card’s terminal.
6 6 6
6 6 6 6 6 6
-.
,4 ,4
%
&# &!
&
6 6 6
,"
:.
- Remove the (26V-17V-=V) transformer terminal from the ZN2 electronic card and insert it
into the free (VELL1-RALL1-COM1 from transformer) slot of the LB90 card.
11
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
Our products are made of different materials. The majority of these (aluminium, plastic, iron,
and electric cables) are considered solid urban waste. As such they can be recycled by certified
centres after proper collection.
Other components (such as electronic cards, batteries and transmitters) constitute envi-
ronmental hazards. They must thus be turned in to specialised firms for their processing and
disposal.
MANUFACTURER’S DECLARATION OF CONFORMITY
Pursuant to annex II B of the Machinery Directive 98/37/EC
CAME Cancelli Automatici S.p.A.
via Martiri della Libertà, 15
31030 Dosson di Casier - Treviso - ITALY
tel (+39) 0422 4940 - fax (+39) 0422 4941
Declares under its own responsibility that the equipments for
automatic garage doors and gates listed below:
… comply with the National Law related to the following
European Directives and to the applicable parts of the following
Standards.
98/37/CE - 98/79/CE MACHINERY DIRECTIVE
98/336/CEE - 92/31/CEE ELECTROMAGNETIC COMPATIBILITY DIRECTIVE
73/23/CEE - 93/68/CE LOW VOLTAGE DIRECTIVE
89/106/CEE CONSTRUCTION PRODUCTS DIRECTIVE
IMPORTANT WARNING!
Do not use the equipment specified here above,
before completing the full installation
In full compliance with the Machinery Directive
98/37/EC
LB90
6 Phasing out and disposal
7 Maker’s statement
EN 13241-1 EN 12635 EN 61000-6-2
EN 12453 EN 12978 EN 61000-6-3
EN 12445 EN 60335-1 EN 60204-1
Reference code to request a true copy of the original: DDF B EN A001d
MANAGING DIRECTOR
Mr. Andrea Menuzzo
Cod. 319U23 ver. 0.1 01/07 © CAME cancelli automatici s.p.a.
