Camtec DCUPS2U4AH Manual

Camtec Systemelektronik GmbH –Gewerbestraße 30 –DE76327 Pfinztal –Germany p.1/4 10.09A
Phone [phone] -Fax [phone] –www.camtec-gmbh.com - [e-mail]
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
DCUPS2U4AH Uninterruptable 48V DC Power Supply
112Watt for Tele- & Data-Communication
Short Specification:
Metal housing
90% efficiency
+10°C...+40°C ambient
Free air convection
Galvanic insulated
Continuous short circuit & idle proof
Overload & low voltage protected
Soft start & auto-recovery
Hold up time >30ms
Minimum load = 0A
EMI/EMS EN61000-6-2/3, EN55022 class B
+ pole connected to GND/housing
According to IEC(EN)60950-1
Extended monitoring
Thermal load protection
AC-Fail message
Built in high reliable Panasonic brand
batteries
Output Electrolytic Capacitors +125°C
2U 84WU D280mm 19” aluminium
enclosure
Input/output plugs fused against accidental
remove
Battery extension module connectable
Single-Output: 38-56Vdc/2A
Made in Germany.

Camtec Systemelektronik GmbH –Gewerbestraße 30 –DE76327 Pfinztal –Germany p.2/4 10.09A
Phone [phone] -Fax [phone] –www.camtec-gmbh.com - [e-mail]
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
AC Input (internal selection)
230Vac , 47...63Hz , 250…375Vdc
AC Input Rating
184..265Vac, 230Vac <1.1A
Rated DC Voltage
56Vdc(48V)
Low DC Voltage
38Vdc
Rated DC Current (s. graph) 40°C
2.0A
Maximum DC Current (s. graph) 40°C
3.0A
Ripple [mVpp] (230Vac available)
150 (20MHz)
Load regulation 0-100%
±0.5%
Tolerance Ua adjusted
± 1%
Transient Time
<1ms (10-100% , 100-10%)
Minimum Load
0 A
Efficiency
90% typical
Load Protection
3A , manual reset
Short Circuit Protection
Yes, auto recovery
Input Fuse
2x 4AT, N & L fused, UL-type!
Output Fuse
Thermal 3A, push to reset
Inrush Current
< 32A (230Vac)
Hold Up Time (Battery full)
4h / 1A load
Convection
Natural convection
Operation Temperature
+10°C…+40°C IEC60068-2-1
Transport Temperature
-15°C…+55°C IEC60068-2-1
Storage Temperature
+10°C…+30°C IEC60068-2-1
EMI
EN55022 class B / EN61000-3-2
EMS
EN61000-6-2,3
Safety
(IEC)EN60950-1
Safety class 1(A)
VDE0805, VDE0100
Air & Surface Leakage Paths
> 8mm
Input/output
Galvanic insulated
AC Fail Relay (galv. insulated)
≤48Vdc/500mA , ≤30Vac/500mA
DC Fail Relays (galv. insulated)
≤48Vdc/500mA , ≤30Vac/500mA (option)
Relative Humidity (+25°C)
≤95% , no condensations
Pollution Degree
2 (EN50178)
Climatic Class
3K3 (EN60721)
Dimensions (HxWxD(T))
2U 84WU D=280mm
Weight
9800g
Connector AC
C14 Schaffner IEC60320-1, L+N lines
fused. Dismounting protected by a
securing clip Schurter 4700.0001
Connectors DC
Phoenix 1840599 DFK-PC4/6-GF-7,62
Female. Dismounting protection with
M3 threads for the mating plug.
Connector DC-Fail-Message
SUB-D 9pole female DIN41652 T1
Specification:
The DCUPS2U-Series is designed as an uninterruptable power supply for telecommunication and data
application use. Its regulated DC of 90% makes the DCUPS2U robust, economical and reliable. Camtec power
supplies are traditionally made with high-end low ESR electrolytic output capacitors with withstanding
+125°C temperature. Our capacitors are rather designed over for longer lifetime and longer hold up times.
The DCUPS2U is short circuit and zero load stability protected. It has a thermal overload fuse at the output to
protect the connected load. It is protected against high transient and provides very good interference
resistance. We use IP20 stabile aluminium housings with ventilation slots in accordance to the demanding
VDE norms. The plus pole has an internal connection to ground. The AC-Line connector and the DC-Output
connector has securing clip and screw fitting to avoid accidential removal of the connected cabeling. The
DCUPS2U has a built in AC-Fail detection and the message is available at the output connector galvanic
insulated. A DC-fail-function- message for the battery charger power supply and the main power supply is
optional available; each relay is floating galvanic insulated.
Battery
use

Camtec Systemelektronik GmbH –Gewerbestraße 30 –DE76327 Pfinztal –Germany p.3/4 10.09A
Phone [phone] -Fax [phone] –www.camtec-gmbh.com - [e-mail]
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
Block Diagram
Main connector:
1) Battery Extension +
2) Battery Extension -
3) Battery Out +
4) Battery Out –
5) Power Fail Message
6) Power Fail Message
Available Options (Sub-D):
A) DC-o.k.-monitoring for the
battery charger power supply
B) DC-o.k.-monitoring for the
main power supply
AC Fail Message
Low Voltage:
If the AC-Input drops -20% the AC-OK-
Relay (R) opens (control message). The
green DC-OK LED is off.
Test
Time
A
B
C
D
Type test and factory tests are
conducted by the manufacturer.
Do not repeat the test in the
field. Field test rules:
Type Test
60s
2500Vac
3000Vac
500Vdc
500Vdc
Factory Test
5s
2000Vac
2000Vac
500Vdc
500Vdc
Field Test
2s
2000Vac
2000Vac
500Vdc
500Vdc
a) Use approriate test equipment which apply the voltage with a slow ramp
b) Connect L1 and N together, as well as all output poles
c) Use only AC test-voltages with 50/60Hz. The output voltages is floating and has
no ohmic reference to ground.
d) If testing output voltages are ≥60Vdc remain to security directives.
Use only isolated screw drivers to adjust output voltages.
Function Table and Messages *) optional available
Indicators
AC-Line o.k.
green LED
AC-Fail
Relay
Contact
Battery o.k.
LED green
Battery Low
LED red
Battery
Charge
LED yellow
Piezo Sound
Interval 30s
Battery
Extension
LED green
*) DC-o.k.
Relay 1
(Charger)
*) DC-o.k.
Relay 2
(Main AC-power)
Normal operation
On
Closed (C)
On
Off
Off
Off
On
(if connected)
Open
Open
AC-Main line fail at
184Vac
Off
Open (O)
On
Off
Off
On
On
(if connected)
Closed
Closed
Battery Low Voltage
α < 38Vdc
On/
Off (AC-fail)
C/O (AC-fail)
Off
On
On/
Off (AC-fail)
Off/
On (AC-fail)
On
(if connected)
Open/
Closed (AC-fail)
Open /
Closed (AC-fail)
Battery
38Vdc < α > 52Vdc
On/
Off (AC-fail)
C/O (AC-fail)
Off/
On (AC-fail)
Off
On/
Off (AC-fail)
Off/
On(AC-fail)
On
(if connected)
Open/
Closed (AC-fail)
Open/
Closed (AC-fail)
Battery o.k. > 52Vdc
On/
Off (AC-fail)
C/O (AC-fail)
On
Off
Off
On/Off (AC-
fail)
On
(if connected)
Open/
Closed (AC-fail)
Open/
Closed (AC-fail)
Charger Power
Supply disable
On
Open
Off (<90%)
On (<70%)
Off !
Off
On
(if connected)
Closed
Open
Main Power Supply
disable
On
Open
Off (<90%)
On (<70%)
Off !
Off
On
(if connected)
Open
Closed
SMPS
Charger
PE
L Fuse
N Fuse
Battery
Logic
3
4
5
6
1
2
Main
Connector
EMI
Filter
Power
Fail
SMPS
Main
A
B
Sub-D
GND
DC-Fuse

Camtec Systemelektronik GmbH –Gewerbestraße 30 –DE76327 Pfinztal –Germany p.4/4 10.09A
Phone [phone] -Fax [phone] –www.camtec-gmbh.com - [e-mail]
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
Terminal Connects:
1 = L
SK1 2 = N
3 = GND+/ PE
1 = Battery Extension Input +
2 = Battery Extension Input -
3 = DC + (connected to GND/Housing)
SK2 4 = DC -
5 = AC-Line Fail Relay
6 = AC-Line Fail Relay
A = Charger o.k. Relay
SK3 A = Charger o.k. Relay
B = AC Main Line Power o.k. Relay
B = AC Main Line Power o.k. Relay
GND-Screw (external)
Is the PE-connection to
the housing. Note that
the +pole is internal
connected to GND, too
Battery Management Switch:
We advise the battery management to be switched into the off-position for shipping, storing or for service operations (battery change!). If
the switch is not in the off-position, the batteries can be damaged while beeing total discharged! The piezo warning sound of AC-main
failure and the DC-battery backup connection is disbaled while the switch is put into the off-position. To enable the battery backup and all
warnings, make sure that the battery management is put into the on-position (normal operation mode).
Order Codes:
DCUPS2U4AH.56 for 48Vdc(56,0Vdc/4Ah/1A) , ad .DF for the DC-Fail-Monitoring-option to the order code, sample: DCUPS2U4AH.56.DF
Available Component Parts:
AC-line cable L=2m H05VV1,5 with isolated ground receptacle CEE7/7 IEC60083 and connector C13 IEC60320-1 Schurter 4782, Order Code: 3061060001CA
DC-line connector AWG10…24/0,2…44mm² with housing, 45° wiring outlet, and M3 screw fittings, Order Code: 3061051001CA
Monitor line cable with two metal Sub-D 9pole 1:1 with kurled screws, 35° wiring outlet, L=3m Lappkabel LiYY0.5 DIN47100, Order Code: 3061052001CA
Attention: always use C13 connector Schurter 4782 to enable securing clips to fit to the AC-line cabeling, other C13-connectors may not fit
Mechanics & Installation:
Stable aluminium housing IP20 to allow adequate convection, a free air space of 1U (top/bottom) and 5mm (sidewalls) is required for the
DCUPS2U; for active devices 15mm space from its sidewalls. For free air convection it is necessary to install the DCUPS2U horizontal
Battery type for service replacement:
To guarantee safe function it is advised to use the same battery type as the installed one, to DC-UPS. The battery type is the Panasonic
LC-R124R5P 12V 4,5Ah . We recommend the batteries to change after 2 years cycle operation to prevent malfunctions.
Safety Instructions: Please read all warnings and advices carefully before installing or operating the DCUPS2U. Retain this operation manual
always ready to hand.The DCUPS2U must be installed by specialist staff only.
Installation:
1.) The DCUPS2U is designed for systems fulfilling the safety norms of
dangerous voltages/energy and fire prevention
2.) Installation is restricted to specialists only, make sure that the AC
wire system is free of voltage
3.) Opening the DCUPS2U, making any modifications to it, dismounting
any screws from it, operating the DCUPS2U out of specification
and/or using it in appropriate area will unevitably result in loosing
manufactureres guarantee; we decline taking any responsibility for
risk of demages caused to someones health or to any installed
system.
4.) Attention: The DCUPS2U has input fuses for the L and the N line.
Replace the fuses only with the same type; we recommend to use
the same manufacturer. The fuses must be UL-certified switch type.
It is also necessary to wire an automatic circuit braker to the line.
We suggest to use a 16A-type with B-characteristic. It is verboten to
operate the DCUPS2U without protective earth wired.
5.) It is recommended to replace the internal batteries by the same
valve regulated lead-acid battery type with Faston 197 connectors:
Panasonic LC-R124R5P. For replacing the battery please consult
your service provider or send the DCUPS2U to the manufacturer.
6.) After lifetime batteries has to be given to a cetified recycle company.
Warnings:
Disregard these warnings can cause fire, electic shock, serious
accident and death.
1. Never operate the DCUPS2U without Protective Earth
Conductor
2. Before connecting the DCUPS2U to the AC wire
system make all wires free of voltage and assure
accidently switch on
3. Allow neat and professionel cabeling
4. Never open nor try to repair the DCUPS2U by yourself.
Inside are dangerous voltages that can cause electric
shock hazard.
5. Avoid metal pieces or other conductive material to fall
into the DCUPS2U
6. Do not operate the DCUPS2U under damp or wet
conditions
7. It is verboten to operate the DCUPS2U under Ex
conditions or in Ex-Area

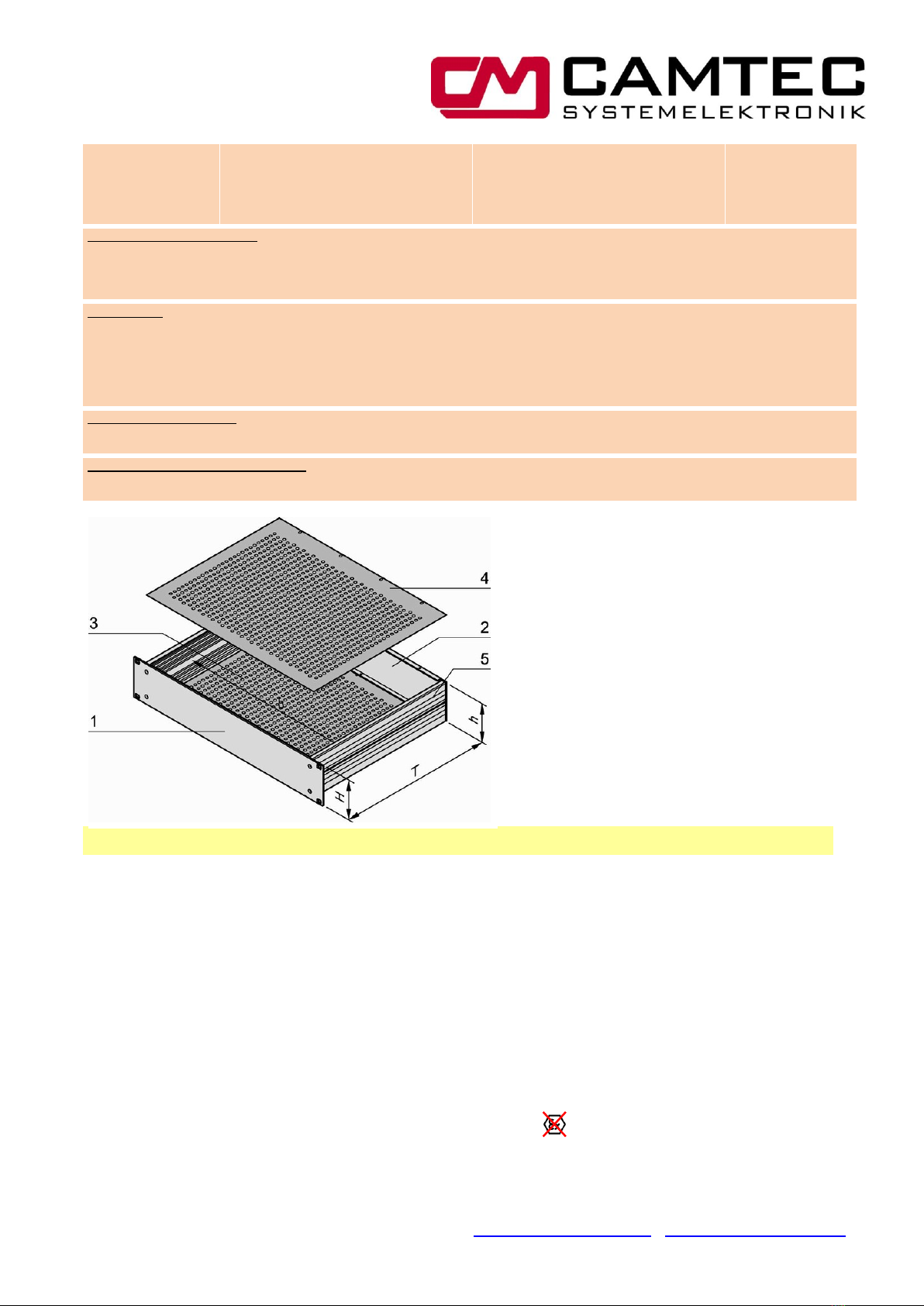

H= 2U = 88,1mm
B= 84WU(TE) = 426,4mm
T= 280mm
We use a very robust full aluminium housing with stable
aluminium handholds, drawn side frames and a 2,5mm
aluminium anodized front plate.
