CanadianSolar CSI-75K-T40001-E User manual

CSI-75K-T40001-E
CSI-100K-T4001A-E
CSI-100K-T4001B-E
CSI-110K-T4001A-E
CSI-110K-T4001B-E
CSI-120K-T4001A-E
CSI-120K-T4001B-E
PV Inverter Quick Installation Guide
（Part No: 91000221; Release Date: February, 2023）

1/ 17
1 About This Guide
1) This guide only applies to the following inverters：CSI-75K-T40001-E, CSI-100K-T4001A-E, CSI-100K-T4001B-E, CSI-110K-
T4001A-E, CSI-110K-T4001B-E, CSI-120K-T4001A-E and CSI-120K-T4001B-E.
2) This instruction only provides an overview of the installation of the above inverters
3) Due to product version upgrade or other reasons, this guidance will be updated irregularly. Under no circumstances can
this guide replace the user manual and the safety instructions on the product.
4) Please read the user manual and related standard specifications carefully before performing any operation on this series
of products. You can scan the QR code on the left side of the device or at the end of this guide to obtain an electronic
copy of the manual。
5) All operations on this series of products must be completed by professional technicians. Professional and technical
personnel must be specially trained, read user manual, master the safety matters related to operation, and be familiar
with local standards and electrical system safety specification.
6) Before installing the products, please check whether the products are complete, consistent with the order, and whether
there is obvious damage. If there is any abnormality, please contact the local dealer or CSI Solar Co., Ltd.
2 Product Introduction
1050mm 355mm
687mm
1 6
3
4
5
2
3
4
5
2
7
8
9
CSI-120K-T4001A-E
CSI-110K-T4001A-E
CSI-75K-T40001-E
COMM. PORT-1
VENT VALVE
AC OUTPUT
MPPT-6
PV-11 PV-12
MPPT-5
PV-9 PV-10
MPPT-4
PV-7 PV-8
MPPT-3
PV-5 PV-6
MPPT-2
PV-3 PV-4
MPPT-1
PV-1 PV-2
DO NOT DISCONNEC T UNDER LOAD!
DC SWITCH-2
ON
OFF
DC SWITCH-1
ON
OFF
COMM. PORT-4
COMM. PORT-2
COMM. PORT-3 COMM. POR T-5
AUX. PORT GROUNDING
17 1211 16 10 15 13 14
CSI-100K-T4001A-E

2/ 18
CSI-120K-T4001B-E
CSI-110K-T4001B-E
COMM. PORT-1
VENT VALVE
AC OUTPUT
MPPT-9
PV-17 PV-18
MPPT-8
PV-15 PV-16
MPPT-7
PV-13 PV-14
MPPT-6
PV-11 PV-12
MPPT-5
PV-9 PV-10
MPPT-4
PV-7 PV-8
MPPT-3
PV-5 PV-6
MPPT-2
PV-3 PV-4
MPPT-1
PV-1 PV-2
DO NOT DISCO NNECT UNDER LOA D!
DC SWITCH-3
ON
OFF
DC SWITCH-2
ON
OFF
DC SWITCH-1
ON
OFF
COMM. PORT-4
COMM. PORT-2
COMM. PORT-3 COMM. PORT-5
AUX. PORT GRO UNDING
17 1211 16 10 15 13 14
CSI-100K-T4001B-E

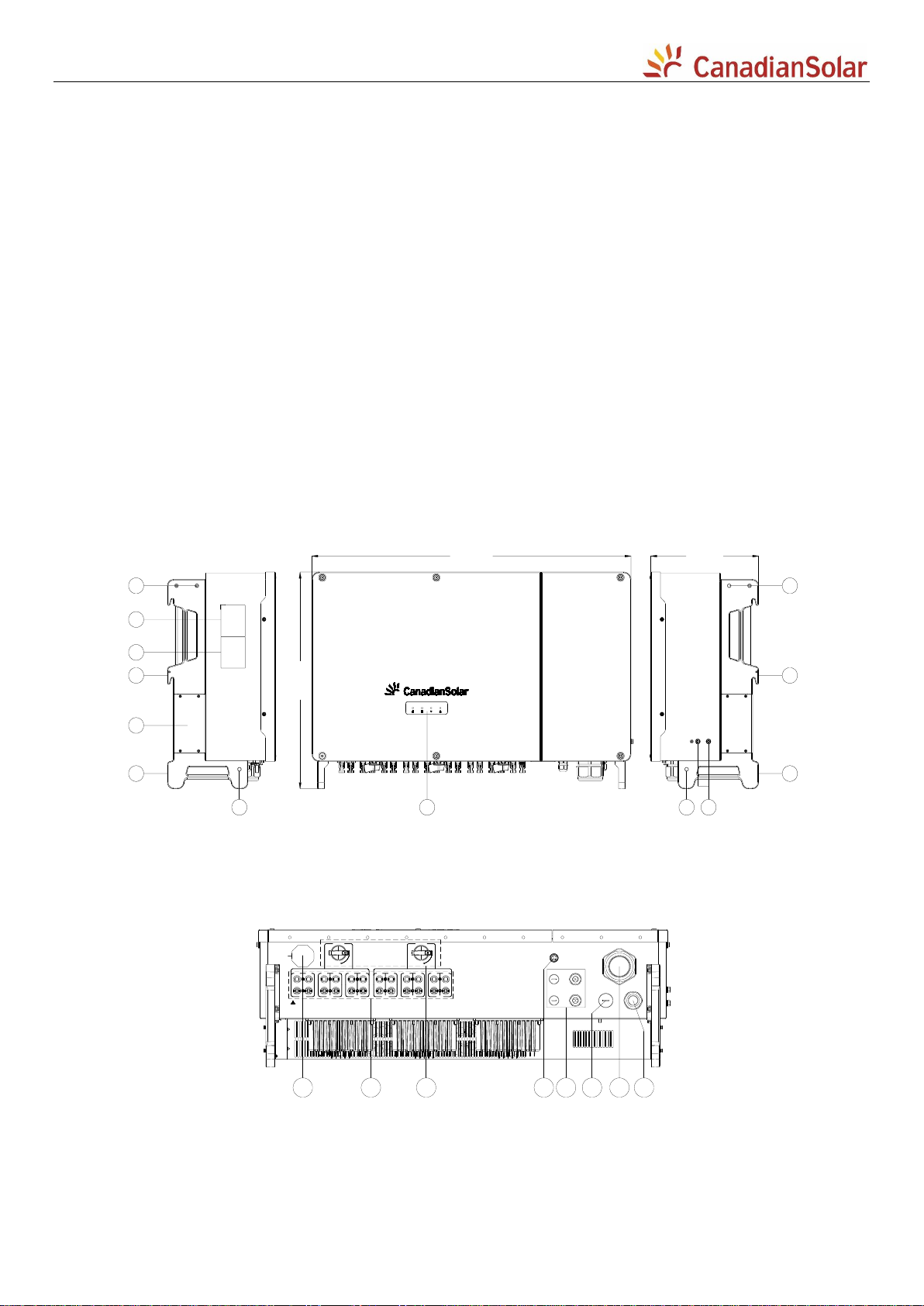

FIG 2-1 Product introduction (The picture is for reference only)
1.LED indicator Panel
10. Cable gland for communication
2.Side handles and mounting ears
11.PV input connectors
3.Bottom handles
12.DC disconnect switch
4.M12 holes for lifting eyes or hand shanks
13.Cable gland for AC output
5.M12 holes for hand shanks
14.Cable gland for interior grounding
6.Additational grounding points
15.Reserved auxiliary port
7.Rating label
16.Communication connector for data logger
8.Warning label
17.Breather valve
9.The cover of outer fan module
3.1 Installation Environment Requirements
1) Do not install the inverter on the structures constructed of flammable, thermolabile or explosive materials.
2) Ensure the inverter is out of children's reach.
3) The ambient temperature should be between -30℃~ 60℃.
4) The humidity of the installation location should be below 100% without condensation.
5) Do not install the inverter outdoors in salt, sulfur or other corrosive areas.
6) Prevent the inverter from direct exposure to sun, rain and snow.
7) The inverter should be well ventilated. Ensure air circulation.
8) Never install the inverter in living areas. The inverter will generate noise during operation, affecting daily life.
9) Install at at an appropriate height for ease of viewing LED indicators and operating switches.
FIG 3-1 Installation site
3.2 Carrier Requirements
Max. load bearing capacity ≥ 4 times of inverter weight.
3.3 Installation Angle Requirements
Inverter vertically or at aminimum back tilt of 10°. Forward installation or upside down installation is prohibited.。

3/ 18
Vertical Forward Upside downBackward
≥10
FIG 3-2 Installation angle
3.4 Installation Clearance Requirements
1）Reserve enough clearance around the inverter to ensure sufficient space for heat dissipation. ( 3-3 The fans are
maintained on the left side of the inverter, and a larger clearance is required.)
In case the distance is less than 800mm, move the inverter from the mounting-bracket or wall before maintaining fans
2) In case of multiple inverters, reserve specific clearance between the inverters. 3-4
≥600mm
≥800mm
≥1000mm
≥400mm
≥500mm
FIG 3-3 Single installation space
≥800mm ≥800mm ≥400mm
FIG 3-4 Multiple installation space

4/ 18
3.5 Assembling the mounting-bracket
Dimensions of the assembled mounting-bracket are as follows 3-5.
1000.5
250
1060.5
355
2-Ø12
12
20
12
20
M4
PH2 1.5N.m
FIG 3-5 Assembly mounting bracket
3.5.1 Standard C or U Steel Installation
Mounting Steps:
Step 1 Localize the hole positions in C or U-section steel to install mounting bracket.
Step 2 Secure the mounting bracket with M10 bolts and nuts.
M10
30N.m
FIG 3-6 Locate the mounting hole
3.5.2 Steel Frame Installation
Mounting Steps:
Step 1: Level the assembled mounting-bracket by using a level, and mark the positions for drilling holes on the steel frame.
Drill the holes by using a hammer drill. Recommended aperture 12mm.
Step 2: Secure the mounting-bracket with M10 bolts and nuts.

5/ 18
Ø12
M10
30N.m
FIG 3-7 Install the wall bracket
3.6 Inverter Installation
Step 1: Take out the inverter from the packing carton.
Step 2: Hoist the inverter to the installation position.
Step 3: Hang the inverter to the mounting-bracket and ensure that the mounting ears perfectly engage with the mounting-bracket.
Step 4: Fix the inverter with screws M6x30.
M6
4.5
N.m
FIG 3-8 Install the inverter
4 Electrical Connection
4.1 Electrical Connection Overview
1）PV string; 2）Inverter; 3） AC distribution box/cabinet ; 4）Utility grid; 5）Monitoring device
1
2
34
ABC D E
5
FIG 4-1 General electrical connection diagram

6/ 18
Table 4-1 Recommended Cables
No.
Cable Name
Cable Type
Conductor Cross-Sectional Area
Outer Diameter
1
DC cable
PV cable, complying with 1500V
standard
4~6mm2
6~9mm
2
Additional
Grounding cable
Outdoor single core copper conductor
cable
The same as that of the
PE wire in the AC cable
N/A
3
AC cable
F our/Five-core outdoor copper or
aluminum cables
1) 75KW: 4 or 5 x 50~185 mm2
75KW: 3 x 240+1 x 120 mm2
2) 100~120KW: 4 or 5 x 70~185 mm2
100~120KW: 3 x 240+1 x 120 mm2
26~57mm
PE wire: refer to "table 5-
2PE wire requirements"
4
Communication
cable
Shielded twisted pair (terminal
block)
0.5~1.5 mm2
4.5~6.5mm
CAT-5 Ethernet cable (RJ45)
N/A
5
Wireless
communication
N/A
N/A
N/A
Tbale 4-2 PE wire requirements
Phase wire cross
section S
PE wire cross
section
Outer
Diameter
Note
S ＞ 35 mm
²
S/2
12~25mm
The specifications are valid only when the phase wire and PE
wire use the same material. If otherwise, ensure that the
cross section of PE wire produces a conductance equivalent
to that of the wire specified in the table.
4.2 Connecting the PE Cable
WARNING
Since the inverter is a transformerless inverter, neither the negative pole nor the positive pole of the
PV string can be grounded. Otherwise, the inverter will not operate normally.
Connect the additional grounding terminal to the protective grounding point before AC cable
connection, PV cable connection, and communication cable connection.
The ground connection of this additional grounding terminal cannot replace the connection of the PE
terminal of the AC cable. Make sure thoes terminals are both grounded reliably.
Connection Procedure ：
Step 1 Prepare the cable and terminal.
Step 2 Remove the screw on the grounding terminal and fasten the cable with awrench.
Step 3 Apply paint to the grounding terminal to ensure corrosion resistance.

7/ 18
L1
L2=L1+3mm L3=2L1
D
8.4≤D≤12.5mm
8N.m
M8

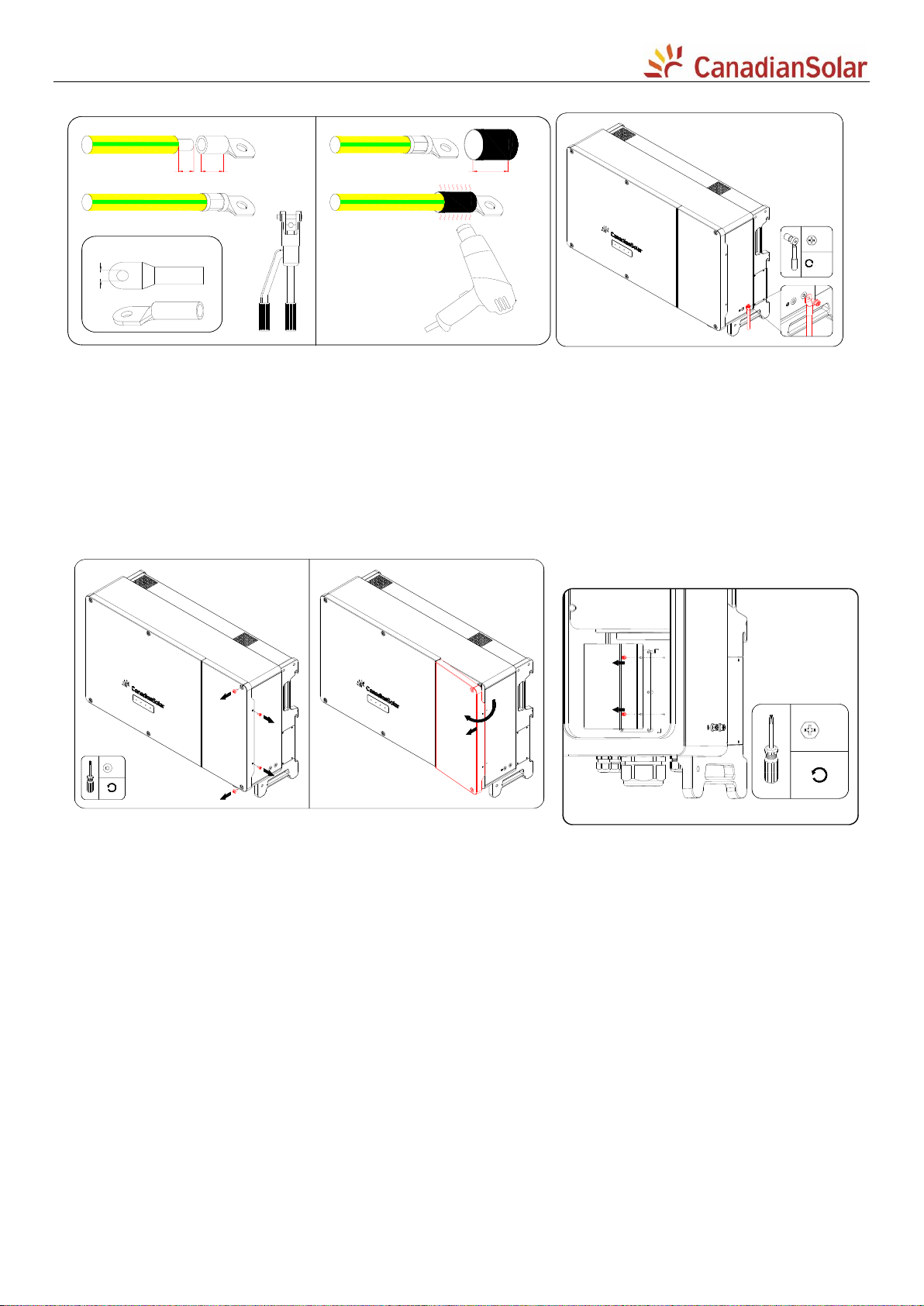

FIG 4-2 Install ground cables
4.3 Communication Cable Connection
4.3.1 Opening the Wiring Compartment
Step 1 Loosen four screws on the front cover of the wiring compartment with screwdriver T30.
Step 2 Open the wiring compartment.
Step 3 Loosen two screws on the communication board, and remove the protection cover
Note： Close the wiring compartment in reverse order after completing wiring operations.
M6
T30
M4
PH2
FIG 4-3 Open the Wiring Compartment
4.3.2 Communications Interface Description
The following figure shows the position of the communication wiring board in the inverter as well as the terminals equipped for the
wiring board.(Note: The communication wiring board shown in the enlarged figure below is placed horizontally, while the
communication board in the actual working state is placed vertically.)
4.3.3 RS485 Communication
The inverter is equipped with four groups of RS485 communication port for external communication connection, which are
RS485_1, RS485_2, RS485_3, and RS485_4.
The terminal block interface and RJ45 interface have the same function with only wiring manner different. Select either
interface for cable connection.
4.3.3.1 Single-inverter communication system
In case of asingle inverter, select either terminal block interface (RS 485-1, and RS 485-3) or RJ45 interface(C1~C8) to
connect.

8/ 18
RS485-3
RS485-1 RS485-2
RS485-4
USB Dry
contact CAN DRMMeter/Tracker
120O
A1 B1 PE +12V
RS485 RS485
METER/TRACKER
DRM
USB
A1 B1 PE +12V
ON OFF
SW1
ON OFF
SW3
120O
120O
SW2
ON OFF
DRY CONN CAN
RS485-3
RS485-1 RS485-2
RS485-4 Meter/Tracker
A1B1PE +12V
RS485 RS485
Logger
PC
A1B1PE +12V

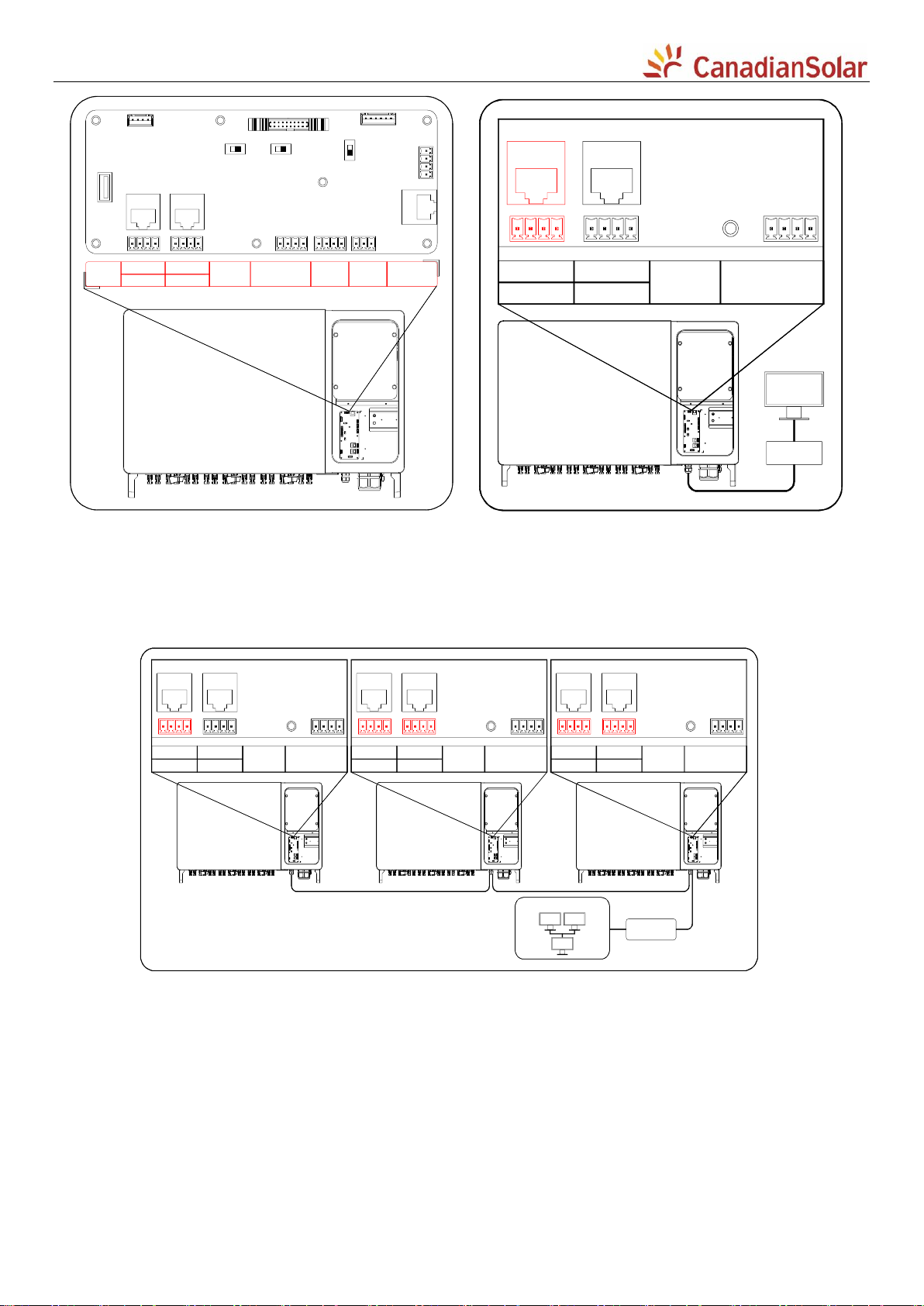

FIG 4-4 Communications Interface Description FIG 4-5 Single-inverter communication system
4.3.3.2 Multi-inverter communication system
In case of multiple inverters, select either terminal block interface or RJ45 interface to connect.
1) All the inverters are connected via terminal block interface (RS485 cables) in the daisy chain.
FIG 4-6 Multi-inverter communication system (RS485 cables)
RS485-3
RS485-1 RS485-2
RS485-4 Meter/Tracker
A1B1PE+12V
RS485 RS485
METER/TRACKER
RS485-3
RS485-1 RS485-2
RS485-4 Meter/Tracker RS485-3
RS485-1 RS485-2
RS485-4 Meter/Tracker
Logger
Plant monitoring station
RS485-1 RS485-1 RS485-1RS485-2RS485-2
A1B1PE+12V
RS485 RS485 RS485 RS485
A1B1PE+12V A1B1PE+12V METER/TRACKER METER/TRACKER A1B1PE+12V A1B1PE+12V

9/ 18
2) All the inverters are connected via RJ45 interface (internet cable) in the daisy chain.
RS485-3
RS485-1 RS485-2
RS485-4 Meter/Tracker
A1B1PE+12V
RS485 RS485
METER/TRACKER
RS485-3
RS485-1 RS485-2
RS485-4 Meter/Tracker RS485-3
RS485-1 RS485-2
RS485-4 Meter/Tracker
Logger
Plant monitoring station
RS485-3 RS485-3 RS485-3RS485-4RS485-4
A1B1PE+12V A1B1PE+12V
RS485 RS485
METER/TRACKER
A1B1 PE+12V A1B1PE+12V
RS485 RS485
METER/TRACKER
A1B1PE+12V

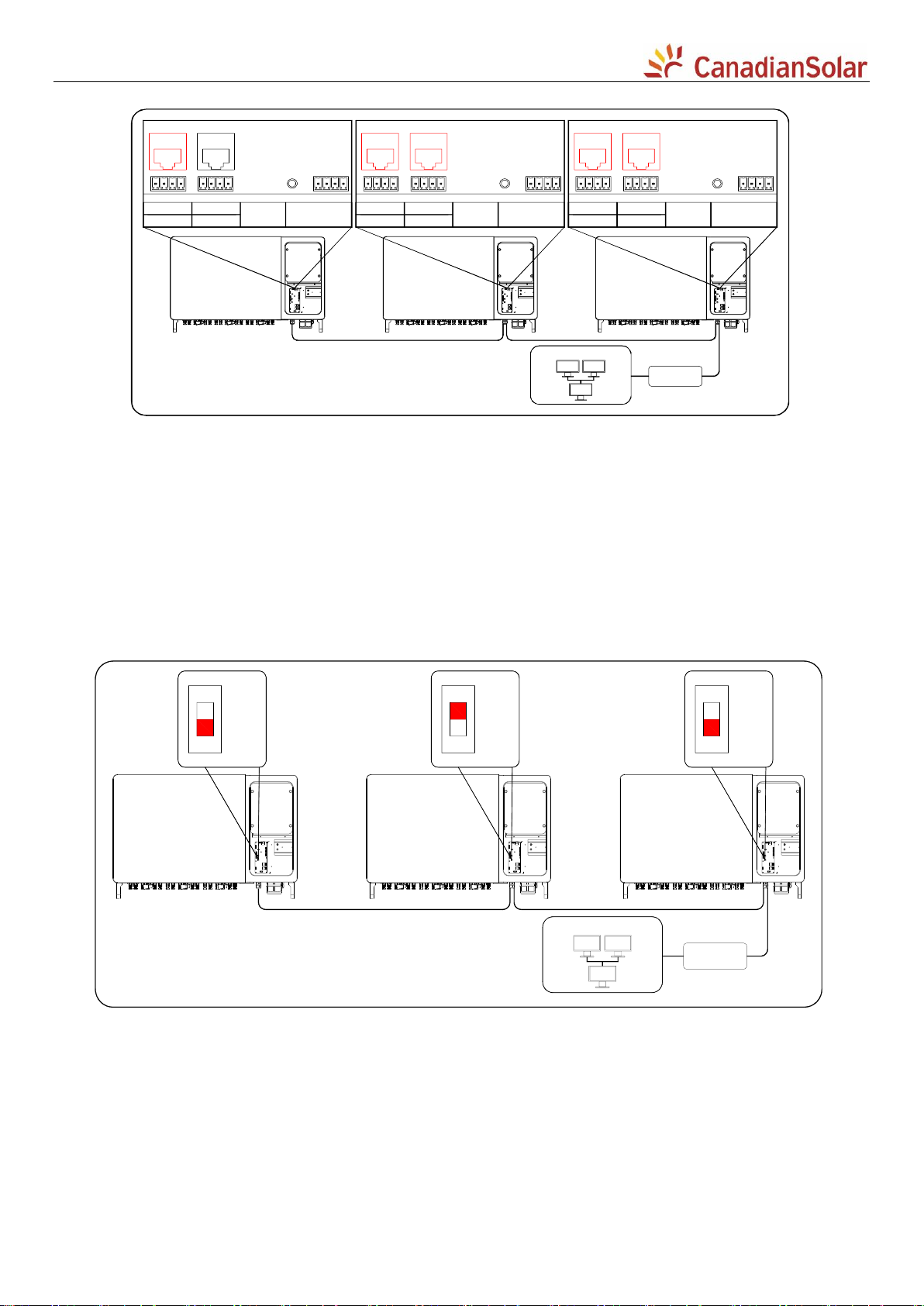

FIG 4-7 Multi-inverter communication system (RJ45 cables)
3) More than15 pcs inverters communication.
All the inverter are connected via terminal block interface (RS485 cables) in the daisy chain.
When more than 15 inverters are connected on the same daisy chain, the inverters on two ends of the chain should be
equipped with terminal resistors of 120Ω to ensure communication quality by configuring the dip switch (SW2), and the
shielding layer of the communication cable should be single-point grounded.
Logger
Plant Monitoring Station
Inverter N Inverter 2~(N-1) Inverter 1
SW2
ON
OFF
SW2
ON
OFF
SW2
ON
OFF
FIG 4-8 More than15 pcs inverters communication system
4.3.3.3 Connection Procedure (Terminal Block)
Step 1: Strip the protection layer and insulation layer by appropriate length.
Step 2: Loosen the swivel nut of the communication terminal and select an appropriate seal according to cable outer diameter.
Lead the cable through the swivel nut and seal successively.
Step 3: Secure the cable to the terminal base.
Step 4: Insert the terminal base into the corresponding terminal.
Step 5: Pull the cable gently to make sure it is secured, tighten the swivel nut clockwise.

10 / 18
7mm M2
3-4
N.m
M20
For cable gland
For connector
0.2N.m
FIG 4-9 Connection Procedure (Terminal Block)
4.3.3.4 Connection Procedure (RJ45 network port)
Step 1: Loosen the swivel nut of the communication terminal and select an appropriate seal according to cable outer diameter.
Lead the cable through the swivel nut and seal successively.
Step 2: Strip the insulation layer of the Ethernet cable with a wire stripper, and insert the signal wires to the RJ45 connector.
Crimp the RJ45 connector with a crimping tool.
Step 3: Insert the RJ45 connector to the RJ45 jack.
Step 4:Pull the cable gently to make sure it is secured, tighten the swivel nut clockwise.
For cable gland
Pin 1...8
Wire sequence and Function:
Pin1-White and orange
Pin2-Orange
Pin3-White and green(RS485- B)
Pin4-Blue
Pin5-White and blue
Pin6-Green (RS485+ A)
Pin7-White and brown
Pin8-Brown
Pin3 and Pin6 are used for
communication connection only. 3-4
N.m
M20
FIG 4-10 Connection Procedure (RJ45 network port)
4.4 Data Logger Connection
Connect the Data Logger to the communication accessory port.
After successful connection, information such as power generation and running state of the inverter can be viewed via the APP
on the phone.

11 / 18
FIG 4-11 Data logger connection
4.5 AC Cable Connection
4.5.1 AC Side Requirements
Before connecting the inverter to the grid, ensure the grid voltage and frequency comply with requirements, for which, refer to
Specification. Otherwise, contact the electric power company for help.
Connect the inverter to the grid only after getting an approval from the local electric power company.
4.5.2 Connection Procedure
Step 1: Open the wiring compartment.
Step 2: Pull out four plastic rivets on the protection plate, then remove the protection plate.
Step 3: Disconnect the AC-side circuit breaker and prevent it from inadvertent reconnection.
Step 4: Loosen the swivel nut of the AC waterproof connector and select aseal rings according to the cable outer diameter.
Lead the cable through the swivel nut, seal rings, and wiring terminal successively.
Step 5: Strip the protection layer and insulation layer by specific length, as described in the figure below.
≤350mm
L1
L2
L3
N
PE
L1
L2
N
L3
≤350mm
FIG 4-12 Strip the protection layer and insulation layer
Step 6: Make the cable and crimp terminal.
W
A
D
W≤46mm
12.5≤D≤16.5mm
A≤22mm
For L1/L2/L3/N W≤35mm
10.5≤D≤16.5mm
For PE(INTERIOR)
L1
L2=L1+3mm L3=2L1
FIG 4-13 Make the cable
Step 7: Secure the wires to corresponding terminals.
Step 8: Gently pull the cable backwards to ensure firm connection, and fasten the swivel nut clockwise.

12 / 18
20-30
N.m
M12
For L1/L2/L3/N and internal PE cable.
L1 L2 L3 NL1 L2 L3 N
Gland for internal ground
cable
For cable gland
9-10
N.m
M72
Seal ring-5
For cable
OD=50-57mm
Gland for AC output cable
Press nut
End blocker
Seal ring-4
For cable
OD=43-50mm
Seal ring-3
For cable
OD=36-43mm
Seal ring-2
For cable
OD=30-36mm
Seal ring-1
For cable
OD=26-30mm
End blocker
Press nut
Seal ring-2
For cable
OD=18-25mm
Seal ring-1
For cable
OD=12-18mm
Recommend
FIG 4-14 Recommended AC cable connection position
4.5.3 Closing the Wiring Compartment
Step 1: Reinstall the protection plate and push the four plastic rivets into the holes at the chassis.
Step 2: Close the wiring compartment and tighten the four screws on its front cover with screwdriver T30.
M6
T30
4.5
N.m
FIG4-15 Close the wiring compartment
Notice：The gap between AC cable and waterproof gland must be blocked with fireproof mud to prevent water or moisture.
4.6 DC Cable Connection
DANGER
Electric shock!
The PV array will generate lethal high voltage once exposed to sunlight.
Before performing electrical operations, ensure that all cables are uncharged.
Do not turn on the AC circuit breaker before the inverter is electrically connected.
CAUTION
Make sure the PV array is well insulated to ground before connecting it to the inverter.
During the installation of PV strings and the solar inverter, the positive or negative terminals of PV
strings may be short-sircuited to ground if the power cable is not proprely installed or routed. In

13 / 18
this case, an AC or DC short circuit may occur and damage the solar inverter. The caused device is
not covered under any warranty.
NOTICE
There is arisk of inverter damage! The following requirements should be met.
Failure to do so will void guarantee and warranty claims.
• Make sure the maximum voltage of each string is always less than 1100 V.
• The inverter enters the standby state when the input voltage ranges between 1,000V and
1,100V. The inverter returns to the running state once the
voltage returns to the MPPT operating voltage range, namely, 200 to 1,000V.
Make sure the maximum short circuit current on the DC side is within the permissible range.
• The polarities of electric connections are correct on the DC input side. The positive and negative
terminals of a PV module connect to corresponding positive and negative DC input terminals of
the solar inverter.
CAUTION
Use the connectors delivered with the solar inverter. If the PV connnectors are lost or damaged,
purchase the connectors of the same model. The device damage caused by incompativle PV
connecotrs is beyond the warranty scope.
4.6.1 Connection Procedure
Step 1: Strip the insulation from each DC cable by 7mm.
Step 2: Assemble the cable ends with the crimping pliers
Step 3: Lead the cable through cable gland, and insert into the insulator until it snaps into place.
Gently pull the cable backward to ensure firm connection. Tighten the cable gland and
the insulator (torque 2.5 N.m to 3N.m).
Step 4: Check for polarity correctness.
The inverter will not function properly if any PV polarity is reversed.
7
正极端子
负极端子
锁紧螺母
正极外壳
光伏电缆
压接好的端子
密封圈
锁紧螺母
负极外壳
压接好的端子
密封圈
7
PV Cable
Positive
Crimp
Contact
Negative
Crimp
Contact
Press nut
Positive Housing
Seal Ring
Crimped Contact
Press nut
Negative
Seal Ring
Crimped Contact
Housing
固定不动
顺时针转动
专用扳手(x2)
Fixed
Clockwise Rotation
Special Wrench(x2)
FIG 4-16 DC cable connection
4.6.2 Installing the PV Connectors
step 1: Rotate all the DC switches to "OFF" position.
step 2: Check the cable connection of the PV string for polarity correctness and ensure that the open circuit voltage in any
case does not exceed the inverter input limit of 1,100V.
step 3: Connect the PV connectors to corresponding terminals until there is an audible click.
step 4: Follow the foregoing steps to connect PV connectors of other PV strings.
step 5: Seal the unused PV terminals with the terminal caps.

14 / 18
ON
OFF
OFF
V
~V
mV O
A
~
mA
~
礎
~
V
999.9
FIG 4-17 DC switch FIG 4-18 Check the polarity of PV string
FIG 4-19 Connect the PV connectors to the inverter
5 Commissioning Inverter
5.1 Electrical Inspection
No.
Inspection Items
Result
Yes
No
1
The inverter DC switch and external circuit breaker are disconnected
2
The inverter should be accessible for operation, maintenance and service.
3
Nothing is left on the top of the inverter.
4
The inverter is correctly connected to the external devices.
5
The cables are routed in asafe place or protected against mechanical damage.
6
The selection of the AC circuit breaker is in accordance with this manual and all
applicable local standards.
7
All unused terminals at the bottom of the inverter are properly sealed.
8
Warning signs &labels are suitably affixed and durable.
5.2 Commissioning Procedure
If all of the items mentioned above meet the requirements, proceed as follows to start up the inverter for the first time.
Step 1: Rotate the DC switch of the inverter to "ON" position.
Step 2: Connect the AC switch (if applicable) between the inverter and the grid.
Step 3: Connect the DC switch (if applicable) between the inverter and the PV string.
Step 4: Set initial protection parameters via the CSI Cloud App. If the irradiation and grid conditions meet requirements, the
inverter will normally operate.
Step 5: Observe the LED indicator to ensure that the inverter operates normally.

15 / 18
LED indicator
LED state
Definition
PV connection indicator
Steady green
At least one PV string is properly connected, and the DC input
voltage of the corresponding MPPT circuit is at least 200V.
Off
The solar inverter disconnects from all PV strings, or the DC input
voltage of all MPPT circuits is less than 200V.
Grid connection indicator
Steady green
The solar inverter is in grid-tied mode.
Blinking green
The solar inverter is in self-test mode or wait mode.
Off
The solar inverter is not in grid-tied mode.
Communications/Maintenance
indicator
Blinking green
The solar inverter receives communication data normally
Off
The solar inverter has not receives communication data for 10
seconds.
Steady green
The solar inverter is in maintenance status
Alarm indicator
Steady red
A major alarm is generated.
Blinking red
A minor or warning alarm is generated.
Off
No alarm
6 CSI CloudPro APP
6.1 APP Introduction
The CSI CloudPro APP can establish communication connection to the inverter via the Blue-tooth, thereby achieving near-end
maintenance on the inverter. Users can use the App to view basic information, alarms and events, set parameters, etc.
6.2 Download and Install the App
Method 1：Scan the following QR Code to download and install the App according to the prompt information.
Method 2：Download and install the App through the following application stores:
Google Play(Android)
APP Store(iOS)
6.3 Use the Local Mode to Login the App
Notice：To use the local mode, the following conditions should be met：
(1) The collector is connected to the inverter and powered on.
(2) The distance between the mobile phone and the collector should be within 5m and there is no shelter.

16 / 18
Step 1：Open the CSI CloudPro APP.
Step 2：Select “Local Mode”, then scan logger SN. The mobile phone will connect to the collector automatically.

17 / 18
Step 3：After the connection succeeds, users can view the real-time operating data of the inverter.
Step 4：Select “Params”, enter the password 000000 and login the system. Then, users can view and modify parameters
*APP pictures are for reference only.

18 / 18
7 Obtaining User Manual
Please scan the QR code for more detailed information in user manual.
