1.1 Product Description
.3..2.
LED lights
LCD display
4 buttons

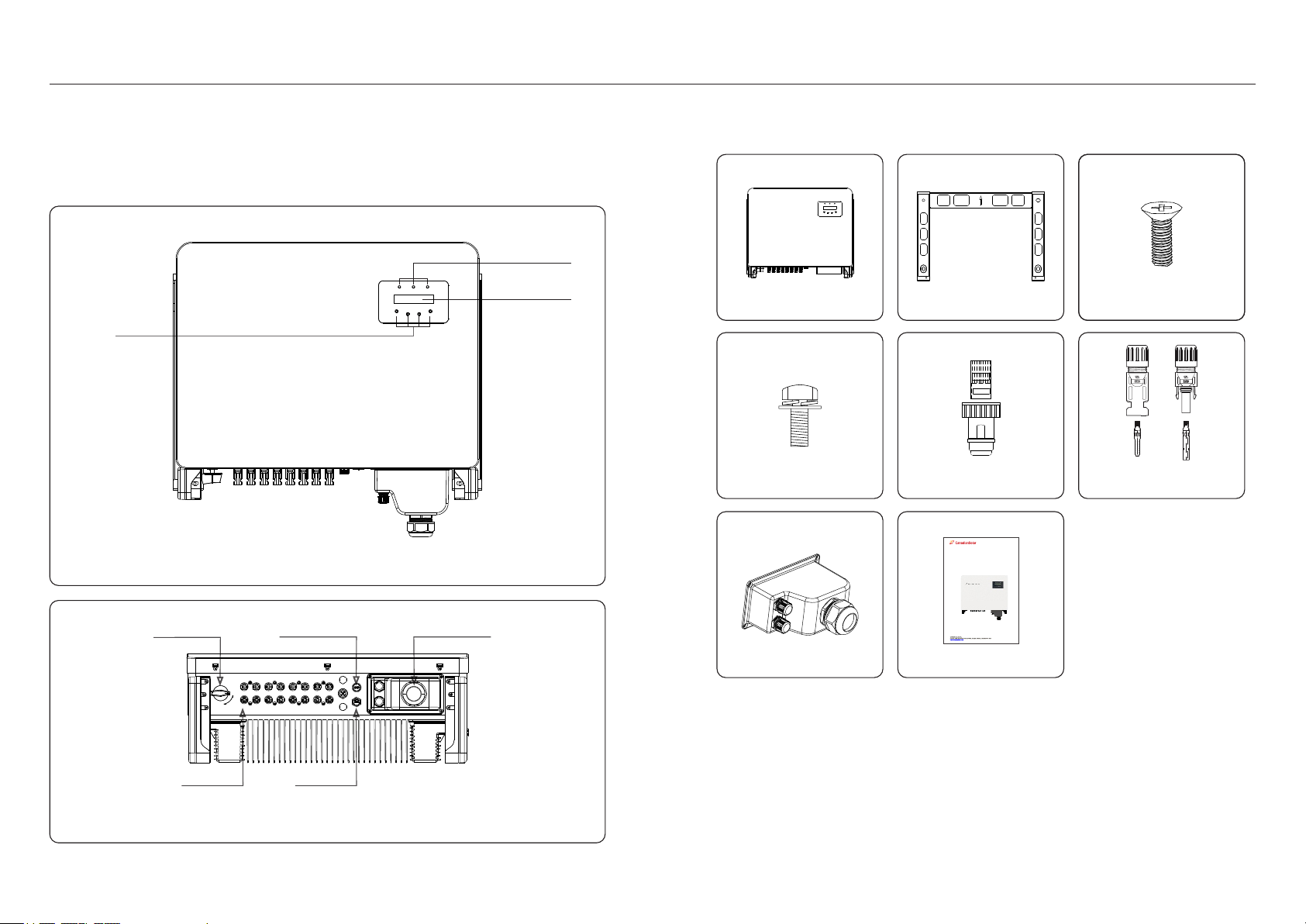

Figure 1.1 Front view
Figure 1.2 Bottom view
Inverter x1 Bracket x1
1.2 Packaging
When you receive the inverter, please ensure that all the parts listed below are included:
1. Introduction 1. Introduction
If anything is missing, please contact your local Canadian Solar distributor.
This 3-phase inverter series contains 7 models, as listed here below:
CSI-25K-T400GL02-E, CSI-30K-T400GL02-E, CSI-33K-T400GL02-E, CSI-36K-T400GL02-E,
CSI-40K-T400GL02-E, CSI-40K-T500GL02-E and CSI-50K-T500GL02-E
AC output
DC input
DC Switch
Cross screws x4
Hex screws x2
DC connectors
(25-33)K x6, (36-50)K x8
RJ45 connector x1(Only for UK)
Meter
DRM
ON
OFF DC1 DC2 DC3 DC4 DC5 DC6 DC7 DC8
COM1
METER
DRM
AC terminal cover x1 User manual x1
CSI GRID-TIED PV Inverter (25-50)kW
INSTALL ATION AND OPERATION MANUAL
VERSION 1.0 (2020.6)

.5..4.
2. Safety Instructions 2. Safety Instructions
2.1 Safety Symbols
Safety symbols used in this manual, which highlight potential safety risks and important
safety information, are listed as follows:
2.2 General Safety Instructions
CAUTION:
Risk of electric shock from energy stored in capacitors of the inverter.
After disconnecting all power sources, do NOT remove the frontal cover
of the inverter after at least 15 minutes.
Warranty may be voided if the cover is removed without explicit authorization.
CAUTION:
The surface temperature of the inverter can exceed 75℃ (167F).
To avoid risk of burns, DO NOT touch the surface of the inverter under
operation.
The inverter must be installed out of reach of children.
2.3 Notice For Use
CAUTION:
CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety
instructions, which if not correctly followed, could result in electric shock.
CAUTION:
CAUTION, HOT SURFACE symbol indicates safety instructions, which if not
correctly followed, could result in burns.
NOTE:
NOTE symbol indicates important safety instructions, which if not correctly
followed, could result in some damage or the destruction of the inverter.
WARNING:
WARNING symbol indicates important safety instructions, which if not
correctly followed, could result in serious injury or death.
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
WARNING:
Please don’t connect PV array positive(+) or negative(-) to ground, it could
cause serious damage to the inverter.
CAUTION:
The PV array (solar panels) supplies a DC voltage when they are exposed to
sunlight, regardless if they are connected or not to an inverter.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic
source and output circuit conductors shall have disconnects that comply
with the NEC Article 690, Part II. All Canadian Solar three phase inverters
feature an integrated DC switch.
CAUTION:
Risk of electric shock. Do not remove the frontal cover of the inverter.
There is no user serviceable parts inside.
Refer servicing to qualified and accredited service technicians.
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications only:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
5. To start up the inverter, please make sure the Grid Supply Main Switch (AC) is switched on,
before switching on the DC side (solar array). To stop the inverter, please ensure that the
inverter is disconnected from the grid before turning off the DC switch (solar array).

.6.
Light
1
2
3
POWER
OPERATION
ALARM
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Description
The inverter can detect DC power.
No DC power or low DC power.
The inverter is operating properly.
The inverter has stopped to supply power.
The inverter is initializing.
Alarm or fault condition is detected.

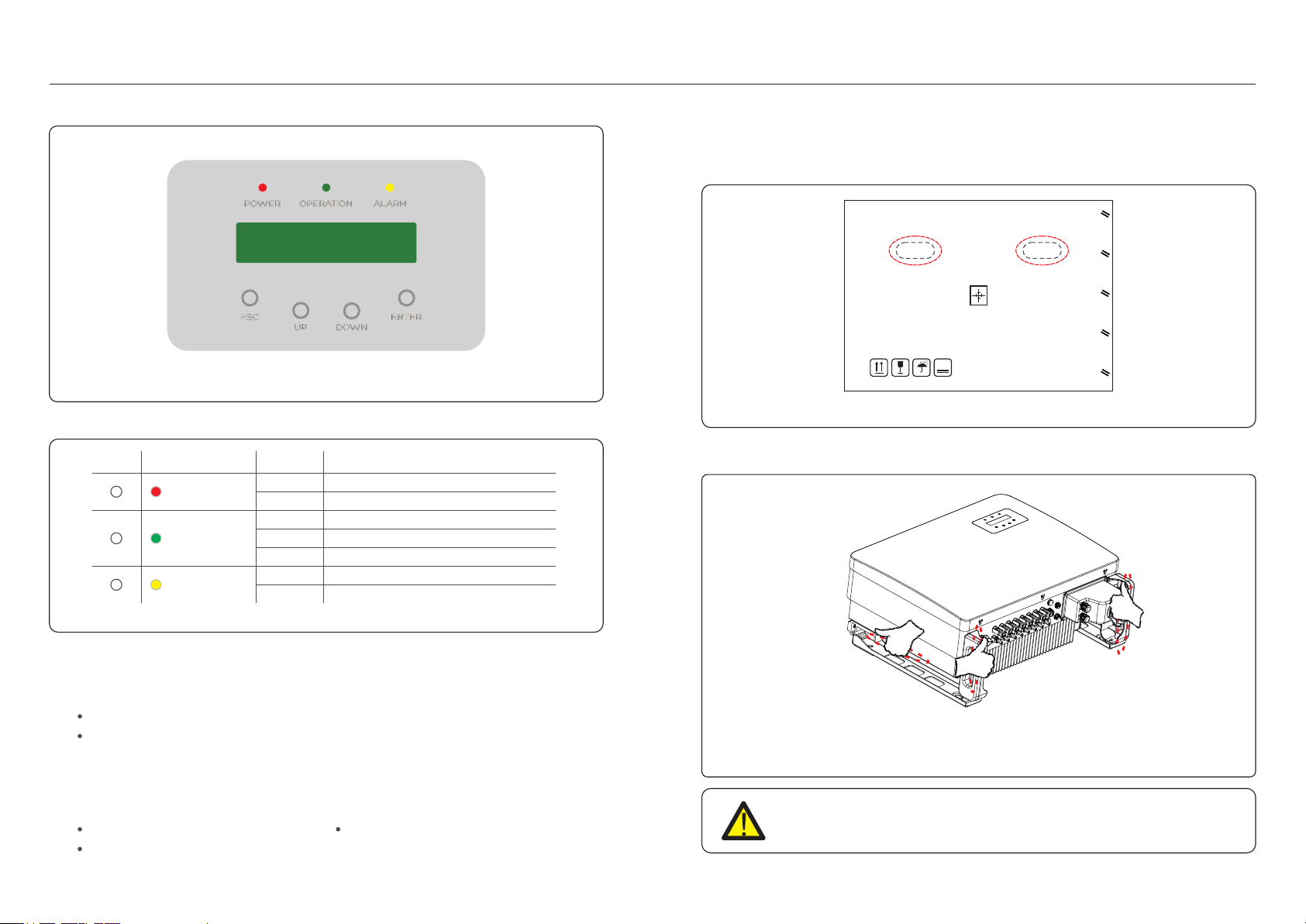

Figure 3.1 Front Panel Display
Table 3.1 Status Indicator Lights
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the inverter (from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
scrolling through the displayed options (the UP and DOWN keys);
accessing or exiting submenus with adjustable settings (ESC and ENTER keys).
The two-line Liquid Crystal Display (LCD) is located on the front panel of the Inverter,
which shows the following information:
inverter operation status and data; service messages for operator;
alarm messages and fault indications.
4.1 Product handling
Please review the instructions below for handling the inverter:
1. The red circles below denote cutouts on the product package.
Push in the cutouts to form handles for moving the inverter (see Figure 4.1).
Figure 4.1 move the inverter
2.Open the carton, then two people handle both sides of inverter through the area
denoted dotted line ( see figure 4.2).
4. Product handing and storage
The inverter is operating without fault or alarm.
.7.
Figure 4.2 Inverter handles
WARNING:
Be careful when lifting the inverter. The weight is approx 45kg.
3

.9..8.
4.2 Product Storage 5.1 Select a Location for the Inverter
5. Installation
4. Product handing and storage
Storage temperature must be between -40℃ and 70℃ and the humidity should be
between 0 and 100% non-condensing.
Stack no more than three (3) inverters high.
If the inverter is not to be installed immediately, storage instructions and environmental
conditions are below:
Use the original box to repackage the inverter, seal with adhesive tape with the
desiccant inside the box.
Store the inverter(s) in a clean and dry place, free of dust and dirt.
Keep box(es) away from corrosive materials to avoid damage to the inverter enclosure.
Inspect packaging regularly. If packaging is damaged (wet, pest damage, etc),
repackage the inverter immediately.
Store the inverter(s) on a flat, hard surface - not inclined or upside down.
After long-term storage, the inverter needs to be fully examined and tested by qualified
service or technical personnel before using.
Restarting after a long period of non-use requires the equipment to be inspected
and, in some cases, the removal of oxidation and dust that has settled inside the
equipment will be required.
To select a location for the inverter, the following criteria should be considered:
Donotinstallinsmallclosedspaceswhereaircan notcirculatefreely.Toavoid
overheating,alwaysmakesuretheflowofairaroundtheinverterisnotblocked.
Exposure to direct sunlight will increase the operational temperature of the inverter and
may cause output power limiting. Canadian Solar recommends inverter installed to
avoid direct sunlight or rain.
To Avoid overheating, heating ambient air temperature must be considered when choosing the
inverter installation location. Canadian Solar recommends using a sun shade minimizing
direct sunlight when the ambient air temperature around the unit exceeds 104°F/40°C.
Figure 5.1 Recommended Installation locations
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive environment.
NOTE:
Nothing should be stored on or placed against the inverter.

.11..10.
5.2 Mounting the Inverter
Figure 5.3 Inverter wall mounting
Refer to figure 5.4 and figure 5.5. Inverter shall be installed vertically.
The steps to install the inverter are listed below.
1. Refer to Figure 5.4, use the bracket as a template and drill the four holes accordingly.
(Diameter=10mm, Depth=60mm).
2. Make sure the bracket is horizontal.
3. Use suitable expansion screws to fix the bracket on the wall.
(Diameter=10mm, included in the package.)
Figure 5.4 Inverter wall mounting
5. Installation5. Installation
× ×
Inverted
Figure 5.2 Inverter Mounting clearance
Install on a vertical surface or structure capable of bearing the weight.
Please install the inverter vertically. If the inverter cannot be mounted vertically, it may
be tilted backward to 15 degrees from vertical.
When multiple inverters are installed on site, a minimum clearance of 500mm,should be kept
between each inverter and any other mounted equipment. The bottom of the inverter must
be at least 500mm from the ground or floor. See figure 5.2.
Visibility of the LED status indicator lights and LCD display screen should be considered.
Suitable fixing screws
Bracket
Bracket size:
≤15°
√ √
Vertical Backward
1000mm
500mm
500mm
500mm
500mm
1 2
3 4

.12. .13.
Figure 5.5 Install the inverter
WARNING:
The inverter must be mounted vertically, refer to section 5.1.
5. Installation5. Installation
4. Lift the inverter and hang it on the bracket, and then slide down to make sure they
match perfectly.
Figure 5.6
5.3 Electrical Connections
Table 5.1 Electrical connection symbols
The electrical connection of the inverter must follow the steps listed below:
ON
DC input terminal
DC 1 ~ DC 8
OFF

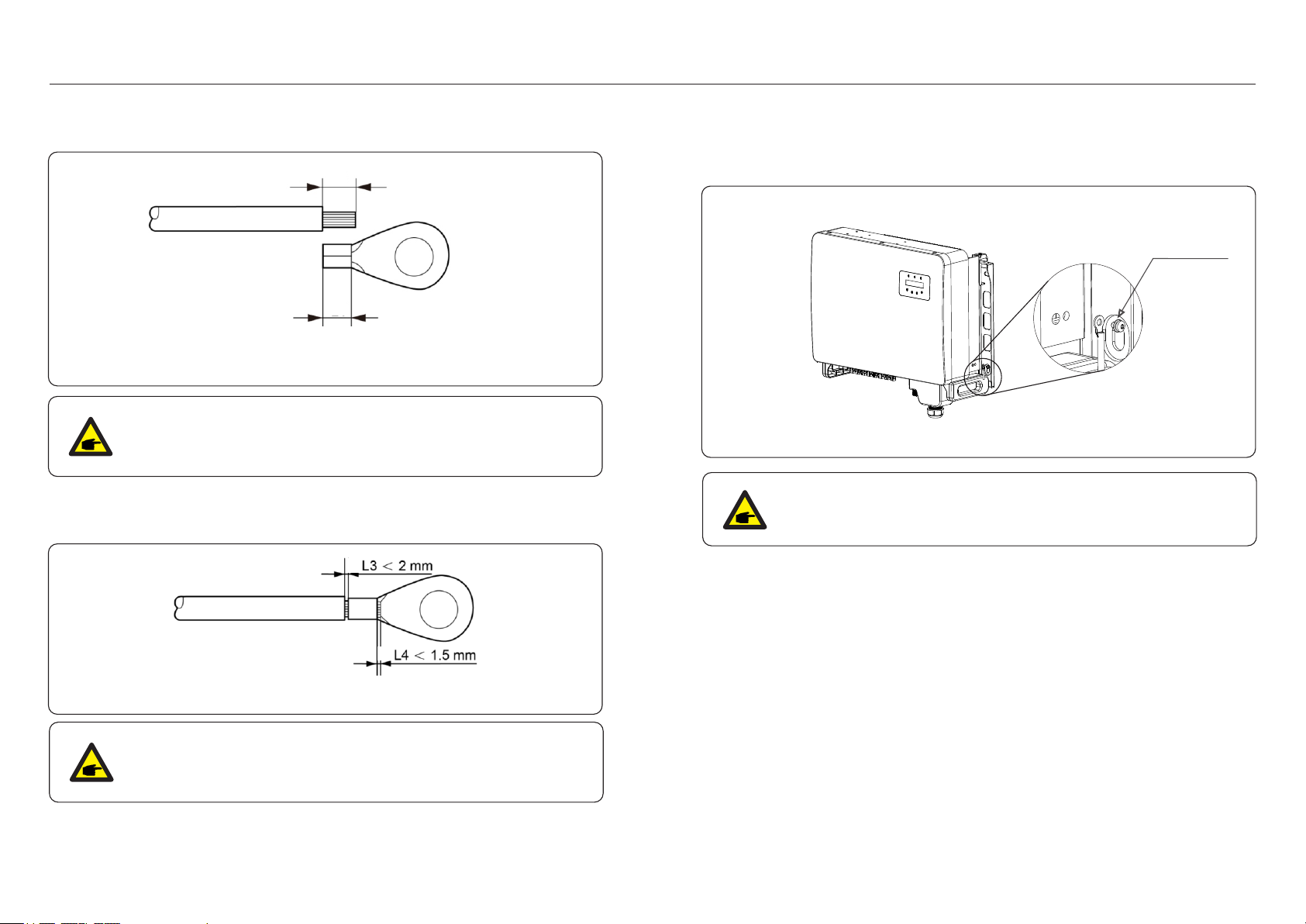

2. Prepare OT terminals: M6, see Figure 5.12.
Canadian Solar requires 2 ground protection methods: through grid terminal connection
and external heat sink connection.
When connecting the AC terminal grounding cable, please refer to the contents of 5.3.3.
When connecting the heat sink grounding cable, please follow the steps below:
1. Prepare the grounding cable: it is recommended to use a cable with cross-section of 16mm²
or higher with outdoor rating.
Important:
For multiple inverters in parallel , all inverters should be connected to the
same ground point to eliminate the possibility of a voltage potential existing
between inverter grounds.
5.3.1 Grounding
COM1
METER
DRM
Switch on the DC switch
Switch off the DC switch
COM port for monitoring
COM port for Meter
COM port for DRM
The inverter is equipped with quick-connect terminals so the top cover doesn't need to be
opened during the electrical connection.
1. Switch OFF the Grid Supply Main Switch (AC).
2. Switch OFF the DC isolator. --> please note that previously it was called DC switch.
3. Connect the PV connectors from the array into the DC input of the inverter.
5. . Use screws in the packaging to fix the inverter to the mount bracket

5. Installation5. Installation
.14. .15.
A
B
3. Strip the ground cable insulation to a suitable length (see Figure 5.12).
Figure 5.12 Suitable length
Important:
4. Insert the stripped wire into the OT terminal crimping area and use the hydraulic
clamp to crimp the terminal to the wire (see Figure 5.13).
B (insulation stripping length) is 2mm~3mm longer than A (OT cable
terminal crimping area) 2mm~3mm.
D
C
Figure 5.13 Strip wire
Important:
After crimping the terminal to the wire, inspect the connection to ensure the
terminal is solidly crimped to the wire.
Grounding screw
5. Remove the screw from the heat sink ground point.
Figure 5.14 Fixed cable
For improving anti-corrosion performance, after grounding cable is installed,
apply silicone or paint as preferred for protection.
Important:
6. Connect the grounding cable to the grounding point on the heat sink, and tighten the
grounding screw, Torque is 3-4Nm (see figure 5.14).

.16. .17.
5. Installation5. Installation
4.0~6.0 4.0（12AWG）
（12~10AWG）
Before connecting the inverter, please make sure the PV array open circuit
voltage is within the limit of the inverter.
Before connection, please make sure the polarity of the output voltage of
PV array matches the“DC+”and“DC-”symbols.
Figure 5.15 DC+ Connector Figure 5.16 DC- Connector
Please use appropriate DC cable for PV system.
Cable type
Cross section（mm²）
Range
Industry generic PV cable
（model:PV1-F）
Recommended value
The steps to assemble the DC connectors are listed as follows:
1. Strip off the DC wire for about 7mm, Disassemble the connector cap nut. (see Figure 5.17)
3. Crimp the contact pin to the wire using a proper wire crimper. (see Figure 5.19)
2. Insert the wire into the connector cap nut and contact pin. (see Figure 5.18)
4. Insert metal connector into top of connector, and tighten nut with torque 3-4 Nm
(see figure 5.20).
5.3.2 Connect PV side of inverter
+
-
Figure 5.21 Multimeter measurement Figure 5.22 Connect the DC
Connectors to the Inverter
5. Measure PV voltage of DC input with multimeter, verify DC input cable polar
(see figure 5.17), and ensure each string of PV voltage in range of inverter operation.
Connect DC connector with inverter until hearing a slight clicking sound indicates
connection succeed. (see figure 5.18)
Figure 5.17 Disassemble the Connector Cap nut Figure 5.18 Insert the Wire into the
Connector Cap nut and contact pin
Figure 5.19 Crimp the contact pin to the wire Figure 5.20 Connector with Cap nut Screwed on
Crimping plier
ON
OFF DC1 DC2 DC3 DC4 DC5 DC6 DC7 DC8
COM1
METER
DRM
Caution:
If DC inputs are accidently reversely connected or inverter is faulty or not
working properly, it is NOT allowed to turn off the DC switch as it will damage
the inverter and it may even lead to a fire.
The correct actions are:
· Use a clip-on ammeter to measure the DC string current.
· if the current is higher than 0.5A, please wait until the solar irradiance
decreases, so that the current value is below 0.5A.
· only when the current is below 0.5 A, it is allowed to switch off the DC
switches and afterwards disconnect the PV strings.
Please note that any damages due to wrong operations are not covered by
the warranty.

.19..18.
5. Installation5. Installation
5.3.3 Connect grid side of inverter
For the AC connection, 10-35mm² cable is required to be used.
Please make sure the resistance of cable is lower than 1.5ohm.
22~32
27
Cable specification
Copper-cored cable
Cable outer diameter
(mm)
Traverse cross
sectional area (mm )²
Range
Recommended
Range
Recommended
NOTE:
For reliable connection, recommend customer select corresponding Euro
type connectors based on wiring specification to connect the terminal.
1. Strip the end of AC cable insulating jacket about 80mm then strip the end of each wire.
(as shown in figure 5.23)
The steps to assemble the AC grid terminals are listed as follows:
Figure 5.23 Strip AC cable
NOTE:
S2 (insulation stripping length) should be as long as S1
(AC terminal cable compression area).
10~35
25
3. Leave the AC breaker disconnected to ensure it does not close unexpectedly.
4. Remove the 4 screws on the inverter junction box and remove the junction box
cover .
5. Insert the cable through the nut, sheath, and AC terminal cover. Connect the cable to
the AC terminal block in turn, using a socket wrench. Tighten the screws on the terminal block.
The torque is 3~4Nm (as shown in Figure 5.24).
Figure 5.24 wiring
2. Strip the insulation of the wire past the cable crimping area of the OT terminal,
then use a crimping tool to crimp the terminal. The crimped portion of the terminal
must be insulated with heat shrinkable tube or insulating tape.
S2
PE
N
L
｝
S1
80MM

.20.
5. Installation5. Installation

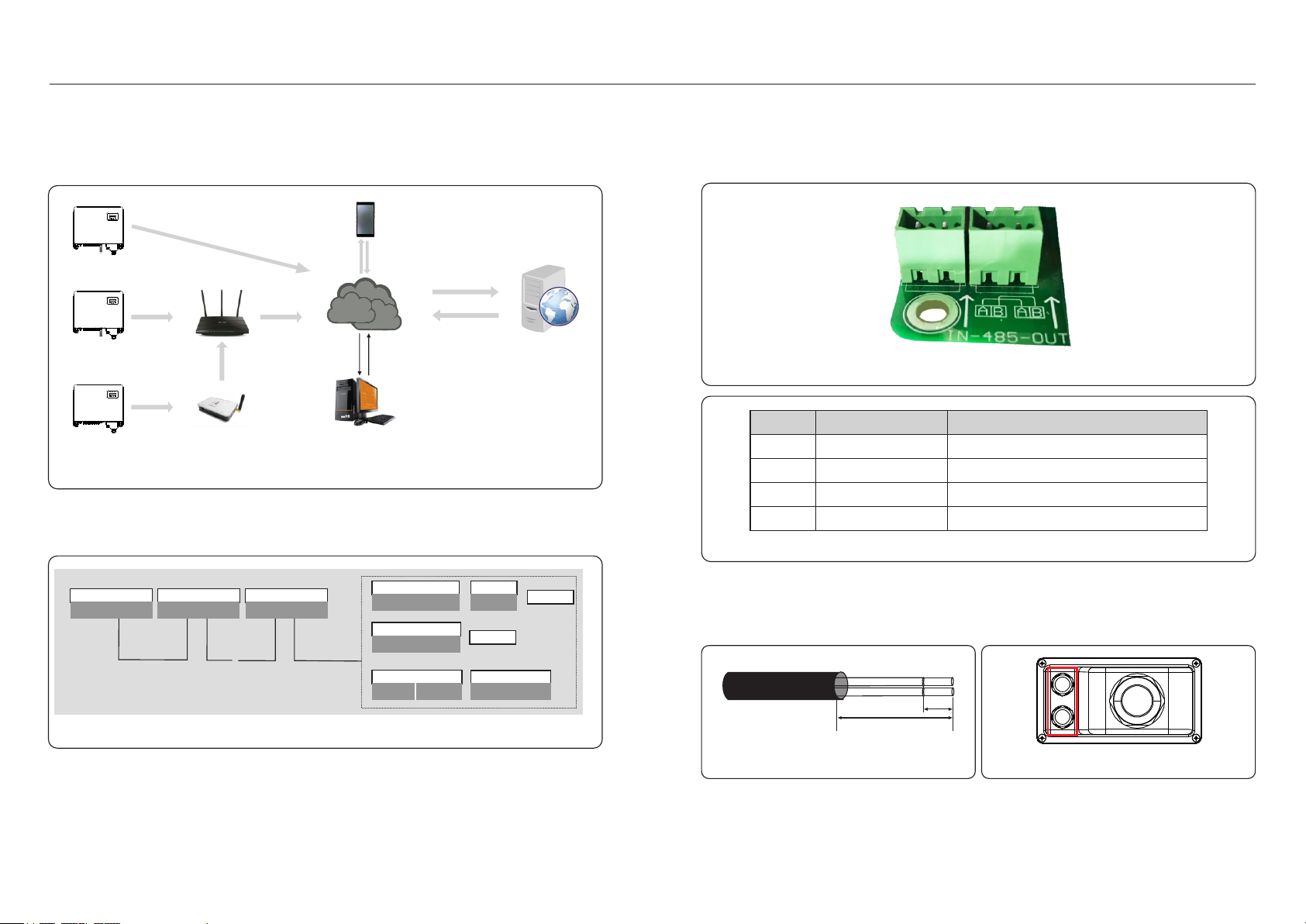

5.3.4 Inverter monitoring connection
The inverter can be monitored via Wi-Fi or GPRS. All Canadian Solar communication
devices are optional (Figure 5.25). For connection instructions, please refer to the
Canadian Solar Monitoring Device installation manuals.
GPRS monitoring
Wi-Fi monitoring
Wi-Fi monitoring
Router
Wi-Fi box
Internet
Smart phone monitoring
PC monitoring
Web server
Figure 5.25 Wireless communication function
Monitoring system for multiple inverters
Multiple inverters can be monitored by RS-485 daisy chain configuration. (See figure 5.26).
≈
Inverter 1 Inverter 2 Inverter n
RS485 IN | OUT RS485 IN | OUT RS485 IN | OUT RS485terminal
RS485 RS232 RS232
Ethernet
Wi-Fi box
RS485-232converter PC
Router
RS485terminal
GPRS box
Internet
Internet
Figure . Multiple inverter monitoring system 5 26
5.3.4.1 RS485 Connection
1 2 3 4
8mm
30mm
Install the RS485 communication cables through the terminal block as shown in Figure 5.27.
Recommended cable cross sectional area is 0.2 - 1.5mm², the cable outer diameter is
5mm -10mm, the cable length shall not exceed 3m.
Figure 5.27 RS485 Terminal Definition
NO.Port definition Description
1
2
3
4
RS485A1,RS485 differential signal+
RS485B1,RS485 differential signal-
RS485A2,RS485 differential signal+
RS485B2,RS485 differential signal-
RS485A1 IN
RS485B1 IN
RS485A2 OUT
RS485B2 OUT
Table 5.2 Port definition
Terminal block connection
a. Use a wire stripper to peel off the insulation layer of the communication cables to a
certain length as shown in Figure 5.28.
b. Screw off the covers of "COM2" and "COM3" on the inverter as shown in Figure 5.29.
c. Insert the communication cables into the "COM2" and "COM3" ports.
d. Fasten the cables onto the pluggable terminals provided in the accessory package.
e. Match the pluggable terminals to the terminal block in the inverter and press to fasten it.
Figure 5.28
.21.
Figure 5.29
After cable installation, please remember to fasten the screws of the AC terminal cover in
case of water damage.

.23..22.

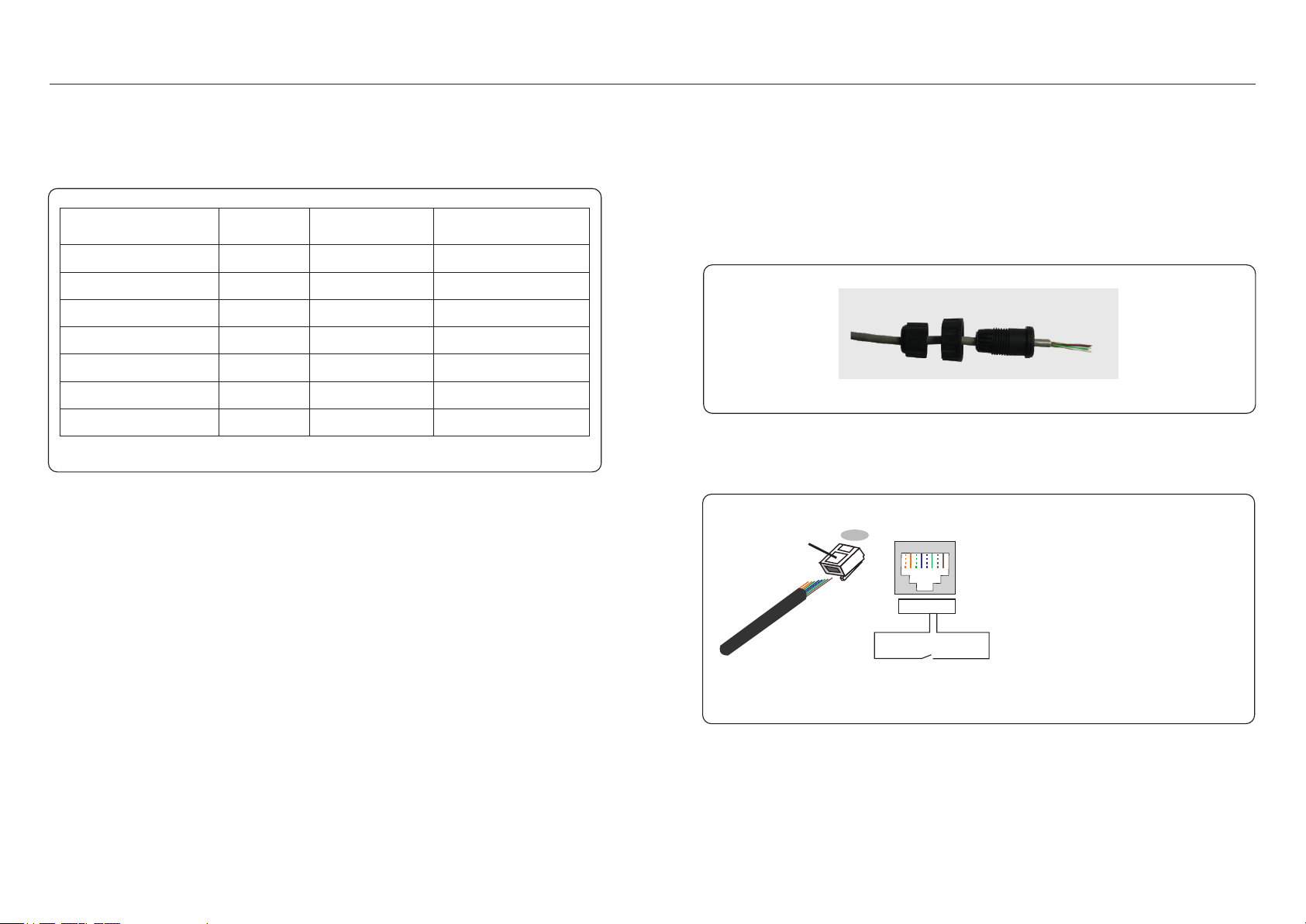

5. Installation
5.3.5 Max. over current protection device (OCPD)
To protect the inverter's AC grid connection conductors, Canadian Solar recommends installing
breakers that will protect against overcurrent. The following table defines OCPD
ratings for the Canadian Solar 25-50kW Three phase inverters.
Table 5.3 Rating of grid OCPD
Inverter Rated
voltage(V)
Rated output
current (Amps)
Current for protection
device (A)
CSI-25K-T400GL02-E 380 36.0
43.3
50
47.6
CSI-33K-T400GL02-E
CSI-30K-T400GL02-E
63
63
51.9
57.7
48.1
60.1
CSI-36K-T400GL02-E
CSI-40K-T400GL02-E
CSI-40K-T500GL02-E
CSI-50K-T500GL02-E
80
80
63
80
380
380
380
380
480
480
5.3.6 Logic interface connection (Only for UK)
Logic interface is required by G98 and G99 standard that can be operated by a simple switch
or contactor. When the switch is closed the inverter can operated normally. When the switch
is opened, the inverter will reduce it’s output power to zero within 5s.
Pin5 and Pin6 of RJ45 terminal is used for the logic interface connection.
Please follow below steps to assemble RJ45 connector.
1. Insert the network cable into the communication connection terminal of RJ45.
(As shown in figure 5.30)
Figure 5.30 RJ45 communication connection terminals
2. Use the network wire stripper to strip the insulation layer of the communication cable.
According to the standard line sequence of figure 5.31 connect the wire to the plug of
RJ45, and then use a network cable crimping tool to make it tight.
Correspondence between the cables
and the contacts of plug, Pin5 and Pin6
of RJ45 terminal is used for the logic
interface, other Pins are reserved.
Pin 1: Reserved; Pin 2: Reserved
Pin 3: Reserved; Pin 4: Reserved
Pin 5: Switch_input1; Pin 6: Switch_input2
Pin 7: Reserved; Pin 8: Reserved
1--8
Rj45 plug
Rj45terminal
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
DRM(logic interface)
Switch_input1 Switch_input2
Figure 5.31 Strip the insulation layer and connect to RJ45 plug
3. Connect RJ45 to DRM (l ) . ogic interface
5. Installation

.24. .25.
7. Operation
In normal operation, LCD screen alternatively shows inverter power and operation status
(see Figure 7.1). The screen can be scrolled manually by pressing the UP/DOWN keys.
Pressing the ENTER key gives access to Main Menu.
5 sec
Start
Power 110000W
01-01-2019 12:04
Status: Generating
01-01-2019 12:04
Information
Settings
Advanced Info.
Advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
UP/DOWN or
auto-scroll
(10 sec)
Pressing the
ENTER key
gives access to
the main menu.
Pressing the
ESC key
calls back the
previous menu.
Main Menu
Figure 7.1 Operation Overview
7.1 Main Menu
There are four submenus in the Main Menu (see Figure 7.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
The Canadian Solar three Phase Inverter main menu provides access to operational
data and information. The information is displayed by selecting "Information" from the
menu and then by scrolling up or down.
7.2 Information
6.1 Start the Inverter
To start the Inverter, it is important that the following steps are strictly followed:
1. Switch the grid supply main Switch (AC) ON first.
2. Switch the DC switch ON. If the voltage of PV arrays are higher than start up voltage,
the inverter will initialize. The red LED power will light.
3. When both the DC and the AC sides supply to the inverter, it will be ready to generate
power. Initially, the inverter will check both its internal parameters and the parameters
of the AC grid, to ensure that they are within the acceptable limits. At the same time,
the green LED will flash and the LCD displays the information of INITIALIZING.
4. After 30-300 seconds (depending on local requirement), the inverter will start to
generate power. The green LED will be on continually and the LCD displays
GENERATING.
WARNING:
Do not touch the surface when the inverter is operating. It may be
hot and cause burns.
6.2 Stop the Inverter
To stop the Inverter, the following steps must be strictly followed:
1. Turn off the ac switch.
2. Put the DC SWITCH on the inverter in the position of "OFF"
(See page 17 for the special note).
6. Start & Stop

.26. .27.
7. Operation7. Operation
The following submenus are displayed when the Settings menu is selected:
1. Set Time
2. Set Address
7.3 Settings
7.3.1 Set Time
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 7.3.
NEXT=<ENT> OK=<ESC>
01-01-2019 16:37
Figure 7.3 Set Time
Press the UP/DOWN keys to set time and data. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to
the previous menu.
7.3.2 Set Address
This function is used to set the address when multiple inverters are connected to the
monitoring system/control system.
The address number can be assigned from “01”to “99”(see Figure 7.4). The default address
number of Canadian Solar Three Phase Inverter is “01”.
YES=<ENT> NO=<ESC>
Set Address: 01
Figure 7.4 Set Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
Press the ESC key to cancel the change and return to the previous menu.
7.2.1 Lock screen
Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks
(Figure 7.2(a)) or unlocks (Figure 7.2 (b)) the screen.
(b)(a)
Figure 7.2 Locks and Unlocks the Screen of LCD
I_PV01: +05.0A
I_PV02: +04.9A
...
I_PV08: +05.2A
V_DC01: Shows input DC voltage.
I_DC01: Shows input DC current.
Table 7.1 Information list
Status: Generating
Power: 0000W
Grid Frequency
F_Grid 00.00Hz
Total Energy
0000000 kwh
This Month: 0000kwh
Last Month: 0000kwh
Today: 00.0kwh
Yesterday: 00.0kwh
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
Status: Shows instant status of the Inverter.
Power: Shows instant output power value.
F_Grid: Shows the grid's frequency value.
Total generated energy value.
This Month: Total energy generated this month.
Last Month: Total energy generated last month.
Today: Total energy generated today.
Yesterday: Total energy generated yesterday.
Display Duration Description
Inverter SN
00000000000000
10 sec
Display series number of the inverter.
10 sec
V_C: Shows the grid's voltage value.
I_C: Shows the grid's current value.
10 sec V_A: Shows the grid's voltage value.
I_A: Shows the grid's current value.
Rea_Power: 0000Var
App_Power: 0000VA 10 sec Rea_Power: Shows the reactive power of the inverter.
App_Power: Shows the apparent power of the inverter.
Work Mode: NULL
DRM NO.:08 10 sec
10 sec
Work Mode: Shows current working mode.
DRM NO.: Shows DRM Number.
I_PV01 : Shows input 01 current value.
I_PV02 : Shows input 02 current value.
...
I_PV08 : Shows input 08 current value.
V_A: 000.0V
I_ A: 000.0A
V_C: 000.0V
I_ C: 000.0A
V_DC01: 0000.0V
i_DC01: 0000.0A

.29..28.
7. Operation7. Operation
7.4.4 Daily Energy
The function is for checking the energy generation for selected day.
Figure 7.8 Select date for daily energy
YES=<ENT> NO=<ESC>
Select: 2019-01-01
Press DOWN key to move the cursor to day, month and year, press UP key to change the digit.
Press Enter after the date is fixed.
2019-01-01: 051.3kWh
2019-01-01: 061.5kWh
Figure 7.9 Daily energy
Press UP/DOWN key to move one date from another.
7.4.5 Monthly Energy
YES=<ENT> NO=<ESC>
Select: 2019-01
Figure 7.10 Select month for monthly energy
2019-01: 0510kWh
2019-02: 0610kWh
Figure 7.11 Month energy
Press UP/DOWN key to move one date from another.
The function is for checking the energy generation for selected month.
Press DOWN key to move the cursor to day and month, press UP key to change the digit.
Press Enter after the date is fixed.
Model: 08
Software Version: D20001
Figure 7.7 Model Version and Software Version
7.4 Advanced Info - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Enter menu “Advanced Info.” and “Advanced settings” （need password）.
Select “Advanced Info.” from the Main Menu. The screen will require the password as below:
YES=<ENT> NO=<ESC>
Password:0000
Figure 7.5 Enter password
After entering the correct password the Main Menu will display a screen and you will be able to
access to the following information.
1. Alarm Message 2. Running message 3. Version 4. Daily Energy 5. Monthly Energy
6. Yearly Energy 7. Daily Records 8. Communication Data 9. Warning Message
The screen can be scrolled manually by pressing the UP/DOWN keys. Pressing the ENTER
key gives access to a submenu. Press the ESC key to return to the Main Menu.
7.4.1 Alarm Message
The display shows the latest alarm messages (see Figure 7.6). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous menu.
Alm000: OV-G-V
T: 00-00 00:00 D:0000
Figure 7.6 Alarm Message
7.4.2 Running Message
This function is for maintaince person to get running message such as internal temperature,
Standard No.1,2,etc.
Screens can be scrolled manually by pressing the UP/DOWN keys.
7.4.3 Version
The screen shows the model version of the inverter. And the screen will show the
software version by pressing the UP and DOWN at the same time.(see Figure 7.7).

.31..30.
7. Operation7. Operation
7.5 Advanced Settings - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Please follow 7.4 to enter password to access this menu.
7.5.1 Selecting Standard
This function is used to select the grid's reference standard (see Figure 7.16).
YES=<ENT> NO=<ESC>
Standard:G59/3
Figure 7.16
Select Advanced Settings from the Main Menu to access the following options:
1. Select Standard 2. Grid ON/OFF 3. Clear Energy 4. Reset Password
5. Power Control 6. Calibrate Energy 7. Special Settings 8. STD. Mode Settings
9.Restore Settings 10. HMI Update 11. External EPM set 12. Restart HMI
13. Debug Parameter 14.DSP Update 15.Compensation Set 16. I/V Curve
7.4.8 Communication Data
The screen shows the internal data of the Inverter (see Figure 7.14), which is for service
technicians only.
01-05: 01 25 E4 9D AA
06-10: C2 B5 E4 9D 55
Figure 7.14 Communication Data
7.4.6 Yearly Energy
YES=<ENT> NO=<ESC>
Select: 2019
Figure 7.12 Select year for yearly energy
2018: 0017513kWh
2017: 0165879kWh
Figure 7.13 Yearly energy
Press UP/DOWN key to move one date from another.
The function is for checking the energy generation for selected year.
Press DOWN key to move the cursor to day and year, press UP key to change the digit.
Press Enter after the date is fixed.
7.4.7 Daily records
The screen shows history of changing settings. Only for maintance personel.
The display shows the latest warning messages (see Figure 7.15). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous menu.
Msg000:
T: 00-00 00:00 D:0000
Figure 7.15 Warning Message
7.4.9 Warning Message
NOTE:
This function is for technicians use only.
Selecting the “User-Def” menu will access to the following submenu (see Figure 7.17),
Figure 7.17
OV-G-V1: 400V
OV-G-V1-T: 1.0S
NOTE:
The " User-Def" function can be only used by the service engineer and
must be allowed by the local energy supplier.
Press the UP/DOWN keys to select the standard (G59/3, UL-480V, VDE0126, AS4777-15,
AS4777-02, CQC380A, ENEL, UL-380V, MEX-CFE, C10/11 and “User-Def” function).
Press the ENTER key to confirm the setting.
Press the ESC key to cancel changes and returns to previous menu.

.33..32.
7. Operation7. Operation
7.5.4 Reset Password
This function is used to set the new password for menu “Advanced info.” and “Advanced
information” (see Figure 7.19).
Figure 7.19 Set new password
YES=<ENT> NO=<ESC>
Password: 0000
Enter the right password before set new password. Press the DOWN key to move the cursor,
Press the UP key to revise the value. Press the ENTER key to execute the setting.
Press the ESC key to return to the previous menu.
7.5.5 Power control
Active and reactive power can be set through power setting button.
There are 5 item for this sub menu:
1. Set output power 2. Set Reactive Power 3. Out_P With Restore
4. Rea_P With Restore 5. Select PF Curve
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.6 Calibrate Energy
Maintenance or replacement could clear or cause a different value of total energy. Use this
function could allow user to revise the value of total energy to the same value as before. If
the monitoring website is used the data will be synchronous with this setting automatically.
(see Figure 7.20).
Figure 7.20 Calibrate energy
YES=<ENT> NO=<ESC>
Energy:0000000kWh
Press the DOWN key to move the cursor, Press the UP key to revise the value. Press the
ENTER key to execute the setting. Press the ESC key to return to the previous menu.
Startup-T:10---600S Restore-T:10---600S
Below is the setting range for “User-Def”. Using this function, the limits can be changed
manually.
Press the UP/DOWN keys to scroll through items. Press the ENTER key to edit the highlighted
item. Press the UP/DOWN keys again to change the setting. Press the ENTER key to save the
setting. Press the ESC key to cancel changes and returns to the previous menu.
7.5.2 Grid ON/OFF
This function is used to start up or stop the power generation of Three Phase
Inverter (see Figure 7.18).
Grid ON
Grid OFF
Figure 7.18 Set Grid ON/OFF
Screens can be scrolled manually by pressing the UP/DOWN keys. Press the ENTER key
to save the setting. Press the ESC key to return to the previous menu.
These two functions are applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
7.5.3 Clear Energy
Clear Energy can reset the history yield of inverter
OV-G-V1: 236---335V OV-G-F1: 50.2-53Hz(60.2-63Hz)
OV-G-V1-T: 0.1---9s OV-G-F1-T: 0.1---9s
OV-G-V2: 248---341V OV-G-F2: 51-53Hz(61-63Hz)
OV-G-V2-T: 0.1---1s OV-G-F2-T: 0.1---9s
UN-G-V1: 173---236V UN-G-F1: 47-49.5Hz(57-59.5Hz)
UN-G-V1-T: 0.1---9s UN-G-F1-T: 0.1---9s
UN-G-V2: 132---219V UN-G-F2: 47-49Hz(57-59Hz)
UN-G-V2-T: 0.1---1s UN-G-F2-T: 0.1---9s
For different countries, the grid standard needs to be set as different according to local
requirements. If there is any doubt, please consult service technicians for details.
NOTE

.35..34.
7. Operation7. Operation
7.5.11 External EPM Set
7.5.12 Restart HMI
The function is used for restart the HMI.
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.13 Debug Parameter
This function is used for manufacturer maintenance personnel only.
Figure 7.22 Set the Fail Safe ON/OFF
YES=<ENT> NO=<ESC>
Fail Safe Set:ON
This function is turned on when the EPM is connected.
7.5.14 DSP Update
The function is used for update the DSP.
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.15 Compensation Set
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.7 Special Settings
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.8 STD Mode settings
7.5.9 Restore Settings
There are 5 items in initial setting submenu.
The screen shows as below:
Restore setting could set all item in 7.5.7 special setting to default.
Figure 7.21 Restore Settings
Are you sure?
YES=<ENT> NO=<ESC>
Press the Enter key to save the setting after setting grid off.
Press the ESC key to return the previous mean.
There are 5 setting under STD. Mode settings.
1. Working Mode Set 2. Power Rate Limit 3. Freq Derate Set
4. 10mins Voltage Set 5. Power Priority 6. Initial Settings
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.10 HMI Update
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
This function is used for updating the LCD program.

.37..36.
7.5.16 I/V Curve
This function is used to scan the I/V characteristic curves of each PV strings.

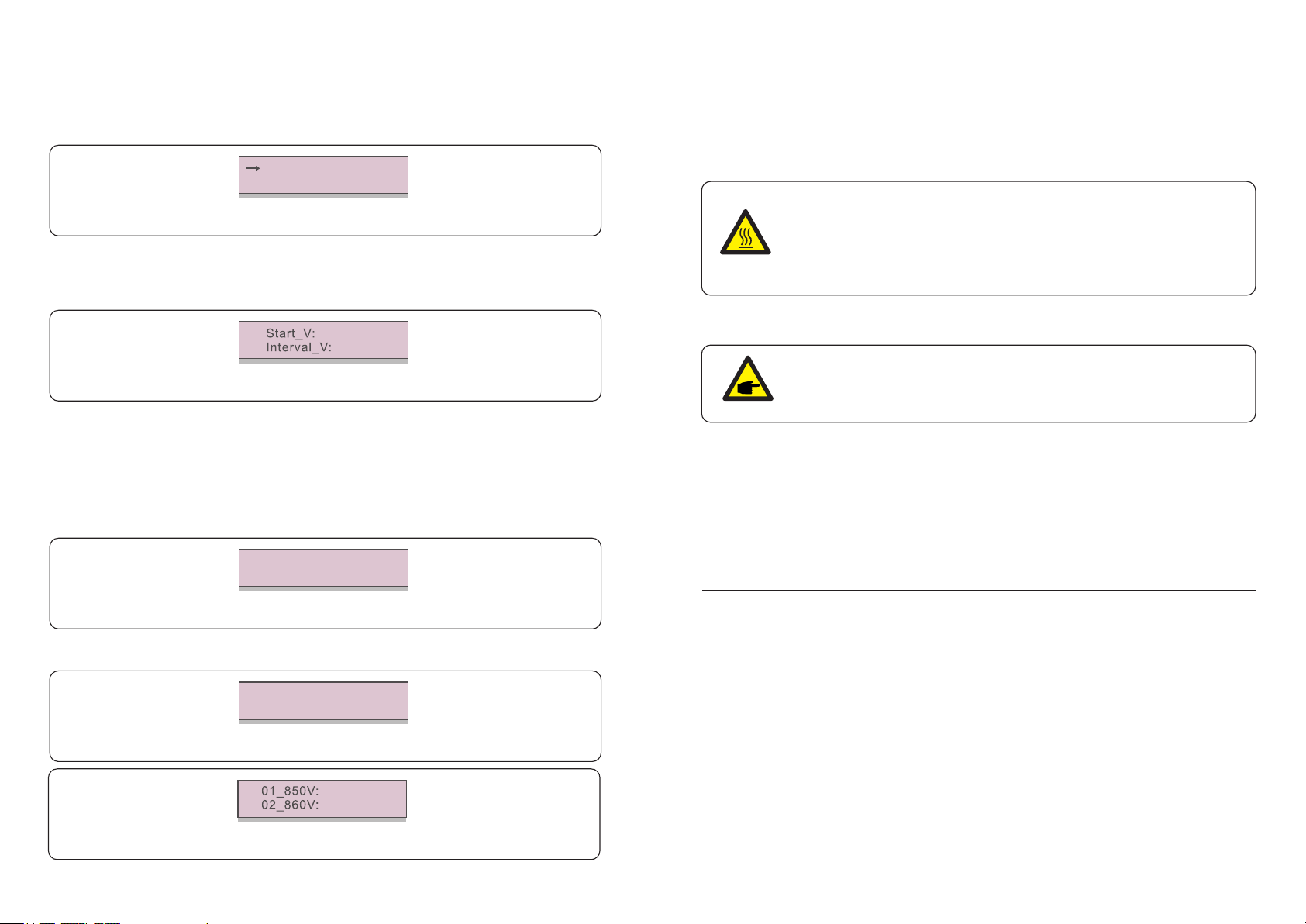

Figure 7.23 I/V Curve
Set I/V Curve
I/V Curve Scan
7.5.16.1 Set I/V Curve
This setting can set the scanning voltage start point and the voltage interval.
Figure 7.24 Set I/V Curve
850V
010V
Start_V: The start voltage of the I/V scan. (Adjustable from 300V-1000V)
Interval_V: The scanning voltage interval.(Adjustable from 1-100V)
In total, 60 data points can be scanned.
7.5.16.2 I/V Curve Scan
Press “ENT” to start the I/V curve scan.
Figure 7.25 I/V Curve Scan (1)
Scanning...01
After it is completed, the screen will display “Scan OK” and then enter the following section.
Figure 7.26 I/V Curve Scan (2)
Select String No.: 01
Figure 7.27 I/V Curve Scan (3)
9.56A
9.44A
7. Operation
Canadian Solar Three Phase Inverter does not require any regular maintenance. However,
cleaning the dust on heat-sink will help the inverter to dissipate the heat and increase its life
time. The dust can be removed with a soft brush.
CAUTION:
Do not touch the inverter's surface when it is operating. Some parts of the
inverter may be hot and cause burns. Turn off the inverter (refer to Section
6.2) and wait for a cool-down period before before any maintenance or
cleaning operation.
The LCD and the LED status indicator lights can be cleaned with a damp cloth if they are too
dirty to be read.
NOTE:
Never use any solvents, abrasives or corrosive materials to clean the inverter.
8. Maintenance
The inverter is designed in accordance with the most important international grid-tied
standards and safety and electromagnetic compatibility requirements. Before delivering to
the customer, the inverter has been subjected to several tests to ensure its optimal operation
and reliability.
In case of failure, the LCD screen will display an alarm message. In this case, the inverter
may stop feeding into the grid. The failure descriptions and their corresponding alarm
messages are listed in Table 9.1:
9. Troubleshooting
