C&C TECHNIC VS-12HF User manual

VIDEO
SPLITTER
(VS-12HF)
1 In 2 Out
(VS-14HF)
1 In 4 Out
USER MANUAL V1.0
VS-12HF/VS-14HF
Package Contents-
1 Smart View VS-12HF or VS-14HF Video Splitter
1 user manual
1 power adapter DC 9V
2 screws
4 foot pads
Any thing missed, please contact with your vendor.
Introduction
Through the video splitter VS-12HF or VS-14HF, you can
use one PC to display identical image on 2,4 monitors or
even more.
Video splitter is ideal for:
Test bench facilities
Data Center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
Extends the video signal up to 65 meter (213 feet).
Supports the DDC, DDC2, DDC2B. (For video out port
1).
Can be cascaded.
The output is compatible with standard VGA card.
Specifications
Function VS-12HF VS-14HF
Video Input Connector
(HD-15 Male) 1
Video Output Connector
(HD-15 Female) 2 4
Max. Resolution 1920 x 1440 60 Hz
Cable Distance
(Device to Monitor) 65 m (213 feet) Max.
Signal Type VGA, SVGA, XGA, Multisync
Power Adapter (Min.) DC 9V
Housing Metal
Weight 320g 500g
Dimensions (LxWxH)
mm 150*84*25 230*84*25
-1-
Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal Sync
6 Analog Ground 14 Vertical Sync
7 Analog Ground 15 ID3
8 Analog Ground
FRONT VIEW
1. ”Video In” Port
2. Power LED
3. Input Power Jack
REAR VIEW
1. ”Video Out” Port
-2-

Installation
1. Turn off the PC and monitors.
2. Connect the HD-15 video extension cable between the
PC and the “video in” port of splitter.
3. Connect the HD-15 video extension cables between the
monitors and the “video out” ports of splitter.
4. Connect the power cord and turn on the splitter.
5. Turn on the PC and monitors.
Note:
If you install the DDC monitor for the splitter, the rest of
monitors must be the same resolution as the DDC
monitor.
Available monitors include the VGA, SVGA, XGA,
Multisync, and exclude the CGA, EGA, Mono.
Operation for cascade:
1. The function to display identical image on more monitors,
you request to attach another splitter.
2. Connect the HD-15 male/male video extension cable
between the “video out” port of the former splitter and
the “video in” port of the latter splitter.
Note:
Even though you are allowed to cascade the splitter with
varied ports, the image might become unstable if cascade
too many tiers of splitters.
-3-

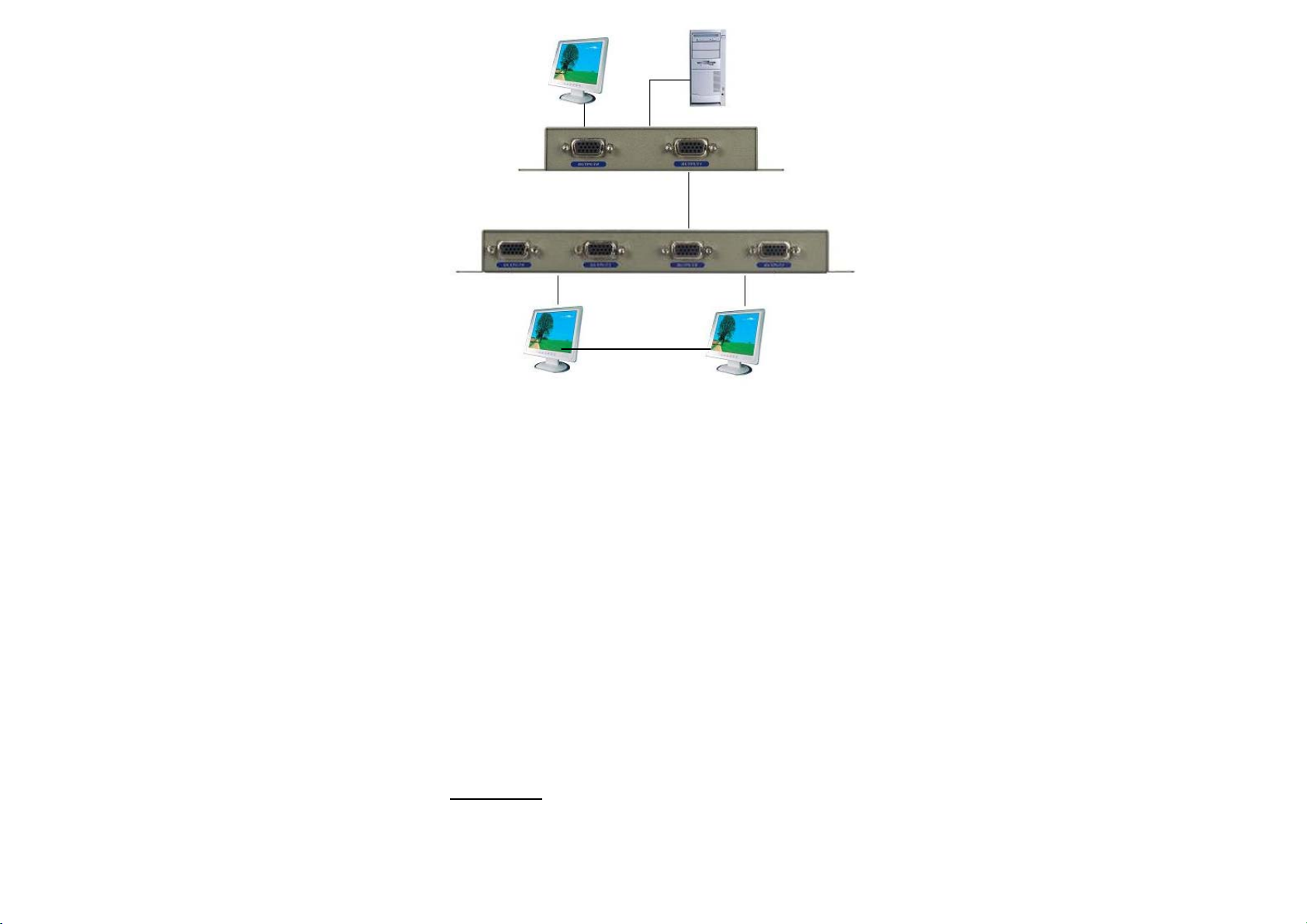

P.S.: The example cascades the 2 and 4ports splitters;
however, you can cascade the video splitter with
demanded port.
